HD14RGSG-STAGE3 - Hi-Fi System Rockford Fosgate - Free user manual and instructions

Product Type	Hi-Fi Car Audio System
Brand	Rockford Fosgate
Model	HD14RGSG-STAGE3
Dimensions (W x H x D)	12.0 x 2.5 x 8.0 inches
Weight	4.5 lbs
Power Output (RMS)	50W x 2 @ 4 ohms
Peak Power	100W x 2
Frequency Response	20Hz - 20kHz
Input Sensitivity	0.2V - 4V
Signal-to-Noise Ratio	>90 dB
Total Harmonic Distortion	<0.05%
Built-in Crossover	Yes (High-pass/Low-pass)
Bass Boost	Yes (0-12 dB)
Speaker Impedance	4 ohms
Power Supply	12V DC (Typical car battery)
Fuse Rating	30A
Cooling	Convection cooling fins
Protection Circuit	Thermal, over-current, short circuit
Installation	In-dash or under-seat mount
Warranty	1 year limited
Care & Cleaning	Wipe with dry cloth; avoid liquids
Safety	Disconnect battery before installation; use proper fusing
Spare Parts	Contact Rockford Fosgate or authorized dealer
Repairability	Serviceable by qualified technician only
Manual	Available for free download on notice-facile.com

Frequently Asked Questions - HD14RGSG-STAGE3 Rockford Fosgate

How do I connect the HD14RGSG-STAGE3 to my car's stereo?

Use high-quality RCA cables from your head unit's preamp outputs to the amplifier's input. Ensure the head unit has a dedicated subwoofer or front/rear output. Alternatively, use speaker-level inputs if no RCA outputs are available.

What gauge power wire should I use for this amplifier?

For the HD14RGSG-STAGE3, a 8-gauge power wire is sufficient for runs up to 15 feet. For longer runs, use 4-gauge to minimize voltage drop. Always fuse the wire within 18 inches of the battery.

Can I bridge the amplifier to power a single subwoofer?

Yes, the amplifier can be bridged. Connect the positive terminal of Channel 1 and the negative terminal of Channel 2 to the subwoofer. The bridged output provides 100W RMS at 4 ohms.

What is the recommended speaker impedance for optimal performance?

The amplifier is stable into 4 ohms per channel in stereo mode and 4 ohms bridged. Using 2-ohm loads may cause overheating and is not recommended.

How do I properly adjust the gain and crossover settings?

Set the gain using a multimeter or oscilloscope to match the head unit's output without distortion. For the crossover, select low-pass for subwoofers and high-pass for full-range speakers. Start with the frequency at 80Hz and adjust by ear.

Why does my amplifier go into protection mode?

Protection mode can be triggered by short circuits, low impedance, overheating, or voltage drop. Check speaker connections, ensure proper ventilation, and verify the power supply is at least 12V.

Is this system suitable for marine or outdoor installations?

The HD14RGSG-STAGE3 is designed for car audio use and is not fully marine-rated. For marine installations, consider Rockford Fosgate's IPX6-rated products. Avoid exposure to moisture and saltwater.

Does the package include all necessary mounting hardware?

The package includes mounting screws and brackets for standard installation. You will need to supply RCA cables, speaker wire, and power wire separately.

How should I clean and maintain the amplifier?

Use a dry microfiber cloth to gently wipe the exterior. Avoid liquid cleaners and compressed air which can force dust into the vents. Periodically check connection terminals for corrosion.

Where can I download the user manual?

The user manual is available for free on notice-facile.com. Search for HD14RGSG-STAGE3 and select the English version. You can also download PDF directly from the product page.

USER MANUAL HD14RGSG-STAGE3 Rockford Fosgate

Amplifier Quick Setup

Optional Accessory PLC2 (T400X2ad/T500X1bd

CAUTION

Be sure to connect speakers and Punch Level Control - PLC (if equipped) after amplifier output clip adjustment. (see reverse)

* Specifications subject to change without notice. Images depict typical setup. Refer to manual for additional wiring options.

WIRE HARNESS COLOR CODE

Rockford Fosgate

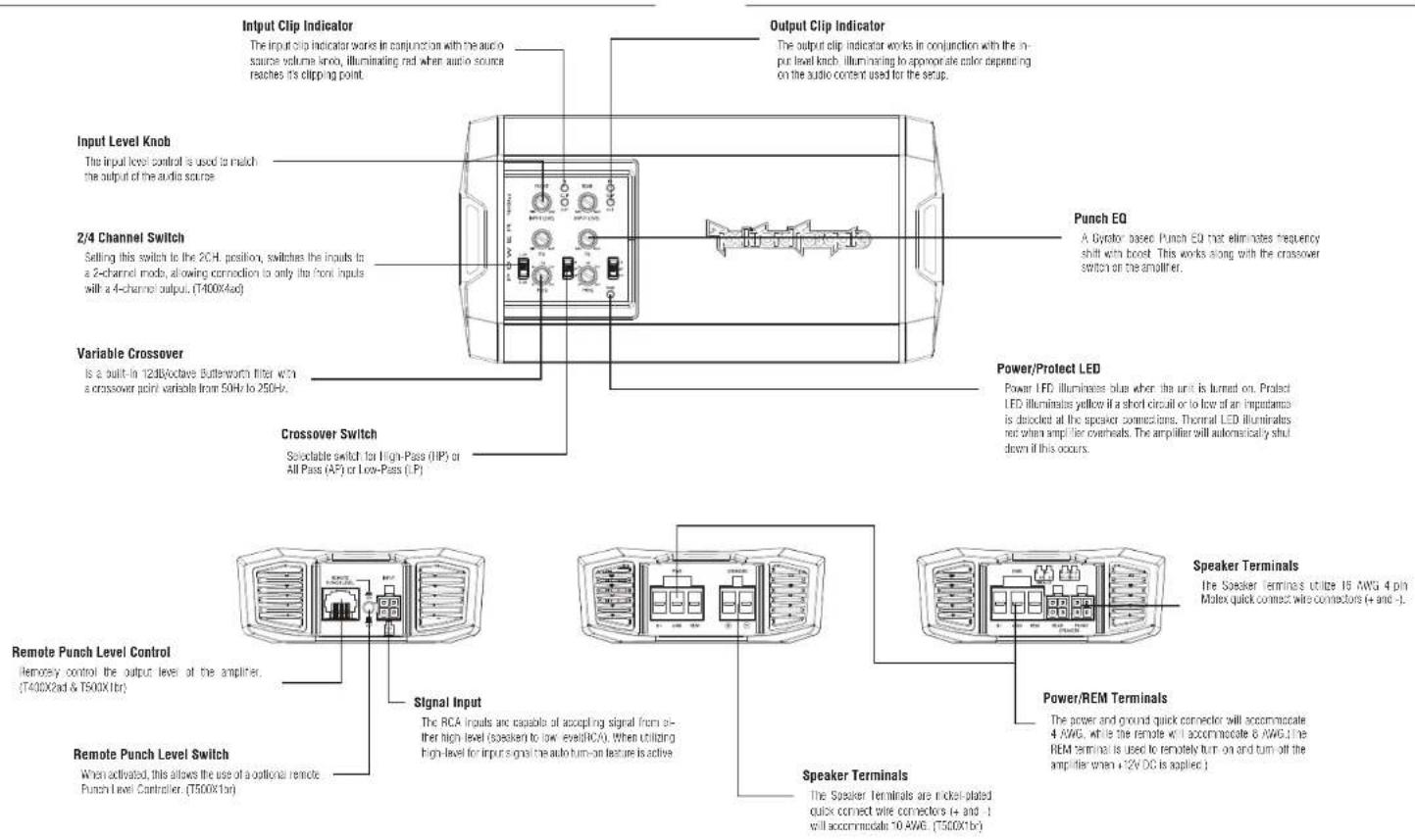

Step 1 - Input

Input Clip Indicator Setup

Be sure to disconnect all speakers from the amplifier.

CAUTION

Failure to comply may cause damage to connected components and/or amplifier.

Step 2 - Input

Turn on the source unit with volume set to zero.

Step 3 - Input

Adjust the Bass & Treble levels on the source unit to flat.

Amplifier Clip Indicator Setup

Step 4 - Input

Insert test tone or music CD to play for setup.

Note: Use the 40Hz @ 0dB tone (Track 5) for mono amplifier applications or the 1kHz @ 0dB tone (Track 7) for multi-channel amplifier applications. Be sure your x-over is switched to the appropriate filter setting.

Step 5 - Input

Increase the source unit volume until the Input Clip Indicator illuminates red.

Note: Input Clip can be viewed remotely with optional PLC2.

Step 6 - Input

Decrease the source unit volume slightly until the light turns completely off. This establishes your maximum source unit volume for adjusting the Output Clip Indicator.

Note: Some source units will not clip.

Step 7 - Output

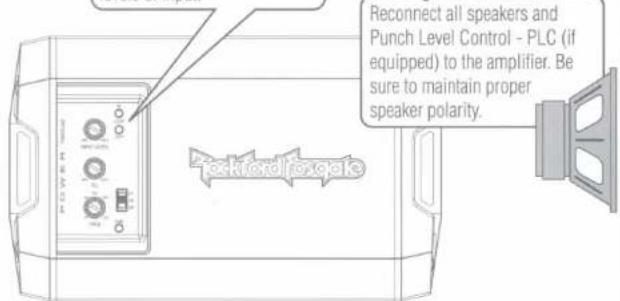

Be sure to disconnect Punch Level Control - PLC (if equipped) from the amplifier.

Step 8 - Output

Output Clip Indicator

Setup

Adjust the Input Level knob until the Output Clip Indicator illuminates to the appropriate color. Repeat for all channel levels of input.

Step 9 - Output

Turn the source unit volume down.

Rockford Fosgate

POWER

T400X2ad • T400X4ad

T500X1br

Introduction

Specifications

Dear Customer.

Congratulations on your purchase of the world's finest brand of car audio products. At Rockford Fesgate we are fanatics about musical reproduction at its best, and we are pleased you choose our product. Through years of engineering expertise, hand craftsmanship and critical testing procedures, we have created a wide range of products that reproduce music with all the clarity and richness you deserve.

For maximum performance we recommend you have your new Rockford Fosgate product installed by an Authorized Rockford Fosgate Dealer, as we provide specialized training through Rockford Technical Training Institute (RTTI). Please read your warranty and retain your receipt and original carton for possible future use.

Great product and competent installations are only a piece of the puzzle when it comes to your system. Make sure that your installer is using 100% authentic installation accessories from Rockford Fosgate in your installation. Rockford Fosgate has everything from RCA cables and speaker wire to power wire and battery connectors. Insist on it. After all, your new system deserves nothing but the best.

To add the finishing touch to your new Rockford Fosgate image order your Rockford accessories, which include everything from T-shirts to jackets.

Visit our web site for the latest information on all Rockford products: www.rockfordfospale.com

or, in the U.S. call 1-800-669-9899 or FAX [phone]. For all other countries, call +001-480-967-2665 or FAX [phone].

Table of Content

2 Introduction

3 Specifications

4-5 Design Features

6-13 Installation

Installation Considerations

Mounting Locations

Battery and Charging

Wiring the System

14-15 Operation

Clip Indicator Setup

Adjusting Crossover Frequency

2/4 Channel Switch

Punch EQ

16 Troubleshooting

17 Limited Warranty Information

If, after reading your manual, you still have questions regarding this product, we recommend that you see your Rosford Icsgate dealer. If you need further assistance, you can call us direct at 1-800-669-9899. Be sure to have your serial number, model number and date of purchase available when you call.

PRACTICE SAFE SOUND

Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. High powered auto sound systems may produce sound pressure levels well over 130dB, use common sense and practice safe sound.

Safely

This symbol with "WARNING" is intended to alert the user to the presence of important instructions. Failure to head the instructions will result in severe injury or death.

This symbol with "CAUTION" is intended to alert the user to the presence of important instructions. Failure to head the instructions can result in injury or unit damage.

• To prevent injury and damage to the unit, please read and follow the instructions in this manual. We want you to enjoy this system, not get a headache.
• If you feel unsure about installing this system yourself, have it installed by a qualified Rockford Fosgate technician.
• Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

Mode T400X2ad T400X4ad T500X1br

Rated PowerContinuous PowerRating (MHz)/Measured dB*<10Crossover Stage	200Hz @ 4.5nm200Hz @ 2.7cm400x1 @ 4.5nm	100Hz @ 4.5nm100Hz @ 2.7cm200Hz @ 4.5nm	175x1 @ 4.5dm300x1 @ 2.7dm500x1 @ 1.5dm
	2x10-2x10-4x10-6	2x10-2x10-4x10-6	50x1 - 250Hz
	Range 0 - 14dB @12.5kHz and 0 - 18dB@ 45Hz	Range 0 - 14dB @12.5kHz and 0 - 19dB@ 45Hz	Range 0 - 16dB @45Hz
Operating Voltage	9VDC 9 - 16VDC 9 - 16VDC
Frequency Response	20x~23dB @ 20Hz~20x~7x10x~250x~7
Battery Type Rating(not supplied)	50Hz 60Hz
THO+V @ FixedPower	<1.0% @ 4.5cm<1.0% @ 2.5cm	<1.0% @ 4.5cm<1.0% @ 2.5cm	<1.3% @ 4.5cm<1.3% @ 2.5cm<1.3% @ 1.5cm
Input Security	150mV-12V 150mV-12V Low 150mV-5V		High 300mV-12V
Input Impedance	20x 20x 20x
S/N Ratio CEA 200%	>60dB >90dB >40dB
S/N Ratio @ FixedPower	>110dB >110dB >110dB
Channel Separation	>60dB >90dB N/A
Common ModeFunction Ratio	>30dB >60dB >40dB
Dimensions (L×W/d)	" × 4.3" × 1.6"100mm X=1cm	8.3"×4.3" × 1.6"2.5mm X=1cm	8.3"×4.3" × 1.6"100mm X=1cm

* Fated power when amplifier is wired in a bridged configuration.

©2014 Rockford Corporation. All Rights Reserved. FORCKFORD FOSGATE and associated boxes where applicable are registered trademarks of Rockford Corporation in the United States and/or other countries. All other trademarks are the property of their respective owners. Specifications subject to change without notice.

CEA 2006

Power ratings on Hotspot Large amplifiers conform to 316-2006 industry standards. These guidelines make your amplifier's output power ratings on REAL POWER members out in used marketing rates.

Installation Installation

Contents

• Power Appliance

• HCA to 4-pin Molex Input

Connectors

• 15 AWG 4-oin Melex SASKER

Connectors) (1400X2ad &

T4004-60

• 10 AWG Speaker Connector

(T500)X1B

Installation Considerations

The following is a list of tools needed for installation:

- Fuse-holder and fuse. (See

specifications for use rating)

• 160-370m L/min

- Wire stippers

• Wire crimpers

• Wire cutters

• #2 Phillips screwdriver

- Battery post wrench

This section focuses on some of the vehicle considerations for installing your new snolther. Pre-planning your system layout and best wiring routes will save installation time. When deciding on the layout of your new system, be sure that each component will be easily accessible for making adjustments.

CAUTION

[Non-Text]

If you feel unsure about installing this sys-

temyourself,haveit insta eobyacquallied

technician

CAUTION

Before installation, disconnect the battery reg

alive (-) terminal to prevent damage to the unit.

fire and/or possible injury.

Before beginning any installation, follow these simple rules:

1. Be sure to carefully read and understand the instructions before attempting to install the unit.
   2 For safety, disconnect the negative lead from the battery prior to beginning the installation.
2. For easier assembly, we suggest you run all wires prior to mounting your unit in place.
3. Route all of the RCA cables close together and away from any high current wires.

4. Use high quality connectors for a reliable installation and to minimize signal or power loss.

5. Think before you drill Be careful not to cut or drill into gas tanks, fuel lines, brake or hydraulic lines, vacuum lines or electrical wiring when working on any vehicle

6. Never run wires underneath the vehicle. Running the wires inside the vehicle provides the best protection.
7. Avoid running wires over or through sharp edges. Use rubber or plastic grommets to protect any wires routed through metal, especially the firewall.
   9 ALWAYS protect the battery and electrical system from damage with proper fusing. Install the appropriate fuse holder and fuse on the -12V power wire within 18" (45.7 cm) of the battery terminal.
8. When grounding to the chassis of the vehicle, scrape all paint from the metal is unsure a good, clear ground connection. Grounding connections should be as short as possible and always be connected to metal that is welded to the main body, or chassis of the vehicle. Sealball balls should never be used for connecting to ground.

Mounting Locations

To ensure optimal performance, record the amplifier with at cas, 1° (2.54cm) of air gap around the amplifier's heat sink to provide proper cooling.

Trunk Mounting

Mounting the amplifier vertically or inverted will provide adequate cooling of the amplifier. Mounting the amplifier on the floor of the trunk will provide the best cooling of the amplifier.

Passenger Compartment Mounting

Mounting the amplifier in the passenger compartment will work as long as you provide a sufficient amount of air for the amplifier to cool itself. If you are going to mount the amplifier under the seal of the vehicle, you must have at least 1" (2.54cm) of air gap around the amplifier's heat sink.

CAUTION

Never mount this unit in the engine

compartment. Mounting the Crit in the engine

Emission will void your warranty.

ATVs, Golf Carts or Motorcycle

When using amplifiers on ATVs, Coil Carls or Motorcycles, Rockford Fos-gate recommends to run both GND (negative) and B+ (positive) cables from the amplifier directly to the battery. We have determined that bushings between frame parts cause an excessively high resistance and is not considered a good electrical ground.

This is especially true with motorcycles. DO

NOT ground the amplifier to the radio chassis.

headlamp or forks because the difference in

ground potential may cause unstable operation.

CAUTION

Be sure all ground connections are properly

terminated for optimum electrical continuity.

Battery and Charging

Amplifiers will put an increased lead on the vehicle's battery and charging system. We recommend checking your alternator and battery condition to ensure that the electrical system has enough capacity to handle the increased load of your stereo system. Stock electrical systems which are in good condition should be able to handle the extra lead of any Prime Series amplifier without problems, although battery and alternator life can be reduced slightly. To maximize the performance of your amplifier, we suggest the use of a heavy duty battery and an energy storage capacitor

Wiring the System

CAUTION

If you do not feel comfortable with wiring your new unit, please see your local Authorized Rockford Fasgate Dealer for installation

CAUTION

Before installation, discerned the battery negative 1-1 terminal to prevent damage to the unit, fire and/or possible injury.

CAUTION

Avoid running power wires near the low level input tables, anionine, power leads, sensitive equipment or harnesses. The power wires carry substantial current and could induce noise into the audio system.

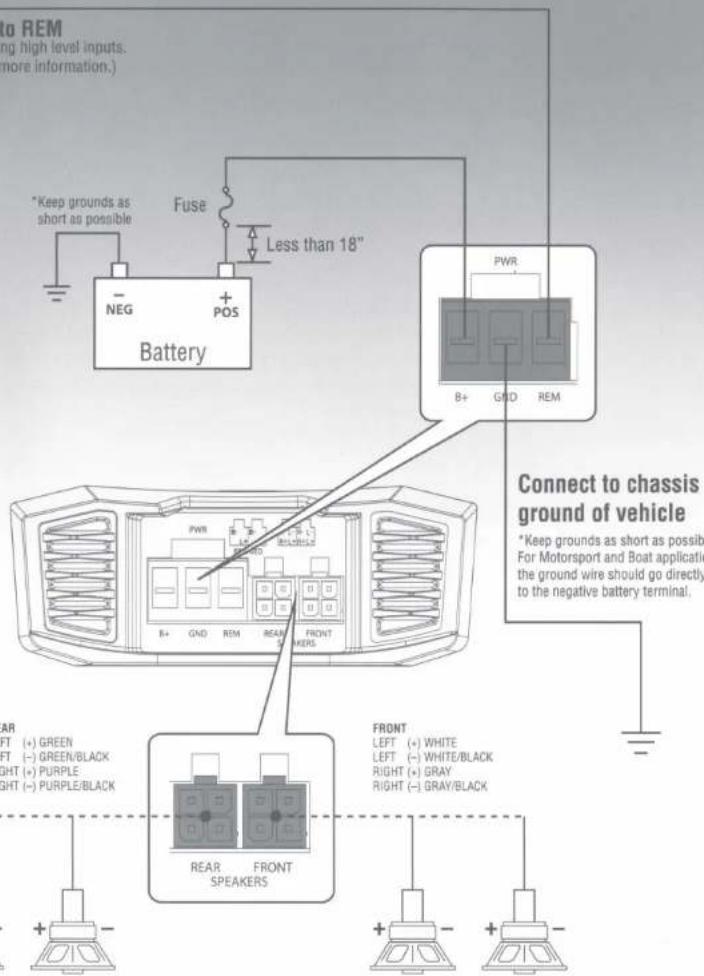

1. Plan the wire routing. Keep RCA cables close together but isolated from the amplifier's power cables and any high-power auto accessories, especially electric motors. This is done to prevent coupling the noise from radiated electrical fields into the audio signal. When feeding the wires through the firewall or any metal barrier, protect them with plastic or rubber grammals to prevent short circuits. I leave the wire long at this point to adjust for a precise fit at a later time.
2. Prepare the RED wire (power cable) for allachment to the amplifier by striping 1/2" of insulation from the end of the wire, insert the bared wire into the B+ terminal and tighten the set screw to secure the cable in place.
   NOTE: The 8+ cable MUST be fused 18" or less from the vehicle's battery. Install the fuse holder under the food and ensure connections are water light.
3. Trim the RLD wire (power cable) within 16" of the battery and splice in a inline fuse holder (not supplied). See Specifications for the rating of the fuse to be used. DO NOT install the fuse at this time.
4. Strip 1/2 from the battery and of the power cable and crimp an apooriolate size ring terminal to the cable. Use the ring terminal to connect to the battery positive terminal.
5. Prepare the BLACK wire (Ground cable) for attachment to the amplifier by shipping 1/2" of insulation from the end of the wire. Insert the bare wire into the GROUND terminal and tighten the sell screw to secure the cable in place. Prepare the chassis ground by scraping any paint from the metal surface and thoroughly clearing the area of all dirt and grease. Strip the other end of the wire and attach a ring connector. Fasten the cable to the chassis using a non-anchored screw and a star washer.

NOTE: Keep the length of the BLACK wire (Ground) as short as possible. Always less than 30°.

1. Prepare the Remote turn-on wire for attachment to the amplifier by stripping 1/2" of insulation from the end of the wire. Insert the bared wire into the RLMCTL terminal and tighten the set screw to secure the wire in place. Connect the other end of the Remote wire to a switched 12 volt positive source. The switched voltage is usually taken from the source unit's remote amp on load. If the surge until does not have this current available, the recommended solution is to write a mechanical switch in line with a 12 volt source to activate the amplifier.
   NOTE: When utilizing high-level for input signal the auto turn-on feature is active. With the auto turn-on active, the REM becomes an output to turn on/off up to two additional amplifiers or other accessories.
2. Securely mount the amplifier to the vehicle or ampack. Be careful not to mount the amplifier on cardboard or plastic panels. Doing so may enable the screws to pull out from the panel due to road vibration or soccer vehicle stops.
3. Connect from source signal by plugging into the RCA input jacks at the amplifier. The input sensitivity ranges from 150mV-12V to accommodate signal from either high-level(speaker) to low-level (RDA).
   NOTE: All "ACTIVE" inputs must have quick connectors connected. Switch in 2CH, position, "ACTIVE" - Front channel inputs only. Switch in 4CH, position, "ACTIVE" - All Front and Rear channel inputs. Be sure to route front and rear RCA cables lightly together.

CAUTION

Always ensure power is off or disconnected at

the amplifier before connecting input cables.

Failure to do so may cause carriage to the arm-

willer and/or connected components.

1. Connect the speakers. Strip the speaker wires 1/2" and insert into the speaker terminal and tighten the sat screw to secure into place. Be sure to maintain proper speaker polarity. DO NOT chassis ground any of the speaker leads as unstable operation may result.
2. Perform a final check of the completed system wiring to ensure that all connections are accurate. Check all power and ground connections for frayed wires and loose connections which could cause problems. Install inline fuse near battery connection.
   NOTE. Follow the diagrams for proper signal polarity.

CAUTION

This amplifier is not recommended for im

poderice Icais hiew 2-0nm slamcy4-0YH

bridged for the micro-channel amplifiers and 1-chp for mean amplification.

Installation Installation

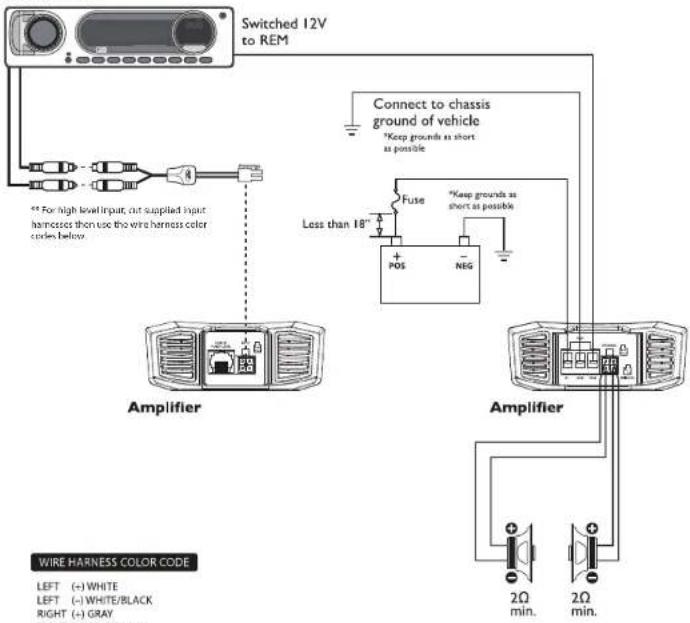

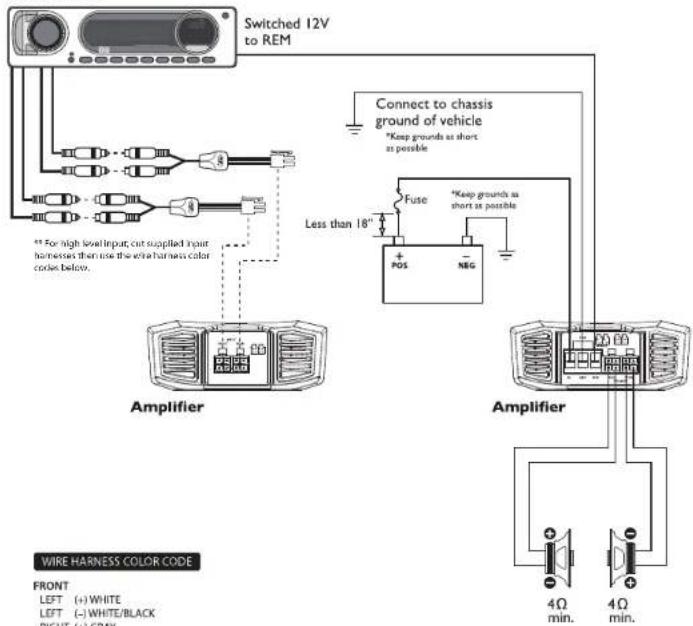

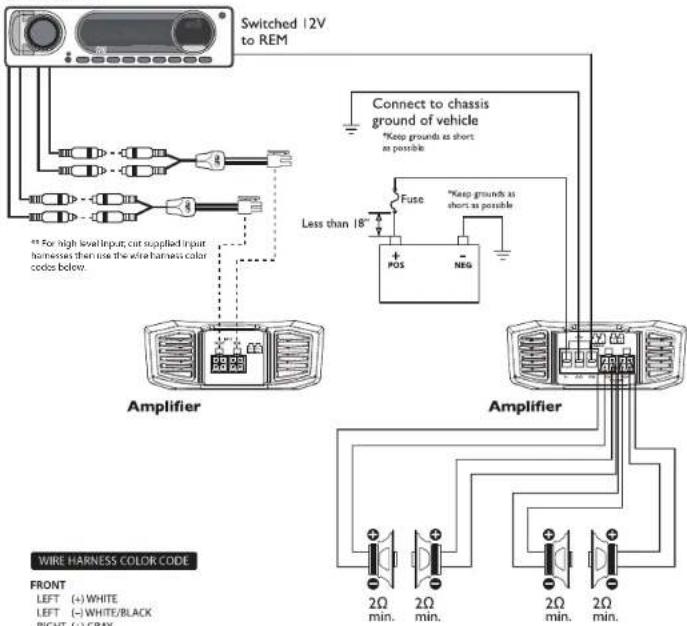

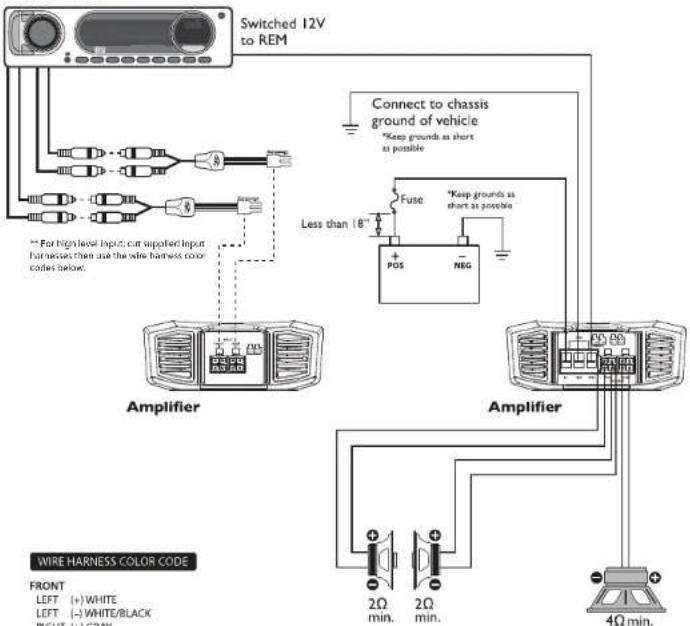

2-Channel (Stereo) T400X2ad

Source Unit

WARNING

ATVs, Golf Carts or Motorcycle

When using amplifiers on ATVs, Golf Carts or Motorcycles, Rockford Foggate recommends to run both GND (negative) and B+ (positive) cables from the amplifier directly to the battery.

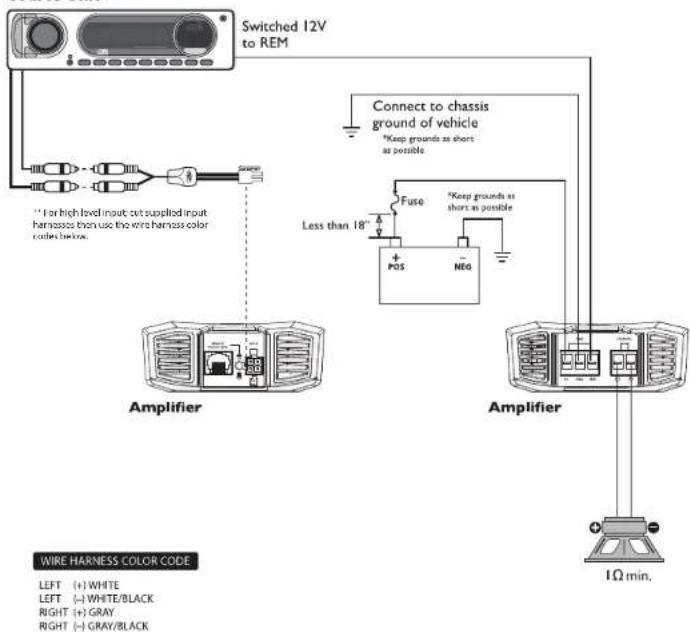

2-Channel (Mono) T400X2ad

Source Unit

WARNING

ATVs, Golf Carts or Motorcycle

When using amplifiers on ATVs, Golf Carts or Motorcycles, Rockford Fosgate recommends to run both GND (negative) and B+ (positive) cables from the amplifier directly to the battery.

(12.7)

No.2

Installation Installation

4-Channel (Stereo)

T400X4ad

Source Unit

WIRE HARNESS COLOR CODE

FRONT

LEFT (+) WHITE

LEFT (-)WHITE/BLACK

RIGHT (+) GRAY

RIGHT (-) GRAY/BLACK

REAR

LEFT (+) GREEN

LEFT (-) GREEN/BLACK

RIGHT (+) PURPLE

RIGHT (-) PURPLE/BLACK

WARNING

ATVs, Golf Carts or Motorcycle

When using amplifiers on ATVs, Golf Carts or Motorcycles, Rockford Fosgate recommends to run both GND (negative) and B+ (positive) cables from the amplifier directly to the battery.

4-Channel (2ch Stereo & 1ch Mono-Bridged)

T400X4ad

Source Unit

WIRE HARNESS COLOR CODE

FRONT

LEFT (+)WHITE

LEFT (-) WHITE/BLACK

RIGHT (+) GRAY

RIGH

REAR

LEFT (+) GREEN

LEFT (-) GREEN/BLACK

RIGHT (+) PURPLE

RIGHT (-) PURPLE/BLACK

WARNING

ATVs, Golf Carts or Motorcycle

When using amplifiers on ATVs, Golf Carts or Motorcycles, Rockford Fosgate recommends to run both GND (negative) and B+ (positive) cables from the amplifier directly to the battery.

1.2010.24

Installation

Installation

4-Channel (2ch Mono-Bridged) T400X4ad

Source Unit

WIRE HARNESS COLOR CODE

FRONT
LEFT (+) WHITE
LEFT (-)WHITE/BLACK
RIGHT (+) GRAY
RIGHT (-) GRAY/BLACK
REAR
LEFT (+) GREEN
LEFT (-) GREEN/BLACK
RIGHT (+) PURPLE
RIGHT (-) PURPLE/BLACK

WARNING

ATVs, Golf Carts or Motorcycle

When using amplifiers on ATVs, Golf Carts or Motorcycles, Rockford Fosgate recommends to run both GND (negative) and B+ (positive) cables from the amplifier directly to the battery.

Mono Wiring T500X1br

Source Unit

WARNING

ATVs, Golf Carts or Motorcycle

When using amplifiers on ATVs, Golf Carts or Motorcycles, Rockford Fosgate recommends to run both GND (negative) and B+ (positive) cables from the amplifier directly to the battery.

11.73

2

10.75

13

Input Clip Indicator Setup

Step 1. Be sure to disconnect all speakers from the amplifier.

CAUTION

Failure to comply may cause damage to con- ncled components and/or amplifier.

Step 2. Turn on the source unit with volume set to zero

Step 3. Adjust the Bass & Treble levels on the source unit to flat.

Step 4. Insert test tone or music CD to play for setup.

Note: Use the 40Hz @ CdB tone (Track 5) for mono amplifier applications on the 1kHz @ CdB tone (Track 7) for multi-channel amplifier applications. Be sure your x-over is switched to the appropriate filter setting.

Step 5. Increase the source unit volume until the input Clip Indicator if luminates red.

Note: Input Cip can be viewed remotely with optional PLC2.

Sep 6. Decrease the source unit volume slightly until the light turns completely off. This establishes your maximum source unit volume for adjusting the Cutgut Clip Indicator

Note: Some source units will not ciba.

Output Clip Indicator Setup

Step 7. Be sure to disconnect Punch Level Control - PLC (if equipped) from the amplifier.

Step 8. Adjust the Input Level knob until the Output Clip Indicator Illuminates to the appropriate color. Repeat for all channel levels of Input.

Step 3. Turn the source unit volume down

Step 10. Reconnect all speakers and Punch Level Control PLC (in equipped) to the amoliter. Be sure to maintain proper speaker polarity.

Adjusting Crossover Frequency

Do the following individually for each channel.

Placing the crossover switch in the HP position sets the amplifier to the High Pass mode, enabling frequencies above the cut-off point to pass, adjustable between 50-250Hz.

Placing the crossover switch in the AP position sets the amplifier to the All Pass mode, preventing any crossover adjustment, allowing all frequencies to pass.

Placing the crossover switch in the LP position sets the amplifier to the Low Pass mode, enabling frequencies below the cut-off point to pass, adjustable between 50-250 Hz.

Turn the crossover adjustment knob all the way down. With the system playing, turn the crossover adjustment knob up slowly until the desired crossover point is achieved.

2/4 Channel Switch

Setting this switch to the 2CH position, switches the inputs in a 2-channel mode, allowing connection to only the front inputs with a 4-channel output.

Circuit controls function the same as if the amplifier was in 4-channel mode.

All "ACTIVE" inputs must have RCA jacks connected. Switch in 2CH. position, "ACTIVE" - Front channel inputs only Switch in 4CH. position, "ACTIVE" - All Front and Rear channel inputs

NOTE: When connecting to the 4-Channel inputs, be sure to route both front and rear RCA cables tightly together.

High Level Input

Connect from source signal by plugging into the RCA input jacks at the amplifier. The input sensitivity ranges from 150mV-12V to accommodate signal from high-level (speaker) input. When utilizing high-level for input signal the auto turn-on feature is active. With the auto turn-on active, the REM becomes an output to turn on/off up to two additional amplifiers or other accessories.

Punch EQ

This works along with the crossover switch on the amplifier. When set to Low-Pass (LP) operation, this is a variable Bass Boost. When set to High-Pass (HP) operation, this is a variable Mild Bass and Treble Boost. When set to All-Pass (AP) operation, both the Bass and Treble frequencies are boosted. Set this to your personal preference while listening to the system.

CAUTION Over excursion and subsequent damage may occur at high levels of boost.

Remote Punch Level Control (Option)

NOTE: Previous(prior to 2013)PEG PunchBassardPare-Punch remedies will not work with these amplifiers.

Quick Install:

1. Using the screws supplied, install the mounting clip.

2. Slip the remote onto the mounting clip until it snaps into place.

3. Route and connect the cable to the remote and amplifier.

Operation:

1. When connected, the "Subwoofer Level Control" is linked and allows you to remotely control the output level of the amplifier from the dash or center console.

For the T500X1br, the Female Punch Level Control needs to be switched to the "ON" position for this feature to be active. The T400X2ad needs to be switched in "Low-Pass" for this feature to be active. This feature is not available on the T400X4ad.

NOTE: Use the instructions that came with the remote for a variety of mountings that fit your preference.

Troubleshooting

Warranty

Troubleshooting

NOTE: If you are having problems after installation follow the Troubleshooting procedures below.

Check Amplifier for proper connections. Verify that POWER light is on. If POWER light is on skip to Step 3, if not continue.

1. Check In-line fuse on battery positive cable. Replace it necessary.
2. Check fuse(s) on amplifier. Replace it necessary.
3. Verify that Ground connection is connected to clean metal on the vehicle's chassis. Repair/replace if necessary.
4. Verify there is 9 to 14.4 volts present at the positive battery and remote turn-on cable. Verify quality connections for both cables at amplifier, stereo, and battery/use holder. Repair/replace if necessary. Protect light is on.
5. If the Protect light is on, this is a sign of a possible short in the speaker connections. Check for proper speaker connections and use a volt/ohm meter to check for possible shorts in the speaker wiring. Too low of a speaker impedance may also cause Protect to light.

Check Amplifier for audio output.

1. Verily good RCA input connections at stereo and amplifier. Check entire length of cables for kinks, splices, etc. Test RCA inputs for AC volts with stereo on. Repair/replace if necessary.
2. Disconnect RCA input from amplifier. Connect RCA input from test slane directly to amplifier input

Check Amplifier if you experience Turn-on Pop.

1. Discreed input signal to amplifier and turn amplifier on and off.
2. If the noise is eliminated, connect the REMOTE load of amplifier to source unit with a delay turn-on module.

OF

1. Use a different 12 Volt source for REMOTE load of amplifier.

Check Amplifier if you experience excess Engine Noise.

1. Route all signal carrying wires (RGA, Speaker cables) away from power and ground wires. OR
2. Bypass any and all electrical components between the stereo and the amplifier(s). Connect stereo directly to input of amplifier. If noise goes away the unit being bypassed is the cause of the noise.
   OR
3. Remove existing ground wires for all electrical components. Reground wires to different locations. Verify that grounding location is clean, shiny metal free of paint, rust etc.
   OR
4. Add secondary ground cable from negative battery terminal to the chassis metal or engine block of vehicle.
   OR
5. Have allorator and battery load tested by your mechanic. Verify good working order of vehicle electrical system including distributor, spark plugs, spark plug wires, voltage regulator etc.

Remote not functioning.

1. BD amplifiers remote switch in "ON" position.
   OR
2. Remote plugged into remote PLC "IN" port
   Remote Lights not functioning.
3. Remote plugged into remote PLC "IN" port

Rockford Corporation offers a limited warranty on Rockford Fosgate products on the following terms: Length of Warranty

Speakers, Signal Processors, PRIME and PUNCH Amplifiers – 1 Year
POWER Amplifiers - 2 Years
Any Factory Refurbished Product - 90 days (receipt required)

What Is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase.

Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What Is Not Covered

1. Damage caused by accident, abuse, improper operations, water, theft, shipping
2. Any cost or expense related to the removal or reinstallation of product.
3. Service performed by anyone other than Rocklord or an Authorized Rocklord Fosgate Service Center.
4. Any product which has had the serial number defaced, allared, or removed.
5. Subsequent damage to other components.
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fsgate Dealer.

Limit on Implied Warranties

Any implied warranties including warranties of illness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fespala any other liability in connection with the sale of the product.

How to Obtain Service

Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-699-9899 for Rockford Customer Service. You must obtain an HW (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

Installation assistance available at:

RFTECH

www.rockfordfosgate.com/rftech

CERTIFICATE OF PERFORMANCE VERIFICATION

Rockford Jusgate

Model #:

TM400X4AD

Serial #:

Birth Date:

04/16/2015

Test System:

RF-RATS-4

IDle CurrentMeasure Current Draw at Idle

System VoltageCheck System Reference Voltages

A

PASS

V1

4.954

V2

N/A

BiasSet Output Channel Bias

High Rail VoltageCheck Amplifier Rail Voltages

CH1

N/A

CH2

N/A

CH3

N/A

CH4

N/A

V1

39.64

V2

-39.44

V3

N/A

DC OffsetCheck for No DC Voltage on Outputs

Low Rail VoltageCheck Amplifier Rail Voltages

CH1

.003

CH2

.004

CH3

.004

CH4

.001

CH5

N/A

V1

15.19

V2

-15.59

Dark CurrentCurrent Draw < 100uA

Gain TrackingCheck Gain Tracking Between Channels (dB)

A

PASS

CH1

0.948

CH2

0.948

CH3

0.178

CH4

0.178

Frequency Response20Hz-20kHz Sweep @ 1W RMS

High Pass Crossover Check20Hz-20kHz Sweep @ 1W RMS

CH1

PASS

CH2

PASS

CH3

PASS

CH4

PASS

CH5

N/A

CH1

PASS

CH2

PASS

CH3

PASS

CH4

PASS

CH5

N/A

Remote Level & 2/4/5 Ch. Select Check20Hz-20kHz Sweep @ 1W RMS

Low Pass Crossover & Punch EQ Check20Hz-20kHz Sweep @ 1W RMS

CH1

N/A

CH2

N/A

CH3

N/A

CH4

N/A

CH5

N/A

CH1

PASS

CH2

PASS

CH3

PASS

CH4

PASS

CH5

N/A

Common Mode Rejection Rated20Hz-20kHz Sweep @ 1W RMS

Channel Separation from Left to Right20Hz-20kHz Sweep @ Rated RMS Power

CH1

PASS

CH2

PASS

CH3

PASS

CH4

PASS

CH5

N/A

CH1

PASS

CH2

PASS

CH3

PASS

CH4

PASS

CH5

N/A

Signal to Noise Ratio20Hz-20kHz Sweep @ Rated RMS Power

Total Harmonic Distortion20Hz-20kHz Sweep @ 1W RMS (%)

CH1

PASS

CH2

PASS

CH3

PASS

CH4

PASS

CH5

N/A

CH1

0.032

CH2

0.021

CH3

0.031

CH4

0.026

CH5

N/A

Input SensitivityCheck Sensitivity @ Minimum

Total Harmonic Distortion Rated (%)20Hz-20kHz Sweep @ Rated RMS Power

CH1

PASS

CH2

PASS

CH3

PASS

CH4

PASS

CH5

N/A

CH1

0.232

CH2

0.209

CH3

0.223

CH4

0.211

CH5

N/A

RELIABILITY

Short ProtectShort All Channels Sequentially @ 1% THD

Thermal TestThermistor Voltage Check

CH1

PASS

CH2

PASS

CH3

PASS

CH4

PASS

CH5

N/A

TH1

0.545

TH2

6.460

TH3

0.009

TH4

0.569

TH5

N/A

Burn-In AmplifierAccelerated Life Monitor (45 sec. @ 1% THD)

CH

PASS

TH

PASS

V

PASS

BIAS

N/A

IR

PASS

POWER	Channel PowerIndividual Channel Power @ 1% THD @2 Ω								Total PowerTotal RMS Power @ 1% THD546 watts
	CH1	139	CH2	139	CH3	135	CH4	135
	Total PowerTotal RMS Power @ Each Impedance @ 1% THD
	4Ω	461	2Ω	546	1Ω	N/A	2/1Ω	N/A

ALL Rockford Fosgate amplifiers are designed, developed, manufactured and tested in accordance with the CEA-2006 amplifier rating requirements. All tests conducted at 14.4Vdc, Min. Impedance, 1kHz(ab/ad) or 100Hz (bd) unless otherwise stated.
©2013 Rockford Corporation. All Rights Reserved. ROCKFORD FOSGATE, and associated logos where applicable are registered trademarks of Rockford Corporation in the United States and/or other countries. All other trademarks are the property of their respective owners. Specifications subject to change without notice.

Rockford Fosgate.

Are You Engineered to Rock?

Get a One-Year Extended Warranty when you use a matching Rockford Fosgate Amplifier Installation kit with your Amplifier!

We want you to get the performance and reliability that made Rockford Fosgate Amplifiers famous. Using poor-quality under-spec wiring is a guaranteed way to get less than you paid for from your system.

We are so certain that getting your system wired to rock with the right wire and cables will make a difference, that we will give you an additional 1 year warranty on your amp when you use the matching amplifier installation kit. See your dealer to determine the matching kit for your amplifier.

To extend your warranty under this program attach the serial number sticker or UPC code removed from the original amplifier installation kit package in the box below. Keep this form along with your original purchase receipt.

One warranty extension per amplifier regardless of the number of amplifier kits purchased. Amplifier and wiring kit must be purchased at the same time.

What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered

1. Damage caused by accident, abuse, improper operations, water, theft, shipping
2. Any cost or expense related to the removal or reinstallation of product
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center
4. Any product which has had the serial number defaced, altered, or removed
5. Subsequent damage to other components
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service Under the Extended Warranty Program

The amplifier must be returned by the customer (you) or an authorized Rockford Fosgate retailer with a copy of the original receipt and the ORIGINAL Performance Verification Certificate with the serial number or UPC code from the amp installation kit. Contact your Authorized Rockford Fosgate Dealer or our Customer Support Specialists (1-800-669-9899) for assistance.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

"This Additional One-Year Warranty" is only available where allowed under local laws.

Attach Amplifier Installation Kit Serial Number or UPC Code from original packaging here.

2014+ H-D SADDLEBAG LID SPEAKER KIT

TMS69BL14

Dear Customer,

Congratulations on your purchase of the world's finest brand of audio products. At Rockford Fosgate we are fanatics about musical reproduction at its best, and we are pleased you chose our product. Through years of engineering expertise, hand craftsmanship and critical testing procedures, we have created a wide range of products that reproduce music with all the clarity and richness you deserve.

For maximum performance we recommend you have your new Rockford Fosgate product installed by an Authorized Rockford Fosgate Dealer, as we provide specialized training through Rockford Technical Training Institute (RTTI). Please read your warranty and retain your receipt and original carton for possible future use.

Great product and competent installations are only a piece of the puzzle when it comes to your system. Make sure that your installer is using 100% authentic installation accessories from Rockford Fosgate in your installation. Rockford Fosgate has everything from RCA cables and speaker wire to power wire and battery connectors. Insist on it! After all, your new system deserves nothing but the best.

To add the finishing touch to your new Rockford Fosgate image order your Rockford accessories, which include everything from T-shirts to hats.

Visit our web site for the latest information on all Rockford products;

www.rockfordfosgate.com

or, in the U.S. call 1-800-669-9899 or FAX [phone]. For all other countries, call +001-480-967-3565 or FAX [phone].

Table of Contents

2	Introduction
3	Installation
4	Warranty

If, after reading your manual, you still have questions regarding this product, we recommend that you see your Rockford Fosgate dealer. If you need further assistance, you can call us direct at 1-800-669-9899. Be sure to have your serial number, model number and date of purchase available when you call.

PRACTICE SAFE SOUND

Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. High powered auto sound systems may produce sound pressure levels well over 130dB. Use common sense and practice safe sound.

Safety

This symbol with "WARNING" is intended to alert the user to the presence of important instructions. Failure to heed the instructions will result in severe injury or death.

This symbol with "CAUTION" is intended to alert the user to the presence of important instructions. Failure to heed the instructions can result in injury or unit damage.

WARNING

CAUTION

• To prevent injury and damage to the unit, please read and follow the instructions in this manual. We want you to enjoy this system, not get a headache.
• If you feel unsure about installing this system yourself, have it installed by a qualified Rockford Fosgate technician.
• Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

Model	TMS69
Nominal Diameter - inch (mm)	6 x 9(152 x 229)
Description	2-Way
Nominal Impedance (Ohms)	4Ω
Frequency Response (Hz)	56-20kHz
Voice Coil Diameter - inch (mm)	1.4(35.6)
Power Handling - Watts (RMS/Peak)	100/200
Fs - Free Air Resonance (Hz)	75
Qts	1.63
Vas - cu. ft.(Liter)	0.593(16.8)
Sensitivity (1W/1M)	89dB
Sensitivity (2.83V/1M)	92dB
Xmax - inch (mm)	0.12(3)

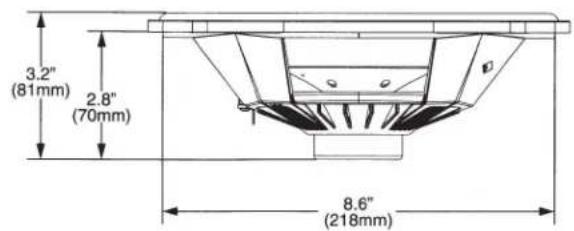

Mounting Diameter	8.7 x 5.8(218 x 147)
Mounting Depth	2.8(71)
Grille/Trim Ring	NO

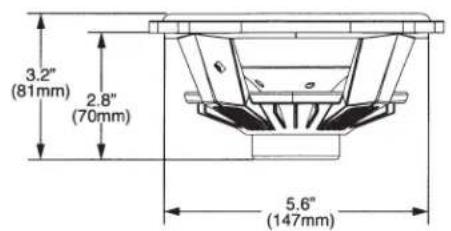

See page 4 for additional dimensions

CEA 2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards. This means your speaker has the capacity to handle power under continuous demand, not instantaneous power handling that over time can damage voice coils.

VERIFIED WITH KLIPPEL

To adorn the "Verified with Klippel" mark, the qualifying company's loudspeaker engineering personnel must be trained and certified by Klippel prior to using the three separate Klippel systems to design, develop and test. Rockford Fosgate has made the investment in Klippel to deliver the best possible speakers and subwoofers to their customers.

TMS69

Contents

• (2) TMS69 Speakers

• (1) Main Harness

• (2) Speaker Grilles

• (2) Saddlebag Harnesses

• (2) Mounting Rings

- Plastic Wire Tie Wraps

• (2) Cutting Templates

- Plastic Cable Tie Mounts

• (16) Mounting Screws

Installation Tools

The following is a list of suggested tools needed for installation:

- Drill

• Small Flat Blade Screwdriver

• Jigsaw / Airsaw

• Phillips Screwdriver

• 1/8" Drill Bit

- Torx Drivers

- 5/16" Drill Bit

- Socket set

• 3/4" Hole Saw

- Masking Tape

- Wire Cutters

Installation Considerations

This section focuses on some considerations for installing your Harley-Davidson® saddlebag lid speaker kit.

If you feel unsure about installing this system yourself, have it installed by a qualified technician.

When drilling holes, make sure what is on the other side. Be sure that any electrical, fuel lines or any other important components are free and clear from the area.

WARNING

Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

CAUTION

Before beginning any installation, follow these simple rules:

CAUTION

Be sure to carefully read and understand the instructions before attempting to install these speaker kits.

• Consult your motorcycles's service manual for model specific information. Models may differ from year to year depending on factory options and aftermarket accessories added.
• This speaker kit is specifically designed to work with Rockford Fosgate's Punch® and Power series compact amplifiers.
• With the addition of an amplifier or source unit, be sure that your current charging system is in proper working order.
• Visit rockfordfosgate.com for more comprehensive product information.
• Visit our YouTube channel for comprehensive installation videos demonstrating complete installation guides and install tips.

NEED HELP WITH YOUR INSTALLATION?

YOUTUBE VISIT OUR CHANNEL FOR A COMPLETE INSTALLATION VIDEO AND OTHER TIPS WWW.YOUTUBE.COM/USER/ROCKFORDFOSGATE

Applicable Models:

2014+ Harley-Davidson® Motorcycles with Factory Saddlebags

This saddlebag lid speaker kit is designed to work with Rockford Fosgate's compact chassis Punch® and Power series amplifiers.

Step 1. Remove the saddlebag lids, seat, gas tank and fairing cover from the motorcycle.

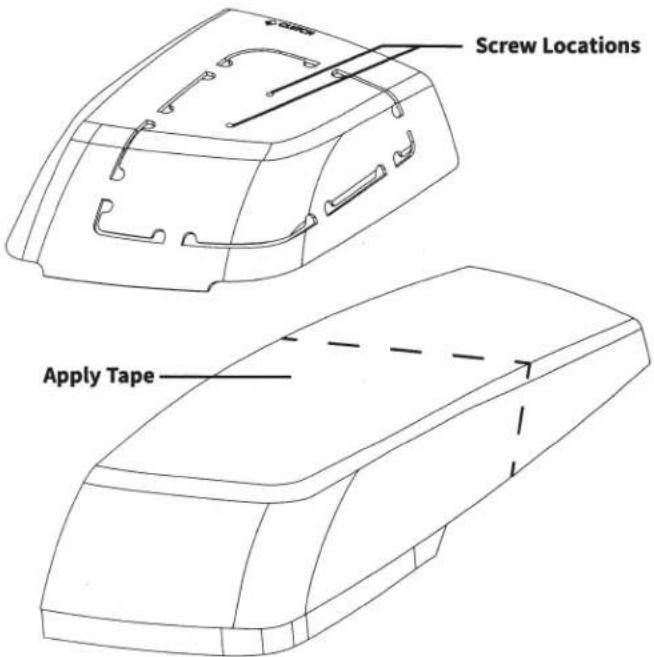

Step 2. Using masking tape, tape over the painted portion of your saddlebag lids.

NOTE: This will prevent any scratching of the factory paint during the installation process.

NOTE: Be sure the template sits snug on all sides and corners of the saddlebag lid before securing.

Step 3. Apply the template to the saddlebag lid and secure using (2) screws that came with the kit.

NOTE: There is a brake and clutch side specific template for each lid. You can use an 1/8" drill bit to predrill holes before screwing the template to the lid. Be sure the template is secured and wont move.

Step 4. Once the template is secured, use a 5/16" drill bit and drill holes in the template.

NOTE: We suggest drilling at every segment to make sawing easier.

Step 5. Using a jigsaw, follow along the template.

NOTE: DO NOT cut the segments of the template until all of the slots have been cut. This will help maintain accuracy and fitment for the grilles.

NOTE: When cutting, be sure that the saw blade stays in between the edges of the template. Cutting into the template will lead to fitment issues.

Technical line drawing of a mechanical fan or impeller assembly (no text or symbols)

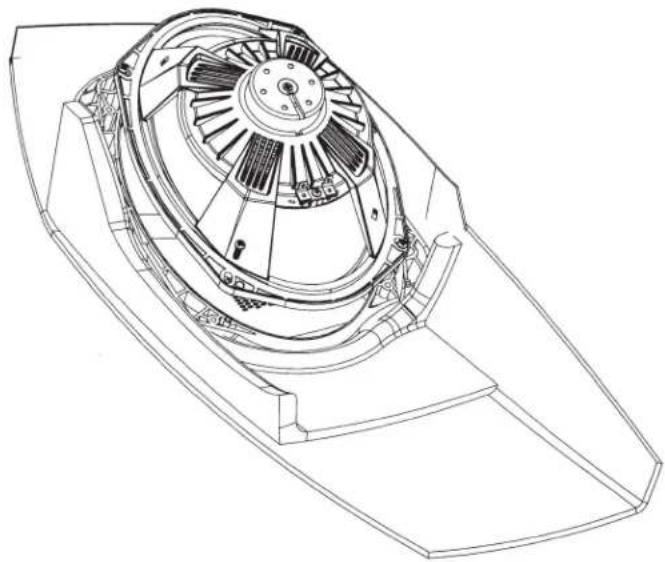

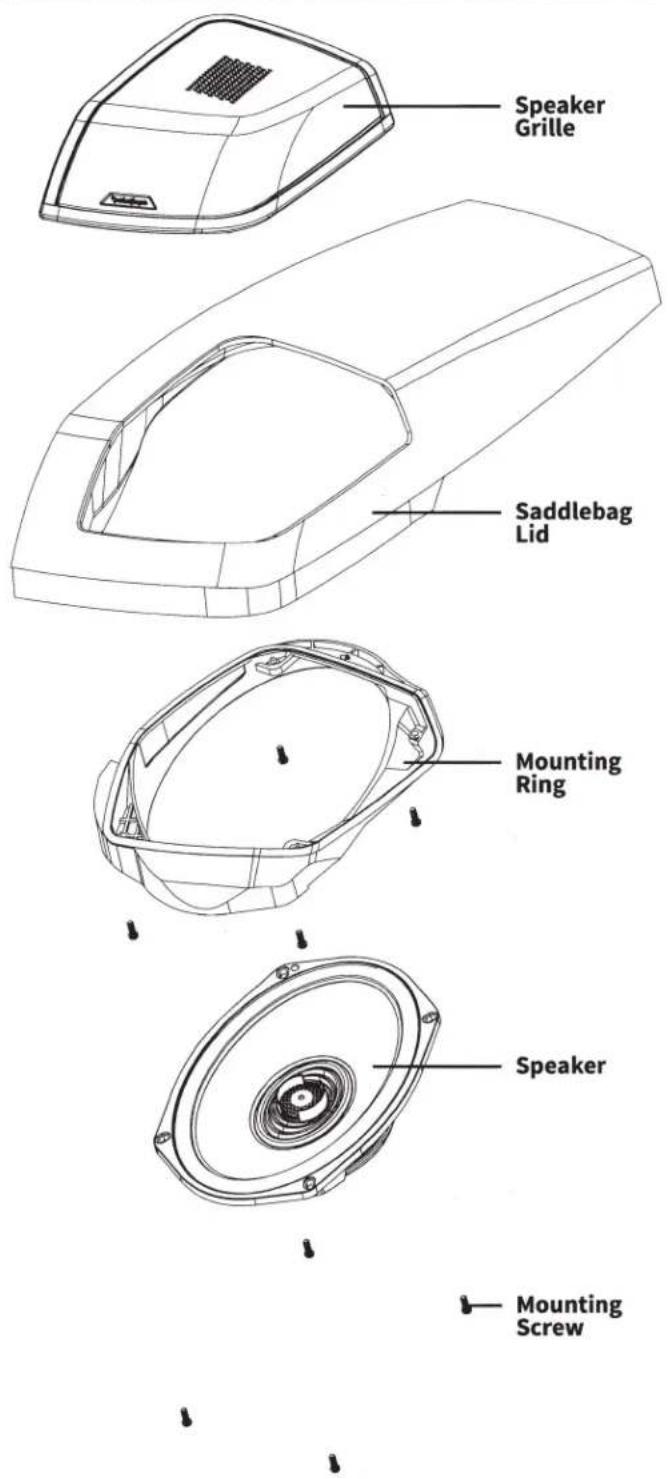

Step 6. Next you will attach the speaker, grille and mounting ring to the lid using the supplied screws.

NOTE: It is easiest to place the grill into the hole that has been cut into the lid and place upside down on a bench. Then place the appropriate mounting ring onto the grille, along with the speaker. Secure with the supplied screws.

Step 7. Run the main harness up the back bone of the bike and to the amplifier under the fairing.

Step 8. Drill a 3/4" hole on the inside of the bag for the saddlebag harness. Once the hole is drilled, insert through the hole and secure the grommet.

Step 9. Place the adhesive backed plastic cable tie mounting tab to the inside of the bag.

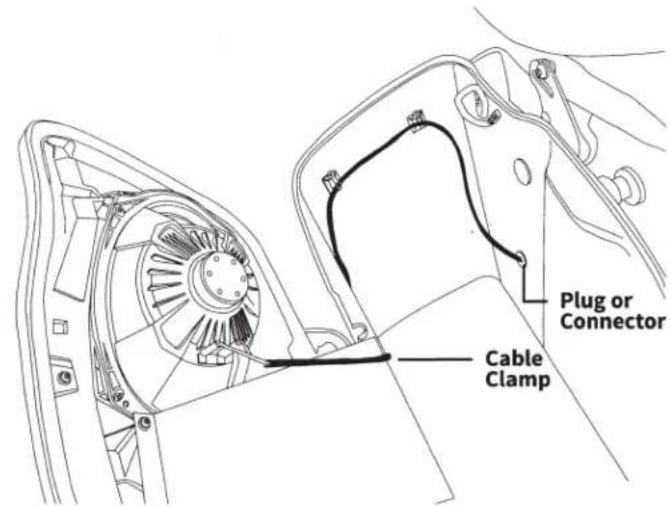

Step 10. Route the wire along the inside of the bag and secure to the plastic cable tie mounting tab with the supplied plastic wire ties.

Step 11. Reattach your saddlebag lid and connect the harness to the speaker.

Step 12. Test system and reassemble the motorcycle.

Rockford Corporation offers a limited warranty on Rockford Fosgate products on the following terms:

Length of Warranty

POWER Amplifiers - 2 Years

BMW® Direct Fit Speakers – 2 Years

PUNCH® & PRIME® Amplifiers - 1 Year

Speakers, Signal Processors, Accessories and Capacitors - 1 Year

All marine, motorcycle, motorsport products - 2 Years

Any Factory Refurbished Product - 90 Days (receipt required)

What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by authorized Rockford Fosgate dealers in the United States of America. Products purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an authorized Rockford Fosgate dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase.

Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered

1. Damage caused by accident, abuse, improper installation, operations, theft, water (on non-Element Ready products).
2. Any cost or expense related to the removal or reinstallation of product.
3. Service performed by anyone other than Rockford or an authorized Rockford Fosgate service center.
4. Any product which has had the serial number defaced, altered, or removed.
5. Subsequent damage to other components.
6. Any product purchased outside the U.S.
7. Any product not purchased from an authorized Rockford Fosgate dealer. Refer to rockfordfosgate.com dealer locator for more detail.

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service

Please call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

Installation assistance available at: — RFTECH www.rockfordfosgate.com/rftech

POWER

Serial Number: Date of Purchase:

Dear Customer,

Congratulations on your purchase of the world's finest brand of audio products. At Rockford Fosgate we are fanatics about musical reproduction at its best, and we are pleased you chose our product. Through years of engineering expertise, hand craftsmanship and critical testing procedures, we have created a wide range of products that reproduce music with all the clarity and richness you deserve.

For maximum performance we recommend you have your new Rockford Fosgate product installed by an Authorized Rockford Fosgate Dealer, as we provide specialized training through Rockford Technical Training Institute (RTTI). Please read your warranty and retain your receipt and original carton for possible future use.

Great product and competent installations are only a piece of the puzzle when it comes to your system. Make sure that your installer is using 100% authentic installation accessories from Rockford Fosgate in your installation. Rockford Fosgate has everything from RCA cables and speaker wire to power wire and battery connectors. Insist on it! After all, your new system deserves nothing but the best.

To add the finishing touch to your new Rockford Fosgate image, order your Rockford accessories, which include everything from T-shirts to hats.

Visit our web site for the latest information on all Rockford products;

www.rockfordfosgate.com

or, in the U.S. call 1-800-669-9899 or FAX [phone]. For all other countries, call +001-480-967-3565 or FAX [phone].

Table of Contents

2 Introduction

3-6 Specifications

7 Installation Considerations

8-11 Installation

12 Français

13 Español

14 Deutsch

15 Italiano

16 Warranty

If, after reading your manual, you still have questions regarding this product, we recommend that you see your Rockford Fosgate dealer. If you need further assistance, you can call us direct at 1-800-669-9899. Be sure to have your serial number, model number and date of purchase available when you call.

PRACTICE SAFE SOUND

Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. High powered auto sound systems may produce sound pressure levels well over 130dB. Use common sense and practice safe sound.

PRATIQUEZ UNE ÉCOUTE SANS RISQUES

This symbol with “WARNING” is intended to alert the user to the presence of important instructions. Failure to heed the instructions will result in severe injury or death.

This symbol with "CAUTION" is intended to alert the user to the presence of important instructions. Failure to heed the instructions can result in injury or unit damage.

WARNING

CAUTION

• To prevent injury and damage to the unit, please read and follow the instructions in this manual. We want you to enjoy this system, not get a headache.
• If you feel unsure about installing this system yourself, have it installed by a qualified Rockford Fosgate technician.
• Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

Model	TMS65
Nominal Diameter - inch (mm)	6.5(165)
Description 2-Way
Nominal Impedance (Ohms)	4Ω
Frequency Response (Hz)	65-20kHz
Voice Coil Diameter - inch (mm)	1.4(35.6)
Power Handling - Watts (RMS/Peak)	75/150
Fs - Free Air Resonance (Hz)	86.5
Qts	0.52
Vas - cu. ft. (Liter)	0.198(5.6)
Sensitivity (1W/1M)	91dB
Sensitivity (2.83V/1M)	94dB
Xmax - inch (mm)	0.19(3.0)
Mounting Diameter	5.0(128)
Mounting Depth	2.1(53)
Grille/Trim Ring YES

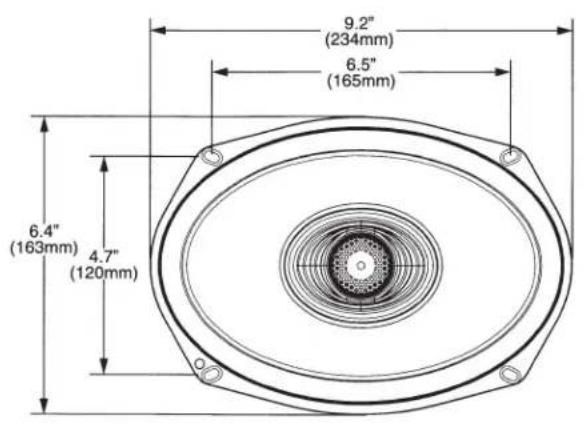

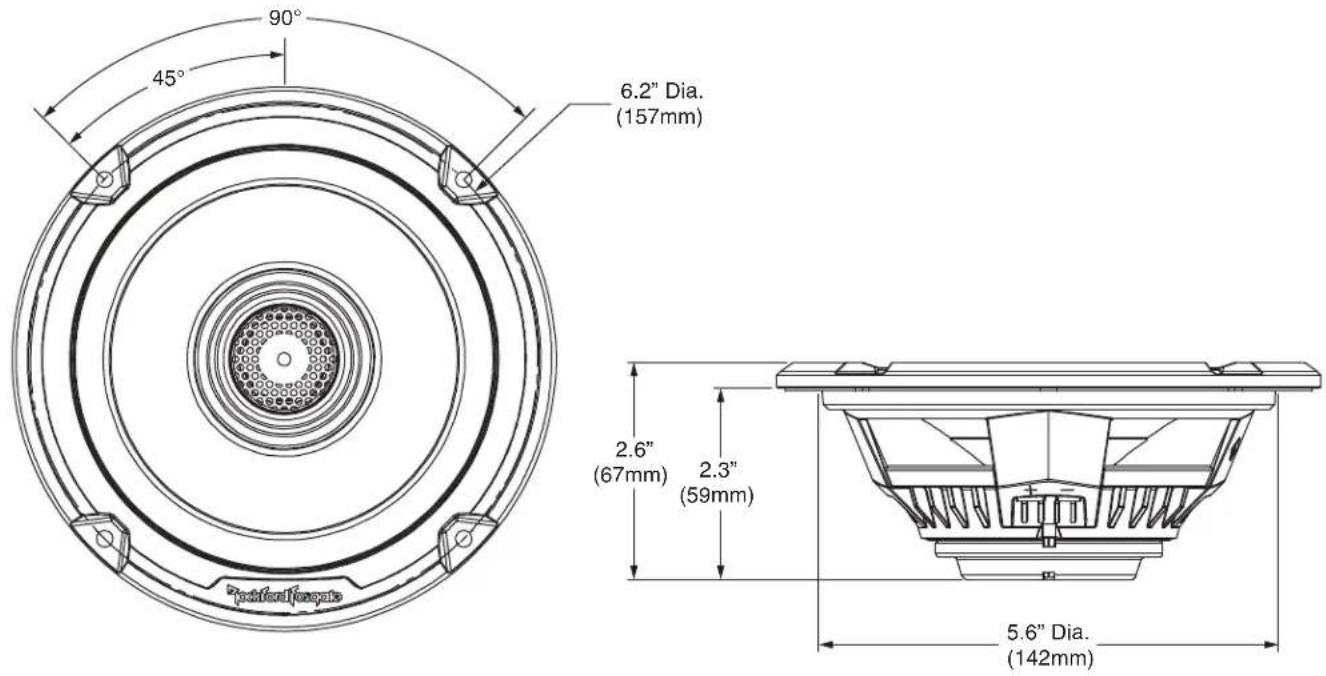

See page 4-6 for additional dimensions

CEA 2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards. This means your speaker has the capacity to handle power under continuous demand, not instantaneous power handling that over time can damage voice coils.

VERIFIED WITH KLIPPEL

To adorn the 'Verified with Klippel' mark, the qualifying company's loudspeaker engineering personnel must be trained and certified by Klippel prior to using the three separate Klippel systems to design, develop and test. Rockford Fosgate has made the investment in Klippel to deliver the best possible speakers and subwoofers to their customers.

TMS65

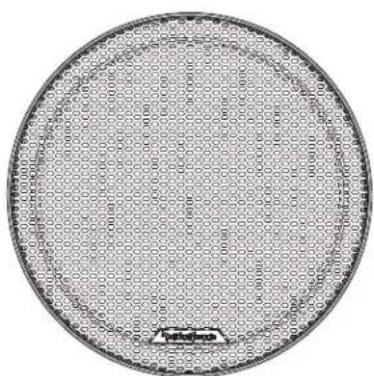

Circular patterned object with repeating geometric shapes and a small dark object at the bottom (no text or symbols)

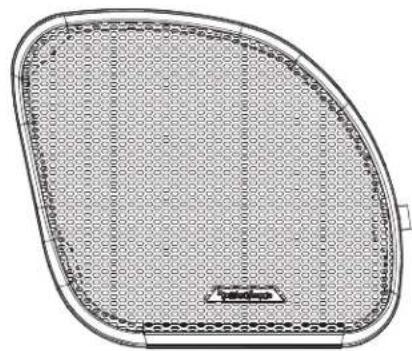

2014 & Up Street Guide® Grilles Included 2015 & Up Road Glide

Technical line drawing of a curved mechanical component with internal grid pattern (no text or symbols)

® Grilles Included

Circular patterned object with repeating geometric motifs, no visible text or symbols

2014 & Up Tour Pak Grilles Included

Contents

• (1) Pair of 2-Way Speakers
• (1) Pair of 2015 & Up Road Glide Grilles
• (1) Pair of 2014 & Up Street Glide Grilles

• (1) Pair of 2014 & Up Tour-Pak Grilles
• Installation & Operation Manual

Installation Tools

The following is a list of suggested tools needed for installation:

• Plastic Trim Panel Pry Tool
• Allen Wrench - 3/16", 5/32"
• Torx - T10, T25, T27

Installation Considerations

This section focuses on some considerations for installing your motorcycle replacement speakers. This manual will illustrate the installation of two different fairing styles and Tour-Pak offered by Harley-Davidson® from the production years ranging from 2014 and Up. (Ultra Classic®, Electra Glide®, Street Glide®, Tri Glide®, Road Glide® and Road Glide Ultra®.)

If you feel unsure about installing this system yourself, have it installed by a qualified technician.

CAUTION

Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

CAUTION

Before beginning any installation, follow these simple rules:

• Be sure to carefully read and understand the instructions before attempting to install these motorcycle speakers.
• Consult your motorcycle's service manual for model specific information. Models may differ from year to year depending on factory options and aftermarket accessories added.
• These motorcycle speakers are a complete replacement to the factory (OEM) speaker setup.
• With the addition of an amplifier, be sure that your current charging system is in proper working order.
• Utilize a blanket or fender cover to protect the front fender from tools or any other item that may be accidentally be dropped while removing the fairing.
• Visit rockfordfosgate.com for more comprehensive installation videos and product information.

Front Speakers for Ultra Classic ^® , Electra Glide ^® , Street Glide ^® and Tri Glide ^® models.

Close-up of a black motorcycle's front wheel and side-mounted sensors, no visible text or symbols

Step 1 - Fairing Removal

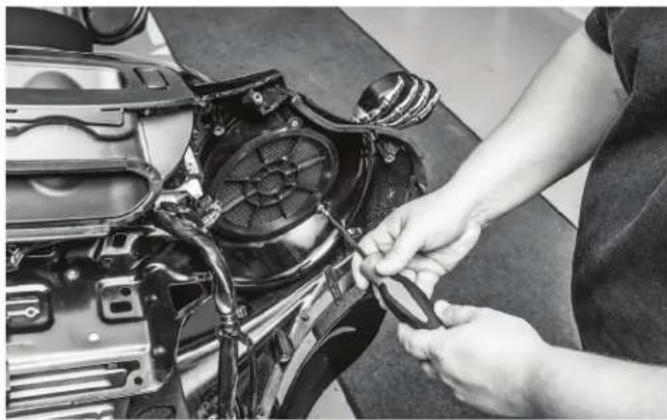

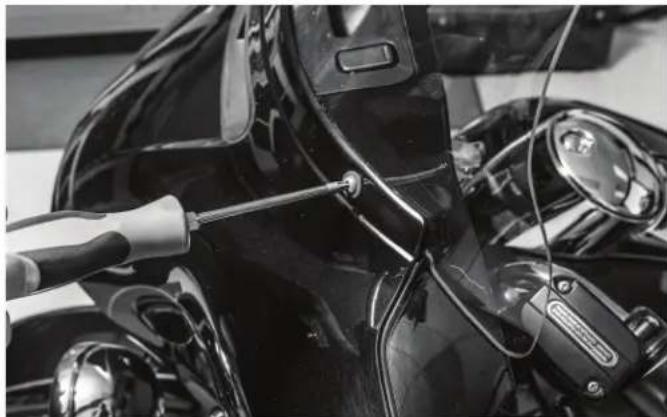

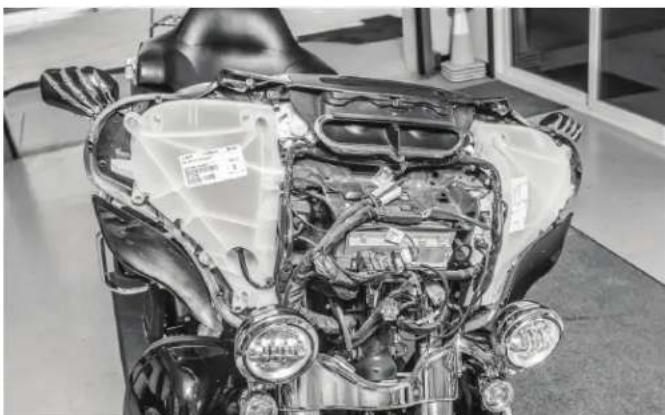

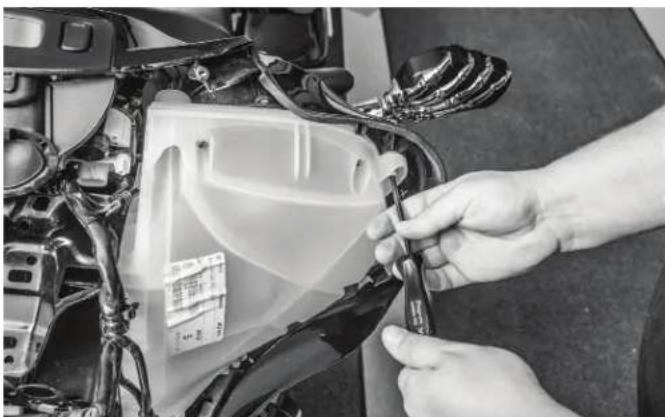

To begin with, remove the top screws below the windshield to remove the windshield.

Close-up of a hand adjusting a motorcycle's seatbelt with a tool (no visible text or symbols)

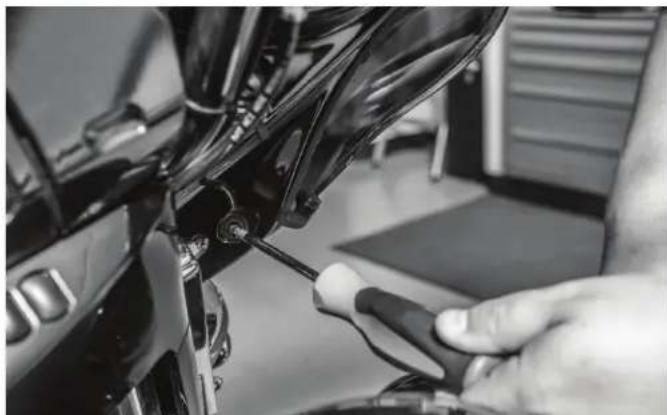

Once you have the windshield set aside, remove the remaining screws on the inside of the fairing.

Person cleaning a motorcycle with visible tire and cloth (no text or symbols)

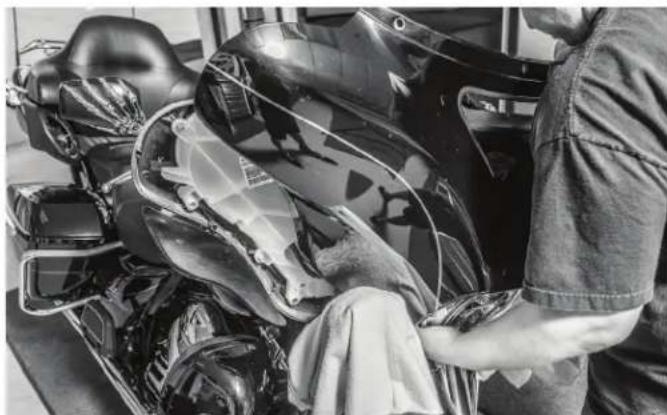

This will allow you to remove the front fairing.

Close-up of hands working on a car engine compartment with visible wiring and components (no text or symbols)

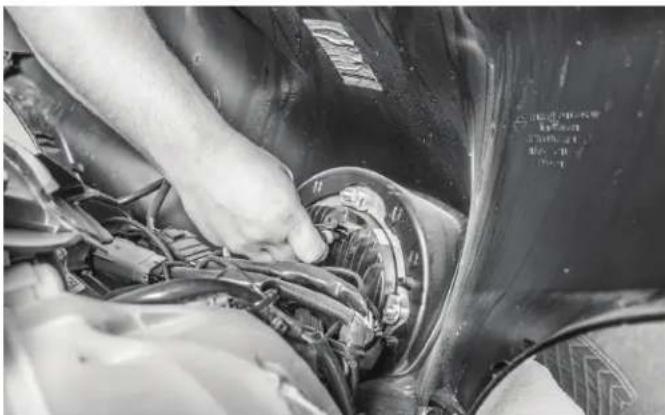

You will need to disconnect the harness from the headlight to completely take the fairing off of the motorcycle.

Close-up of a motorcycle's head assembly showing internal engine components and structural details (no visible text or symbols)

Step 2 - Speaker & Pod Removal

After the fairing is removed, this will provide access for the speaker pods that need to be removed so the speakers can be replaced.

Close-up of mechanical components with visible wiring and a label (no readable text or symbols)

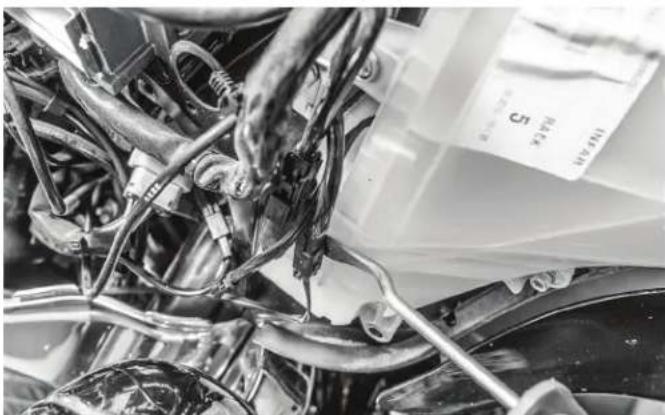

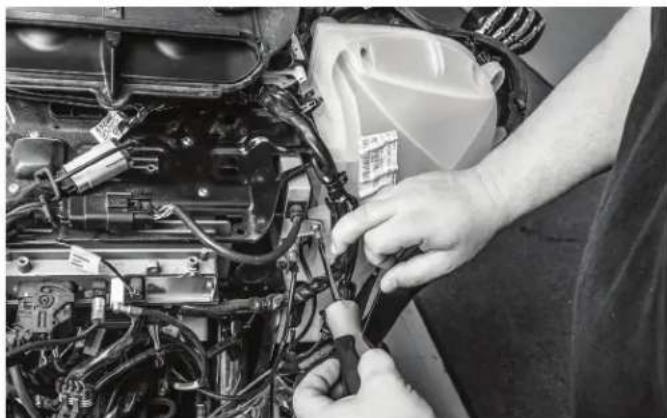

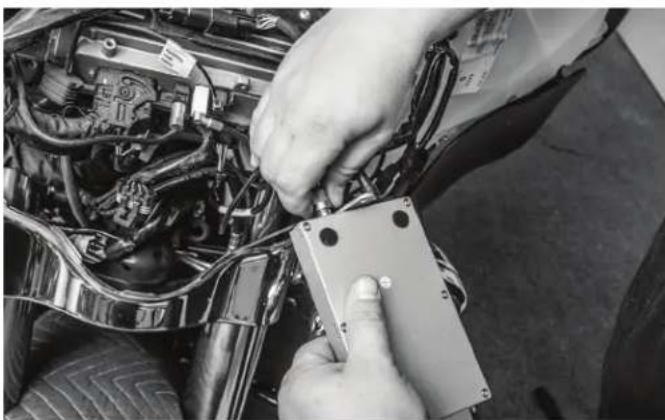

There are several wire connectors that are attached to the speaker pods and surrounding components that will need to be removed prior to unbolting allowing access to the bolts holding the pods in place.

Close-up of a damaged mechanical component with visible wiring and two white arrows pointing to specific areas (no text or symbols present)

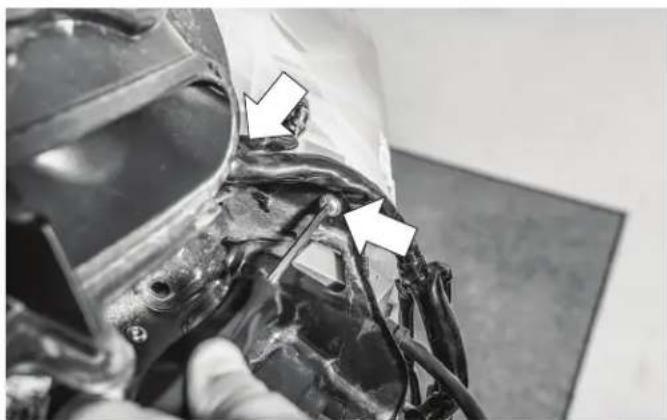

Remove the top two bolts with a allen head screwdriver or ratchet.

Close-up of hands installing or adjusting a mechanical component on a car engine (no visible text or symbols)

Unplug the module and set it aside.

Close-up of automotive engine components with white arrows pointing to specific parts (no visible text or symbols)

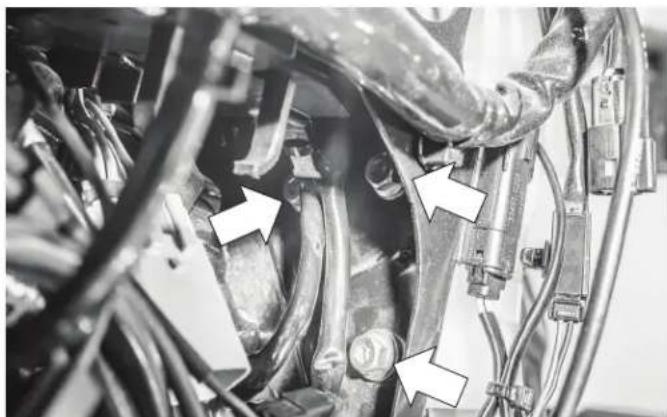

After the top two bolts are removed, remove the three bolts that are under the radio area.

Close-up of a hand using a tool to clean or inspect the internal components of a car engine compartment (no visible text or symbols)

Next, remove the last three screws that hold the pod to the fairing.

Close-up of hands installing or adjusting a car engine compartment with visible wiring and components (no text or symbols)

If your bike is equipped with the optional communication setup, you will need to remove the module to access mounting bolts.

Close-up of hands refueling a plastic bottle onto an engine compartment (no visible text or symbols)

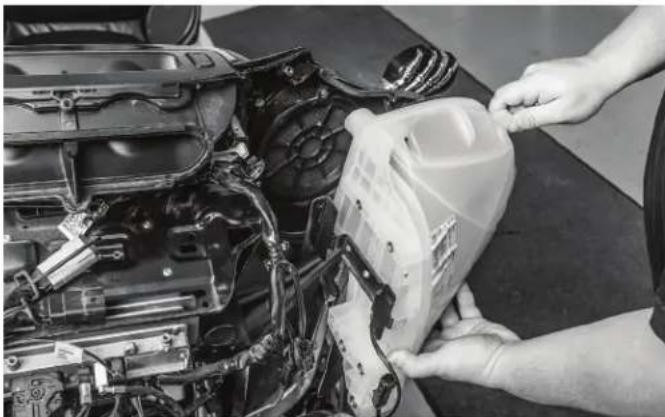

Remove the fairing and set aside for the speaker removal.

Installation

Person using a tool to adjust or install the engine compartment of a car (no visible text or symbols)

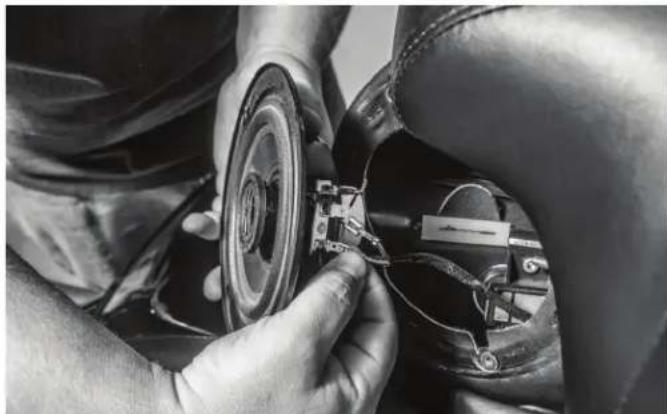

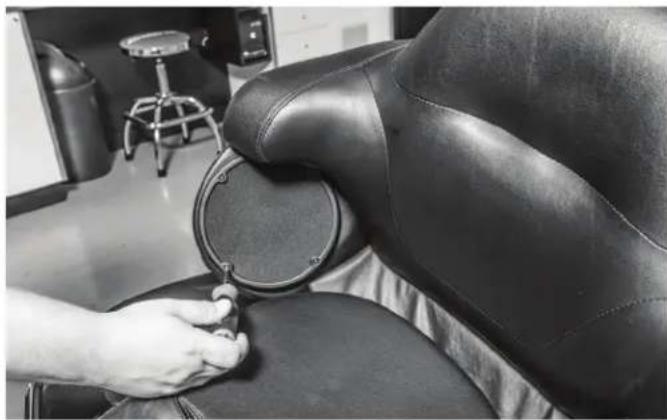

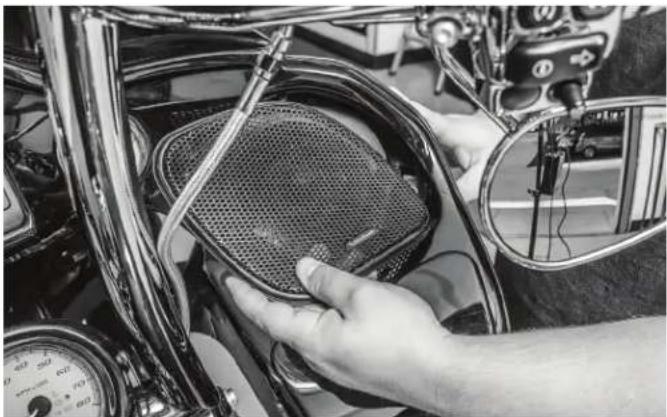

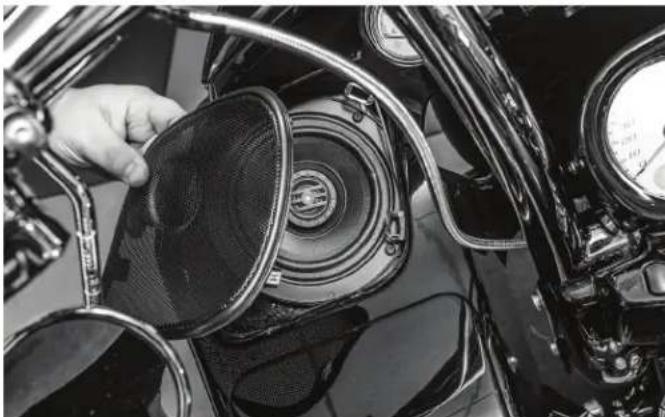

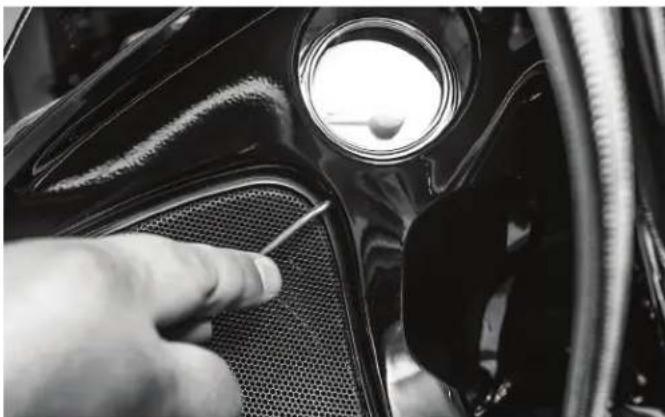

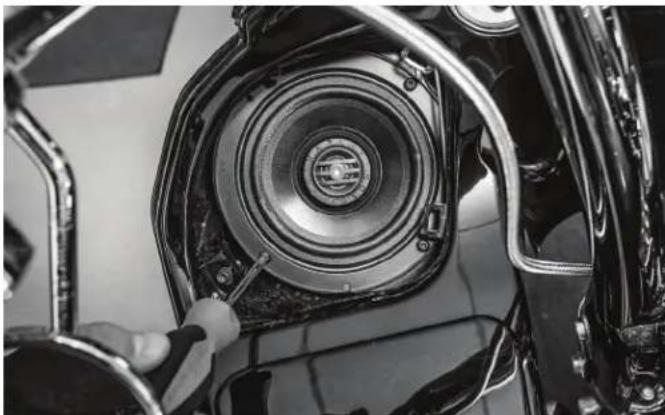

Using a screwdriver, remove the speaker grille that is attached to the fairing.

Hand holding a component next to a white plastic pump assembly on a cutting mat (no visible text or symbols)

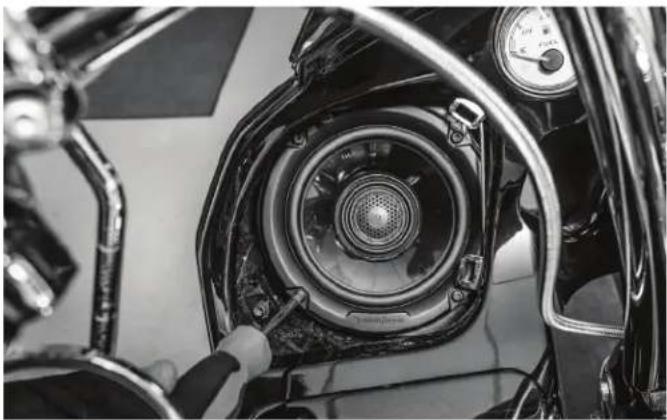

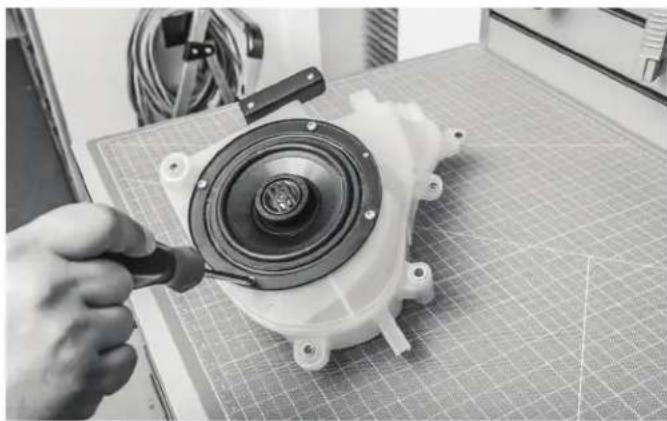

With the pod on a bench, unscrew the mounting screws to remove the factory speaker from the factory pod.

Close-up of hands installing a mechanical component with a circular dial and cable, no visible text or symbols

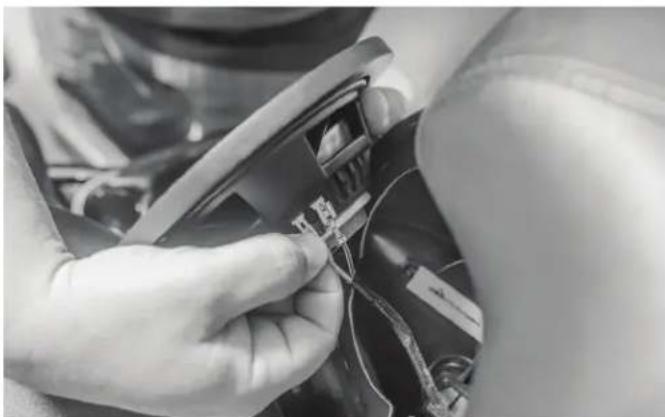

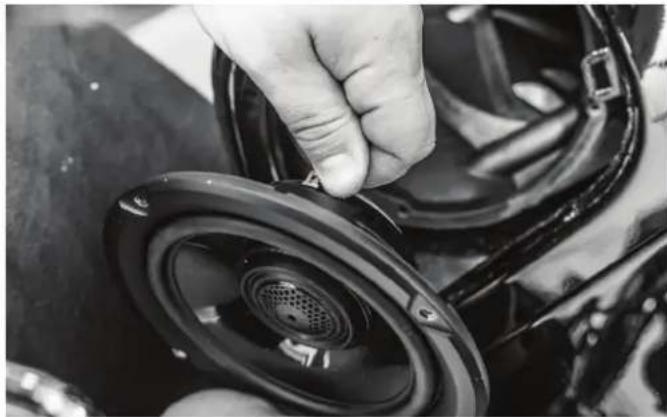

Unplug the terminals to disconnect the speaker.

Close-up of a hand adjusting a mechanical component with arrows pointing to a detail (no visible text or symbols)

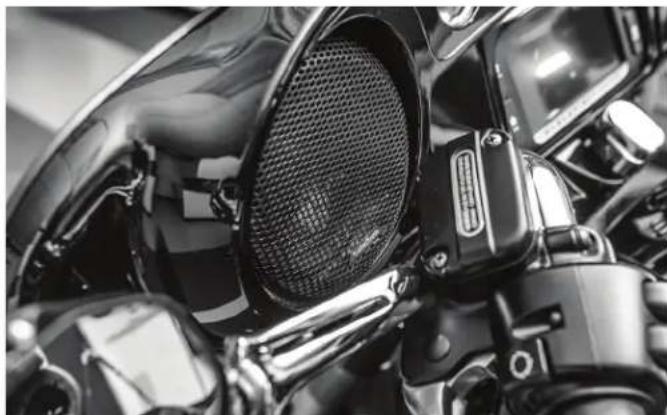

Step 3 - Speaker Installation

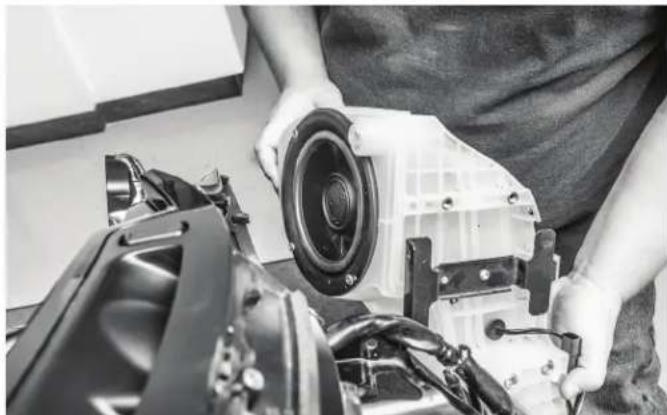

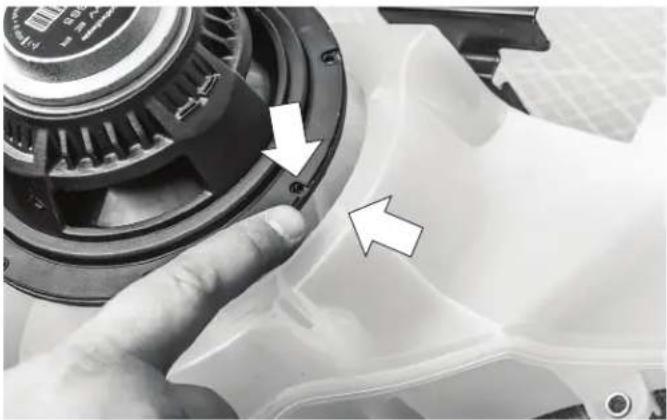

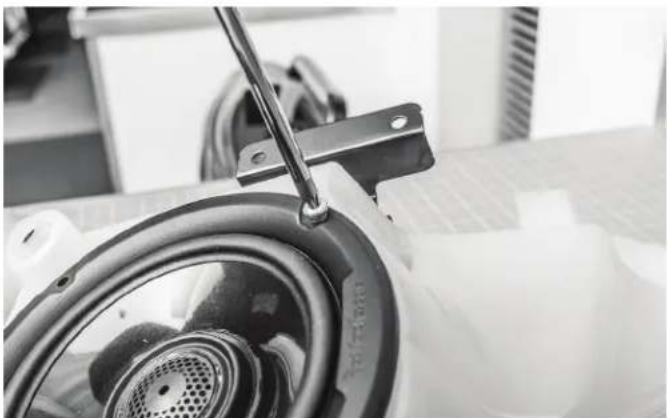

Prior to installing the speaker to the pod, there are alignment pins on the pod that the speaker needs to line up to ensure proper fit.

Close-up of hands assembling a 3D-printed mechanical component (no visible text or symbols)

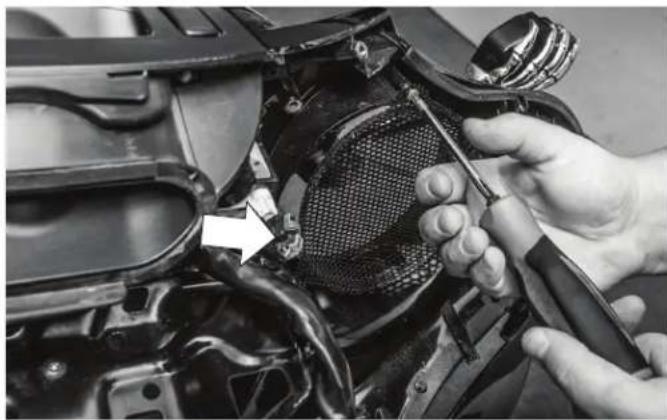

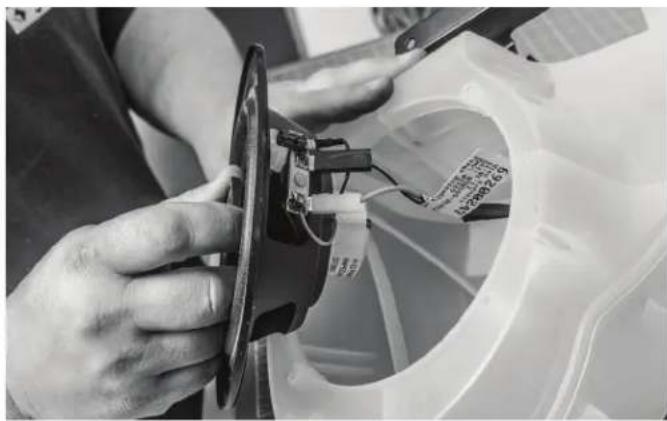

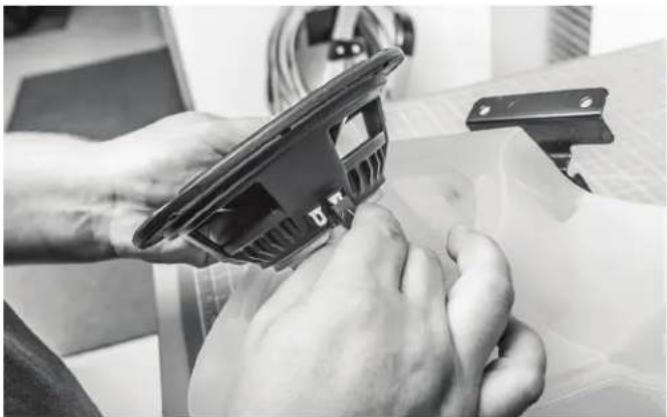

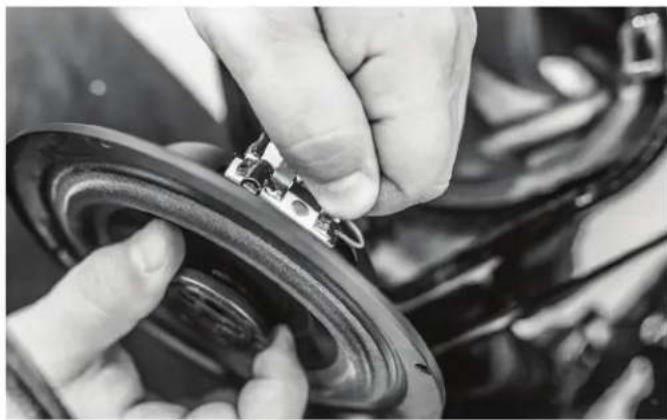

Take the new Rockford speaker and slide the wire connectors over the terminals.

NOTE: The smaller terminal is the positive (+) and the larger terminal is the negative (-).

Close-up of a mechanical component with a tool inserted, showing a circular component and a ring (no visible text or symbols)

Secure the speaker to the factory pod using the factory hardware. NOTE: Do not overtighten the mounting screws. Doing so can strip the threads on the plastic pod.

Close-up of hands installing or adjusting a mechanical component with a mesh grille and tool (no visible text or symbols)

Attach the new Rockford grille to the inside of the fairing.

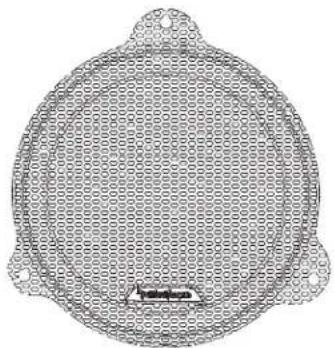

NOTE: The speaker grilles are side specific and have a notch in one of the mounting holes as an indicator. The notch is faced towards the middle of the bike.

Person assembling a mechanical component with visible gears and housing (no text or symbols)

Reattach the pod with the factory hardware and reinstall any wire harnesses that were removed for the pod removal.

Close-up of a motorcycle's front wheel and dashboard with visible mechanical components (no text or symbols)

Install the outer fairing to the motorcycle after speaker pods and wiring is secured.

Close-up of a hand adjusting a car grille and vent, no visible text or symbols

Front Speakers for Road Glide® and Road Glide Ultra® models.

Step 1 - Speaker & Grille Removal

Remove the factory speaker grille with a plastic pry tool or small hook tool.

Close-up of a hand inserting a fan into a motorcycle seatbelt (no visible text or symbols)

NOTE: Pull or pry on the portion of the grille that is closer to the inside of the bike.

Close-up of a car's front bumper with a circular speaker and a wrench, no visible text or symbols

Remove the mounting screws holding the speaker in place.

Installation

Close-up of hands adjusting a mechanical component with a small bracket (no visible text or symbols)

Unplug the terminals to disconnect the speaker.

Step 2 - Speaker & Grille Installation

Close-up of a hand adjusting a black circular speaker grille on a car wheel (no text or symbols visible)

Take the new Rockford speaker and slide the wire connectors over the terminals.

NOTE: The smaller terminal is the positive (+) and the larger terminal is the negative (-).

Close-up of hands installing a circular mechanical component with visible branding (no text or symbols on the device itself)

Prior to installing the speaker to the pod, there are alignment pins on the pod that the speaker needs to line up to ensure proper fit.

Close-up of a motorcycle's front wheel assembly with visible mesh and pressure gauge (no text or symbols)

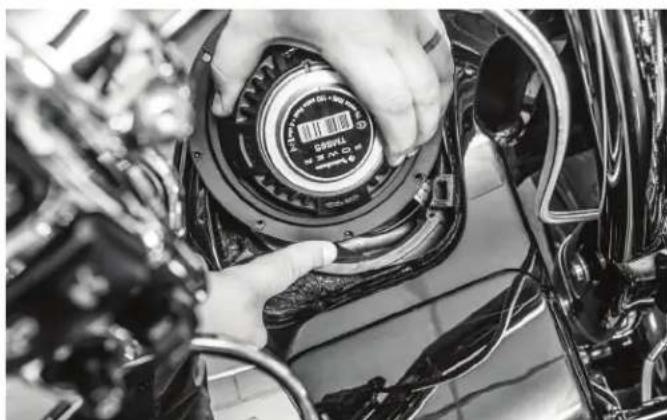

Secure the speaker to the pod using the factory hardware.

NOTE: Do not overtighten screws. Doing so can strip the threads on the plastic pod.

Close-up of hands installing a mesh fan component on a motorcycle, no visible text or symbols

Once the speaker is secured, press the new grille into place.

Close-up of a person adjusting a circular mechanical component on a dark leather chair (no visible text or symbols)

Rear Speakers for Tour-Pak models.

Step 1 - Rear Speaker Removal

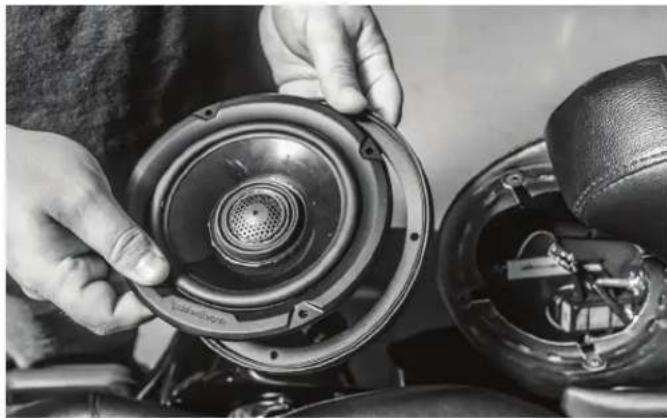

Unscrew the speaker grilles from the rear pods and remove factory speaker.

Close-up of hands assembling a car wheel assembly with visible wiring and components (no text or symbols)

Unplug the terminals to disconnect the speaker.

Close-up of hands installing a speaker into a car seatbelt, showing internal components and wiring (no text or symbols visible)

Step 2 - Rear Speaker Installation

Before connecting the speaker wires, place the grille trim ring behind the speaker.

Close-up of hands installing or adjusting a component with wires and connectors (no visible text or symbols)

Connect the speakers by sliding the speaker wire connector over the speaker terminals

NOTE: The smaller terminal is the positive (+) and the larger terminal is the negative (-).

Close-up of a person adjusting a camera lens on a leather seat (no visible text or symbols)

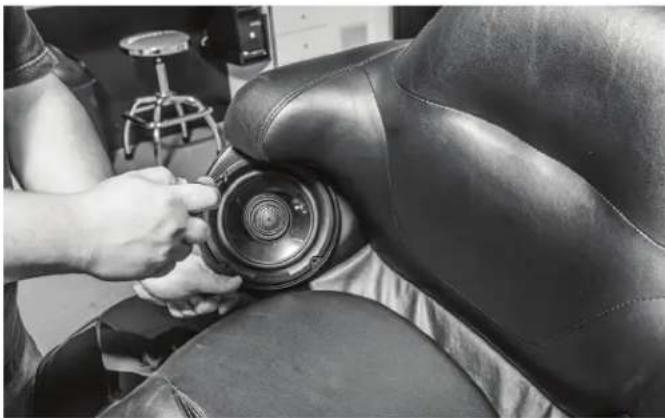

Insert the new Rockford speaker into the speaker pod and secure with mounting screws.

Close-up of a person adjusting a mesh circular component on a leather chair seat (no visible text or symbols)

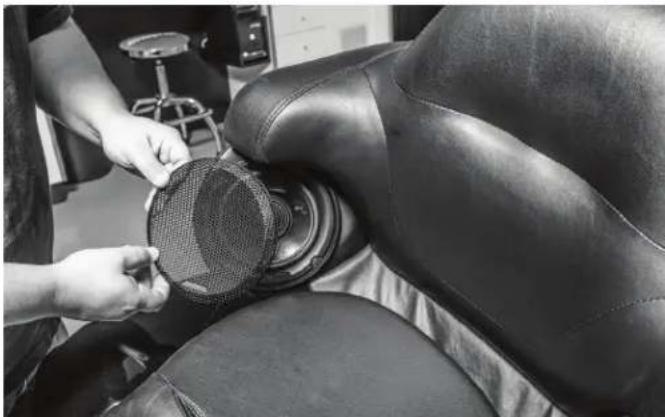

Place the grille over the speaker and press into place.

Rockford Corporation offers a limited warranty on Rockford Fosgate products on the following terms: Length of Warranty

POWER Amplifiers – 2 Years

BMW® Direct Fit Speakers – 2 Years

Source Units – 1 Year

All other products – 1 Year

Any Factory Refurbished Product – 90 days (receipt required)

What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase.

Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered

1. Damage caused by accident, abuse, improper operations, water, theft, shipping.
2. Any cost or expense related to the removal or reinstallation of product.
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center.
4. Any product which has had the serial number defaced, altered, or removed.
5. Subsequent damage to other components.
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer.

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service

Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

Installation assistance available at:

RFTECH

www.rockfordfosgate.com/rftech
