USER MANUAL zoopa Q155 roonin ACME

Orange and black quadcopter drone with propellers and control panels (no text or symbols visible)

Anleitung

Manual

© Copyright 2015 ACME the game company GmbH

Sicherheitshinweise

WARNUNG:

Four orange and black quadcopter drones with propellers, shown against a white background (no text or symbols visible)

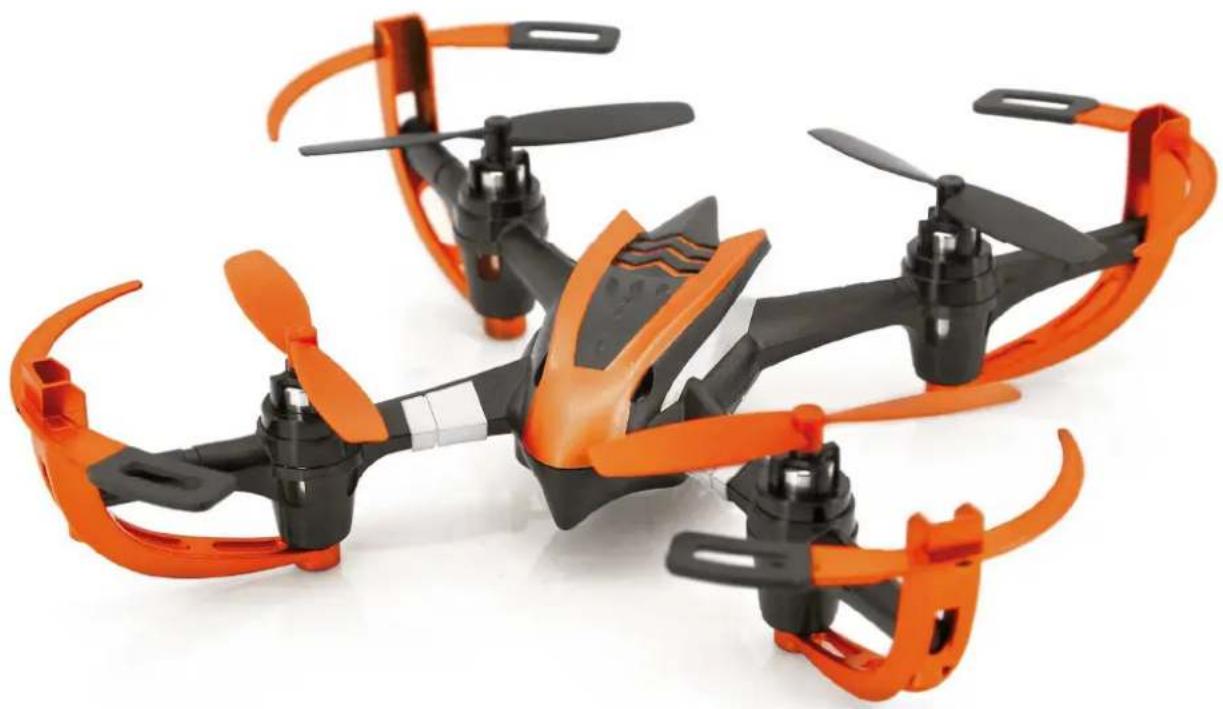

1x zoopa Q155 roonin Quadrocopter

Front view of a black handheld remote control with dual speakers and a propeller (no visible text or symbols)

Close-up of a black electronic device with three leads and a connector (no visible text or symbols)

1x USB- Lademodul

Close-up of a black rectangular electronic component with a metallic cable extending from its side (no visible text or symbols)

1x LiPo Akku

Interior view of a black handheld device with multiple battery cells and a handle (no visible text or symbols)

Close-up of a black electronic device with two leads and a connector, showing wiring (no text or symbols visible)

Two views of a black multi-roboted robotic device with visible wiring and components, shown from top and side (no text or symbols)

Technical line drawings of a multi-rotor drone with control panels and directional arrows indicating motion (no text or symbols)

Drehung

Technical line drawing of a dual-axis control device with no visible text or symbols

Diagram of a futuristic vehicle with rotating wheels and control panels (no text or symbols)

Top-down technical line drawing of a mechanical device with front and top views (no text or symbols)

Diagram of a drone with four propellers and a central body, showing no text or symbols.

Technical line drawing of a dual-axis control device with no visible text or symbols

3D illustration of a central drone with four propellers and a downward arrow, no text or symbols present

360° Flip Funktion

ACME the game company GmbH

Boikweg 24

33129 Delbrück

Germany

Please read carefully before first use!

zoopa Q noonin 155

Orange and black quadcopter drone with propellers and control panels (no text or symbols visible)

Manual

Technical Data

Size: 135x145x25mm

Weight: approx. 33g

Recommended Age: 10+ years

Field of Use: Indoor and Outdoor

Battery: 3.7V LiPo; 240mAh

Controller: 2.4 GHz

Vers.: 1.0

© Copyright 2014 ACME the game company GmbH

Safety advice

WARNING:

NOTE THE FOLLOWING ADVICE, TO AVOID DAMAGES AND SHORTCUTS: ONLY USE RECOMMENDED SPARE PARTS DO NOT DISSAMBLE THE PRODUCT INNER PARTS CAN BE REPAIRED BY THE USER. PLEASE CONTACT QUALIFIED STAFF IF YOU ARE NOT FAMILIAR WITH RC-MODELS.

SERVICE & SUPPORT

ACME the game company GmbH Boikweg 24

33129 Delbrück

Germany

Tel: [phone]

Danger of fire and explosion occurs if a battery is not connected properly.

Always charge LiPo batteries under supervision.

Please stop charging if you notice a deformation or if the battery is blowing up!

Charge LiPo batteries at 0-40°C.

Avoid heating of over 50°C at discharge.

Do not shortcut, never throw into fire!

Only use original batteries.

-Always use the original LiPo-battery

-Do not use if the battery deforms, discolors or softens

-Store the battery at temperatures between 15° and 25° at dry and dark places. The charging capacity shall be at min. 75%

-Store away from children and pets

-Keep away from fire, water, heating sources and foreign matters that can cause a shortcut

-Always use the original charger which is placed on a fireproof surface

-Avoid mechanical exposure and do not open

-NEVER SHORTCUT

-Do not touch the battery if gas or liquid leaks out of the battery

-Improper handling may result into health problems

-Dispose wasted batteries properly

-Never exhaust the battery

CE Declaration

Herewith we declare that this item is in accordance with the essential requirements and other relevant regulations of the directive 1999/5/EC. A copy of the original declaration of conformity can be obtained at the address above.

This product uses LiPo batteries. LiPo batteries are recyclable, and a valuable resource. To dispose of the battery, remove it and take it to a resource recovery facility.

WEEE Reg. No: DE64989527

Information for disposal of crossed Bin marked products

This symbol is marked on a product or packaging, it means that the product including the batteries must not be disposed of with your general household waste. Only discard electrical/electronic items in separate collection schemes, which cater for the recovery and recycling of materials contained within. Your co-operation is vital to ensure the success of these schemes and for the protection of the environment.

ATTENTION!

Choking hazard – Not for children under 3 years!!!

Content of the box

Please check the completeness before you use the product!

Four orange and black quadcopter drones with propellers, isolated on white background (no text or symbols)

1x zoopa Q155 roonin Quadrocopter

Front view of a black handheld remote control with dual speakers and a propeller (no visible text or symbols)

1x 2.4GHz Controller

Close-up of a black electronic device with three leads and a connector (no visible text or symbols)

1x USB- Charger

Close-up of a black rectangular electronic component with a metallic cable extending from its side (no visible text or symbols)

1x LiPo battery

1x Manual

Additionally, you need 6pcs. AA batteries!

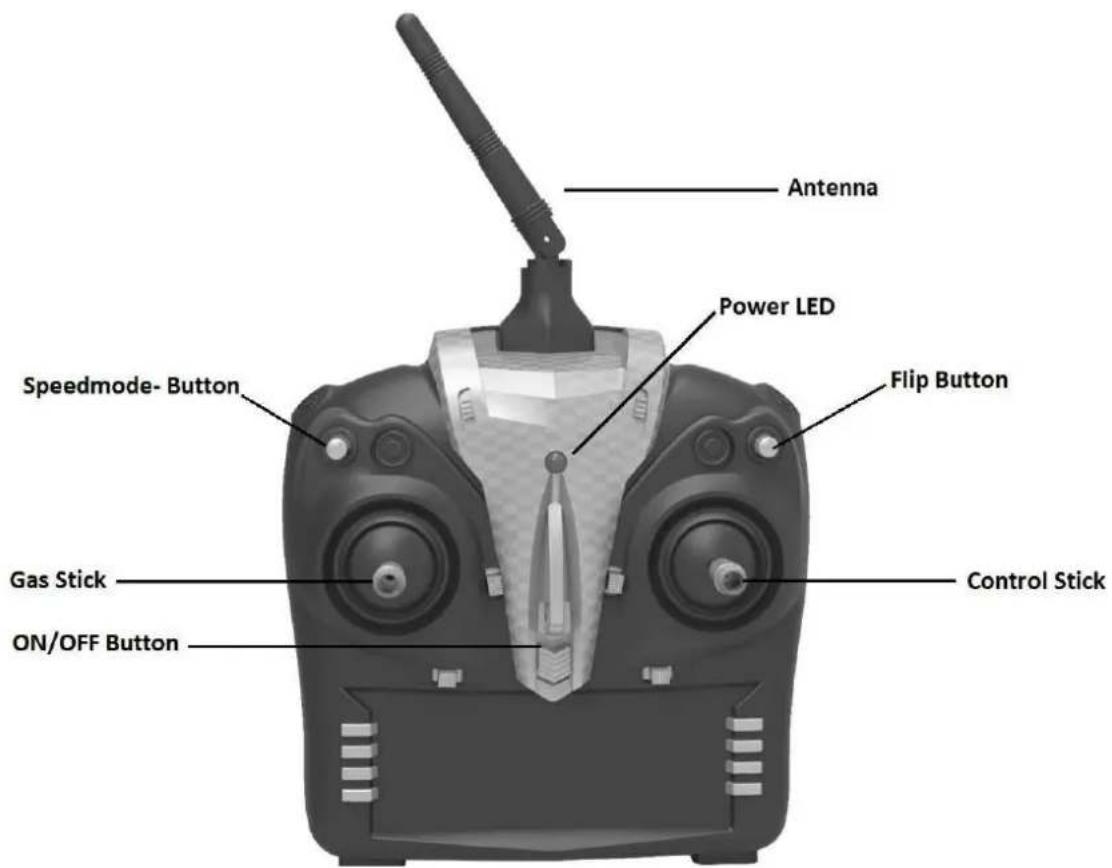

Structure

Please note!

Never fly if there are any people, animals or obstacles around!

Never fly at strong wind or bad weather!

Make sure that you are allowed to fly in the area you are using the model!

Always switch on the controller before you switch on the model and make sure that it is switched on during the use. Do not switch the controller off while the model is working!

First steps and information

Carefully read this manual.

The zoopa Q155 roonin is a RTF (Ready-to-Fly) model.

You additionally require 6pcs. AA Batteries for the activation. Please insert these under attention of the correct polarity (check marks on the inside of the controller) and then close the controller with the cover of the battery case.

ATTENTION : Only use standard batteries (non-rechargeable). Make sure that these are inserted correctly (+/-) !

Interior view of a black handheld device showing battery pack and charging casing (no text or symbols visible)

ACME the game company GmbH assumes no liability for privacy violations, personal injury and damage to private property caused by the user of the model.

Please follow carefully the instructions in this guide step by step, to ensure proper handling.

Charging the battery

The LiPo battery will be charged through the supplied USB-Charger.

Connect the battery with the charger and make sure that it is plugged correctly.

Now connect it to an USB source, for example your computer.

You can alternately use an USB power adaptor.

(Art. No. FCHD43).

Close-up of a black electronic device with two leads and a connector, shown from top and side (no text or symbols visible)

Charging will be shown through the integrated LED. This process can take up to 70 minutes. As soon as the battery is fully charged, the LED will shut off.

Only use the original battery, because other batteries may have a different polarity and can damage your equipment!

How to insert and connect the battery

As soon as the battery is fully charged, please insert it into the case that is located underneath the model.

Black quadcopter drone with four articulated legs and a central chip, mounted on a white surface (no visible text or symbols)

Mechanical robotic device with four articulated limbs and a central body component (no visible text or symbols)

Do not connect the battery yet.

Switch on the controller. The Power LED will start to flash. Place the zoopa Q155 roonin on an even surface. Now connect the battery to the zoopa Q. The LED of the model switches on. Now move up the gas stick (left) until it's end position and move it down again. Controller and model are now paired.

Check the polarity before you connect the battery !

First tries and flight advices

Before you start your first flight tests, make sure that there are no other people or animals around. Keep an area of 3x3 meters free!

The orange blades show the front side of the model. The black blades show the tail of the quadrocopter. The different colors provide a simple orientation during flight.

Power the gas slowly to test all functions at the beginning.

Rise / Descent

Move up the gas stick (left) to lift the model and move it down to let it sink.

Right / Left

Move the Controllstick (right) to the left or right, to let the model pan to the left and right.

Technical line drawing of a dual-axis control device with no visible text or symbols

Diagram of a spacecraft or spacecraft with directional arrows indicating movement (no text or symbols present)

Technical line drawing of a dual-axis control device with no visible text or symbols

Diagram of a futuristic aircraft with directional arrows indicating movement or force (no text or symbols)

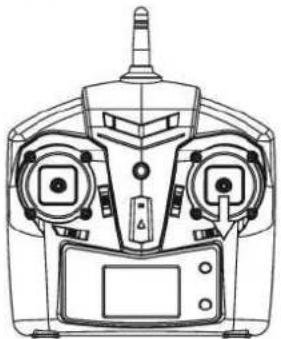

Turn

Move the left stick to the left and right, to turn the model around its own axis.

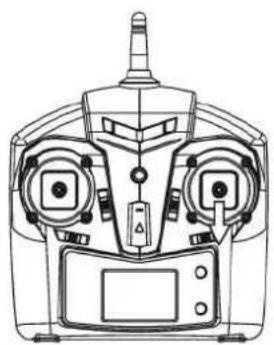

Forwards/ Backwards

Move the Controllstick (right) up and down, to fly forwards or backwards.

Technical line drawing of a 2D RF device with dual motors and a central hub (no text or symbols)

Diagram of a spacecraft or drone with orbital paths and control panels (no text or labels)

Technical line drawing of a dual Radar Control System (no text or symbols)

Diagram of a drone with four propellers and a central body, showing a downward arrow (no text or symbols)

Top-down technical line drawing of a multi-rotor control device (no text or symbols)

Diagram of a drone with four propellers and a downward arrow, no text or symbols present

360° Flip Mode

The model offers a Flip Mode. Do not perform the flip before you are familiar with the model and the controls.

To perform the flip, the model should have gained sufficient height (at least 3 meters). Hold the zoopa Q155 roonin on height. No press the Flip button (upper right button on the controller) and keep it pressed. Move up the right control stick and release it immediately – the zoopa Q155 roonin will now perform the Flip.

Speedmodes

You can choose between 3 different flight modes. Press the speedmode-button (upper left corner) on the controller, to change the mode.

Mode 1: Preset, the model fliest at reduced speed. Recommended for Beginners.

Mode 2: The model flies faster and more agile, the radius of movement is bigger.

Mode 3: The model flies at highest possible speed.

Troubleshooting

Error	Source	Solution
The model does not react on commands	Controller batteries are not inserted correctly.	Check the batteries
	Batteries are empty	Replace the batteries
	Model battery empty	Recharge the battery
The model makes strange sounds	Blades/gears are damaged	Check the blades/gears. Replace them if needed
The controller has no connection to the model	Weak battery	Recharge the battery
	Controller batteries are not inserted correctly	Replace the batteries
	Battery defective	The battery needs to be replaced
	The model is out of range
The flight is not sufficient	The motors have lost performance	Check the motors and replace them if needed

If you have any further problems, feel free to contact us! Our details are quoted on the following page at “Service & Support”.

Battery Maintenance

To get the best performance from the integrated LiPo- battery, please note:

-Never leave the model in activated state, always switch off when not using

-For storage (more than 2 days), charge the battery for at least 85%.

-For longer storage, (>5 days) disconnect the battery from the model.

-Only store at room temperature.

-Regularly charge the battery every 3 months if the model is not being used.

If these points are not followed, the LiPo battery can be damaged or destroyed.

Spares and Accessories

Art. No. Description
ZQ0155 zoopa Q 15	5 roonin
ZQ0155-A zoopa Q	155 Body
ZQ0155-B zoopa Q	155 LiPo Battery
ZQ0155-C zoopa Q	155 Propeller Set
ZQ0155-D zoopa Q	155 Prop Guard Set
ZQ0155-E zoopa Q	155 Mainboard
ZQ0155-F zoopa Q	155 USB-Charger
ZQ0155-G zoopa Q	155 Motors Set

Warranty

The consumer is without prejudice to any claim against the seller granted a guarantee to the following conditions:

» New devices and their components exhibiting defects within 24 months from the purchase due to manufacturing and / or material faults, are ACME the game company at its option, reflecting the current state of the art
Exchanged or repaired free device. For wear parts (eg batteries, motors, etc.), this warranty is valid or 3 months from purchase.
» This warranty does not apply if the device defect is due to improper treatment and / or failure to comply with these instructions.
» This warranty does not extend to self- paid by the customer services.
» Warranty claims are to make immediate payment of the Guarantee case.
» Ownership of devices or components that are returned to ACME the game company as part of the exchange, shall become the property of ACME the game company.
» By services rendered under warranty, the warranty period is not extended.
» So far there is no warranty case to ACME the game company reserves the right to charge the customer for replacement, repair, or shipping costs. The customer will be informed in advance.

Damages resulting from mechanical influences are not covered under warranty.

Service & Support

ACME the game company GmbH

Boikweg 24

33129 Delbrück

Germany

Orange and black quadcopter drone with propellers and control panels (no text or symbols visible)

Vers.: 1.0 © Copyright 2014 ACME the game company GmbH

Conseil de sécurité

Avertissements:

Four orange and black quadcopter drones with propellers, shown against a white background (no text or symbols visible)

1x Quadrocoptère zoopa Q155 roonin

Front view of a black and white handheld remote control device with visible motors and antenna (no text or symbols)

Close-up of a black electronic device with three leads and a connector (no visible text or symbols)

1x Chargeur USB

Close-up of a black rectangular electronic device with a cable extending from its side (no visible text or symbols)

1x Batterie LiPo

Interior view of a black handheld device with multiple battery cells and a switch (no visible text or symbols)

Close-up of a black electronic device with two connectors and a separate connector (no visible text or symbols)

Two identical black-and-white images of a four-legged robotic device with visible mechanical components and wiring (no text or symbols)

Technical line drawings of a multi-rotor drone with control panels and directional arrows indicating motion (no text or symbols)

Rotation

Technical line drawing of a dual-axis control device with no visible text or symbols

Diagram of a spacecraft or drone with orbital paths and control panels (no text or labels)

Avant/ Arrière

Top-down line drawing of a dual-axis control device with no visible text or symbols

Diagram of a drone with four propellers and a central body, showing no text or symbols.

Mode Flip à 360°

Line drawing of a multi-rotor control device with dual motors and a central hub (no text or symbols)

Diagram of a central drone with four surrounding antennas and a downward arrow, no text or symbols present.

ACME the game company GmbH

Boikweg 24

33129 Delbrück

Allemagne
