Antibes - Ceiling fan EGLO - Free user manual and instructions

Product Type	Ceiling Fan
Brand	Eglo
Model	Antibes
Power Source	AC 120V/60Hz (standard household)
Motor Type	AC Motor, reversible for summer/winter
Number of Blades	5
Blade Material	ABS Plastic
Blade Span	52 inches (approx.)
Light Kit Included	Yes, LED light (integrated)
Remote Control	Included, with speed and light control
Number of Speeds	3
Noise Level	< 50 dB at high speed
Weight	Approx. 6.5 kg (14.3 lbs)
Mounting Method	Standard downrod mount (included)
Recommended Room Size	Up to 20 m² (215 ft²)
Warranty	2 years limited (motor)
Finish	White/Chrome (as per model)
Installation Requirement	Ceiling support, electrical outlet, expert installation recommended
Cleaning	Wipe with dry cloth; do not use water or solvents

Frequently Asked Questions - Antibes EGLO

How do I install the Antibes ceiling fan?

Follow the instructions in the manual. Ensure the ceiling is sturdy, turn off power at the breaker, mount the bracket, connect wires (blue for light, black for fan, white neutral, green/ground), attach blades and light kit. Expert installation is recommended.

Can I use the fan without the light?

Yes, you can operate the fan separately using the remote. The light and fan can be controlled independently.

How do I reverse the blade direction for winter?

Use the remote control: press the reverse button (often indicated by a switch icon). The fan should run clockwise in winter to push warm air downward.

The remote is not working. What should I do?

Check batteries in the remote. Ensure dip switches inside the remote and receiver are set identically. If still not working, reset by turning off power for 10 seconds.

How do I clean the fan?

Turn off fan and let it stop. Use a soft dry cloth or duster. Do not use water, abrasive cleaners, or solvents. For stubborn dirt, slightly dampen cloth with mild soap, then dry immediately.

What is the maximum slope for installation on a sloped ceiling?

The Antibes fan can be installed on slopes up to 15 degrees. For steeper slopes, a special angle mount adapter may be required (not included).

Why is my fan wobbling?

Ensure all blades are tightened properly and the mounting screws are secure. Use the included balancing kit if needed. Also check that the ceiling bracket is firmly attached.

How long is the warranty?

Eglo offers a 2-year limited warranty on the motor. Keep your purchase receipt. Covers manufacturing defects, not damage from improper installation or misuse.

Does the fan include a wall control?

No, the Antibes model comes with a remote control only. A wall control can be purchased separately if desired.

What light bulb type does the fan use?

The fan has an integrated LED light module (non-replaceable bulb). The color temperature is typically 3000K (warm white). If it fails, the entire module needs replacement.

USER MANUAL Antibes EGLO

	Lesen Sie die Anweisungen! / Read the instructions! / Lisez les instructions ! / Leggere le istruzioni! / Lees de gebruiksaanwijzingen! / Lea las instrucciones! / Leia as instruções! / Lue ohjeet! / Lis instruktionema! / Seznamte se s návodem! / Olvassa el az utasításokat. / Διοβάτε τις οδηγιες! / Citiți instrucțiumile! / Talimatlan okuyun! / Прочетере инструкцииите! / Прочитайте инструкции! / Pročitajte uputstva! / Należy zapoznać się z instrukcja!
	Beachten Sie Warn- und Sicherheitshinweise! / Observe warnings and safety information! / Tenez compte des avertissements et des informations de sécurité ! / Rispettare le av- vertenze e le informazioni di sicurezza / Waarschuwingen en veiligheidsinstructies in acht nemen! / Observe las advertencias y la información de seguridad! / Respite os avisos e as informações de segurança! / Youmioi varoitukset ja turvallisuutta koskeyt ohjeet! / Följ vamingarna och säkerhetsinformationen! / Ridte se výstražnými a bezpečnostní pokynyl! / Tartsa be a figyelmzettéšeket és a biztonsági tájekoztatást. / Außävete utóψη τις προειόποιχοις και τις πληροφορίες σφορλείοιd / Respectati informațiile de siguranță și avertismentele! / Uyarlara ve güvenlik bilgilerine dikkat edin! / Спазвайте предупрежденията и информацията за безопасност! / Соблюдайте предупреждения и информацию no безопасности! / Pridržavajte se upozorenja i informacije o bezbedností! / Stosować się do ostrzežení i wskazówek bezpieczeństwa!
	Volt (Wechselspannung) / Volts (alternating voltage) / Volts (tension alternative) / Volt (voltaggio alternato) / Volt (wisselspanning) / Voltios (voltaje alterno) / Volts (tensão alter- nadá) / Voltti (valhtojännite) / Volt (växelspanning) / V (stidavé napětí) / Volt (váltakozófeszültség) / Volts (evαλλασόμενη τόση) / Volți (current alternativ) / Volt (alternatif gerilim) / Волтове (промышленно напряжение) / В (напряжение переменного тока) / Volti (promenjiv napon) / V (napieście przemienne)
	Watt (Wirkleistung) / Watts (effective power) / Watts (puissance effective) / Watt (potenza effettiva) / Watt (effectief vermogen) / Vatios (potencia efectiva) / Watts (potência efetiva) / Watti (teho) / Watt (effektstyrka) / W (účinný vykon) / Watt (hasznos teljesítmény) / Watts (eveργός ιοχύς) / Watt (putere efectiva) / Watt (aktif güç) / Batové (efektivna мощност) / Вт (полезная мощность) / Vati (efektivna snaga) / W (moc skuteczna)
	Entsorgen Sie die Verpackung und das Produkt umweltfreundlich! / Dispose of the packaging and the product in an environmentally friendly manner! / Éliminez l'emballage et le produit de manière respectueuse de l'environnement ! / Smaltire imballaggio e prodotto in conformità alla normativa ambientale vigente! / Zorg ervoor dat verpakking en product worden gerecycled! / Deseche el embalaje y el producto de forma respetuosa con el medio ambiente! / Elmine as embalagens e o produto de modo ecológico/ Pakkaus ja tuote on hävitettävä ympäristöystävällisellä tavalla! / Förpackningen och produkten ska bortskaffas på ett miljövänligt sätt! / Obal a vyrobek likvidujte ekologickým způsobem! / A csomag és a termék hulladékkezelését környezetbarát módon végezze. / Απορρίμτε τη ουσκευσία και το προϊόν με τρότο φίλικό για το περίβολλον! / Éliminați ambalajul și produsul într-un mod favorabil protectiei mediuuli! / Ürüniu ve ambalajini cevreye uydarli bijmde imha edin! / Trytriäräte otnadźysite ot opakovbata i продукta по начин, kořto ne zaměrpசва околната среда! / Упилизируйте упаковку и издение в соответствии с требованиями по защите окружающей среды! / Odložite pakovanje i proizvod na ekołoško prihvaitljiv način! / Opakowanie i produkt należy utylizować w sposób przyjazny dla środowiska!
	Schutzklasse I / Protection class I / Catégorie de protection I / Classe di protezione I / Beschermingsklasse I / Classe de protección I / Classe de proteção I / Suojausluokka I / Skyddsklass I / Třída ochryani I / I. védelmi osztály / Вођúóc, προστασίας I / Clasa de protectie! / Koruma sinifi I / Klacs на защита I / Klacs защиты I / Nivo zaštite I / Klasa ochrony I
	Zu ihrer Sicherheit / For your safety / Pour votre sécurité / Sicurezza dell'utente / Voor uw veiligheid / Por su seguridad / Para a sua segurança/ Turvallisuuttasi varten / För din säkerhet / Pro Vaši bezpečnost / A biztonság érdekében / Πα την αφοφάλειά ασας / Pentru siguranța dumneavoastră / Güvenliginiz için / За Ваша безопасност / Для вашей безопасности / Radi vaše bezbednosti / Dotyczy bezpieczeristwa użytkownika
	Dieser Deckenventilator ist ausschließlich für den Einsatz in trockenen, geschlossenen Räumen geeignet. / This ceiling fan is solely suitable for use in dry, closed indoor spaces. / Ce ventilateur de plafond doit uniquement être utilisé dans un endroit sec, fermé et en intérieur. / Il ventilatore a soffitto deve essere utilizzato esclusivamente all'interno di locali chiusi e asciutti. / Deze plafondventilator is uitsluitend geschikt voor gebruik in droge, gesloten binnenruimten. / Este ventilador de techo es adecuado únicamente para su uso en espacios cerrados y secos. / Esta ventoinha de teto é adequada apenas para utilização em espaços interiores secos e fechados. / Kattotuuletin soveltuu käytettäväksi aino- staan kuivissa, suljetuisa sisätloissa. / Den här takfäkten är endast lämplig för torra, slutna inomhusområden. / Tento stropni ventilator je plně vhodný pro použiti v suchých, uzavřených vitnitřich prostorách. / A mennyezeti ventilator kizárólag száraz, zárt beltéri területeken használhatá. / O ouykekριμένος σναμιστήρος οροφής είνα κατάλληλος, αποκλεστικά για χρήση σε στεγνούς, κλειτούς εουτερικούς χώρους, / Ventilatorul de tavan este destinat exclusiv utilizarii in spații interioare, uscate şi inchise. / Bu tavan ventilatorů, sadece kuru ve kapali alanlarda kullanima uygundurí. / Tozia ventilator за таван е подходящ единствено за сухи и затворени вытрешни помещениях. / Этот потолочный вентилатор предназначен для использования только в сухих и закрытых помещениях. / Ovaj plafonski ventilator je jedino pogodan za upotrebu u suvim i zatvorenim prostorijama. / Niniejszy wentylator sufitowy nadaje się wyłącznie do stosowania w suchych, zamkniętych pomieszczeniach wewnętrznych.
	Hertz (Frequenz) / Hertz (frequency) / Hertz (fréquence) / Hertz (frequenza) / Hertz (frecuencia) / Hertz (frequencia) / Hertz (frékvencia) / Hertz (frékvencia) / Hertz (ouyvótητα) / Hertz (frecventa) / Hertz (frekans) / Херцове (pectora) / Гц (частора) / Herc (frekvencija) / Hz (częstotliwość)
	Vorsicht - heiße Oberflächen! / Caution - hot surfaces! / Attention - surfaces chaudes! / Attenzione - superfici calde! / Wees voorzichtig: hete oppervlakken! / Precaución - superficies calientes / Cuidado - superficies quentes! / Varo - kuuma pintal / Försikthiet - varma ytor / Pozor - horké povrchyl / Vigyázat: forró felületekl! / Прокоуŋ - kauteć, επιφόνειες / Atentie - suprafepte fierbințil / Dikkat - sicak yüzey! / Внимание - гореши поверхности! / Осторожно - горячие поверхности! / Upozorenje - vrele povšine! / Uwaga - gorące powierzchnie!
	LED-Betriebsdauer / LED operating life / Durée de vie LED / Vita operativa LED / Levensduur van de LED / Vida operativa del LED / Vida útil do LED / LED-lampun käyttölkä / LED livslängd / Zivotnost LED diod / LED élettartama / Διδρκεια Guńç LED / Cicul de viaja al dispozitivului de iluminat cu LED / LED çalışma ömrů / Експлопатационен срок на светодиод / Срок службы светодиодов / Radni vek LED síjalice / Zywotność diod LED
	Dieser Deckenventilator mit LED-Licht ist nicht für Dimmer oder elektronische Schalter geeignet. / This ceiling fan with LED light is not suitable for dimmer or electronic switches. / Ce ventilateur de plafond avec témoín lumineux à LED ne peut être raccordé à un gradateur ou un interrupteur électronique. / Il ventilatore a soffitto con luce LED non è compatibile con interruttori dimmerabili o elettronici. / Deze plafondventilator met LED-verlichting is niet geschikt voor dimmers of elektronische schakelaars. / Este ventilador de techo con luz LED no es adecuado para atenuadores de luz o zuuma pintal / Försikthiet - varma ytor / Pozor - horké povrchyl / Vigyázat: forró felületekl! / Прокоуŋ - kauteć, επιφόνειες / Atentie - suprafepte fierbințil / Dikkat - sicak yüzey! / Внимание - гореши поверхности! / Осторожно - Горячие поверхности! / Upozorenje - vrele povšine! / Uwaga - gorące powierzchnie!

This ceiling fan is solely suitable for use in dry, closed indoor spaces. It is not suitable for use in bathrooms or other consistently damp areas. This product is only intended for private household use. Do not operate at temperatures over 40\ °C ( 104\ °F ).

Please read this manual carefully before attempting the assembly or installation of your new ceiling fan. To ensure a safe and successful installation, please make sure to read this manual, ensure it is on hand for your installer to refer to, and keep in a safe place for future reference.

1. ALL electrical work should only be carried out by a suitably qualified and licenced electrical contractor. This ceiling fan MUST be installed ONLY by a suitably qualified and licenced electrical contractor.
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
3. Do NOT allow children to play with this appliance, and supervise children around electrical devises at all times.
4. Before commencing any electrical work, ensure the power is disconnected and/or the mains switched off at the circuit box and ensure all pole isolation of the power supply.
5. The fixing point for your ceiling fan must be capable of supporting a 45 kg load.
6. Care needs to be taken to ensure the installation location does not allow the fan blades to come into contact with any object or surface. There must be a minimum of 30 cm clearance between the blade tip (end) and the nearest wall or object. Reduced clearances to walls or ceilings can also reduce the amount of air your fan can move.
7. The installation must also allow for a minimum clearance of 2.3 m between the floor and the bottom of the blades.
8. The fan must be earthed.
9. The fan must be connected to a mains supply only. Fans connected to alternate power systems such as Solar, Wind, Battery etc will not be covered under the terms of this warranty.
10. Use ONLY the EGLO controller supplied with your fan. Use of non-standard or solid-state dimmer type controllers can cause inferior performance, and permanently induce a humming noise in your fan motor which cannot be repaired, and wich will not be covered under warranty.
11. Do NOT change the direction of your fan whilst it is spinning. ONLY change the direction after the fan blades have come to a complete stop.
12. Do NOT insert any object into the fan blades whilst in operation, as this can cause damage to the fan, and personal injury.
13. Do NOT use ceiling fans and gas appliances in the same room at the same time.
14. Only globes specified on the products rating label are to be used in EGLO ventilation products.
15. All EGLO products are warranted to be free from defects in Workmanship and materials provided the products are used with a voltage supply within the range the product is designed to operate.
16. This fan is designed for use indoors only.
17. EGLO lighting will not be liable for any advice given to the consumer from any of our suppliers or third parties, related or otherwise.
18. Proper performance relies on the right fan being correctly installed in the optimum location. Fans that do not perform as expected and which are not faulty cannot be replaced or exchanged under warranty.
19. The important safeguards and instructions in this manual are not designed to cover every possible condition or circumstance. It is understood that common sense, caution and care are factors that cannot be built into the product, those using and maintaining this product must supply these factors.
20. WARNING: If unusual oscillating movement is observed, immediately stop using the ceiling fan and contact the manufacturer, its service agent or suitably qualified persons.
21. The replacement of parts of the safety suspension system device shall be performed by the manufacturer, its service agent or suitably qualified persons.
22. The mounting of the suspension system shall be performed by the manufacturer, its service agent or suitably qualified persons.
23. The fan is to be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA.
24. The fan is considered to be suitable for use in countries having a warm damp equable climate. It may also be used in other countries.

EN Before installation

1. Carefully unpack your fan on a soft surface to avoid damage to the fan finish.
2. Do not lay the motor housing on its side, as the decorative housings may become bent or damaged.
3. Check that all parts are present before commencing assembly. Refer to Parts List.
4. If any parts are missing, carefully check the packaging, polyfoam and plastic bags for the missing parts, and if they cannot be located, contact EGLO for assistance before commencing assembly or installation.

Tools required: Phillips head screwdriver, Flat head screwdriver, Pair of pliers, Wire cutter, Ladder, Wiring supply cable Note: The use of electric drivers can overtighten the screws and damage threads, DO NOT use power tools for tightening screws.

FR Liste des pièces

EN Selecting a location

1. The ceiling fan must be installed in a location so that the blades are a minimum 300 mm spacing from the tip of the blade, to the nearest objects or walls.
2. The ceiling fan must be installed in a location so that the blades are a minimum 2.3 m above the floor.
3. The fixing point for your ceiling fan must be capable of supporting a 45 kg load. If the location does not have a solid mounting point, you will need to install a timber support between two ceiling joists. Refer to Figure 2.

Installing the hanging bracket

1. Install the hanging bracket to the ceiling joist or timber support with the long installation screws provided. Pass the screws through the slotted holes in the hanging bracket and secure to the ceiling. Refer to Fig. 3

2. Ensure that at least 30 mm of the screw is threaded into the ceiling joist or timber support.

Note: The fixing screws included are designed for use with timber ceiling joists, for all other materials, the appropriate fixing screws will need to be purchased.

Note: Your fans hanging bracket allows for mounting on angled/sloped ceilings up to a 14-degree pitch.

Note: The use of electric drivers can overtighten the screws and damage threads, DO NOT use power tools for tightening screws.

EN Assembling and installing the fan

Important: Check that the power is disconnected and/or the mains switched off at the circuit box to ensure all pole isolation of the power supply.

1. Insert each blade into the upper aligning plate, and secure with 2 screws & washers per blade. Refer to Fig 4.
2. Slide the motor housing over the yoke, and secure with the 3 screws provided. Refer to Fig 5.
3. Insert the downrod into the yoke, and align the holes in the yoke with the holes in the downrod. Insert the bolt through the yoke and attach the R pin onto the bolt. Tighten the screws on the yoke. Refer to Fig 6.
4. Slide the coupling cover over the downrod and place a soft cloth or bubble bag on top to protect the finish. Slide the canopy over the downrod and rest it on the cloth. Slide the hanging ball onto the downrod, and secure it with the screw provided. Refer Fig 7.

EN Assembling and installing the fan

1. Re-check that all screws are properly tightened.
2. Carefully lift the fan assembly up to the hanging bracket.
3. Seat the down rod ball assembly into the bracket, ensuring the registration slot of the hanger ball is positioned on the stopper of the hanger bracket to prevent the fan from rotating when in operation. Refer Fig. 8.
4. Wire the ceiling in accordance to; "Wiring Connections".
5. After completing the mains electrical connection at the terminal block, connect the ceiling fan wiring by connecting the quick connector plugs.
6. Slide the receiver into the 'slot' in the hanger bracket, and position the signal filter to the side. Refer Fig. 9
7. Loosely coil all cables and gently tuck then around the hanger bracket. Raise the canopy up to the hanger bracket, and carefully tuck cables inside the canopy as you slowly raise it to the ceiling. Particular care must be given to ensure that no wires are damaged during this step, especially the remote antenna. Fix the canopy to the hanger bracket with the canopy screws provided.

Light Kit models only

1. For light kit models, raise the light up to the ceiling fan, and connect the plug connector from the motor with the connector from the light. Align the light kit with the bottom of the blades, push upwards, then revolve clockwise until it locks, ensuring that no wires are damaged during this step. Refer Fig. 10.

Note: The use of electric drivers can overtighten the screws and damage threads, DO NOT use power tools for tightening screws.

EN Wiring connections

WARNING!

FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST ONLY BE UNDERTAKEN BY A QUALIFIED AND LICENSED ELECTRICIAN.

1. Turn the fan ON/OFF / 2. Fan speeds (1=Low, 5=High) / 3. LED Indicator light
2. Turn the light ON/OFF
3. Direction of the fan (Reverse)
4. Timer control for the fan
5. 12 V, Type A23 battery for the transmitter

Inserting the battery into the remote control

1. Open the battery cover.
2. Insert the battery and make sure that the + and - ends are in the correct position. Close the battery cover and press it down until it clicks into place.

1. To set the code between the transmitter and receiver, learning mode must be activated.
2. Switch the power supply ON, and within 30 seconds, press the FAN ON/OFF button and HOLD IT for 5 seconds. If successful, a long beep will be heard.

Note: Learning mode will not be activated if the power is on for more than 30 seconds.

Troubleshooting Remote Control

If the transmitter and receiver are not working, or not working properly, check:

• The battery is in the correct position and making good contact, and replace batteries if necessary.
• Is there any other radio frequency or remote-controlled devices nearby, devices using the same frequency can interfere with each device?
- Low voltage in the batteries can affect the operation and signal reception. The LED indicator light will flash when the battery is low, replace the battery immediately.

Note: If not using the fan and remote for extended periods, remove the battery from the transmitter.

DE Umkehrfunktion

For a cooling effect during summer, your fan should run in a counter clockwise direction, forcing the room air down and outwards creating a wind chill effect that makes you feel cooler.

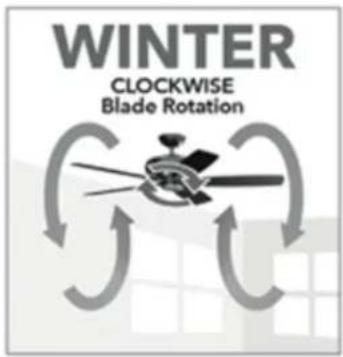

Winter (Reverse)

During the winter, your fan should run in a clockwise direction at low speed. This will gently draw the warmer air down from the ceiling, balancing the rooms temperature, and allowing

you to lower your heating thermostat.

EN Cleaning and maintenance

All EGLO ceiling fans need be maintained regularly to ensure performance is maintained.

Your fans natural movement can cause screws to loosen. Every 6 months, check that ALL screws are securely tightened with a screwdriver.

All EGLO ventilation products should be cleaned regularly to insure against corrosion from salt, dust and moisture, both externally and internal (where allowed and possible).

For cleaning, a soft brush or lint-free cloth should be used to prevent scratching the finish. Surface smudges or an accumulation of dirt and dust can easily be removed by using a mild detergent and only a slightly dampened cloth.

Note: Do NOT use abrasive cleaning agents as they may damage the finish.

Please note that all ceiling fans are not the same, even fans of the same model, some may move more or less than others. Movement of a few centimetres is quite acceptable, and does not suggest the fan will fall if installed correctly.

All ceiling fan blades are weighed and grouped by weight. It is impossible to eliminate wobble altogether and should not be considered a fault. Ceiling fans tend to move during operation because they are not generally rigidly mounted.

To reduce the fan wobble:

• Check that all screws which fix the mounting bracket and down rod are tightly secured.
• Wobble may result from inconsistent blade level. Check this by measuring from the tip of the blade to the ceiling, and repeat on every blade.

If the measurements are different;

1. Check that the blade screws are not overly tightened, or loose, causing the tip of the blade to be unlevelled.
2. Out of shaped blades can unbalance the fan and cause wobble. Check by removing all blades and stacking on a flat level surface and ensure all blades are a uniform shape.
3. Interchanging adjacent blades can redistribute the weight and result in smoother operation.

FR Dépannage

AVERTISSEMENT!

LE VENTILATEUR DE PLAFOND DOIT ÊTRE ÉTEINT ET ISOLÉ AVANT DE COMMENCER TOUT DÉPANNAGE

PROBLEM	POSSIBLE CAUSE	POSSIBLE REMEDY
Fan or Light will not start.	Fuse or circuit breaker blown.	Turn power OFF.Check fuses and circuit breaker. (*)
	Loose mains connections to fan.	Turn power OFF.Check connections at terminal block. (*)
	Controller/switch not in correct position.	Turn power OFF.Check that controller/switch is in the correct position.
	Light kit not connected correctly.	Turn power OFF.Check that light kit plug connector is connected securely. (*)
Fan Wobbles.	Fan blades are not horizontal to the ceiling.	Refer to 'WOSBLE / BALANCING' section of this manual.
	Blade screws are loose.	Check that all screws are securely tightened. Do NOT overtighten.
	Blades are out of shape.	Stack blades on a flat level surface, to ensure all blades are a uniform shape. Contact your retailer for replacement blades.
	Fan hanger ball not seated correctly in hanger bracket.	Turn power OFF.Support the fan very carefully, and rotate the hanger ball to ensure the registration slot is positioned on the stopper. (*)
Noisy	Top canopy touching ceiling.	Lower the decorative canopy so that it does not contact the ceiling.
	Loose blade screws.	Check that all screws are securely tightened. Do NOT overtighten.
	Hanging bracket not installed correctly.	Turn power OFF.Check and if necessary re-install the hanging bracket if not installed/ installed correctly. (*)
	Incorrect controller.	Turn power OFF.Change the controller to the supplied controller. (*)
	Fan needs to settle in.	Allow 6-8 hours of operating time to allow fan to 'settle in'.

(*) May require the assistance of a qualified and licenced electrical contractor.

FR Check-list

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local council for more information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the ground water and get into the food chain, damaging your health and well-being.

FR Mise au rebut

Total output: 45 Watt

Light Kit: LED, 18 W, 4000 K

Rotational speed: 150 rpm

Dimensions: 35014, 35016: Height of body (without pull switch): 15.94 in (300 mm)

35015, 35017: Height of body (without pull switch): 15.94 in (330 mm)

Fan diameter: 52 in (132 cm)

Weight: 35014, 35016: 8.6 lb (4,7 kg with packaging)

35015, 35017: 11.5 lb (5,2 kg with packaging)

Remote Control

Battery: 1 x 12 V, Type A23 (55mA)

Kit luce: LED, 18 W, 4000 K

Saída total: 45 Watt

EU declaration of conformity

declare on one's own authority that the referred device below

comply with the essential requirements of the European Directives

LVD 2014/35/EU

EMC 2014/30/EU

ErP 2009/125/EU

The object of the declaration described above is in conformity with RoHS Directive 2011/65/EU and its amendment of (EU) 2015/863 of the European Parliament and the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

This is possible by application of the following harmonized standards and regulations:

EN 60335-1:2012+A11:2014+A13:2017

EN 60335-2-80:2003+A1:2004+A2:2009

EN 62233:2008

EN 55014-1 :2017

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3 :2013
