Product Type	Interactive Flat Panel
Model	SMART Board 6055 (SPNL-6055)
Display Size (Diagonal)	54.5" (138.4 cm)
Aspect Ratio	16:9
Native Resolution	3840 x 2160 @ 30 Hz (4K UHD)
Touch Technology	DViT (Digital Vision Touch) with IR cameras
Simultaneous Touch Points	At least 4
Writing and Drawing Support	Two pens with erasers, palm erase, Pen iQ feature for custom ink
Weight	104 lb (47.4 kg)
Power Requirements	90 V to 240 V AC, 50 Hz to 60 Hz, 130 W
Built-in Speakers	2 x 10 W side-firing
Connectivity	HDMI 1.4 input, USB 2.0 Type-B (touch), RS-232 (room control), stereo 3.5 mm audio out, USB Micro-B (service)
VESA Mounting	400 mm x 400 mm, M8 screws
Included Software	SMART Product Drivers, SMART Ink, SMART Notebook (license included)
Backlight	e-LED
Operating Temperature	Not specified; avoid excessive dust, humidity, smoke
Cleaning	Use lint-free, non-abrasive cloth; no liquids or glass cleaners
Safety	Do not open; use VESA-approved hardware; keep ventilation clear
Warranty	Product registration recommended; details on smarttech.com

Frequently Asked Questions - Board 6055 SMART Technologies

What are the power requirements for the SMART Board 6055?

The SMART Board 6055 requires 90 V to 240 V AC, 50 Hz to 60 Hz with a maximum power consumption of 130 W.

How do I clean the screen?

Turn off the interactive flat panel and wipe the screen with a lint-free, non-abrasive cloth. Do not use water, chemicals, or glass cleaners as they can damage the anti-glare coating.

How do I connect a computer to the interactive flat panel?

Connect the computer using an HDMI cable for video and a USB Type-B cable for touch functionality. Ensure the cables are no longer than 16.5 ft (5 m) for HDMI and use a USB 2.0 compliant cable.

What should I do if the touch is not accurate?

First, orient the interactive flat panel via SMART Settings. If that doesn't help, calibrate the device using the SMART Hardware Settings. Ensure nothing blocks the cameras or reflective tape.

How do I reset the interactive flat panel?

Press and hold the Standby button on the front control panel until the screen turns black. The device will reset automatically.

Can I use the interactive flat panel with multiple touches?

Yes, it supports at least four simultaneous touches, allowing multiple users to interact with the screen at the same time.

What pens are included and how do they work?

The interactive flat panel comes with two pens with erasers. Removing a pen from its magnetic holder activates it. You can write in digital ink and use the eraser to erase.

How do I maintain the reflective tape and camera windows?

Inspect regularly for dust. Gently wipe with a clean lint-free cloth. Do not use compressed air, water, or chemicals. Keep the tape dry.

What is the native resolution of the SMART Board 6055?

The native resolution is 3840 x 2160 at 30 Hz (4K UHD). Alternatively, you can use 1920 x 1080 at 60 Hz.

Does the interactive flat panel have built-in speakers?

Yes, it has two integrated 10 W side-firing speakers. You can also connect external active speakers via the stereo 3.5 mm audio out.

USER MANUAL Board 6055 SMART Technologies

Line drawing of a rectangular panel with two panels, one labeled 'SHEV' and the other 'SHEV (FIRE)" (no additional text or symbols)

SMART Board® 6000 series interactive flat panels

ADMINISTRATOR'S GUIDE

FOR MODELS SPNL-6055 AND SPNL-6065

Product registration

If you register your SMART product, we'll notify you of new features and software upgrades.

Register online at smarttech.com/registration.

Keep the following information available in case you need to contact SMART Support.

Serial number:

Date of purchase:

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Trademark not ice

SMART Board, SMART Ink, SMART Notebook, DViT, PeniQ, smartech, the SMART logo and all SMART taglines are trademarks or registered trademarks of SMART Technologies ULC in the U.S. and/or other countries. All third-party product and company names may be trademarks of their respective owners.

Copyright not ice

© 2014–2015 SMART Technologies ULC. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language in any form by any means without the prior written consent of SMART Technologies ULC. Information in this manual is subject to change without notice and does not represent a commitment on the part of SMART.

This product and/or use thereof is covered by one or more of the following U.S. patents:

www.smarttech.com/patents

04/2015

Important information

WARNING

• Failure to follow the installation instructions shipped with the interactive flat panel could result in personal injury and product damage which may not be covered by the warranty.
• Do not open or disassemble the interactive flat panel. You risk electrical shock from the high voltage inside the casing. Opening the casing also voids the warranty.
• Do not stand (or allow children to stand) on a chair to touch the surface of the interactive flat panel. Rather, mount the product at the appropriate height.
• To reduce the risk of fire or electric shock, do not expose the interactive flat panel to rain or moisture.
• If the interactive flat panel requires replacement parts, make sure the service technician uses replacement parts specified by SMART Technologies or parts with the same characteristics as the original.
• Ensure that any cables that cross the floor to the interactive flat panel are properly bundled and marked to avoid a trip hazard.
• Do not insert objects inside the cabinet ventilation holes, because they could touch dangerous voltage points and cause electric shock, fire or product damage which may not be covered by the warranty.
• Do not place any heavy objects on the power cable. Damage to the cable could cause shock, fire or product damage which may not be covered by the warranty.
• Use only extension cords and outlets that can full accommodate the interactive flat panel's polarized plug.
• Use the power cable provided with the interactive flat panel. If a power cable is not supplied, contact your supplier. Use only power cables that match the AC voltage of the power outlet and that comply with your country's safety standards.
• If the glass is broken, do not touch the liquid crystal. To prevent injury, handle glass fragments with care when disposing of them.

• Do not move or mount the interactive flat panel by connecting rope or wire to its handles. The interactive flat panel is heavy, and failure of the rope, wire or handle could lead to injury.

• Use only VESA®-approved mounting hardware.

• Disconnect all of the interactive flat panel's power cables from the wall outlet and seek assistance from qualified service personnel if any of the following occur:
• The power cable or plug is damaged
• Liquid is spilled into the interactive flat panel
• Objects fall into the interactive flat panel
• The interactive flat panel is dropped
• Structural damage, such as cracking, occurs
  The interactive flat panel behaves unexpectedly when you follow operating instructions

CAUTION

• Before you clean the interactive flat panel's screen, shut down or disconnect the computer. Otherwise, you may scramble the desktop icons or inadvertently activate applications when you wipe the screen.
• Avoid setting up and using the interactive flat panel in an area with excessive levels of dust, humidity and smoke.
• Make sure an electrical socket is near the interactive flat panel and remains easily accessible during use.
• The external power supply must meet the Limited Power Source (LPS) requirements of CSA/UL/IEC/EN 60950-1, when required.
• The interactive flat panel should be used only with European TN and TT power distribution systems.

It is not suitable for older, IT-type power distribution systems found in some European countries. “This system (IT-type) is widely used isolated from earth, in some installations in France, with impedance to earth, at 230/400V, and in Norway, with voltage limiter, neutral not distributed, at 230V line-to-line.” (IEC 60950:1999)

Contact qualified personnel if you're uncertain of the type of power system available where you're installing the interactive flat panel.

- You must connect the USB cable that came with the interactive flat panel to a computer that has a USB compliant interface and that bears the USB logo. In addition, the USB source computer must be compliant with CSA/UL/EN 60950 and bear the CE mark and CSA and/or UL Mark(s) for CSA/UL 60950. This is for operating safety and to avoid damage to the interactive flat panel.

IMPORTANT

- The following are the power requirements for the interactive flat panel:

Model Power requirements

SPNL-6055 90V to 240V AC, 50Hz to 60 Hz, 130 W

SPNL-6065 100V to 240V AC, 50 Hz to 60 Hz, 200 W

- For additional requirements and other information, refer to the interactive flat panel's specifications (see Resources for decision makers on page 7).

Contents

Important information i....

Chapter 1: Welcome.1....

About this guide 1

About the interactive flat panel.2....

About SMART software 6

Resources for administrators.7....

Resources for others 7

Chapter 2: Mounting the interactive flat panel 9

Before mounting the interactive flat panel.... 9

Mounting the interactive flat panel vertically.... 10

Choosing a location.... 10

Choosing a height 11

Chapter 3: Connecting power and devices....13

Connector panel 13

Connecting power 14

Connecting the room computer.... 14

Connecting external speakers....15

Chapter 4: Setting up the interactive flat panel and room computer.... 17

Turning on the interactive flat panel and room computer for the first time.... 17

Installing SMART software 18

Running the SMART Connection Wizard 18

Chapter 5: Maintaining the interactive flat panel .... 21

Resetting the interactive flat panel 21

Maintaining the interactive flat panel software and firmware 22

Maintaining the interactive flat panel hardware 25

Removing and transporting the interactive flat panel 27

Chapter 6: Troubleshooting ....29

Locating the interactive flat panel serial number 29

Resolving common issues using the indicator light 29

Resolving image issues 30

Resolving touch issues.... 30

Resolving connected computer issues 31

Using the SMART Connection Wizard.... 32

Using SMART Diagnostics 33

CONTENTS

Appendix A: Using the on-screen display menu 35

Changing settings in the on-screen display menu 35....

On-screen display menu options 36

Appendix B: Remotely managing the interactive flat panel 39.

Connecting and configuring a room control system.39....

Power modes 41

Room control system programming commands and responses.41....

Commands 42

Appendix C: Hardware environmental compliance 49

Waste Electrical and Electronic Equipment (WEEE) 49

More information 49

Index 51

Chapter 1

About this guide.1....

About the interactive flat panel 2

Models 2....

Specifications 2

Features 2....

Components 3

Screen 4

Cameras and reflective tape channel 4

Front control panel 5

Pens with erasers 6

Speakers 6

About SMART software 6

Resources for administrators.... 7

Training 7

Support center and knowledge base.... 7

Resources for others 7

Resources for decision makers 7

Resources for installers 7

Resources for users.... 7

This chapter introduces the SMART Board ^® 6000 series interactive flat panel and this guide.

About this guide

This guide explains how to set up and maintain the SMART Board 6000 series interactive flat panel. It includes the following information:

• How to mount the interactive flat panel
• How to connect power and devices
• How to set up the interactive flat panel
- How to maintain the interactive flat panel for years of use
- How to troubleshoot issues with the interactive flat panel

In addition, this guide includes information on the interactive flat panel's on-screen display menu and remote management support.

This guide is intended for individuals who install and maintain interactive flat panels in their organizations. Other documentation and resources are available for individuals who use interactive flat panels.

About the interactive flat panel

The interactive flat panel features SMART's proprietary DViT® (Digital Vision Touch) technology on an LCD screen with e-LED backlight.

Models

The SMART Board 6000 series interactive flat panels consists of two models:

• SMART Board 6055 interactive flat panel (SPNL-6055)
• SMART Board 6065 interactive flat panel (SPNL-6065)

Differences between these models are noted in this guide.

Specifications

Refer to the interactive flat panel's specifications for detailed technical information, including product dimensions and weights (see Resources for decision makers on page 7).

Features

The interactive flat panel includes the following features:

Feature Description

Touch support You can do everything on the interactive flat panel that you can do at your computer—open and close applications, meet with others, create new documents or edit existing ones, visit websites, play and manipulate videos, and so on—by touching the interactive flat panel’s surface.You can use an array of gestures within applications, including panning, scaling, rotating and zooming in and out.The interactive flat panel’s support for at least four simultaneous touches enables you and other users to interact with objects on the screen at the same time.
Feature Description
Writing and drawing support	You can write over any application in digital ink using one of the supplied pens, and then erase the digital ink using your palm or the eraser on the pen.You and another writer can write or draw digital ink on the screen at the same time. The Pen iQTM feature enables you to assign different ink appearances to each pen.
Audio support The interactive flat panel includes integrated speakers for presenting audio from connected input sources.

Components

The interactive flat panel consists of the following components:

No. Name More information
Pictured
1 Screen Page 4
2 Cameras and reflective tape channel Page 4
3 Front control panel		Page 5
4 Pen with eraser (×2)		Page 6
Not pictured
5 Speakers		Page 6

No. Name More information

6 Connector panel Page 13

7 Menu control panel Page 35

Screen

The screen specifications vary by model:

Model Diagonal Width Height		Aspect ratio
SPNL-6055	54 1/2" (138.4 cm)	47 5/8" (121 cm)	26 3/4" (68 cm)	16:9
SPNL-6065	64 1/2" (163.9 cm)	56 1/4" (142.8 cm)	31 5/8" (80.4 cm)	16:9

For information on cleaning the screen, cleaning the screen on page 25.

Cameras and reflective tape channel

Cameras in the corners of the screen track finger and pen positions across the display. The screen is bordered by a channel that contains reflective tape.

For information on cleaning the camera windows and reflective tape, cleaning the screen page 25.

CAUTION

• Keep the reflective tape dry.
• Do not remove or damage the reflective tape.

IMPORTANT

• Do not attach adhesive notes or other items to the screen because they will interfere with the cameras.
• Do not place anything in the reflective tape channel because it will interfere with the cameras.

Front control panel

The front control panel contains the Standby, Input Select, Mute and volume control buttons.

No. Name

1 Standby button

2 Input Select button

3 Mute button

4 Volume decrease

5 Volume increase

IMPORTANT

If there is a film over the front control panel, remove it before using the front control panel.

In normal operation, all buttons are white.

The Standby button also functions as an indicator light:

Indicator light Status Troubleshooting

Solid white Normal operation [N/A]
Off	Not receiving power	Confirm the interactive flat panel's power cable is connected to the power outlet (see page 14).Flick the power switch to the ON (I) position (see page 17).
Solid amber	DPMS (power management) mode	Press the Standby button ➕ to exit DPMS mode.
Slowly flashing amber	Standby mode	Press the Standby button ➕ to exit Standby mode.
Flashing amber	No USB connection from the connected computer	Verify the connections to the room computer (see page 14).
Slowly flashing white	SMART Board service not running on the connected computer	Ensure that SMART Product Drivers is installed and that the SMART Board service is running.

Pens with erasers

The interactive flat panel comes with two pens with erasers attached.

The interactive flat panel's bottom frame includes magnetic holders for the pens. Removing a pen from the holders activates it, and you can use it to draw or erase digital ink.

CAUTION

When you return the pen to the magnetic holder, make sure it's centered in its holder to prevent it from falling and potentially being damaged.

Speakers

The interactive flat panel includes two 10 W integrated side-firing speakers.

You can connect external speakers if desired (sConnecting external speaker on page 15).

About SMART software

To take full advantage of the interactive flat panel's features, you can install the following SMART software on the computers connected to the interactive flat panel:

Software Description

SMART Product Drivers SMART Product Drivers enables connected computers to detect input from the interactive flat panel.
SMART InkTM SMART Ink enables you to write and draw in digital ink over applications, files, folders, websites and any other open window on your computer. When you write outside the open windows on your computer, a SMART Ink Note appears, and you can write inside the note.When you open an application that has its own ink tools, you can use the application's ink tools to write in the content.
SMART Notebook®collaborative learning software	SMART Notebook software is designed for use with the interactive flat panel during classroom instruction.

Resources for administrators

In addition to this guide, SMART provides a variety of other resources for administrators.

Training

The SMART training website (smarttech.com/training) includes an extensive library of training resources you can refer to as you learn how to set up and maintain the interactive flat panel.

Support center and knowledge base

The Support center (smarttech.com/support) contains a library of documents, including this guide, and a knowledge base that you can search when troubleshooting issues.

Resources for others

SMART provides resources for decision makers, installers and users as well as administrators.

Resources for decision makers

Decision makers can refer to the specifications for detailed information about the interactive flat panels.

Model Specifications

SPNL-6055 smarttech.com/kb/170817

SPNL-6065 smarttech.com/kb/170640

Resources for installers

Installers can refer to the installation instructions included with the interactive flat panel when installing the product. A PDF version of these installation instructions is available for download from smarttech.com/kb/170641.

Resources for users

Users can refer to the SMART Notebook software Help for information about using the software with the interactive flat panel. To open the Help, users can select Help > Contents in the SMART Notebook software window.

Chapter 2

Before mounting the interactive flat panel 9.

Mounting the interactive flat panel vertically 10

Choosing a location.10....

Choosing a height 11

Mounting the interactive flat panel on a wall requires a team of professional installers.

This chapter is intended for installers. Installers should read this chapter along with the installation instructions included with the interactive flat panel before they mount the interactive flat panel.

WARNING

Improper mounting of the interactive flat panel can result in injury and product damage.

Before mounting the interactive flat panel

Remember the following before mounting the interactive flat panel:

• Review the environmental requirements in the interactive flat panel's specifications (see Resources for decision makers on page 7).
• Save all product packaging so that it's available if you need to transport the interactive flat panel. If the original packaging isn't available, you can purchase new packaging from your authorized SMART reseller (smarttech.com/where).
• Refer to local building codes to ensure the wall can support the weight of the interactive flat panel (specified in the following table) and mounting equipment.

Model	Weight
SPNL-6055	104 lb. (47.4 kg)
SPNL-6065	135 lb. 6 oz. (61.4 kg)

- Use a standard VESA 400 mm × 400 mm mounting plate (not included) to mount the interactive flat panel on a wall.

- Use M8 screws to fasten the wall bracket.

Screw length 20 mm + x mm < M8 < 45 mm×mm

where x is the combined thickness of the wall bracket and washer

Fasten force

97.36–177.01 in-lb. (11–20 N·m)

CAUTION

Do not over-tighten the screws.

NOTE

SMART recommends M8 × 30 mm mounting screws for standard installations where the total wall mount bracket and washer thickness is less than 7 mm.

• Because the receptacles might not be easily accessible after the installers mount the interactive flat panel, consider connecting cables for power, computers and other devices while the interactive flat panel is still in its packaging (Connecting power and devices on page 13).
• Before turning on the interactive flat panel for the first time, clean the camera windows and reflective tape following the instructions cleaning the camera windows and reflective tape on page 26.

Mounting the interactive flat panel vertically

The interactive flat panel is designed for vertical mounting (90° relative to the floor plus or minus 15° for tolerance). SMART doesn't support mounting the interactive flat panel at other angles.

Choosing a location

Consider the following when choosing a location for the interactive flat panel:

• Do not install the interactive flat panel in a location where a door or gate could hit it.
• Do not install the interactive flat panel in an area where it will be subjected to strong vibrations or dust.

CHAPTER 2

MOUNTING THE INTERACTIVE FLAT PANEL

• Choose a location that's far from bright light sources, such as windows and strong overhead lighting. IR lighting can cause issues with the performance of the cameras and can lead to unintentional or missed touches.
• Do not install the interactive flat panel near where the main power supply enters the building.
• Ensure adequate ventilation or provide air conditioning around the interactive flat panel so that heat can flow away from the unit and the mounting equipment.
• If you mount the interactive flat panel in a recessed area, leave at least 4" (10 cm) of space between the interactive flat panel and the recessed walls to enable ventilation and cooling.

Choosing a height

Consider the general height of the user community when you choose the height for the interactive flat panel.

Illustration of two people standing at a blank whiteboard, one raising one hand (no text or symbols)

Chapter 3

Connector panel 13....

Connecting power 14

Connecting the room computer 14....

Connecting external speakers....15

This chapter describes connecting the interactive flat panel to power, computers and other devices.

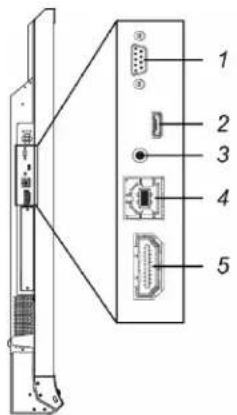

Connector panel

The following diagram and table present the connectors on the interactive flat panel:

No.	Connector	Connects to	Notes (if any)
1	RS-232	Room control system	See page 39.
2	USB Micro-B	[N/A]	This connector is a service port.
3	Stereo 3.5 mm	External speakers	See page 15.
4	USB Type-B	Room computer (touch)	See page 14.

No. Connector Connects to Notes (if any)

5 HDMI® Room computer (video) The HDMI cable should be HDMI 1.4

compliant and no longer than 16' 5" (5 m).

For more information, see below.

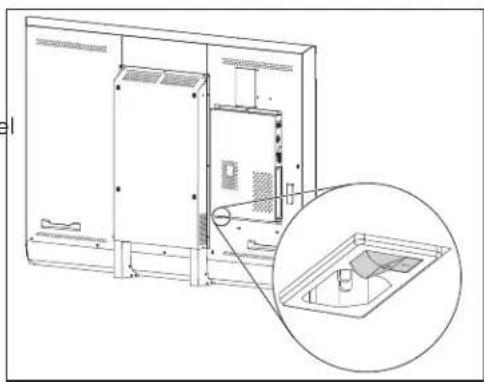

Connecting power

Connect the supplied power cable from the AC power inlet on the bottom of the interactive flat panel to a power outlet.

Technical line drawing of a device interior with an inset close-up showing internal components (no text or symbols)

NOTE

Refer to the interactive flat panel's specifications for power requirements and power consumption information (see Resources for decision makers on page 7).

Connecting the room computer

Using USB and HDMI cables, connect the room computer to the appropriate connectors on the interactive flat panel.

Diagram of a network device with ports, connectors, and a computer monitor (no text or labels)

NOTES

• You can use the interactive flat panel with up to two USB-XT extenders.
• If you use a CAT 5 USB extender, the maximum length of the Cat 5 cable is 52^ (16 m).

Press the Input Select button → on the front control panel until the input source is HDMI.

CHAPTER 3

CONNECTING POWER AND DEVICES

Connecting external speakers

The interactive flat panel includes two 10 W speakers. However, you can connect external active speakers using the stereo 3.5 mm connector.

Diagram showing a device with ports and connectors connected to a wall-mounted connector (no text or symbols present)

Chapter 4

and room computer

Turning on the interactive flat panel and room computer for the first time.17.... 18 Installing SMART software.... 18 Running the SMART Connection Wizard.... 18

This chapter explains how to set up the interactive flat panel and room computer after mounting the interactive flat panel and connecting power and devices.

Turning on the interactive flat panel and room computer for the first time

After connecting the room computer to the interactive flat panel (sConnecting the room computer on page 14) and mounting the interactive flat panel (sMounting the interactive flat panel on page 9), you can turn on both devices.

To turn on the interactive flat panel and room computer for the first time

1. Turn on the room computer.
2. Turn on the interactive flat panel by flicking the power switch beside the AC power inlet to the ON (I) position.

Technical line drawing of a device with an inset showing a close-up of a component (no text or symbols present)

1. Press the Standby button on the front control panel.

Installing SMART software

Download and install SMART software on the room computer to take full advantage of the interactive flat panel's features.

The purchase of the interactive flat panel includes a license for SMART Notebook software and a one-year subscription to the SMART Notebook Advantage software maintenance plan. See smarttech.com/notebook for more information.

To download and install SMART software

1. Go to smarttech.com/downloads.
2. Scroll to the SMART Notebook collaborative learning software section.
3. Click Choose a version, and then select the most recent version.
4. Click Download.
5. Follow the on-screen instructions to save the installer to a temporary location.
6. Double-click the installer.
7. Follow the on-screen instructions to install SMART software.

Running the SMART Connection Wizard

After turning on the interactive flat panel and room computer for the first time and installing SMART software, run the SMART Connection Wizard to calibrate and orient the interactive flat panel.

IMPORTANT

You must calibrate the interactive flat panel before using it.

To run the SMART Connection Wizard

1. Access the SMART Connection Wizard by opening SMART Settings (see Opening SMART Settings on page 22).
2. Click Connection Wizard.
   The SMART Connection Wizardappears.
3. Select the interactive flat panel from the list of connected SMART interactive products, and then click Next.
4. Select Product is being set up for the first time, and then click Next.

CHAPTER 4

SETTING UP THE INTERACTIVE FLAT PANEL AND ROOM COMPUTER

1. Follow the on-screen instructions to calibrate and orient the interactive flat panel for the first time.

Chapter 5

interactive flat panel

Resetting the interactive flat panel.21....

Maintaining the interactive flat panel software and firmware 22

Opening SMART Settings 22....

Updating firmware .22

Updating software 23

Orienting the interactive flat panel 23

Calibrating the interactive flat panel.... 24

Maintaining the interactive flat panel hardware 25

Checking the interactive flat panel installation 25

Cleaning the screen 25

Cleaning the camera windows and reflective tape 26

Maintaining ventilation 26

Preventing condensation 27

Maintaining pens 27

Removing and transporting the interactive flat panel ....27

Removing the interactive flat panel 27

Transporting the interactive flat panel 28

This chapter describes common maintenance procedures for the interactive flat panel.

Resetting the interactive flat panel

You can reset the interactive flat panel using the front control panel.

To reset the interactive flat panel

1. Press the Standby button ⚙ on the front control panel.

A message appears on the screen, prompting you to either press the button again to enter Standby mode or press and hold the button to reset the interactive flat panel.

CHAPTER 5

MAINTAINING THE INTERACTIVE FLAT PANEL

1. Press and hold the Standby button until the screen turns black.

The interactive flat panel resets, and then your computer's logon screen or desktop appears on the interactive flat panel.

Maintaining the interactive flat panel software and firmware

This section describes common maintenance procedures for the interactive flat panel software and firmware.

Opening SMART Settings

Several maintenance and troubleshooting procedures in this guide are accessible through SMART Settings.

To open SMART Settings on Windows 7 operating system

Select Start > All Programs > SMART Technologies > SMART Tools > SMART Settings.

SMART Settings appears.

To open SMART Settings on Windows 8 operating system

1. Open the Apps screen.

2. Press SMART Settings.

SMART Settings appears.

To open SMART Settings on Mac OS operating system software

1. Press the SMART Board icon on the Mac menu bar.

2. Press SMART Settings.

SMART Settings appears.

Updating firmware

You can update the firmware the interactive flat panel uses on its processor. For more information, see Updating the firmware on your SMART Board 6065 interactive flat panel (kb.smarttech.com/?q=15055).

CHAPTER 5

MAINTAINING THE INTERACTIVE FLAT PANEL

Updating software

SMART Product Update (SPU) is included in SMART software (Installing SMART software on page 18). SPU periodically checks for updates to the SMART software posted on the SMART website. You can configure SPU to prompt users to install updates or to install updates automatically.

NOTE

If you didn't install SPU, you can download updates to SMART software from smarttech.com/downloads.

Orienting the interactive flat panel

If the pointer appears a distance from the actual contact when you touch the screen, orient the interactive flat panel.

NOTE

You can use your finger or a pen to orient the interactive flat panel.

To orient the interactive flat panel

1. Open SMART Settings (see Opening SMART Settings on the previous page).
2. Press Orient.
3. Press the red targets as they appear. Hold your finger or the tip of the pen at the center of each target, and then lift the pen or finger. When you lift the pen or finger, the target moves to the next orientation point.

IMPORTANT

Hold the pen perpendicular to the screen.

1. Continue until you've pressed all the targets.

The orientation window closes.

1. If orientation doesn't correct inaccurate touch, calibrate the interactive flat panel (see Calibrating the interactive flat panel on the next page).

Calibrating the interactive flat panel

Digital cameras in the corners of the interactive flat panel track the position of the pens, eraser and your finger on the interactive surface, and then send the information to the SMART software, which interprets this information as mouse clicks, digital ink or an eraser in the appropriate location.

Calibration determines the position and angles of the cameras to accurately identify the location of touches on the interactive flat panel.

IMPORTANT

If an error message appears while you calibrate the interactive flat panel, contact SMART Support (smarttech.com/contactsupport).

To calibrate the interactive flat panel

1. Open SMART Settings (see Opening SMART Settings on page 22).
2. Press SMART Hardware Settings.
3. If more than one SMART product is connected to your computer, select the interactive flat panel.
4. Select Advanced Settings from the drop-down list.
5. Press Calibrate.

The calibration screen appears. This can take a few moments.

1. Press the red target with the tip of a pen. Hold the tip at the center of the target until the target turns green, and then lift the pen.

The target moves to the next location.

NOTE

You can calibrate a target again by pressing the LEFT ARROW key on your keyboard.

1. Continue pressing targets until the second calibration screen and a grid appears.
   An example appears briefly to demonstrate how to draw across the screen to calibrate the interactive surface.
2. Use a pen to draw a spiral horizontally across the grid. As you draw, the ink is blue. As you complete each square, the square becomes green.
3. When all the squares are green, a progress bar appears.

When the progress bar is full, the interactive flat panel displays the message

Calibration successful.

1. Orient the interactive flat panel (see Orienting the interactive flat panel on the previous page).

Maintaining the interactive flat panel hardware

With proper maintenance, the interactive flat panel hardware will provide years of use.

Checking the interactive flat panel installation

Inspect the interactive flat panel installation frequently to ensure that it remains securely installed.

• Check the mounting location for signs of damage or weakness that can occur over time.
• Check for loose screws, gaps, distortions or other issues that could occur with the mounting hardware.

If you find an issue, contact a professional installer.

Cleaning the screen

Follow these instructions to clean the interactive flat panel screen without damaging its anti-glare coating or other product components.

CAUTION

• Do not use permanent or dry-erase markers on the screen. If dry-erase markers are used on the screen, remove the ink as soon as possible with a lint-free, non-abrasive cloth.
• Do not rub the screen with a dense or rough material.
• Do not apply pressure to the screen.
• Do not use cleaning solution or glass cleaner on the interactive flat panel screen, because they can deteriorate or discolor the screen.
• Avoid touching the reflective tape between the screen and the frame, and ensure that this strip stays dry. Damage to this strip affects touch interactivity.

To clean the screen

1. Turn off the room computer.
2. Press the Standby button on the front control panel twice.
3. Turn the interactive flat panel off by flicking the power switch beside the AC power inlet.
4. Wipe the screen with a lint-free, non-abrasive cloth.

Cleaning the camera windows and reflective tape

The interactive flat panel's DViT technology uses four cameras in the corners of the frame and the reflective material between the screen and the frame. Dust buildup on the camera windows or reflective tape can impair touch performance.

Inspect these areas regularly for dust, and clean them if any obvious dust buildup has occurred.

CAUTION

• Do not use compressed air to clean the camera windows or borders.
• Do not use water, chemicals or cleaning agents.

- Applying too much pressure when cleaning the tape or cameras can damage the tape and cause performance issues or errors.

To clean the camera windows and reflective tape

1. Using a clean lint-free cloth, gently wipe the camera windows in the top corners and the reflective tape along the top of the interactive flat panel screen.
2. Gently wipe the reflective tape along the sides of the interactive flat panel screen.
3. Gently wipe the camera windows in the bottom corners and the reflective strip across the bottom of the interactive flat panel screen.

Maintaining ventilation

The interactive flat panel requires proper ventilation. Dust buildup in the ventilation holes compromises cooling and leads to product failure.

• Clean accessible ventilation holes monthly with a dry cloth.
• Use a vacuum cleaner with a narrow hose end fitting to clear the back ventilation holes regularly. You might have to remove the interactive flat panel from the wall. For more information on removing the interactive flat panel, see Removing the interactive flat panel on the next page.

CAUTION

Avoid setting up or using the interactive flat panel in an area with excessive levels of dust, humidity or smoke.

Preventing condensation

The interactive flat panel screen contains layers of glass that can collect condensation, especially in the following conditions:

• Temperature extremes with high humidity
- Rapid changes in humidity, which can occur when you operate the product near water (such as a pool, kettle or air conditioner ventilator)
- Direct exposure to sunlight

To evaporate condensation from the interactive flat panel

1. Remove the humidity source from the interactive flat panel, if possible.
2. Turn off the interactive flat panel.
3. Remove any moisture from the interactive flat panel with a smooth, dry cloth.
4. Leave the interactive flat panel turned off for 48 hours.

Maintaining pens

To prevent damage to the interactive flat panel's anti-glare coating, replace a pen if its nib becomes worn. You can purchase replacement pens from the Store for SMART Parts (see smarttech.com/Support/PartsStore).

Removing and transporting the interactive flat panel

On occasion, you might need to remove the interactive flat panel from its current location and transport it to another location.

Removing the interactive flat panel

To remove the interactive flat panel safely, use two or more professional installers.

WARNING

• Do not attempt to move the interactive flat panel by yourself. The interactive flat panel is very heavy.
• Do not move the interactive flat panel by connecting a rope or wire to the handles on the back. The interactive flat panel can fall and cause injury and product damage.

IMPORTANT

Follow the instructions included with the floor stand or mounting hardware.

To remove the interactive flat panel

1. Turn off the room computer.
2. Press the Standby button on the front control panel twice.
3. Remove all accessible cables and connectors.

4. Lift the interactive flat panel from its mounting location.

5. Turn off the interactive flat panel by flicking the power switch beside the AC power inlet.

WARNING

Do not place the interactive flat panel on a sloping or unstable cart, stand or table, because the interactive flat panel could fall, resulting in injury and severe product damage.

CAUTION

Do not leave the interactive flat panel face up, face down or upside down for an extended period of time, because it could cause permanent damage to the screen.

1. Remove the mounting brackets.

Transporting the interactive flat panel

Save your original packaging so that you can repack the interactive flat panel with as much of the original packaging as possible. This packaging was designed to provide the best possible protection against shock and vibration. If the original packaging isn't available, you can purchase the same packaging directly from your authorized SMART reseller (smarttech.com/where).

CAUTION

Transport the interactive flat panel only in original or replaced packaging. Transporting the interactive flat panel without correct packaging can lead to product damage and voids the warranty.

Chapter 6

Locating the interactive flat panel serial number.29....
Resolving common issues using the indicator light 29
Resolving image issues.30....
Resolving touch issues 30
Resolving connected computer issues.... 31
Using the SMART Connection Wizard 32
Using SMART Diagnostics.... 33

This chapter helps you solve simple issues that can occur with the interactive flat panel. If issues persist or aren't covered in this chapter, contact SMART Support (smarttech.com/contactsupport).

Locating the interactive flat panel serial number

When you contact SMART Support, you might be asked to provide the interactive flat panel serial number. The serial number is located in two places:

• The on-screen display menu (see Serial Number on page 38)
• Underneath the bottom frame

Resolving common issues using the indicator light

The Standby button on the front control panel also functions as an indicator light. You can use the indicator light to resolve common issues with the interactive flat panel. For more information, see Front control panebn page 5.

Resolving image issues

Use the following table to resolve image issues:

Symptom Cause Solution
The image is too light, too dark or has poor image quality.	The interactive flat panel's picture settings might be set incorrectly.	Adjust the Picture options (see picture on page 36).
There is a persistent image on the screen.	An image was displayed for too long.	Turn off the interactive flat panel and leave it turned off for as long as the image was on the screen.Set up screen savers on any connected computers to prevent persistent images.
There are other image issues. Return all settings to their default values		(see page 38).

Resolving touch issues

Use the following table to resolve touch issues:

Symptom Cause Solution
When you touch the screen, the pointer appears in the wrong location.	You aren't touching the screen at a right angle.	For more information, seeTouching and drawing on your SMART Board interactive whiteboard is inaccurate (kb.smarttech.com/?q=13976).
	The interactive flat panel isn't oriented.	Orient the interactive flat panel (see page 23).
An area of the screen doesn't respond to your touch, or when you draw digital ink, the lines are broken.	Something is blocking the cameras.	Ensure nothing is taped to the screen.
	Something is in the reflective tape channel.	Remove items from the reflective tape channel.
	Your finger or pen is skipping as you draw. This is most common on the upstroke.	Use consistent pressure while drawing digital ink.
	Bright lights are interfering with the cameras.	Close blinds or shades or dim all halogen lights and LEDs.
	The cameras require calibration, possibly because of a temperature change in the room.	Calibrate the interactive flat panel (see page 24).
You can interact with screen elements by touching them, but you can't write or draw using the pens.	The cameras require calibration, possibly because of a temperature change in the room.	Calibrate the interactive flat panel (see page 24).

Resolving connected computer issues

Use the following table to resolve connected computer issues:

Symptom Cause Solution
The connected computer's display is too large, too small or doesn't completely fill the screen.	The connected computer's video resolution settings don't match the interactive flat panel's native resolution.	Set the computer's video resolution to 3840 × 2160 at 30 Hz. (If the connected computer can't support this resolution, consider 1920 × 1080 at 60 Hz as an alternative.)
The connected computer's screen resolution is correct, but the image is surrounded by black bars.	The connected computer's video ecard is underscanning the image.	Turn off or adjust the overscan/underscan feature in the video card driver software until the image fits the screen resolution. Refer to the computer's video card Help for more information.Select the 4K UHD option from the video card driver's advanced menu (if available)
	The video cable is of poor quality.	Replace the video cable with a better quality video cable.
	You're using two connected video cables.	Replace the two cables with one longer cable.ORMove the computer so that it's within a single cable length of the interactive flat panel.
	The interactive flat panel's native resolution doesn't match the resolution on the computer's display adapter.	Check the resolution on the computer's display adapter and change the interactive flat panel's resolution to match.
The connected computer's display is unstable or unfocused.	The video connection is loose.	Secure the video cable to both your computer and the interactive flat panel.
	The video cable is of poor quality.	Replace the video cable with a better quality video cable.
	You're using two connected video cables.	Replace the two cables with one longer cable.ORMove the computer so that it's within a single cable length of the interactive flat panel.
	The connected computer's video display card is defective.	Connect a different computer to the interactive flat panel. If this improves the image quality, consider replacing the video card in the original computer.
The SMART Board icon doesn't appear.	SMART Product Drivers isn't installed.	Download and install SMART Product Drivers from smarttech.com/downloads.
	SMART Product Drivers isn't running.	Start SMART Product Drivers following the steps in the Help.
Touch interactivity is slow. The connected computer is running too many applications.	Close some open applications.
	The connected computer doesn't meet SMART requirements.	Upgrade the computer or replace it with another computer that meets system requirements.
	You haven't used a USB 2.0 cable to connect the interactive flat panel to the computer.	Use a USB 2.0 cable and ensure it's connected to the correct USB receptacle (see page 14).
There's no sound when you play an audio file.	The connected computer's playback device isn't set correctly.	Ensure the connected computer's playback device is set as the interactive flat panel (see the connected computer's documentation).
	The interactive flat panel's audio input isn't set correctly.	Ensure the interactive flat panel's audio input is set as the computer's audio connector (see page 37).
	The connected computer is muted.	Turn off the mute setting.
	The connected computer's volume is too low.	Turn up the volume on the computer.
	The interactive flat panel is muted.	Turn off the mute setting using the front control panel.
	The interactive flat panel's volume is too low.	Turn up the volume using the front control panel.

Using the SMART Connection Wizard

You can resolve a variety of issues using the SMART Connection Wizard found in SMART Settings.

To use the SMART Connection Wizard

1. Access the SMART Connection Wizard by opening SMART Settings (see Opening SMART Settings on page 22).
2. Press Connection Wizard.
   The SMART Connection Wizard appears.
3. Select the interactive flat panel from the list of connected SMART interactive products, and then press Next.
4. Select the option that best describes the issue you're encountering, and follow the on-screen instructions.

Using SMART Diagnostics

If you touch the interactive flat panel's surface and nothing happens, if there is no digital ink, or if the ink appears in some locations and not in others, use SMART Diagnostics to help identify and resolve these issues.

IMPORTANT

Do not change diagnostic settings unless asked to do so by SMART Support.

To check camera views

1. Open SMART Settings (see Opening SMART Settings on page 22).

2. Select About Software and Product Support > Tools > Diagnostics.
   SMART Diagnostics opens.

3. Select View > SPNL-6000/SBID8000-G5 Bar.

The group box appears.

1. Press View.

The camera view screen appears.

1. Click Get image to display the four camera views. This could take a few moments.

If one of the camera views doesn't appear, the camera is blocked or can't locate the reflective tape on the interactive flat panel's inner frame.

NOTE

You can compare the camera view to examples of normal camera views.

1. Check the camera lens and ensure that nothing is blocking its view and that nothing is affixed to the interactive surface.

Appendix A

Changing settings in the on-screen display menu 35....

On-screen display menu options 36

You can access the on-screen display menu using the menu control panel located on the side of the interactive flat panel.

No.	Name
1	MENU
2	SET
3	[Up]
4	[Down]
5	[Left]
6	[Right]

Changing settings in the on-screen display menu

To change settings in the on-screen display menu

1. Press the MENU button on the menu control panel.

The on-screen display menu appears.

1. Press the up and down arrows to highlight a menu, and then press SET.

2. Press the up and down arrows to highlight a menu option.

3. Press the left and right arrows to change the menu option's setting.

OR

Press the right arrow to open the menu option's submenu. (Repeat steps 3 and 4 to change settings in the submenu.)

1. Press MENU until the on-screen menu closes.

On-screen display menu options

Option Values Function Notes (if any)
Picture Mode	StandardUserDynamic	Sets the picture mode Select User	to customize brightness, contrast, sharpness and other Picture options.Select one of the other values to set brightness, contrast, sharpness and other Picture options to default values.
Brightness	0–100	Sets the overall brightness of the image and background	You can modify this option only if you select User inPicture Mode
Contrast	0–100	Sets the difference in brightness between the lightest and darkest parts of the image.	You can modify this option only if you select User inPicture Mode
Black Level	0–100	Sets the level of brightness in the darkest parts of the image	You can modify this option only if you select User inPicture Mode
Color	0–100	Sets the image color depth	You can modify this option only if you select User inPicture Mode
Sharpness	0–100	Sets the image sharpness	You can modify this option only if you select User inPicture Mode
Color temperature	NormalWarmUserCool	Sets the color temperature	Select User to customize the amount of red, green and blue in the image.Select one of the other values to set the amount of red, green and blue in the image to default values.
Red	0–100	Sets the amount of red in the image	You can modify this option only if you select User inColor Temperature.
Green	0–100	Sets the amount of green in the image	You can modify this option only if you select User inColor Temperature.
Blue	0–100	Sets the amount of blue in the image	You can modify this option only if you select User inColor Temperature.
• Movie Mode	OffLowMiddleHigh	Sets the brightness, contrast, black level, color and sharpness for movie watching
• Picture Reset	[N/A] Resets all	options in thePicture menu to their default values
Sound
▸ Sound Mode
• Treble	L50-R50 Sets the high frequency sound
• Bass	L50-R50 Sets the low frequency sound
▸ EQ
• 120 Hz	0-100 Sets the sound equalization at 120 Hz
• 500 Hz	0-100 Sets the sound equalization at 500 Hz
• 1.2 kHz	0-100 Sets the sound equalization at 1.2 kHz
• 7.5 kHz	0-100 Sets the sound equalization at 7.5 kHz
• 12 kHz	0-100 Sets the sound equalization at 12 kHz
• Balance	L50-R50 Balances the left and right volume
• Audio Input	HDMIUSB	Sets the audio input source
• Sound Reset	[N/A] Resets all options in theSound menu to their default values
OSD
• Language	[Languages] Sets the on-screen display menu's language
• OSD Turn Off	Off5 seconds10 seconds15 seconds	Sets the time of inactivity before the on-screen display menu turns off
• OSD Reset	[N/A] Resets all options in theOSD menu to their default values

APPENDIX A

USING THE ON-SCREEN DISPLAY MENU

Option Values Function Notes (if any)
Setup
Power Save	On Off	Enables or disables Power Save mode	When Power Save mode is enable and there is no video input, the interactive flat panel displays No Signal for 25 seconds before turning off.
Setup Reset	[N/A] Restores the setup settings to their default value
Factory Reset	[N/A] Resets options in all menus to their default values
About
Model Number	[N/A] Displays the interactive flat panel's model number
Serial Number	[N/A] Displays the interactive flat panel's serial number
Scalar firmware version	[N/A] Displays the interactive flat panel's scalar firmware version
Touch firmware version	[N/A] Displays the interactive flat panel's touch firmware version
OPS Information	[N/A] Displays whether the I/O extension module is installed

Appendix B

interactive flat panel

Connecting and configuring a room control system.39....

Connecting a computer to the interactive flat panel 40

Configuring the computer's serial interface settings.40....

Power modes 41

Room control system programming commands and responses.... 41

Command inventory 42

Viewing a list of available commands.... 42

Identifying current values.... 42

Assigning a specific value.... 42

Increasing or decreasing a value for a setting 42

Commands 42

Power state 43

Source 43

Video 44

Audio 45

System information 46

This appendix includes detailed instructions for setting up your computer or room control system to remotely manage the interactive flat panel using an RS-232 serial interface.

Connecting and configuring a room control system

Connect a computer to the room control input on the interactive flat panel to remotely select video inputs, turn the interactive flat panel on or off and request information such as contrast, power state and current settings.

Connecting a computer to the interactive flat panel

To connect a computer to the interactive flat panel

Connect an RS-232 cable from the computer's serial output to the room control input on the connector panel.

Diagram of a computer setup showing a rack-mounted device connected to a desktop computer (no text or labels visible)

IMPORTANT

Do not use a null modem cable. Use only a standard RS-232 cable.

Configuring the computer's serial interface settings

Configure the computer's serial interface before sending commands to the interactive flat panel.

To configure the computer's serial interface

1. Turn on the interactive flat panel.
2. Turn on the computer, and then start the serial communications program or terminal emulation program.
3. Activate local echo.
4. Configure the serial interface settings using the following values, and then press ENTER.

Baud rate 19200

Data length 8

Parity bit None

Stop bit 1

A command prompt (>) appears on the following line, and the interactive flat panel can now accept commands from the computer.

NOTE

If no message appears or an error message appears, the serial interface configuration isn't correct. Repeat steps 3 and 4.

Power modes

The interactive flat panel has three power modes:

• On
- Power Save
- Standby

All commands are available when the interactive flat panel is on. Some commands are available when the interactive flat panel is in Standby mode.

Room control system programming commands and responses

To access interactive flat panel information or to adjust interactive flat panel settings using the room control system, type commands after the command prompt ( > ), and then wait for the response from the interactive flat panel.

CORRECT

>get contrast
contrast=55

If you type a command that the room control system doesn't recognize, you receive an invalid command response.

In the example below, the user included an extra space in the contrast command.

INCORRECT

>set con trast=65
invalid cmd=set con trast=65

NOTES

• Use ASCII formatted commands.
• Commands aren't case-sensitive.
• Review each entry carefully before you press ENTER.
• Don't send another command until you receive the response and the next command prompt.

APPENDIX B

REMOTELY MANAGING THE INTERACTIVE FLAT PANEL

Command inventory

The interactive flat panel responds to the commands listed in the tables on the following pages.

Viewing a list of available commands

You can view a list of available commands by typing? at the command prompt and pressing ENTER.

Identifying current values

Use the get command to identify values for a setting. This example shows how to get the interactive flat panel's contrast level.

>get contrast
contrast=55

Assigning a specific value

Use the set command to assign a value to a setting. This example sets the interactive flat panel's contrast level to 65.

>set contrast=65
contrast=65

Increasing or decreasing a value for a setting

You can also use the set command to increase or decrease a setting by a designated number. This example increases the interactive flat panel's contrast level by 5.

>set contrast +5
contrast=70

This example decreases the interactive flat panel's contrast level by 15.

>set contrast -15
contrast=55

Commands

The following tables contain the commands for the interactive flat panel.

NOTE

The Standby mode column indicates whether the command is available while the interactive flat panel is in Standby mode.

Power state

Use the following commands to identify power state settings.

Command Response Possible values Standby			mode
get intpowerstate intpowerstate=	[Value]	onstandbydpmsnovideoconfirmproximitywaitwelcome	Yes
get powerstate powerstate=	[Value]	onoffstandby	Yes

Use the following commands to assign power state settings.

Command Possible values Response Standby			mode
set powerstate[Value]	=on=off=standby	powerstate=[Value]	Yes

Source

Use the following commands to identify source settings.

Command Response Possible values Standby			mode
get input	input[Value]	hdmi1	Yes
get videoinputs videoinputs=	[Value]	hdmi1	Yes

Use the following commands to assign source settings.

Command Possible values Response Standby			mode
set input[Value]	=hdml1=next	input=[Value]	Yes

Video

Use the following commands to identify video settings.

Command Response Possible values Standby			mode
get displaymode displaymode=	[Value]	standarduserdynamic	No
get contrast contrast=	[Value]	0–100 No
get brightness brightness=	[Value]	0–100 No
get tint	tintValue]	0–100 No
get sharpness sharpness=	[Value]	0–100 No
get colortemp	colortempValue]	normalwarmcooluser	No
get red	red{Value}	0–100 No
get green	green{Value}	0–100 No
get blue	blue{Value}	0–100 No
get blacklevel	blacklevelValue]	0–100 No

Use the following commands to assign video settings.

Command Possible values Response Standby			mode
set displaymode[Value]	=standard=user=dynamic	displaymode=[Value]	No
set contrast[Value]	+ [Incremental value]- [Incremental value]=0-100	contrast=[Value]	No
set brightness[Value]	+ [Incremental value]- [Incremental value]=0-100	brightness=[Value]	No
set tint[Value]	+ [Incremental value]- [Incremental value]=0-100	tint=[Value]	No
set sharpness[Value]	+ [Incremental value]- [Incremental value]=0-100	sharpness=[Value]	No
set colortemp[Value]	=normal=warm=cool=user	colortemp=[Value]	No

APPENDIX B

REMOTELY MANAGING THE INTERACTIVE FLAT PANEL

Command Possible values Response Standby			mode
set red[Value]	+ [Incremental value]- [Incremental value]=0-100	red=[Value]	No
set green[Value]	+ [Incremental value]- [Incremental value]=0-100	green=[Value]	No
set blue[Value]	+ [Incremental value]- [Incremental value]=0-100	blue=[Value]	No
set blacklevel[Value]	+ [Incremental value]- [Incremental value]=0-100	blacklevel=[Value]	No
set picturereset[Value]	=yes picturereset=	[Value]	No

Audio

Use the following commands to identify audio settings.

Command Response Possible values Standby			mode
get volume volume=	[Value]	0-100 No
get mute mute=	[Value]	• on• off	No
get audioinput	audioinput[Value]	• usbaudio• HDMI	No
get treble	treble=[Value]	0-100 No
get bass	bass=[Value]	0-100 No
get audioeq120	audioeq120[Value]	0-100 No
get audioeq500	audioeq500≠Value]	0-100 No
get audioeq1200	audioeq1200[Value]	0-100 No
get audioeq7500	audioeq7500[Value]	0-100 No
get audioeq12k	audioeq12kValue]	0-100 No
get balance	balance[Value]	0-100 No

Use the following commands to assign audio settings.

Command Possible values Response Standby		mode
set volume[Value]	+ [Incremental value]- [Incremental value]=0-100	volume=[Value]

APPENDIX B

REMOTELY MANAGING THE INTERACTIVE FLAT PANEL

Command Possible values Response Standby			mode
set mute[Value]	=on=off	mute=[Value]	No
set audioinput[Value]	=usbaudio=HDMI=DisplayPort=OPSDigital	audioinput=[Value]	No
set treble[Value]	+ [Incremental value]- [Incremental value]=0-100	treble=[Value]	No
set bass[Value]	+ [Incremental value]- [Incremental value]=0-100	bass=[Value]	No
set audioeq120[Value]	=0-100 audioeq120=	[Value]	No
set audioeq500[Value]	=0-100 audioeq500=	[Value]	No
set audioeq1200[Value]	=0-100 audioeq1200=	[Value]	No
set audioeq7500[Value]	=0-100 audioeq7500=	[Value]	No
set audioeq12k[Value]	=0-100 audioeq12k=	[Value]	No
set balance[Value]	+ [Incremental value]- [Incremental value]=0-100	balance=[Value]	No
set soundreset[Value]	=yes soundreset=	[Value]	No

System information

Use the following commands to identify system information settings.

Command Response Possible values Standby			mode
get fwverscr	fwverscr={Value} [Scalar version firmware number]	[Touch controller firmware version number]	Yes
get fwvertouch	fwvertouch={Value}		Yes
get serialtouch	serialtouch={Value}	[Touch controller serial number]
get opsinfo	opsinfo{Value}	• OPS• NO OPS
get language language=	[Value]	EnglishArabicDanishGermanSpanishFinnishFrenchHebrewItalianDutchNorwegianPortugueseRussianSwedishTurkishChinese_sim	No
get modelnum modelnum=	[Value] [Model number]		No
get serialnum serialnum=	[Value]	[Serial number]	No
get proximityinstalled	proximityinstalled[Value]	yesno
get monitorid monitorid=	[Value]	1-100	No

Use the following commands to assign system information settings.

Command Possible values	Response Standby		mode
set factoryreset[Value]	=yes factoryreset=	[Value]	Yes
set language[Value]	• =English• =Arabic• =Danish• =German• =Spanish• =Finnish• =French• =Hebrew• =Italian• =Dutch• =Norwegian• =Portuguese• =Russian• =Swedish• =Turkish• =Chinese_sim	language=[Value]	No
set monitorid[Value]	• + [Incremental value]• - [Incremental value]• =1-100	monitorid=[Value]	No
set touchdetected[Value]	• =yes touchdetected=	[Value]

Appendix C

compliance

SMART Technologies supports global efforts to ensure that electronic equipment is manufactured, sold and disposed of in a safe and environmentally friendly manner.

Waste Electrical and Electronic Equipment (WEEE)

Electrical and electronic equipment contain substances that can be harmful to the environment and to human health. The crossed-out wheeled bin symbol indicates that products should be disposed of in the appropriate recycling stream and not as regular waste.

More information

See smarttech.com/compliance for more information.

Index

A

air conditioning 11, 27

angle (mounting) 10

aspect ratio 4

audio

about 3

configuring 37, 45

controlling volume 5

muting 5

troubleshooting 32

B

balance, audio 37, 45

bass 37, 45

black level 36, 44

brightness 36, 44

C

calibration 18, 24, See also orientation

cameras

about 4

cleaning 26

chemicals 26

cleaning

camera windows 26

reflective tape 26

screen 25

color temperature 44

computer

connecting 14

condensation 27

Connection Wizard See SMART

Connection Wizard

connector panel 13

contrast 36, 44

control panels

front See front control panel

menu See menu control panel

D

Diagnostics See SMART Diagnostics

documentation 7

dry-erase markers 25

dust 10, 26

E

eraser 6

F

factory reset 38

firmware updates 22

front control panel 5

G

gestures 2

glass cleaner 25

H

hardware installation 9, 25

hardware removal 27

HDMI 14, 43

height for mounting the interactive flat panel 11

humidity 26-27

INDEX

|

I/O extension module

connectors 13

installation

hardware See hardware installation

software See software installation

installation instructions 7

K

knowledge base 7

L

languages 37, 47

local building codes 9

location for mounting the interactive flat panel 10

M

M8 screws 10

maintenance 21

markers 25

menu control panel 35

mounting instructions 9

multitouch capabilities 2

multiuser sketch support 3

mute See audio

O

object awareness 3

on-screen display menu 35

orientation 18, 23, See also calibration

P

packaging 28

Pen iQ 3

pens

about 6

maintaining 27

permanent markers 25

power 11, 14, 17, 41, 43

R

recessed areas 11

reflective tape channel 4, 26

remote management 39

reset 21

room control 39

RS-232 39

S

serial number 29, 38, 46

sharpness 36, 44

SMART Connection Wizard 18, 32

SMART Diagnostics 33

SMART Ink

about 6

installing 18

updating 23

SMART Notebook software

about 6

installing 18

updating 23

SMART Product Drivers

about 6

installing 18

updating 23

SMART Product Update 23

SMART Settings 22

smoke 26

software installation 18

software updates 23

sound See audio

speakers

built-in 3, 6, 45

external 15

specifications 7

INDEX

stand 28

Standby mode 38, 41, 43

sunlight 27

Support center 7

T

tint 44

training 7

transportation 28

treble 37, 45

U

updates

firmware 22

software 23

USB cables and connectors 14

V

vacuum cleaners 26

ventilation 11, 26

vertical mounting 10

VESA mounting plate 9

vibrations 10

volume See audio

W

wall mounting instructions See mounting

instructions

water 26

WEEE Directives 49

SMART TECHNOLOGIES

smarttech.com/support

smarttech.com/contactsupport

smarttech.com/kb/170642
