PS-ZP-20 - Wallpaper Steam Stripper Cocraft - Free user manual and instructions

Product type	Wallpaper steam stripper
Brand	Cocraft
Model	PS-ZP-20
Dimensions (L x W x H)	30 x 20 x 25 cm
Weight	2.5 kg
Power supply	220-240 V, 50/60 Hz
Power consumption	1500 W
Water tank capacity	1.5 L
Steam production time	Approx. 8-10 minutes
Continuous steam time	Up to 45 minutes
Main functions	Steam output, adjustable steam flow, locking button for continuous use
Accessories included	Steam plate, extension hose, measuring cup, fabric brush
Safety features	Thermal overload protection, auto shut-off when water level low
Maintenance	Descale every 3 months with vinegar solution
Cleaning instructions	Wipe with damp cloth, do not immerse in water
Spare parts availability	Nozzle, brush, and seal kit available online
Repairability	User-replaceable fuse and heating element
Warranty	2 years
Certifications	CE, RoHS

Frequently Asked Questions - PS-ZP-20 Cocraft

How do I fill the water tank?

Remove the tank cap, fill with tap water up to the max mark, and close securely.

How long does it take to heat up?

It takes approximately 8-10 minutes to reach operating temperature.

Can I use distilled water?

Yes, distilled or demineralized water is recommended to prevent scale buildup.

How do I adjust the steam flow?

Turn the steam control knob on the handle to adjust from low to high.

Is it safe to leave the steamer unattended?

No, always monitor the device. It has auto shut-off only if water runs out.

Can I use it on painted walls?

Yes, but test on an inconspicuous area first; steam may soften paint.

How do I clean the steam plate?

Allow to cool, wipe with a damp cloth. For stubborn residue, use a non-abrasive cleaner.

What should I do if steam output is low?

Check water level and descale the unit if needed. Follow descaling instructions in the manual.

Can I store the steamer with water in it?

No, empty the tank completely after each use to prevent mold or scale.

Where can I buy replacement parts?

Spare parts are available on Cocraft's official website or authorized retailers.

USER MANUAL PS-ZP-20 Cocraft

REMOVES OLD WALLPAPER EASILY AND GENTLY WITHOUT CHEMICALS

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Blue and white portable hair dryer with black hose and blue lid, placed on asphalt surface (no text or symbols visible)

Art.no Model

18-3134

40-7022

PS-ZP-20-UK

PS-ZP-20

Ver. 20161021

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before using and save it for future use. We apologise for any text or photo errors and any changes of technical data. If you have any questions concerning technical problems please contact our Customer Service Department (see address on reverse).

Safety

- Before starting to use the tool, check that it is complete and undamaged. The tool or its accessories must not be used if they have been dropped or damaged in any way.

- The power lead should be checked regularly. If the power cable is damaged it can only be replaced by the retailer or qualified service technician.

- The nozzle of tool must not be pointed in the direction of electrical appliances or fittings.

- Never open the lid of the water tank or unscrew the hose during use or before the tool has cooled. Wait at least 5 minutes after the tool has been unplugged.

- Do not move the stripper by pulling the lead, use the handle.

- Do not stand on the tool and avoid standing on the hose.

- Keep the hose in order. If it should kink or become tangled, unplug the stripper at once and let it cool down before rectifying the fault.

- Make sure that the mains power at the socket is 230 V AC, that extension leads have an area of at least 1.5 mm ^2 and that an RCD is fitted.

- Do not cover or block the pressure relief valve.

- Place the wallpaper stripper on an even and level surface, otherwise it might overheat.

- Always hold the steam pad away from your face. Watch out for drops of water, especially when working over head height.

- Use only clean water and do not overfill.

- Never add detergent or other chemicals to the water.

- Never direct the steam towards people, animals or anything that might be damaged.

• Always unplug the tool from the wall socket after use and before cleaning.

- Never leave the tool unattended whilst it is plugged in.

- Never place the tool close to sources of heat such as fires, radiators, fan heaters, etc.

- The tool is fitted with a thermostat that regulates the temperature and prevents overheating. If the temperature continues to rise above working temperature, unplug the tool immediately. Send the tool in for service.

- Never cover the tool during or directly after use.

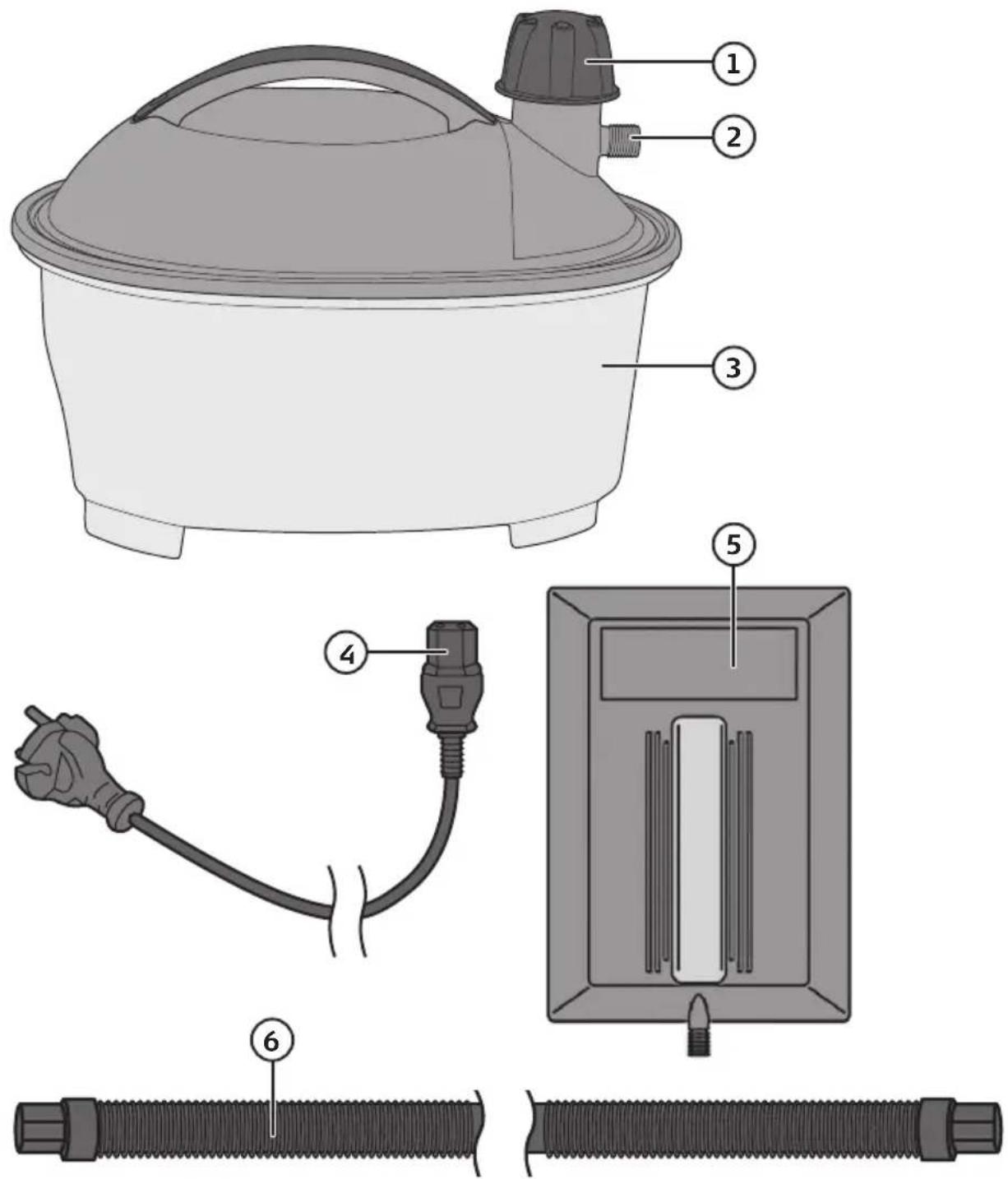

Product description

1. Lid with pressure relief valve
2. Steam outlet

3. Water tank

4. Mains lead

5. Steam pad
6. Hose

Assembly

Note: Always unplug the tool from the wall socket before changing accessories.

Assembly

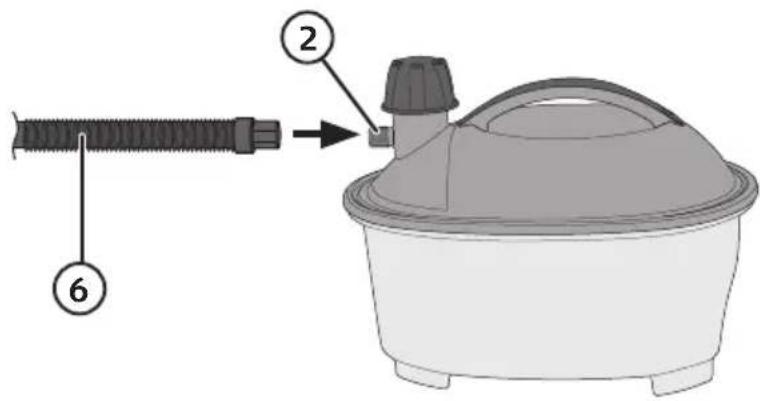

1. Connect one end of the hose (6) to the steam outlet (2).

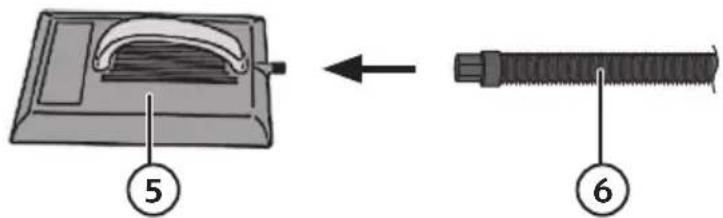

2. Connect the steam pad (5) to the other end of the hose (6).

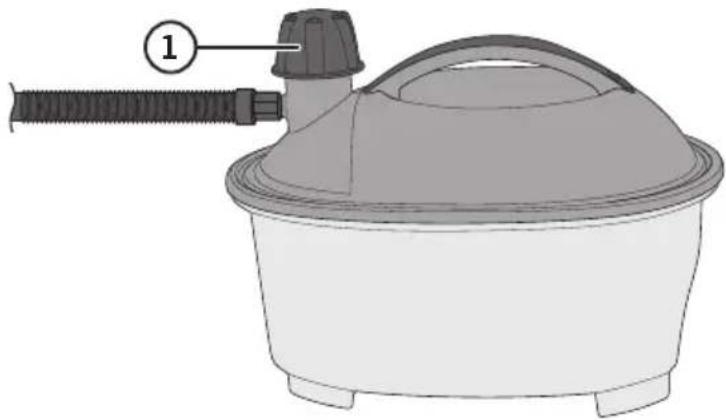

3. Remove the lid (1). Fill the water tank with clean water up to the maximum level, no higher. Then replace the lid.

Diagram of a portable air purifier with a handle and base, labeled with number 1 (no text or symbols on the diagram itself)

Note:

• Do not overfill the water tank and do not let the water level drop below the minimum mark.
• Do not use additives or chemicals.

Operation

Note: Make sure that all connections are tight before starting to use the stripper. Make sure that your power supply is 230 V AC, 50 Hz.

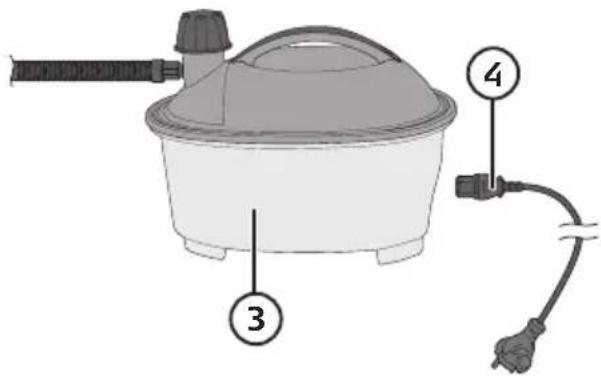

1. Connect the mains lead (4) to the water tank (3).
2. Connect the lead to the wall socket.

3. Steam will be produced after about 15 minutes, depending on the amount of water and its temperature. Sometimes a little water can seep out through the steam pad before it has turned into steam. This is quite normal.

4. After use, unplug the stripper from the wall socket.

5. Allow the tool to cool before moving or emptying it.

Removing wallpaper

Hold the steam pad against the surface for approximately 10 seconds. Move the steam pad slowly across the surface of the wallpaper. The wallpaper should now come off easily with the help of a scraper. Certain types of wallpaper can take longer to dislodge and might not come off at the first attempt.

Tip

When the water is low, unplug the tool and let the water tank cool for at least 5 minutes before taking off the lid and topping up the water level. Watch out for the steam! Similarly, when you have finished using the stripper, let it cool before emptying it. Always store the stripper with an empty tank.

Safety cut-off

A safety cut-off prevents the heating element from overheating if the water level drops too low. If the water stops boiling during use, it might be because of the safety cut-off. Wait 5 minutes before taking off the lid and topping up the water. The safety cut-off resets itself after 15 minutes, and work can be resumed.

Pressure relief valve

The wallpaper stripper is equipped with a pressure relief valve. If too much pressure builds up inside the tank, the relief valve allows steam and a little water to escape. Overpressure can be caused by the hose being blocked or overfilled. If this should occur; unplug the stripper from the wall socket and let it cool before checking the valve/hose. Under no circumstances must the pressure relief valve be blocked. A little water and steam might escape from the valve during normal use.

Unplug the stripper from the wall socket and wait at least 5 minutes before removing the hose or other accessory.

Descaling

• The appliance should be descaled as and when required, depending on how hard the water is and how often the stripper is used. Descaling agents such as citric acid can be found in any supermarket.
• Switch the stripper off and unplug it from the wall socket.
• Pour the descaling solution into the tank. One pint of descaling solution should be enough.
• Disconnect the hose and switch the stripper on.
• Allow the descaling solution to boil for about 5 minutes.
• Switch the stripper off and unplug it from the wall socket. Allow the solution to remain in the tank for about 10 minutes. Let both the tool and the solution cool down.
  • Empty the tool and flush it out with clean water.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no visible text or labels

Specifications

Power 2000 W

Water capacity 4 litres

Mains supply 230 V AC, 50 Hz

IP class IPX4

Use from one tank Approx. 80 minutes

Safety cut-off At 115 °C

Mains lead 2 metres

Hose 3 metres

Steam pad 200 × 275 mm

Tapetborttagare

Art.nr 18-3134 Modell PS-ZP-20-UK

40-7022

PS-ZP-20

Diagram of a portable stove or oven with a handle and labeled component (no text or symbols present)

Obs:

Ta bort tapeter

Symbol of a trash bin crossed with no visible text or labels

Specifikationer

Effekt 2000 W

Vattenkapacitet 4 liter

Nätspänning 230 V AC, 50 Hz

IP-klass IPX4

Drifttid på en tank Cirka 80 minuter

1. Lokk med overtrykksventil
2. Damputgang

3. Vanntank

4. Strømkabel

5. Dampplate
6. Slange

Å komme i gang

Diagram of a portable air purifier with a handle and base, labeled with number 1 (no text or symbols on the diagram itself)

Obs:

• Påse at vannivået i vanntanken er mellom maks. og min. merkene ved bruk.
  • Vannet må ikke tilsettes kjemikaler.

Bruk

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Spesifikasjoner

Effekt 2000 W

Diagram of a portable air purifier with a handle and base, labeled with number 1 (no text or symbols on the diagram itself)

Huom.!

Tapettien poistaminen

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Tekniset tiedot

Teho 2000 W

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Technische Daten

Declaration of Conformity

Machinery directive 2006/42/EC

EN 60335-1:2012+A11

EN 60335-2-54:2008

+A11:2012

EN 62233:2008

EMC directive 2014/30/EU

EN 55014-1:2006/A1+A2

EN 55014-2:1997/A1+A2

EN 61000-3-2:2014

EN 61000-3-3:2013

Henrik Alfredsson

Manager Technique & Quality

Insjön, Sweden, 2016-10-21
