Brand	DeLonghi
Model	DNF60X17
Category	Fridge
Product Type	Built-in Refrigerator
Height	1850 mm
Width	595 mm
Depth	600 mm
Net Total Capacity	300 L
Fridge Net Capacity	210 L
Freezer Net Capacity	90 L
Energy Class	A+
Annual Energy Consumption	250 kWh
Noise Level	42 dB(A)
Defrost Type	Automatic (Fridge), Manual (Freezer)
Number of Shelves	4 safety glass shelves
Door Hinge	Reversible (left/right)
Maintenance	Clean condenser coils annually
Refrigerant	R600a (isobutane)
Climate Class	N-ST (16°C - 38°C)
Power Supply Voltage	220-240 V, 50 Hz
Spare Parts Availability	Available from DeLonghi service centers
Features	Temperature control, reversible door, adjustable feet

Frequently Asked Questions - DNF60X17 DELONGHI

How do I adjust the temperature in the fridge?

Use the thermostat dial inside the fridge compartment. Turn it to a higher number for colder temperatures. The recommended setting is between 3 and 5.

Why is my fridge making noise?

Normal operation sounds include compressor humming, refrigerant flowing, and occasional clicks. If the noise is loud or unusual, check that the fridge is level and not touching walls or cabinets.

How do I reverse the door opening direction?

The door is reversible. Refer to the manual for step-by-step instructions. You'll need a screwdriver to move hinges and door stops to the opposite side.

How often should I defrost the freezer?

Defrost the freezer when frost buildup reaches 5-10 mm. Use the manual defrost function or unplug the appliance and let ice melt naturally. Do not use sharp tools.

What is the recommended temperature for the fridge and freezer?

Set the fridge to 4°C (39°F) and the freezer to -18°C (0°F) for optimal food preservation.

How do I clean the condenser coils?

Unplug the fridge and locate the coils at the back or bottom. Use a vacuum cleaner with a brush attachment to remove dust. Clean them every 6-12 months.

Why is water pooling inside the fridge?

Check if the drain hole at the back of the fridge is blocked. Clean it with a pipe cleaner or cotton swab. Also ensure the door seals are intact.

Can I install this fridge in an unheated garage?

This fridge is rated for climate class N-ST, meaning it works in ambient temperatures from 16°C to 38°C. In colder environments, the fridge may not function properly.

How long does the warranty last?

DeLonghi typically offers a 2-year warranty for manufacturing defects. Check your purchase receipt and contact DeLonghi support for details.

What should I do if the fridge stops cooling?

First, check if the power cord is plugged in and the circuit breaker is on. Ensure the thermostat is set correctly. If the problem persists, contact a qualified technician.

USER MANUAL DNF60X17 DELONGHI

Exterior view of a modern stainless steel refrigerator with control panel and door handle (no visible text or symbols)

Contents

safety warnings .... 5

unpacking....9

installation.... 10

location 10

levelling the unit.... 10

free space requirements.... 10

installing the door handles.... 10

reversing the door swing 11

cleaning before use....14

before using your unit.... 14

product overview.... 15

main unit.... 15

operation 16

switching on your unit.... 16

super freeze mode 16

holiday mode 16

eco mode....16

noises inside the unit! 17

door alarm 17

tips for keeping food in the unit 17

salad bin 17

meat & fish bin.... 17

preparations for freezing 17

defrosting frozen food.... 18

cleaning the interior and the exterior of the unit.... 18

maintenance.... 19

changing the internal LED light 19

care when handling / moving your unit.... 19

servicing 19

switching off for long periods of time 19

condensation....19

disposal....19

specifications....20

product fiche....20

Περιεχομενα

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

- Read all instructions carefully before using the unit and keep them for future reference.

- Retain the manual. If you pass the unit onto a third party, make sure to include this manual.

- This appliance is intended for indoor household use and similar applications such as:

• farm houses and by clients in hotels, motels and other residential type environment;
• bed and breakfast type environment;
  – staff kitchen areas in shops, offices and other working environment;
  – catering and similar non-retail applications.

- Ensure that the plug is easily accessible to enable disconnection from the mains supply.

- If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.

- Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.

- The unit must be manoeuvred by a minimum of 2 persons.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children should be supervised to ensure that they do not play with the unit.

- If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment. (If applicable)

WARNING

• Keep ventilation openings in the unit enclosure or in the built-in structure clear of obstructions.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.
• Do not damage the refrigerant circuit (The refrigerant is a very environmental-friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Thank you for purchasing your new Fridge Freezer.

These operating instructions will help you use it properly and safely.

We recommend that you spend some time reading this installation/instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this installation/instruction manual for future reference.

unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Simple line drawing of a refrigerator with no text or symbols

The Main Unit

Fridge Glass Shelf x 2

Upper Fridge Door Shelf (one of them has a cover) x 2

Salad Bin

Bin Cover Shelf x 2

Lower Fridge Door Shelf

Small Freezer Drawer x 2

Freezer Glass Shelf x 2

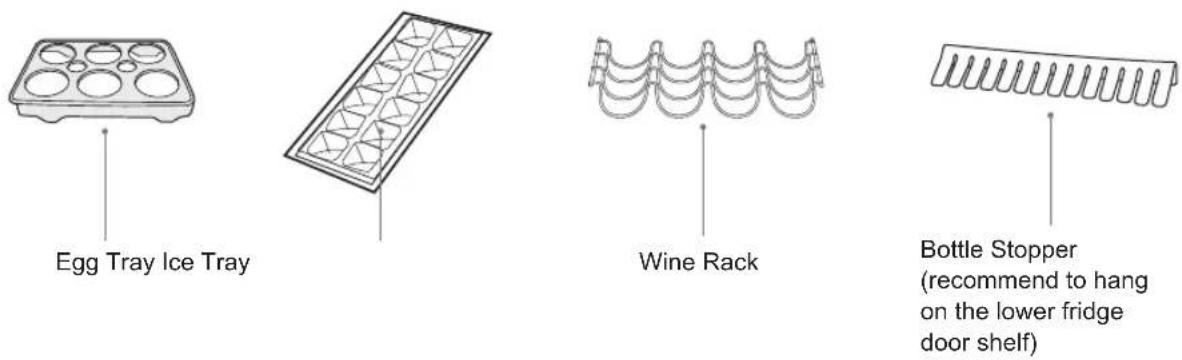

Bottle Stopper

Large Freezer Drawer

Wine Rack

Ice Tray

Egg Tray x 2

Meat & Fish Bin x 1

Door Handle (with 2 handle screw hole covers) x 2

Door Stopper x 2 (left side)

Screw Hole Cover (right side)

Instruction Manual

installation

location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 10^ C and 43^ C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

levelling the unit

To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

free space requirements

When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear of the unit and 25 mm at the top of the unit. The door can be opened to the right or the left, depending on which best suits the location.

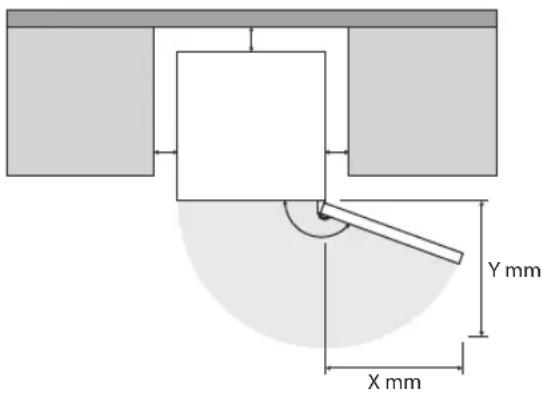

Please ensure there is more than twice the width and depth distance space of the unit to fully open the door to a maximum angle.

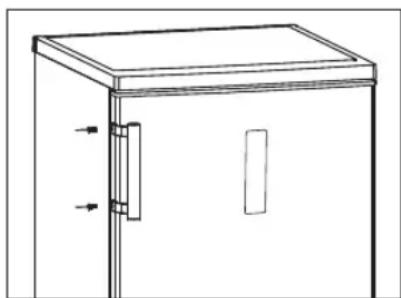

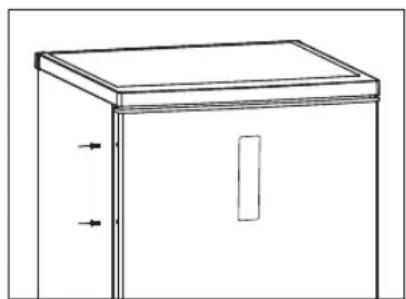

installing the door handles

1. Remove the screws from the doors.
2. Take the door handles and remove the 2 handle screw hole covers from the door handles. Align the door handles with the screw holes on the doors and screw tightly. Replace the 2 handle screw hole covers on the door handles.

Line drawing of a cabinet with a lid and door, showing internal structure and directional arrows (no text or symbols)

Line drawing of a cabinet or enclosure with a door and side panel, showing internal structure and arrows indicating force or movement (no text or symbols)

installation

reversing the door swing

tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

• Ensure the unit is unplugged and empty.
• To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. a chair just below the top panel.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
  • We recommend that 2 people handle the unit during assembly.

• If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.

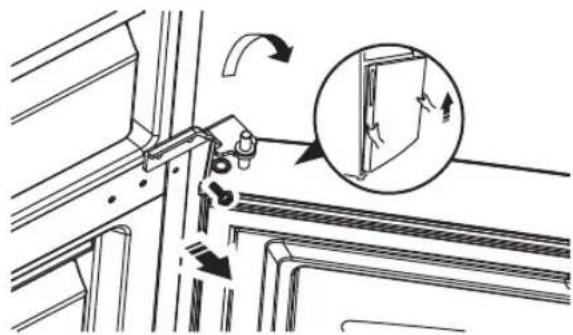

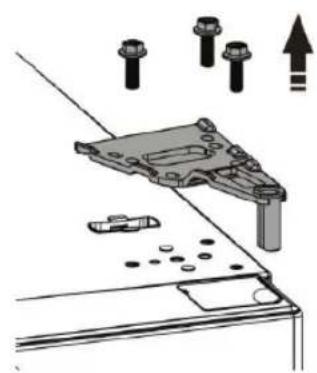

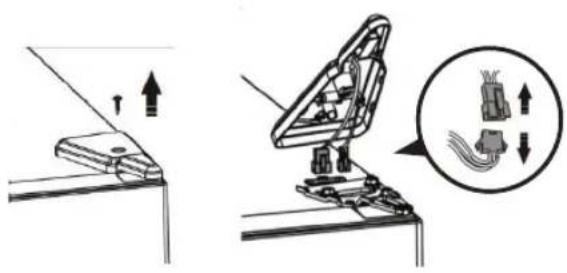

• Remove the upper hinge cover, screws and upper hinge. Lift the upper door and place it on a padded surface to prevent from being scratched. Remove the screw hole cover from the opposite side and keep it for future use. For the right side, use the screw hole cover from the plastic bag.

Screw hole cover has left and right side. The screw hole cover packed as an accessory is for the right side.

After lifting the hinge cover, be sure to disconnect electrical connectors before fully removing the hinge cover.

Technical illustration showing mechanical assembly with upward and downward arrows, no text or symbols present

Technical diagram of a mechanical assembly with bolts and a bracket, showing no text or symbols

1. Remove the screw and stop block from the bottom of the upper door and move it to the opposite side. Remove also the door stopper and keep it for future use. For the opposite side, use the door stopper for left side. Screw tightly.

Door stopper has left and right side. The door stopper packed as an accessory is for the left side.

Diagram showing a device being processed with a tool, no text or symbols present

installation

1. Remove the middle hinge. Lift the lower door and place it on a padded surface to prevent from being scratched.

Technical diagram showing mechanical assembly with arrows indicating motion, and a magnified inset of a door mechanism (no text or symbols)

1. Remove the screw and stop block from the bottom of the lower door and move it to the opposite side. Remove also the door stopper and keep it for future use. For the opposite side, use the door stopper for left side. Screw tightly.

Door stopper has left and right side. The door stopper packed as an accessory is for the left side.

Diagram showing a device being processed with a tool, no text or symbols present

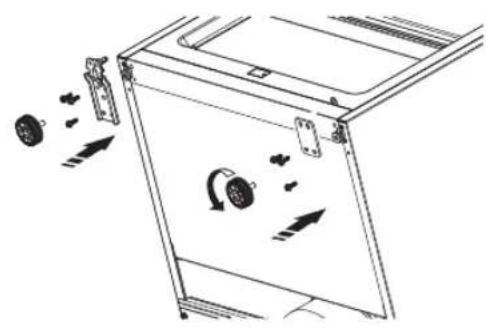

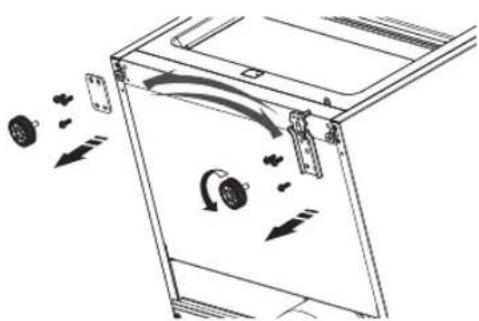

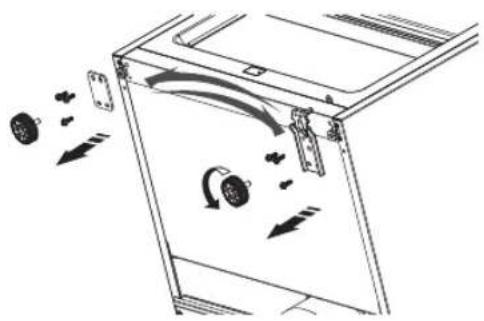

1. Lay down the unit. Remove both levelling feet, levelling feet fix board and bottom hinge. Swap the position of the levelling feet fix board with the bottom hinge.

Diagram of a refrigerator interior with hanging headphones and directional arrows indicating movement (no text or symbols)

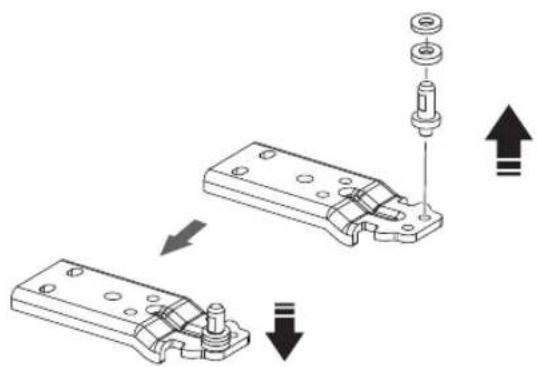

1. On the bottom hinge, move the position of the bottom hinge pin to the other hole. Tighten the pin securely.

installation

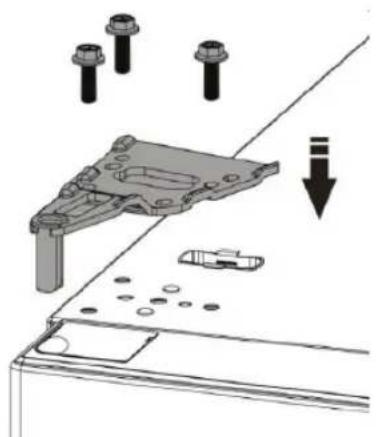

1. Screw the levelling feet fix board, bottom hinge and levelling feet tightly on their new position.
2. Stand the unit. Remove the middle hinge hole covers and swap their position with the middle hinge. Reverse the middle hinge.

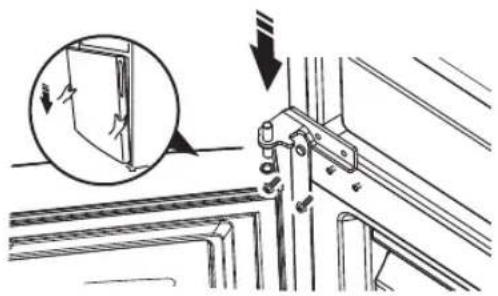

3. Place the bottom hole of the lower door onto the bottom hinge pin. Insert the middle hinge pin into the upper hole of the lower door. Tighten the pin securely. Screw the middle hinge tightly. Cover the remaining holes with the hole covers.

- Ensure the lower door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the pin.

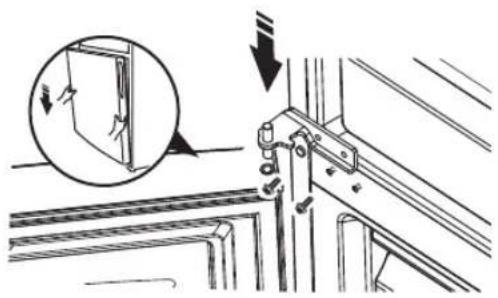

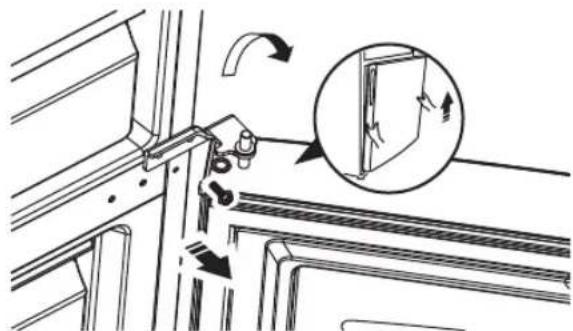

1. Place the bottom hole of the upper door onto the middle hinge pin. Reverse the upper hinge and pin position. Insert the upper hinge pin into the upper hole of the upper door. Tighten the pin securely. Screw the upper hinge tightly.

- Ensure the upper door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the pin.

Line drawing of a refrigerator interior with visible door, seats, and air vent (no text or symbols)

Mechanical assembly diagram showing a bracket being lifted by an arrow (no text or symbols present)

Technical diagram showing a door opening mechanism with an inset magnified view of the door (no text or symbols present)

Mechanical assembly diagram showing bolted components and a downward arrow indicating motion (no text or symbols)

installation

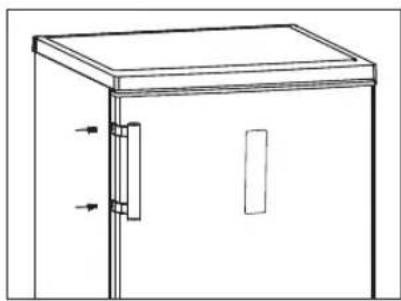

1. Cover the upper hinge with the upper hinge cover.
2. Transfer the door handles to the other side of the doors accordingly. Remove the 2 door screw hole covers from the other side of the door and swap their position with the door handles.

Pure mechanical diagram showing a bracket with two downward arrows indicating force or direction (no text or symbols)

GB

cleaning before use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the drawers. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

- Before Plugging in YOU MUST Check that you have a socket which is compatible with the plug supplied with the unit.

- Before Turning On! Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

before using your unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

product overview

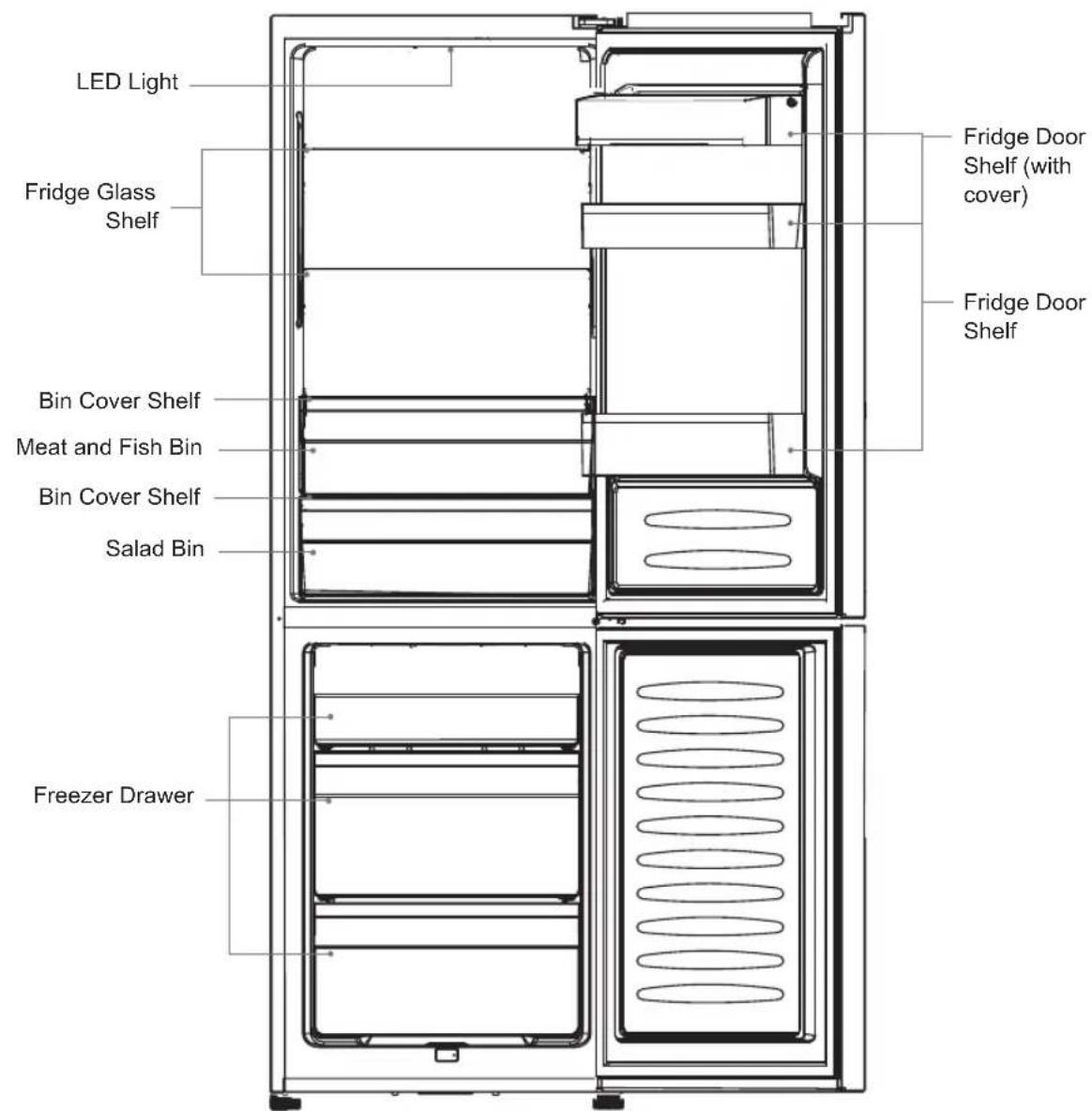

main unit

operation

switching on your unit

1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by an electronic control panel on the door.
2. Press ⏻ for 1 second to turn the unit on, press ⏻ for 3 seconds to turn the unit off.
3. Press ■ repeatedly to set temperature for the fridge compartment (2 to 8°C) and press

repeatedly to set temperature for the freezer compartment (-15 to -25°C).

1. The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the doors often.
2. To ensure that the unit is cool enough to sufficiently chill your food, wait 24 hours before filling it with food.

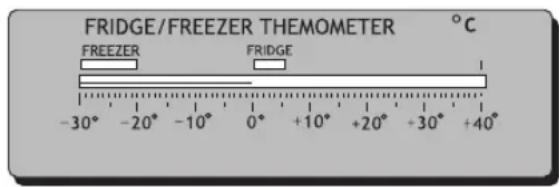

3. If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops. Place the thermometer in either the fridge or freezer compartment and leave overnight. The correct

temperature for the fridge compartment should be at the recommended 0-8°C. The correct temperature for the freezer compartment should be -18°C or lower.

super freeze mode

• Press 📁 repeatedly to select the super freeze mode. ✿ will light up.
• Temperature in the freezer compartment will be set at -25^ .
• Super freeze mode will automatically deactivate after 26 hours, and the freezer temperature will resume to the previous setting.

holiday mode

- If you will be away for a period of time, you can set the unit to holiday mode. Press repeatedly to select the holiday mode. 📄 will light up.

- Temperature in the fridge will be set at 15^ and the freezer temperature will be set at -18^ .

Do not store any food in the fridge during holiday mode.

eco mode

• This function makes the unit work in a power saving mode which is useful for reducing energy consumption when you are away. Press repeatedly to select the eco mode. will light up.
• Temperature in the fridge will be set at 6^ and the freezer temperature will be set at -17^ .

To save energy, avoid opening the doors frequently or keeping them opened for a long time.

noises inside the unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

door alarm

When the fridge or freezer door is left opened for over 2 minutes, the door alarm will sound. The alarm will sound 3 times per minute and will automatically stop sounding after 8 minutes. Simply close the door to deactivate the alarm.

tips for keeping food in the unit

• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.
• Leave space around your food, to allow air to circulate inside the compartments. Ensure all parts of the unit are kept cool.
• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
• Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
• To prevent cold air escaping from the unit, try to limit the number of times you open the doors. We recommend that you only open the doors when you need to put food in or take food out.

salad bin

The temperature in the salad bin is best to store fruits and vegetables, but not favourable to store fish and meat.

Simple line drawing of a rectangular box with three small icons: three apples, one pencil, and one leaf (no text or symbols)

meat & fish bin

The temperature in the meat & fish bin is best to store fish and meat. Do not store fruits and vegetables as they may be frozen and damaged. This is because the temperature in the meat & fish bin is lower than other fridge bins (can be lower than 0^ C). For example, if the fridge temperature is set to 4^ C, the temperature in the meat & fish bin can be around between -2^ C to 2^ C.

Simple line drawing of a rectangular box with three small fish icons on its front face (no text or symbols)

preparations for freezing

• Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better.
• Leave cooked food to cool completely. Chill food before freezing if possible.
• Consider how you will want to cook the food before freezing it.
• Don't freeze food in metal containers if you may want to microwave it straight from the freezer.

- Use special freezer bags, freezer film, polythene bags, plastic containers, and aluminium foil (heavy duty grade only). If in doubt, double wrap your food. Don't use aluminium foil for acidic foods, e.g. citrus fruits. Don't use thin cling film, glass, or used food containers without cleaning.

- Exclude as much air from the container as possible. You could buy a special vacuum pump which sucks excessive air out of the packaging.

- Leave a small amount of air space when freezing liquids to allow expansion.

- You can use the space in the freezer most efficiently if you freeze liquids (or solids with liquids, e.g. stew) in square blocks. This is known as "Preforming". Pour the liquid into a polythene bag which is inside a square sided container. Freeze it, and then remove it from the container and seal the bag.

- Label your frozen foods as they will look the same when in frozen state. Use special freezer tapes, labels and pens with different colours. This allows you to easily organise and to effectively use the freezer. Write the contents and date; otherwise the frozen food might exceed the storage time and this could cause food poisoning. Please refer to your food packaging for the recommended storage time.

- You may also add the weight and cooking notes, e.g. "defrost first", "cook from frozen" and keep a separate log of what is in each drawer. This will save opening the door and searching around unnecessarily.

Line drawing of a hand pouring liquid into a container (no text or symbols)

defrosting frozen food

1. Take the frozen food out from the freezer compartment and uncover the frozen food. Let it defrost at room temperature. Don't forget that defrosting in a warm area encourages the growth of bacteria and low temperature cooking may not destroy dangerous bacteria.

2. Drain off and throw away any liquid lost during defrosting.

3. Always make sure there are no ice-crystals in the food before cooking, particularly with meat. These crystals indicate that the food has not fully defrosted.

4. Cook food as soon as possible after defrosting.

5. Many microwaves and ovens have a defrost setting. To avoid bacterial build up, only use these if you intend to cook the food immediately afterwards.

Never re-freeze anything that has been defrosted unless you cook it again, to kill off harmful bacteria. Never re-freeze defrosted shellfish. Re-seal packs properly after removing items. This prevents drying or freezer-burn and a build up of frost on any remaining food.

cleaning the interior and the exterior of the unit

- Remove all the shelves and drawers.

- Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves, drawers and salad bin.

- Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the doors are closed to avoid the polish getting on the magnetic door seals or inside the unit.

- The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

maintenance

changing the internal LED light

The internal light is an LED panel that cannot be changed by the user. Please contact a qualified service agent.

care when handling / moving your unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

switching off for long periods of time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

condensation

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the door as a safeguard.

specifications

Rated Voltage	220-240V~, 50 Hz
Rated Current	0.8 A
Rated Power	Defrost: 180 W
Dimension (H x W x D)	1882 x 595 x 637 mm

Features and specifications are subject to change without prior notice.

GB

product fiche

Brand	Delonghi
Model	DNF60X17
Household Appliance Category	7
Energy Efficiency Class	A+++
Energy consumption 170 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Fridge Storage Volume	197 L / 22 L
Freezer Storage Volume	89 L ✦ ***
Frost Free for the fridge & freezer compartment.
Temperature Rise Time	18 hours
Freezing Capacity	12 kg / 24 hours
Climate Class	SN, N, ST, TThis appliance is intended to be used at an ambient temperature between 10°C and 43°C.
Airborne Acoustical Noise	37 dB(A) re 1 pW

Simple line drawing of a refrigerator with no text or symbols

Η Κύρια μονάδα

Line drawing of a cabinet with a lid and door, showing directional arrows (no text or symbols)

Line drawing of a cabinet or enclosure with a door and side panel, showing internal structure and arrows indicating direction (no text or symbols)

αλλαγη φορας πορτας

Technical illustration showing mechanical assembly steps with arrows and a magnified inset of connector components (no text or symbols)

Mechanical assembly diagram showing bolted components and a bracket (no text or labels)

εγκατασταση

Diagram showing a device being processed with arrows indicating motion (no text or symbols)

Technical diagram showing mechanical assembly with arrows indicating motion, and a magnified inset of a door mechanism (no text or symbols)

Diagram showing a device being folded or disassembled, with arrows indicating the process (no text or symbols present)

Diagram of a refrigerator interior with hanging doors and directional arrows indicating movement (no text or symbols)

εγκατασταση

Mechanical assembly diagram showing two stages of a mechanical component with arrows indicating direction (no text or symbols)

Line drawing of a door frame with hanging components and directional arrows indicating movement (no text or symbols)

Mechanical assembly diagram showing a bracket being lifted by an arrow (no text or symbols present)

Technical diagram showing a door hinge mechanism with an inset magnified view of the handle (no text or symbols)

εγκατασταση

Mechanical assembly diagram showing bolted components and a car component (no text or labels)

Technical line drawing of a mechanical bracket with two downward arrows indicating force or motion (no text or symbols)

Simple line drawing of a rectangular box with three small icons: two apples and one tomato, arranged horizontally (no text or symbols)

Simple line drawing of a rectangular box with three small fish icons on its front face (no text or symbols)

Line drawing of a hand pouring liquid into a container (no text or symbols)

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

GR
