Product Type	Countertop Microwave Oven
Brand	Daewoo
Model	KOC-9C0TSL
Capacity	25 Liters
Microwave Power	900 W
Grill Power	1000 W
Convection Power	1500 W
Control Type	Digital with Touch Buttons
Display	LED Digital Display
Functions	Microwave, Grill, Convection, Auto Cook, Defrost
Door Opening	Side-opening with Handle
Interior Light	Yes
Turntable	Yes, 315 mm diameter
Child Lock	Yes
Timer	Up to 95 minutes
Weight	Approx. 12.5 kg
Dimensions (W x H x D)	450 mm x 280 mm x 350 mm
Power Supply	230 V, 50 Hz
Power Consumption	1300 W (Microwave), 1600 W (Grill/Convection)
Cleaning	Wipe interior with damp cloth; avoid abrasive cleaners
Safety Features	Overheat protection, door interlock, child lock

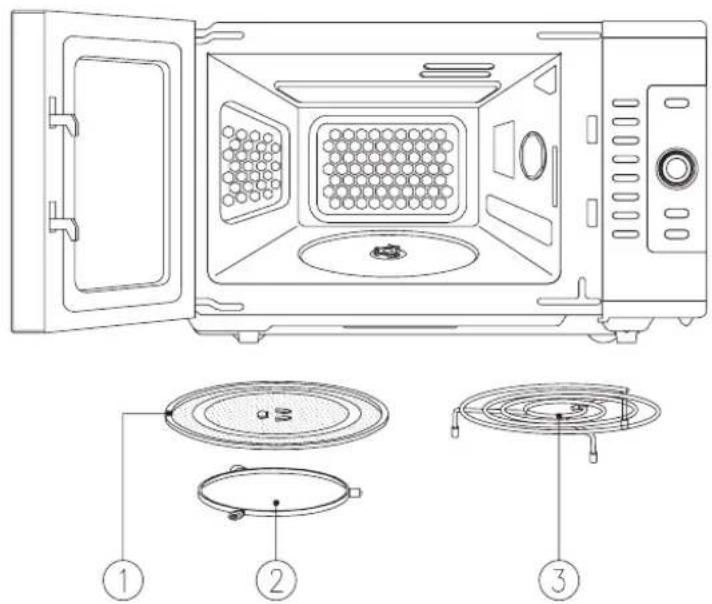

Included Accessories	Glass turntable, roller ring, grill rack

Frequently Asked Questions - KOC-9C0TSL DAEWOO

How do I set the clock on my Daewoo KOC-9C0TSL?

Press the Clock button, then use the number pad to enter the current time (24-hour format). Press Clock again to confirm.

What is the maximum cooking time?

The timer can be set up to 95 minutes for most functions.

Can I use metal containers in this microwave?

No, metal containers should not be used in microwave mode as they can cause sparks. They are only safe in Grill or Convection modes if specified.

How do I activate the child lock?

Press and hold the Stop/Cancel button for 3 seconds. The display will show a lock icon. Repeat to deactivate.

Why is my microwave not heating?

Check if the door is properly closed. Ensure the power cord is plugged in and the circuit breaker is not tripped. If the problem persists, the magnetron may need replacement.

How do I defrost food using this microwave?

Press the Defrost button, then enter the weight of the food. The microwave automatically sets the time and power level.

What does the 'Auto Cook' function do?

Auto Cook provides preset programs for common foods like popcorn, pizza, and beverages. Select the food type and weight, and the microwave adjusts time and power automatically.

Can I use the grill and convection together?

Yes, the Combi function allows you to use both grill and convection for even browning and crispiness.

How do I clean the interior?

Wipe the interior with a soft damp cloth after each use. For stubborn stains, use a mild detergent. Avoid abrasive sponges or chemicals.

Where can I find the user manual?

The user manual is available for free download on notice-facile.com in PDF format.

USER MANUAL KOC-9C0TSL DAEWOO

KOC-9C0T/KOC-9C0TSL/KOC-9CTC/KOC-9C0TBK

OWNER'S MANUAL

Line drawing of a microwave oven with control panel and door (no text or symbols)

**Before operating this oven, please read this manual completely.

How to unbox / install / maintain microwave - http://www.youtube.com/watch?v=UdbpMO7VG0w

DAEWOO

ELECTRONICS

Customer Helpline Number : 03330 144 477

Spare Parts : 0844 557 0270 or www.4daewoo.co.uk / DAEWOO ELECTRONICS Web Site www.daewooelectronics.co.uk

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any objecbetween the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. MICROWAVES CANNOT PASS THROUGH METAL AND THERE FORE METAL COOKING UTENSILS CAN NEVER BE USED IN A MICROWAVE.
NEVER ATTEMPT TO COOK IN FOIL OR METAL containers on Microwave as the microwaves cannot pass through and the food will not heat evenly, it may also damage your oven.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.
(d) WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.
(e) WARNING : Liquids and other foods must not be heated in sealed containers since they are liable to explode.
(f) WARNING: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

TABLE OF CONTENTS

• INSTALLATION AND EARTHING INSTRUCTIONS...... 2
• IMPORTANT SAFETY INSTRUCTIONS....3
• WHICH UTENSILS CAN BE USED IN THE OVEN? 5
• COOKING INSTRUCTIONS ....6
• CONTROL PANEL 7
- ACCESSORIES .... 8
- BEFORE OPERATION....9
SETTING THE CLOCK....9
CHILD LOCK AND POWER SAVE MODE.... 10
• OPERATION....11
MICROWAVE COOKING....11
GRILL COOKING 12
CONVECTION COOKING (WITH PRE-HEAT).... 13
CONVECTION COOKING (TRADITIONAL COOKING).... 14
COMBINATION COOKING 15
(1) WEIGHT DEFROST MODE.... 16
(2) TIME DEFROST MODE....16
AUTO COOK 17

SPEEDY COOK ....18

WARM 18

DISH WARMER (FOR PREMIER OPTION MODEL ONLY) .....19

STEAM CLEANING....19

REMINDER MODE

(FUNCTION TO REMIND COOKING COMPLETE)....19

TO STOP THE OVEN WHILE THE OVEN IS OPERATING.....20

ABNORMAL MESSAGE....20

ARCING....20

• GENERAL GUIDE LINES....21
• KEEP THE OVEN CLEAN 22
• BEFORE CALLING FOR SERVICE....23
  • QUESTIONS AND ANSWERS....24
• SPECIFICATIONS ....25
  • PRINCIPLE OF MICROWAVE....25
  • DISPOSAL OF USED ELECTRICAL & ELECTRONIC EQUIPMENT ....25

INSTALLATION AND EARTHING INSTRUCTIONS

How to examine your microwave oven after unpacking.

Unpack oven, remove all packing material, and examine the oven for any damage such as dents, broken door, latches or cracks in the door. Do not remove the film from inside the door. Notify dealer immediately if the oven is damaged. Do not install if the oven is damaged.

Where to place your microwave oven.

1. Place the oven on a flat and stable surface.
2. The microwave oven shall not be placed in a cabinet unless it is a purpose built cabinet model.
3. The surface of the oven is protected by a plastic film which should be removed before using.
4. Leave space behind and the sides and upper surface of the oven. All air vents should be kept clear. If all vents are covered during operation, the oven may overheat and, eventually, lead to oven failure.
5. Keep away from radio and TV sets. If the oven is located close to a TV, radio interference may result.
6. Keep away from heating appliances and water taps. Keep the oven away from hot air, steam or splashes when choosing a place to position it, or the insulation might be adversely affected and breakdowns occur.
7. The minimum height of free space necessary above the top surface of the oven is 170mm minimum.

Prior to use (If your oven has a grill element)

In order to protect your oven during transportation and storage, the grill element is covered with a protective coating. To remove this coating the grill element must be heated for 10 minutes. This procedure will produce some bad odours as the protective coating on the element disappears.

To remove the coating, use the following procedures:

1. Place an ovenproof or microwave safe bowl, containing 200cc of water or more, in the oven.
2. Press the convection button.
3. Set the time to 10 minutes.
4. Press the start button.
5. When the 10 minutes has elapsed, an acoustic signal sounds.

Note:

The protective coating has now been removed and the oven is ready to use. Please be aware that your oven is now very hot.

1. Open the oven door and remove the bowl of water (use oven gloves when removing the bowl).

CHILD LOCK

To prevent a child from operating the oven, install the childlock key.

1. Touch Stop/Clear button for 3 seconds. Indicator lock is indicated and all buttons do not operate.

2. Touch Stop/Clear button for 3 seconds once again, then childlock is canceled.

- WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

Electrical Connection

WARNING-THIS APPLIANCE MUST BE EARTHED.

REFER TO THE RATING PLATE FOR VOLTAGE AND CHECK THAT THE APPLIANCE VOLTAGE CORRESPONDS WITH THE SUPPLY VOLTAGE IN YOUR HOME.

The flexible mains lead must be correctly re-connected, as below, to a three pin plug of not less than 13 AMP capacity. You must use a 3 pin plug which should be marked with the number BS 1363 and it should be fitted with 13 AMP fuse marked with the

number BS 1362.

We recommend the use of good quality plugs and wall sockets that can be switched off when the machine is not in use.

IMPORTANT-The wires in the mains lead fitted to this appliance are coloured in accordance with the following code

As the colour of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

Power supply

• Check your local power source. This oven requires a current of approximately 12amperes, 230V 50Hz.
  • Power supply cord is about 1.0 meters long.
  • The voltage used must be the same as specified on this oven.
  Using a higher voltage may result in a fire or other accident causing oven damage. Using low voltage will cause slow cooking. We are not responsible for damage resulting from use of this oven with a voltage of ampere fuse other than those specified.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

The wire which is coloured GREEN AND YELLOW must be connected to the terminal in the plug which is marked with the letter "E" or the earth symbol ⊥ or coloured GREEN AND YELLOW, or GREEN.

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter "N" or coloured BLACK, or BLUE.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter "L" or coloured RED, or BROWN.

If the terminals in the plug are unmarked or you are in any doubt as to the correct connections, consult a qualified electrician.

If you do not make the proper electrical connections you will damage your microwave oven and possibly injure yourself. Neither the manufacturer nor the supplier are liable if this happens.

MOULDED PLUGS

Should it be necessary to remove a moulded on plug from the mains cable, it should be cut off and replaced with a suitable replacement.

The moulded plug cannot be used for any other appliance, therefore remove the fuse and dispose immediately and safely to prevent anyone, especially children from plugging it in to a wall socket, which will create a safety hazard.

Should the mains lead ever require replacement, it is essential that this operation be carried out by a qualified electrician and should only be replaced with a flexible cord obtained from the manufacturer.

Applicable only if moulded plug is fitted.

After replacement of a fuse in the plug, the fuse cover must be refitted. If the fuse cover is lost, a replacement cover must be obtained. The colour of the correct replacement fuse cover is that of the coloured insert in the base of the plug or the colour that is embossed in words in the base of the plug recess or elsewhere on the plug. Always state this colour when ordering a replacement fuse cover.

Only 13 amp replacement fuses which are ASTA approved to BS 1362 should be fitted

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

When using electrical appliances, basic safety precautions should be followed, including the following:

WARNING-To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.
2. Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" found on page 1.
3. This appliance must be grounded. Connect only to a properly grounded outlet.
4. Install or locate this appliance only in accordance with the provided installation instructions.
5. Some products such as whole eggs and sealed containers - for example, closed glass jars-are liable to explode and should not be heated in this oven.
6. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.
7. As with any appliance, close supervision is necessary when used by children.
8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.
9. This appliance should be serviced only by qualified service personnel. Contact your nearest authorized service facility for examination, repair or adjustment.
10. Do not cover or block any openings on the appliance.
11. Do not store this appliance outdoors. Do not use this product near water — for example, near a kitchen sink, in a wet basement, or near a swimming pool, or similar locations.
12. Do not immerse the cord or plug in water.
13. Keep the cord away from heated surfaces.
14. Do not let cord hang over edge of table or counter.
15. Either:
    a) When cleaning surfaces of door and oven that comes together on closing the door, use only mild, non-abrasive soaps or detergents applied with a sponge or soft cloth, or
    b) When separate cleaning instructions are provided, See door surface cleaning instructions on.
16. To reduce the risk of fire in the oven cavity:
    a) Do not overcook food. Carefully attend the appliance when paper, plastic, or other com-bustible materials are placed inside the oven to facilitate cooking.
    b) Remove wire twist-ties from paper or plastic bags before placing bag in the oven.

c) If materials inside the oven ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.
d) Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.

1. Do not use this microwave oven to heat corrosive chemicals (for example, sulfides and chlorides). Vapours from such corrosive chemicals may interact with the contact and springs of the safety interlock switches thereby rendering them inoperable.

2. Keep the waveguide cover clean at all times. Wipe the oven interior with a soft damp cloth after each use. If you leave grease or fat anywhere in the cavity it may overheat, smoke or even catch fire when next using the oven.

3. Never heat oil or fat for deep frying as you cannot control the temperature and doing so may lead to overheating and fire.

4. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons:

① Do not overheat the liquid.

②Stir the liquid both before and halfway through heating it

③ Do not use straight-sided containers with narrow necks.

④ After heating, allow the container to stand in the microwave oven for a short time before removing the container.

⑤ Use extreme care when inserting a spoon or other utensil into the container.

1. The contents of feeding bottles and baby jars must be stirred or shaken and check the temperature before consumption to avoid burns.

2. The appliance must be positioned so that the plug is accessible.

3. This appliance is not intended for use by a person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

4. Children should be supervised to ensure that they do not play with the appliance.

5. Due to extremely high temperatures, do not touch the surface of door and the Top heater of oven during and after running the heater related cooking mode.

SAVE THESE INSTRUCTIONS

General Use

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items or for sterilizing purposes. They may catch on fire.

2. Do not use the oven when empty, this could damage the oven.

3. Do not use the oven cavity for any type of storage, such as papers, cookbook, cookware, etc.

4. Do not operate the oven without the turntable tray in place. Be sure it is properly sitting on the rotating base.

5. Be cautious when removing the turntable tray after cooking meats that may have caused an accumulation of grease in the tray.

6. Unlike microwave-only ovens, this oven may become hot on the cabinet and oven door. Always use hot pads or oven mitts when placing or removing food and/or accessories from the oven. Be cautious about touching parts other than the control panel during or immediately following grill or combination cooking.

7. If the oven is hot from combination cooking, do not then use plastic or Styrofoam cookware for microwave cooking. They may melt.

8. Do not use recycled paper products for cooking. They may contain impurities which could cause sparks and/or fires when used during cooking.

9. Do not place any of object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. Microwaves cannot pass through the metal and therefore metal cooking utensils can never be used in a micorwave. Never attempt to cook in foil or metal containers on Microwave. See "Accessories" section on page 8 for proper use of cookware.

10. Do not leave the oven unattended during short cooking times. Overcooking and fire may result.

11. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc., without first piercing them several times with a fork.

12. Do not pop popcorn unless popped in a microwave approved popcorn popper or unless it's commercially packaged and recommended especially for microwave ovens. Microwave popped corn produces a lower yield than conventional popping; there will be a number of unpopped kernels. Do not use oil unless specified by the manufacturer.

13. Do not attempt to operate this appliance with the door open.

14. Do not attempt to remove covers, panels, etc.

15. Keep an eye on the oven from time to time when food is heated or cooked in disposable containers of plastic, paper or other combustible materials.

16. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

17. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

18. Make sure you remove caps or lids prior to cooking when you cook food sealed in bottles.

19. Do not put foreign material between the oven surface and door. It could result in excessive leakage of microwave energy.

20. Do not pop popcorn longer than the manufacturer's directions. (popping time is generally below 3 minutes). Longer cooking does not yield more popped corn, it can cause scorchings and fire. Also, the cooking tray can become too hot to handle or may break.

21. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

22. Always test the temperature of food or drink which has been heated in a microwave oven before you give it to somebody, especially to children or elderly people. This is important because things which have been heated in a microwave oven carry on getting hotter even though the microwave oven cooking has stopped.

23. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;

24. Keep the waveguide cover clean at all times. Wipe the oven interior with a soft damp cloth after each use. If you leave grease or fat anywhere in the cavity it may overheat, smoke or even catch fire when next using the oven.

25. Never heat oil or fat for deep frying as you cannot control the temperature and doing so may lead to overheating and fire.

26. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

27. Do not use a steam cleaner in the oven.

TO AVOID EXPLOSION AND SUDDEN BOILING

WARNING

Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. This could result in very hot liquids suddenly boiling over when a spoon or other utensilis is inserted into the liquid.

To reduce the risk of injury to persons:

a) Do not overheat the liquid.
b) Stir the liquid both before and halfway through heating it
c) Do not use straight-sided containers with narrow necks.
d) After heating, allow the container to stand in the microwave oven for a short time before removing the container.
e) Use extreme care when inserting a spoon or other utensil into the container.

1. Eggs

Never cook eggs in their shells. Steam will build up inside the shell during cooking and the egg will explode.

If you want to cook or reheat eggs which have not been broken up by scrambling or mixing, you must always pierce the yolks or these will also explode. You should slice shelled hard boiled eggs before you reheat them in your microwave oven.

2. Piercing

Always pierce food which has a skin or membrane, for example, potatoes, tomatoes, apples, sausages etc. If you don't pierce them, steam will build up inside and they may explode.

3. Lids

Always remove the lids of jars and containers and take away food containers, before you cook using your microwave oven. If you don't, then steam and pressure might build up inside and cause an explosion even after the microwave cooking has stopped.

WHICH UTENSILS CAN BE USED IN THE OVEN?

Only use utensils that are suitable for use in microwave ovens.

Before use, the user should check that utensils are suitable for use in microwave ovens.

Material	Grill & Convection cooking	Microwave cooking	Combined cooking
Glass (general) No Yes (1) NoGlass (heat resistant) Yes YesYesGlass-ceramic and ceramic (heat resistant) Yes Yes (1) Yes (1)Earthenware Yes Yes YesChina (heat resistant) Yes Yes YesPlastic (general) No Yes (2) NoPlastic (heat resistant) Yes (2) Yes (2) Yes (2)Aluminium foil Yes Yes (3) YesMetal baking tins Yes (4) No Yes (4)Metal (pots.pans, etc) Yes PaperNo	No	Yes	No
1. Without metal parts or metal trims.2. Some plastics are heat-proof only to certain temperatures.Check carefully!3. It is possible to use aluminium foil to shield delicate areas of food (this prevents over-cooking).4. Metal tins can be used in the combination methods, however if these are very deep, they will greatly reduce the efficiency, as metal shields the microwave energy from the food.

Microwave function only

Utensils and cooking containers used in a microwave oven should be of a material that does not act as a barrier to microwave energy. Generally this means that you should cook in either (paper), plastic, glass or ceramic. Metal pans reflect microwave energy and inhibit cooking, and should not be used. In addition to material, the shape of the container should also be considered. Round oval shapes give the most even cooking. Square or rectangular containers may over-cook foods in the corners because more energy is absorbed there. Shallow containers give more even cooking results.

Utensils made of china and ceramic are excellent to use in your microwave oven. Most types of glass are also very good.

Lead crystal glass can crack and should therefore, not be used. Plastics and paper can also be used, provided they can withstand the temperature of the heated food. For cooking only use plastics, which will withstand a temperature of over 120°C, e.g. polypropene and polyamide. Some plastic materials, e.g. melamine, will be heated by the microwave, and be damaged. To find out if a certain container is suitable, the following simple test can be made:

Place the empty container and a glass of water inside the microwave oven. The water is needed because the oven must not be operated empty or with empty containers only. Let the oven work on full power for one minute. A suitable container will only be lukewarm.

Metal containers, e.g. saucepans or frying pans should not be used in microwave ovens. Nor should plates or vessels with decorations be used since metal e.g. gold, might be part

of the decoration and such decorations will be damaged.

Small pieces of aluminium foil can be used, but only to shield the areas that would over-cook (e.g. for covering chicken wings, leg tips and fish tails) but the foil must not touch the side of the oven as damage may occur.

Caution:

• There are a number of accessories available on the market. Before you buy, make sure they are suitable for microwave use.
• When you put food in the microwave oven, make sure that food, food supports or covering do not come in direct contact with any of the internal walls or the ceiling of the cavity since discolouration may take place.

COOKING INSTRUCTIONS

Only use utensils that are suitable for use in microwave ovens.

To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used.

Care must therefore be taken choosing the utensil. If the utensil is marked microwave-safe, you do not need to worry.

The following table lists various utensil and indicates whether and how they should be used in a microwave oven.

Utensil Safe Comments
Aluminium foil	▲	Can be used in small quantities to protect areas against overcooking. Arcing can occur if the foil is too close to the oven wall or if too much foil is used.
Crust plate	●	Do not preheat for more than 8minutes.
China and earthenware	●	Porcelain, pottery, glazed earthenware and bone china are usually suitable, unless deco-rated with a metal trim.
Disposable polyester cardboard dishes	●	Some frozen foods are packaged in these dishes.
Fast-food packaging• Polystyrene cups containers• Paper bags or newspaper• Recycled paper or metal trims	●××	Can be used to warm food. Overheating may cause the polystyrene to melt.May catch fire.May cause arcing.
Glassware• Oven-to-table ware• Fine glassware• Glass jars	●●●	Can be used, unless decorated with a metal trim.Can be used to warm foods or liquids.Delicate glass may break or crack if heated suddenly.Must remove the lid. Suitable for warming only.
Metal• Dishes• Freezer bag twist ties	××	May cause arcing or fire.
Paper• Plates, cups, napkins and Kitchen paper• Recycled paper	●×	For short cooking times and warming. Also to absorb excess moisture.May cause arcing.
Plastic• Containers• Cling film• Freezer bags	●●▲	Particularly if heat-resistant thermoplastic. Some other plastics may warp or discolour at high temperatures. Do not use Melamine plastic.Can be used to retain moisture. Should not touch the food.Take care when removing the film as hot steam will escape.Only if boilable or oven-proof. Should not be airtight.Prick with a fork, if necessary.
Wax or grease-proof paper	●	Can be used to retain moisture and prevent spattering.

• : Recommended use
▲ : Limited Use
× : Not Recommended

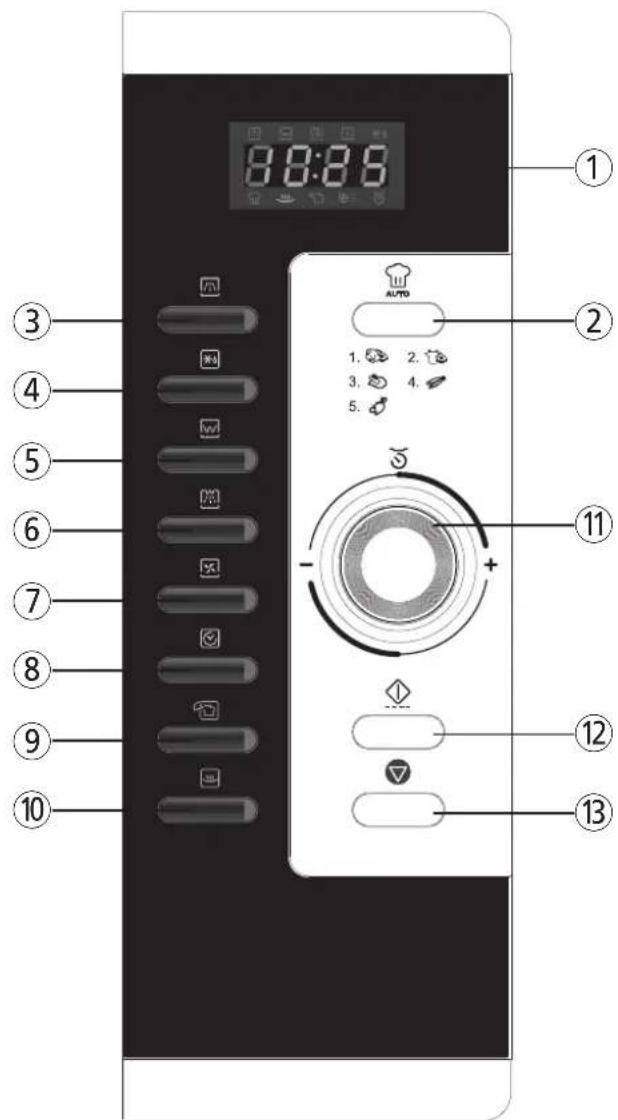

CONTROL PANEL

8:0:8:5 1 2 3 4 5 6 7 8 9 10 AUTO 1. 2. 3. 4. 5.

① Display: Cooking time, power level, program indicators and present time are displayed. MW (When blinking, the oven is operating in MICROWAVE COOK mode. Grill (When blinking, the oven is operating in GRILL mode. Combi (When blinking, the oven is operating in COMBI mode. Convection (When blinking, the oven is operating in CONVECTION mode. Defrost (When blinking, the oven is operating in DEFROST mode. Auto-cook (When blinking, the oven is operating in AUTO COOK mode. Warm (When blinking, the oven is operating in WARM mode. Steam Cleaning (When blinking, the oven is operating in STEAM CLEANING mode. gram (When blinking, the oven is operating in weight input mode.
② Auto cook Used to cook or reheat.
③MW : Used to set power level of the microwave.
④Defrost : Used to defrost foods.
⑤ Grill ☑ : Used to select grill mode.
⑥Combi : Used to select combi mode.
⑦ Convection ☒: Used to select convection mode and selected temp.
⑧Clock : Used to set clock.
⑨ STEAM CLEANING used to clean the inside of the oven
⑩Warm : Used to keep the food warm.
⑪ Dial knob Used to set time, weight and quantity.
⑫START/SPEEDY COOK Used to start a program or a speedy start(each press adds 30 seconds of microwave cooking time).
⑬ STOP/CLEAR ▼: Used to stop the oven operation or to delete the cooking data.

ACCESSORIES

This oven comes equipped with several accessories. They can be used in various ways to facilitate cooking.

Technical diagram of a microwave oven with labeled components and exploded view

①Glass Turntable - Centre the tray on the roller guide when using the microwave features. Place food or microwave-safe cookware directly on the glass turntable.

NOTE : The Glass Turntable can be found attached to the left polystyrene packing material in the carton.

② Roller Guide - The roller guide must be in place when using the oven. IMPORTANT : The roller guide must be placed at the centre of the oven cavity.
③ Metal Rack - Centre the rack on the glass tray when using the grill cooking, convection cooking, and auto cooking menus.

■ HOW TO USE THE ACCESSORIES FOR COOKING

■ Glass Turntable

• All Cooking modes. • Grill cooking

■ Metal rack

Pure mechanical diagram showing concentric circular components with no text, numbers, or symbols

- Convection cooking

• Combination cooking

• Auto cooking menu 1\~4.

BEFORE OPERATION

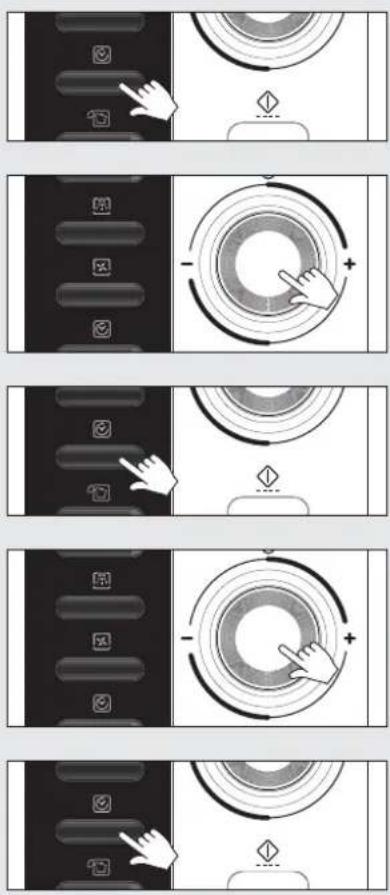

SETTING THE CLOCK

When your oven is plugged in, the display will show “:0” and a tone will sound. If the AC power goes off and comes back on, the display will show “:0”.

Your oven has a multiple(12hr/24hr) clock system. To set the clock, follow the procedure below.

Example : To set 5:30 AM in a 24hr clock system.

1. Press Clock button once. The display will show "12H". This is a 12 hour clock system.

2. Press Clock button once more, the display shows "24H". This is a 24hour clock system. If you want 12hour clock system, omit this step.

3. Turn the dial knob to set the hour number "5": The hour digit starts blinking, the colon will light.

4. Press Clock button. "5:00" shows in display. The minute digit starts blinking, the colon and hour number will light.

5. Turn the dial knob until "5:30" shows in the display window.

6. Press Clock button. The colon starts blinking. If you selected the 12hour clock system, this digital clock allows you to set the time from 1:00 to 12:59. If you selected the 24hour clock system, this digital clock allows you to set the time from 0:00 to 23:59.

Note: You can check the current time while cooking is in progress by pressing the Clock button.

CHILD LOCK AND POWER SAVE MODE

Child lock : The Child Lock function helps to prevent accidents from children operating the oven without being monitored by the parents. Power save mode : This function is used for saving energy.

Pure electrical circuit lines without any symbols

Two-panel image showing a button labeled 'B' on the left and a hand cursor pressing down on the right (no text or symbols)

Pure electrical circuit lines without any symbols

To set child lock

1. Press the STOP/CLEAR button. ": 0" or clock appears in the display.

2. Press and hold the STOP/CLEAR button for 3 seconds. A beep sounds and the display shows "LOC" for 3 seconds. Now the oven cannot be operated.

3. To cancel child lock simply repeat procedure 2. The oven will beep. The oven is again available for normal use.

To set power save mode

1. Press the STOP/CLEAR button. ": 0" or clock appears in the display.

2. Press and then hold the Clock button for 3 seconds. The display will turn off and a beep sounds. To operate the oven in power save mode, press any key or turn the knob. Then “:0” or clock will be shown and the operation of all function keys will be the same as in the normal mode. But if there is no operation within 10 seconds in clear mode or while manipulating the key, all the contents of display will disappear.

3. To cancel the power save mode, simply repeat the setting procedure. The power save mode will be canceled and a beep sounds. The oven is again available for normal use.

OPERATION

Tips: Please read this OPERATION section for the proper safety information and the operating instructions before using the oven. Prior to setting the controls, place one cup of water in the oven, in a heat-proof glass measuring cup, for testing purposes. The oven could be damaged if you operate the oven in microwave mode without anything in the cavity.

Note: When the cooking time has elapsed the oven beeps three times and "End" appears on the display. The glass turntable stops and the oven-light turns off. The oven will continue to beep every one-minute until either the STOP/CLEAR button is pressed or the door is opened. Opening the door while cook is in progress will cause the oven to stop and any displayed countdown will pause. If the START/SPEEDY COOK button is pressed, the countdown will resume. If the STOP/CLEAR button is pressed, the cook will cancel. The oven can display the set cooking time in 10 second steps (up to 5 minutes cooking time), in 30 second steps (up to 10 minutes cooking time), and in 1 minute steps (up to 60 minutes cooking time).

When the door is opened after cooking, the cooling fan may start to operate for 5 minutes to cool down the inside of oven. (Display shows "cool" and ":0 or clock)

Also note that when the Cooling mode operates, lamp, tray, and fan runs at the same time and "cool" shows on the display.

MICROWAVE COOKING

This microwave cooking method allows you to cook food for a desired time. In addition to the maximum power level(100%), you can select different microwave power from 9 other levels, 10% to 90% for the foods that require slower cooking.

If you have used the appliance for grilling, convection or combination cooking, let the oven cool down before using again. Never switch the microwave oven on when it is empty.

AUTO 1. 2. 3. 4.

Two grayscale UI icons: one with a lock and control buttons, the other showing a circular dial with a hand cursor (no text or symbols)

Two abstract icons: one with a document icon and another with a hand pressing a button (no text or symbols)

1. Press the MW button once. MW indicator (☐) lights. "P-HI"(POWER HIGH) shows in display.
2. Select the appropriate power level by pressing the MW button again until the corresponding percentage is displayed. Refer to the power level table below for further details.
3. Turn the dial knob to set the cooking time. For a cooking time of 5 minutes 30 seconds, turn the dial knob to set 5:30. (up to 60 minutes can be set) "5:30" shows in display.
4. Press the START/SPEEDY COOK button. The oven light comes on and the turntable starts rotating. Cooking starts and the time in the display will count down.

Note : The oven will automatically work on 100% microwave power if a cooking time is entered without the power level previously being selected.

You can check the power level while cooking is in progress by pressing the MW button.

Power level table

Power level	percentage	Output	Power level	percentage	Output
P-HI	100%	900W	P-50	50%	450W
P-90	90%	810W	P-40	40%	360W
P-80	80%	720W	P-30	30%	270W
P-70	70%	630W	P-20	20%	180W
P-60	60%	540W	P-10	10%	90W
			P-00	0%	0W

GRILL COOKING

The Grill enables you to heat and make food to turn brown quickly without using microwave.

F5 F4 5

Two-panel interface showing a button labeled 'X' and a circular dial with a hand cursor, no readable text or symbols present.

Pure electrical circuit lines without any symbols

1. Press the Grill button once. The GRILL indicator (☑)lights.
2. Turn the dial knob to set the grilling time. For a grilling time of 11 minutes, turn the dial knob to set 11:00. (up to 60 minutes can be set) "11:00" shows in display.
3. Press the START/SPEEDY COOK button. The oven light comes on and the turntable starts rotating. Cooking starts and the time in the display will count down.

Note : The heating element is located on the top surface of the oven.

Note: When using the grill heater for the first time, smoke and odour will be given off. To avoid this happening when food is being cooked, turn the heater on with a microwave safe bowl containing 200cc of water in the oven for 10 minutes and the odour will disappear from then on. Grill food by placing it directly on the rack, in a flat dish or on a heat resistant plate on the rack.

WARNING :
The temperature inside the oven and window is very high.
Do not touch the oven window and metallic interior of the oven when taking food in and out.
Use thick oven gloves while handling food or accessories.

Suggested use Cookware
This method is ideal for toasting bread or muffins.Remember the oven will be hot.Place all food on the metal rack.	Use oven-proof cookware.As there is no microwave energy being used you can placemetal tins directly onto the metal rack with no danger of arcing.

CONVECTION COOKING(With pre-heat)

For convection cooking, it is recommended to preheat the oven to the appropriate temperature (except for the 40C that displays only) before placing food in the oven.

The maximum preheating time is 30 minutes.

If cooking is not started immediately after preheating, the convection indicator will continue to flash and the preheated oven temperature will be displayed. It will be maintained for 15 minutes; then switch off automatically.

Abstract diagram with a hand cursor pointing at a circular interface element (no text or symbols)

Diagram showing a hand pressing a button with icons for phone, email, and document, alongside a separate interface panel.

Two grayscale UI icons: left panel shows a grid of buttons, right panel shows a circular dial with a hand cursor and plus sign (no text or symbols)

Two abstract icons: one with a phone icon and the other with a hand pressing a button (no text or symbols)

1. Press the Convection button once. The CONVECTION indicator (☒) lights. "180C" shows in display.
2. Select the convection cooking temperature by pressing the Convection button again until the corresponding temperature is displayed.

Temperature sequence

180C → 190C → 200C → 210C → 220C →40C → 100C → 110C → 120C →130C → 140C → 150C → 160C → 170C →

1. Press START/SPEEDY COOK button. The CONVECTION indicator (☐) blinks.

The temperature of preheating and "PrE-" blink alternatively in the display. The oven will now preheat. When the oven reaches the preheated temperature the oven will beep and the preheated oven temperature will appear in the display.

Then open the door and place your food in the oven.

The oven temperature now shows in the display.

1. Turn the dial knob to set the cooking time.

For a cooking time of 11 minutes, turn the dial knob to set 11:00.

(up to 60 minutes can be set)

"11:00" shows in display.

1. Press the START/SPEEDY COOK button.

The oven light comes on and the tumtable starts rotating.

Cooking starts and the time in the display will count down.

CONVECTION COOKING(Traditional cooking)

The convection mode enables you to cook food in the same way as in a traditional oven. Microwaves are not used. Always use oven gloves when touching the utensils in the oven, as they will be very hot.

Abstract graphic with a hand cursor pointing at a circular interface element (no text or symbols)

Two abstract circular diagrams: one with a lock icon on the left, and another with a hand cursor clicking a circle on the right (no text or symbols)

Pure electrical circuit lines without any symbols

1. Press the Convection button once. The CONVECTION indicator (☒) lights. "180C" shows in display.
2. Select the convection cooking temperature by pressing the Convection button again until the corresponding temperature is displayed.

Temperature sequence

180C → 190C → 200C → 210C → 220C → 40C → 100C → 110C → 120C → 130C → 140C → 150C → 160C → 170C →

1. Turn the dial knob to set the cooking time. For a cooking time of 11 minutes, turn the dial knob to set 11:00. (up to 60 minutes can be set) "11:00" shows in display.

2. Press START/SPEEDY COOK button. The oven light comes on and the turntable starts rotating. Cooking starts and the time in the display will count down.

Note: You can check the setting temperature while cooking is in progress by pressing the Convection button.

Fermentation

• 40C of convection cooking temperature is adequate for fermenting bread-like foods.
• High temperatures in the inside of oven may reduce the quality of fermentation. Cool it down to the room temperature before use.

Suggested use	Cookware
This function is ideal for cooking meringues, cookies, biscuits, scones, bread, puddings, large fruit cakes and all pastries.Remember the oven will be hot.Place all food on the metal rack.	Use oven-proof cookware.As there is no microwave energy being used you can place metal tins directly onto the metal rack with no danger of arcing.

COMBINATION COOKING

This function allows you to combine convection operation with microwave to produce traditional baked or roasted results in less time. Always use microwave-safe and oven-proof cookware. Glass or ceramic dishes are ideal as they allow the microwaves to penetrate the food evenly. Always use oven gloves when touching the utensils in the oven, as they will be very hot.

Pure electrical circuit lines without any symbols

Abstract diagram with control buttons and a hand cursor, no readable text or symbols

Two-panel interface: left shows a grid of buttons, right shows a circular dial with a hand cursor pointing at it (no text or symbols)

Two abstract icons: one with a camera and screen, the other with a hand pressing a button (no text or symbols)

1. Press the Combi button once.

2. The COMBI indicator (图) light and "C-0" (30% microwave power) will show in the display.

3. Press Convection button once.

"180°C" shows in display.

Select the convection cooking temperature by pressing the Convection button again until the corresponding temperature is displayed.

Temperature sequence

$$ 1 8 0 \mathrm{C} \rightarrow 1 9 0 \mathrm{C} \rightarrow 2 0 0 \mathrm{C} \rightarrow 2 1 0 \mathrm{C} \rightarrow 2 2 0 \mathrm{C} \rightarrow $$

$$ 1 0 0 \mathrm{C} \rightarrow 1 1 0 \mathrm{C} \rightarrow 1 2 0 \mathrm{C} \rightarrow $$

$$ 1 3 0 \mathrm{C} \rightarrow 1 4 0 \mathrm{C} \rightarrow 1 5 0 \mathrm{C} \rightarrow 1 6 0 \mathrm{C} \rightarrow 1 7 0 \mathrm{C} \rightarrow $$

1. Turn the dial knob to set the cooking time.

For a cooking time of 11 minutes, turn the dial knob to set 11:00. (up to 60 minutes can be set)

"11:00" shows in display.

1. Press the START/SPEEDY COOK button.

The oven light comes on and the turntable starts rotating. Cooking starts and the time in the display will count down

Note: You can check the cooking temperature while cooking is in progress by pressing the Convection button.

You can check the power level while cooking is in progress by pressing the Combi button.

(1) WEIGHT DEFROST MODE

Weight Defrost automatically sets the defrosting times and power levels to give even defrosting results for frozen food. During the defrosting process the oven will beep to remind you to check the food. When the oven beeps, open the door, turn the frozen food over and close the door, and press the START/SPEEDY COOK button again.

1. 2. 3. 4. 5.

Two-panel image showing a left-side toolbar with icons and a right-side circular dial with a hand cursor, no readable text or symbols.

Pure electrical circuit lines without any symbols

1. Press the Defrost button once. The Defrost indicator ( *_6 ) lights and "0" is displayed. The (Indicator blinks. This is a weight defrost mode.
2. Turn the dial knob to set the weight. Weight can be set up from 200g to 3000g. The weight will change in 50g increments or decrements. For a defrosting weight of 1000 grams, turn the dial knob to set 1000. "1000" shows in display.
3. Press the START/SPEEDY COOK button. The oven light comes on and the turntable starts rotating. The ( ✉ indicator goes off. Cooking starts and the time in the display will count down.

Note : When Weight-Defrosting begins, the defrosting time is automatically determined by the weight entered.

(2) TIME DEFROST MODE

During the defrosting process the oven will beep to remind you to check the food. When the oven beeps, open the door, turn the frozen food over and close the door, and press the START/SPEEDY COOK button again.

1. 2. 3. 4. 5.

Two abstract circular icons: one with a cursor pointing at center, the other with concentric rings and plus/minus signs (no text or symbols)

Pure electrical circuit lines without any symbols

1. Press the Defrost button twice. The Defrost indicator ( *_6 ) lights and “: 0” is displayed. This is a time defrost mode.
2. Turn the dial knob to set the defrosting time. For a time of 11 minutes, turn the dial knob to set 11:00. (up to 60 minutes can be set) "11:00" shows in display.
3. Press START/SPEEDY COOK button. The oven light comes on and the turntable starts rotating. Cooking starts and the time in the display will count down.

AUTO COOK

This function allows you to simply and automatically cook a range of popular foods. Always use oven gloves when touching the utensils in the oven.

1. 2. 3. 4. 5.

Two-panel interface: left shows a grid of rectangular buttons with 'OK' and 'OK' icons, right shows a circular dial with a hand cursor and plus sign (no text or symbols on the dial itself)

Pure electrical circuit lines without any symbols

1. Press the Auto Cook button once. The Auto Cook indicator (lights. "AC-1" will show in the display.

2. Select the menu by pressing the Auto Cook button until the required menu is displayed. Refer to the auto cook menu chart below for further details.

3. Turn the dial knob to set the cooking weight. For a cooking weight of 1000 grams, turn the dial knob to set 1000. (up to 2000 grams can be set) "1000" and (shows in display). Refer to the auto cook menu chart below for further details.

4. Press the START/SPEEDY COOK button. The oven light comes on and the turntable starts rotating. Cooking starts and the time in the display will count down.

Note: You can check the current cook setting while the cooking is in progress by pressing the Auto Cook button.

Auto Cook Menu Chart

Press auto cook key	Auto Cook Menu	Minimum Weight	Maximum Weight	Weight Step
Once	ROAST PORK	500 g	2000 g	100 g
Twice	ROAST BEEF	500 g	2000 g	100 g
3 times	ROAST CHICKEN	800 g	2000 g	100 g
4 times	BAKED FISH	300 g	900 g	100 g
5 times	FRESH VEGETABLE	100 g	900 g	50 g

Auto Cook Menu Start Temp. Method Cookware
ROAST PORK	Chilled temp.	1. Tie the joint into a neat shape.2. Place the meat on the dish.3. Brush with a little oil.4. Place roasts fat-side down on the dish.5. Cook on "AUTO COOK-ROAST PORK or ROAST BEEF".6. Turn over when hearing the beep.7. Remove from oven. Drain off any excess juices.8. Stand for 10 minutes in foil before serving.	Glass Turntable + Metal rack
ROAST BEEF
ROAST CHICKEN	Chilled temp.	1. Wash and dry chicken. Tie the legs loosely together with string.2. Pierce the skin a couple of times just under the legs.3. Brush butter mixture all over the chicken on the dish.4. Place roasts breast-side down on the dish.5. Cook on "AUTO COOK-ROAST CHICKEN".6. Turn over when hearing the beep.7. Remove from oven. Drain off any excess juices. Season with salt if required. Stand for 10 minutes in foil before serving.	Glass Turntable + Metal rack
BAKED FISH	Chilled temp.	1. All types of fresh fish(except battered or breadcrumb fish) can be cooked whether whole, fillets or steaks.2. Place the prepared fish in a buttered dish.3. Season with salt and pepper, sprinkle with lemon juice and dot with butter. Do not cover dish.4. Place on dish on the metal rack on the turntable.5. Cook on "AUTO COOK- BAKED FISH".	Micro and heat proof shallow dish.(e.g Pyrex.)Glass Turntable + Metal rack
FRESH VEGETABLES		1. Wash and trim.2. Place prepared vegetables into a suitable sized container.3. Sprinkle with 4-5 tbs. of water.4. Cover with pierced cling film or a lid.5. Place on dish on the turntable.6. Cook on "AUTO COOK- FRESH VEGETABLES.* For best results cut vegetables into similar sized pieces.	Microproof dish.(e.g Pyrex.)Glass Turntable

SPEEDY COOK

The Speedy Cook function allows the oven to cook immediately on microwave full power.

The Speedy Cook function has been pre-programmed to increase the cooking time in increments of 30 seconds up to the maximum time of 5 minutes.

Pure electrical circuit lines without any symbols

1. Press the START/SPEEDY COOK button.

The oven will display as “:30”, MW indicator (☐) lights, and the oven starts immediately. You may increase the cooking time by keep pressing the START/SPEEDY COOK button.

The oven light comes on and the turn table starts rotating and the time in the display will count down in seconds.

WARM

The WARM function allows the oven to Warm your food, up to the maximum time of 60 minutes.

Pure electrical circuit lines without any symbols

1. Press the WARM button.

(The temperature is about 60°C.)

Two-panel interface showing a button labeled 'OK' and a circular dial with a hand cursor pointing at it, no readable text or symbols present.

1. Turn the dial knob to set the cooking time.

For a cooking time of 11 minutes, turn the dial knob to set 11:00. (up to 60 minutes can be set)

"11:00" shows in display.

Two-panel interface showing a hand pressing a button with a small diamond symbol (no text or labels)

1. Press the START/SPEEDY COOK button.

The oven light comes on and the turntable starts rotating. Warming starts and the time in the display will count down.

DISH WARMER (For Premium option model only)

The DISH WARMER mode allows the oven to Warm dining dishes/plates before serving the food.

The premium option model comes with the specially designed Dish-Warm Rack used for the dish warmer mode only. Please take out the glass turntable and place the dish-warm rack at the centre of the oven cavity.

Then place dishes/plates (Size ranges from ∅150\~∅260mm) on the rack.

Diagram showing a hand cursor clicking a button labeled 'OK' with a checkmark and a play button, next to an icon with a downward arrow.

Two abstract circular icons: one with a grid of rectangular elements and another with a hand cursor pointing at the center (no text or symbols)

Pure electrical circuit lines without any symbols

1. Keep pressing the WARM button to select the desired temperature. (from 40°C\~80°C)

2. Turn the dial knob to set the desired dish Warm time. (from 10 sec. \~ 60 minutes)

3. Press the START/SPEEDY COOK button. The oven light comes on and the turntable starts rotating. Warming starts and the time in the display counts down.

Note: Once the dish warmer mode ends, please do not grasp a dish or the rack with your bare hands as it may be hot. We recommend wearing heat-resistant gloves.

STEAM CLEANING

This function uses steam to clean the inside of oven.

Before cleaning, put 150\~200cc water in a mug cup or a small bowl and place it at the centre of the tray.

User interface control panel with navigation arrows and a warning symbol

1. Press the STEAM CLEANING button. The STEAM indicator (☐) lights. The oven heats up for 10 minutes. When heating up is complete the "door" "oPEn" blinks on the display. You may remove the mug cup and use the moisture in the oven to clean the inside of oven cavity.

2. After heating up ends, "door" "oPEn" shows on the display for 5 minutes. Once it passes 5 minutes, automatic cooling mode starts.

Note: High temperature in the inside of oven may reduce the effect of steam power. Cool it down to the room temperature before use.

REMINDER MODE (Function to remind cooking complete)

To remind you that you have food in the oven, the oven will beep once a minute until you either open the oven door or press any button.

1. Open the door.

2. Oven stops operating.

3. You can restart the oven by closing the door and pressing the START/SPEEDY COOK button.

4. Press the STOP/CLEAR button.

5. Oven stops operating.

6. If you wish to cancel the cooking settings, press the STOP/CLEAR button again.

ABNORMAL MESSAGE

• If the inside temperature of the oven is higher than expected or the temperature sensor doesn't work properly, "Err 2" message will be shown in the display.
• Unplug the power and call our technical service.

- When the temperature sensor is disconnected, "Err 3" message will be shown in the display.

- Unplug the power and call our technical service.

ARCING

If you see arcing, press STOP/CLEAR button and correct the problem.

Arcing is the microwave term for sparks in the oven. Arcing is caused by:

• Metal or foil touching the side of the oven.
- Foil not molded to food (upturned edges act like antennas).
- Metal, such as twist-ties, poultry pins, or gold rimmed dishes, in the microwave.
• Recycled paper towels containing small metal pieces being used in the microwave.

GENERAL GUIDE LINES

Since microwave cooking to some extent is different from traditional cooking, the following general guidelines should be considered whenever you use your microwave oven

If the food is undercooked Check if:

• You have selected the correct power level.
• The selected time is sufficient-the times given in the recipes are approximate. They depend on initial temperature, weight and density of the food etc.
  • The container is appropriate.

If the food is overcooked, i.e. dried out or burnt Before you cook again, consider whether:

• The power level was too high.
- The set time was too long-the times in the recipes are approximate. They depend on initial temperature, weight and density of the food etc.

Points to remember when defrosting

• The shape of the package alters the defrosting time. Shallow rectangular packets defrost more quickly than a deep block. Separate pieces as they begin to defrost; free flow slices defrost more easily.

- Shield areas of food with small pieces of foil if they start to become warm.

- When defrosting, it is better to under thaw the food slightly and allow the process to finish during the standing time.

The amount of food

The more food you want to prepare the longer it takes. A rule of thumb is that double amount of food requires almost double the time. If one potato takes four minutes to cook, approximately seven minutes are required to cook two potatoes.

Starting temperature of food

The lower the temperature of the food which is being put into the microwave oven, the longer time it takes. Food at room temperature will be reheated more quickly than food at refrigerator temperature.

Composition of the food

Food with a lot of fat and sugar will be heated faster than food containing a lot of water. fat and sugar will also reach a higher temperature than water in the cooking process.

The more dense the food, the longer it takes to heat. "Very dense" food like meat takes longer time to reheat than lighter, more porous food like sponge cakes.

Size and shape

Smaller pieces of food will cook more quickly than larger pieces and uniform pieces of food cook more evenly than irregularly shaped foods.

With unevenly shaped food, the thinner parts will cook faster than the thicker areas. Place the thinner chicken wings and legs to the centre of the dish.

Stirring, turning of foods

Stirring and turning of foods are techniques used in conventional as well as in microwave cooking to distribute the heat quickly to the centre of the dish and avoid over-cooking at the outer edges of the food.

Covering food helps:

• To reduce spattering
• To shorten cooking times
• To retain food moisture
All covering, which will allow microwaves to pass through are suitable-See page 5 "Which utensils can be used in the oven?"

Releasing pressure in foods

Several foods are tightly covered by a skin or membrane.

These foods should be pricked with a fork or cocktail stick to release the pressure and to prevent bursting, as steam builds up within them during cooking. This applies to potatoes, chicken livers, sausages, egg yolks and some fruits.

Standing time

Always allow the food to stand for some time after using the oven. standing time after defrosting, cooking/reheating always improves the result since the temperature will then be evenly distributed through out the food.

In a microwave oven food continues to cook even when the microwave energy is turned off. It is no longer cooking by microwaves, but still being cooked by the conduction of the high residual heat to the centre of the food.

The length of standing time depends on the volume and density of the food. Sometimes it can be as short as the time it takes you to remove the food from the oven and take it to the serving table. However, with larger, denser foods, the standing time may be as long as 10 minutes. During 'standing', the internal temperature of the food will rise by as much as 8°C and the food will finish cooking in this time.

Arranging food

This is done in several ways in microwave cooking to give more even cooking results.

If you are cooking several items of the same food such as jacket potatoes, place them in a ring pattern for uniform cooking. When cooking foods of uneven shapes or thickness, place the smaller or thinner area of the food towards the centre of the dish where it will be heated last.

Uneven foods such as fish should be arranged in the oven with the tails to the centre.

If you are saving a meal in the refrigerator or 'plating' a meal for reheating, arrange the thicker, denser foods to the outside of the plate and the thinner or less dense foods in the middle.

Place thin slices of meat on top of each other or interlace them. Thicker slices such as meat loaf and sausages have to be placed close to each other. Gravy or sauce should be reheated in a separate container.

Choose a tall, narrow container rather than a low and wide container. When reheating gravy, sauce or soup, do not fill the container more than 2/3.

When you cook or reheat whole fish, score the skin this prevents cracking.

Shield the tail and head with small pieces of foil to prevent over-cooking but ensure the foil does not touch the sides of the oven.

KEEP THE OVEN CLEAN

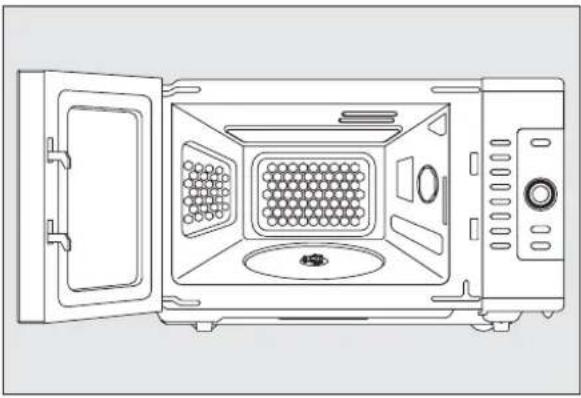

Line drawing of a microwave oven with open door and internal compartments (no text or symbols)

INSIDE THE OVEN

The interior three side walls and floor are stainless steel. For easy cleaning, wipe spills and spatters as they occur with a damp cloth or sponge with water and a mild detergent. Rinse the cavity of any cleaning residue with a clean damp or sponge after cleaning. Dry with a soft cloth.

These areas can also cleaned by using plastic or nylon scouring pads recommended for use of Teflon and Silverstone*.

For hard to remove soil, use a mild non-abrasive cleaner. Use on the stainless steel areas, turntable and rotating base only.

TOP SURFACE

Sheath and Quartz grill elements are installed on the top surface. As they are fragile, be careful not to press or grip them hard. Do not remove the grill elements to clean the surface.

Warning

Just as your traditional oven becomes hot also this oven will become hot during use of the grill functions or in combination with microwaves. children should be supervised at all times when using the oven.

TURNTABLE OR ROTATING BASE

Turntable or Rotating Base parts (depending on the model) are easily removable for cleaning. The turntable should be cleaned frequently and is dishwasher proof.

If food spills are accumulated under the rotating base, the oven will not operate efficiently. Be sure to wipe up any spills as they occur in this area.

Clean these parts as described by the same method of cleaning inside the oven. Be sure to properly reinstall these parts into the cavity after cleaning.

Note:

Do not use any other Turntable in the oven. Do not operate the oven without the Turntable or the Rotating Base positioned properly in place.

DOOR

While the oven door is still warm, any spatters or food soils should be wiped off with a damp sudsy cloth or sponge. Rinse with water and wipe dry with a cloth.

If steam or condensation appears around this area, wipe with a cloth. This may occur when the oven is operating under high humidity and with foods containing lots of moisture. This is a normal part of microwave cooking.

Note:

- Although your oven is provided with safety features, it is important to observe the following:

1. It is important not to defeat or tamper with safety interlocks.

2. Do not place any object between the oven front face and the door or allow residue to accumulate on sealing surfaces. Wipe the sealing area frequently with a mild detergent, rinse and dry. Never use abrasive powders or pads.

3. When opened, the door must not be subjected to strain, for example, a child hanging on an opened door or any load could cause the oven to fall forward to cause injury and also damage to the door. Do not operate the oven if it is damaged, until it has been repaired by a service technician. It is particularly important that the oven closes property and that there is no damage to the:

1) Door(bent)

2) Hinge and Hookes(broken or loosened)

3) Door seals and sealing surface.

1. The oven should not be adjusted or repaired by anyone except a properly competent service technician.

2. The oven should be cleaned regularly and any food deposits removed;

3. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;

EXTERIOR

CONTROL PANEL

Exercise care when cleaning this area is necessary. To clean, wipe the panel with a slightly dampened cloth, using only water.

Wipe dry. Do not scrub this area or use any sort of chemical cleaner. Avoid use of excess water.

OUTSIDE SURFACE

The outside surfaces should be cleaned with soap and water, rinsed and dried with a soft cloth. Do not use any type of household or abrasive cleanser.

Note:

- DO NOT USE ANY TYPE OF OVEN CLEANER ON ANY PART OF THE OVEN. It will damage some of the interior and exterior surfaces of the oven.

- The oven should be cleaned regularly and any food deposits removed.

- Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

BEFORE CALLING FOR SERVICE

You can often correct operating problems yourself. If your microwave/grill oven fails to work properly, locate the operating problem in the chart below and try the solutions marked for each problems.

If the microwave/grill oven still does not work properly, contact the nearest Service Centre.

Note:

It is quite normal for steam to be emitted around the door during the cooking cycle. The door is not intended to seal the oven cavity completely but its special design contributes to the complete safety of the appliance.

Caution:

1. Do not attempt to operate the oven while empty as this will cause damage.
2. As an exhaust is located in the rear of the oven, install the oven so as not to block the outlet. If the microwave/grill oven still does not work properly, contact the nearest Service Centre.

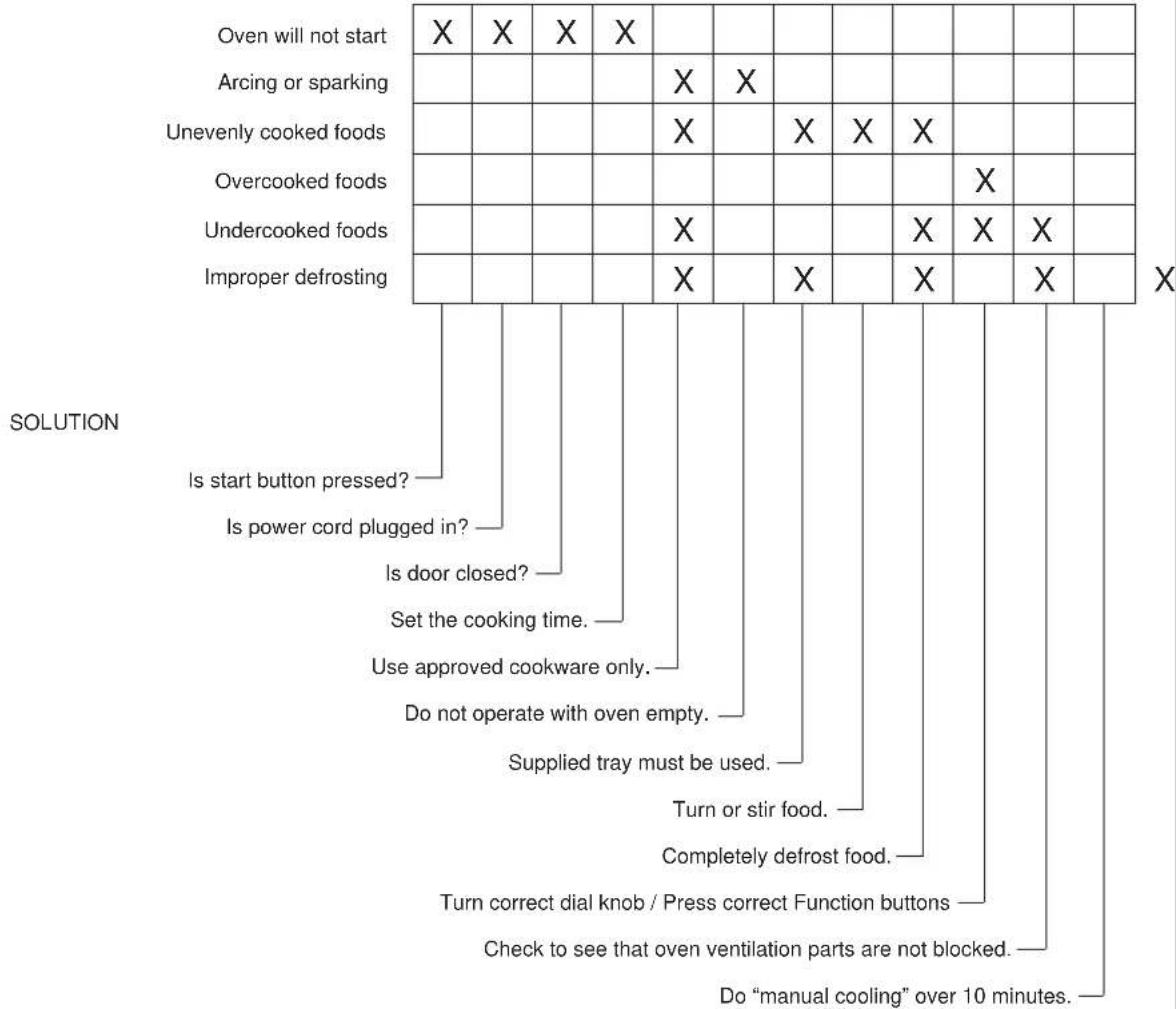

PROBLEM

QUESTIONS AND ANSWERS

* Q : Can I run the microwave empty?

A: This will damage it. If the microwave is operated empty, the excess energy will be absorbed and focused at the weakest point of the cavity or door, potentially causing door melting/ arcing. The energy will not normally focus at this point with a normal amount of food material in the cavity. Low load items are items of food that contain little or no liquid.

* Q : Can the oven be used with the glass tray or roller guide removed?

A : No. Both the glass tray and roller guide must always be used in the oven before cooking.

* Q : Can I open the door when the oven is operating?

A: The door can be opened anytime during the cooking operation. Then microwave energy will be instantly switched off and the time setting will maintain until the door is closed.

* Q : Why do I have moisture in my microwave oven after cooking?

A : The moisture on the side of your microwave oven is normal. It is caused by steam from cooking food hitting the cool oven surface.

* Q : Does microwave energy pass through the viewing screen in the door?

A : No. The metal screen bounces back the energy to the oven cavity. The holes are made to allow light to pass through. They do not let microwave energy pass through.

* Q : Why do eggs sometimes pop?

A: When baking or poaching eggs, the yolk may pop due to steam build-up inside the yolk membrane. To prevent this, simply pierce the yolk with a toothpick before cooking. Never cook eggs without piercing their shells.

* Q : Why this standing time recommended after the cooking operation has been completed?

A: Standing time is very important. With microwave cooking, the heat is in the food, not in the oven. Many foods build up enough internal heat to allow the cooking process to continue, even after the food is removed from the oven. Standing time for joints of meat, large vegetables and cakes is to allow the inside to cook completely, without overcooking the outside.

* Q : What does "standing time" mean?

A: "Standing time" means that food should be removed from the oven and covered for additional time to allow it to finish cooking. This frees the oven for other cooking.

* Q : Why does my oven not always cook as fast as the microwave cooking guide says?

A: Check your cooking guide again, to make sure you've followed directions exactly; and to see what might cause variations in cooking time. Cooking guide times and heat settings are suggestions, to help prevent over-cooking... the most common problem in getting used to a microwave oven. Variations in the size, shape and weights and dimensions could require longer cooking time. Use your own judgement along with the cooking guide suggestions to check whether the food has been properly cooked just as you would do with a conventional cooker.

* Q : Will the microwave oven be damaged if it operates while empty?

A : Yes. Never run it empty.

* Q : Can I operate my microwave oven without the turntable or turn the turntable over to hold a large dish?

A : No. If you remove or turn over the turntable, you will get poor cooking results. Dishes used in your oven must fit on the turntable.

* Q : Is it normal for the turntable to turn in either direction?

A: Yes. The turntable rotates clockwise or counterclockwise, depending on the rotation of the motor when the cooking cycle begins.

* Q : Can I pop popcorn in my microwave oven? How do I get the best results?

A: Yes. Pop packaged microwave popcorn following manufacture's guidelines. Do not use regular paper bags. Use the "listening test" by stopping the oven as soon as the popping slows to a "pop" every 1 or 2 seconds. Do not repop unpopped kernels. Do not pop popcorn in glass cookware.

SPECIFICATIONS

Power supply		230V~, 50Hz
Microwave Output	Power consumption	1400W
	power	900W (IEC 705)
	Frequency	2,450MHz
Grill power consumption		1250W
Convection power consumption		1250W
Combination power consumption		2700W
Outside Dimension(WDXH)		513(20.2)x401(15.8)x311(12.2)mm (inch)
Cavity Dimensions(WDXH)		354(13.9)x341(13.4)x231(9.1)mm (inch)
Net Weight		Approx. 16.6Kg (36.6 lbs.)
Timer		60 minutes
Select function		Microwave / Grill / Convection / Combination
Microwave power level		10 stages

* Specifications are subject to change without notice.

PRINCIPLE OF MICROWAVE

Microwave oven is a Group 2 ISM equipment in which radio-frequency energy is intentionally generated and used in the form of electromagnetic radiation for the treatment of material. This oven is a Class B equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

DISPOSAL OF USED ELECTRICAL & ELECTRONIC EQUIPMENT

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipment waste. In the European Union and Other European countries there are separate collection systems for used electrical and electronic product. By ensuring the correct disposal of this product, you will help prevent potential hazards to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. Please do not therefore dispose of your old electrical and electronic equipment with your household waste. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
