Product Type	Split Type Room Air Conditioner
Model	DSB-H1802JLH-VKW
Cooling Capacity	18,000 BTU/h (approx. 5.3 kW)
Heating Capacity	18,000 BTU/h (approx. 5.3 kW) (if heat pump)
Power Supply	220-240V, 50Hz, 1 Ph
Refrigerant	R32 (presumed)
Indoor Unit Dimensions (WxDxH)	Approx. 1000 x 230 x 330 mm
Outdoor Unit Dimensions (WxDxH)	Approx. 850 x 330 x 550 mm
Indoor Unit Weight	Approx. 12 kg
Outdoor Unit Weight	Approx. 38 kg
Energy Efficiency Ratio (EER)	3.2 (est.)
Noise Level Indoor (Low/High)	28 dB(A) / 44 dB(A) (approx.)
Noise Level Outdoor	55 dB(A) (approx.)
WiFi Connectivity	Yes, via App
Modes	Cool, Heat, Dry, Fan, Auto
Fan Speeds	Auto, Low, Med, High
Timer	Yes, on/off timer
Swing	Yes, automatic louver swing
Special Functions	Powerful, Eco, Sleep mode
Filter Cleaning	Removable washable filter (monthly)
Installation Type	Wall-mounted indoor unit

Frequently Asked Questions - DSB-H1802JLH-VKW DAEWOO

How do I connect my Daewoo DSB-H1802JLH-VKW to WiFi?

Download the Daewoo app, create an account, and plug in the air conditioner. Press the WiFi button on the unit (or remote) to enter pairing mode. In the app, tap 'Add Device', select your Wi-Fi network, enter the password, and follow the prompts to complete configuration.

What should I do if the air conditioner fails to configure successfully?

Ensure your mobile phone is connected to the 2.4 GHz Wi-Fi network (the unit does not support 5 GHz). Verify the Wi-Fi password is correct, the air conditioner is in configuration mode (indicator blinking), and there are no firewall restrictions. Also check that the router, AC, and phone are within range.

Why can't my mobile phone control the air conditioner?

If the app shows 'Identification failed', the air conditioner may have been reset. Reconnect to the same Wi-Fi network and refresh the device list. If the problem persists, delete the device from the app and add it again.

How do I set the timer on my Daewoo AC?

Press the 'Timer' button on the remote. Use the + / - buttons to set the desired ON or OFF time. The timer can be programmed for both cooling and heating modes. Confirm by pressing the Timer button again or waiting a few seconds.

What modes are available on the DSB-H1802JLH-VKW?

The unit offers Auto, Cool, Heat, Dry, and Fan modes. Each mode allows you to adjust the fan speed (Auto, Low, Med, High). The Eco and Powerful modes are also available for energy saving or rapid cooling/heating.

How often should I clean the air filters?

Clean the filters every two weeks under normal use, or more frequently in dusty environments. Open the front panel, remove the filters, vacuum or wash them with mild detergent, and let them dry completely before reinstalling.

Can I use a power extension cord with this air conditioner?

No, do not use extension cords or adapters. The air conditioner must be plugged directly into a dedicated outlet with the correct voltage (220-240V, 15A minimum). Using an extension cord may cause voltage drop, overheating, or fire.

What is the recommended room size for this 18,000 BTU unit?

An 18,000 BTU air conditioner is suitable for rooms of approximately 500-700 sq ft (46-65 sq m), depending on insulation, ceiling height, and sunlight exposure.

Does the DSB-H1802JLH-VKW have a self-cleaning function?

This model does not feature a self-cleaning function. However, you can manually clean the filters and use the 'Dry' mode periodically to reduce moisture buildup inside the unit.

What does the 'Powerful' mode do?

The Powerful mode forces the compressor and fan to operate at maximum capacity for 30 minutes (or until the set temperature is reached) to quickly cool or heat the room. It automatically returns to the previous settings after that.

USER MANUAL DSB-H1802JLH-VKW DAEWOO

SPLIT TYPE ROOM AIR CONDITIONER

MODEL #: DSB-H1202JLH-VKW

DSB-H1802JLH-VKW

DSB-H2402JLH-VKW

WIFI

Please read carefully and thoroughly this manual before operating the unit.

If you still have any difficulties or problems, consult your dealer for help or DAEWOO ELECTRONICS.

Please keep this manual well.

Please scan the QR code to download the latest App software. The latest App software integrated air conditioner, dehumidifier and Portable air conditioner.

Service condition

Thank you for choosing our air conditioner.

This manual apply to the air conditioners which has WiFi function.

Please read the manual carefully before using the product and keep it properly for further review.

For technical update, there is maybe deviation of the actual items from what is on the manual. We express our apologies. Please refer to your actual product

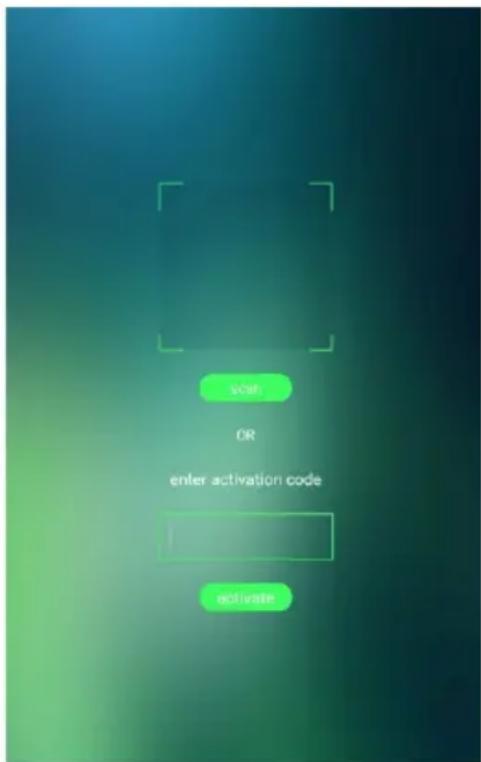

Activate QR code

1. When you first time enter the App, it will pop-up activation interface, you can select scan activation QR code (click "Scan" button and scan the activation QR code in next page) or input "activation" click code "activate" button to active it.

1. Air conditioner activation code

Add the device

1. Click "Add device" button (please confirm the mobile have been connected with WIFI router)

1. Input the router name and password, then choose "Start Config"

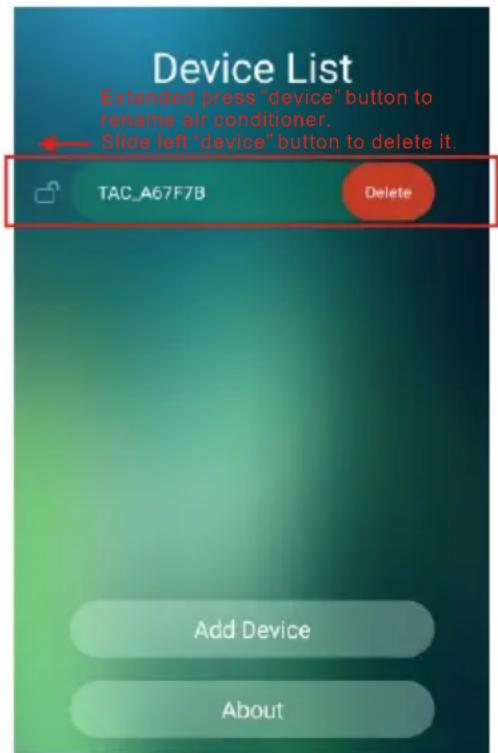

1. Air conditioner lock setting. Click “☐” to set the control lock function and press it again to unlock it. Delete air conditioner.

Air conditioner control

1. Click the air conditioner name to enter the control interface.

*For App update, there maybe deviation of the actual items from what is on the manual without prior notice. We express our apologies.

Conventional function declaration

Power off button

Timer

Mode

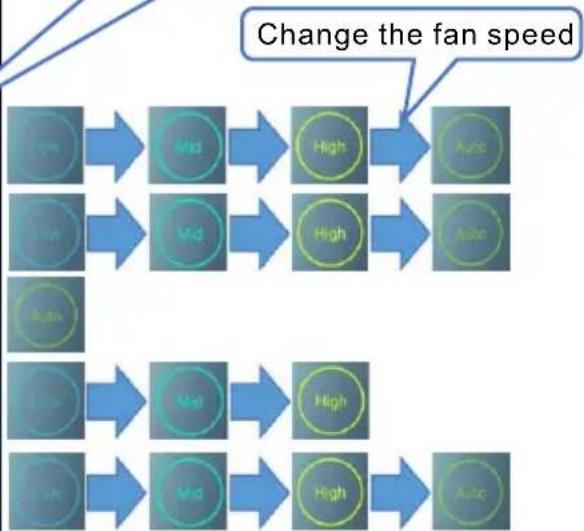

Different mode can set different fan speed

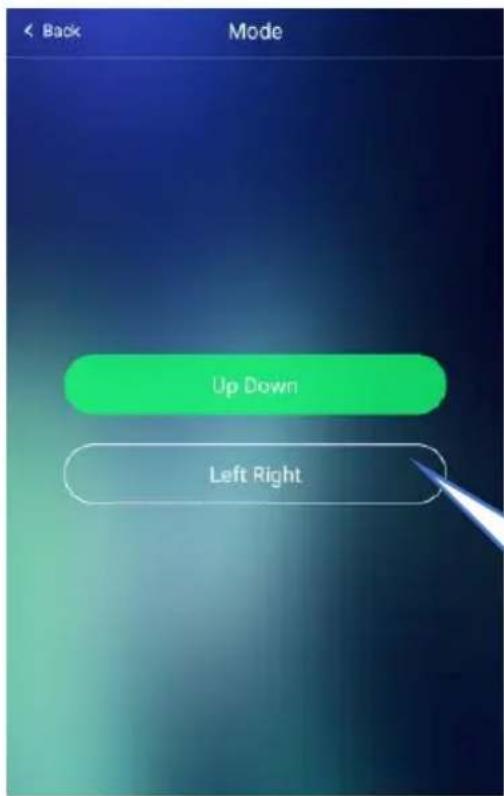

Swing

Set the function need to corresponding mode.

Powerful Eco

Trouble shooting

Description	Analysis of cause
Air conditioner can't be configured successfully	1. Check the mobile connected WIFI address and password is correct;2. Check the air conditioner under configuration status;3. There are any firewall or other restrictions have been set or not;4. check the router work normally;5. Make sure air conditioner, router and mobile work within signal scope6. Check router shielding App or not
Mobile can't control air conditioner	Software display: Identification failed, It means the air conditioner has been reset, and the mobile phone lost control permission. You need to connect WIFI to get permission again. Please connect the local network and refresh it. After all still can't work, please delete air conditioner and wait its refresh.
Mobile can't find air conditioner	Software display: Air conditioner out of line. Please check network working1. The air conditioner has been reconfiguration2. Air conditioner out of power3. Router out of power4. Air conditioner can't connect to router5. Air conditioner can't connect to network through the router(under remote control mode)6. Mobile can't connect to router(Under local control mode);7. The mobile phone can't connect to network (under remote control mode).

DAEWOO

APARAT DE CLIMATIZARE MANUAL DE UTILIZARE ŞI İNGRIJIRE

APARAT DE CLIMATIZARE DE CAMERĂ TIP SPLIT

MODEL #: DSB-H1202JLH-VKW

DSB-H1802JLH-VKW

DSB-H2402JLH-VKW

Stare de functionare

Mod
