| Product Type | Gas-fired central heating boiler |
| Model | Modena 32 C HE |
| Brand | Ferroli |
| Energy Source | Natural gas (G20) / Propane (G30) |
| Heat Output (Central Heating) | 32 kW (max) |
| Heat Output (Domestic Hot Water) | Combi model, 30 kW (approx.) |
| Efficiency (Seasonal) | 92% (condensing type) |
| Dimensions (H x W x D) | 700 x 400 x 300 mm |
| Weight | 35 kg |
| Mounting Type | Wall-hung |

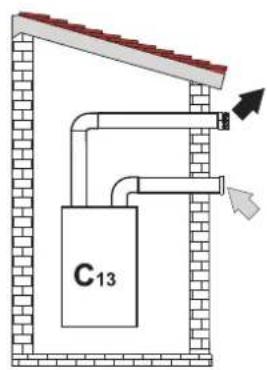

| Chimney Type | Room-sealed (coaxial flue) |

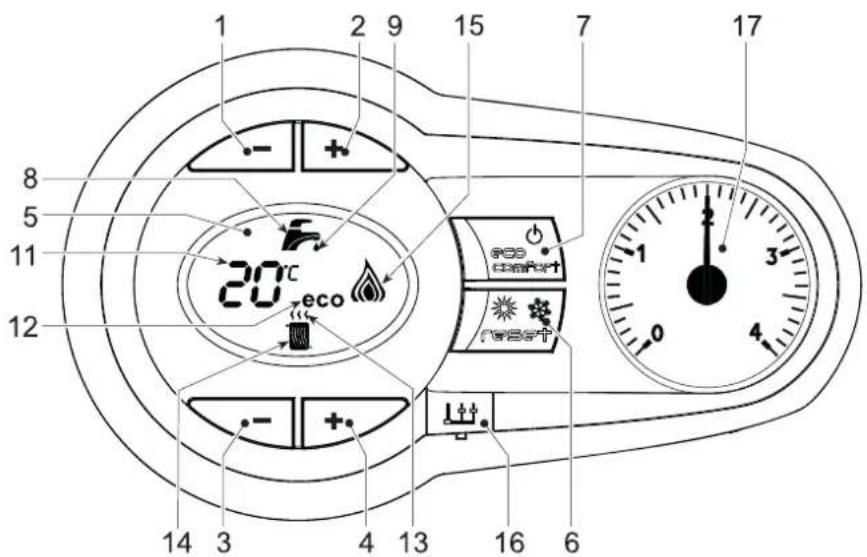

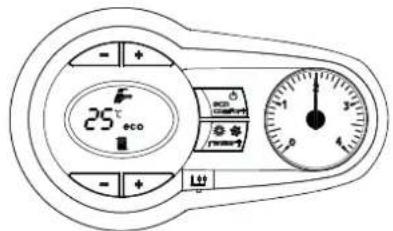

| Control System | Electronic ignition, digital display |
| Safety Features | Frost protection, overheat thermostat, gas valve safety |

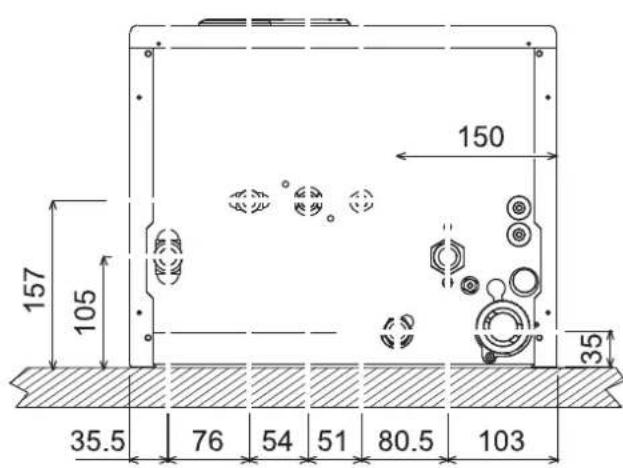

| Water Connection | 22 mm (flow and return), 15 mm (gas) |
| Electrical Supply | 230V ~ 50Hz, 150W (rated) |
| Noise Level | < 50 dB(A) |
| Modulating Burner | Yes, fully modulating |
| Maintenance Interval | Annually by qualified engineer |
| Spare Parts Availability | Standard parts for >10 years |
| Warranty | 2 years (standard), extendable |
Frequently Asked Questions - Modena 32 C HE FERROLI
What is the recommended water pressure for the Modena 32 C HE?
The recommended water pressure is between 1 and 1.5 bar when cold. If pressure drops below 0.5 bar, you may need to repressurize the system using the filling loop.
How do I reset the boiler after a fault?
Press and hold the Reset button on the control panel for 3 seconds. If the fault persists, check for error codes on the display and consult the manual.
What does error code E01 mean?
Error code E01 indicates a flame failure or ignition fault. Ensure gas supply is on and the flue is not blocked. Contact a qualified engineer if it reoccurs.
Can I use the boiler with propane gas?
Yes, the Modena 32 C HE can be converted to run on propane (G30). A conversion kit is required, and the adjustment must be performed by a Gas Safe registered engineer.
How often should the boiler be serviced?
Annual servicing by a qualified engineer is recommended to maintain efficiency and safety. During service, the heat exchanger and burner should be cleaned.
What is the minimum flow rate for domestic hot water?
The minimum flow rate is approximately 2.5 l/min for the hot water mode to activate. Lower flow may cause the boiler to cycle on and off.
Why does the boiler make a banging noise?
Banging noises may be due to air in the system (bleed radiators), limescale buildup, or high water pressure. Bleed the radiators first and check pressure.

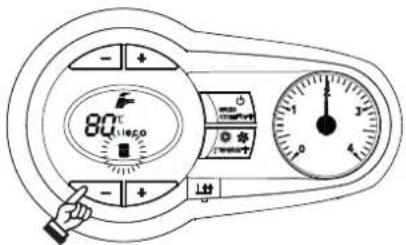

How do I adjust the heating output?

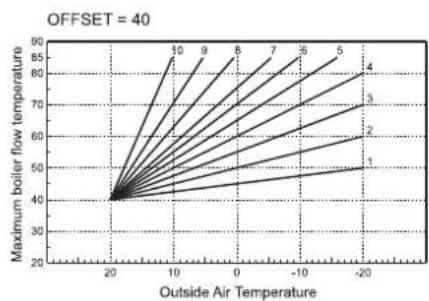

Heating output can be adjusted via the temperature control dial on the boiler. For more precise settings, use the optional room thermostat or weather compensation control.
What is the maximum central heating water temperature?
The maximum flow temperature is 80°C. For condensing efficiency, it is recommended to run at lower temperatures (e.g., 50-60°C).
Can I install the boiler myself?
No, installation must be carried out by a Gas Safe registered engineer in compliance with local regulations. Incorrect installation can lead to gas leaks or carbon monoxide poisoning.
