Product Type	Freestanding washing machine
Brand	Hotpoint Ariston
Model	ARTXF 109 (EU)
Capacity	9 kg
Maximum Spin Speed	1000 rpm
Energy Efficiency Class	C
Annual Energy Consumption	180 kWh
Annual Water Consumption	10000 L
Noise Level (Wash/Spin)	55 dB / 79 dB
Dimensions (H x W x D)	85 x 60 x 54 cm
Weight	65 kg
Power Supply	220-240 V, 50 Hz
Programs	Cotton, Synthetics, Delicates, Wool, Quick Wash, Eco, Rinse & Spin
Additional Functions	Delay start, Temperature selection, Spin speed selection, Child lock
Control Type	Electronic with LED display
Door Type	Front-load, porthole
Safety Features	Overflow protection, Unbalanced load control, Anti-flood system
Maintenance	Clean detergent drawer regularly, Clean filter every 3 months
Spare Parts Availability	Door seals, filters, belts, pumps, drum bearings
Repairability Index	7.5 / 10

Frequently Asked Questions - ARTXF 109 (EU) Hotpoint Ariston

How do I install the washing machine?

Ensure the machine is on a level floor. Remove transit bolts, connect inlet hose to water supply, place drain hose in a suitable drain, and plug into a grounded outlet.

What does the error code F01 mean?

Error code F01 indicates a motor communication fault. Try resetting the machine by unplugging for 10 minutes. If persists, contact service.

How should I clean the detergent drawer?

Remove the drawer by pressing the release button. Rinse under warm water and scrub with a brush. Clean the recess in the machine with a damp cloth.

Why is my machine not draining?

Check if drain hose is kinked or blocked. Clean the filter located at the bottom front. Ensure the drain pump is free of obstructions.

Can I wash wool garments in this machine?

Yes, use the dedicated Wool program. Select cold water and low spin speed to avoid shrinkage.

How do I activate the child lock?

Press and hold the 'Delay Start' and 'Spin Speed' buttons simultaneously for 3 seconds until a padlock icon appears on the display.

What is the maximum load for a quick wash?

For a 30-minute quick wash, do not exceed 3 kg of lightly soiled garments.

How often should I clean the filter?

Clean the filter every 3 months or if you notice drainage issues. Always have a towel ready to catch water when opening.

The machine vibrates excessively during spin. What to do?

Ensure the machine is level by adjusting the feet. Check that transit bolts are removed. Unbalanced loads are normal: redistribute laundry evenly.

Where can I find spare parts?

Authorized service centers or online spare parts retailers. Use model number ARTXF 109 (EU) for correct parts like door seal or drain pump.

USER MANUAL ARTXF 109 (EU) Hotpoint Ariston

Unpacking and levelling

Connecting the electricity and water supplies

The first wash cycle

Technical data

Description of the washing machine and starting a wash cycle, 4-5

Control panel

Indicator lights

How to open and shut the drum

Starting a wash cycle

Wash cycles, 6

Table of wash cycles

Personalisation, 7

Setting the temperature

Setting the spin speed

Functions

Detergents and laundry, 8

Detergent dispenser drawer

Bleach cycle

Preparing the laundry

Garments requiring special care

Load balancing system

Precautions and tips, 9

General safety

Disposal

Saving energy and respecting the environment

Care and maintenance, 10

Cutting off the water or electricity supply

Cleaning the washing machine

Caring for your appliance door and drum

Cleaning the pump

Checking the water inlet hose

How to clean the detergent dispenser

Troubleshooting, 11

Service, 12

GB

!Keep this instruction manual in a safe place for future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features.

!Read these instructions carefully: they contain vital information on installation, use and safety.

Unpacking and levelling

Unpacking

1. Unpack the washing machine.
2. Check whether the washing machine has been damaged during transport. If this is the case, do not install it and contact your retailer.

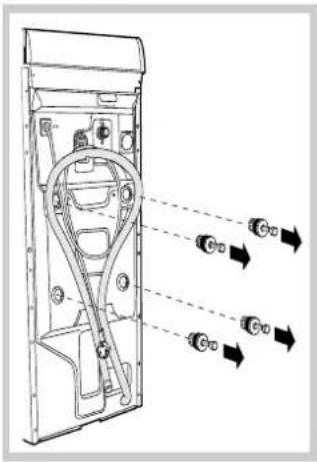

3. Remove the four protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).

4. Seal the gaps using the plastic plugs provided.

5. Keep all the parts: you will need them again if the washing machine needs to be moved to another location.

Warning: should the screws be re-used, make sure you fasten the shorter ones at the top.

!Packaging materials are not children's toys.

Levelling

Your machine may make a considerable amount of noise if the two front feet have not been adjusted correctly.

Line drawing of a car door corner with a circular sensor or button on the side (no text or symbols)

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or other.
2. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening

the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2^ .

Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine.

Putting your appliance in place and moving it.

Diagram of a corner joint with a 150-degree angle indicator (no text or symbols beyond the angle marker)

If your washing machine is equipped with a special set of retractable wheels you can easy move it. To lower the wheels and thus move the appliance effortlessly, just pull the lever, situated on the left-hand side beneath the base. Once the

appliance is in the required position, put the lever back in place. The washing machine is now firmly in place (see figure).

Electric and water connections

Connecting the water inlet hose

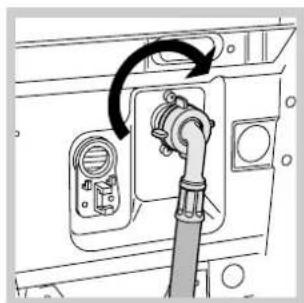

1. Insert seal A into the end of the inlet hose and screw the latter onto a cold water tap with a 3/4 gas threaded mouth (see figure). Before making the connection, allow the water to run freely until it is perfectly clear.

Diagram of a mechanical device with a piping bag and valve, showing a rotational arrow (no text or symbols)

1. Connect the other end of the water inlet hose to the washing machine, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

2. Make sure there are no kinks or bends in the hose.

!The water pressure at the tap must be within the values indicated in the Technical details table (on the next page).

!If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman.

Connecting the drain hose

Connect the drain hose, without bending it, to a drainage duct or a wall drain located at a height between 65 and 100 cm from the floor;

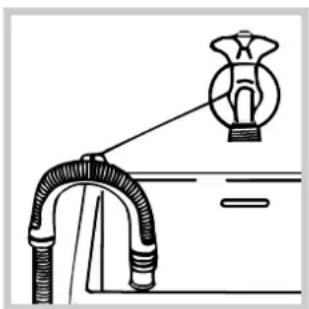

Diagram of a pipe connection with a magnified inset showing a device (no text or symbols present)

alternatively, rest it on the side of a washbasin or bathtub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

! We advise against the use of hose extensions; if it is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electricity socket, make sure that:

• the socket is earthed and complies with all applicable laws;
• the socket is able to withstand the maximum power load of the appliance as indicated in the Technical data table (see opposite);
• the power supply voltage falls within the values indicated in the Technical data table (see opposite);
• the socket is compatible with the plug of the washing machine. If this is not the case, replace the socket or the plug.

! The washing machine must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions.

! When the washing machine has been installed, the electricity socket must be within easy reach.

! Do not use extension cords or multiple sockets.
! The cable should not be bent or compressed.
! The power supply cable must only be replaced by authorised technicians.

Warning! The company shall not be held responsible in the event that these regulations are not respected.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using the wash cycle 2.

Technical data
Model	ARTXF 109
Dimensions	width 40 cmheight 85 cmdepth 60 cm
Capacity	from 1 to 6 kg
Electrical connections	please refer to the technical data plate fixed to the machine
Water connections	maximum pressure 1 MPa (10 bar)minimum pressure 0.05 MPa (0.5 bar)drum capacity 42 litres
Spin speed	up to 1000 rotations per minute
Energy rated programmes according to regulationEN 60456	programme 7; temperature 60°C; using a load of 6 kg.
	This appliance conforms to the following EC Directives:- 89/336/EEC dated 03/05/89(Electromagnetic Compatibility) and subsequent modifications- 2002/96/EC- 2006/95/EC (Low Voltage)

Description of the washing machine and starting a wash cycle

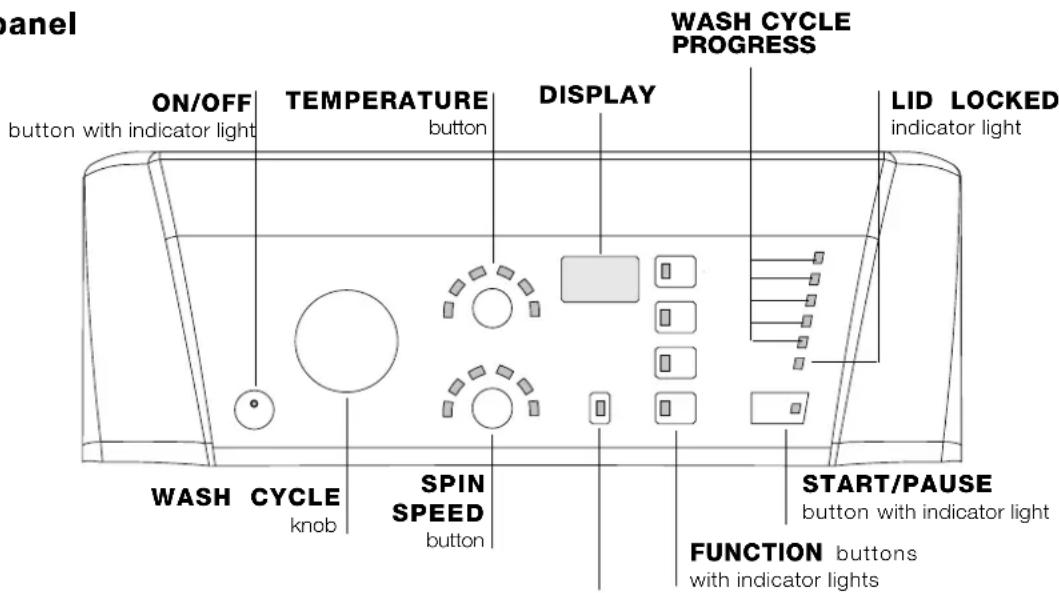

Control panel

CONTROL PANEL LOCK
button with indicator light

ON/OFF button with indicator light: switches the machine on and off. If the indicator light is illuminated, this indicates that the machine is switched on.

WASH CYCLE knob: programmes the wash cycles. During the wash cycle, the knob does not move.

SPIN SPEED button: sets the spin speed or exclude the spin cycle completely (see "Personalisation").

TEMPERATURE button: sets the temperature or the cold wash cycle (see "Personalisation").

DISPLAY: indicates the time remaining for the selected wash cycle and, if a delayed start has been programmed, the time remaining until the start of the wash cycle.

CONTROL PANEL LOCK button with indicator light: activates or deactivates the control panel lock.

FUNCTION buttons with indicator light: used to select the available functions. The indicator light corresponding to the selected function will remain lit.

WASH CYCLE PROGRESS indicator lights: used to monitor the progress of the wash cycle. The illuminated indicator light shows which phase is in progress.

DOOR LOCKED indicator light: indicates whether the door may be opened or not (see next page).

START/PAUSE button with indicator light: starts or temporarily interrupts the wash cycles.

N.B. To pause the wash cycle in progress, press this button; the corresponding indicator light will flash orange, while the indicator light for the current wash cycle phase will remain lit in a fixed manner. If the DOOR LOCKED → indicator light is switched off, the door may be opened.

To start the wash cycle from the point at which it was interrupted, press this button again.

Indicator lights

The indicator lights provide important information. This is what they can tell you:

Wash cycle phase indicator lights

As the WASH CYCLE knob is rotated, the indicator lights illuminate, indicating the stages which will be performed by the machine in accordance with the selected wash cycle.

Once the desired wash cycle has been selected and has begun, the indicator lights switch on one by one to indicate which phase of the cycle is currently in progress.

Wash

Rinse

Spin

Drain

End of wash cycle

Function buttons and corresponding indicator lights

When a function is selected, the corresponding indicator light will illuminate.

If the selected function is not compatible with the programmed wash cycle, the corresponding indicator light will flash, a sound signal will be emitted and the function will not be activated. If a function which is incompatible with another function selected previously, only the most recent selection will remain active.

Temperature indicator light

When a temperature value is selected, the corresponding indicator light will illuminate.

Spin indicator light

When a spin value is selected, the corresponding indicator light will illuminate.

Control panel lock indicator light

To activate the control panel lock, press and hold the button for approximately 2 seconds. When the indicator light is illuminated, the control panel is locked. This means it is possible to prevent wash cycles from being modified accidentally, especially where there are children in the home.

To deactivate the control panel lock, press and hold the button for approximately 2 seconds.

- Lid locked indicator light

If this indicator light is on, the appliance door is locked to prevent it from being opened accidentally; to avoid any damage, wait for the indicator light to switch off (it will take about three minutes) before you open the appliance door. N.B. If the DELAY TIMER function is activated, the door cannot be opened; pause the machine by pressing the START/PAUSE button if you wish to open it.

! If the START/PAUSE indicator light (orange) flashes rapidly at the same time as the function indicator light, this indicates a problem has occurred (see "Troubleshooting").

How to open and to close the drum

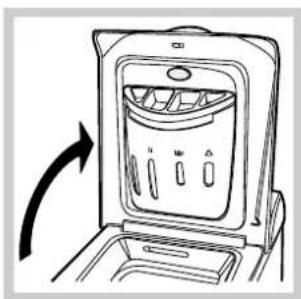

Line drawing of a kitchen appliance with a right-hand arrow indicating rotation (no text or symbols)

Fig. 1

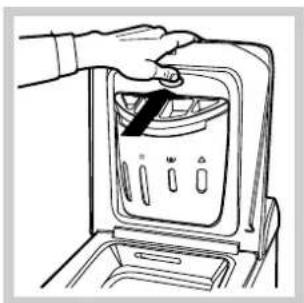

Line drawing of a hand inserting a device into a storage tray (no text or symbols)

Fig. 2

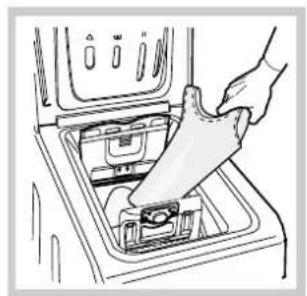

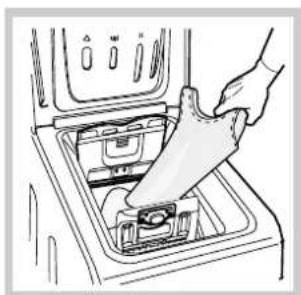

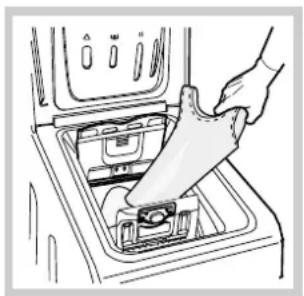

Line drawing of a hand placing a plastic bag into a shared drawer inside a washing machine (no text or symbols)

Fig. 3

Fig. 4

Lift the external lid and open it completely.

B) Opening the drum (Soft opening):

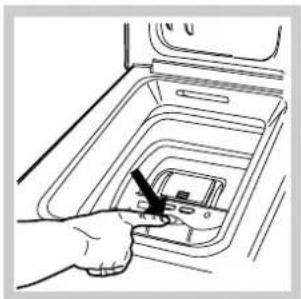

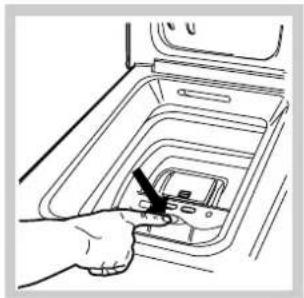

With one finger, push the button indicated in fig. 2 and the drum will open delicately.

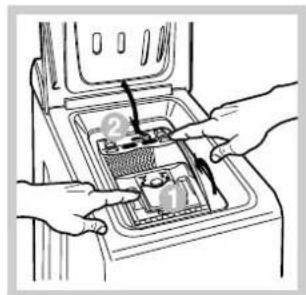

C) Loading the washing machine (Fig. 3).

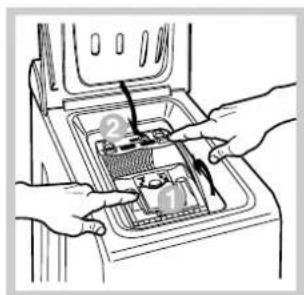

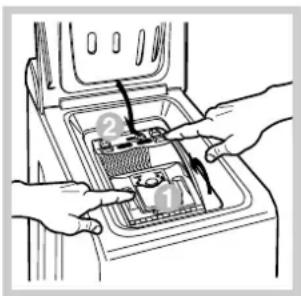

• close the drum fully by first shutting the front door followed by the rear one;
• then ensure the hooks on the front door are perfectly housed within the seat of the rear door;
• after the hooks have clicked into position, press both doors lightly downwards to make sure they do not come loose;
• finally shut the external lid.

E) Drum End Stop (Fig. 2):

Once the wash cycle has been completed, the drum will position itself with doors facing upward for ease pf opening.

Starting a wash cycle

1. Switch the washing machine on by pressing the ON/OFF button. All indicator lights will switch on for a few seconds, then they will switch off and the START/PAUSE indicator light will pulse.

2. Load the laundry, close the door and the lid.

3. Set the WASH CYCLE knob to the desired programme.

4. Set the washing temperature (see "Personalisation").

5. Set the spin speed (see "Personalisation").

6. Measure out the detergent and washing additives (see "Detergents and laundry").

7. Select the desired functions.

8. Start the wash cycle by pressing the START/PAUSE button and the corresponding indicator light will remain lit in a fixed manner, in green.

To cancel the set wash cycle, pause the machine by pressing the START/PAUSE button and select a new cycle.

1. At the end of the wash cycle the END indicator light will switch on. The LID LOCKED indicator light will switch off, indicating that the door may be opened. Take out your laundry and leave the appliance door ajar to make sure the drum dries completely.

Switch the washing machine off by pressing the ON/OFF button.

Table of wash cycles

Wash cycles	Description of the wash cycle	Max. temp. (°C)	Max. speed (rpm)	Detergents			Max. load (kg)	Cycle duration
				Bleach	Wash	Fabric softener
Special cycles								The duration of the wash cycles can be checked on the display.
7	Sanitizing cycle 90°Extremely soiled whites.	90°	1000	●	●	●	6
7	Sanitizing cycle 90°(1):Heavily soiled whites and resistant colours.	60°	1000 -		●	●	6
8	Goodnigt cycle: Lightly soiled delicate colours.	40°	800 -		●	●	4
9	Baby cycle: Heavily soiled delicate colours.	40°	800 -		●	●	2
10	Shirts	40°	600 -		●	●	2
11	Silk/Curtains: For garments in silk and viscose, lingerie.	30°	0 -		●	●	1
12	Wool: For wool, cashmere, etc.	40°	600 -		●	●	1
Everyday wash cycles (Daily)
1	Cotton + Prewash 90°: Extremely soiled whites.	90°	1000 -		●	●	6
2	Cotton: Heavily soiled whites and resistant colours.	60°	1000	●	●	●	6
2	Cotton (2): Heavily soiled whites and delicate colours.	40°	1000	●	●	●	6
3	Coloured Cottons (3):Lightly soiled whites and delicate colours.	40°	1000	●	●	●	6
4	Synthetics resistents: Heavily soiled resistant colours.	60°	800 -		●	●	2,5
4	Synthetics delicates:Lightly soiled resistant colours.	40°	800 -		●	●	2,5
5	Mix 30': To refresh lightly soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand).	30°	800 -		●	●	3
6	Mix 15': To refresh lightly soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand).	30°	800 -		●	●	1,5
Partials wash cycles
	Rinse	-	1000	●	-	●	6
	Spin	-	1000	-	-	-	6
	Light spin	-	800	-	-	-	2,5
	Drain no spin	-	0	-	-	-	6

The information contained in the table is intended as a guide only.

For all Test Institutes:

1) Test wash cycle in compliance with regulation EN 60456: set wash cycle 7 with a temperature of 60°C.
2) Long wash cycle for cottons: set wash cycle 2 with a temperature of 40°C.
3) Short wash cycle for cottons: set wash cycle 3 with a temperature of 40°C.

Specials wash cycles

Sanitizing cycle (wash cycle 7). A high-temperature hygienic wash cycle (over 60°C) which requires the use of bleach. Pour the bleach, the detergent and the additives into the relevant compartments (see paragraph entitled "Detergent dispenser drawer").

Goodnigt cycle (wash cycle 8). This is a silent cycle which can be run at night, when the electricity prices are lower. The wash cycle is designed for cottons and synthetics. At the end of the cycle the machine stops while there is still water in the drum; to spin and drain the laundry press the START/PAUSE button; alternatively the machine will perform the spin cycle and drain the water automatically after 8 hours.

Baby cycle (wash cycle 9). This wash cycle can be used to remove the soiling typically caused by babies, while ensuring that all detergent is removed from nappies in order to prevent the delicate skin of babies from suffering allergies. The cycle has been designed to reduce the amount of bacteria by using a greater quantity of water and optimising the effect of special disinfecting additives added to the detergent.

Mix 30' (wash cycle 5) this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 30 minutes and therefore saves both energy and time. By selecting this wash cycle (5 at 30^ ), it is possible to wash different fabrics together (except for wool and silk items), with a maximum load of 3kg .

Mix 15'(wash cycle 6) this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 15 minutes and therefore saves both energy and time. By selecting this wash cycle (6 at 30°C), it is possible to wash different fabrics together (except for wool and silk items), with a maximum load of 1.5 kg.

Setting the temperature

By pressing the TEMPERATURE button to set the wash temperature (see Table of wash cycles).

The temperature may be lowered, or even set to a cold wash ( ♂).

The washing machine will automatically prevent you from selecting a temperature which is higher than the maximum value set for each wash cycle.

Setting the spin speed

By pressing the SPIN SPEED button to set the spin speed for the selected wash cycle.

The maximum spin speeds available for each wash cycle are as follows:

Wash cycles Maximum spin speed

Cottons 1000 rpm

Synthetics 800 rpm

Wool 600 rpm

Silk drain only

The spin speed may be lowered, or the spin cycle can be excluded altogether by selecting the symbol. The washing machine will automatically prevent you from selecting a spin speed which is higher than the maximum speed set for each wash cycle.

Functions

The various wash functions available with this washing machine will help to achieve the desired results, every time. To activate the functions:

1. Press the button corresponding to the desired function;

2. the function is enabled when the corresponding indicator light is illuminated.

Note: If the indicator light flashes rapidly, this signals that this particular function may not be selected in conjunction with the selected wash cycle.

Delay timer

To set a delayed start for the selected wash cycle, press the button repeatedly until the desired delay time is displayed (this may be between 1 hour and 24 hours).

To disable the function press the button until the text OFF is displayed.

N.B. Once you have pressed the START/PAUSE button, the delay time may only be decreased if you wish to modify it.

!This option is enabled with all programmes.

Super Wash

Because a greater quantity of water is used in the initial phase of the cycle, and because of the increased cycle duration, this function offers a high-performance wash.

! This function may not be used in conjunction with wash cycles 5, 6, 7, 11, 12,

Extra rinse

By selecting this function, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is particularly useful for sensitive skin.

! This function may not be used in conjunction with wash cycles 5, 6, Ⓞ, ⏱.

Easy iron

By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases. At the end of the cycle the washing machine will perform slow rotations of the drum.

For the 4, 8, 11 wash cycle, the machine will end the cycle while the laundry is soaking, the EASY IRON and START/PAUSE indicator lights will flash (orange) and the RINSE phase will remain lit in a fixed manner. To drain the water so that the laundry may be removed, press the START/PAUSE button or the EASY IRON button.

! This function may not be used in conjunction with wash cycles 5, 6, 7, 8, 9, 12, ⑨, ⑩, ⑪.

Detergent dispenser drawer

Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment.

Open up the detergent dispenser and pour in the detergent and fabric softener, as follows.

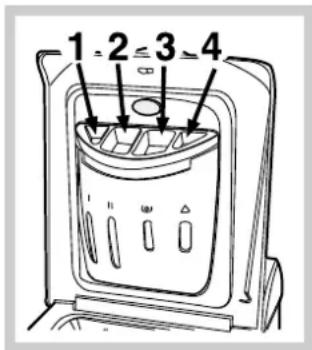

compartment 1: Detergent for pre-wash

compartment 2: Detergent for the wash cycle (powder or liquid)

It is recommended that you place liquid detergent directly into the compartment using the appropriate dosing cup.

compartment 3: Additives (softener, etc.)

When pouring the softener in compartment 3, avoid exceeding the "max" level indicated. The softener is added automatically into the machine during the last wash. At the end of the wash programme, some water will be left in compartment 3. This is used for the inlet of denser fabric softeners into the machine, i.e. to dilute the more concentrated softeners. Should more than a normal amount of water remain in compartment 3, this means the emptying device is blocked. For cleaning instructions, see "Care and maintenance".

compartment 4: Bleach

Bleach cycle

Bleaching may only be performed in conjunction with wash cycles 2, 3, 7, 📋.

Pour the bleach into compartment 4; pour the detergent and softener into the corresponding compartments, then select one of the abovementioned wash cycles.

This option is recommended only for very soiled cotton garments.

Preparing the laundry

• Divide the laundry according to:
• the type of fabric/the symbol on the label
• the colours: separate coloured garments from whites.
  • Empty all garment pockets and check the buttons.
• Do not exceed the listed values, which refer to the weight of the laundry when dry:
  Durable fabrics: max. 6 kg
  Synthetic fabrics: max. 2,5 kg
  Delicate fabrics: max. 2 kg
  Wool: max. 1 kg

How much does your laundry weigh?

1 sheet 400-500 g
1 pillow case 150-200 g
1 tablecloth 400-500 g
1 bathrobe 900-1200 g
1 towel 150-250 g

Garments requiring special care

Shirts: use special wash cycle 10 to wash shirts in various fabrics and colours. It guarantees maximum care is taken of the garments and minimises the formation of creases.

Silk: use special wash cycle 11 to wash all silk garments. We recommend the use of special detergent which has been designed to wash delicate clothes.

Curtains: fold curtains and place them in a pillow case or mesh bag. Use wash cycle 11.

Wool: Hotpoint/Ariston is the only washing machine manufacturer to have been awarded the prestigious Woolmark Platinum Care endorsement (M.0508) by the Woolmark Company, which means that all woollen garments may be washed in the washing machine, even those which state "hand wash only"

on the label. Wash cycle 12 therefore offers complete peace of mind when washing woollen garments in the washing machine (max. load 1 kg) and guarantees optimal performance.

Load balancing system

Before every spin cycle, to avoid excessive vibrations and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.

! This washing machine was designed and constructed in accordance with international safety regulations. The following information is provided for safety reasons and must therefore be read carefully.

General safety

• This appliance was designed for domestic use only.
• The washing machine must only be used by adults, in accordance with the instructions provided in this manual.
• Do not touch the machine when barefoot or with wet or damp hands or feet.
• Do not pull on the power supply cable when unplugging the appliance from the electricity socket. Hold the plug and pull.
• Do not touch the drained water as it may reach extremely high temperatures.
• Never force the porthole door. This could damage the safety lock mechanism designed to prevent accidental opening.
• If the appliance breaks down, do not under any circumstances access the internal mechanisms in an attempt to repair it yourself.
• Always keep children well away from the appliance while it is operating.
• If the appliance has to be moved, work in a group of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.
• Before loading laundry into the washing machine, make sure the drum is empty.

Disposal

• Disposing of the packaging materials: observe local regulations so that the packaging may be re-used.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Saving energy and respecting the environment

Saving on detergent, water, energy and time

• To avoid wasting resources, the washing machine should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy.
• The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy.
• Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60°C instead of 90°C or one at 40°C instead of 60°C will save up to 50% on energy.
• Use the correct quantity of detergent depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible.
• If you use your washing machine from late in the afternoon until the early hours of the morning, you will help reduce the electricity board's peak load. The "Delay Timer" option helps to organise your wash cycles accordingly.
• If your laundry has to be dried in a tumble dryer, select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.

Care and maintenance

Cutting off the water or electricity supply

• Turn off the water tap after every wash. This will limit the wear of your appliance's water system and also prevent leaks.
• Unplug your appliance when cleaning it and during all maintenance operations.

Cleaning your appliance

The exterior and rubber parts of your appliance can be cleaned with a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Caring for your appliance door and drum

• Always leave the appliance door ajar to prevent unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump that does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber that protects the pump, situated in the lower part of the same.

! Make sure the wash cycle has ended and unplug the appliance.

To recover any objects that have fallen into the pre-chamber:

Pure geometric diagram showing two right triangles with directional arrows, no text or symbols present

1. remove the plinth at the bottom on the front side of the washing machine by pulling from the side with your hands (see figure);
2. unscrew the lid rotating it anticlockwise (see figure): a little water may trickle out. This is perfectly normal;
3. clean the interior thoroughly;
4. screw the lid back on;
5. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Simple line drawing of a mechanical component with a circular feature on a rectangular base (no text or symbols)

Checking the water inlet hose

Check the water inlet hose at least once a year. If you see any cracks, replace it immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use hoses that have already been used.

How to clean the detergent dispenser

Disassembly:

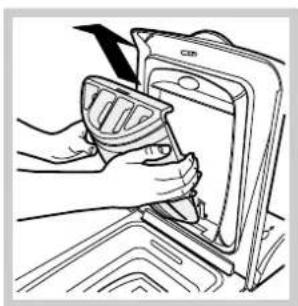

Press lightly on the large button on the front of the detergent dispenser and pull it upwards (fig. 1, 2).

Cleaning:

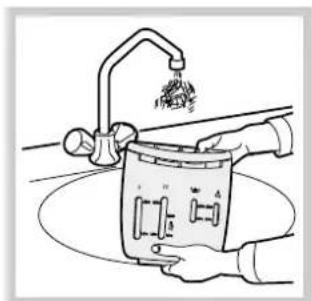

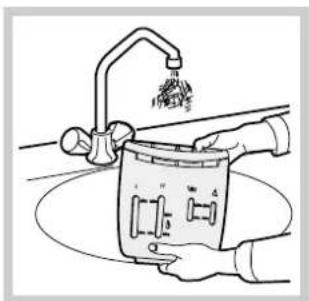

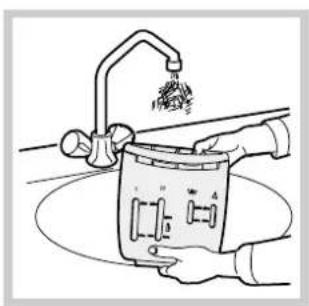

Then clean the dispenser under a tap (fig. 3) using an old toothbrush and, once the pair of siphons inserted in the top of compartments 1 and 2 (fig. 4) have been pulled out, check whether the same are not clogged and then rinse them.

Reassembly:

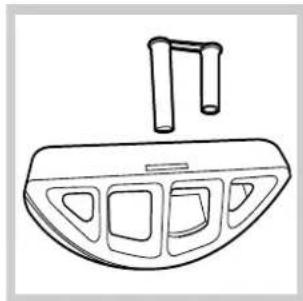

Do not forget to reinsert the pair of siphons into the special housings and then to replace the dispenser into its seat, clicking it into place (fig. 4, 2 and 1).

Line drawing of a hand placing a bag into a washing machine (no text or symbols)

Fig. 1 Fig. 2

Line drawing of a hand using a tool to clean or adjust a device (no text or symbols visible)

Illustration of hands using a tool to clean or wash a machine (no text or symbols visible)

Fig. 3

Line drawing of a mechanical component with a bracket and internal compartments (no text or symbols)

Fig. 4

Your washing machine could fail to work. Before contacting the Technical Assistance Centre (see "Assistance"), make sure that the problem cannot be not solved easily using the following list.

Problem:

The washing machine does not switch on.

The wash cycle does not start.

The washing machine does not take in water (the indicator light for the first wash cycle stage flashes rapidly).

The washing machine continuously takes in and drains water.

The washing machine does not drain or spin.

The washing machine vibrates a lot during the spin cycle.

The washing machine leaks.

The START/PAUSE indicator light (orange) and the function indicator lights flash rapidly.

There is too much foam.

Possible causes / Solutions:

- The appliance is not plugged into the socket fully, or is not making contact. - There is no power in the house.

- The appliance Lid is not shut properly. - The ON/OFF button has not been pressed. - The START/PAUSE button has not been pressed. - The water tap has not been opened. - A delayed start has been set (see "Personalisation").

- The water inlet hose is not connected to the tap. - The hose is bent. - The water tap has not been opened. - There is no water supply in the house. - The pressure is too low. - The START/PAUSE button has not been pressed

- The drain hose is not fitted at a height between 65 and 100cm from the floor (see "Installation"). - The free end of the hose is under water (see "Installation"). - The wall drainage system is not fitted with a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and contact the Assistance Service. If the dwelling is on one of the upper floors of a building, there may be problems relating to water drainage, causing the washing machine to fill with water and drain continuously. Special anti-draining valves are available in shops and help to avoid this inconvenience.

- The wash cycle does not include draining: some wash cycles require the drain phase to be started manually. - The EASY IRON function has been activated: To complete the wash cycle, press the START/PAUSE button ("Personalisation"). - The drain hose is bent (see "Installation"). - The drainage duct is clogged.

- The drum was not unlocked correctly during installation (see "Installation"). - The washing machine is not level (see "Installation"). - The washing machine is trapped between cabinets and walls (see "Installation").

- The water inlet hose is not screwed on properly (see "Installation"). - The detergent dispenser drawer is blocked (for cleaning instructions, see "Care and maintenance"). - The drain hose is not fixed properly (see "Installation").

- Switch off the machine and unplug it, wait for approximately 1 minute and then switch it back on again. If the problem persists, contact the Technical Assistance Service.

- The detergent is not suitable for machine washing (it should display the text "for washing machines" or "hand and machine wash", or the like). - Too much detergent was used.

Before calling for Assistance:

• Check whether you can solve the problem alone (see "Troubleshooting");
• Restart the programme to check whether the problem has been solved;
• If this is not the case, contact an authorised Technical Assistance Centre using the telephone number provided on the guarantee certificate.

!Always request the assistance of authorised technicians.

Have the following information to hand:

• the type of problem;
  • the appliance model (Mod.);
  • the serial number (S/N).
  This information can be found on the data plate situated on the rear of the washing machine.

Русский

Содержание

Установка, 14-15

Line drawing of a car door with a circular button and directional arrow (no text or symbols)

Diagram showing a 150-degree angle with a curved arrow indicating rotation (no text or symbols present)

Diagram of a mechanical device with a piping and valve, showing rotational motion (no text or symbols)

Diagram of a pipe connection with a valve and bulb, no text or symbols present

Line drawing of a washing machine with an arrow indicating clockwise motion (no text or symbols)

рис. 1

Line drawing of a hand inserting a device into a multi-tiered storage unit (no text or symbols visible)

рис. 2

Illustration of a hand inserting a plastic into a microwave oven (no text or symbols)

рис. 3

рис. 4

Pure geometric diagram showing a trapezoidal structure with two downward-pointing arrows indicating force or direction (no text or symbols)

Simple line drawing of a mechanical component with a circular feature on a rectangular base (no text or symbols)

Line drawing of a hand placing a component into a shared appliance (no text or symbols)

рис. 1

Illustration of hands installing or adjusting a device component (no text or symbols visible)

рис. 2

Line drawing of hands using a manual tool to clean or wash a small container (no text or symbols visible)

рис. 3

Line drawing of a mechanical component with a bracket and internal compartments (no text or symbols)

рис. 4

Line drawing of a car door corner with a circular button and directional arrow (no text or symbols)

Diagram of a mechanical component with a 150° angle标注 (no text or symbols beyond the angle indicator)

Diagram of a mechanical device with a pipe and valve, showing rotational motion (no text or symbols)

Diagram of a pipe connection with a connector, showing fluid flow and support structure (no text or labels)

Line drawing of a kitchen appliance with a door and drawer, showing a curved arrow indicating rotation (no text or symbols)

Rys. 1

Hand inserting a small electronic component into a rectangular appliance (no text or symbols visible)

Rys. 2

Line drawing of a hand placing a plastic bag into a shared drawer inside a vehicle (no text or symbols)

Rys. 3

Illustration of hands installing or adjusting a component inside a container (no text or symbols visible)

Rys. 4

Pure geometric diagram showing a right triangle with two horizontal arrows indicating direction (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and rectangular base (no text or symbols)

Line drawing of a hand placing a black object into a washing machine (no text or symbols)

Line drawing of a hand using a tool to clean or adjust a device (no text or symbols visible)

Line drawing of a hand washing a small appliance with a faucet, no text or symbols present

Line drawing of a mechanical component with no text or symbols

A mosygür lehrbsa йs program elindhtbsa, 40–41

Kezelőpanel

Jelzőlámpák

HU

Line drawing of a car door corner with a spiral-shaped button and directional arrow (no text or symbols)

Diagram of a mechanical component with a 150° rotation indicator (no text or symbols on the diagram itself)

Diagram of a mechanical device with a pipe and valve, showing rotational motion (no text or symbols)

Diagram of a pipe connection with a connector, showing fluid flow and support structure (no text or labels)

Line drawing of a washing machine with a door and side panel, showing an arrow indicating rotation (no text or symbols)

6bra. 1

Line drawing of a hand inserting a component into a multi-tiered storage unit (no text or symbols visible)

6bra. 2

Illustration of a hand placing a plastic bag into a shared drawer inside a vehicle (no text or symbols visible)

6bra. 3

6bra. 4

A) KINYITBS (1. 6bra):

Pure geometric diagram showing a right triangle with two arrows indicating direction (no text or symbols)

Simple line drawing of a mechanical component with a circular feature on a rectangular base (no text or symbols)

Line drawing of a hand placing a bag into a washing machine (no text or symbols)

6bra. 1 6bra. 2

Illustration of hands cleaning a door panel with a tool (no text or symbols visible)

Illustration of hands using a tool to clean or wash a machine (no text or symbols visible)

6bra. 3

Line drawing of a mechanical component with a bracket and internal compartments (no text or symbols)

6bra. 4
