PHBS9.8CLTDK - Range hood HOTPOINT - Free user manual and instructions

Product Type	Range Hood (Hotte aspirante)
Brand	Hotpoint
Model	PHBS9.8CLTDK
Width	90 cm
Depth	50 cm
Height (min-max)	60 - 110 cm
Weight	15 kg (approx)
Power Supply	220-240 V / 50 Hz
Max Extraction Rate	680 m³/h
Noise Level (max)	65 dB(A)
Number of Speeds	3 plus intensive
Type of Controls	Slider buttons
Lighting	2 x 1.5W LED
Filter Type	Aluminum grease filter (washable)
Number of Filters	1
Mode of Operation	Ducted or recirculating (with optional charcoal filter)
Duct Diameter	150 mm
Material	Stainless steel
Energy Class	B (on EU energy label)
Annual Energy Consumption	45 kWh/year (approx)
Motor Power	220 W
Installation Type	Built-in / Under cabinet

Frequently Asked Questions - PHBS9.8CLTDK HOTPOINT

How do I install the Hotpoint PHBS9.8CLTDK range hood?

Installation must be done by a qualified person. Ensure the hood is at least 65 cm above electric hobs and 75 cm above gas hobs. Fix the hood to the wall or cabinet using the supplied brackets. For ducted mode, connect the exhaust duct to the outlet. For recirculating mode, install the charcoal filter.

How often should I clean the grease filter?

Clean the aluminum grease filter every month or more frequently with heavy use. Remove the filter and wash it by hand with mild detergent or in the dishwasher at low temperature. Allow to dry completely before reinserting.

How do I replace the charcoal filter?

The charcoal filter is used for recirculating mode. Replace it every 3-6 months depending on usage. Remove the grease filter first, then slide out the old charcoal filter and insert a new one (model specific). Ensure it locks into place.

Can the LED lights be replaced?

Yes, the LED bulbs are replaceable. Turn off the power, remove the light cover, and carefully pull out the old LED. Insert a new LED of the same type (1.5W, GU10 base). Ensure proper alignment before reinstalling the cover.

Why is my range hood noisy?

Noise can increase due to dirty filters, loose installation, or blocked ductwork. Clean the grease filter regularly and ensure the hood is securely mounted. Check the duct for obstructions. If noise persists, contact service.

How do I switch between ducted and recirculating mode?

To switch, first remove the grease filter. For ducted mode, ensure the exhaust outlet is connected to a duct leading outside. For recirculating, install a charcoal filter in the designated slot and close the outlet with the supplied plastic cover. Refer to the manual for your specific model.

What does the intensive speed do?

The intensive speed (boost) runs the motor at maximum power for a short period (usually 5-10 minutes) to quickly remove strong odors or steam. After the cycle, it returns to the previous speed. Use sparingly to save energy.

My remote control is not working. What should I do?

First, check the batteries in the remote and replace if needed. Ensure there are no obstructions between the remote and the hood. If the hood has a pairing mode, re-pair the remote following the manual. If still not working, the remote may need replacement.

What is the recommended height above the cooktop?

For optimal performance and safety, install the hood at a height of 65-75 cm above electric hobs and 75-85 cm above gas hobs. Adjust within this range based on your ceiling height and personal comfort.

How do I reset the filter cleaning indicator?

After cleaning the grease filter, press and hold the reset button (usually labeled 'R' or a similar icon) for about 3 seconds until the indicator light turns off. Some models reset automatically after a certain runtime.

USER MANUAL PHBS9.8CLTDK HOTPOINT

EN Instructions for use

Hotpoint

1x

1x

1x

1x

7x ∅ 8 mm

7x ∅ 5 x 45 mm

4x ∅ 3,5 x 9,5 mm

1x

1x

1x

3x

2x ∅ 2,9 x 6,5 mm

3x

2x ∅ 3 x 9 mm

2x

1x

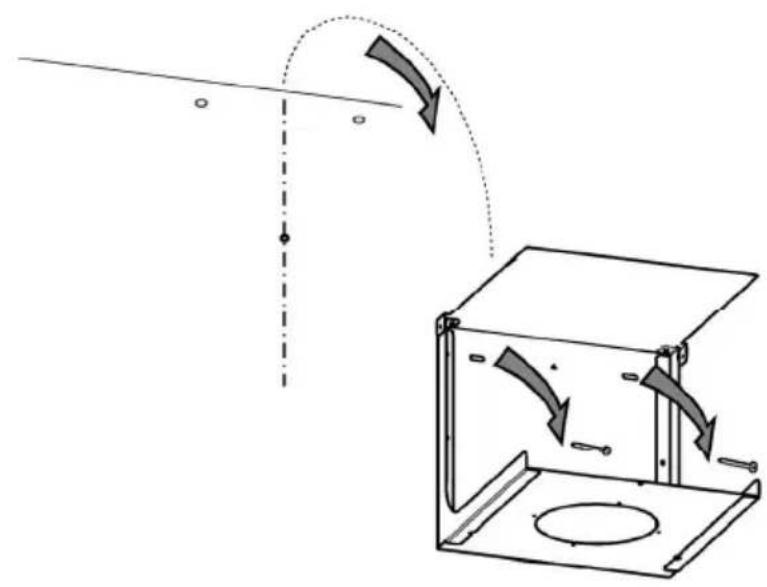

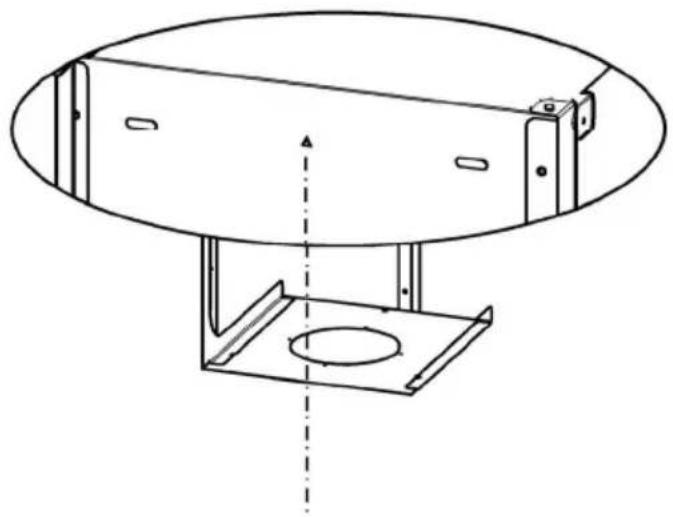

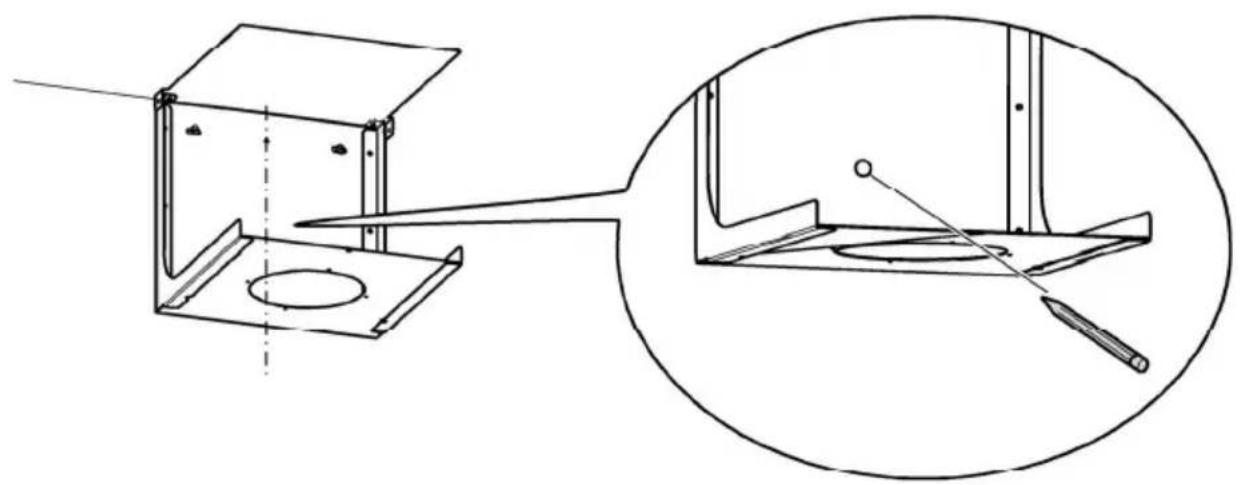

6

7

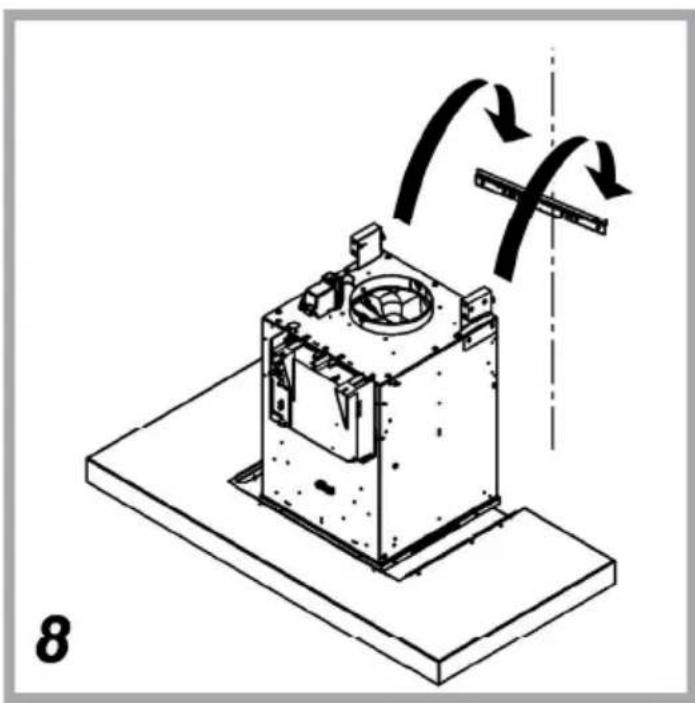

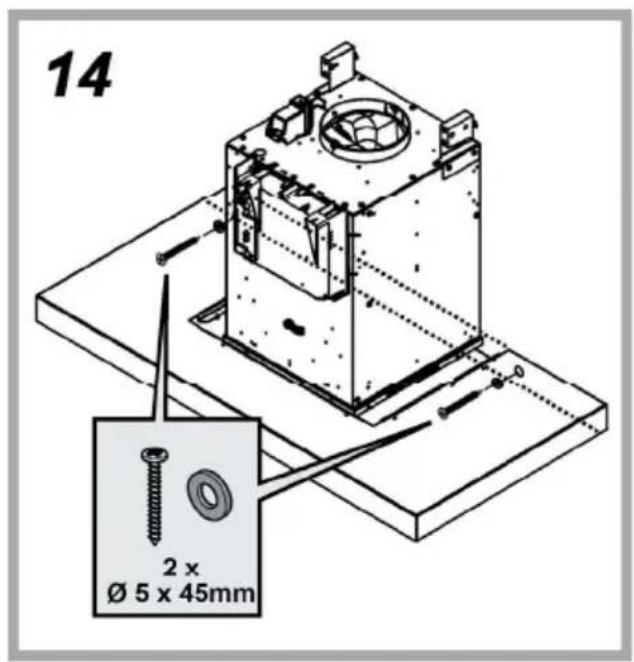

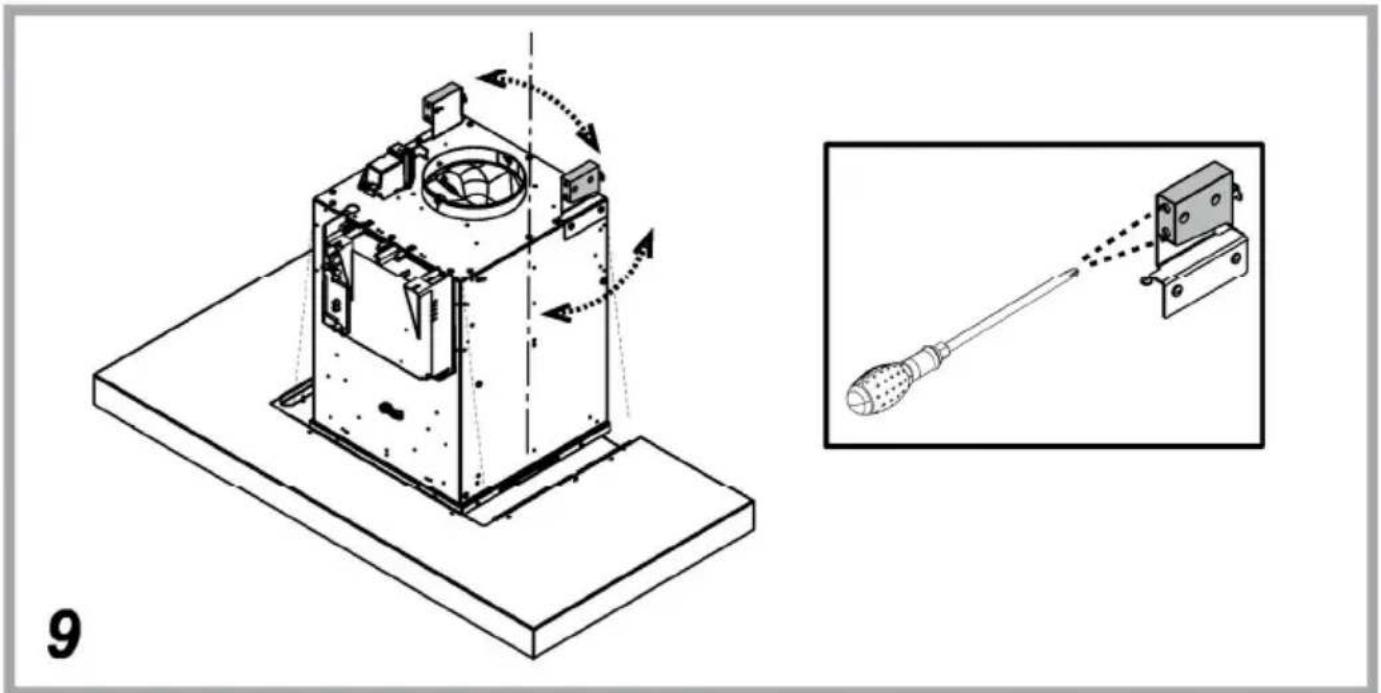

18

19

20

21

22

23

24

25

EN

GENERAL SAFETY

- Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

• Always wear work gloves for all installation and maintenance operations.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not be allowed to tamper with the controls or play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

- The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

- This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.

- Do not flambé under the range hood.

- Do not remove filters during cooking.

- For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

- Do not connect the appliance to the mains until the installation is fully complete.

- With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

- The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.

- Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

- Never use the hood without effectively mounted grids.

- The hood must NEVER be used as a support surface unless specifically indicated.

- Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

- Use the correct length for the screws which are identified in the Installation Guide.

- In case of doubt, consult an authorized service assistance center or similar qualified person.

WARNING!

- Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

Very young children(0-3years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised.

CAUTION: The appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system.

This appliance is not for professional use. Do not use the appliance outdoors.

The appliance must be handled and installed by two or more persons-risk of injury.

Installation, including water supply (if any), electrical connections and repairs must be carried out by a qualified technician.

Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children – risk of suffocation.

Do not use the appliance when you are wet or barefoot.

Never use steam cleaning equipment – risk of electric shock.

The packaging material is 100% recyclable and is marked with the recycle symbol

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

• It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
• Read the instructions carefully: there is important information about installation, use and safety.
• Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
• Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

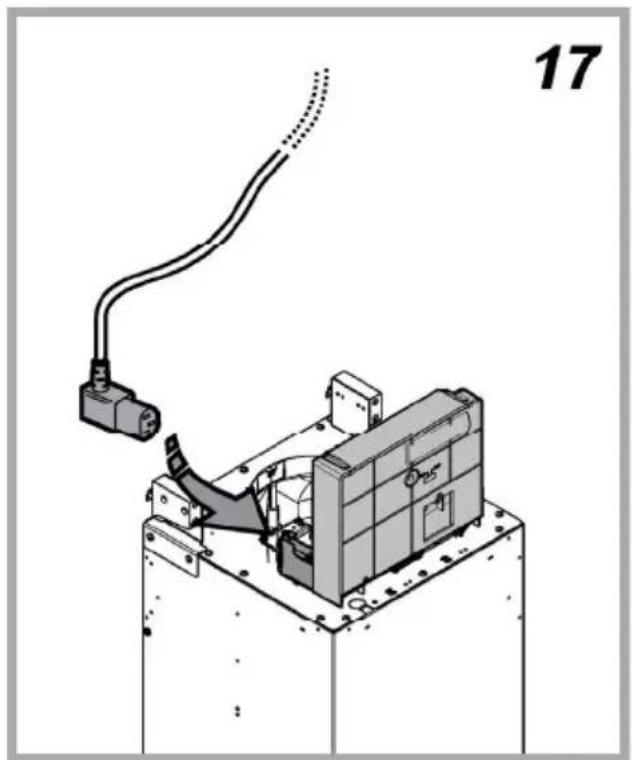

ELECTRICAL CONNECTION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

WARNING!

Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

If the cable is not fitted with a plug, connect the wires according to the following table:

Mains voltage and frequency

Refer to the rating indicated on the plate inside of the hood

Wire connection

Replacing the power cable

The hood is provided with a special power cable ; if the cable is damaged, request a new one from Technical Service.

AIR VENT

FILTERING OR DUCTING ?

Your cooker hood is designed to be used only in filtering version.

The aspirated air will be degreased and deodorised before being fed back into the room.

The filtering system provides a High Performance activated charcoal filter

Note: due to its technical characteristics, it is not possible to use the hood in the extraction mode

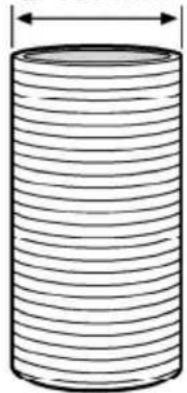

Important! To proceed with the installation it is necessary to use a tube of flexible type

Filter version

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

CONTROLS

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

To select hood functions, simply touch the controls:

T1. Button ON/OFF suction motor

T2. Button to select medium suction speed (power)

T3. Button to select high and intensive suction speed (power)

Press once to select high suction speed (power) (LED T3 on);

Press again to select intensive suction speed (power) (LED T3 flashing).

Note: The intensive suction (power) speed lasts for approximately 5 minutes, then the high suction speed (power) is set automatically.

T4. Automatic shutdown button (Timer) and saturation indicator for charcoal filter:

Automatic shutdown:

Press this button to set the automatic shutdown of the active suction speed (power):

Silent suction speed (power): 20 minutes

Medium suction speed (power): 15 minutes

High suction speed (power): 10 minutes

Saturation indicator charcoal filter

When flashing, perform maintenance of the charcoal filter, if installed, then keep the button T1 pressed for a long time to stop the flashing.

T5. Button to select 'silent' suction speed (power) and saturation indicator for grease filter

Note: when flashing, perform maintenance of the grease filter; then keep the button T1 pressed for a long time to stop the flashing.

T6. Button ON/OFF lighting

T2+T3+T4 flashing: automatic operation under high temperature conditions (see relevant paragraph)

Activation of the charcoal filter saturation indicator

This indicator is normally deactivated. To activate it, proceed as follows:

With the hood off, press and keep pressed simultaneously T2 and T3: T3 starts flashing first, then T2 as well, to indicate successful activation.

Deactivation of charcoal filter saturation LED: repeat the operation described above; T3 and T2 start flashing, then only T3 to indicate successful deactivation.

Automatic operation under high temperature conditions

The hood is equipped with a sensor which detects the temperature. When this becomes too high, the sensor automatically turns on the medium suction speed (power). The hood turns off as soon as the temperature detected by the sensor is lowered significantly.

MAINTENANCE

Cleaning

Clean using ONLY a cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

Maintenance of the anti-grease filters

Traps cooking grease particles.

This must be cleaned once a month (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity.

This filter has better performance than a standard filter due to coupling between a metal filter made entirely of steel, and a filter with several layers of metal mesh.

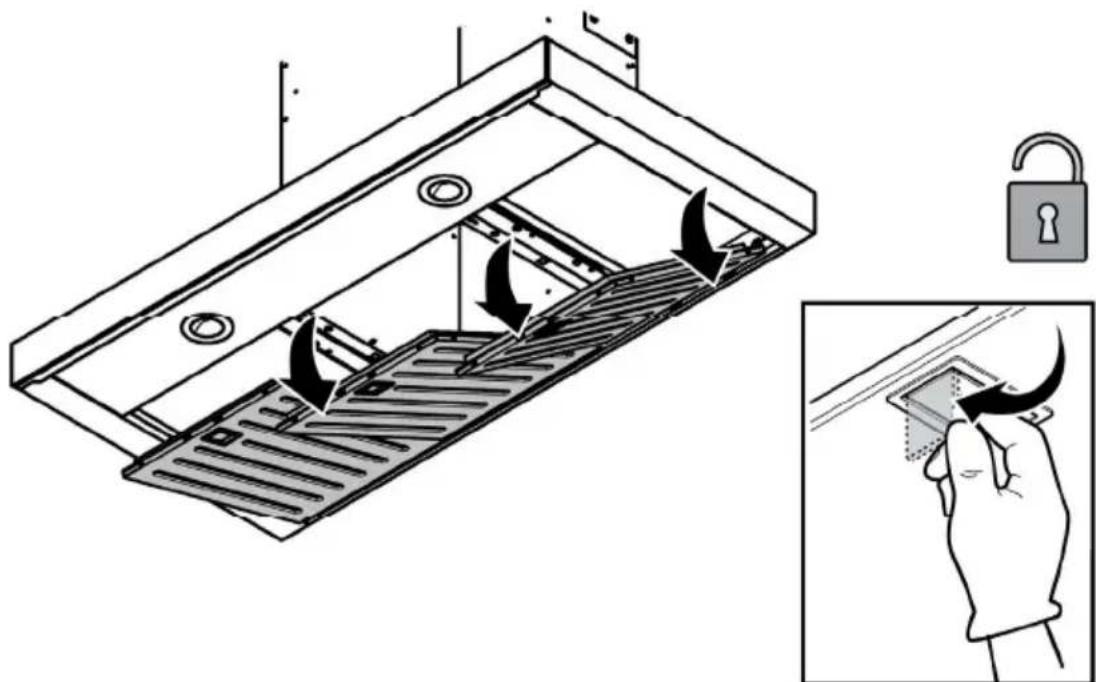

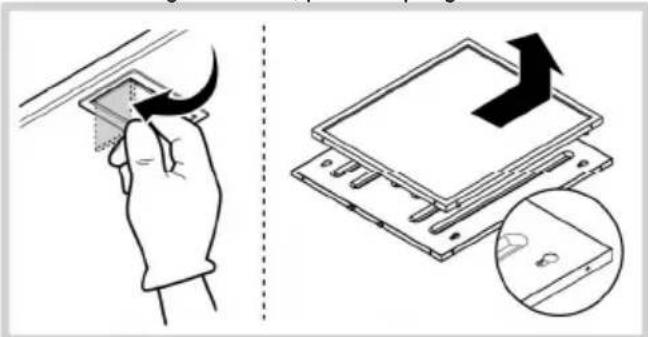

To remove the grease filter, pull the spring release handle.

Maintenance of the charcoal filter It absorbs unpleasant odors caused by cooking.

The saturation of the charcoal filter happens after a more or less prolonged use, depending on the type of cooking and the regularity of cleaning the grease filter.

In any case, you need to replace the cartridge at least every 5 years.

It CANNOT be washed or regenerated

To obtain excellent suction performance, the filter is larger than the standard filters and is installed on a support above the hood.

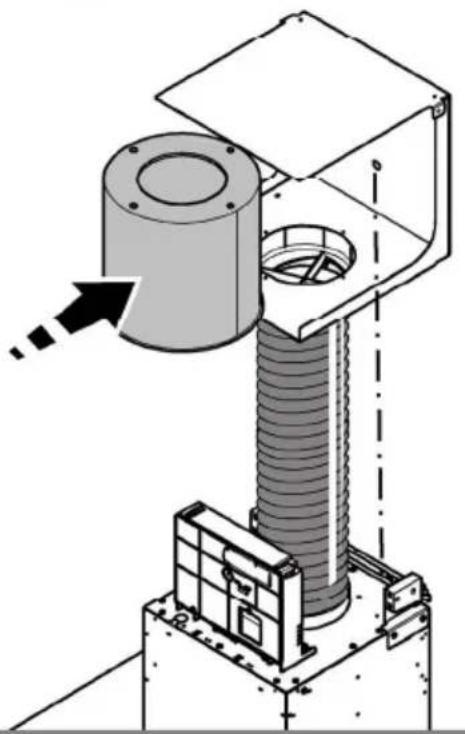

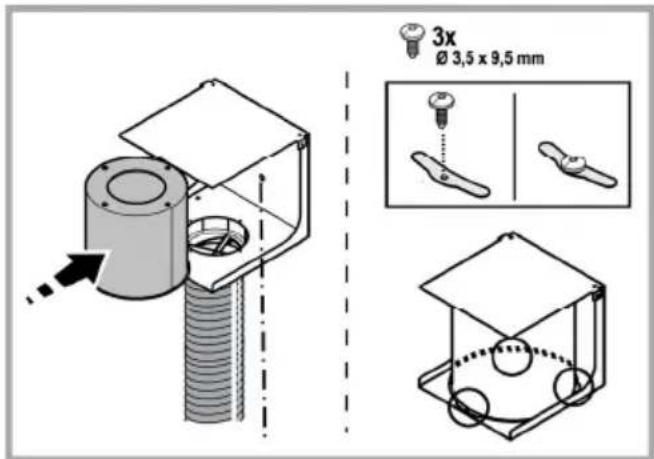

Fitting or replacing the carbon filter

1. Disconnect the hood from the mains.

2. Insert the cylindrical filter inside the support.

3. Secure the filter with the screws and plates provided with the appliance.

Proceed in reverse order to remove.

Replacing lamps

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times longer than the traditional lamps and allow to save 90% electrical energy.

To replace lights, contact authorised spare part center.

DISPOSAL

• This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE).
- By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

- The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

- For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.

• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.

- EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

- Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233. - Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301. - EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

MALFUNCTIONS

If something appears not to be working properly, do the following simple checks before calling Technical Service:

• If the hood is not working:

Check that:

- The power has not been disconnected.

- A speed has been selected.

• If the hood performs inefficiently:

Check that:

- The motor speed selected is sufficient for the amount of smoke and vapours released.

- The kitchen is sufficiently ventilated to allow air intake.

- The charcoal filter is not worn (hood in filtering version).

- If the hood has turned off during normal functioning:

Check that:

- The power has not been disconnected.

- the omnipolar disconnection device has not tripped.

If the hood fails to operate correctly, briefly disconnect it from the mains power supply for almost 5 sec. Then connect it in again and try once more before contacting the Technical Assistance Service.

TECHNICAL DATA

Height (cm)	Width (cm)	depht (cm)	∅ of exhaust tube (cm)
980-1279	89,8	45,48	15

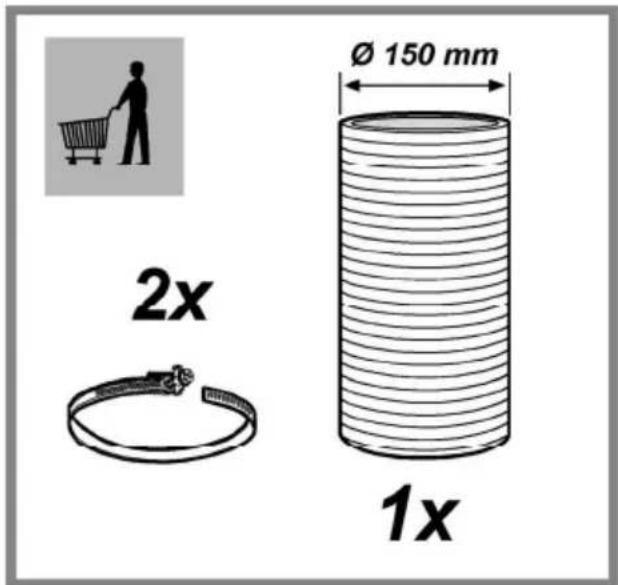

Components not provided with the product

You can download the Safety Instructions, User Manual, Product Fiche and Energy data by:

• Visiting our website docs.hotpoint.eu
• Using QR Code
  • Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.
