Product Type	Freestanding Dishwasher
Brand	Russell Hobbs
Model	RHDW2
Width	45 cm
Height	85 cm
Depth	60 cm
Weight	40 kg
Power Supply	220-240 V ~ 50 Hz, 10 A
Energy Class	E (EU 2019/2017)
Water Consumption	9.5 L per cycle (Eco program)
Energy Consumption	0.85 kWh per cycle (Eco program)
Number of Place Settings	10
Wash Programs	Eco, Intensive, Glass, Rapid, Pre-rinse
Half Load Function	Yes
Delay Start	Up to 24 hours
Drying System	Condensation drying
Noise Level	48 dB(A)
Safety Features	Child lock, overflow protection, anti-flood system
Maintenance	Clean filters monthly, run cleaning cycle with descaler
Spare Parts Availability	Filters, spray arms, detergent dispenser, door seal
User Manual Included	Yes (44 pages, English)

Frequently Asked Questions - RHDW2 RUSSELL HOBBS

How do I start a wash cycle on the RHDW2?

Load the dishwasher, add detergent, select a program using the program button, then press Start/Pause. Ensure the door is properly closed.

What does the 'Half Load' function do?

The Half Load function optimizes water and energy consumption when you have fewer dishes. Activate it by pressing the Half Load button before starting a cycle.

How often should I clean the filters?

Clean the filters at least once a month to prevent clogs. Rinse under running water and remove food debris. Reinstall securely.

Can I use any dishwasher detergent?

Use only dishwasher-specific detergent (powder, gel, or tablets). Do not use manual dish soap as it can cause excessive suds.

Why is my dishwasher not draining?

Check if the drain hose is kinked or blocked. Clean the filter and the drain pump if necessary. Ensure the sink drain is not clogged.

How do I cancel a cycle?

Press and hold the Start/Pause button for about 3 seconds to cancel the current cycle. The dishwasher will drain and reset.

What should I do if the dishwasher is leaking?

Check if the door seal is intact. Ensure the water inlet hose is securely connected. Inspect for cracks in the internal components. If persistent, contact service.

Can I wash pots and pans on the top rack?

Place heavily soiled pots and pans on the bottom rack for better cleaning. The top rack is designed for glasses, cups, and smaller items.

How do I activate the child lock?

Press and hold the Child Lock button (usually marked with a key icon) for about 3 seconds until the indicator light turns on. Repeat to deactivate.

Where can I find the serial number?

The serial number is located on the rating plate on the side of the dishwasher door. It is also listed in the user manual.

USER MANUAL RHDW2 RUSSELL HOBBS

Dishwasher USER'S GUIDE

Line drawing of a stainless steel washing machine (no text or symbols on the device body)

Model No: RHDW2, RHDW2B & RHDW2S

For Customer Services & Spare Parts please call 0845 209 7461 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at www.productcareuk.com

IMPORTANT: RETAIN FOR FUTURE REFERENCE

Contents

Safety instructions 3
Product overview 8
Unpacking the dishwasher 9
Water Hardness & setting the salt 10
Loading the salt into the container 11
Rinse aid dispenser 12
Detergent 14
Loading the dishwasher 16
Washing programs 22
Washing cycles 23
Maintenance & Cleaning 25
Positioning the appliance 29
Water connection 30
Connection to the mains supply 32
Troubleshooting 34
Technical specification 36
Guarantee 39

Safety instructions

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

WARNING: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of the cover.

WARNING: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

Safety instructions

Do not allow the control panel to become wet. Clean with a soft, damp cloth. Do not use detergents, abrasives or spray-on cleaners on the control panel.

Keep children away from detergent and rinse aid, keep children away from the open door of the dishwasher, there could still be some detergent left inside.

Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.

Children should be supervised to ensure that they do not play with the appliance. The door should not be left open, since this could increase the risk of tripping.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Do not use detergents not designed for an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of children.

You should clean the outside of the dishwasher with a damp cloth. Don't allow water to seep into any openings.

Safety instructions

Use the dishwasher only for its intended function. During installation, the power supply cable must not be excessively or dangerously bent or flattened. Do not tamper with the controls.

The appliance is to be connected to the water mains using new hose sets and old hose-sets should not be reused.

The maximum number of place settings to be washed is 12.

The maximum permissible inlet water pressure is 1Mpa.

The minimum permissible inlet water pressure is 0.04Mpa.

Ensure you do not use any corrosive chemicals or vapours in the appliance. It is not designed for industrial or laboratory use.

Never put any objects into the openings on the outer case.

Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.

Do not obstruct any ventilation openings.

Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.

Safety instructions

Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.

When loading items to be washed, position sharp items so that they are not likely to damage the door seal.

Warning : Knives and other utensils with sharp points must be loaded in the basket with their points down or place them in a horizontal position.

Check that the detergent compartment is empty after completion of the wash cycle.

Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not marked, check the manufacturer's recommendations.

This appliance is intended to be used in the household and similar applications. It is not intended to be used in the following:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential environments;

- bed and breakfast type environments.

Safety instructions

Dispose of the packing materials properly.

Packaging material could be dangerous for children!

To dispose of the package and the appliance, please go to a recycling centre.

Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local city council office and your household waste disposal service.

DISPOSAL: Do not dispose of this product as unsorted municipal waste. It is necessary to Collect such waste separately as special treatment is necessary.

Product overview

1 Pre-wash light: Blink during pre-wash.
2 Wash Light: Blink during wash.
3 Rinse light: Blink during rinse.
4 Drying light: Blink during drying.
5 Power Light: To come on when the ON/OFF Button is pressed down
6 ON/OFF BUTTON: To turn on/off the power supply
7 Rinse Aid Warning Light: To come on when the dispense r needs to be re filled.

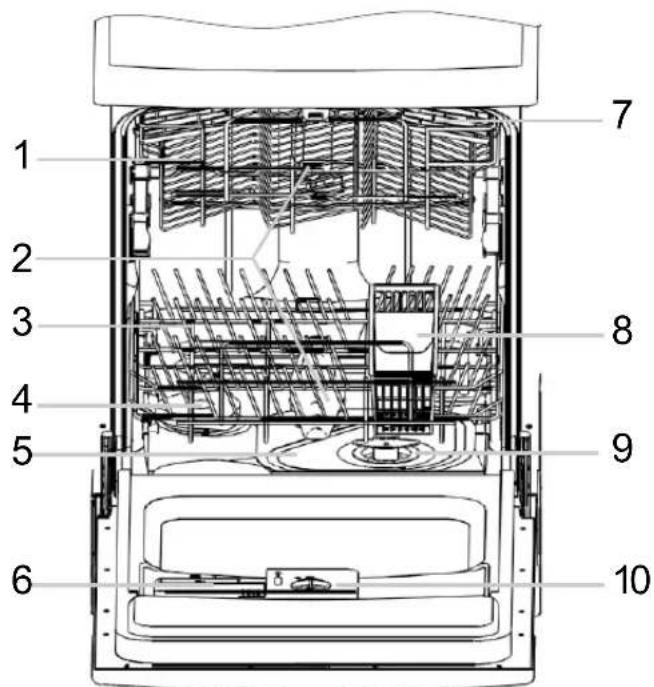

1 Upper Basket
2 Spray Arms
3 Lower Basket
4 Water Softener
5 Main Filter
6 Detergent Dispenser

8 Salt Aid Warning Light: To come on when the softener requires refilling.
9 Half load Light: To come on when half load function is selected.
10 Half load key-press : To select the half load function.
11 Washing Program Selector: Turn the knob clockwise to select wash cycles.
12 Start / Reset Button: Press this button to start or pause the dishwasher, the one of four process lights will blink when starting.

Technical line drawing of a mechanical enclosure or enclosure frame with no visible text or symbols

7 Cup Shelf
8 Silverware Basket
9 Coarse Filter

10 Rinse Aid Dispenser

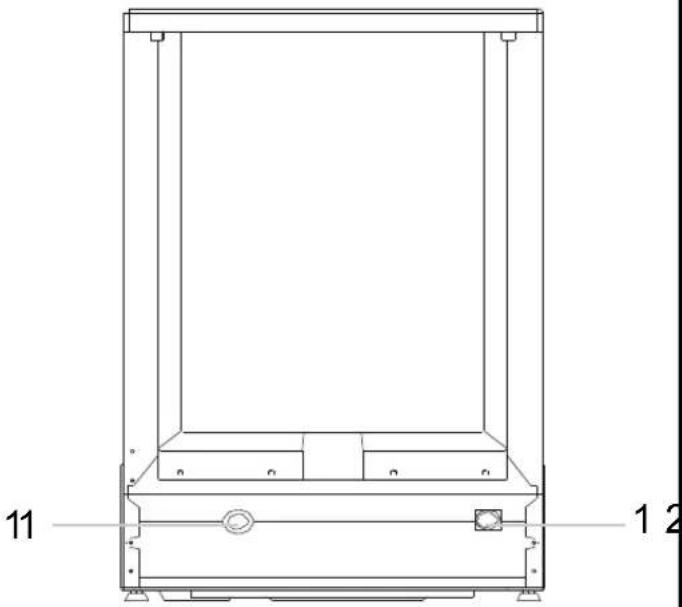

11 Drain pipe connector
12 Inlet pipe connector

Unpacking the dishwasher

Before you use your dishwasher

1. Remove all the packaging.
2. Check the dishwasher after unpacking for any visual damage such as:

- A misaligned door

- Damage to the door

- Dents or holes in side panels and the top panel.

- Dents in the inside

- If you can see any damage do not use the dishwasher

Do not put anything on the top of the dishwasher

Before using your dishwasher for the first time:

A. Set the water softener
B. Add 1.5Kg dishwasher salt and then fully fill the salt container with water
C. Fill the rinse aid dispenser
D. Fill in the detergent dispenser

Water Hardness & setting the salt

The water softener must be set manually, using the water hardness dial. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. The higher the content of these minerals and salts, the harder your water is. The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

Adjusting Salt Consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption.

Circular diagram with a central circular component and directional arrows, no text or symbols present.

Please follow the steps below for adjustment in salt consumption.

1. Unscrew the cap fr0m the salt container, inside the unit. Anti clockwise and remove to reveal the picture on the left.
2. There is a ring on the container with an arrow on it (see figure on the side), if necessary, rotate the ring in the anticlockwise direction from the "-" Setting toward the "+" sign, based on the hardness of the water being used. This controls the amount of salt that will be used It is recommended that adjustments should be made in accordance with the following scheme:

WATER HARDNESS				Selector Position Salt consumption Auto nomy
^ dH	^ fH	^ Clarke	mmol/l
	0~140~80~	1.4 0~10		/	0	/
8~22	14~39	10~28	1.4~3.9	-	20	50
22~45	39~80	28~56	3.9~8	Mid	40	25
45~60	80~107	56~75	8~11	+	60	16

British measurement = Clarke

“/” No salt needed
“-”	Seng toward the “-” sign
“+” Seng toward the “+” sign
“-” or “+”	Seng toward between the “-” sign and the “+” sign

For Customer Services & Spare Parts please call 0845 209 7461 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at www.productcareuk.com

Loading the salt into the container

Always use the salt intended for use with dishwasher.

The salt container is located beneath the lower basket and should be filled as explained in the following:

Attention!

Only use salt specifically designed for use in dishwashers! Every other type of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener. In case of damage caused by the use of unsuitable salt the manufacturer do not give any warranty and we are not liable for any damage caused.

Only fill with salt just before starting one of the complete washing programs.

This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

Illustration of a hand holding a device with a tool inside a rectangular frame (no text or symbols visible)

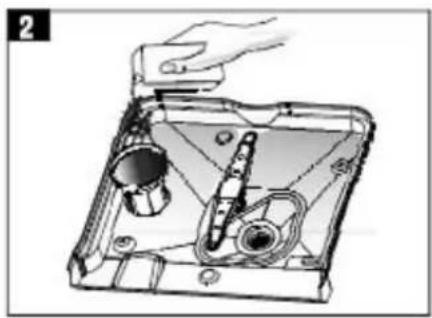

A) Remove the lower basket and then unscrew and remove the cap from the salt container. See diagram 1.
B) Place a funnel into the hole and introduce about 1.5kg of dishwasher salt.
C) Fully fill the salt container with water. It is normal for a small amount of water to come out of the salt container. See diagram 2.
D) After filling the container, screw the cap tightly back clockwise.
E) Usually, the salt warning light will stop being illuminated within 2-6 days after the salt container has been filled.
F) Immediately after filling the salt into the salt container, a washing program should be started (We suggest to use the soak or rapid program) Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This may affect the warranty.

Note:

1. The salt container must only be refilled when the salt warning light in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled.
2. If there are spills of salt, a soak or a rapid program should be run to remove the excessive salt.

Rinse aid dispenser

Rinse Aid dispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser.

To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

Function of Rinse Aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This may damage the appliance.

When to Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour of the optical level indicator located next to the cap. When the rinse-aid container is full, the whole indicator will be darker. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid level fall 1 / 4 full.

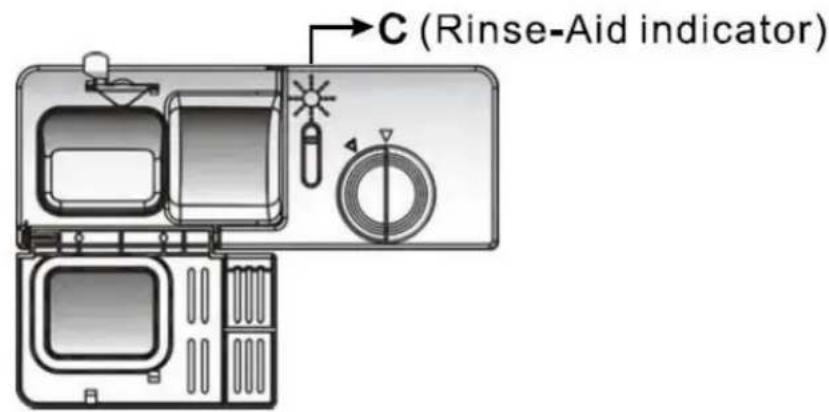

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full
3/4full
1/2full
1/4 full - Should refill to eliminates spotting
Empty

Rinse aid dispenser

Illustration of a light bulb with a magnified inset showing internal components (no text or symbols)

Hand inserting a card into a banknote (no text or symbols visible)

1 Toopenthedispenser,turnthecaptothe"open"(left)arrowandliftitout.
2 Pour the rinse aid into the dispenser, being careful not to overfill.
3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

NOTE: Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to replace the cap before you close dishwasher door.

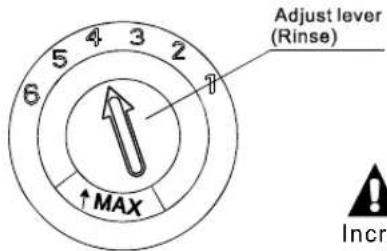

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".)

NOTE:

Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish filmonglassware or knifeblades.

For Customer Services & Spare Parts please call 0845 209 7461

Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at

www.productcareuk.com

Detergent

Detergent with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher.

Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.

Don't put powder detergent into the dispenser until you're ready to wash dishes.

Detergents

There are 3 sorts of detergents

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 dH. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split in two basic types:

• conventional, alkaline detergents with caustic components
- low alkaline concentrated detergents with natural enzymes

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

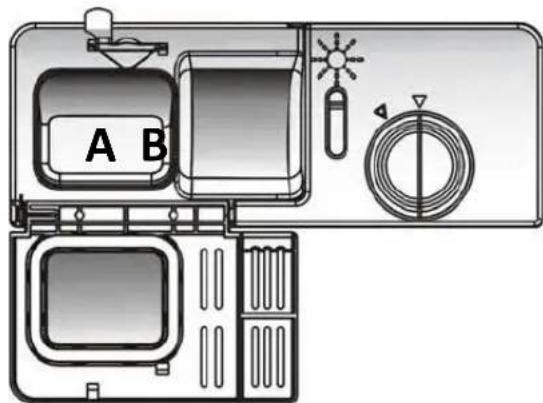

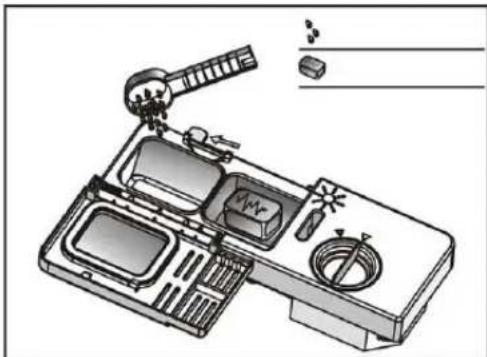

Detergent Dispenser

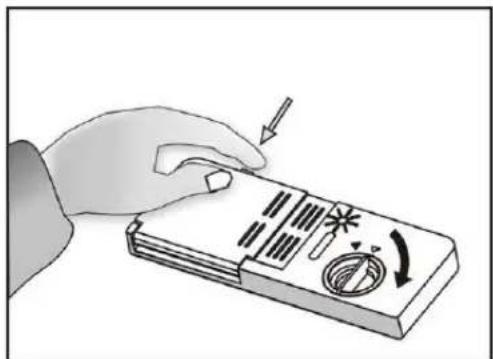

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than a conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

For Customer Services & Spare Parts please call 0845 209 7461 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at www.productcareuk.com

Detergent

The Amount of detergent to use

Illustration of a hand holding a card with arrows indicating direction (no text or symbols)

Technical illustration of a mechanical device with labeled components (no text or symbols)

NOTE:

■ If the lid is closed: press release button. The lid will spring open.
■ Always add the detergent just before starting each wash cycle.
■ Onlyusebrandeddetergentaidfordishwasher.

WARNING!

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

Proper Use of Detergent

Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry. Don't put powdered detergent into the dispenser until you're ready to wash dishes.

Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrated on the right:

A) The place to put the main wash cycle detergent placed.
B) The place to put the pre-wash cycle detergent placed.
Please observe the manufacturers dosing and storage recommendations as stated on the detergent packaging.

Close the lid and press until it locks in place. If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE:

■ Youfindinformationabouttheamountofdetergentforthesingleprogrammeonthelastpage.
■ Please aware, that according to the level soiling and the specific hardness of water differences are possible.
■ Please observe the manufacturer's recommendations on the detergent packaging.

Loading the dishwasher

Recommendation

Consider buying utensils which are identified as dishwasher-proof.

Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers.

For particular items, select a program with as low a temperature as possible.

To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the program has ended.

Items not suitable for the dishwasher

Cutlery with wooden, horn china or mother-of-pearl handles

Plastic items that are not heat resistant

Older cutlery with glued parts that are not high temperature resistant

Bonded cutlery items or dishes

Pewter or copper items

Crystal glass

Steel items are subject to rusting, specifically knife steel.

Wooden platters

Items made from synthetic fibres

Items possibly not suitable for the dishwasher

Some types of glasses can become dull after a large number of washes

Silver and aluminium parts have a tendency to discolour during washing

Glazed patterns may fade if machine washed frequently

Attention before or after loading the Dishwasher Baskets

(For best performance of the dishwasher, follow these loading guidelines.

Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of left over food. Soften remnants of burnt food in pans.

It is not necessary to rinse the dishes under running water.

Place objects in the dishwasher in following way:

1. Items such as cups, glasses, pots/pans, etc. are faced downwards.
2. Curved items, or ones with recesses, should be loaded at an angle so that water can run off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.

NOTE: Verysmallitemsshouldnotbewashedinthedishwasherastheycouldeasilyfalloutofthebasket.

Loading the dishwasher

Load hollow items such as cups, glasses, pans etc. with the opening facing downwards so that water cannot collect in the container or a deep base.

Dishes and items of cutlery must not lie inside one another, or cover each other.

To avoid damage to glasses, they must not touch.

Load large items which are most difficult to clean into the lower basket.

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups.

Long bladed knives stored in an upright position are a potential hazard!

Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.

Please do not overload your dishwasher. This is important for good results.

Removing the dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

Loading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

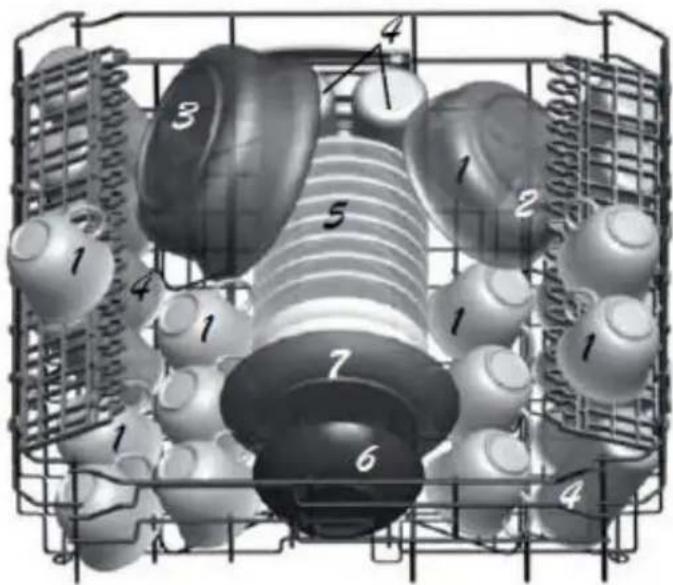

Front

1 Cups
2 Small serving bowl
3 Large serving bowl
4 Glasses
5 Saucers/side plates
6 Dish
7 Dessert dishes

Loading the dishwasher

Loading the Lower Basket

We suggest that you place large items and the most difficult to clean items into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below.

It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

Pots, serving bowls, etc, must always be placed top down.

Deep pots should be slanted to allow water to flow out.

Please be reminded that:

The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded

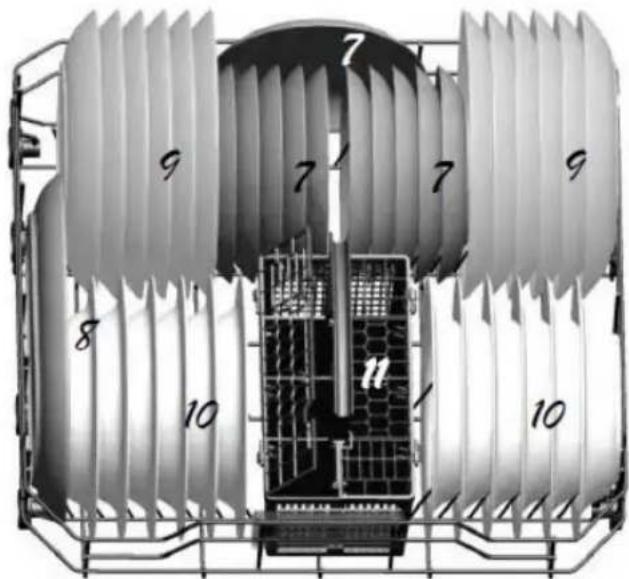

Front

7 Dessert dishes

8 Oval platter

9 Dinner plates

10 Soup plates

11 Cutlery basket

For Customer Services & Spare Parts please call 0845 209 7461

Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit

us at www.productcareuk.com

Loading the dishwasher

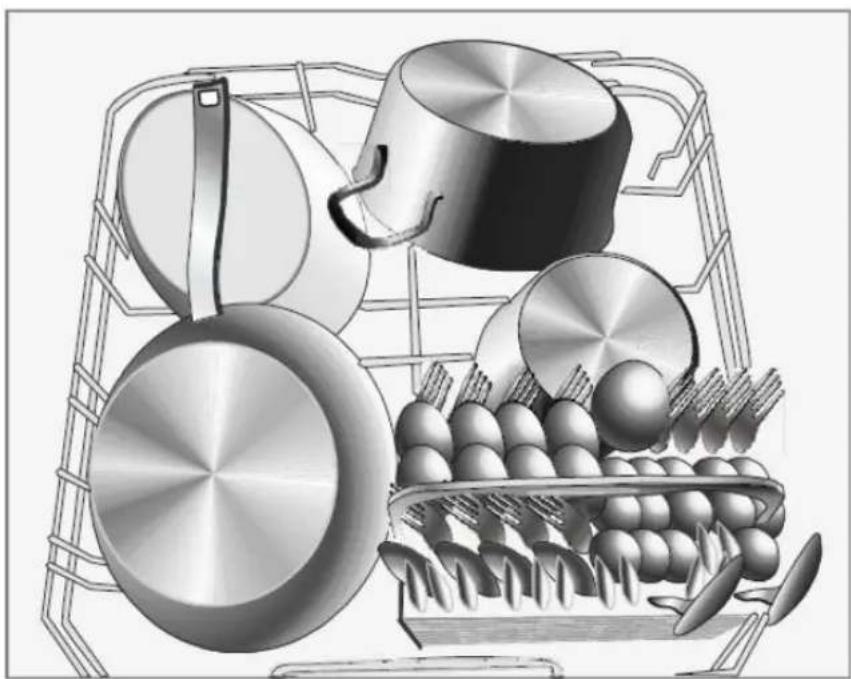

■ The recommended method loading big dishware (applicable to the special dishware: e.g. big pan、plate)

Illustration of kitchen utensils including a pot, foil pan, and eggplant in a rack (no text or symbols)

For Customer Services & Spare Parts please call 0845 209 7461 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at www.productcareuk.com

Loading the dishwasher

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper/lower basket.

The height of the upper basket can be adjusted by placing the wheels on different height of the rails.

Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms.

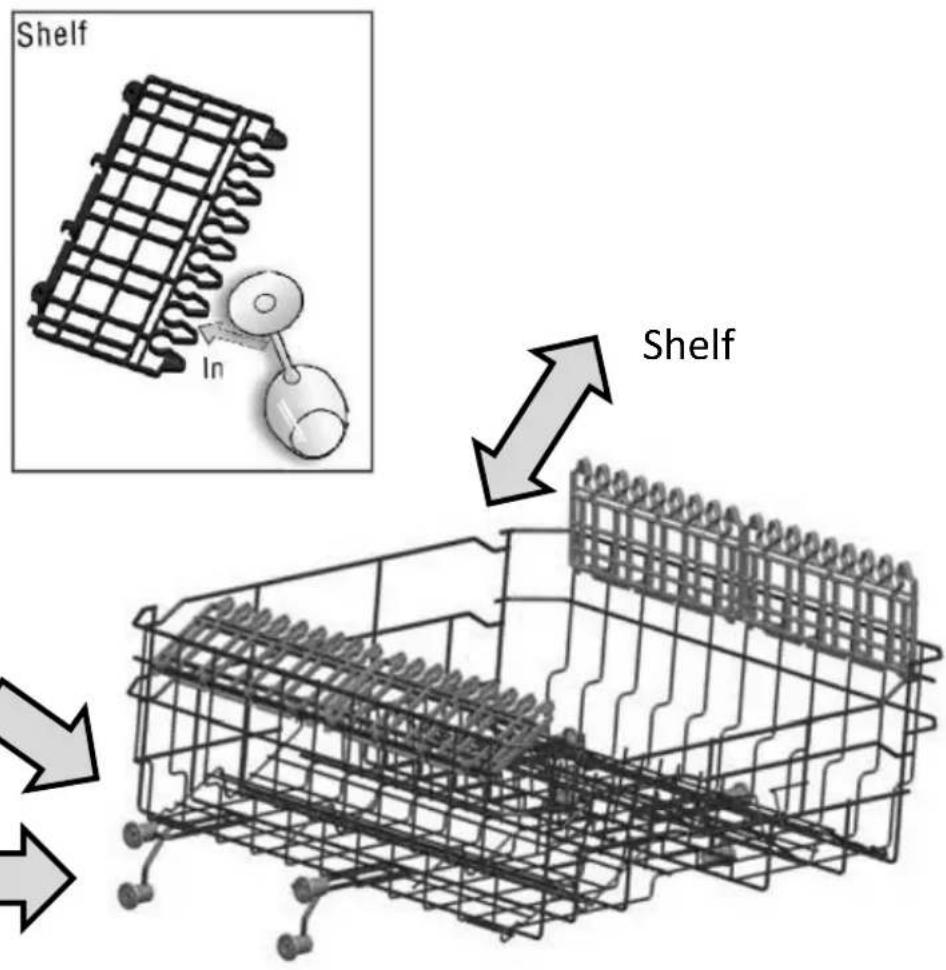

The shelf can be folded back or be removed when not required for use.

Folding Spikes of Lower Basket

For better stacking of pots and pans, the spikes can be folded down.

For Customer Services & Spare Parts please call 0845 209 7461

Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit

us at www.productcareuk.com

Loading the dishwasher

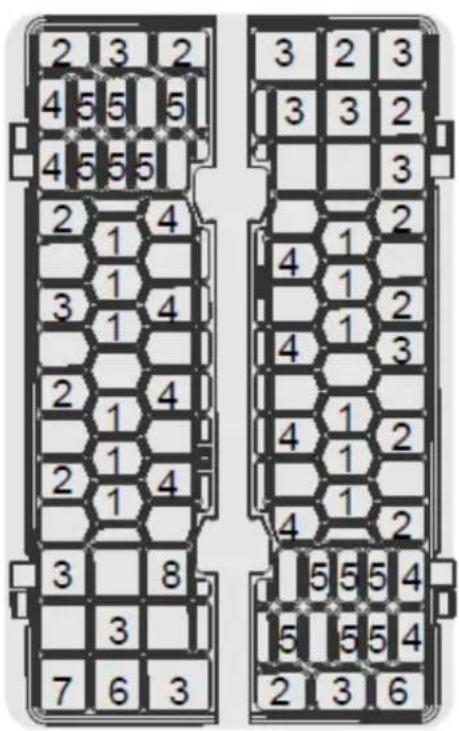

1 Forks
2 Soup spoons
3 Dessert spoons
4 Teaspoons
5 Knives
6 Serving spoons
7 Gravy ladels
8 Serving cutlery

Circular diagram with grid lines and a cross symbol, no readable text or labels

▲ WARNING!

Do not let any item extend through the bottom.

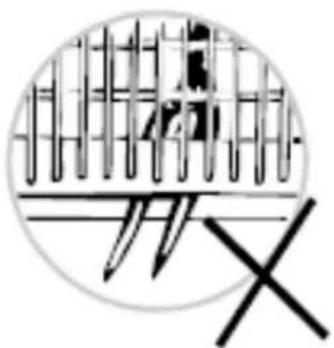

Alwaysloadsharputensilswiththesharppointdown!

For personal safety and a top quality cleaning, place the silverware in the basket making sure that:

They do not nest together.

Silverware is placed with the handles-down.

WARNING: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

Washing programs

Wash Cycle Table

NOTE: (★) Means: need to fill rinse into the Rinse-Aid Dispenser.

Program	Cycle Selection Information	Description of Cycle	Detergent pre/maln	Running time(min)	Energy (Kwh)	Water (l)	Rinse Aid
Intensive	Forheaviestsoiledcrockery, andnormallysoiledpotspans dishesetcwithdriedonsoiling	Pre-wash(50)°C Wash(65)°C Rinse Rinse Rinse(55)°C Drying	5/25g	125	1.36	19.5	★
Normal	Fornormallysoiledloads, such as potsplates glasses and lightly soiledpans.	Pre-wash(50)°C Wash(55)°C Rinse Rinse(65)°C Drying	5/25g	1601.30		16.0	★
Eco (*EN50242)	Thisisstandardprogramme, itis suitable to clean normally soiled tableware and it is the most efficient programme terms of its combined energy and water consumption for that type of tableware.	Pre-wash Wash(50)°C Rinse(65)°C Drying	5/25g	1651.0212.0			★
Daily 60'	For lightly soiled load that do not need excellent drying efficiency.	Wash(60°C) Rinse Rinse(50)°C Drying	30g.	60	0.95	12.0	★
Quick 30'	A shorter wash for lightly soiled loads and quick wash	Wash(40°C) Rinse Rinse(40°C)	20g.	30	0.50	11.0
Pre-wash	To rinse dishes that you plan to wash later that day	Pre-Wash		8	0.01	4.0

NOTE:

*EN 50242 : This programme is the test cycle. The information for comparability test in accordance with EN 50242, as follows:

■ Capacity: 12 setting
■ Position Upper basket: upper wheels on rails
■ Rinseaidsetting:6
■ The power consumption of off-mode is 0W left-on mode is 0.4W.

Turning on the appliance

Starting the wash cycle

Draw out the lower and upper basket, load the dishes and push them back.

It is commended to load the lower basket first, then the upper one (see the section entitled Loading the Dishwasher).

Pour in the detergent (see earlier sections for detail).

Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.

Close the door, press the power button. Then turn the program knob to select a desired wash cycle. Then press the START/Reset button to start the machine.

Press the START/Reset button to start the machine.

NOTE:

When you open the door during washing, the program light will stop blinking and the dishwasher will mooing every minute unless the door is closed.

Change the program

A cycle that is underway can only be modified if it has only been running for a short time.

Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Detergent").

When you press the start/reset button more than 3 seconds, you can cancel the running the programme and select other programmes (see the section entitled " Starting a wash cycle. . ." ).

The process lights shows the state of the dishwasher:

a) All of the process lights cut off --> stand by
b) One of the process lights on --> pause
c) One of the process lights blinking slowly --> run
d) some of the process lights fast blinking -->error

NOTE: If you open the door during a wash cycle, the machine will pause. When you close the door,

and press Start/Reset button , the machine will continue working after 10 seconds.

Washing cycles

Adding a dish during a cycle

A forgotten dish can be added at any time before the detergent cup opens.

1. Open the door a little to stop the washing.
2. After the spray arms stop working, you can open the door completely.
3. Load the forgotten dishes.
4. Close the door, the dishwasher will start running again after 10 seconds.

At the end of the wash cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher.

Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

Switch off the dishwasher

1. Switch off the dishwasher by pressing the ON/OFF button.
2. Turn off the water tap

Open the door carefully

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance. Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

Unloading the dishwasher

It is normal that the dishwasher is wet inside.

Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

WARNING! It is dangerous to open the door when washing, because the hot water may scald you.

Maintenance & Cleaning

The filter prevents larger remnants of food or other objects from getting inside the pump. The residue may block the filter, in this case they must be removed.

The filter system consists of a coarse filter, a flat (Main filter) and a microfilter (Fine filter).

1) Main Filter

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

2) Coarse Filter

Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and lift out.

3) Fine filter

This filter holds soil and food residues in the sump area and prevents it from being redeposit on the dishes during wash cycle.

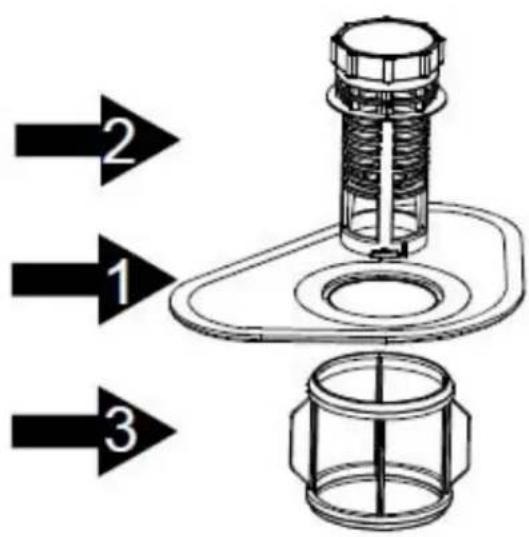

Filter Assembly

The filter efficiently removes particles of food from the wash water, allowing it to be recycled during the wash cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semi circular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction.

WARNING!

■ The dishwasher must never be used without the filters.

■ Improper replacement of the filter may reduce the performance level of the appliance and damaged dishes and utensils.

Maintenance & Cleaning

1

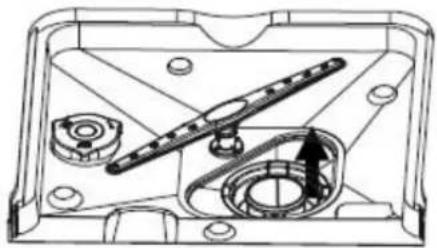

Step 1 Turn the filter in anti-clockwise direction, then lift it up.

2

Technical diagram of a mechanical assembly with gears and a shaft, showing no text or symbols

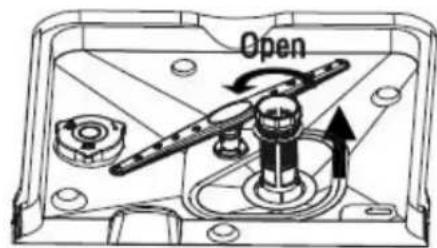

Step 2 Lift the main filter up

3

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Step 3 : lift the Fine filter up

NOTE: When following this procedure from step1 to step 3, the filter system will be removed; when following it from Step3 to Step1, the filtersystemwillbeinstalled.

- Inspect the filters for blocking after every time the dishwasher has been used. - By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.

NOTE: The entire filter assembly should be cleaned once a week.

WARNING!

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.

Maintenance & Cleaning

Cleaning

The control panel and exterior can be cleaned by using a lightly dampened cloth. After cleaning, make sure to dry it thoroughly.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

Technical line drawing of a mechanical device with no visible text or symbols

WARNING!

■ Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

please take frost protection measures on the dishwasher in winter if it is used in a cold environment. Every time after washing cycles, please operate as follows, :

1. Cut off the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to catch the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE: If your dishwasher cannot work because of the ice, please contact professional service persons.

Maintenance & Cleaning

Cleaning the Spray Arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.

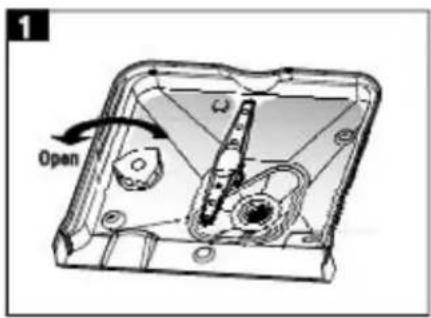

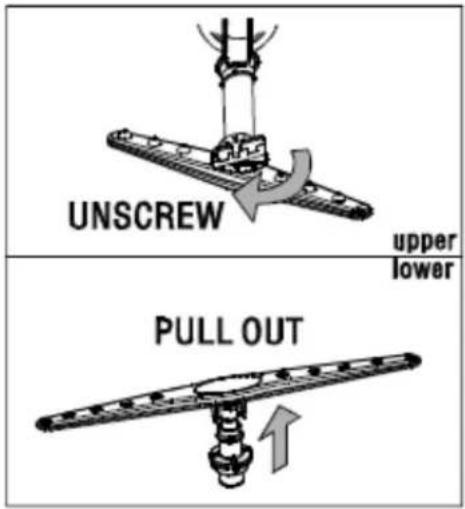

To remove the upper spray arm, screw off the nut clockwise then remove the arm.

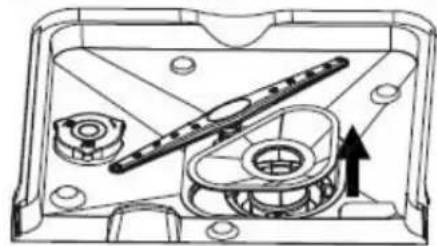

To remove the lower spray arm, pull out the spray arm upward.

Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

Remove the Plug

Before cleaning or performing maintenance, always remove the plug from the socket.

No Solvents or Abrasive Cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water.

To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little vinegar, or a cleaning product made specifically for dishwashers.

When not in use for a long time

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

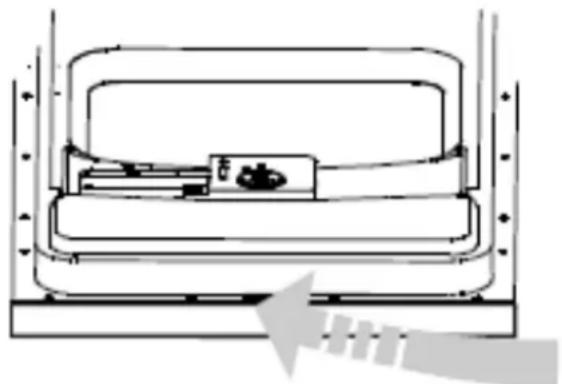

Seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

Positioning the appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

Simple line drawing of a vehicle or platform with two wheels and a rectangular block, no text or symbols present.

Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet. In any case, the appliance should not be inclined more than 2.

About Power Connection

WARNING!

Forpersonalsafety:

■ DONOTUSEANEXTENSIONCORDORANADAPTERPLUGWITHTHISAPPLIANCE.
■ DONOT, UNDERANYCIRCUMSTANCES, CUTORREMOVETHEEARTHING CONNECTIONFROMTHEPOWERCORD.

Water connection

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place.

If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet getting blocked and damaging the appliance.

Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it run into the sink, making sure to avoid bending or crimping it. Use the special plastic support that comes with the appliance. The top of the hose must be at a height between 40 and 100cm. The free end of the hose must not be immersed in water to avoid the back flow of it.

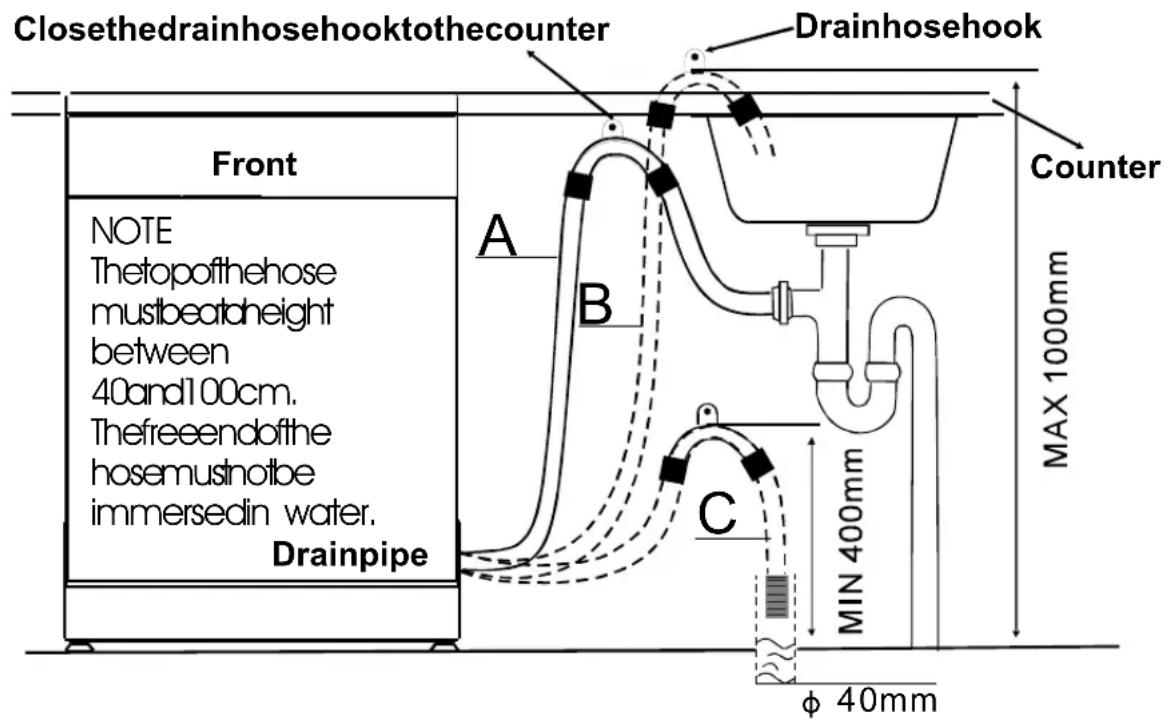

PLEASEHANGUPTHEDRAINHOSEEITHERWAYOFA,B,C

Water connection

How to Drain Excess Water From Hoses

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water Outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

Extension Hose

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

Syphon Connection

The waste connection must be at a height of between 40 cm (minimum) and 100 cm (maximum) from the bottom of the dish. The water drain hose should be fixed by a hose clip. The free end of the hose must not be immersed in water.

The following things should be checked before starting the dishwasher.

1 The dishwasher is level and fixed properly
2 The inlet valve is open
3 There is a leakage at the connections of the conducts
4 The wires are tightly connected
5 The power is switched on
6 The inlet and drain hoses are knotted
7 All packing materials and printings should be taken out from the dishwasher

Attention:

Afterinstallation, pleasemakesuretokeepthismanual.

The content of this manual is very helpful to the users.

Connection to the mains supply

WARNING- THIS APPLIANCE MUST BE EARTHED

This appliance is designed to operate from a mains supply of AC230V \~ 50HZ.

Check that the voltage marked on the product corresponds with your supply voltage.

This product is fitted with a 13A plug complying with BS1363. If this plug is unsuitable or needs to be replaced, please note the following:

Important: The wires in the mains lead are coloured in accordance with the following code:

Warning symbol depicting a lightning bolt inside a triangle (no text or numbers)

DANGER

Electric

Shock Risk

For Customer Services & Spare Parts please call 0845 209 7461

Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at

www.productcareuk.com

Connection to the mains supply

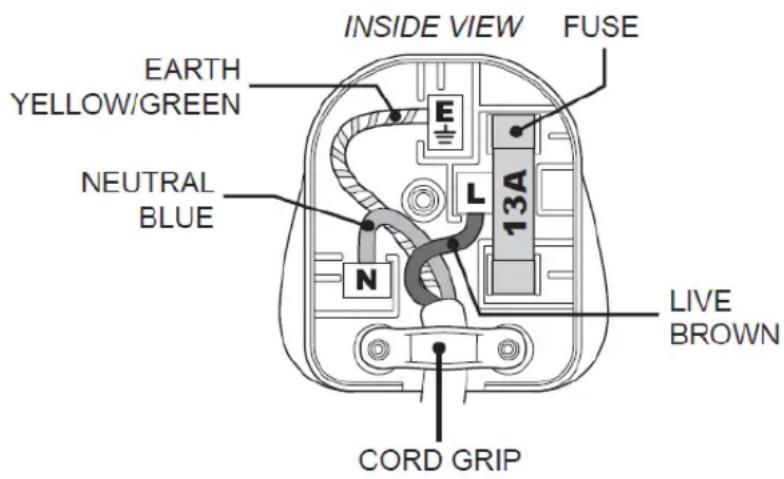

For UK use only – Plug fitting details (where applicable):

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The GREEN/YELLOW wire is the EARTH and must be connected to the terminal which

is marked with the letter E or by the earth symbol or coloured GREEN or GREEN/YELLOW.

The BLUE wire is the NEUTRAL and must be connected to the terminal marked with the letter N or coloured BLACK.

The BROWN wire is the LIVE wire and must be connected to the terminal marked with the letter L or coloured RED.

Always ensure that the plug cord grip is fastened correctly.

If a 13A (BS1363) fused plug is used it must be fitted with a 13amp fuse conforming to BS1362 and be BSI or ASTA approved.

For Customer Services & Spare Parts please call 0845 209 7461

Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at

www.productcareuk.com

Trouble shooting

Before Calling for Service
Review the charts on the following pages may save you from calling for service.

Problem	Possible Causes	What To Do
Dishwasher doesn't start	Fuse blown, or the circuit breaker acted appliances sharing the same circuit with the dishwasher
	Power supply is not turned on	Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket.
	Water pressure is low	Check that the water supply is connected properly and the water is turned on.
	Door of dishwasher notproperly closed.	Make sure to close the door properly and latch it.
water not pumped form dishwasher	Kink in drain hose	Check drain hose.
	Filter clogged	Check coarse the filter(see section titled "Cleaning The Filter")
	Kitchen sinkclogged	Check the kitchen sink to make sure it is draining wellIf the problem is the kitchen sink not draining ,you may need a plumber rather than a serviceman for dishwashers.
Suds in the tub	Improper detergent	Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then Start any wash cycle to drain out the water . Repeat if necessary.
	Spilled rinse-aid	Always wipe up rinse-aid spills immediately.
Stained tub interior	Detergent with colourant was used	Make sure that the detergent is the one without colourant.
White film on inside surface	Hard water minerals	To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves.Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.
There are rust stains on cutlery	Theaffected items are not corrosion resistant.
	A program mewasn run after dishwasher salt was added.Traces of salt have after adding dishwasher salt.gotten into the wash cycle.
	Thelid of the softer is loose	Check the lip .Ensure the fix is fine.
Knocking noise in the wash cabinet	Asprayarmis knocking against an item in a basket	Interrupt the programme, and rearrange the items which are obstructing the spray arm.
Rattling noise in the wash cabinet	Items of crockery are loose in the wash cabinet	Interrupt the programme,and rearrange the items of crockery.
Knocking noise in the water pipes	This may becaused by on-site installation of in doubt, contact a suitably qualified plumber. or the cross-section of the piping.

Trouble shooting

Problem	Possible Causes	What To Do
The dishes are not clean	Thedishes were not loaded correctly.	See notes in " Loading the Dishwasher Baskets ".
	Theprogramme was notpowerful enough.	Select a more intensive programme.See" Wash Cycle Table ".
	Not enough detergent was dispensed.	Use more detergent, or change your detergent.
	Items are blocking the path of spray arms.	Rearrange the items so that the spray can rotate freely.
	Thefilter combination in the base of wash cabinet is not cleaner is not correctly fitted.This may cause the spray arm jets to get blocked.	Clean and/or fit the filter combination correctly.Clean the spray arm jets. See "Cleaning the Spray Arms".
Cloudiness on glassware	Combination of soft water and too much detergent.	Use less detergent if you have soft water and selectashortestcycletowashtheglasswareandtoget them clean.
Black or gray marks on dishes	Aluminum utensils have rubbed against dishes.	Use a mild abrasive cleaner to eliminate those marks.
Detergent left in dispenser cups	Dishes block detergent cups.	Re-loading the dishes properly.
The dishes are not drying	Improper loading	Load the dishwasher as suggested in the directions.
	Too little rinse-aid	Increase the amount of rinse-aid/refill the rinse-aid dispenser.
	Dishes are removed too soon	Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.
	Wrong program hasbeen selected	In short program the washing temperature is low. This also lowers cleaning performance. Choose a program with along washing time.
	Use of cutlery with alow-quality coating	Water drainage is more difficult with these items.Cutlery or dishes of this type are not suitable for washing in the dishwasher.

ERROR CODES
When some malfunctions come on, the buzzer of dishwasher will mooing 30 seconds and some of up three program lights will keep fast blinking to warn you:

Codes	Meanings	Possible Causes
the drying light flicker fleetly rapidly	Longer inlet time.	Faucets is not opened, or water intake is restricted,or water pressure is too low.
the wash light flicker fleetly rapidly	Overflow	Some element of the dishwasher leaks.

WARNING!

■ If overflow occurs, turn off the main water supply before calling a
■ If there is water in the base pan because of an overfill or small the water should be removed before restarting the dishwasher.

Technical specification

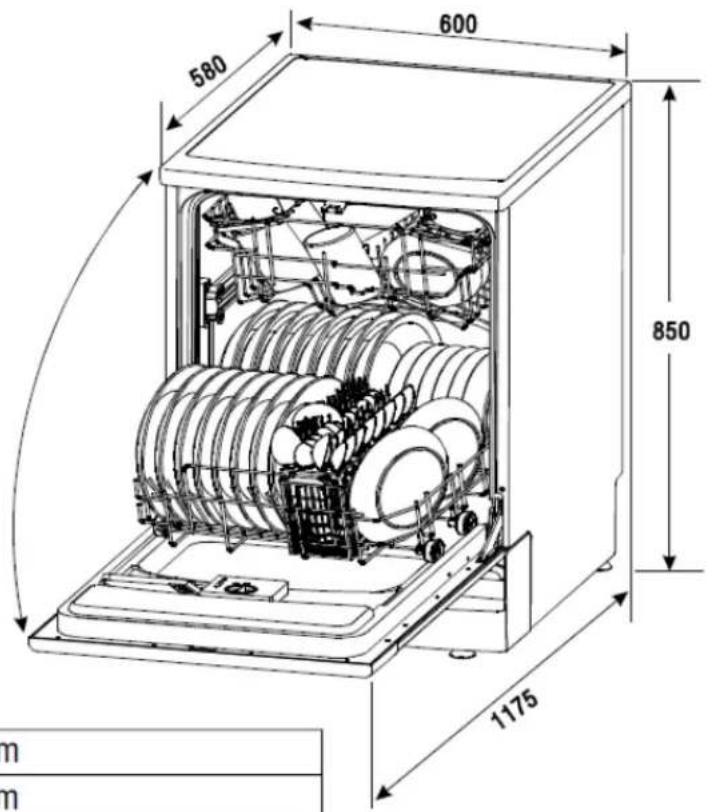

Dimensions

Height :	850mm
Width :	600mm
Depth :	580mm
Voltage connected Load :	see rating label
Water pressure:	0.04-1.0MPa
Power supply:	see rating label
Capacity:	12 Place settings

Plug

If your appliance is supplied with a non-rewireable plug fitted to the mains lead you will find that it incorporates a fuse, the value of which is indicated either on the base of the plug or on the fuse carrier.

Should the fuse need replacing, you must use an ASTA approved fuse (conforming to BS1362) of the same rating.

If the fuse cover is lost the plug must not be used until a replacement is obtained from an electrical supplier.

If you need to remove the plug, cut it from the mains lead and dispose of it. Never attempt to re-use this plug or insert it into a socket outlet, as there is a very great risk of an electric shock.

Technical specification

Sheet of household dishwasher according to EU Directive 1059/2010:

Manufacturer	RUSSELL HOBBS
Type / Description	RHDW2,RHDW2S,RHDW2B
Standard place settings	12
Energy efficiency class 1	A+
Annual energy consumption 2	291 kWh
Energy consumption of the standard cleaning cycle	1.02 kWh
Power consumption of off-mode	0 W
Power consumption of left-on mode	0.4 W
Annual water consumption 3	3360 liter
Drying efficiency class 4	A
Standard cleaning cycle 5	Eco 50°C
Program duration of the standard cleaning cycle	165 min
Noise level	52 dB(A) re 1 pW
Mounting	Free standing
Could be built-in	Yes
Height	85 cm
Width	60 cm
Depth (with connectors)	58 cm
Power consumption	1760-2100 W
Rated voltage / frequency	220-240 V~ 50 Hz
Water pressure (flow pressure)	0.4-10 bar = 0.04-1 MPa

Technical specification

Notes on the previous energy table

① A+++(highest efficiency) to D(lowestefficiency)
2 Energy consumption “291” kWh per year, based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.
3 Water consumption “3360” litres per year, based on 280 standard cleaning cycles. Actual water consumption will depend on how the appliance is used.
4 A(highest efficiency) to G(lowestefficiency)
5 This program is suitable for cleaning soiled normally soiled tableware and that it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.

The device meets the European standards and the directives in the current version at delivery:

-LVD2006/95/EC
- EMC2004/108/EC
-EUP2009/125/EC

The above values have been measured in accordance with standards under specified operating conditions.

Results may vary greatly according to quantity and pollution of the dishes, water hardness amount of detergent, etc.

The manual is based on the European Union's standards and rules.

Guarantee

This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship the faulty product must be returned to the place of purchase.

Refund or replacement is at the discretion of the store.

The following conditions apply:

• The product must be returned to the retailer with the original proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this instruction guide and any other instructions for use which has been supplied.
• It must be used for domestic purposes only and for its intended use.
• This guarantee does not cover wear and tear, damage, misuse or consumable parts.

This does not affect your statutory rights.

For Customer Services & Spare Parts please call 0845 209 7461

Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at

www.productcareuk.com

Customer support

For Customer Services & Spare Parts please call 0845 209 7461

Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at www.productcareuk.com

Produced for;

G2S Limited Bolton BL6 5HY

Disposal information

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

This symbol is known as the 'Crossed-out wheelie bin Symbol'. When this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste. Only discard electrical/electronic/battery items in separate collection schemes, which cater for the recovery and recycling of materials contained within. Your co-operation is vital to make sure the success of these schemes and for the protection of the environment. For your nearest disposal facility, visit www.recycle-more.co.uk or ask in store for details.

We reserve the right due to possible changes to design to alter the instruction manual without prior notice.

CE

For Customer Services & Spare Parts please call 0845 209 7461

Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at

www.productcareuk.com

For Customer Services & Spare Parts please call 0845 209 7461

Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at

www.productcareuk.com

For Customer Services & Spare Parts please call 0845 209 7461

Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at

www.productcareuk.com

For Customer Services & Spare

Parts please call

0845 209 7461

Opening times: Monday - Friday

8am – 6pm & Saturday 9am –1pm

or visit us at

www.productcareuk.com

Revision 1

This symbol is known as the 'Crossed-out wheelie bin Symbol'. When this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste. Only discard electrical/electronic/battery items in separate collection schemes, which cater for the recovery and recycling of materials contained within. Your co-operation is vital to make sure the success of these schemes and for the protection of the environment. For your nearest disposal facility, visit www.recycle-more.co.uk or ask in store for details.

We reserve the right due to possible changes to design to alter the instruction manual without prior notice.
