Product Type	Dishwasher
Brand	Russell Hobbs
Model	RHDW1S
Installation Type	Countertop / Freestanding
Dimensions (H x W x D)	550 x 500 x 450 mm
Weight	25 kg
Power Supply	220-240 V, 50 Hz
Energy Consumption per Cycle	0.74 kWh
Water Consumption per Cycle	9.5 Litres
Place Settings	6
Programs	Eco, Normal, Quick, Intensive, Glass
Delay Start	Yes (up to 24 hours)
Salt and Rinse Aid Indicators	Yes
Child Lock	Yes
Leak Protection	Yes (internal leak protection)
Noise Level	49 dB(A)
Maintenance	Clean filter after each use; clean spray arms monthly
Spare Parts Available	Filters, spray arms, racks, door seals
Repairability	Parts available online; DIY repair possible for basic components
General Information	Compact design suitable for small kitchens; easy installation with included hose adapters

Frequently Asked Questions - RHDW1S RUSSELL HOBBS

How do I install the Russell Hobbs RHDW1S dishwasher?

Place the dishwasher on a stable, level surface near a water supply and drain. Connect the inlet hose to a cold water tap (max 60°C) and the drain hose to a sink drain or standpipe. Plug into a grounded outlet. Level the appliance using the adjustable feet. Refer to the manual for detailed steps.

What type of detergent should I use?

Use a dishwasher detergent (powder, gel, or tablets) specifically designed for automatic dishwashers. Do not use hand dishwashing liquid. Also use rinse aid and dishwasher salt for optimal results.

Why is the dishwasher not starting?

Check that the door is closed properly and the power cord is plugged in. Ensure the water supply is turned on and the hose is not kinked. Verify that the child lock is not activated. If the problem persists, check the fuse or circuit breaker.

How do I clean the filter?

Turn off the dishwasher and remove the lower rack. Twist the coarse filter (if present) and lift out the fine filter. Rinse both parts under running water to remove debris. Reassemble and ensure they are securely locked in place.

What do I do if the dishes are not drying?

Ensure rinse aid is filled and the dosage is set correctly (usually between 2-4). Select a program with a drying phase (e.g., Intensive). Avoid overloading and ensure items are angled to drain water. Open the door slightly after the cycle for steam to escape.

Can I connect the dishwasher to hot water?

The RHDW1S is designed for cold water connection (max 60°C). Connecting to hot water may damage internal components and void the warranty. Always use cold water.

How do I reset the dishwasher?

If the appliance is unresponsive, turn off the power at the wall socket for 30 seconds, then turn it back on. Press and hold the Start button for 3 seconds to cancel a running program. Some models may require pressing a specific combination; consult the manual.

What is the capacity of the RHDW1S?

It accommodates up to 6 place settings, suitable for a small household. Ideal for plates, bowls, glasses, and cutlery. Large trays or pots may not fit; check dimensions before loading.

Why is water left at the bottom after a cycle?

This could be due to a clogged filter or drain hose. Clean the filter and check the drain hose for kinks. Ensure the drain hose is not too long or too high (max height 1 meter). If the problem persists, the drain pump may be faulty.

Where can I find spare parts?

Spare parts such as filters, spray arms, racks, and door seals are available from Russell Hobbs retailers or online platforms like Amazon. Use the model number RHDW1S to find compatible parts.

USER MANUAL RHDW1S RUSSELL HOBBS

DISHWASHER INSTRUCTION MANUAL

Exterior view of a modern stainless steel water purifier (no visible text or symbols)

Model num ber: RHDW1S

Please read these instructions carefully and keep them for future reference

For Customer Services, Spare parts & Warranty Information please call 0845 683 8717

Opening times: Monday - Friday 8am until 8pm Saturday & Sunday 10am until 4pm

Getting familiar with your machine 4

• Technical specifications .... 5
• Conformity with the standards and Test data 5

Safety information and Recommendations.... 5

• Recycling 5
- Safety information .... 5
- Recommendations 6
- Items not suitable for dishwashing 7

Installing the machine 7

• Positioning the machine 7
  • Water connections 7
• Water inlet hose 8
  • Water outlet hose 8
• Electrical connection.... 9
• Fitting the machine undercounter 9
• Prior to using the machine .... 11

Preparing the machine for use 11

• The importance of water decalcification 11
• Filling with salt 11
• Testing strip.... 12
• Adjusting salt consumption.... 12
  • Detergent usage 14

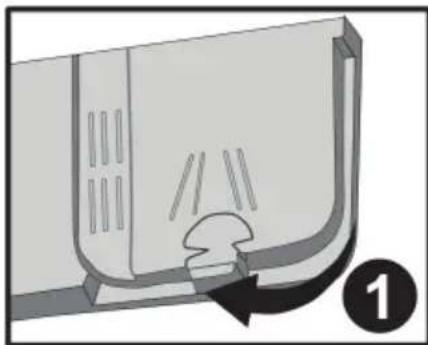

• Filling the detergent compartment.... 14
• Combined detergent 14

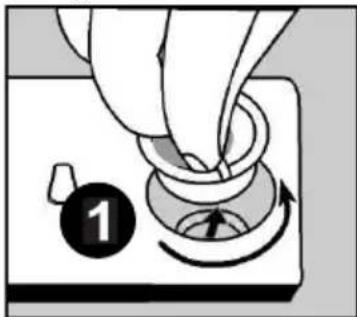

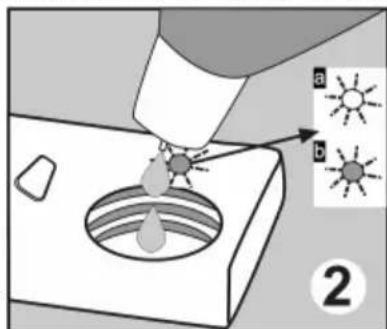

• Filling with rinse aid and making the setting.... 15

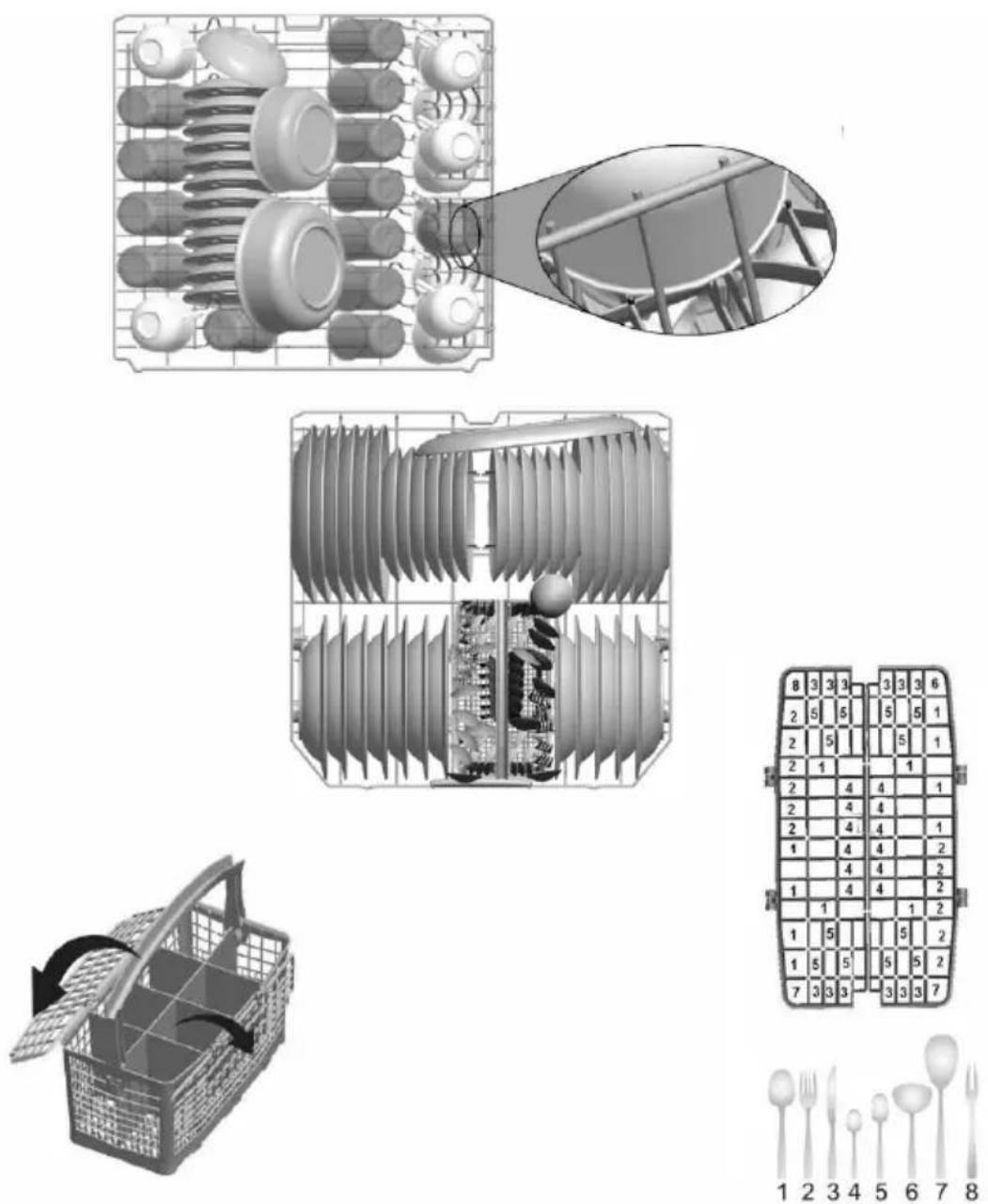

Loading your dishwasher 16

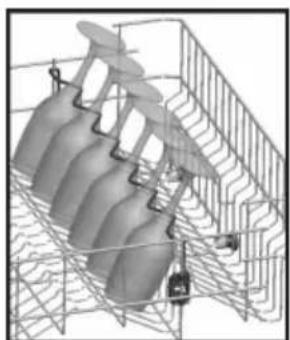

• D i s h r a c k 16
  • Alternative basket loads 17
• S t a n d a r d l o a d i n g a n d 19 T e

Programme descriptions 20

- Programme items 20

Switching on the machine and selecting a programme.... 21

• Switching on the machine.... 21
• Programme follow-up.... 21

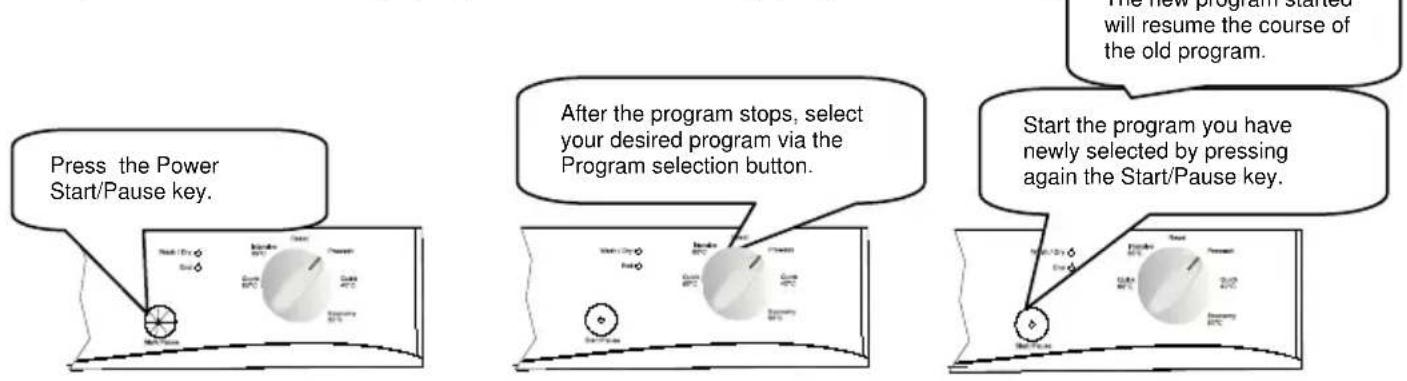

• Changing a programme 21
• Changing a programme with resetting 22
• Switching the machine off 22

Maintenance and Cleaning 23

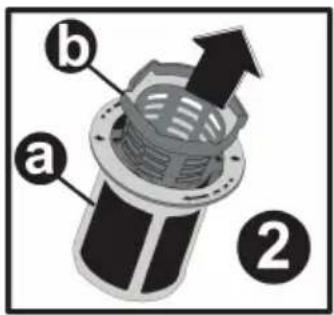

• Filters 23

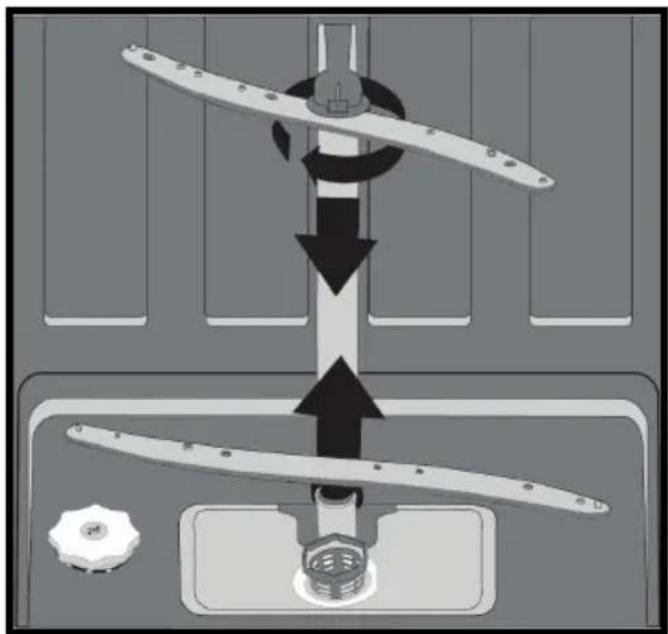

• Spray arms 24
• Hose filter 24

Failure codes and what to do in case of failure 25

Practical and useful information.... 27

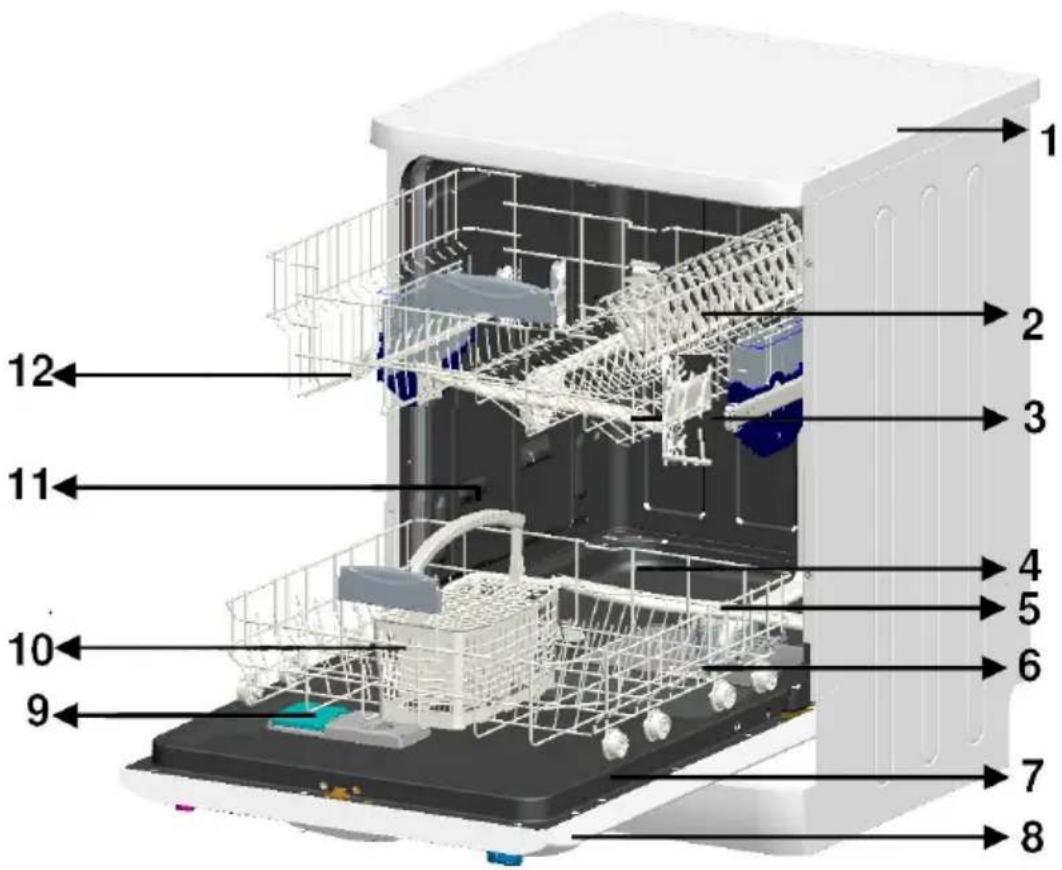

1. Worktop
2. Upper basket with racks
3. Upper spray arm
4. Lower basket
5. Lower spray arm

6. Filters

7. Rating plate

8. Control Panel
9. Detergent and rinse-aid dispenser
10. Cutlery basket
11. Salt dispenser

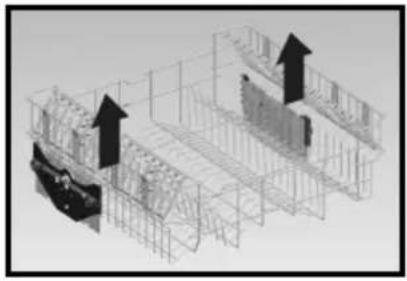

12. Upper basket adjustable track latch

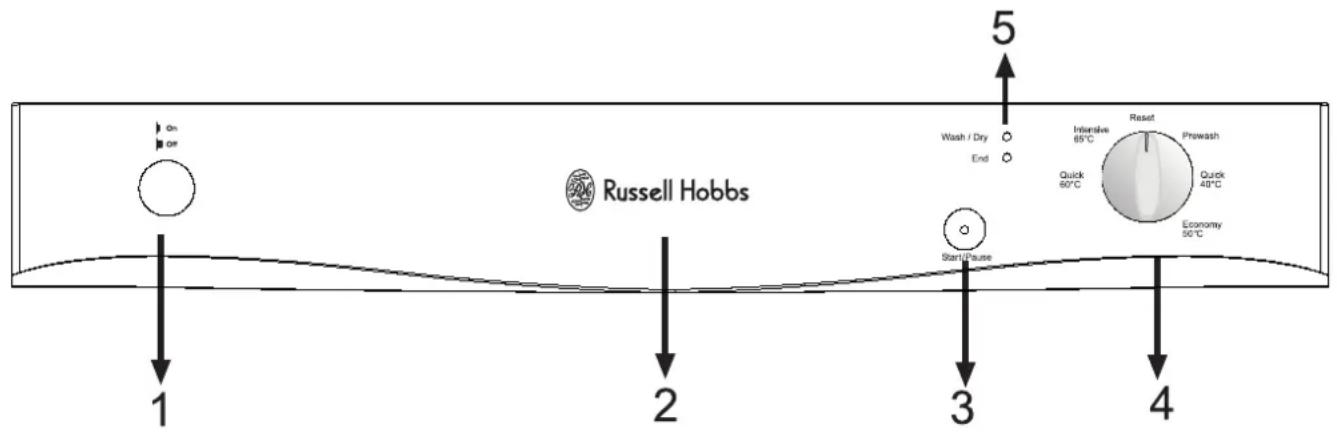

GETTING FAMILIAR WITH YOUR MACHINE


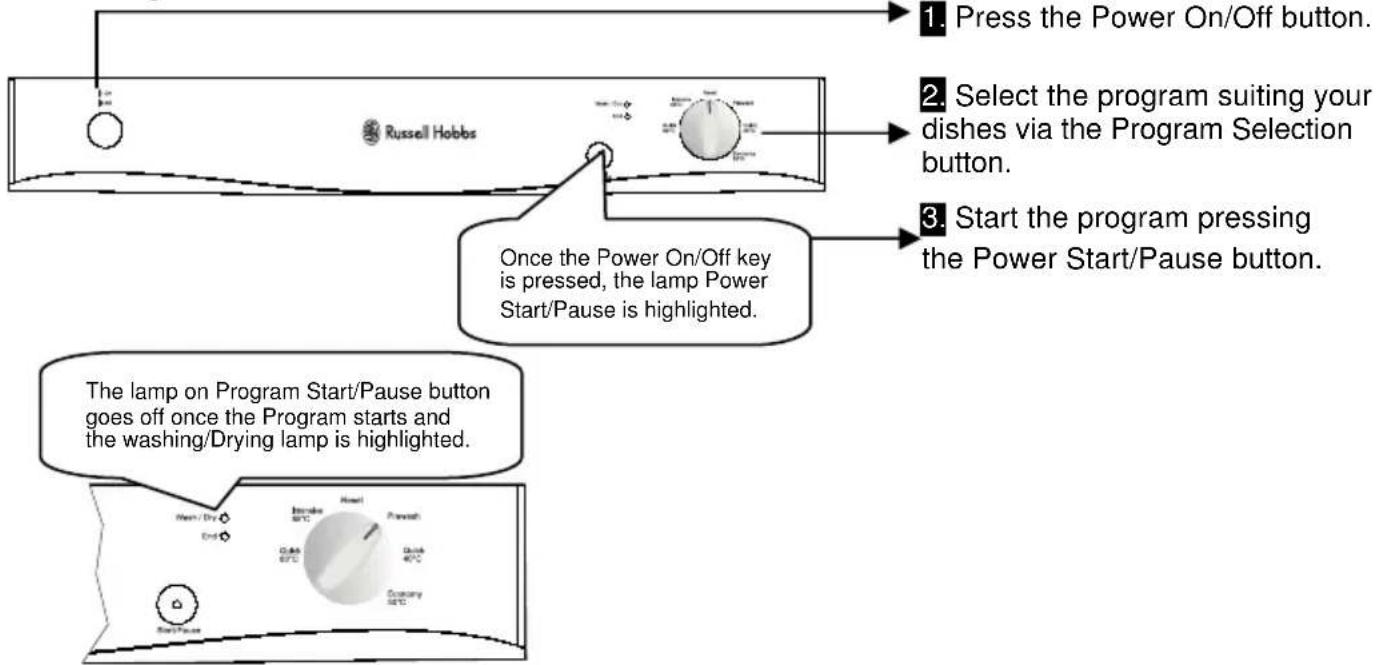

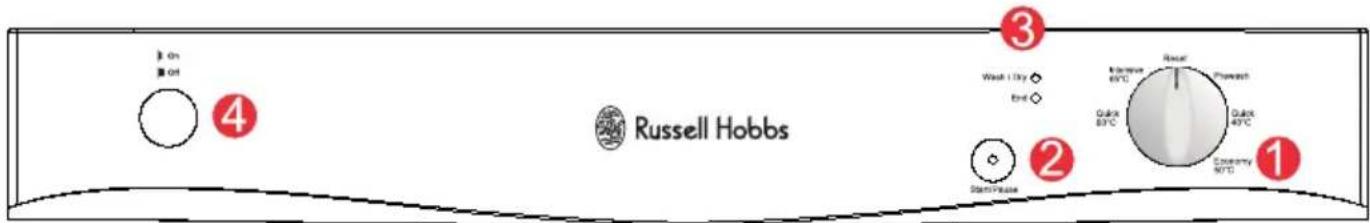

1.) Power On/Off Button

When the Power On/Off button is pressed, the lamp on the Start/Pause button starts lighting.

2.) Door Handle

The door handle is used to open/close the door of your machine.

3.) Start/Pause Button

Once you press the Start/Pause button, the programme you selected with the programme selector button will start running and the status indicator lamp "wash/Dry" will light up.

In the stop condition while wash led is On, Start/Pause led will blink.

4.) Programme selector knob

With the programme selector knob, you can select a suitable programme for your dishes.

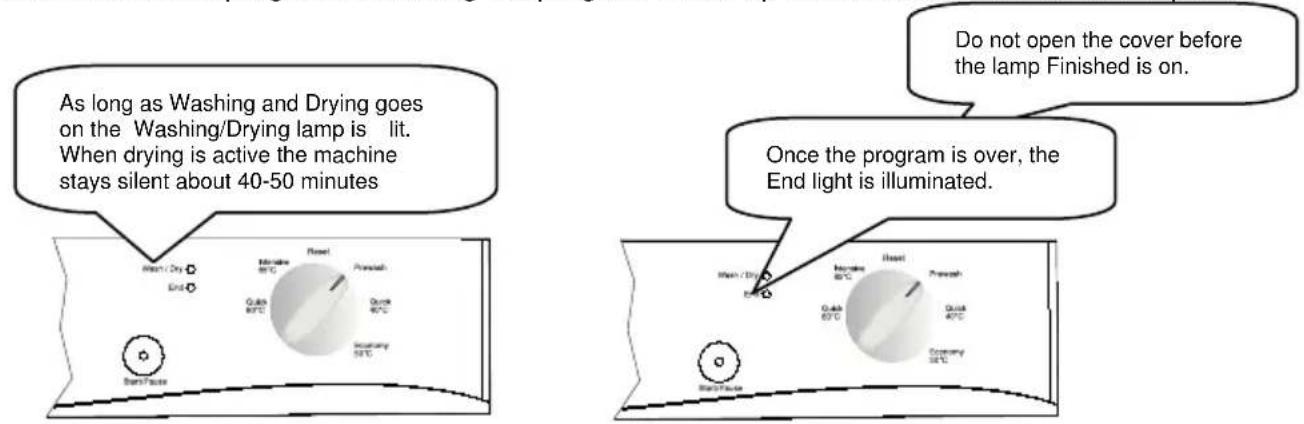

5.) Wash-Dry / End-of-cycle indicator

You can monitor the programme status with the help of 'wash/Dry' and 'end' indicators.

• Wash / Dry
• E n d

Technical specifications

Capacity	12 place settings
Height	845 mm
Height (without worktop)	815 mm
Width	596 mm
Depth	598 mm
Net Weight	46 kg
Electricity input	220-240 V, 50 Hz
Total Power	2200 W
Heating Power	2000 W
Pump Power	100 W
Drain Pump Power	30 W
Water supply pressure	0.03 MPa (0,3 bar) - 1 MPa (10 bar)
Current	10 A

• P r o d u c e r amend design and technical specifications reserved. s i t
• The machine's service life is 10 years (the duration required to keep spare parts for the machine to fulfil its usage functions).

Conformity with the standards and Test data / EC Declaration of Conformity

All stages related to the machine are executed in accordance with the safety rules provided in all relevant directives of the European Community.

2004/108/EC, 2006/95/EC, IEC 436/DIN 44990, EN 50242

SAFETY INFORMATION AND RECOMMENDATIONS

Recycling

• C e r t a i n c o m p o n e n t s a n d materials.
- P l a s t i c p a r t s a r e m a r k e d (>PE<, >PS<, >POM<, >PP<, ....)
- Cardboard parts have been produced from recycled paper and they should be disposed of into waste paper collection containers for recycling.
- Such materials are not suitable for being disposed of into garbage bins. They should be delivered to recycling centres instead.
- Contact relevant centres in order to obtain information on methods and points of disposal.

Safety Information

When you take delivery of your machine

• Check for any damage to Never start a machine damaged in any way, make sure to contact an authorised service.
  • Unwrap the packaging materials as indicated and dispose of them in accordance with the rules.

The points to pay attention during machine installation

• Choose a suitable, safe
  • Carry out the installati
• This machine should be i

For Customer Services, Spare Parts & Warranty Information please call 0845 683 8717

• Only original spare part
• Before installation, be su
• Check whether the indoor electrical fuse system is connected according to the regulations.
• All electrical connection
  • Pay special attention and be sure that the machine does not stand on the electricity supply cable.
• Never use an extension cord or a multiple socket for making a connection. The plug should be comfortably accessible after the machine has been installed.
• After installation the mac

In daily use

• This machine is for household use, do not use it for any other purpose. Commercial usage of the dishwasher will void the guarantee.
• Do not load your machine above its capacity; wash in the machine only those items which are suitable for dishwashing.
• Do not get up, sit or place
• Never put into the detergent and rinse aid dispensers of your machine anything other than those detergents and rinse aids which are produced specifically for dishwashers. Our company will not be responsible for any damage that might occur in your machine otherwise.
  • The water in the machine
• Due to danger of explosion dissolving agents such as solvents.
• Check whether plastic it
• Do not put into your machine those items which are not suitable for dishwashing. Also, do not fill any basket above its capacity. Our company will not be responsible for any scratch or rust to form on the inner frame of your machine due to basket movements otherwise.
• Especially because hot water may flow out, the machine door should not be opened under any circumstances while the machine is in operation. In any case, a safety device ensures that the machine stops if the door is opened.
• Do not leave your dish w a
• Place knives and other sharp-ended objects in the cutlery basket in blade-down position.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety

For your children's safety

• After removing the machine's packaging, make sure that the packaging material is out of reach of children.
• Do not allow children to
• Keep your children away
• Keep children away from the machine while it is open because there may still be residues of cleaning substances inside the machine.
• Be sure that your old machine does not pose any threat to your children. Children are known to have gotten themselves locked in old machines. To forestall such a situation, break your machine's door lock and tear off the electrical cables.

In case of malfunctioning

• Any malfunction in the machine should be repaired definitely by qualified persons. Any repair work performed by anyone other than the authorised service personnel will cause your machine to be left outside the scope of warranty.
• Prior to any repair work on the machine, be sure that the machine is cut off from the mains. Switch off the fuse or unplug the machine. Do not pull by the cable when unplugging. Make sure to turn off the water tap.

For Customer Services, Spare Parts & Warranty Information please call 0845 683 8717

Recommendations

• For e n er @ course residues on your dishes before placing the dishes a v into the machine. Start your machine after having fully loaded it
  • Use the pre-wash pro gra

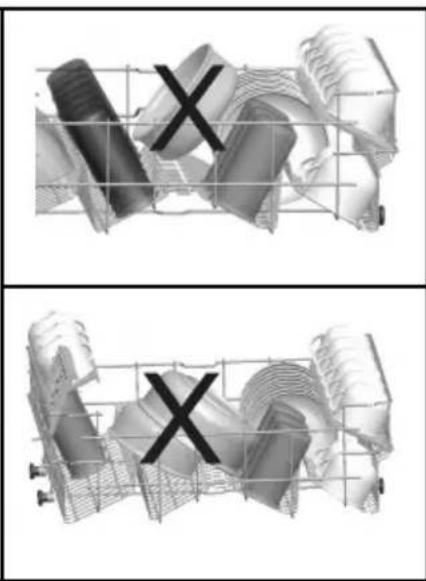

• Place such hollow items as bowls, glasses and pots into the machine in such a way that they will face down.
  • You are recommended not to load into your machine any dishes different or more than indicated.

Items not suitable for dishwashing:

• Cigarette ash, candle wax, polish, chemical substances, iron-alloy materials;
- Forks, spoons and knives with wooden bone, or ivory or nacre-coated handles; glued items, paint, items soiled with abrasive, acidic or base chemicals
- Plastic items that are n
- A l u m i n i u m a n d s i l v e r o b j
- Certain delicate glass types, porcelains with ornamental printed patterns as they fade even after the first wash; certain crystal items as they lose their transparency over time, adhered cutlery that is not heat-resistant, lead crystal glasses, cutting boards, items manufactured with synthetic fibre;
- Absorbent items as sp on

Warning: Take care to buy dishwasher-proof sets in your future purchases.

INSTALLING THE MACHINE

Positioning the machine

When determining the place to put your machine on, take care to choose a place where you can easily load and unload your dishes.

Do not put your machine in any location where there is the probability for the room temperature to fall below 0^ C.

Before positioning, take the machine out of its packaging by following the warnings located on the package.

Position the machine close to a water tap or drain. You need to site your machine, taking into consideration that its connections will not be altered once they are made.

Do not grip the machine by its door or panel in order to move it.

Take care to leave a certain clearance from all sides of the machine so that you can comfortably move it back and forth during cleaning.

Make sure that the water inlet and outlet hoses do not get squeezed while positioning the machine. Also, make sure that the machine does not stand on the electrical cable.

Adjust the machine's adjustable feet so that it can stand level and balanced. Proper positioning of the machine ensures problem-free opening and closing of its door.

If the door of you machine does not close properly, check if the machine is stable on the floor it stands; if not, adjust the adjustable feet and ensure its stable position.

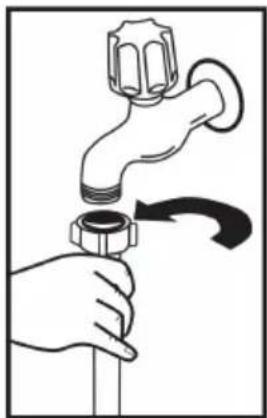

Water connection

Be sure that the indoor plumbing issuitable for installing a dishwasher. Also, we recommend that you fit a filter to the water pipe or tap so as to avoid any damage to your machine because of any contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing, and to forestall such complaints as yellowing and formation of deposits after washing.

Illustration of a hand holding a faucet with a valve, showing a curved arrow indicating rotation (no text or symbols)

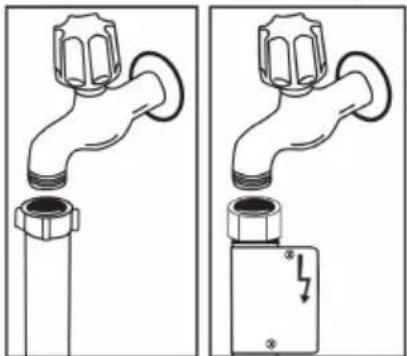

Water inlet hose

Do not use the water inlet hose of your old machine, or of any other machine. Use the new water inlet hose supplied with your machine instead. If you are going to connect a new or long-unused water inlet hose to your machine, run water through it for a while before making the connection. Connect the water inlet hose directly to the water inlet tap. The pressure supplied by the tap should be at a minimum of 0.03 Mpa and and at a maximum of 1 Mpa. If the water pressure is above 1 Mpa, a pressure-relief valve should be fitted inbetween. After the connections are made, the tap should be turned on fully and checked for water tightness.

For the safety of your machine, make sure to always turn off the water inlet tap after each wash programme is finished.

Diagram showing two mechanical pipe fittings with a valve and a separate electrical component (no text or symbols)

NOTE: Aquastop water spout is used in some models. In case of using Aquastop, a dangerous tension exists. Do not cut Aquastop water spout. Do not let it get folded or twisted.

Water outlet hose

The water drain hose can be connected either directly to the water drain hole or to the sink outlet spigot. Using a special bent pipe (if available), the water can be drained directly into the sink via hooking the bent pipe over the edge of the sink.

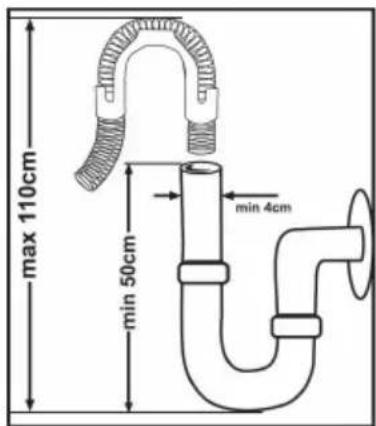

This connection should be at a minimum of 50 cm and and at a maximum of 110 cm from the floor plane.

Warning: When a drain hose longer than 4 m is used, the dishes might remain dirty. In that case, our company will not accept responsibility.

Pure electrical circuit lines without any symbols

For Customer Services, Spare Parts & Warranty Information please call 0845 683 8717

Electrical connection

The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current. If there is no earthing installation, have a competent electrician carry out an earthing installation. In case of usage without earthing installed, our company will not be responsible for any loss of usage that might occur.

At low voltage, Wash efficiency of your machine decreases.

Always use the coated plug supplied with your machine.

The machine's electrical cable should be replaced by an authorised service or an authorised electrician only. Failure to do so may lead to accidents.

For safety purposes, always make sure to disconnect the plug when a wash programme is finished.

In order not to cause an electric shock, do not unplug when your hands are wet.

When disconnecting your machine from the mains supply, always pull from the plug. Never pull the cord itself.

Fitting the machine undercounter

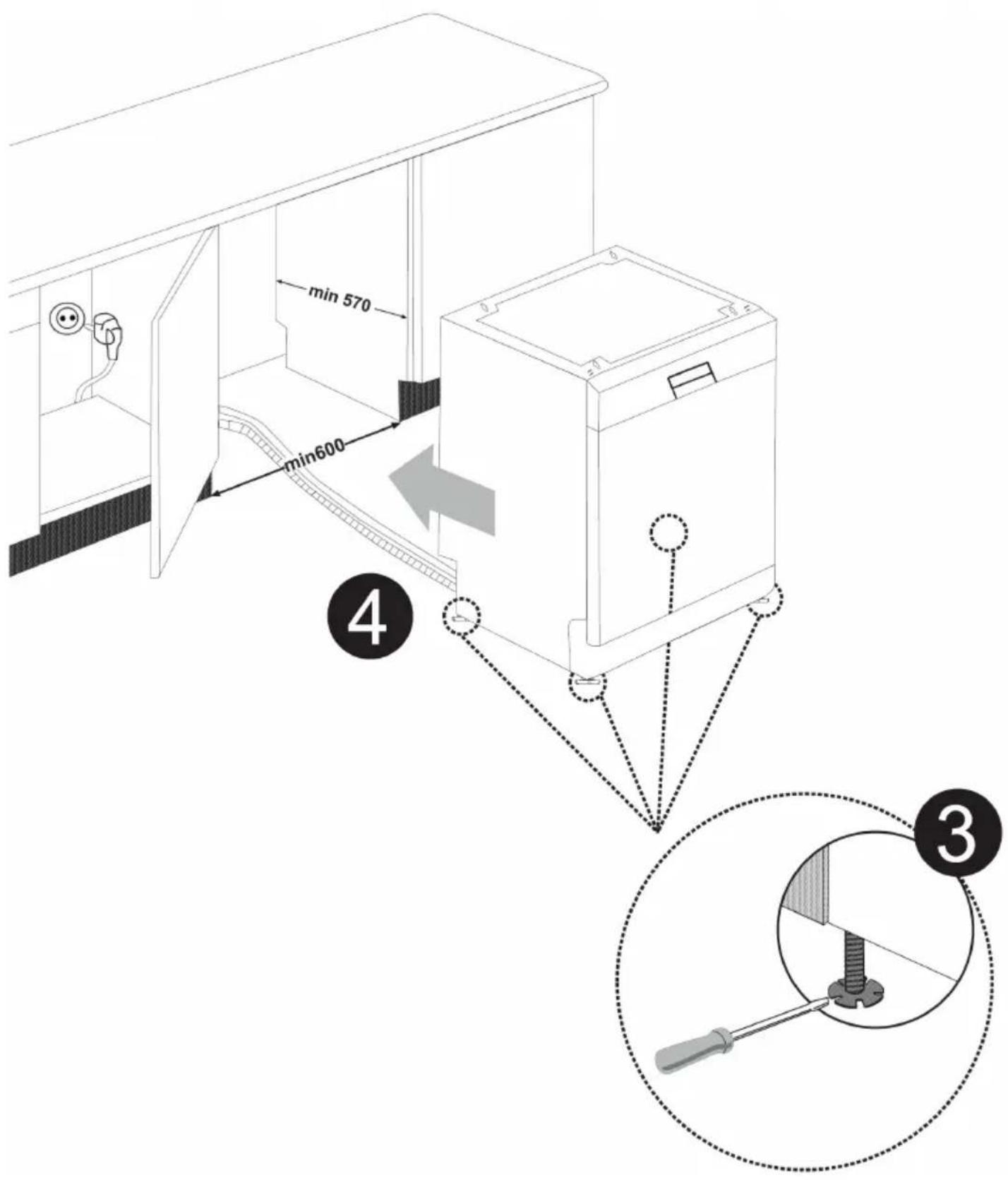

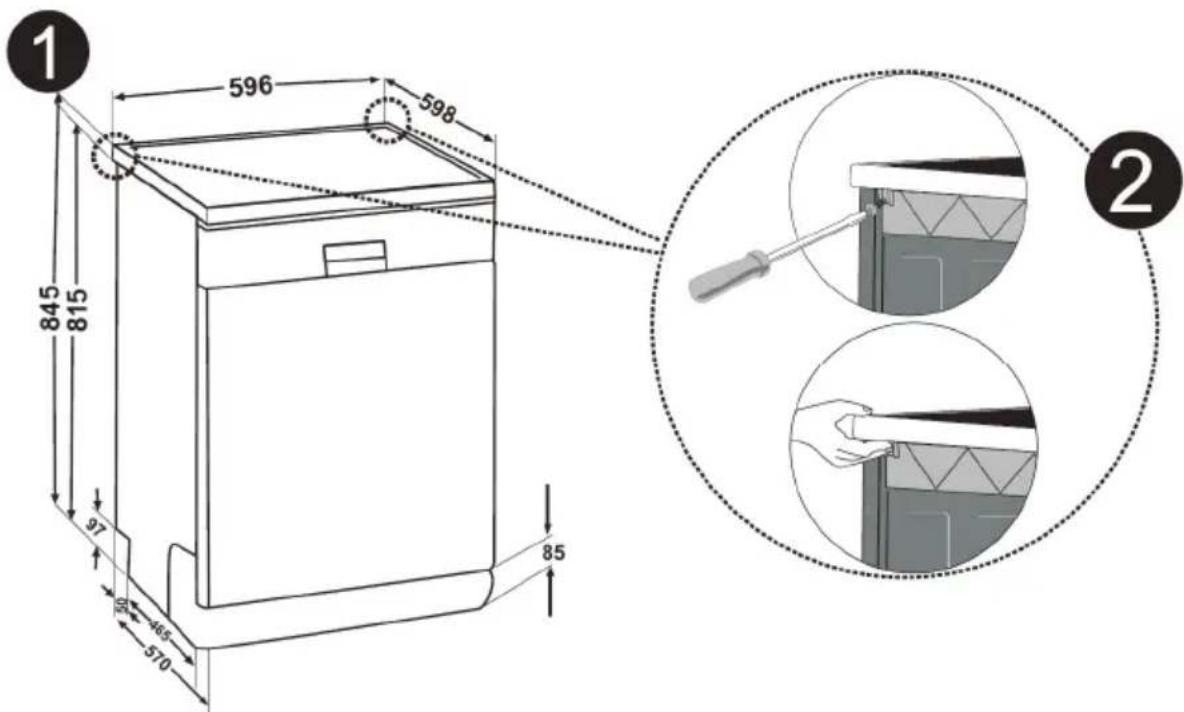

If you wish to fit your machine undercounter, check whether you have sufficient space under your countertop and whether the wiring-plumbing is suitable to do so. If you decide that the space under the countertop is suitable for fitting your machine, remove the worktop as shown in the illustration.

Warning: The stand part which will settle the machine under it by removing its worktop has to be stable in such a way not to allow balance disorder.

To remove the worktop, remove the screws that hold the worktop which are located at the rear of the machine; then push the front panel 1cm from the front side towards the rear and lift it.

Adjust the machine feet according to the slope of the floor 3 Fit your machine by pushing it undercounter without letting the hoses get crushed or bent 4

Warning: After removal of worktop, the machine should be placed in such a closed place of which dimensions are shown at fig.

For Customer Services, Spare Parts & Warranty Information please call 0845 683 8717

Prior to using the machine for the first time

- Check whether the electricity and supply water specifications match the values indicated by the installation instructions for the machine.

- Remove all packaging ma

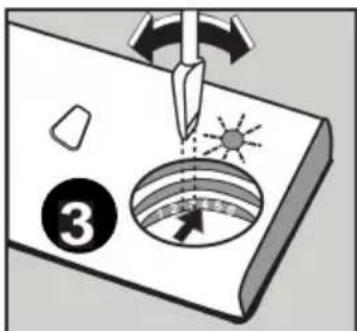

- Set the water softener.

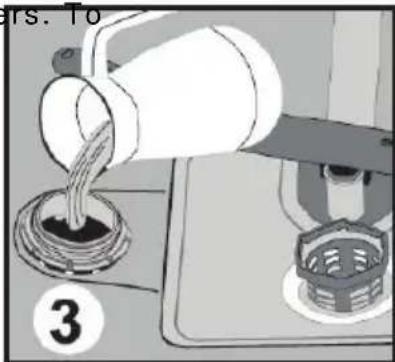

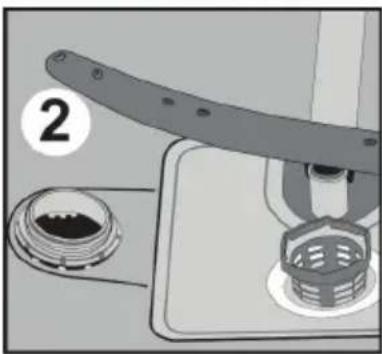

- Add 2 kg salt into the salt compartment and fill with water up to a level at which it will almost overflow.

• Fill the rinse aid comp a

PREPARING THE MACHINE FOR USE

The importance of water decalcification

For a good washing function, the dishwasher needs soft, i.e. less calcareous water. Otherwise, white lime residues will remain on the dishes and the interior equipment. This will negatively affect your machine's washing, drying and shining performance. When water flows through the softener system, the ions forming the hardness are removed from the water and the water reaches the softness required to obtain the best washing result. Depending on the level of hardness of the inflowing water, these ions that harden the water accumulate rapidly inside the softener system. Therefore, the softener system has to be refreshed so that it operates with the same performance also during the next wash. For this purpose, dishwasher salt is used.

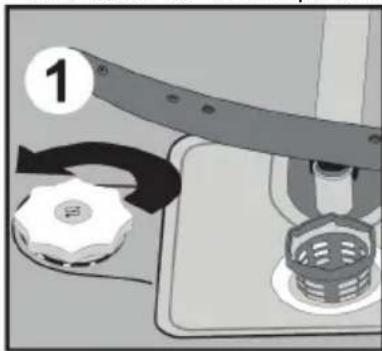

Filling with salt (Only if detergent, tablet or gel does not have salt contained in them)

Use softener salt specifically produced for use in dishwashers. To

Mechanical assembly diagram showing a lever mechanism with a gear and housing (no text or symbols)

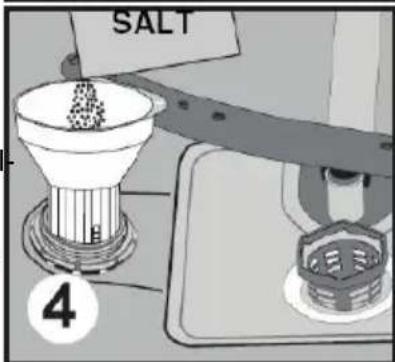

put softener salt, first remove the lower basket and then open the salt compartment cap by turning it counter clockwise. 1 2 At first fill the compartment with 2kg salt and water 3 at overflowing level If available, using the funnel 4 provided will make filling easier; refit the cap and close it.

After every 20th-30th wash, add salt into your machine until it fills up (approx. 1.5 kg)

Fill the salt compartment with water at first use only.

We recommend that you use small grained or powder softener salt.

Do not put table salt into your machine. Otherwise, the function of the softener compartment may decrease over time. When you start your dishwasher, the salt

Illustration of a coffee maker pouring liquid into a container on a stand, with no visible text or symbols.

Mechanical assembly diagram showing a clamping mechanism with a numbered component (no text or symbols present)

compartment gets filled with water. Therefore, put the softener salt prior to starting your machine.

This way, overflowing salt gets immediately cleaned up through the wash operation. If you are not going to wash any dishes immediately after putting salt, then run a short washing program with an empty machine in order to avoid any damage (to prevent corrosion) to your machine due to the salt overflow while filling in the salt container.

For Customer Services, Spare Parts & Warranty Information please call 0845 683 8717

In order to understand whether or not the amount of softener salt in your machine is sufficient, check the transparent section on the salt compartment cap. There is sufficient salt if the transparent section is green. Salt has to be added if the transparent section is not green.

Testing strip

The washing effectiveness of your machine depends on the softness of the tap water. For this reason, your machine is equipped with a system that reduces the hardness in mains water supply. The washing effectiveness will increase when the system is correctly set. To find out the water hardness level of water in your area, contact your local water board or determine water hardness level by using the test strip(if available).

Open the testing strip.

Run water through your tap for 1 min.

Keep the testing strip in water for 1 sec.

Shake the testing strip after taking it out of water.

Wait for 1 min.

Make your machine's water hardness setting according to the result obtained through the testing strip.

Hand holding a tool measuring water droplets with arrows indicating direction (no text or symbols)

Level 1	No Lime
Level 2	Very low lime content
Level 3	Low lime content
Level 4	Medium lime content
Level 5	Lime content
Level 6	High lime content

Adjusting salt consumption

Table of Water Hardness Level Settings

Water hardness level	German hardness dH	French hardness dF	British hardness dE	Hardness Level Indicator
1	0-5	0-9	0-6	● Wash/Dry lamp is on.○ End lamp is off○ The Start/Pause lamp is off.
2	6-11	10-20	7-14	○ Wash/Dry lamp is off.● End lamp is on.○ The Start/Pause lamp lamp is off.
3	12-17	21-30	15-21	○ Wash/Dry lamp is off.○ End lamp is off.● The start/Pause lamp is on.
4	18-22	31-40	22-28	● Wash/Dry lamp is on.● End lamp is on.○ The start/Pause lamp is off.
5	23-31	41-55	29-39	● Wash/Dry lamp is on.○ End lamp is off.● The start/Pause lamp is on.
6	32-50	56-90	40-63	○ Wash/Dry lamp is off.● End lamp is on.● The start/Pause lamp is on.

If the hardness of the water you use is above 90 dF (French hardness) or if you are using well water; you are recommended to use filter and water refinement devices.

NOTE: Hardness level is adjusted to level 3 as a factory setting.

For Customer Services, Spare Parts & Warranty Information please call 0845 683 8717

Adjusting salt consumption

Adjust the water softener according to how hard your tap water is.

Move the programme selector knob to the 0 (Reset) position while your machine is not in operation.1

After resetting your machine, press the Start/Pause button and keep it pressed down.2

Meanwhile, energise the machine by pressing the Power On/Off button. 4

Keep Start/Pause keys press until program monitor lights are on and off. 2

After the lamps "Wash/Dry/End" have flashed 3, release the Start/Pause button. 2

Your machine displays the latest entered water hardness setting.

You can adjust the levels by pressing the Start/Pause button 2 according to Table of Water Hardness Level Settings.

After adjusting the water hardness level, press on/off button to save the settings in memory.4

Detergent usage

Use a detergent specifically designed for use in domestic dishwashers.

You can find powder , gel , and tablet detergents in the market that have been designed for household dishwashers.

Detergent should be put into the compartment prior to starting the machine. Keep your detergents in cool, dry places out of reach of your children.

Do not fill detergent into the detergent compartment more than required; otherwise it may cause scratches on your glasses as well as lead to a poorly dissolved detergent.

Should you need more information concerning the detergent you will use, contact detergent manufacturers directly.

Diagram of a door handle with a curved panel and a circular arrow indicating rotation (no text or symbols)

Filling the detergent compartment

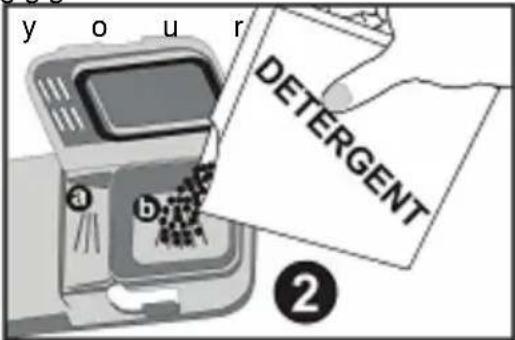

Push the latch to open the detergent container as shown in the image. The Detergent pod has level lines inside. It is possible to measure the right detergent amount using these lines. The Detergent pod can take a maximum of 40 ofm detergent. Open the dishwasher detergent and pour into the larger compartment: 25 cm³ if your dishes are heavily soiled or 15 cm³ if they are less

soiled 2 I f dishes h ave been kept dirty for a very

long time, if there are dried food wastes on them, and if you have overly loaded the dishwasher, pour 5 c m detergent into the pre-wash compartment and start your machine.

You may have to add more detergent into your machine, depending on the degree of soil and on the water hardness level in your area.

Combined detergents

Detergent manufacturers also manufacture combined detergents that are called 2 in 1 - 3 in 1 - 5 in 1...

The 2 in1 detergents contain detergent+ salt or rinse aid . While using the 2 in 1 detergents, it should be observed which functions the tablet consists of.

The other tablet detergents also have detergent+rinse aid +salt+various extra functions.

Generally, combined detergents produce sufficient results under certain usage conditions only. Such detergents contain rinse aid and/or salt in preset amounts.

Points to consider when using this type of products:

• Always make sure to check the specifications of the product you will use or whether or not it is a combined product.
• Check if the detergent used is appropriate for the hardness of mains water that machine is appertaining to.

• Observe the instructions on packagings when using such products.

• If such detergents are in the form of tablets, never put them into the interior section or the cutlery basket of the dishwasher. Always put the tablets into the detergent compartment in the detergent dispenser.

• They produce good results for certain types of usage only. If you are using this type of detergents, you need to contact the manufacturers and find out about the suitable conditions of use.
• When the conditions of use of such products and the machine settings are appropriate, they ensure savings in salt and/or rinse aid consumption.
• Contact the detergent manufacturers if you are not obtaining good wash results (if your dishes stay calcareous and wet) after having used 2 in 1 or 3 in 1 detergents. The scope of warranty for your machine does not cover any complaints caused by the use of these types of detergents.

Recommended usage: If you want to obtain better results while using combined detergents, add salt and rinse aid into your machine and adjust the water hardness setting and the rinse aid setting to the lowest position.

Solubility of the tablet detergents produced by different companies can vary such detergents in short programs. It is more suitable to use powder detergents in such programs.

Warning: Should any problem, which you have not encountered before, arise with the use of this type of detergents, contact the detergent manufacturers directly.

When you give up using combined detergents

• Fill the salt and rinse
• Adjust the water hardne
- Adjust the water hardne
• Make the suitable rinse

Filling with rinse aid and making the setting.

Hand turning a knob on a device dial, showing rotational motion (no text or symbols)

Rinse aid is used to prevent the stay of white water drops, lime stains, white film strip-shaped stains that may form on the dishes, as well as to increase the drying performance. Contrary to the popular beliefs, it is used not only for obtaining shinier dishes but also for obtaining sufficiently dried dishes. For this reason, care should be taken that there is adequate amount of rinse aid in the rinse aid compartment and only polishing material produced for use at dishwashers should be used.

To put rinse aid, remove the rinse aid compartment cap by turning it. Fill the rinse aid compartment with rinse aid until the rinse aid level indicator becomes dark; refit the cap and close it by turning it in a way that the nails will correspond to one another. By checking the rinse aid level indicator on the detergent dispenser, you can understand whether or not your machine needs rinse aid. A dark indicator b means that there is rinse aid in the compartment, while a light indicator a shows that you need to fill the compartment with rinse aid.

The rinse aid level adjuster can be set to a position between 1 and 6. Factory setting for rinse aid is the position 3.

You need to increase the degree of the adjuster if water stains form on your dishes after a wash, whereas you need to decrease the degree if a blue stain is left when wiped by hand.3

Warning: Use only those rinse aid materials which are allowed for use in the machine. As rinse aid residues left as a result of overflowing will create extremely high amounts of foam and thus reduce the washing performance, remove the excess amount of rinse aid by wiping it with a rag.

LOADING YOUR DISHWASHER

If you properly place your dishes into the machine, you will be using it in the best way in terms of energy consumption, washing and drying performance.

There are two separate baskets for you to load your dishes into your machine. You can load round and deep items as pots with long handles, pot lids, plates, salad, plates, cutlery sets In to the lower basket.

The upper basket has been designed for tea plates, dessert plates, salad bowls, cups and glasses. When placing long-stem glasses and goblets, lean them against the basket edge, rack or glass supporter wire and not against other items. Do not lean long glasses against one another or they will not remain steady and may be damaged.

It is more appropriate to locate the thin narrow parts into the middle sections of baskets.

You can place spoons among the other cutlery sets in order to prevent them from sticking to one another. You are recommended to use the cutlery grid in order to obtain the best result.

To avoid any possible injuries, always place such long-handle and sharp-pointed dishes as serving fork, bread knife etc. with their sharp points facing down or horizontally on the baskets.

Warning: Place your dishes into your machine in a way that they will not prevent the upper and lower spray arms from spinning.

Dish rack

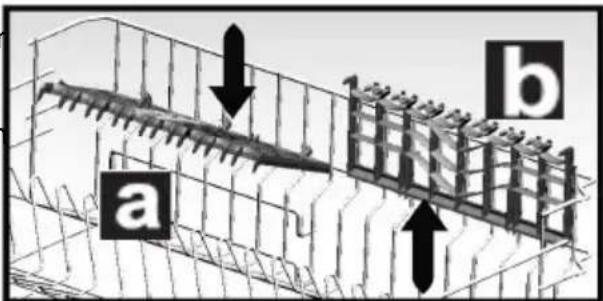

There are dish racks on the upper basket of your machine. a b You can use these dish racks in open or closed position. When they are in open position a you can place your cups on them; and when i n closed position b you can place long glasses on the basket. Also, you can use these racks by placing long forks, knives and spoons on them laterally.

Top basket height adjustment while it is full

3D wireframe diagram of a livestock cage with upward arrows indicating movement or pressure (no text or symbols)

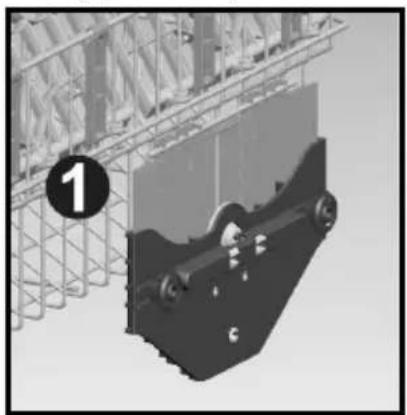

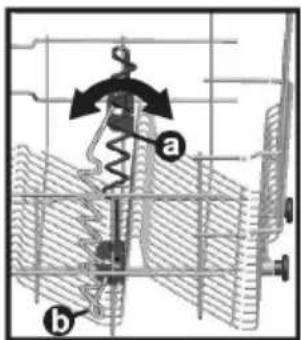

The Basket height adjustment mechanism on the top basket of your machine is designed to let you adjust the height of your top basket upwards or downwards, without removing it from your machine when it is full, and create large spaces at the top or bottom area of your machine as needed. The Basket of your machine is set to upper position as a default setting In order to raise your basket, hold it on both sides and pull it upwards. In order to lower it, hold it from both sides again, and leave it.

When loading the upper adjustable basket, make sure that both sides of the mechanism are in the same position (up or down).

3D rendering of a mechanical assembly with labeled components (no readable text or symbols)

Aerial view of a large industrial facility with visible structural elements and piping (no text or symbols)

Lower Basket Folding Racks

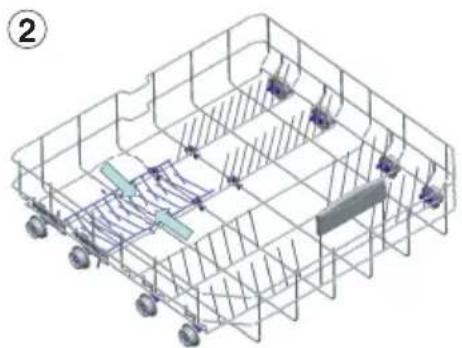

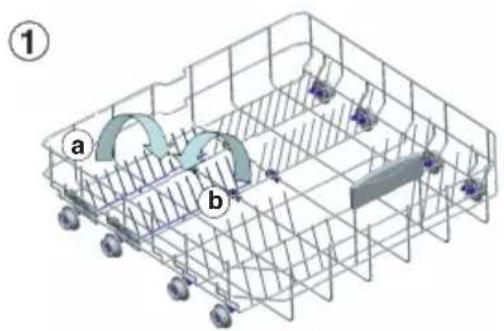

Folding racks consisting of two parts that are located on the lower basket of the machine are designed in order to let you place big items easier such as pots, pans, etc. If required, each part can be folded separately, or all of them can be folded and larger spaces can be obtained. You can use folding racks by raising them upwards, or by folding.

3D wireframe diagram of a shopping cart with labeled parts (a and b), no readable text or symbols present.

Isometric wireframe diagram of a shopping cart with wheels and internal components (no text or symbols)

Goblet clamp

It enables the safe washing of your goblets with long foot and stems. Do not lean your long glasses on one another, this way they can not remain stable and can be damaged during washing. To create wide spaces when you do not want to use goblet clamp, turn to position

3D wireframe diagram of a mechanical or architectural structure with multiple cylindrical components and a central platform (no text or symbols)

For Customer Services, Spare Parts & Warranty Information please call 0845 683 8717

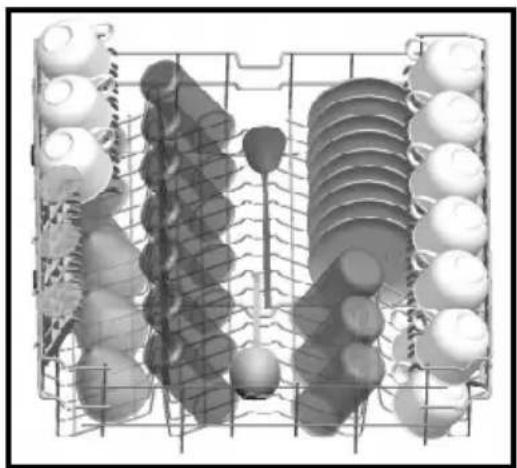

Alternative basket loads

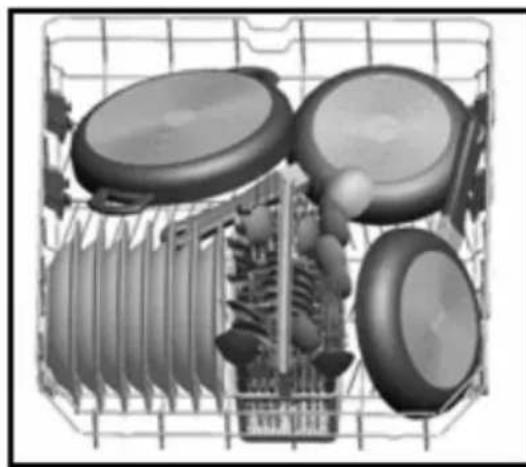

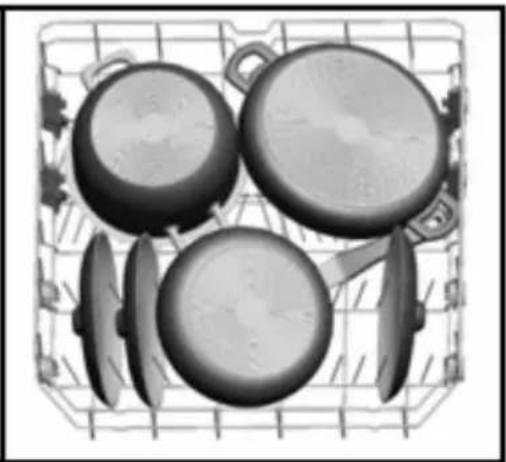

Lower Basket

Cross-sectional diagram of a mechanical assembly with gears and blades (no text or labels)

Black-and-white illustration of a basket containing four cooking pots and kitchen utensils (no text or symbols)

Top basket

3D rendering of a multi-tiered industrial machine with internal components and structural elements (no visible text or symbols)

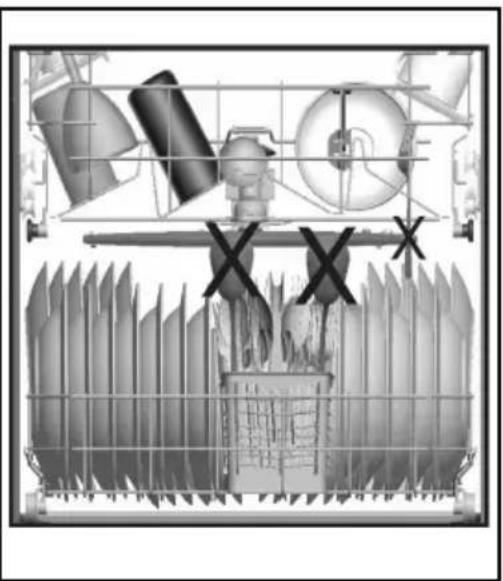

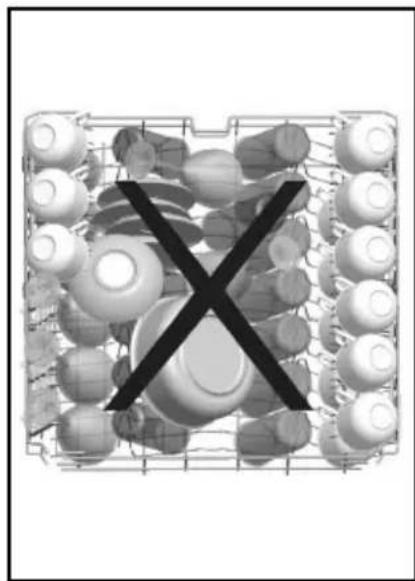

Faulty loads

Diagram of a grid with a central 'X' symbol, surrounded by circular objects (no text or labels)

3D rendered mechanical components with grid overlay, no visible text or symbols

Industrial machinery diagram with no visible text, numbers, or symbols

Standard loading and test data

Capacity:

Upper and lower baskets: 12 place settings. The upper basket should be adjusted to high position Cups should be placed on to the dish rack pins.

Detergent / Rinse aid

5+25 cm ^3 , in accordance with EN50242-DIN 44990 IEC 436 (international norms) / Rinse aid dosage adjustment: 4

Programme test

Economic 50°C, in accordance with EN 50242 (international norms)

PROGRAMME DESCRIPTIONS

Programme items

Programme names and temperatures	PrewashNo Heat	Quick40°C	Economic50°C	Quick60°C	Intensive65°C
Type of food waste	Pre-wash to rinse and loosen residue-awaiting full load-then select a programme	coffee, milk, tea, cold meats, vegetables, not kept for long	coffee, milk, tea, cold meats, vegetables, not kept for long	soups, sauces, pasta, eggs, pilaf, potato and oven dishes, fried foods	soups, sauces, pasta, eggs, pilaf, potato and oven dishes, fried foods
Level of soil - small medium				medium high	high
Detergent amountA: 25 cm3/15 cm3B: 5 cm3	-A A+B			A+B	A+B
	Prewash	40°C wash	Prewash	Prewash	Prewash
	End	Cold rinse	50°C wash	60°C Wash	65°C wash
		Hot rinse	Cold rinse	Cold Rinse	Cold rinse
		End	Hot rinse	Hot rinse	Hot rinse
			Dry	Dry	Dry
			End	End	End
Programme duration (mln.)	15 30 150 55	110
Electricity consumption (kW hours)	0,02 0,68 1,05 0	95	1,55
Water consumption (liters)	4,5 12,4 15,7 12.4		17,2

Warning: Short programs do not include a drying step

The values declared above are the values obtained under laboratory conditions according to relevant standards. These values can change depending on conditions of product's use and environment (network tension, water pressure, water input temperature and environment temperature).

For Customer Services, Spare Parts & Warranty Information please call 0845 683 8717

SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME

Switching on the machine

Program follow-up

You can follow the program flow using the program follow-up lambs located on the control panel.

Changing a programme

If you would like to change programs while a washing program is continuing


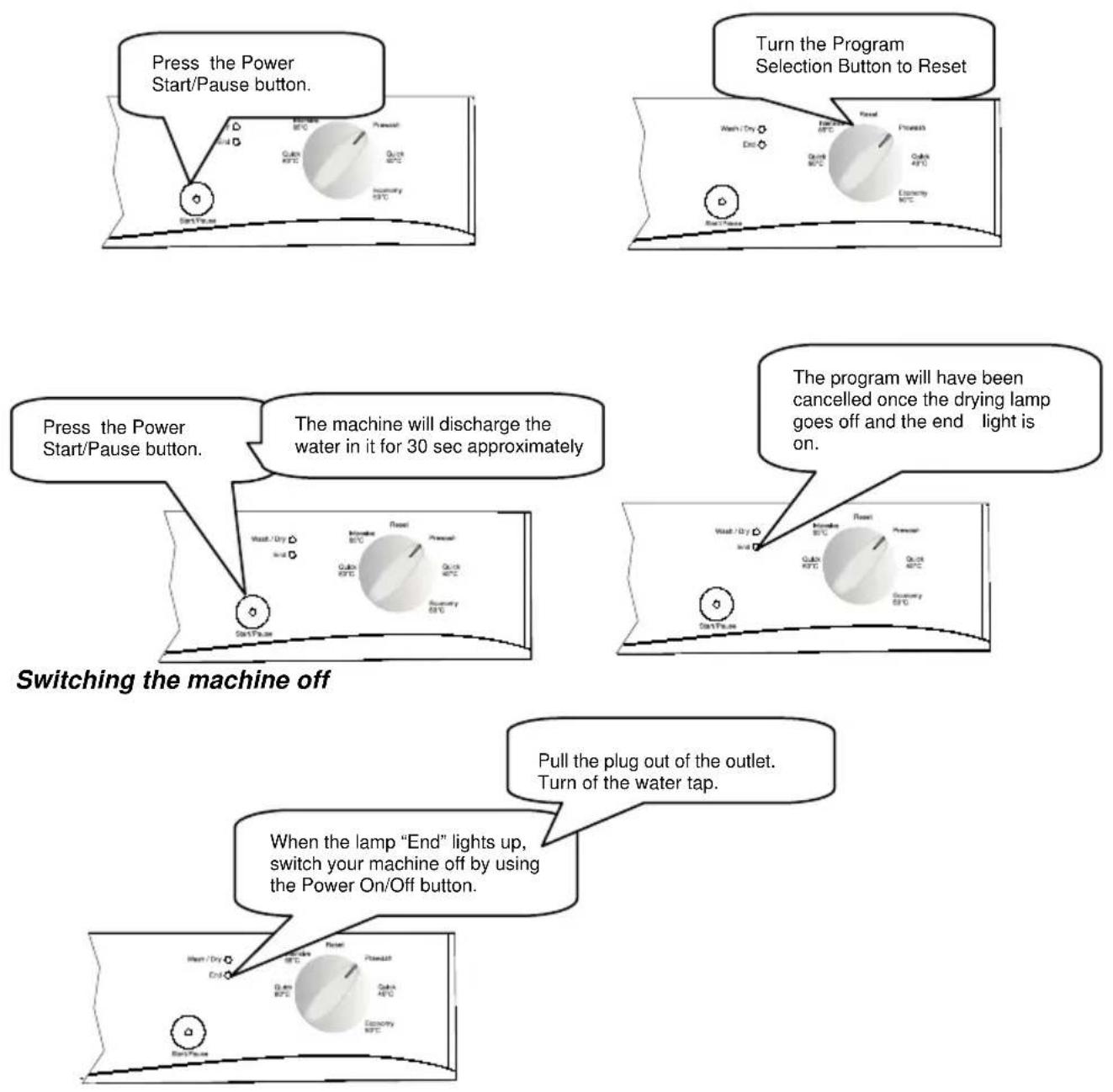

Changing a programme with resetting

If you would like to cancel a program while a washing program is resumed

Note: You can slightly open the door in order for the machine to perform a faster dry operation after the wash programme is finished.

Note: If the machine door opens during washing or the power is cut off, the machine will go back to the program if the door is shut or the power is put back on.

Note: If energy is cut or machine door is opened during drying process, program is terminated. Your machine becomes ready for new program selection.

For Customer Services, Spare Parts & Warranty Information please call 0845 683 8717

MAINTENANCE AND CLEANING

Cleaning the machine at regular intervals prolongs the machine's service life.

Oil and lime may accumulate in the machine's washing section. In case of such accumulation;

-Fill the detergent compartment without loading any dishes into the machine, select a programme that runs at high temperature, and start the machine. In case of insufficiency, use special cleansing material available in the market. (Cleansing material produced special to machines by detergent producers.)

Cleaning the seals in the machine door,

-To clean any accumulated residues in the door seals, wipe the seals regularly by using a dampened cloth.

Cleaning machine,

Clean the filters and spray arms at least once a month.

Unplug your machine and turn off its tap before starting the cleaning.

Do not use hard materials when cleaning your machine. Wipe with a fine cleaning material and a dampened cloth.

Filters

Check if any food wastes have remained on the coarse and fine filters.

If any food wastes are left, remove the filters and clean them thoroughly under the water tap.

a. Micro Filter

b. Coarse Filter

c. Metal/Plastic Filter

machine.

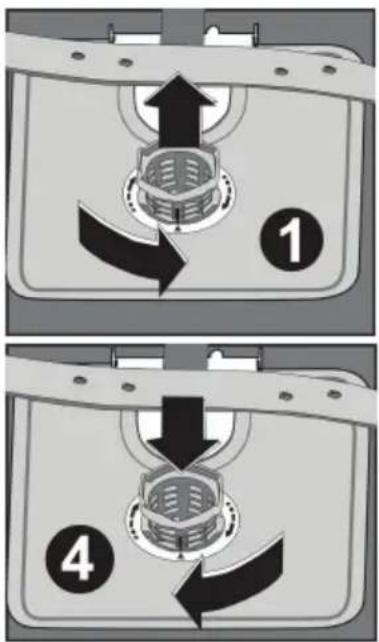

To remove and clean the filter combination, turn it counter clockwise and take it out by lifting upwards

Pull and remove the metal/plastic filter. 3 Then pull the coarse filter out of the micro filter. 2 Rinse it with lots of water under the tap. Refit

the metal/plastic filter. Insert the coarse filter into the micro filter in a way that the marks will correspond to one another. Attach micro filter into the metal/plastic filter and turn to the direction of arrow and it is locked when the arrow on micro filter can be seen from across. 4

• N e v e r u s without any filter.
• In cor r e c t reduce the washing effectiveness.
• Clean filters are

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

Spray arms

Check whether or not the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under water.

You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left.

Be sure that the nut is perfectly tightened when refitting the upper spray arm.

Hose filter

Water is prevented by the inlet hose filter so as to avoid any damage to your machine because of any contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing, and to forestall such complaints as yellowing and formation of deposits after washing. Check the filter and the hose from time to time and clean them if necessary. To clean the filter, first turn off your tap and then remove the hose. After removing the filter from the hose, clean it under the tap. Insert the cleaned filter back into its place inside the hose. Refit the hose.

FAILURE CODES AND WHAT TO DO IN CASE OF FAILURE

ERROR CODE			ERROR DESCRIPTION	CONTROL
Wash /Dry End Start/Pause
			Inadequate water supply	Make sure the water input tap is totally open and that there is no water cut.Close the water input tap, separate the water input hose from the tap and clean the filter at the connection end of the hose.Restart your machine, contact the service if the error resumes.Close the tap.Contact the service.
			Error of continuous water input
			The waste water in the machine cannot be discharged.	Water discharge hose is clogged.The filters of your machine might be clogged.Power off-on your machine and activate the program cancellation command.
			Intended water temperature could not be reached faulty heater and heater	If the error continues, contact the service.Contact the service.
			sensorAlarm is active against water overflow	Power off your machine and close the tap.Contact the service.
			Faulty electronic card	Contact the service.

If one of program monitor lights is on and the start/Pause light flashes on and off, Your machine's door is open, shut the door.

If the programme won't start

• Check if the plug is con
  • Check your indoor fuses.
• Be sure that the water i
• Be sure that you have c l
• Be sure that you switch e
• Be sure that the water i

If the "Wash/Dry" and "End" lights keep flashing

• Water overflow alarm is
• Turn off your tap and co

If the control light won't go out after a wash operation

The Power On/Off button is released yet.

If detergent residues are left in the detergent compartment

Detergent has been added when the detergent compartment was wet.

If water is left inside the machine a t the end of the programme

•	T h e	w a t e r d r a i n	h o s e i s
•	T h e	f i l t e r s a r e	c l o g g e d .
•	T h e	p r o g r a m m e i s	n o t f i n

If the machine stops during a wash operation

• Power failure.

• Water inlet failure.

• Program can be on stand

If shaking and hitting noises are heard during a wash operation

•

D

i

s

h

e

s

p

l

a

c

e

d

i

n

c

o

r

r

e

c

t

l

•

S

p

r

a

y

a

r

m

h

i

t

t

i

n

g

t

h

e

d

i

If there are partial food wastes left on the dishes

•

D

i

s

h

e

s

p

l

a

c

e

d

i

n

c

o

r

r

e

c

t

l

•

B

a

s

k

e

t

o

v

e

r

l

y

l

o

a

d

e

d

.

•

D

i

s

h

e

s

l

e

a

n

i

n

g

a

g

a

i

n

s

t

o

•

V

e

r

y

s

m

a

l

l

a

m

o

u

n

t

o

f

d

e

t

•

A

n

u

n

s

u

i

t

a

b

l

e

,

r

a

t

h

e

r

w

e

•

S

p

r

a

y

a

r

m

c

l

o

g

g

e

d

w

i

t

h

f

•

F

i

l

t

e

r

s

c

l

o

g

g

e

d

.

•

F

i

l

t

e

r

s

i

n

c

o

r

r

e

c

t

l

y

f

i

t

t

e

•

W

a

t

e

r

d

r

a

i

n

p

u

m

p

c

l

o

g

g

e

If there are whitish stains on the dishes

•

A

v

e

r

y

s

m

a

l

l

a

m

o

u

n

t

o

f

d

•

R

i

n

s

e

a

i

d

d

o

s

a

g

e

s

e

t

t

i

ng

•

N

o

s

p

e

c

i

a

l

s

a

l

t

i

s

b

e

i

n

g

•

W

a

t

e

r

s

o

f

t

e

n

e

r

s

y

s

t

e

m

s

•

S

a

l

t

c

o

m

p

a

r

t

m

e

n

t

c

a

p

n

o

If the dishes won't dry up

•

A

p

r

o

g

r

a

m

m

e

w

i

t

h

o

u

t

a

d

•

R

i

n

s

e

a

i

d

d

o

s

a

g

e

s

e

t

t

o

o

•

D

i

s

h

e

s

u

n

l

o

a

d

e

d

t

o

o

f

a

s

t

If there are rust stains on the dishes

•

S

t

a

i

n

l

e

s

s

-

s

t

e

e

l

q

u

a

l

i

t

y

•

H

i

g

h

r

a

t

e

o

f

s

a

l

t

i

n

t

h

e

•

S

a

l

t

c

o

m

p

a

r

t

m

e

n

t

c

a

p

n

o

•

T

o

o

m

u

c

h

s

a

l

t

s

p

i

l

t

i

n

t

o

•

U

n

h

e

a

l

t

h

y

m

a

i

n

s

g

r

o

u

n

d

i

Call an authorised service if the problem still persists after the controls or in case of any malfunction not described above. Please see the back page at the instruction manual

PRACTICAL AND USEFUL INFORMATION

1. When not operating your machine

• U n p machine and then turn the water off.

- Leave the door slightly - Keep the machine in terio

1. Eliminating water droplets

- Wash the e dishes with the - Take all of the mental co - Do not add detergerent.

1. If you properly place your dishes into the machine, you will be using it in the best way in terms of energy consumption, washing and drying performance.

2. Clean all rough waste before you place dirty dishes to the machine.

3. Operate the machine after it is completely full.

4. Use pre-washing program only when necessary.

5. Observe program information and average consumption values table when selecting a program.

6. Since the machine will reach high temperatures, it should not be mounted near refrigerator.

7. If the appliance is located in a place where the risk of freezing exists, you must completely drain the water that has remained in the machine. Turn off the water tap, disconnect the water inlet hose from the tap and allow the interior water to drain.

For Customer Services, Spare Parts &

Warranty Information please call

0845 683 8717

Opening times:

Monday - Friday 8am until 8pm

Saturday & Sunday 10am until 4pm

Customer Service Department

Picktree Court

Picktree Lane

Chester-le-Street

Co Durham

DH3 3SY

Revision 1

This symbol is known as the 'Crossed-out wheeli e bin Symbol'. When this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste. Only discard electrical/electronic/battery items in separate collection schemes, which cater for the recovery and recycling of materials contained within. Your co-operation is vital to make sure the success of these schemes and for the protection of the environment. For your nearest disposal facility, visit www.recycle-more.co.uk or ask in store for details.

We reserve the right due to possible changes to design to alter the instruction manual without prior notice.
