Product Type	Chimney Range Hood
Brand	Amica
Model	OTP 6641 WG
Width	60 cm
Height	60-110 cm (adjustable)
Depth	50 cm
Weight	Approx. 15 kg
Power Supply	220-240 V ~ 50 Hz
Rated Power	220 W
Maximum Extraction Rate	650 m³/h
Noise Level (max)	65 dB(A)
Number of Speeds	3 + intensive
Filter Type	Aluminum grease filter
Charcoal Filter Option	Yes (sold separately)
Lighting	2 x 20 W halogen or LED (depending on version)
Controls	Slider or push buttons
Ducting Diameter	150 mm
Energy Class	A
Installation Type	Wall-mounted or recirculation
Exhaust Location	Top or rear
Grease Filter Cleaning	Dishwasher safe
Carbon Filter Replacement Interval	Every 3-6 months
Safety Features	Auto-shutoff timer, thermal protection
Spare Parts Availability	Grease filters, carbon filters, bulbs
Manual Languages	Multiple (see manual)

Frequently Asked Questions - OTP 6641 WG AMICA

What are the dimensions of the Amica OTP 6641 WG range hood?

The hood has a width of 60 cm, adjustable height from 60 to 110 cm, and a depth of 50 cm.

How do I install the range hood?

Installation should be done by a qualified professional. The hood can be mounted on the wall with the provided brackets, and the ducting should be connected to an external vent or set for recirculation with a charcoal filter.

What type of filters does the hood use?

It uses aluminum grease filters that are washable and dishwasher safe. For recirculation mode, optional carbon filters are required.

How often should I clean the grease filters?

Clean the grease filters every 2-3 months, or more frequently with heavy use. They can be washed by hand or in a dishwasher.

How do I replace the carbon filter?

The carbon filter is located behind the grease filter. Remove the grease filter, then slide out the old carbon filter and insert a new one. Replace every 3-6 months.

What is the maximum extraction rate?

The maximum extraction rate is 650 m³/h, with three normal speeds and an intensive speed for high steam or odors.

How do I control the hood?

The hood has slider or push-button controls to adjust speed and turn lights on/off. Some models include a timer.

Can I use the hood in recirculation mode?

Yes, the hood can be used in recirculation mode. You need to install a carbon filter (sold separately) and ensure the charcoal filter is replaced regularly.

What kind of light bulbs does the hood use?

The hood uses two 20 W halogen bulbs or LEDs, depending on the version. Ensure replacement bulbs match the specified wattage and base type.

How do I reset the filter saturation indicator?

If your model has a filter indicator, reset it by pressing and holding the timer or speed button for a few seconds after cleaning or replacing filters. Consult the manual for exact procedure.

USER MANUAL OTP 6641 WG AMICA

OTP6641BG / OTP6641WG

EN- Table of contents

NOTES ON SAFETY 7

UNPACKING 10

DISPOSAL OF OLD APPLIANCE 10

OPERATION 11

COOKER HOOD CONTROLS 11

OFF-TIMER 11

OTHER IMPORTANT INFORMATION CONCERNING THE OPERATION OF THE HOOD 12

CLEANING AND MAINTENANCE 13

MAINTENANCE 13

GREASE FILTER 13

ACTIVATED CHARCOAL FILTER 13

LIGHT 13

WARRANTY AND AFTER SALES SERVICE 14

WARRANTY 14

GARANTIE, NACHVERKAUF-SERVICE 24

GARANTIE 24

PL- Spis treści

WSKAZÓWKI DOTYCZĄCE BEZPIECZEŃSTWA 26

ROZPAKOWANIE 30

USUWANIE ZUŻYTYCH URZĄDZEŃ 30

OBSŁUGA 31

STEROWANIE OKAPEM 31

TIMER (OPÓŻNIONE WYŁĄCZENIE OKAPU) 31

INNE WAŻNE INFORMACJE DOTYCZĄCE OBSŁUGI OKAPU 32

CZYSZCZENIE I KONSERWACJA 33

KONSERWACJA 33

From now on, your daily housework will be easier than ever before. Your appliance Aim exceptionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

Amica

NOTES ON SAFETY

• Before using the appliance, please carefully read this manual!
• The appliance is designed for household use only.

- The manufacturer reserves the right to introduce changes, which do not affect operation of the appliance.

- The manufacturer shall not be liable for any damage or fire caused by the appliance resulting from failure to follow instructions in this manual.

- Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.

- Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The length of the duct (usually a pipe of ∅ 120 or 150 mm) should not be longer than 4-5 m. An air extraction duct is also required for telescopic and furniture hoods in absorption mode.

- Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane (Mainly in chimney cooker hoods).

- The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.

- Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture

over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

- For details of the installation distance above an electric hob please refer to product technical sheet. If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1).

- Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not extend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.

- When cooking on fat, supervise the pans constantly, because overheated fat can ignite.

- Unplug the appliance before any cleaning, replacing the filter or repair work.

- Cooker hood grease filter should be cleaned at least once a month, because the filter saturated with fat is flammable.

- Ensure adequate ventilation (air flow) if other equipment such as liquid fuel stoves or heaters are operated in the room in addition the cooker hood. When the cooker hood is simultaneously operated with burning appliances requiring adequate fresh air from the room to work properly, their safe operation is possible if under pressure around these appliances is a maximum of 0.004 mbar (this does not apply when the cooker hood is used as an odour filter)

- Do not lean on the hood.

- The hood should be cleaned regularly both inside and out (AT LEAST ONCE A MONTH, following the indications concerning maintenance provided in this manual)..Failure to adhere to the rules concerning cleaning the hood and replacing filters

results in a fire risk.

- If the power cord is damaged it should be replaced by a specialised service centre.

- Ensure that it is possible to disconnect the appliance from the mains by removing the plug or switching off the bi-polar switch.

- This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety.

- Particular attention should be paid not to allow unaccompanied children to use the appliance.

- Make sure voltage indicated on the nameplate corresponds to the local mains supply voltage.

- Before use, extend and straighten the power cord.

- Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

- Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. Do not connect the appliance to the mains until assembly is complete.

- Do not operate your kitchen hood without the aluminium grease filters.

- It is strictly forbidden to cook dishes under on an open flame (flambé) under your kitchen hood.

- Always strictly adhere to regulations issued by the competent local authorities regarding the technical and safety requirements for fume extraction.

- Failing to tighten bolts and fasteners in accordance with these instructions may endanger life and health.

- Hanging kitchen hoods operate only in air circulation / odour absorber mode

UNPACKING

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

In accordance with European Directive 2012/19/EU and Polish legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

OPERATION

Cooker hood controls

Control Panel is shown in Figure 4, for reference it is also shown below:

Note: Fan will operate only when you pull out the front panel. Your cooker hood features a limit switch, which turns off the fan when front panel is pushed back in.

The control panel is equipped with touch controls: Control functions are described below:

1- Use ①to turn Standby mode on/off When you turn on Standby mode, you will hear a beep.
2- Touch Repeatedly to increase the fan speed (1-3)
3- Touch *to turn light on/off The lighting operates independently of fan. Limit switch does not turn off lighting.
4- Off-Timer (see below for details).
5- The display indicates the current fan speed or time to turn off the cooker hood.

Off-Timer

Use Off-Timer to turn off the hood after a specified time. Use Off-Timer to filter the fumes out of the air after cooking. The Off-Timer can be set from 1 to 9 minutes. Touch ⑨ repeatedly to activate the Off-Timer at any time. The sensor will flash indicating the value set from 1 to 9 (delay time in minutes to turn off the fan). Flashing indicates that Off-Timer has been enabled. To cancel Off-Timer at any time, push the front panel back in. When you use Off-Timer the light turns off.

Note:

• When you touch any sensor you will hear a beep.
  • To turn off the fan, touch ⑥once or push the front panel back in.

Other important information concerning the operation of the hood

Operation in air circulation / odour filter mode. In this mode, the filtered air returns to the room through the outlets. Install activated charcoal filter in this setting. It is recommended to install the air guide (available depending on the model, mainly in chimney cooker hoods).

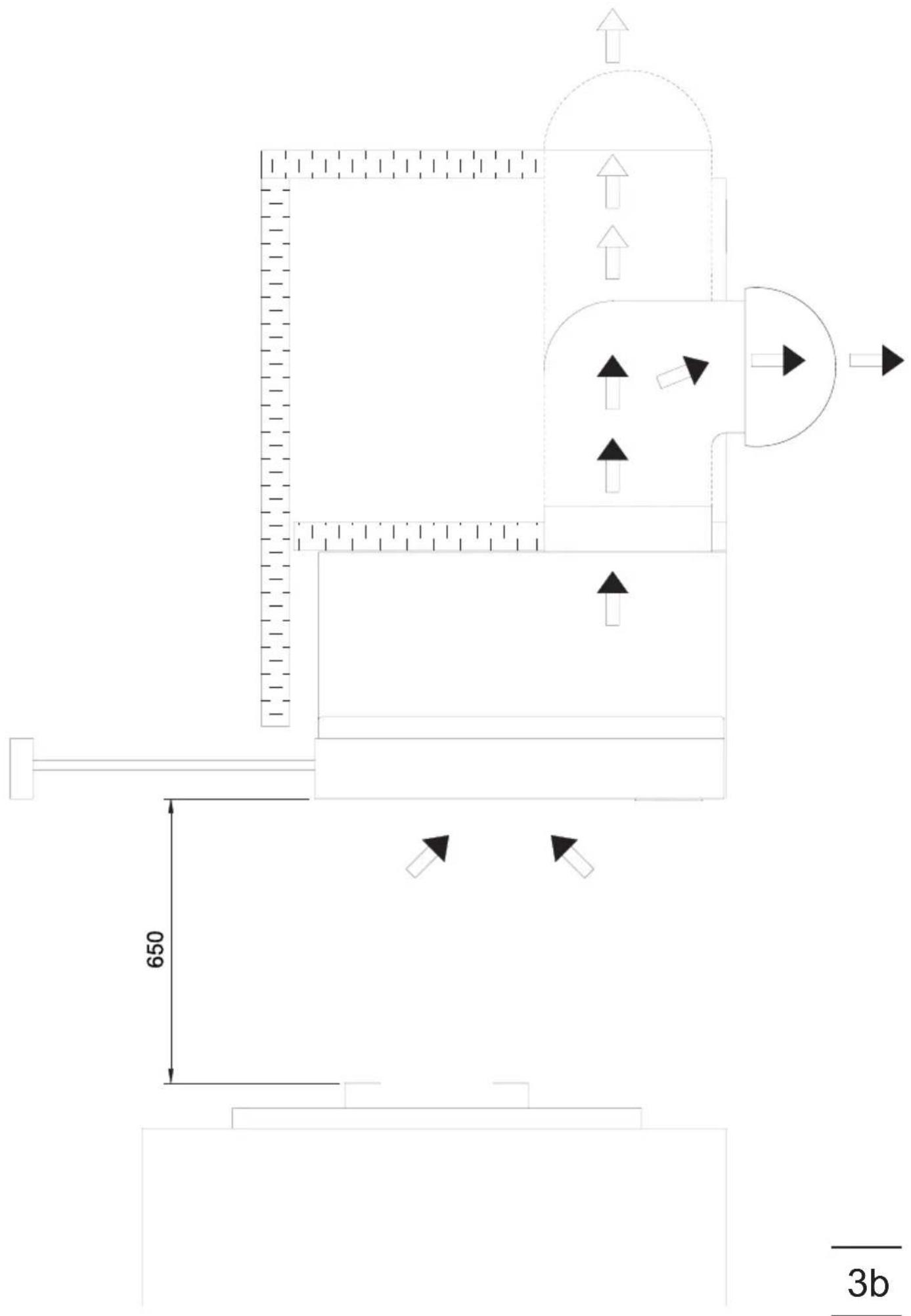

Air extraction operation: When cooker hood operates in extraction mode, air is discharged outside through an extraction duct. Remove activated charcoal filter in this setting. The cooker hood is connected to the air outlet opening using a rigid or flexible extraction duct with a diameter of 150 or 120 mm, and the appropriate clamps, which must be purchased at a hardware store. The appliance should be installed by a qualified installer.

Fan speed: Lowest and medium fan speed is used in normal conditions and less intense odours, while the highest speed is used only when cooking odours are very intense, such as during frying or grilling.

Note (applies to universal hoods only): Due to the design of universal hoods you need to manually change the mode of operation. See Figure 8 for instructions on how to change the mode.

Note (only applies to telescopic and in-built kitchen hoods): Furniture and telescopic cooker hoods operating in air recirculation mode require installation of the exhaust duct. The other end of the duct should be directed to the room as it will discharge filtered air.

Note: Hanging kitchen hoods operate only in air circulation / odour absorber mode

CLEANING AND MAINTENANCE

Maintenance

Regular maintenance and cleaning of the appliance will ensure trouble-free operation of the cooker hood and extend its life. Especially make sure that the grease filter and activated charcoal filter are replaced according to manufacturer's recommendations.

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.
• It is recommend to use a damp cloth and a neutral detergent.

Note: After several washes in the dishwasher, the colour of the aluminium filter may change. The change of colour does not indicate improprieties or the necessity to change it.

Grease filter

For normal hood operation, aluminium grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

Dismantling of aluminium grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every two months or more frequently if the appliance is used intensively.

Activated charcoal filter

Charcoal filter is used only when the cooker hood is not connected to the ventilation duct. Activated charcoal filter can absorb odours until saturated. Charcoal filter is not suitable for washing or regeneration and should be replaced at least once every two months or more frequently if the appliance is used intensively.

Dismantling of charcoal filter is shown on Figure 6.

Light

Use incandescent / halogen / LED modules of the same specification as those factory-installed in the appliance. See Figure 7 for details how to replace lights. If there is no such figure in this manual, please contact authorised service to replace the lighting module.

WARRANTY AND AFTER SALES SERVICE

Warranty

Warranty service as stated on the warranty card. The manufacturer shall not be held liable for any damage caused by improper use of the product.

The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. Repairs should be carried out by a qualified technician only.

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.

GARANTIE, NACHVERKAUFSERVICE

Garantie

	EN DE PL CS $K RO HU BG
1	Control Panel Bedienfeld		Panel sterowania	Ovládací panel	Ovládací panel	Panou de comanda	Irányítópanel	Панел за управление
2	Lighting Beleuchtung Oświetlenie Osvětlení Osvetlenie					Sistem de iluminare	Világítás Ocветление
3	Screws and wall plugs	Schrauben und Spreiz-dübel	Wkręty i kolki rozporowe	Vruty a hmożdinky	Skrutky a rozperné koliky	Śruburi și dibluri	Csavarok és tiplik	Дюбели и винтове
4	Telescopic front	Teleskopau-szug	Front telesko-powy	Výsuvné čelo	Teleskopické celo	Fată telesco-pice	Teleszkópos front	Телескопи-чен фронт
5	Hood body	Haubenkör-per	Korpus okapu	Tělo odsa-vače	Korpus odsá-vaca	Corpul hotei de bucatarie	Az elszívó teste	Корпус на абсорбатора
