Product Type	American Style Fridge Freezer
Brand	Kenwood
Model	KSBSW17
Total Net Capacity	502 L (Fridge 335 L, Freezer 167 L)
Fridge Capacity	335 L
Freezer Capacity	167 L
Energy Efficiency Class	A+
Energy Consumption	401 kWh/year
Climate Class	ST (16°C to 38°C)
Freezing Capacity	10 kg/24h
Temperature Rise Time	> 8 hours
Noise Level	43 dB(A)
Dimensions (H x W x D)	1780 x 900 x 700 mm
Power Supply	220-240V~50Hz, 1.3A
Power Consumption	120 W (Defrost 270 W)
Control Type	Electronic with LED display and touch buttons
Modes	SMART, ECO, Super Cooling, Super Freezing
Temperature Settings	Fridge: 2°C to 8°C; Freezer: -14°C to -22°C
Door Open Alarm	Yes (activates after 90 seconds)
Child Lock	Yes (press and hold button for 3 seconds to lock)
Defrost Type	Frost Free (freezer compartment)
Refrigerant	R600a (combustible, environmentally friendly)
Shelves and Drawers	3 fridge glass shelves, 2 salad bins with covers, 4 freezer balconies, 2 freezer drawers with covers, 1 ice tray, 1 egg tray
Safety Features	Child lock, door alarm, lockable key (if fitted)
Installation Clearances	25 mm sides, 50 mm rear, 25 mm top

Frequently Asked Questions - KSBSW17 KENWOOD

How do I set the fridge temperature?

Press the Mode button until no symbol is displayed (user setting), then press the Fridge button repeatedly to cycle through temperatures from 2°C to 8°C.

How do I activate Super Freezing mode?

Press the Mode button until the Super Freezing symbol appears. The freezer will run at its lowest temperature for approximately 6 hours, then return to the previous setting.

Why is my unit making unexpected noises?

Noises are normal and caused by refrigerant circulation and compressor operation. These sounds are typical of CFC-free systems and do not affect performance.

How do I clean the interior?

Remove all shelves and drawers, wipe with a weak solution of bicarbonate soda and warm water, then rinse and dry thoroughly before replacing.

What should I do if the door open alarm sounds?

The alarm sounds if a door is left open for more than 90 seconds. Simply close the door to stop the alarm. Check that the door is fully closed and the seal is clean.

How can I reverse the door opening direction?

The manual provides instructions for removing and reinstalling doors. You will need a Phillips and flat-bladed screwdriver, and a hex wrench for handles. Follow steps to unscrew hinges, disconnect harness, and lift doors carefully.

What is the recommended ambient temperature for this unit?

The unit is designed for climate class ST, meaning it operates optimally between 16°C and 38°C. Avoid extreme temperatures.

How do I lock the control panel?

Press and hold the Lock 3 sec button for 3 seconds to lock all other buttons. A lock symbol will appear on the display. Press and hold for 1 second to unlock.

What should I do if the unit is not cooling properly?

Check that the temperature setting is correct, doors are sealed, and ventilation openings are clear. Allow 24 hours after first startup. If problem persists, contact a qualified technician.

How do I defrost frozen food safely?

Remove food from the freezer, uncover, and defrost at room temperature. Cook as soon as possible. Never refreeze defrosted food unless cooked again to kill bacteria.

USER MANUAL KSBSW17 KENWOOD

American Style Fridge Freezer KSBSB17 / KSBSW17 / KSBSX17

installation / instructions manual

Front view of a stainless steel refrigerator with vertical metal frame and control panel (no visible text or symbols)

Contents

safety warnings .... 4

unpacking....6

installation....7

location....7

levelling and anchoring the unit....7

free space requirements 7

removing the door handles....8

removing the doors....9

cleaning before use....11

before using your unit....11

product overview....12

main unit.... 12

display and control panel 13

button 13

display 13

operation 14

temperature setting 14

smart mode 14

eco mode.... 14

super cooling mode 14

super freezing mode.... 14

door open alarm 14

noises inside the unit! 15

tips for keeping food in the unit 15

preparations for freezing 15

defrosting frozen food.... 16

cleaning....16

cleaning the interior and the exterior of the unit 16

maintenance.... 17

care when handling / moving your unit.... 17

servicing 17

switching off for long periods of time 17

condensation....17

disposal 17

specification.... 18

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.
• This appliance is intended for indoor household use and similar applications such as:

– farm houses and by clients in hotels, motels and other residential type environment;
- bed and breakfast type environment;
– staff kitchen areas in shops, offices and other working environment;
– catering and similar non-retail applications.

- Ensure that the plug is easily accessible to enable disconnection from the mains supply.

- If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.

- Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.

• The unit must be manoeuvred by a minimum of 2 persons.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children should be supervised to ensure that they do not play with the unit.

- If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment. (If applicable)

WARNING

• Keep ventilation openings in the unit enclosure or in the built-in structure clear of obstructions.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.
• Do not damage the refrigerant circuit (The refrigerant is a very environmental-friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Thank you for purchasing your new Kenwood Fridge Freezer.

These operating instructions will help you use it properly and safely.

We recommend that you spend some time reading this installation/instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this installation/instruction manual for future reference.

unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a double refrigerator with front and back panels (no text or symbols)

Main Unit

Upper Balcony with cover x 1

Fridge Glass Shelf x 3

Freezer Balcony x 4Lower Balcony x

Salad Bin Cover x 2

Freezer Drawer Cover x 2

Salad Bin x 2

Freezer Drawer x 2

Ice Tray x 1Egg Tray x 1

Hex Wrench x 1

Instruction Manual

If items are missing or damaged please contact Partmaster (UK only).

Tel: [phone] for assistance.

installation

location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16^irc C and 38^irc C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

levelling and anchoring the unit

To do this adjust the two levelling and anchoring feet at the front of the unit.

If the unit is not level, the doors and magnetic seal alignments will not be covered properly. If not anchored, the unit will move when door is opened.

Technical line drawing of a dual-side container or storage unit with mounting legs (no text or symbols)

free space requirements

When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear of the unit and 25 mm at the top of the unit. Please ensure there is more than twice the width and depth distance space of the unit to fully open the doors to a maximum angle.

installation

removing the door handles

tool required: Hex wrench

• Ensure the unit is unplugged and empty.
  • All parts removed must be saved to do the reinstallation of the door.

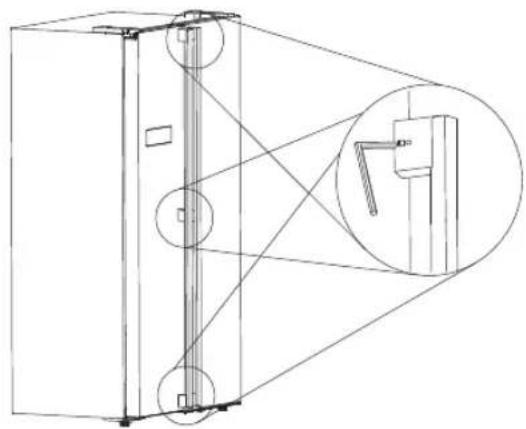

• Unscrew handles with Hex wrench.

Technical line drawing of a cabinet with an inset showing its exterior view (no text or symbols)

1. Pull to remove the handles.

Diagram of a refrigerator with an arrow indicating direction (no text or symbols present)

1. After the unit is positioned, install and screw back the handles.

installation

removing the doors

tool required: Philips style screwdriver / Flat bladed screwdriver

• Ensure the unit is unplugged and empty.
• To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. a chair just below the top panel.
  • All parts removed must be saved to do the reinstallation of the door.

• Do not lay the unit flat as this may damage the coolant system.
  • We recommend that 2 people handle the unit during assembly.

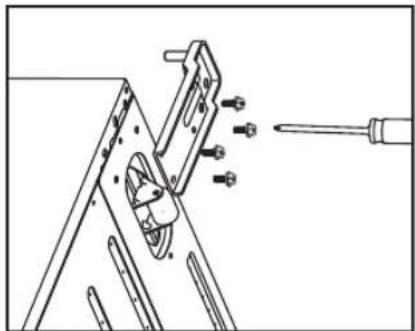

• Unscrew hinge cover by screwdriver.

Technical line drawing of a mechanical assembly with a screwdriver inserted into a component (no text or symbols)

1. Disconnect the harness.

Pure technical line drawing of a mechanical assembly or bracket (no text or symbols)

installation

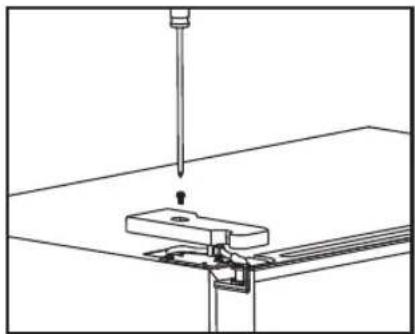

1. Unscrew top hinge.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Lift the door and place it on a soft pad. Repeat the above steps to remove the other door.

Line drawing of a door with an open lid, showing front and side views (no text or symbols)

1. Unscrew bottom hinges.

Technical line drawing of a mechanical assembly with a screwdriver inserted (no text or symbols)

1. After the unit is positioned, install and screw back the doors.

installation

cleaning before use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the drawers. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the unit.
• Before Turning On!
Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

before using your unit

before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

product overview

main unit

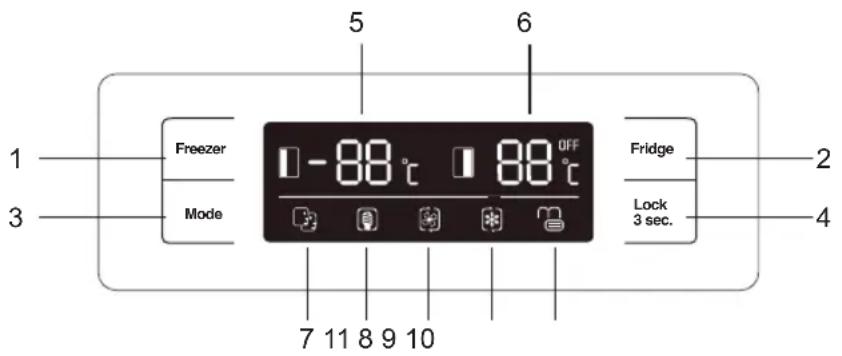

display and control panel

button

1. Freezer button: Press to adjust temperature of freezer compartment from -14^ircC to -22^ircC .
2. Fridge button: Press to adjust temperature of fridge compartment from 2^irc C to 8^irc C and "OFF". If "OFF" is selected, the fridge compartment will turn off.
3. Mode button: Press to select mode from SMART mode, ECO mode, SUPER COOLING mode, SUPER FREEZING mode and user's setting (no symbol in display).
4. Lock 3 sec. button: Press and hold for 3 seconds to lock the other three buttons. Press and hold for 1 second to unlock buttons.

display

1. Display the setting temperature of freezer compartment.
2. Display the setting temperature of fridge compartment.
3. SMART mode
4. ECO mode
5. SUPER COOLING mode
6. SUPER FREEZING mode
7. The symbol will light up if buttons are locked.

The time to reach the set temperatures will vary depending on the temperature difference and the type and amount of food stored in the compartments.

Before changing any setting, ensure the Lock has been disabled.

temperature setting

- Fridge temperature setting

1. Temperature range: 2^irc C to 8^irc C.
2. Press the Mode button to select user's setting (no symbol in display).
3. Press the Fridge button repeatedly to set the temperature.

• Freezer temperature setting

1. Temperature range: -14^ircC to -22^ircC .
2. Press the Mode button to select user's setting (no symbol in display).
3. Press the Freezer button repeatedly to set the temperature.

smart mode

• Press the Mode button to select the SMART mode.
• The refrigerator sets the temperature of two compartments automatically according to internal and external temperatures.

eco mode

• Press the Mode button to select the ECO mode.
  • The refrigerator runs in lowest energy consumption setting.

super cooling mode

• Press the Mode button to select the SUPER COOLING mode.
• The fridge compartment is set to the lowest temperature for approximately 2 hours. Then the original temperature set before will be automatically restored.

super freezing mode

• Press the Mode button to select the SUPER FREEZING mode.
• The freezer compartment is set to the lowest temperature for approximately 6 hours. Then the original temperature set before will be automatically restored.

door open alarm

The alarm will sound when door is left open for 90 seconds and it will not stop until the door is closed.

noises inside the unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

tips for keeping food in the unit

• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf at the bottom of the fridge compartment.
• Leave space around your food, to allow air to circulate inside the compartments. Ensure all parts of the unit are kept cool.
• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
• Always let pre-cooked food cool down before you put it in the unit. This will help to maintain the internal temperature of the unit.
  • To prevent cold air escaping from the unit, try to limit the number of times you open the doors. We recommend that you only open the doors when you need to put food in or take food out.

preparations for freezing

• Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better.
• Leave cooked food to cool completely. Chill food before freezing if possible.
• Consider how you will want to cook the food before freezing it.
• Don't freeze food in metal containers if you may want to microwave it straight from the freezer.
• Use special freezer bags, freezer film, polythene bags, plastic containers, and aluminium foil (heavy duty grade only). If in doubt, double wrap your food. Don't use aluminium foil for acidic foods, e.g. citrus fruits. Don't use thin cling film, glass, or used food containers without cleaning.
• Exclude as much air from the container as possible. You could buy a special vacuum pump which sucks excessive air out of the packaging.

- Leave a small amount of air space when freezing liquids to allow expansion.

- You can use the space in the freezer most efficiently if you freeze liquids (or solids with liquids, e.g. stew) in square blocks. This is known as "Preforming". Pour the liquid into a polythene bag which is inside a square sided container. Freeze it, and then remove it from the container and seal the bag.

- Label your frozen foods as they will look the same when in frozen state. Use special freezer tapes, labels and pens with different colours. This allows you to easily organise and to effectively use the freezer. Write the contents and date; otherwise the frozen food might exceed the storage time and this could cause food poisoning. Please refer to your food packaging for the recommended storage time.

- You may also add the weight and cooking notes, e.g. “defrost first”, “cook from frozen” and keep a separate log of what is in each drawer. This will save opening the door and searching around unnecessarily.

Illustration of a hand pouring liquid into a container with a spoon (no text or symbols)

defrosting frozen food

1. Take the frozen food out from the unit and uncover the frozen food. Let it defrost at room temperature. Don't forget that defrosting in a warm area encourages the growth of bacteria and low temperature cooking may not destroy dangerous bacteria.
2. Drain off and throw away any liquid lost during defrosting.
3. Always make sure there are no ice-crystals in the food before cooking, particularly with meat. These crystals indicate that the food has not fully defrosted.
4. Cook food as soon as possible after defrosting.
5. Many microwaves and ovens have a defrost setting. To avoid bacterial build up, only use these if you intend to cook the food immediately afterwards.

Never re-freeze anything that has been defrosted unless you cook it again, to kill off harmful bacteria. Never re-freeze defrosted shellfish. Re-seal packs properly after removing items. This prevents drying or freezer-burn and a build up of frost on any remaining food.

cleaning

cleaning the interior and the exterior of the unit

• Remove all the shelves and drawers.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves and drawers.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

maintenance

care when handling / moving your unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

switching off for long periods of time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

condensation

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the door as a safeguard.

specification

Rated Voltage	220 - 240V~ 50Hz
Rated Current	1.3 A
Rated Power	120 W (Defrost: 270 W)
Overall Dimension (H x W x D)	1780 x 900 x 700 mm

Features and specifications are subject to change without prior notice.

product fiche

Brand	Kenwood
Model	KSBSB17 / KSBSW17 / KSBSX17
Household Appliance Category	7
Energy Efficiency Class	A+
Energy consumption 401 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Fridge Storage Volume	335 L
Freezer Storage Volume	167 L
Frost Free (for the freezer compartment)
Temperature Rise Time	>8 hours
Freezing Capacity	10 kg/24 hrs
Climate Class	STThis appliance is intended to be used at an ambient temperature between 16°C and 38°C to achieve the claimed Energy Consumption and Grading.
Airborne Acoustical Noise	43 dB(A) re 1 pW

Need Help with your product?

Your product is supported by Knowhow

under a Trademark Licence from Fisher & Paykel Appliances Italy SpA.

For help or spare parts please call us on:

0344 561 1234

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

DSG Retail Ltd. (co. no. 504877) 1 Portal Way, London, W3 6RS, UK

Manufactured for DSG Retail Limited under Licence from Fisher & Paykel Appliances Italy SpA. DSG Retail Limited is responsible for after sales service.
