K4D556X18 - Freezer KENWOOD - Free user manual and instructions

Product Type	Frost Free Fridge Freezer with Water Dispenser
Brand	Kenwood
Model	K4D556X18
Total Net Volume	539 L (Fridge 359 L, Freezer 180 L)
Freezer Storage Volume	90 L (drawer) + 90 L (My Fresh Choice)
Energy Efficiency Class	A+
Annual Energy Consumption	410 kWh/year
Climate Class	SN, N, ST (10°C to 38°C)
Freezing Capacity	12 kg/24h
Temperature Rise Time	10 hours
Noise Level	43 dB(A)
Rated Voltage	220-240 V~, 50 Hz
Rated Current	1.8 A
Defrost Power	296 W
Dimensions (H x W x D)	1810 x 910 x 735 mm
Installation Clearance	25 mm sides, 50 mm rear, 25 mm top
No Frost System	Yes (Total Frost Free)
Water Dispenser	Integrated, with lock function
Control Panel	Electronic, with temperature settings and modes
Super Freeze Mode	Quickly lowers freezer to -25°C
Holiday Mode	Fridge at 15°C, freezer at -18°C
Smart Mode	Auto temperature for optimal food preservation
Child Lock	Yes, prevents accidental button presses
Door Alarm	Sounds if door open >2 minutes
Interior Light	LED (user-replaceable? No, service only)
Adjustable Feet	Yes, front levelling feet
Refrigerant	Environmentally friendly combustible gas

Frequently Asked Questions - K4D556X18 KENWOOD

How to install the Kenwood K4D556X18 freezer?

Ensure the floor is flat and firm. Leave 25 mm clearance on sides, 50 mm at rear, and 25 mm at top. Level the unit using the front feet or washers. Wait 2 hours after moving before plugging in, then wait 24 hours before adding food.

How to set the temperature on my Kenwood freezer?

Unlock the control panel by pressing Unlock for 3 seconds. Then press the Freezer button repeatedly to cycle through temperatures from -15°C to -25°C. Wait 10 seconds for the setting to confirm.

What is Super Freeze mode and how to use it?

Super Freeze mode quickly lowers the freezer temperature to -25°C to freeze fresh food fast. Press Mode repeatedly until the snowflake icon flashes, then wait 10 seconds. It deactivates automatically after several hours.

How to clean the Kenwood K4D556X18?

Unplug the unit. Remove shelves and drawers. Wipe interior with a weak bicarbonate soda solution, then rinse with warm water. Dry thoroughly. Clean exterior with a damp cloth. Clean water tank and dispenser regularly.

How to use the water dispenser?

First, clean the water tank. Fill with drinking water only (no juices or carbonated drinks). Insert the water tank into the door, ensuring the valve aligns. Push the lever to dispense water. Slide the lock to 'Unlock' before use and lock after to prevent accidental dispensing.

Why is my freezer making unusual noises?

Noises from refrigerant circulation and compressor are normal. CFC-free gases may be louder. This doesn't affect performance. If you hear persistent abnormal sounds, contact a qualified technician.

How to activate Child Lock?

Press and hold the Unlock button for 3 seconds. The lock icon will illuminate. When activated, all buttons except Unlock are disabled. To deactivate, press and hold Unlock again for 3 seconds.

What should I do if the door alarm sounds?

If any door is left open for over 2 minutes, an alarm will sound 3 times per minute for 10 minutes. Simply close the door to deactivate it.

What are the storage recommendations for frozen food?

Use quality food, freeze in small portions, and label with contents and date. Use freezer bags or airtight containers. Leave space for air circulation. Do not refreeze thawed food unless cooked again.

How to replace the LED light?

The internal LED light is not user-replaceable. Contact a qualified service agent or Kenwood support for replacement.

USER MANUAL K4D556X18 KENWOOD

Total Frost Free Fridge Freezer with Water Dispenser K4D556X18

installation / instructions manual

Exterior view of a modern stainless steel double refrigerator with a water dispenser on the side (no visible text or symbols)

Contents

safety warnings .... 3

unpacking....5

installation....6

location 6

levelling the unit....6

free space requirements....6

cleaning before use 6

before using your unit....6

product overview....7

main unit....7

operation 8

temperature setting 8

super freeze mode 8

holiday mode 8

smart mode 9

door alarm 9

child lock....9

noises inside the unit! 9

tips for keeping food in the unit 9

preparations for freezing 10

defrosting frozen food.... 10

before using the water dispenser....11

filling the water tank....11

receiving water from the water dispenser.... 12

cleaning the interior and the exterior of the unit.... 12

cleaning the water tank and water dispenser 12

maintenance....13

changing the internal LED light 13

care when handling / moving your unit.... 13

servicing 13

switching off for long periods of time 13

condensation 13

disposal....13

specifications.... 14

product fiche....14

safety warnings

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.

- This appliance is intended for indoor household use and similar applications such as:

– farm houses and by clients in hotels, motels and other residential type environment;
– bed and breakfast type environment;
– staff kitchen areas in shops, offices and other working environment;
– catering and similar non-retail applications.

- Ensure that the plug is easily accessible to enable disconnection from the mains supply.

- If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.

- Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.

- The unit must be manoeuvred by a minimum of 2 persons.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children should be supervised to ensure that they do not play with the unit.

- If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment. (If applicable)

WARNING

• Keep ventilation openings in the unit enclosure or in the built-in structure clear of obstructions.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.
• Do not damage the refrigerant circuit (The refrigerant is a very environmental-friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Thank you for purchasing your new Kenwood Fridge Freezer.

These operating instructions will help you use it properly and safely.

We recommend that you spend some time reading this installation/instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this installation/instruction manual for future reference.

unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

• main unit
• fridge glass shelf x 2
• fridge door shelf x 7 (5 big and 2 small door shelves)
  • upper salad bin cover shelf
  • upper salad bin x 2
• lower salad bin
• freezer drawer x 6 (the 2 upper drawers are open drawers, and each open drawer has a freezer tray on top)
• water tank
• ice tray
• egg tray x 2
• washer x 8
• instruction manual

location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 10^irc C and 38^irc C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

levelling the unit

Adjust the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

You can also level the unit by inserting the washers.

1. Raise the door that is lower slightly.
2. Use a plier to insert the washer in between the hinge and hinge grommet.

free space requirements

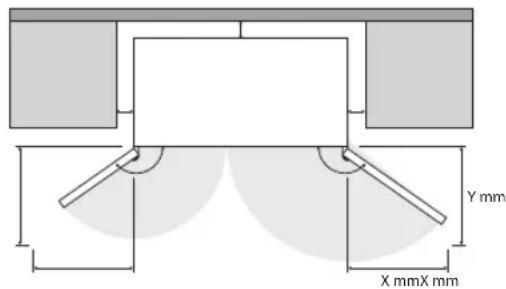

When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear of the unit and 25 mm at the top of the unit. Please ensure there is more than twice the width and depth distance space of the unit to fully open the doors to a maximum angle.

cleaning before use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the drawers. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the unit.
- Before Turning On!
Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

before using your unit

before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

product overview

main unit

The "My Fresh Choice" compartment can be used to keep food fresh for a period of storage:

• -5°C to store some seafood (e.g. lobster, fish) and fresh meat for short-term storage (1 to 3 days)
• -10°C to store meat for mid-term storage (1 month or more)
• -18°C to store ice-cream and meat for long-term storage (more than 3 months)

The freezer trays can be used to store small items of food.

operation

Plug the unit to the mains socket. The internal temperature of your unit is controlled by an electronic control panel on the door. Before changing any setting, ensure the lock 🔒 is disabled by pressing the Unlock button for 3 seconds.

temperature setting

- Fridge temperature setting

1. Temperature range: 2^irc C to 8^irc C.
2. Press the Fridge button repeatedly to set this compartment's temperature. Setting to "OF" will turn off this compartment.
3. When a temperature is selected, wait for the corresponding temperature to flash for about 10 seconds until it becomes steady. The selected temperature is confirmed.

• My Fresh Choice temperature setting

1. Temperature range: 5°C to -20°C.
2. Press the My Fresh Choice button repeatedly to set this compartment's temperature. Setting to "OF" will turn off this compartment.
3. When a temperature is selected, wait for the corresponding temperature to flash for about 10 seconds until it becomes steady. The selected temperature is confirmed.

• Freezer temperature setting

1. Temperature range: -15^ircC to -25^ircC .
2. Press the Freezer button repeatedly to set this compartment's temperature.
3. When a temperature is selected, wait for the corresponding temperature to flash for about 10 seconds until it becomes steady. The selected temperature is confirmed.

• The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the doors often.
• To ensure that the unit is cool enough to sufficiently chill your food, wait 24 hours before filling it with food.
• If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops. Place the thermometer in either the fridge or freezer compartment and leave overnight.

super freeze mode

• Press the Mode button repeatedly to select the super freeze function. ✗ will flash for about 10 seconds until it becomes steady. Temperature in the freezer will be quickly lowered to -25°C.
• To switch off, press any button except the Unlock button, and the freezer temperature will resume to the previous setting. Otherwise, super freeze mode will also automatically deactivate after several hours, and the freezer temperature will resume to the previous setting.

holiday mode

- If you will be away for a period of time, you can set the unit to holiday mode. Press the Mode button repeatedly to select the holiday function. 🏠 will flash for about 10 seconds until it becomes steady. Temperature in the fridge will automatically set to 15°C and the freezer temperature will automatically set to -18°C. Do not store any food in the fridge during holiday mode.

- To switch off, press any button except the Unlock button, and the fridge temperature will resume to the previous setting.

smart mode

• The fridge and freezer temperature in this mode is programmed to keep food fresh.
• Press the Mode button repeatedly to select the smart function. _Ai will flash for about 10 seconds until it becomes steady. The temperature of the unit will set automatically (fridge temperature: 5^ircC ; freezer temperature: -18^ircC ).
  • To switch off, press any button except the Unlock button.

door alarm

• If any door is left open for over 2 minutes, door alarm will be activated. The alarm will sound 3 times per minute and will automatically stop sounding after 10 minutes.
• Close the door to deactivate the alarm.

child lock

When child lock is activated, pressing all buttons will not work except pressing the Unlock button.

• To activate child lock, press the Unlock button for 3 seconds. The lock icon 🔒 will illuminate.
• To deactivate child lock, press the Unlock button for 3 seconds. The lock icon will extinguish.

noises inside the unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

tips for keeping food in the unit

• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf at the bottom of the fridge compartment.
• Leave space around your food, to allow air to circulate inside the compartments. Ensure all parts of the unit are kept cool.
• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
  • Always let pre-cooked food cool down before you put it in the unit. This will help to maintain the internal temperature of the unit.
  • To prevent cold air escaping from the unit, try to limit the number of times you open the doors. We recommend that you only open the doors when you need to put food in or take food out.

preparations for freezing

• Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better.
• Leave cooked food to cool completely. Chill food before freezing if possible.
• Consider how you will want to cook the food before freezing it.
• Don't freeze food in metal containers if you may want to microwave it straight from the freezer.
• Use special freezer bags, freezer film, polythene bags, plastic containers, and aluminium foil (heavy duty grade only). If in doubt, double wrap your food. Don't use aluminium foil for acidic foods, e.g. citrus fruits. Don't use thin cling film, glass, or used food containers without cleaning.
• Exclude as much air from the container as possible. You could buy a special vacuum pump which sucks excessive air out of the packaging.

- Leave a small amount of air space when freezing liquids to allow expansion.

- You can use the space in the freezer most efficiently if you freeze liquids (or solids with liquids, e.g. stew) in square blocks. This is known as "Preforming". Pour the liquid into a polythene bag which is inside a square sided container. Freeze it, and then remove it from the container and seal the bag.

- Label your frozen foods as they will look the same when in frozen state. Use special freezer tapes, labels and pens with different colours. This allows you to easily organise and to effectively use the freezer. Write the contents and date; otherwise the frozen food might exceed the storage time and this could cause food poisoning. Please refer to your food packaging for the recommended storage time.

- You may also add the weight and cooking notes, e.g. "defrost first", "cook from frozen" and keep a separate log of what is in each drawer. This will save opening the door and searching around unnecessarily.

defrosting frozen food

1. Take the frozen food out from the unit and uncover the frozen food. Let it defrost at room temperature. Don't forget that defrosting in a warm area encourages the growth of bacteria and low temperature cooking may not destroy dangerous bacteria.
2. Drain off and throw away any liquid lost during defrosting.
3. Always make sure there are no ice-crystals in the food before cooking, particularly with meat. These crystals indicate that the food has not fully defrosted.
4. Cook food as soon as possible after defrosting.
5. Many microwaves and ovens have a defrost setting. To avoid bacterial build up, only use these if you intend to cook the food immediately afterwards.

Never re-freeze anything that has been defrosted unless you cook it again, to kill off harmful bacteria. Never re-freeze defrosted shellfish. Re-seal packs properly after removing items. This prevents drying or freezer-burn and a build up of frost on any remaining food.

before using the water dispenser

Before using the water dispenser, clean the water tank first.

1. Take out the water tank by gripping it tightly on both sides, then keep pulling it upward with some force until removed.

2. Take off the water tank cover, and wash the water tank, valve and its cover. After washing, drain the water from inside the tank and replace the cover.

3. Insert the water tank valve into the water dispenser hole first.

Illustration of hands holding a device with bidirectional arrows indicating movement (no text or symbols)

Be careful not to press on the tank valve.

1. Fit the water tank along the guides on the door. Press down on both sides of the water tank.
2. When a click is heard, that means the installation is completed.

filling the water tank

You can fill drinking water into the water tank through either opening the small lid or the large lid. Close the lid after filling.

• Do not fill above the level, otherwise, it may overflow.
• Before filling with water, ensure that the water tank is steady and in a correct position.
• Apart from drinking water, other beverages (such as milk, juice, carbonated beverage, etc) are not suggested to be used, especially beverages that include grain must not be used (may result in blockage and damage).
• Hot water must not be filled into the water tank directly.
• Do not touch other parts of the unit when filling water, it may lead to leakage.

receiving water from the water dispenser

- You should use the type of container that can fit under the water dispenser. Place the container properly underneath and push on the lever for water to flow.

- Before you dispense the water, make sure the lock device is at "Unlock" position.

• Ensure to slide to "Lock" position after each use to prevent children from playing with the lever.
• When at "Lock" position, do not push on the lever with force. It will damage the mechanism.

cleaning the interior and the exterior of the unit

• Remove all the shelves and drawers.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves and drawers.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

cleaning the water tank and water dispenser

• Remove the water tank. Wash the tank, tank cover, small lid and valve lightly under water (see the section "before using the water dispenser").
  • After cleaning, dry them thoroughly before installing back in the fridge.
• Wipe the receiving base of the water dispenser with dry towel regularly to avoid overflowing.

Receiving base

Line drawing of a rectangular electronic device with a label and internal components (no text or symbols)

maintenance

changing the internal LED light

The internal light is an LED panel that cannot be changed by the user. Please contact a qualified service agent.

care when handling / moving your unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

switching off for long periods of time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

condensation

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the door as a safeguard.

specifications

Rated Voltage	220-240V~, 50 Hz
Rated Current	1.8 A
Rated Power	Defrost: 296 W
Dimension (H x W x D)	1810 x 910 x 735 mm

Features and specifications are subject to change without prior notice.

product fiche

Brand	Kenwood
Model	K4D556X18
Household Appliance Category	7
Energy Efficiency Class	A+
Energy consumption 410 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Fridge Storage Volume	359 L
Freezer Storage Volume	Freezer drawer: 90 L My Fresh Choice freezer drawer: 90 L
Total frost-free for the freezer compartment.
Temperature Rise Time	10 hours
Freezing Capacity	12 kg / 24 hours
Climate Class	SN, N, STThis appliance is intended to be used at an ambient temperature between 10°C and 38°C.
Airborne Acoustical Noise	43 dB(A) re 1 pW

Need Help with your product?

Your product is supported by Knowhow

under a Trademark Licence from Fisher & Paykel Appliances Italy SpA.

For help or spare parts please call us on:

0344 561 1234

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

DSG Retail Ltd. (co. no. 504877)

1 Portal Way, London, W3 6RS, UK

Manufactured for DSG Retail Limited under Licence from Fisher & Paykel Appliances Italy SpA.

DSG Retail Limited is responsible for after sales service.
