Product Type	Video Projector
Brand	LG
Model	RD-JT90
Display Technology	DLP
Native Resolution	XGA (1024 x 768)
Brightness	2500 ANSI Lumens
Contrast Ratio	2000:1
Lamp Life	Up to 4000 hours (Standard Mode)
Lamp Type	200W UHP
Zoom	Manual, 1.1x
Keystone Correction	Manual, ±30° Vertical
Input Ports	VGA (x2), S-Video, Composite, Audio (3.5mm)
Output Ports	VGA (Monitor Out), Audio (3.5mm)
Dimensions (W x H x D)	270 x 80 x 210 mm
Weight	2.5 kg
Power Consumption	260W (Standby: <1W)
Noise Level	32 dB (Eco Mode)
Air Filter Maintenance	Clean every 500 hours
Safety Features	Overheat protection, automatic power off
Replacement Lamp	Model: LG LMP-200UHP

Frequently Asked Questions - RD-JT90 LG

How do I adjust the focus on the LG RD-JT90?

Turn the focus ring located on the lens clockwise or counterclockwise until the image is sharp.

How do I replace the lamp?

Turn off the projector and unplug it. Allow it to cool for 15 minutes. Remove the lamp cover screw, slide the latch, and pull out the old lamp. Insert the new replacement lamp (LG LMP-200UHP) and secure it.

How do I connect my computer?

Use a VGA cable to connect your computer's VGA output to the projector's VGA input (labeled 'PC'). Alternatively, use an HDMI to VGA adapter if needed.

What should I do if the projector does not turn on?

Check that the power cord is securely connected. Ensure the power switch on the back is on. If the lamp indicator blinks, wait 60 seconds and try again. If still off, replace the lamp.

How do I clean the air filter?

Turn off and unplug the projector. Open the filter cover on the side, remove the filter, and tap it gently to remove dust. Use a vacuum cleaner on low if needed. Reinstall the filter and close the cover.

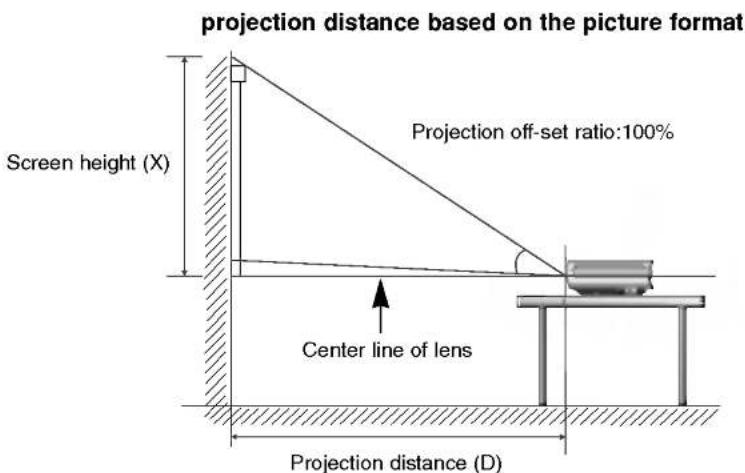

What is the recommended projection distance?

The throw ratio is approximately 1.9-2.1:1. For a 100-inch diagonal image, place the projector about 3.8 to 4.2 meters from the screen.

How do I perform a factory reset?

Go to the on-screen menu (press 'Menu' button). Navigate to 'System Settings' or 'Setup', then select 'Factory Reset' and confirm. All settings will return to defaults.

Can I use a ceiling mount?

Yes, the LG RD-JT90 supports ceiling mounting. Use a compatible universal projector mount with 4 x M6 screw holes spaced 100mm apart. Ensure the mount can hold 2.5 kg.

What type of batteries does the remote control use?

The remote control uses two AAA batteries (not included). Open the battery compartment at the back and insert batteries with correct polarity.

How do I adjust the volume?

Press the Volume +/- buttons on the remote or projector control panel. The built-in speaker volume adjusts accordingly. For external audio, connect via the audio output port.

USER MANUAL RD-JT90 LG

Please read this manual carefully before operating your set.

Retain it for future reference.

Record model number and serial number of the set.

See the label attached on the bottom of the set and quote this information to your dealer when you require service.

Model number :

Serial number :

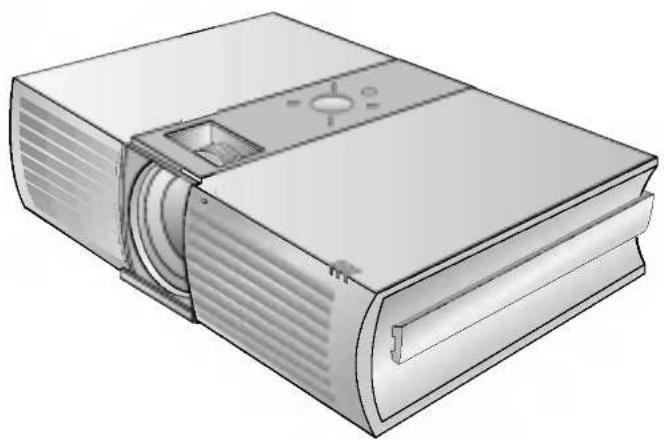

RD-JT90 OWNER'S MANUAL

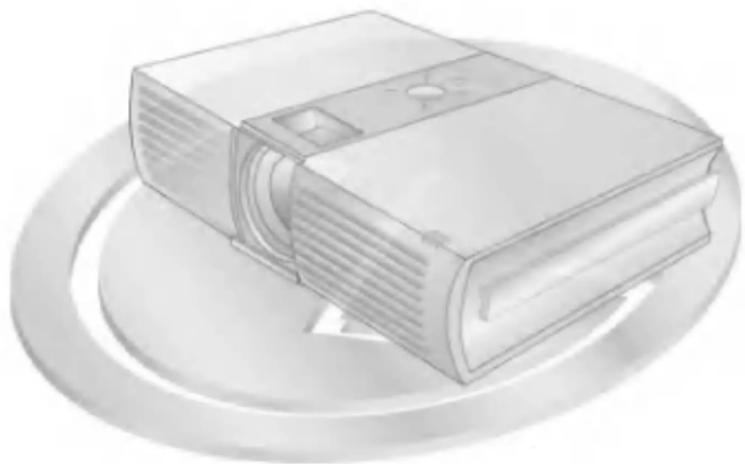

Illustration of a projector with a slide and ventilation slots (no text or symbols)

DLP PROJECTOR

FCC NOTICE

• A Class A digital device

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Warning

This is a class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.

Illustration of a closed book with visible pages and cover (no text or symbols)

Contents

Introduction

Safety Instructions 4-6

Names of parts

Main Body....7

Connecting Part 7

Control Panel 8

Remote Control....9

Installing Batteries....9

Projector Status Indicators....10

Accessories....11

Optional Extras ....11

Installing and Composition

Installation Instructions ....12

Basic Operation of the Projector....13

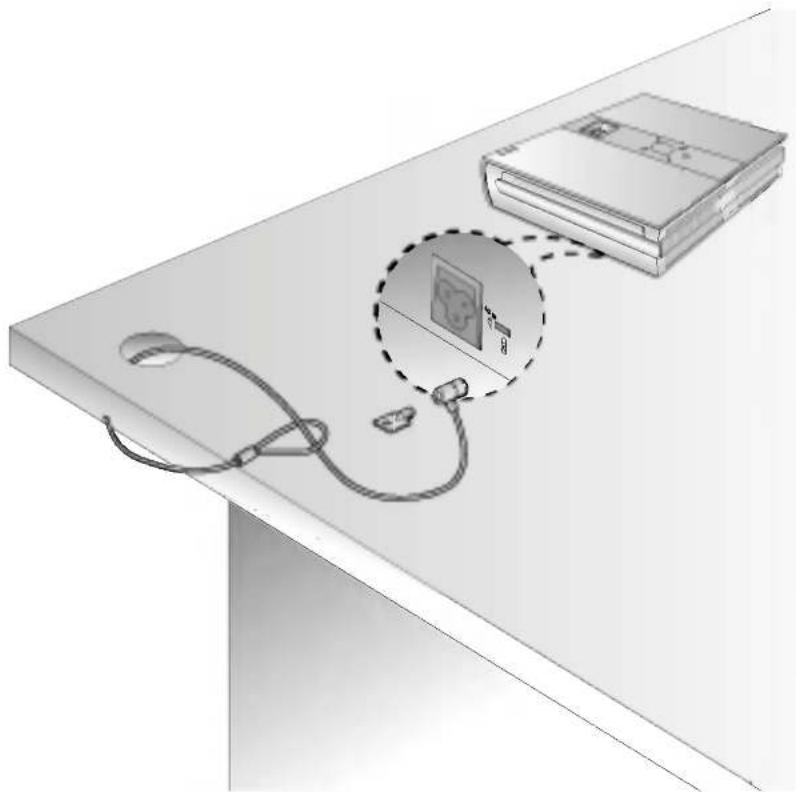

Using Kensington Security System......14

Turning on the Projector ....15

Turning off the Projector ....15

Focus and Position of the Screen Image.....16

Selecting source mode ....16

Connection

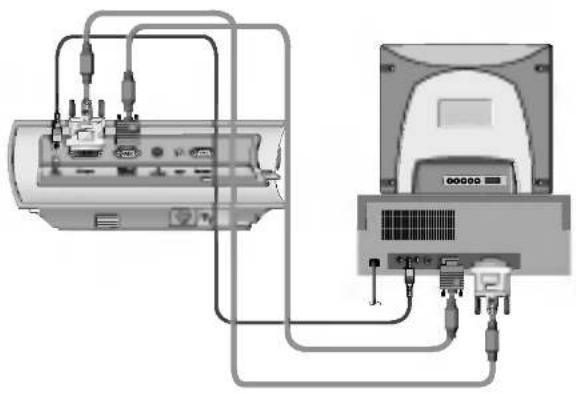

Connecting to a Desktop PC 17

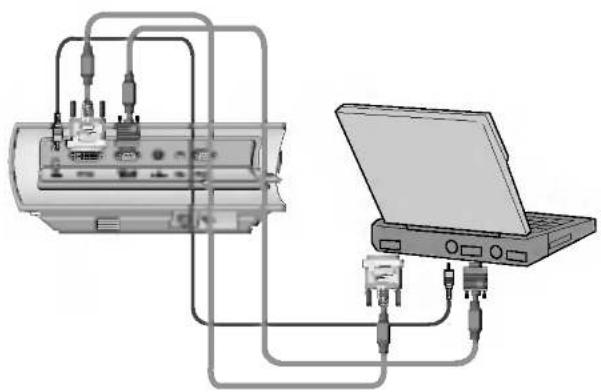

Connecting to a Notebook PC....17

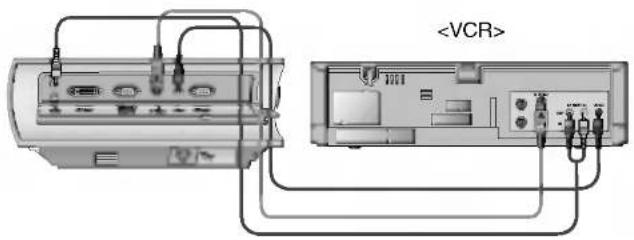

Connecting to a Video Source ....18

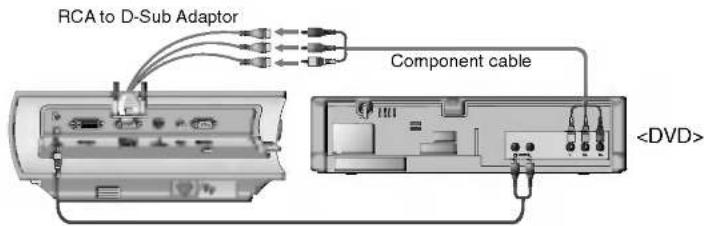

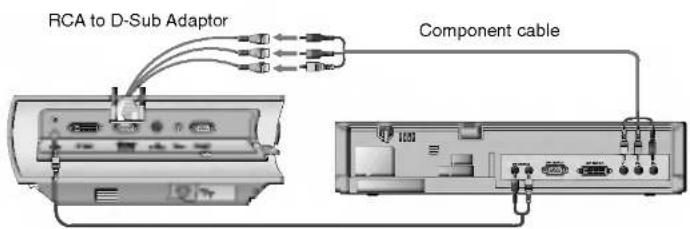

Connecting to a DVD....18

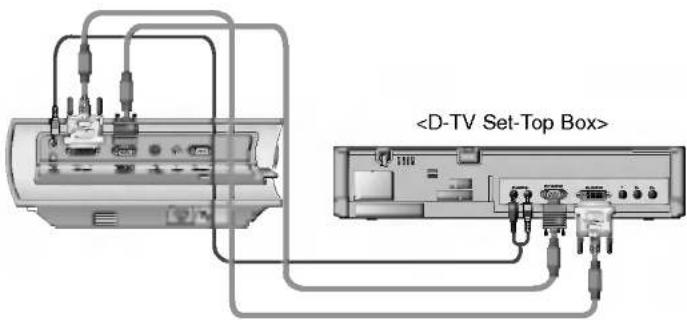

Connecting to a D-TV Set-Top Box .....18

Function

Video Menu Options

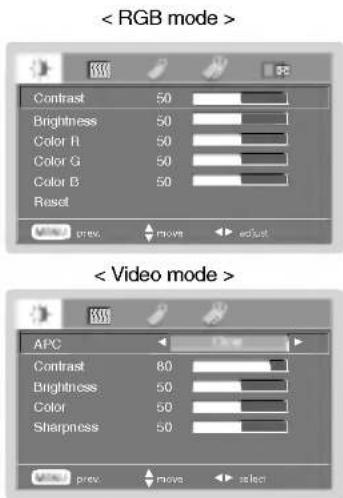

Adjusting Video 19

APC (Auto Picture Control)....19

Auto Color Temperature Control ....20

White Peaking Function....20

Gamma Function ......20

Special Menu Options

Selecting language ......21

Flip Horizontal Function ......21

Flip Vertical Function....21

Using ARC Function....22

Using Keystone function .....22

Auto Source Function 22

Using Blank function....23

Selecting Blank Image color ....23

Lamp Mode Function....23

Checking lamp time 24

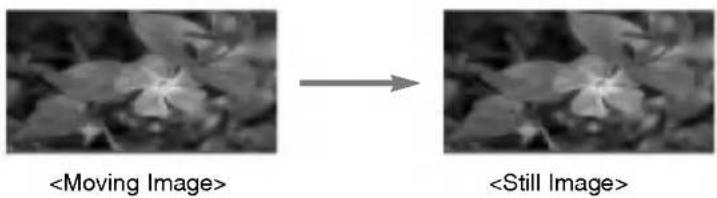

Using Still function 24

Screen Menu Options

Auto Tracking Function 25

Clock / Phase Function....25

Screen Position 25

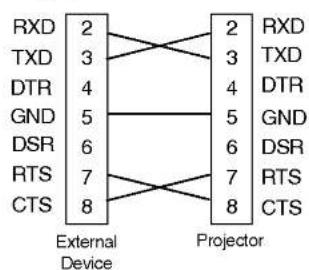

RS-232C

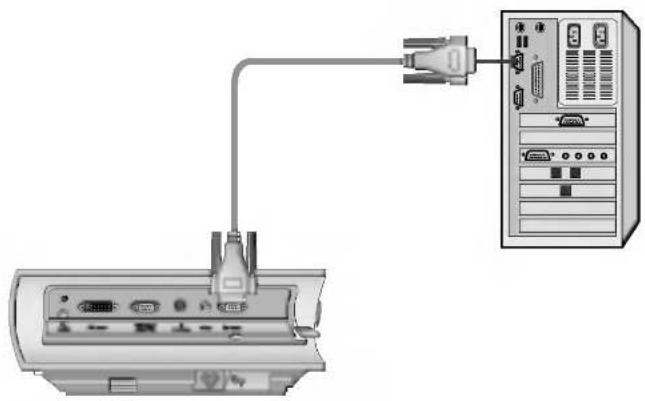

External Control Device Setup....26

Information

Supported Monitor Display....31

Maintenance....32

Memo 33

Specifications....35

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

Safety Instructions

Please take note of the safety instructions to prevent any potential accident or misuse of the projector.

→ Safety Instructions are given in two forms as detailed below.

⚠ WARNING: The violation of this instruction may cause serious injuries and even death.

NOTES: The violation of this instruction may cause light injuries or damage to the projector.

→ After reading this manual, keep it in the place that the user always can contact easily.

Indoor Installation

WARNING

Do not place the Projector in direct sunlight or near heat sources such as radiators, fires and stove etc.

This may cause a fire hazard!

Do not place inflammable materials beside the projector

This may cause a fire hazard!

Do not allow children to hang on the installed projector.

It may cause the projector to fall, causing injury or death.

Indoor Installation

NOTES

Disconnect from the mains and remove all connections before moving.

Do not place the projector close to sources of steam or oil such as a humidifier.

This may create a fire hazard or an electric shock hazard!

Do not place the projector where it might be exposed to dust.

This may cause a fire hazard!

When installing the projector on a table, be careful not to place it near the edge.

Only use the projector on a level and stable surface.

This may cause the projector to fall causing serious injury to a child or adult and serious damage to the projector.

It may become unstable and affect operation.

Ensure good ventilation around the projector. The distance between the projector and the wall should be more than 20cm/8 inches.

An excessive increase in its internal temperature may cause a fire hazard!

Do not block the vents of the projector or restrict air-flow in any way.

Do not place the projector directly on a carpet, rug or place where ventilation is restricted.

This would cause the internal temperature to increase and could cause a fire hazard!

This would cause its internal temperature to increase and might create a fire hazard!

Outdoor Installation

WARNING

Do not use the projector in a damp place such as a bathroom where it is likely to get wet.

This may cause a fire or an electric shock hazard!

Power

WARNING

Earth wire should be connected.

If the earth wire is not connected, there is a possible danger of electric shock caused by the current leakage.

If grounding methods are not possible, a separate circuit breaker should be employed and installed by a qualified electrician.

Do not connect ground to telephone wires, lightning rods or gas pipe.

The mains plug should be inserted fully into the power outlet to avoid a fire hazard!

This may cause a fire hazard!

Do not place heavy objects on the power cord

This may cause a fire or an electric shock hazard!

Power

WARNING

Do not use too many plugs on the Mains multi-outlet.

It may result in overheating of the outlet and causes a fire hazard!

Power

NOTES

Never touch the power plug with a wet hand

This may cause an electric shock hazard!

Hold the plug firmly when unplugging. If you pull the cord the cord may be damaged.

This may cause a fire hazard!

Prevent dust collecting on the power plug pins or outlet.

This may cause a fire hazard!

Do not plug when the power cord or the plug is damaged or the connecting part of the power outlet is loose.

This may cause a fire or an electric shock hazard!

Ensure the power cord does not come into contact with sharp or hot objects such as a heater.

This may cause a fire or an electric shock hazard!

Place the projector where people will not trip or tread on the power lead.

This may cause a fire or an electric shock hazard!

Do not turn the projector On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.)

It may cause mechanical failure or could give an electric shock.

Using

WARNING

Do not place anything containing liquid on top of the projector such as flowerpot, cup, cosmetics or candle.

This may cause a fire hazard!

In case of impact shock or damage to the projector switch it off and unplug it from the mains outlet and contact your service center.

This may cause a fire or an electric shock hazard!

Do not allow any objects to fall into the projector.

This may cause an electric shock hazard!

If water is spilt into the projector unplug it from the mains supply outlet immediately and consult your Service Agent.

This may cause an electric shock hazard!

Dispose of used batteries carefully and safely.

In the case of a battery being swallowed by a child please consult a doctor immediately.

In the event that an image does not appear on the screen please switch it off and unplug it from the mains supply and contact your Service Agent.

This may cause a fire or an electric shock hazard!

Do not remove any covers (except lens cover). High risk of Electric Shock!

Don't look directly onto the lens when the projector is in use. Eye damage may occur!

Do not touch metal parts during or soon after operation since the vents and lamp cover will remain very hot!

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

Using	WARNING
Never touch the wall outlet when there is leakage of gas, open the windows and ventilate.It can cause a fire or a burn by a spark.	Do not drop the projector or allow impact shock.This may cause mechanical failure or personal injury !	Don't look at laser beam directly as it can cause eye damage!
Using	NOTES
Do not place heavy objects on top of projector.This may cause mechanical failure or personal injury!	Take care not to cause impact to the lens particularly when moving the projector.	Do not touch the lens of the projector. It is delicate and easily damaged.
Do not use any sharp tools on the projector as this will damage the casing.
Cleaning	WARNING
Do not use water while cleaning the projectorThis may cause damage to the projector or an electric shock hazard.	In the unlikely event of smoke or a strange smell from the projector, switch it off , unplug it from the wall outlet and contact your dealer or service centre.This may cause a fire or an electric shock hazard !	Use an air spray or soft cloth that is moist with a neutral detergent and water for removing dust or stains on the projection lens.
Cleaning	NOTES
Contact the Service Center once a year to clean the internal parts of the projector.Accumulated dust can cause mechanical failure.	Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.This may cause damage to the Projector or cause an electric shock hazard !
Others	WARNING
Do not attempt to service the projector yourself. Contact your dealer or service centre.This may cause damage to the projector and could give an electric Shock as well as invalidating the warranty !
Others	NOTES
Be sure to unplug if the projector is not to be used for a long period.Accumulated dust may cause a fire hazard!	Refer lamp servicing to qualified service personnel.	Do not mix new batteries with old batteries.This may cause the batteries to over-heat and leak.
Only use the specified type of battery.This could cause damage to the remote control.

Names of parts

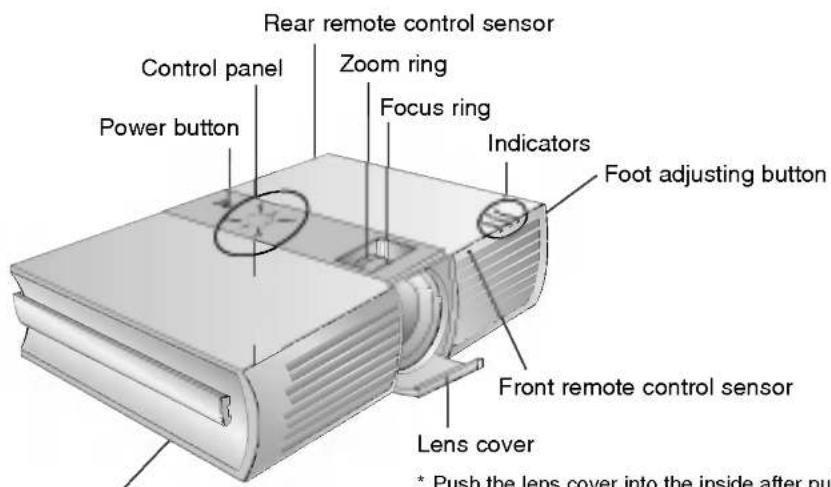

Main Body

* The projector is manufactured using high-precision technology. You may, however, see on the Projector screen tiny black points and/or bright points (red, blue, or green). This can be a normal result of the manufacturing process and does not always indicate a malfunction.

Foot adjusting button
* Push the lens cover into the inside after pulling it open into the front. (If you mount on the ceiling, after pushing the cover, the lens cover is installed. If not, the cover may overlap projecting lens.)

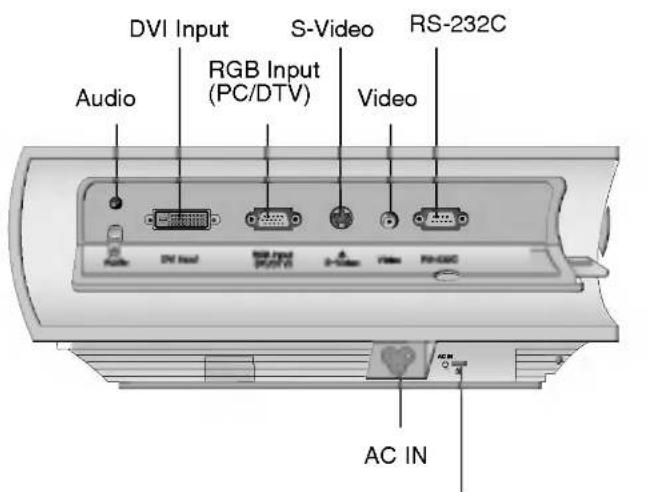

Connecting Part

Kensington Security System Connector (Refer to page 14)

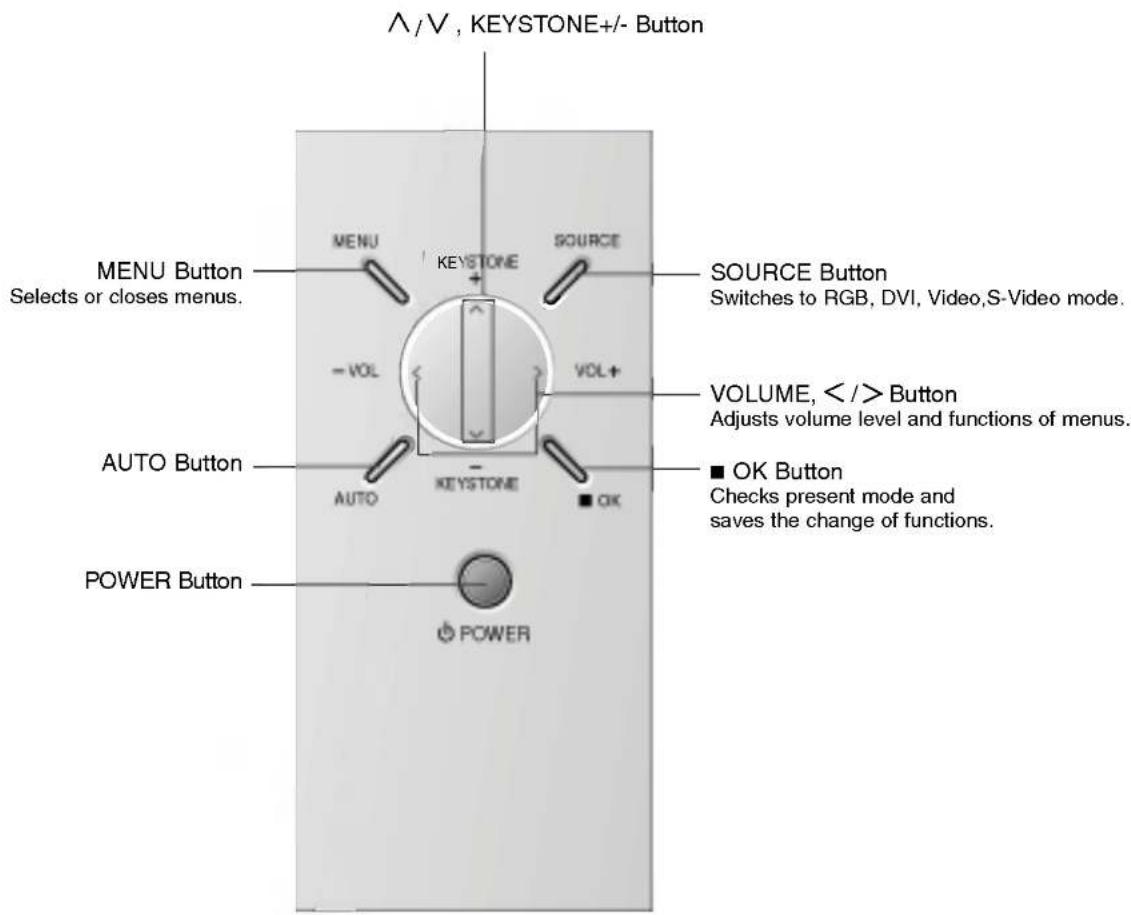

Control Panel

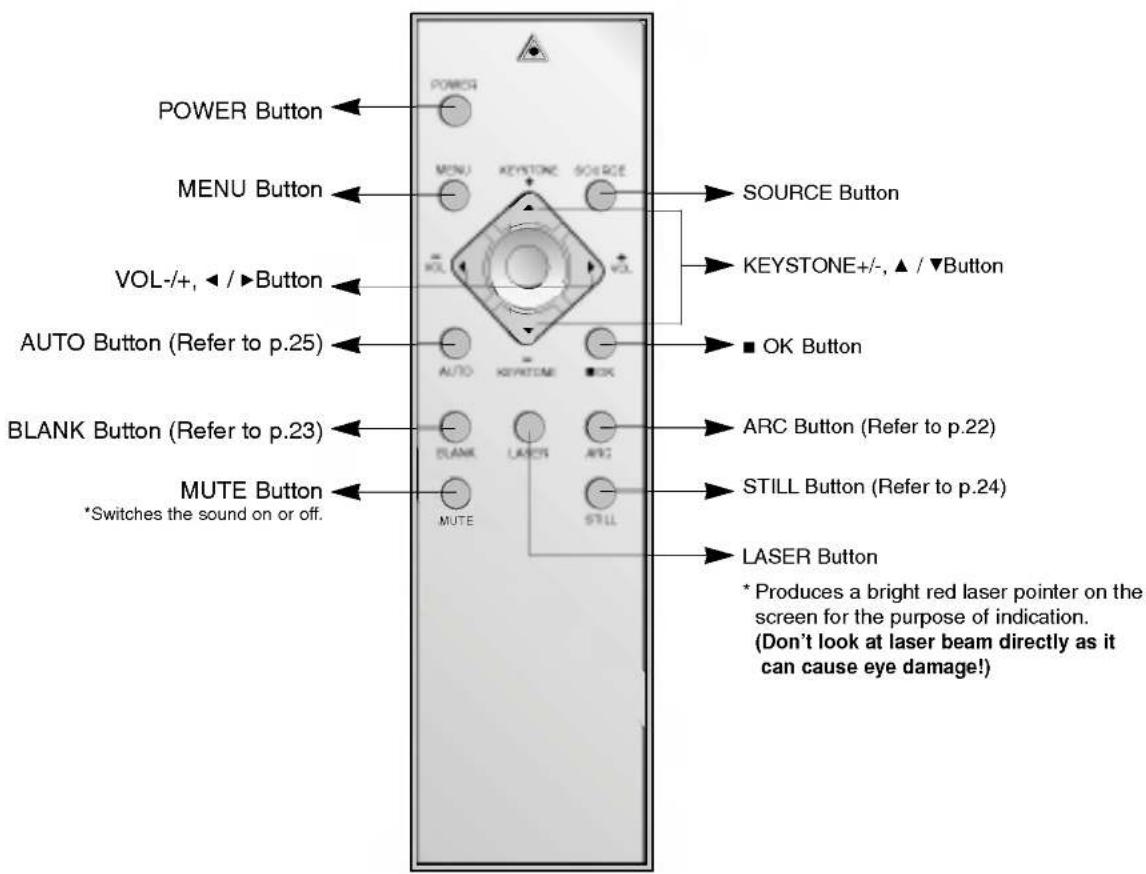

Remote Control

Installing Batteries

• Open the battery compartment cover on the back of the remote control and insert the batteries with correct polarity, match "+" with "+" and match "-" with "-"
• Install two 1.5V "AAA" batteries. Don't mix used batteries with new batteries.

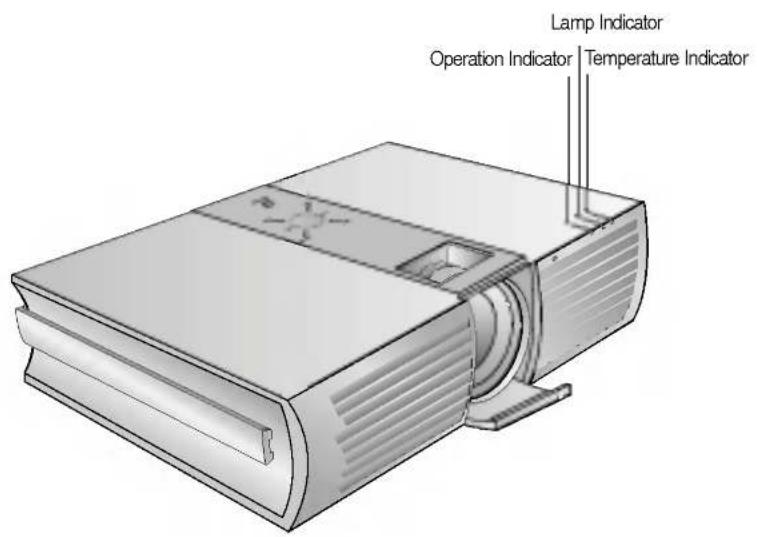

Projector Status Indicators

* Lamp Indicator, operation indicator and temperature indicator at the top of the projector show the user the operating status of the projector.

Operation Indicator	Orange	Standby.
	Green(flashing)	Lamp cooling until the lamp turn on.
	Green	On operation. (Turn on the lamp)
	Orange(flashing)	Projector lamp is cooling as power out (2 minutes)
	Off	Power off.
Lamp Indicator	Red	Projector lamp is reaching the end of its life and needs to be replaced with a new lamp. (over 2000 hours)
	Red(flashing)	The projector has trouble in the lamp or around it at power-on. Retry Power On again later. If lamp indicator is red (flashing) again, contact the service center.
	Green(flashing)	The lamp cover is not closed.
Temperature Indicator	Orange	This projector is in high temperature. Turn the power of projector off and check the ventilator.
	Red	The projector is turned off as its high temperature.
	Red (flashing)	Power has turned off due to problem with the internal cooling fan. Contact your service center.

Accessories

Remote Control

2 Batteries (size AAA)

Power Cord

Video Cable

Computer Cable

RCA to D-Sub Adaptor

Operating guide

Optional Extras

* Contact your dealer to purchase these items.
* When applying a ceiling installer, use only the ceiling installer for projector.
* Contact your service personnel for replacing a new lamp.
* Projector lamp is reaching the end of its life and needs to be replaced with a new lamp.

Projection Screen

Lamp

SCART to RCA jack (option)

Audio Cable

RCA to PC Audio Cable

Portable Bag

Ceiling installer for projector

Two 3D mechanical parts: a cross-shaped component and a vertical stand (no text or symbols visible)

S-Video Cable

DVI-D Cable

RS-232C Cable

Installation and Composition

Installation Instructions

* Don't place the projector in the following conditions. It may cause malfunction or product damage.

Provide proper ventilation for this projector.

●The projector is equipped with ventilation holes(intake) on the bottom and ventilation holes(exhaust) on the front. do not block or place anything near these holes, or internal heat build-up may occur, causing picture degradation or damage to the projector.

●Never push projector or spill liquid of any kind into the projector.

- Do not place the projector on a carpet, rug or other similar surface. It may prevent a adequate ventilation of the projector bottom. This product should be mounted to a wall or ceiling only.

●Leave an adequate distance(30cm/12 inches or more) around the projector.

Place this projector in adequate temperature and humidity conditions.

● Install this projector only in a location where adequate temperature and humidity is available. (refer p.35)

Don't place the projector where it can be covered with dust.

● This may cause overheating of the projector.

Do not obstruct the slots and openings of the projector. This may cause overheating and create a fire hazard.

The projector is manufactured using high-precision technology. You may, however, see tiny black points and/or bright points (red, blue, or green) that continuously appear on the projector Screen. This is a normal result of the manufacturing process and does not indicate a malfunction.

To display DTV programs, it is necessary to connect a DTV receiver (Set-top Box) and connect it to the projector.

If there is no input signal, the Menu will not be displayed on screen.

Basic Operation of the Projector

1. Place the projector on a sturdy and horizontal surface with the PC or AV source.
2. Place the projector the correct distance from the screen. The distance between the projector and the screen determines the actual size of the image.
3. Position the projector so that the lens is set at a right angle to the screen. If the projector is not set at a right angle, the screen image will be crooked. If this is so then the keystone adjustment may correct this (Refer to page 22.)
4. Connect the cables of the projector to a wall power socket and other connected sources.

4:3 picture format mm/ inches
screen size	40"	60"	80"	90"	100"	110"	120"	150"	200"
screen height (X)	610/24.0	914/36.0	1219/48.0	1372/54.0	1524/60.0	1676/66.0	1829/72.0	2286/90.0	3048/120.0
The shortest distance (D)	1265/50	1908/75	2552/100	2873/113	3195/126	3517/138	3839/151	4804/189	6412/252
The longest distance (D)	1518/60	2290/90	3062/121	3448/136	3834/151	4220/166	4606/181	5765/227	7695/303

* The longest/shortest distance show status when adjusted by the zoom function.

Using Kensington Security System

● The projector has a ‘Kensington’ Security System Connector on the back panel. Connect the ‘Kensington’ Security system cable as below.
- For the detailed installation and use of the Kensington Security System, refer to the user's guide attached to the Kensington Security System set.
And for further information, contact http://www.kensington.com, the internet homepage of the Kensington company that deals with expensive electronic equipments such as notebook PCs or projectors.
● Kensington Security System is an optional item.

Illustration of a book connected to a cable and a monitor on a desk (no text or symbols)

Turning on the Projector

1. Connect power cord correctly.

2. Remove the lens cover of the projector.

3. Press the POWER button on the remote control or top cover.

(Green operation indicator flashes during cooling of the lamp.)

● It will take about 12 second to display the picture after power on because the projector lamp has to warm up.
● An image will appear after the operation indicator light turns (Green).
- Select the source mode with the SOURCE button.
- Leave the projector plugged in for at least 2 minutes after switching off the projector, as this will allow the lamp cooling to continue which will help to preserve the lamp life.

1. Adjust volume level.

● If you press VOLUME ▶ button, sound and volume level number are increased.
● If you press VOLUME ◀ button, sound and volume level number are decreased.

Simple diagram of a vertical line with a horizontal bar and directional arrow, no text or symbols present.

Note!

* Don't unplug the power cord while the ventilation fan (inlet/outlet) is working. If so, you take longer time by lamp on.

Turning off the Projector

1. Press the POWER button on the top cover or remote control.

2. Press the POWER button on the top cover or remote control again to cut off the power.

3. If the operation indicator LED is orange and blinking, do not disconnect the mains supply until the operation indicator LED is lit up constantly (orange).

- If the operation indicator LED is orange and blinking, the power button on the top cover or on the remote control will not operate.

Focus and Position of the Screen Image

When an image appears on the screen, check if it is in focus and fits well to the screen.

● To adjust the focus of the image, rotate the focus ring which is the outer ring on the lens.
● To adjust the size of the image, rotate the zoom ring which is the inner ring on the lens.

To raise or lower the image on the screen, extend or retract the foot at the bottom of the projector by pushing foot adjuster button as below.

Front view of a modern projector unit with ventilation grilles and a circular vent (no text or symbols visible)

1. While pressing the foot adjuster button, raise or lower the projector to place the screen image in the proper position.
2. Release the button to lock the foot in its new position.
3. To fine-tune the height of the projector, rotate the front foot to raise or lower it. After raising the front foot, do not press down on the projector.

Selecting source mode

1. Press the SOURCE button.

1. Each press of the ◀, ▶ button changes the display as below.

Connection

Connecting to a Desktop PC

* You can connect the projector to a computer of VGA, SVGA, XGA and SXGA output.
* You can use ARC function for the RGB signals of the Aspect Ration 4:3. (For HD wide input signals, you cannot use ARC function.)
* Fundamentally, HD wide input signal is not included in the Spec, so the set may not support HD signal perfectly.
* Refer to page 31 for the supported pc graphic card displays of the projector.

< How to connect >

a. Connect computer cable to RGB Input (PC/DTV) of the projector.
b. If the PC has DVI output, connect DVI cable to DVI Input of the projector.
c. Connect the audio cable of PC (LINE OUT sound port) to Audio of the projector.

If the PC has two audio out ports of SPEAKER OUT and LINE OUT, connect the LINE OUT port to get better sound quality.

Diagram of a device connected to an external device via cables, showing ports and wiring (no text or symbols present)

Connecting to a Notebook PC

< How to connect >

a. Connect computer cable to RGB Input (PC/DTV) of the projector.

* If you set your computer, such as a notebook type IBM PC/AT compatible, to output the signal to both the display of your computer and the external monitor, the picture of the external monitor may not appear properly. In such cases, set the output mode of your computer to output the signal only to the external monitor. For details, refer to the operating instructions supplied with your computer.

b. If the PC has DVI output, connect DVI cable to DVI Input of the projector.

c. Connect the audio cable of PC (LINE OUT sound port) to Audio input of the projector.

Diagram showing connections between a device and a laptop, with no visible text or symbols.

Connecting to a Video Source

* You can connect a VTR, a camcorder, a LDP or any other compatible video image source to the projector.

< How to connect 1 >

a. Connect the Audio and Video input jacks of the projector to the output jacks of the A/V source with RCA to PC Audio cable, Video cable.

< How to connect 2 >

b. Connect the S-Video input jack of the projector to the S-Video output jack of an A/V source with an S-Video cable. Connect the Audio input jacks of the projector to the output jacks of the A/V source with an RCA to PC Audio cable. * You can get better picture quality when connecting S-Video source to the projector.

Connecting to a DVD

* The output jacks (Y, Pb, Pr) of the DVD might be labelled as Y, Pb, Pr / Y, B-Y, R-Y / Y, Cb, Cr according to the equipment.

< How to connect >

a. Connect the DVD Component cable to the RCA to D-Sub Adaptor and then connect the RCA to D-Sub Adaptor to RGB Input (PC/DTV) of the projector.
* When connecting the component cable, match the jack colors with the component cable.(Y=green, PB=blue, PR=red)
b. Connect the Audio port of the projector to the Audio output port (R, L) of the DVD.
c. Use a DVD with Component 480i(576i)/480p(576p) mode.

Connecting to a D-TV Set-Top Box

* To receive D-TV programmes, it is necessary to purchase a D-TV receiver (Set-Top Box) and connect it to the projector.
* Please refer to the owner's manual of the D-TV Set-Top Box for the connection between projector and D-TV Set-Top Box.

< How to connect an RGB source >

a. Connect computer cable to RGB Input (PC/DTV) of the projector.
* If the Set-Top Box has DVI output, use DVI cable.
b. Connect the Audio port of the projector to the Audio output port (R, L) of the D-TV Set-Top Box.
c. Use a DTV receiver with DTV 480p(576p)/720p/1080i mode. * It can be supported the DVI/HDCP.

< How to connect a Component source >

a. Connect the D-TV Set-Top Box Component cable to the RCA to D-Sub Adaptor and then connect the RCA to D-Sub Adaptor to RGB Input (PC/DTV) of the projector.
* When connecting the component cable, match the jack colors with the component cable.(Y=green, PB=blue, PR=red)
b. Connect the Audio port of the projector to the Audio output port (R, L) of the D-TV Set-Top Box.
c. Use a DTV receiver with DTV 480p(576p)/720p/1080i mode.

Function

* In this manual, the OSD(On Screen Display) may be different from your Projector's because it is just example to help with the Projector operation.
* If there is no input signal present, the Menu will not be displayed on the screen.
* This operating guide explains operation of RGB(PC) mode mainly.

Video Menu Options

Adjusting Video

1. Press the MENU button and then use ◀, ▶ button to select the ⚙- menu.
2. Press the OK (■) button and then use ▲, ▼ button to select a video item you want to adjust.

3. Press the ◀, ▶ button to adjust the screen condition as you want.

4. Each adjustment of menu options will not affect other input source. As required, re-adjust menu options for the following input source: Video/S-Video/Component (480i(576i)), Component (480p(576p), 720p, 1080i)

5. To restore the original image condition after changing it, press OK (■) button after selecting [Reset] item.
6. In the broadcasting system NTSC, the picture item Tint is displayed and can be adjusted.
7. To exit the menu display, repeatedly, press the MENU button.

APC (Auto Picture Control)

* Use APC to set the projector for the best picture appearance.
* This function will not work in RGB mode.

1. Press the MENU button and then use ◀, ▶ button to select the ⚫ menu.
2. Press the OK (■) button and then use ▲, ▼ button to select APC item.
3. Press the ◀, ▶ button to adjust the screen condition as you want.

- Each press of the ◀, ▶ button changes the screen as shown below.

- To exit the menu display, repeatedly, press the MENU button.

Video Menu Options

Auto Color Temperature Control

1. Press the MENU button and then use ◀, ▶ button to select the menu.
2. Press the OK (■) button and then use ▲, ▼ button to select ACC item.
3. Press the ◀, ▶ button to make appropriate adjustments.

- Each press of the ◀, ▶ button changes the screen as shown below.

- To exit the menu display, repeatedly, press the MENU button.

White Peaking Function

1. Press the MENU button and then use ◀, ▶ button to select the menu.
2. Press the OK (■) button and then use ▲, ▼ button to select White Peaking item.

3. Press the ◀, ▶ button to adjust the screen condition as you want.

4. The default value may changed based on input mode.

5. Adjust to higher value to see the bright picture and adjust to lower value to see the quality picture.
6. To exit the menu display, repeatedly, press the MENU button.

Gamma Function

1. Press the MENU button and then use ◀, ▶ button to select the [||||] menu.
2. Press the OK (■) button and then use ▲, ▼ button to select Gamma item.
3. Press the ◀, ▶ button to adjust the screen condition as you want.

- Each press of the ◀, ▶ button changes the screen as shown below.

- To exit the menu display, repeatedly, press the MENU button.

Special Menu Options

Selecting language

1. Press the MENU button and then use ◀, ▶ button to select the menu.
2. Press the OK (■) button and then use ▲, ▼ button to select Language item.
3. Press the ◀, ▶ button to select the language you want to use.
   menu.

- On-Screen-Display (OSD) is marked in the selected language from this point.

- To exit the menu display, repeatedly, press the MENU button.

Flip Horizontal Function

* This function reverses the projected image horizontally. Use this function when rear projecting an image.
1. Press the MENU button and then use ◀, ▶ button to select the menu.
2. Press the OK (■) button and then use ▲, ▼ button to select Flip Horizontal item.
3. Press the OK (■) button to see reversed image.
menu.

• Each time you press the button, the image will be reversed.

- To exit the menu display, repeatedly, press the MENU button..

Flip Vertical Function

* This function reverses the projected image vertically.
* When you hang the projector upside down from the ceiling, you will need to reverse the image vertically and horizontally.

1. Press the MENU button and then use ◀, ▶ button to select the menu.
2. Press the OK (■) button and then use ▲, ▼ button to select Flip Vertical item.
3. Press the OK (■) button to see reversed image.

• Each time you press the button, the image will be reversed.
- To exit the menu display, repeatedly, press the MENU button.

Special Menu Options

Using ARC Function

1. Press the ARC button.

Each press of the button changes the display as below.

Note!

You can also use this function by using the MENU button.

Using Keystone function

* Use this function when the screen is not at a right angle to the projector and the image is a trapezoid shape.
* Only use the Keystone function when you can't get the best angle of projection, because it may cause a blazing fire of the screen.

1. Press the KEYSTONE + or KEYSTONE - button.

2. Press the KEYSTONE + or KEYSTONE - button to adjust the screen condition as you want.

3. Keystone are adjusted from -50 to +50.

4. You can also use this function by using the MENU button.

Auto Source Function

* Automatically detects the projector input signal.

1. Press the MENU button and then use ◀, ▶ button to select the menu.
2. Press the OK (■) button and then use ▲, ▼ button to select Auto Source item.
3. Press the ◀, ▶ button to select On or Off.

- To exit the menu display, repeatedly, press the MENU button.

Using Blank function

* This function may be effective if you need to get attention of the audience during presentations, meetings or briefings.

1. Press the BLANK button.

2. The screen turns off to a background color and sound also turns off.

3. You can choose the background color.
   (Refer to 'Selecting blank image color')

4. Press any button to cancel the blank function.

- On exiting the blank status sound is also restored.

Two grayscale images showing a flower-like pattern on the left and a solid gray rectangle on the right (no text or symbols)

Selecting Blank Image color

1. Press the MENU button and then use ◀, ▶ button to select the menu.
2. Press the OK (■) button and then use ▲, ▼ button to select Blank Image item.
3. Press the ◀, ▶ button to select the color you want to use.

- Background color will be changed to the selected Blank function color from this point.

- To exit the menu display, repeatedly, press the MENU button.

Lamp Mode Function

1. Press the MENU button and then use ◀, ▶ button to select the 📋 menu.
2. Press the OK (■) button and then use ▲, ▼ button to select Lamp Mode item.
3. Press the ◀, ▶ button to select Normal mode or Silent mode.

- To exit the menu display, repeatedly, press the MENU button.

Special Menu Options

Checking lamp time

1. Press the MENU button and then use ◀, ▶ button to select the menu.

●The used lamp time is displayed.
- When projector lamp is reaching the end of its life (over 2000 hours), the lamp indicator will be turned red.
●The lamp warning LED illuminates red continuously in the case of excessive lamp time.

Using Still function

1. Press the STILL button.

* You can freeze the input image.

1. To exit Pause, press any button.

* The STILL function would release automatically after about 10 minutes.

Screen Menu Options

Auto Tracking Function

*This function assures you of getting the best video quality by automatically adjusting the difference of horizontal size and synchronization of the image.

*Auto Tracking function works in RGB input only.

1. Press the AUTO button.

- Image positioning and synchronization are automatically adjusted.

1. Adjust Clock or Phase in ☐ menu after operation of Auto Configure if you want to get better picture quality in accordance with diverse RGB input modes. In certain circumstances, you can't get the best picture quality only with auto-correction.

Note!

You can also use this function by using the MENU button. (Only in RGB mode)

For best results, perform this function while displaying a still image.

Clock / Phase Function

* Clock Function

This function adjusts the horizontal width of the projected image to get the

image to fit on the screen size.

Phase Function

This function is for the detailed adjustment of the clock function.

* It's available to adjust [Clock], [Phase] in RGB mode only.

1. Press the MENU button and then use ◀, ▶ button to select the ☐ menu.

2. Press the OK (■) button and then use ▲, ▼ button to select Clock or Phase item.

3. Press the ◀, ▶ button to adjust the screen condition.

- To exit the menu display, repeatedly, press the MENU button.

Screen Position

*If the image size does not fit the screen in accordance with the input source, set the position of the image by selecting Horizontal / Vertical position. (RGB mode)

1. Press the MENU button and then use ◀, ▶ button to select the ☐ menu.

2. Press the OK (■) button and then use ▲, ▼ button to select Horizontal or Vertical item.

3. Press the ◀, ▶ button to adjust the screen condition as you want.

• Horizontal, Vertical are adjusted from -50 to +50.

- Based on the input mode, the adjustment range may be changed.

- To exit the menu display, repeatedly, press the MENU button.

External Control Device Setup

* Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system) and control the Projector's functions externally.

SET ID

1. Press the MENU button and then use ◀, ▶ button to select the menu.
2. Press the OK (■) button and then use ▲, ▼ button to select Set ID item.

3. Press the ◀, ▶ button to adjust Set ID to select the desired projector ID number.

4. The adjustment range of Set ID is 1\~99.

5. Only the projector with the specified ID number will operate from the remote control.
6. To exit the menu display, repeatedly, press the MENU button.

How to connect external control equipment

• Connect the serial port of the PC to the RS-232C jack on the projector back panel.
  • RS-232C cable is not supplied with the projector.

Diagram showing connection between a computer monitor and a server rack via an Ethernet cable (no text or symbols present)

- Use the RS232C cable to control the projector externally (Refer to Fig.1).

* 1,9 Pin No Connection

Communication Parameter Setup

• Baud Rate : 115200 bps(UART)
- Data Length : 8 bit
- Parity: none
- Stop bit : 1 bit
- Flow Control: none
- Communication code : ASCII code

Command Reference List

	Command1	Command2	Data (Hexadecimal)
01. Power	k	a	0 ~ 1
02. Input Select	k	b	*
03. Aspect Ratio	k	c	1 ~ 2
04. Screen Mute	k	d	0 ~ 1
05. Volume Mute	k	e	0 ~ 1
06. Volume Control	k	f	0 ~ 64
07. Contrast	k	g	0 ~ 64
08. Brightness	k	h	0 ~ 64
09. Color	k	i	0 ~ 64
10. Tint	k	j	0 ~ 64
11. Sharpness	k	k	0 ~ 64
12. OSD Select	k	l	0 ~ 1
13. Remote Control Lock / Key Lock	k	m	0 ~ 1
14. Color Temperature	k	u	0 ~ 2
15. Red ADC gain adjustment	j	w	0 ~ 64
16. Green ADC gain adjustment	j	y	0 ~ 64
17. Blue ADC gain adjustment	j	z	0 ~ 64
18. Low Power	j	q	0 ~ 1
19. Auto configuration	j	u	1
20. Input Select	x	b	*

* This data will be explained in this document in detail.

□ Communication Protocol

1. Transmission

[Command1][Command2][Set ID][Data][Cr]

• [Command 1] : First command to control the set.(k, j, x, ASCII code, 1 Character)
* [Command 2] : Second command to control the set..(ASCII code, 1 Character)
* [Set ID] : You can adjust the set ID to choose desired projector ID number in special menu. See previous page. Adjustment range is 1 \~ 99. When selecting Set ID '0', every connected projector set is controlled.
* [DATA] : To transmit command data. Transmit 2 character when organized ASCII code. * Transmit 'FF' data to read status of command.
* [Cr] : Carriage Return ASCII code '0x0D'
* [ ] : ASCII code character correspond to "Space Bar" which is in order to classify command, set ID and Data.

2. OK Acknowledgement

[Command2] [ ] [Set ID] [ ] [OK] [Data] [x]

* The Projector transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC computer.

3. Error Acknowledgement

[Command2] [ ] [Set ID] [ ] [NG] [Data] [x]

* The Projector transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-viable functions or communication errors.

Data : [1] : illegal code(This command is not supported.)
[2]: not support function(This function doesn't work.)
[3]: wait more time(Try again a few minute later.)

External control device setup

01. Power (Command2:a)

→ To control Power On/Off of the Projector.

Transmission

[k] [a] [ ] [Set ID] [ ] [Data] [Cr]

Data 0 : Power Off

1 : Power On

Ack

[a] [ ] [Set ID] [ ] [OK] [Data] [x]

Data 0 : Power Off

1 : Power On

→ To show Power On/Off status.

Transmission

[k] [a] [ ] [Set ID] [ ] [FF] [Cr]

Ack

[a] [ ] [Set ID] [ ] [OK] [Data] [x]

Data 0 : Power Off

1 : Power On

* In like manner, if other functions transmit '0xFF' data based on this format, Acknowledgement data feed back presents status about each function.

02. Input Select (Command2:b)

→ To select input source for the Set.

Transmission

[k] [b] [ ] [Set ID] [ ] [Data] [Cr]

Data 2: Video 3: S-Video 4: Component

6:RGB-DTV 7:RGB-PC 8:DVI-DTV

9 : DVI-PC

Ack

[b] [ ] [Set ID] [ ] [OK] [Data] [x]

Data 2: Video 3: S-Video 4: Component

7:RGB-PC 9:DVI-PC

* The transmission data for RGB-DTV(Data:6) input select is changed to RGB-PC(Data:7) for the identical mode processing. In like manner, the data of transmission for DVI-DTV(Data:8) input select is changed to DVI-PC(Data:9). Therefore, if you send command to select RGB-DTV or DVI-DTV source, you will recieve changed data in the Ack message.

03. Aspect Ratio (Command2:c)

→ To adjust the screen format.

Transmission

[k] [c] [ ] [Set ID] [ ] [Data] [Cr]

Data 1 : Normal Screen( 4:3)

2 : Wide Screen(16:9)

Ack

[c] [ ] [Set ID] [ ] [OK] [Data] [x]

Data 1 : Normal Screen( 4:3)

2 : Wide Screen(16:9)

04. Screen Mute (Command2:d)

→ To select screen mute on/off.

Transmission

[k] [d] [ ] [Set ID] [ ] [Data] [Cr]

Data 0 : Screen Mute Off (Picture On)

1 : Screen Mute On (Picture Off)

Ack

[d] [ ] [Set ID] [ ] [OK] [Data] [x]

Data 0 : Screen Mute Off (Picture On)

1 : Screen Mute On (Picture Off)

05. Volume Mute (Command2:e)

→ To control volume mute on/off.

Transmission

[k] [e] [ ] [Set ID] [ ] [Data] [Cr]

Data 0 : Volume Mute Off (Volume On)

1 : Volume Mute On (Volume Off)

Ack

[e] [ ] [Set ID] [ ] [OK] [Data] [x]

Data 0 : Volume Mute Off (Volume On)

1 : Volume Mute On (Volume Off)

06. Volume Control (Command2:f)

→ To adjust volume.

Transmission

[k] [f] [ ] [Set ID] [ ] [Data] [Cr]

Data Min: 0 \~ Max: 64

Ack

[f] [ ] [Set ID] [ ] [OK] [Data] [x]

Data Min:0\~Max:64

* Refer to 'Real data mapping 1'.

→ To adjust screen contrast.

Transmission

[k][g][ ] [Set ID][ ] [Data] [Cr]

Data Min:0\~Max:64

* Refer to 'Real data mapping 1'.

Ack

[g] [ ] [Set ID] [ ] [OK] [Data] [x]

Data Min:0\~Max:64

08. Brightness (Command2:h)

→ To adjust screen brightness.

Transmission

[k][h][ ] [Set ID][ ] [Data][Cr]

Data Min:0\~Max:64

* Refer to 'Real data mapping 1'.

Ack

[h] [ ] [Set ID] [ ] [OK] [Data] [x]

Data Min:0\~Max:64

09. Color (Command2:i)

→ To adjust the screen color.

Transmission

[k][i][ ][Set ID][ ][Data][Cr]

Data Min:0\~Max:64

* Refer to 'Real data mapping 1'.

Ack

[i][ ][Set ID][ ][OK][Data][x]

Data Min:0-Max:64

10. Tint (Command2:j)

→ To adjust the screen tint.

Transmission

[k][j][ ][Set ID][ ][Data][Cr]

Data Red:0\~Green:64

* Refer to 'Real data mapping2'.

Ack

[j][ ][Set ID][ ][OK][Data][x]

Data Red:0\~Green:64

11. Sharpness (Command2:k)

→ To adjust the screen sharpness.

Transmission

[k][k][ ] [Set ID][ ] [Data][Cr]

Data Min:0\~Max:64

* Refer to 'Real data mapping 1'.

Ack

[k] [ ] [Set ID] [ ] [OK] [Data] [x]

Data Min:0\~Max:64

12. OSD Select (Command2:I)

→ To select OSD On/Off.

Transmission

[k][I][ ] [Set ID][ ] [Data][Cr]

Data 0 : OSD Select Mode Off

1 : OSD Select Mode On

Ack

[1][ ][Set ID][ ][OK][Data][x]

Data 0 : OSD Select Mode Off

1 : OSD Select Mode On

13. Remote Control Lock/Key Lock (Command2:m)

→ To lock the front panel controls on the projector and remote control.

Transmission

[k][m][ ] [Set ID][ ] [Data][Cr]

Data 0:Lock Off

1:Lock On

Ack

[m][ ] [Set ID][ ] [OK] [Data][x]

Data 0:Lock Off

1:Lock On

* If you're not using the remote control, use this mode.

When main power is On/Off, external control lock is released.

14. Color Temperature (ACC) (Command2: u)

→ Adjust the color temperature.

Transmission

[k][u][ ] [Set ID][ ] [Data][Cr]

Data 0: Normal 1: Cool 2: Warm

Ack

[u][ ] [Set ID][ ] [OK] [Data][x]

Data 0: Normal 1: Cool 2: Warm

External control device setup

15. Red ADC gain Adjustment (Color R) (Command2:w)

→ Adjust the Red gain of ADC part.(RGB)

Transmission

[j][w][ ][Set ID][ ][Data][Cr]

Data Min:0\~Max:64

* Refer to 'Real data mapping 1'.

Ack

[w] [ ] [Set ID] [ ] [OK] [Data] [x]

Data Min: 0 \~ Max: 64

18. Low Power (Command2:q)

→ To reduce the power consumption of the projector.

Transmission

[j][q][ ][Set ID][ ][Data][Cr]

Data 0: Low Power Off

1: Low Power On

Ack

[q] [ ] [Set ID] [ ] [OK] [Data] [x]

Data 0: Low Power Off

1: Low Power On

16. Green ADC gain Adjustment (Color G) (Command2:y)

→ Adjust the Green gain of ADC part.(RGB)

Transmission

[j][y][ ][Set ID][ ][Data][Cr]

Data Min: 0 \~ Max: 64

* Refer to 'Real data mapping 1'.

Ack

[y] [ ] [Set ID] [ ] [OK] [Data] [x]

Data Min: 0 \~ Max: 64

19. Auto Configure (Command2: u)

→ To adjust picture position and minimize image shaking automatically. It works only in RGB mode.

Transmission

[j][u][ ][Set ID][ ][Data][Cr]

Data 1: To set

Ack

[u] [ ] [Set ID] [ ] [OK] [Data] [x]

Data 1: To set

17. Blue ADC gain Adjustment (Color B) (Command2:z)

→ Adjust the Blue gain of ADC part.(RGB)

Transmission

[j][z][ ][Set ID][ ][Data][Cr]

Data Min: 0 \~ Max: 64

* Refer to 'Real data mapping 1'.

Ack

[z] [ ] [Set ID] [ ] [OK] [Data] [x]

Data Min: 0 \~ Max: 64

20. Input Select (Command2:b)

→ To select input source for the Set.

Transmission

[x][b][ ][Set ID][ ][Data][Cr]

Data 20: Video 30: S-Video 40: Component

50:RGB-DTV 60:RGB-PC 70:DVI-DTV

80 : DVI-PC

Ack

[b] [ ] [Set ID] [ ] [OK] [Data] [x]

Data 20: Video 30: S-Video 40: Component

60:RGB-PC 80:DVI-PC

* The transmission data for RGB-DTV(Data:50) input select is changed to RGB-PC(Data:60) for the identical mode processing. In like manner, the data of transmission for DVI-DTV(Data:70) input select is changed to DVI-PC(Data:80). Therefore, if you send command to select RGB-DTV or DVI-DTV source, you will recieve changed data in the Ack message.

Supported Monitor Display

* The following table lists the display formats supported by the projector.

Sources	Format	Vertical Freq.(Hz)	Horizontal Freq. (kHz)
VGAEGA	640X350	70.090Hz	31.468kHz
	640X350	85.080Hz	37.861kHz
PC98 / VGA text	640X400	70.090Hz	31.468kHz
	640X400	85.080Hz	37.861kHz
	720X400	70.082Hz	31.469kHz
	720X400	85.039Hz	37.927kHz
VGA	640X480	59.940Hz	31.469kHz
	640X480	72.800Hz	37.861kHz
	640X480	75.00Hz	37.500kHz
	640X480	85.008Hz	43.269kHz
SVGA	800X600	56.250Hz	35.156kHz
	800X600	60.317Hz	37.879kHz
	800X600	72.188Hz	48.077kHz
	800X600	75.00Hz	46.875kHz
	800X600	85.061Hz	53.674kHz
XGA	1024X768	60.004Hz	48.363kHz
	1024X768	70.069Hz	56.476kHz
	1024X768	75.029Hz	60.023kHz
	1024X768	84.99Hz	68.677kHz
SXGA	1152X864	60.053Hz	54.348kHz
	1152X864	70.01Hz	63.995kHz
	1152X864	75.00Hz	67.500kHz
	1280X960	60.00Hz	60.00kHz
	1280X1024	60.020Hz	63.981kHz

* If the projector does not support the input signal, "Out of Range" message appears on the screen.
* The projector supports DDC1/2B type as Plug & Play function. (Auto recognition of PC monitor)
* The Synchronization input form for horizontal and vertical frequencies are Separate, Composite and SOG.
* According to PC, the optimum vertical frequency may not be displayed up to the optimum frequency of set in 'Registration information (Display registration information)'. (ex, The optimum vertical frequency may be displayed up to 75Hz or under in the resolution of 640X480 or 800X600.)

* The projector needs little maintenance. You should keep the lens clean because any dirt or stains may appear on the screen. If any parts need to be replaced, contact your dealer. When cleaning any part of the projector, always turn the power off and unplug the projector first.

Cleaning the lens

Clean the lens whenever you notice dirt or dust on the surface of it. Wipe the lens surface gently with an air spray or a soft, dry lint-free cloth.

To remove dirt or stains on the lens, moisten a soft cloth with water and a neutral detergent and wipe the lens surface gently.

Cleaning the Projector Case

To clean the projector case, first unplug the power cable. To remove dirt or dust, wipe the casing with a soft, dry, lint-free cloth. To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral detergent and then wipe the casing. Do not use alcohol, benzene, thinners or other chemical detergents as these can cause the casing to be warped or discolored.

Memo

Memo

Specifications

MODEL	RD-JT90
resolution	1024(Horizontal) x 768(Vertical)pixel
horizontal / vertical ratio	4:3(horizontal:vertical)
DLP panel size	0.7 inches
screen size	1.01~5.08m(40~200 inches)
remote control distance	12m
speaker system	1W(mono)
zoom ratio	1:1.2
Video compatibility	NTSC/PAL/SECAM/NTSC4.43/PAL-M/PAL-N
Power	AC 100 - 240V~50/60Hz, 3A-1A, 260W
height(mm/inches)	100.7/3.9
breadth(mm/inches)	330/12.9
length(mm/inches)	220.1/8.7

Operating Condition

temperature

In operation : 32\~95°F(0°C\~35°C)

In storage and transit: -4\~140°F(-20°C\~60°C)

humidity

In operation: 0\~80% relative humidity by dry hygrometer

Not in operation : 0 \~ 90% relative humidity by dry hygrometer

Projector Lamp

lamp model

AJ-LT91

lamp power consumption

200W

LAMP Replacement

WARNING : Lamp is no user replaceable part. Do not touch and open the lamp replace cover of bottom enclosure. It could cause injury and electric shock due to high temperature and voltage. Only service personnel can replace lamp after minimum 3 min. from disconnect mains plug to avoid injury cause by high temperature of lamp. * Applicable Lamp: Manufactured by USHIO Inc., type NSH200LG

Illustration of a projector on a circular base (no text or symbols)
