Product Type	DLP Video Projector
Brand	LG
Model	DX130-JD
Display Technology	DLP
Native Resolution	XGA (1024 x 768)
Brightness	2000 ANSI Lumens
Contrast Ratio	3000:1
Lamp Life	Up to 4000 hours (Normal mode)
Dimensions (W x D x H)	286 x 209 x 87 mm
Weight	2.5 kg
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	250W (typical)
Built-in Speaker	Mono 2W
Input Ports	HDMI, VGA, Composite, Audio in
Output Ports	Audio out
Lens	Manual zoom and focus
Throw Ratio	1.95 - 2.15:1
Screen Size	30 to 300 inches
Keystone Correction	±40° vertical
Maintenance	Clean dust filter every 500 hours; replace lamp when dim
Safety Features	Auto power off after no signal; overheat protection
Spare Parts	Replacement lamp (LG LAMP-001); filter
Cleaning Instructions	Use a soft, dry cloth to clean the lens and casing

Frequently Asked Questions - DX130-JD LG

How do I clean the lens?

Use a soft, dry cloth gently wipe the lens. Do not use any liquid cleaners or abrasive materials.

What lamp does the projector use?

The projector uses a replacement lamp model LG LAMP-001. Always use genuine LG lamps for optimal performance.

Can I mount the projector on the ceiling?

Yes, the LG DX130-JD is ceiling mountable. Use a compatible ceiling mount kit and follow the installation instructions carefully.

Why is the projector not turning on?

Check that the power cord is securely connected and the outlet is working. Also ensure the lamp cover is properly closed. If still off, the lamp may need replacement.

How do I adjust the image size?

Use the manual zoom ring on the lens to adjust image size. Move the projector closer to or farther from the screen for finer adjustments.

What is the native resolution?

The native resolution is XGA (1024 x 768). It can also accept higher resolutions like 1080p and downscale them.

How do I connect a laptop?

Connect your laptop to the projector using a VGA or HDMI cable. Then select the corresponding input source on the projector via the remote or menu.

Is the projector 3D compatible?

Yes, it supports DLP Link 3D. You need compatible 3D glasses and a 3D source. Activate 3D mode in the menu.

How do I replace the lamp?

Turn off and unplug the projector. Let it cool. Remove the lamp cover screw, replace with a new lamp (LG LAMP-001), and close the cover securely.

Why is the image blurry?

Adjust the focus ring on the lens until the image is sharp. Also ensure the projector is placed at the correct distance and the lens is clean.

USER MANUAL DX130-JD LG

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

© Copyright June, 2006

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.

All other product names used in this manual are the properties of their respective owners and are acknowledged.

Important Safety Information

Congratulations on purchasing the DLP projector!

Important:

It is strongly recommended that you read this section carefully before using the projector. These safety and usage instructions will ensure that you enjoy many years of safe use of the projector. Keep this manual for future reference.

Symbols Used

Warning symbols are used on the unit and in this manual to alert you of hazardous situations.

The following styles are used in this manual to alert you to important information.

Note:

Provides additional information on the topic at hand.

Important:

Provides additional information that should not be overlooked.

Caution:

Alerts you to situations that may damage the unit.

Warning:

Alerts you to situations that may damage the unit, create a hazardous environment, or cause personal injury.

Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this example:

"Push the Menu button on the remote control to open the Main menu."

Remote Control

Some remote controls have a laser for pointing out items on a screen.

DANGER: Do not point the laser in the eyes. Doing so can damage the eyes permanently.

General Safety Information

Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in the unit. For servicing, contact qualified service personnel.
➢ Follow all warnings and cautions in this manual and on the unit case.
The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the lens when the lamp is on.
Do not place the unit on an unstable surface, cart, or stand.
Avoid using the system near water, in direct sunlight, or near a heating device.
Do not place heavy objects such as books or bags on the unit.

Power Safety

Only use the supplied power cord.
Do not place anything on the power cord. Place the power cord where it will not be in the way of foot traffic.
Remove the batteries from the remote control when storing or not in use for a prolonged period.

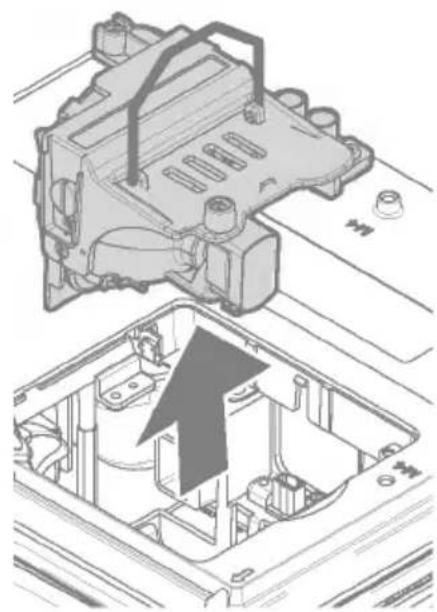

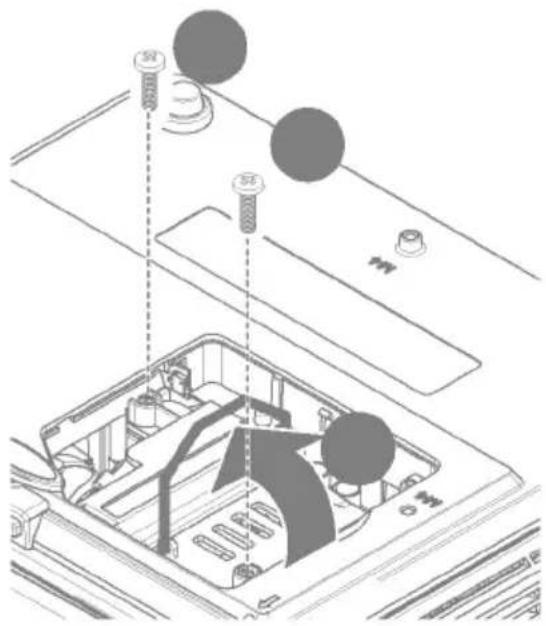

Replacing the Lamp

Replacing the lamp can be hazardous if done incorrectly. Refer to "Replacing the Projection Lamp" on page 36 for clear and safe instructions for this procedure. Before replacing the lamp:

Unplug the power cord.
Allow the lamp to cool for about one hour.

Spent Lamp Management

This product contains a metal halide lamp, which contains mercury. Dispose of it as required by local ordinances and regulations.
The USA restricts or prohibits the disposal of some or all mercury containing lamps in the municipal waste stream. Please visit www.lamprecycle.org for more information on specific state disposal requirements and recycling facilities.
The following states have laws that deal with information that wholesalers must provide to contractors for lamp disposal.
Connecticut
Maine
Minnesota
Rhode Island
For users in Connecticut, please call our toll free number 1-888-657-5267 to place an order for the delivery of a kit for returning a used lamp. The kit includes a box for the lamp, tape, and a return shipping label. To return a lamp:

1. Place the lamp in the box, complete the enclosed form, and seal the box with the provided tape.

2. Affix the return shipping label to the box and call 1.800.463.3339 (FedEx Ground Service) for box pickup.

3. Place the lamp in the box, complete the enclosed form, and seal the box with the provided tape.

4. Affix the return shipping label to the box and call 1.800.463.3339 (FedEx Ground Service) for box pickup.

Cleaning the Projector

Unplug the power cord before cleaning. Refer to "Cleaning the Projector" on page 38.
Allow the lamp to cool for about one hour.

Regulatory Warnings

Before installing and using the projector, read the regulatory notices in the "Regulatory Compliance" section on page 53.

Main Features

• Lightweight unit, easy to pack away and transport
• Compatible with all major video standards including NTSC, PAL, and SECAM
• A high brightness rating allows for presentations in daylight or in lit rooms
• Supports resolutions up to SXGA at 16.7 million colors to deliver crisp, clear images
• Flexible setup allows for front, rear, and ceiling projections
- Line-of-vision projections remain square, with advanced keystone correction for angled projections
• Input source automatically detected
- "Off-to-go" cooling system allows this projector to shut down without a long cooling time

About this manual

This manual is intended for end users and describes how to install and operate the DLP projector. Wherever possible, relevant information—such as an illustration and its description—has been kept on one page. This printer-friendly format is both for your convenience and to help save paper, thereby protecting the environment. It is suggested that you only print sections that are relevant to your needs.

Table of contents

GETTING STARTED 1

PACKING CHECKLIST 1

ACCESSORIES 2

VIEWS OF PROJECTOR PARTS 3

Front-right View....3

Top view—On-screen Display (OSD) buttons and LEDs 4

Rear view 5

Bottom view....6

REMOTE CONTROL PARTS (DS125/AB110) 7

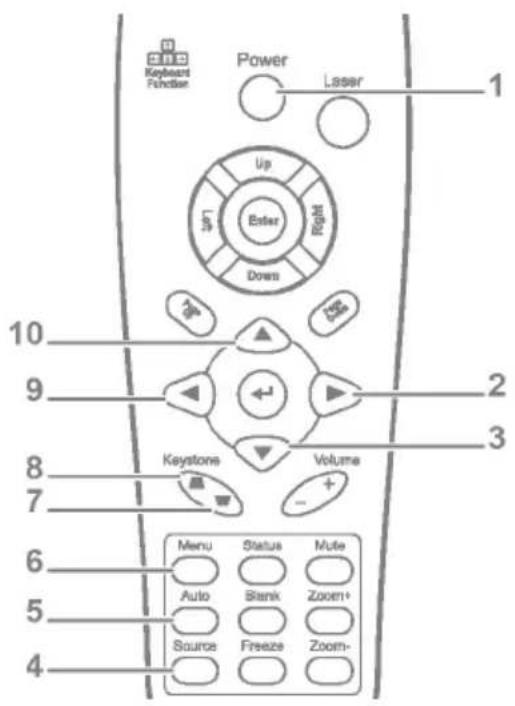

REMOTE CONTROL PARTS (DX125/DX130)....9

REMOTE CONTROL OPERATING RANGE....11

PROJECTOR AND REMOTE CONTROL BUTTONS....11

Remote Control (DS125/AB110).... 11

Remote Control (DX125/DX130) 12

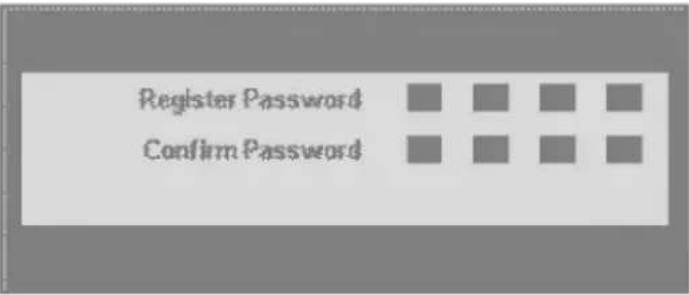

SETTING AN ACCESS PASSWORD (SECURITY LOCK) 18

ADJUSTING THE VOLUME 21

ON-SCREEN DISPLAY (OSD) MENU SETTINGS 22

OSD MENU CONTROLS 22

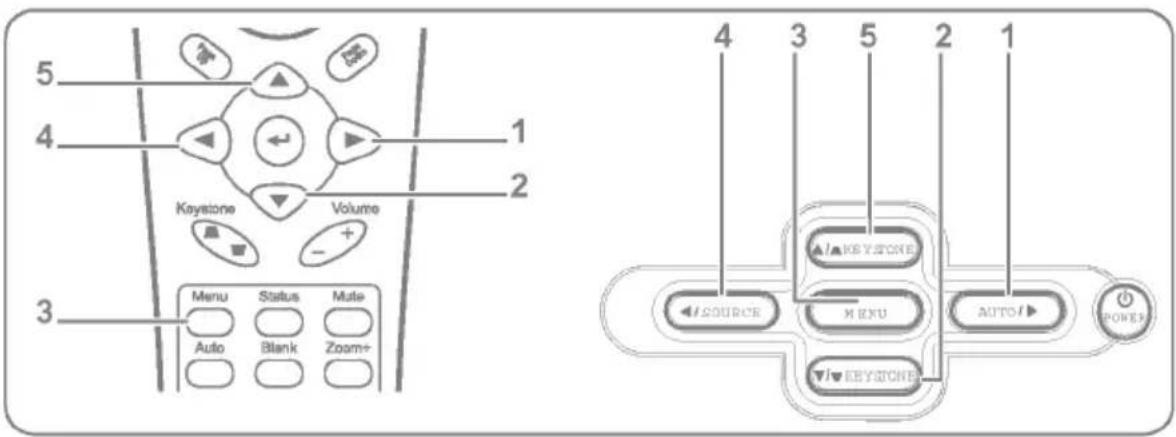

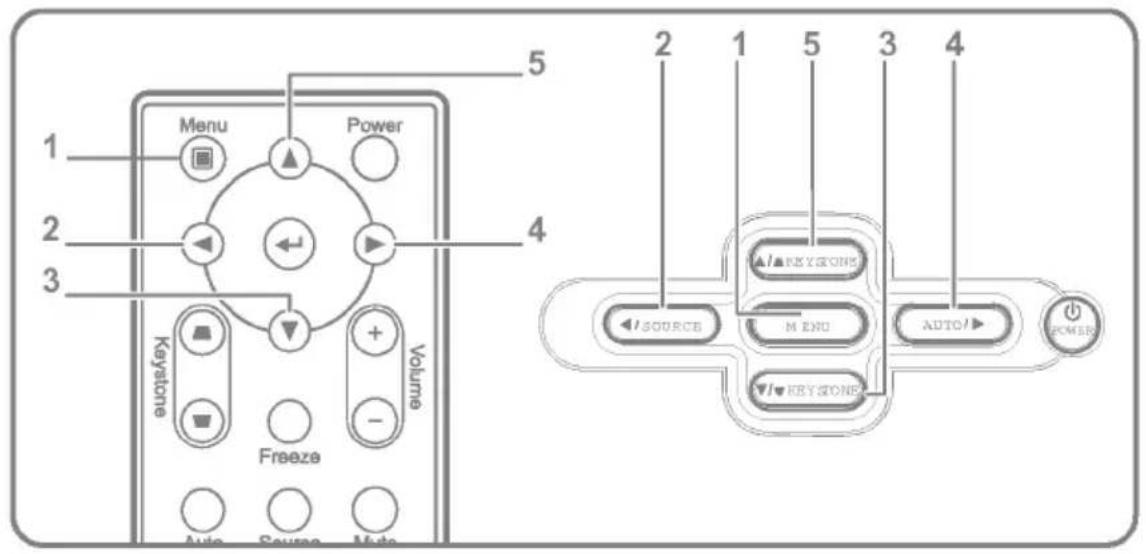

Navigating the OSD....22

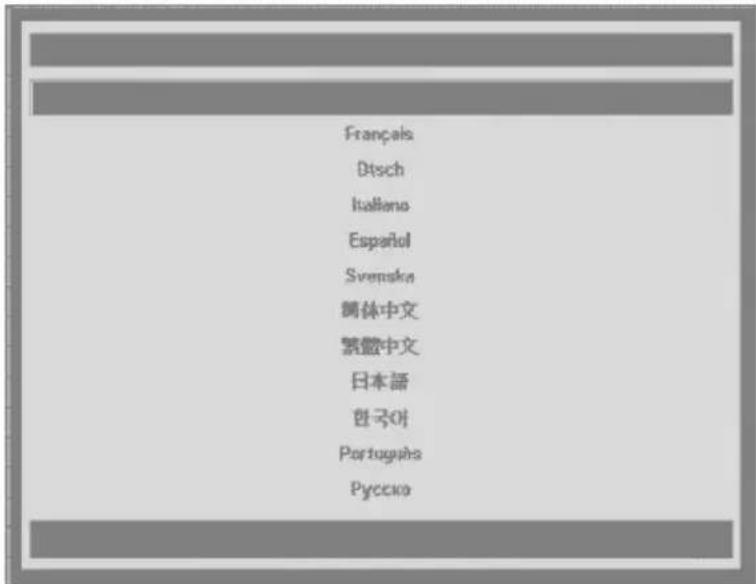

SETTING THE OSD LANGUAGE 24

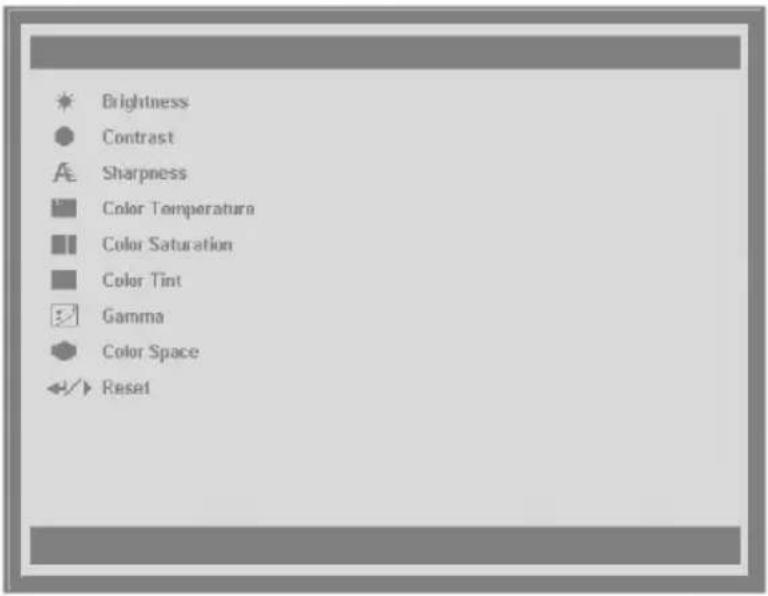

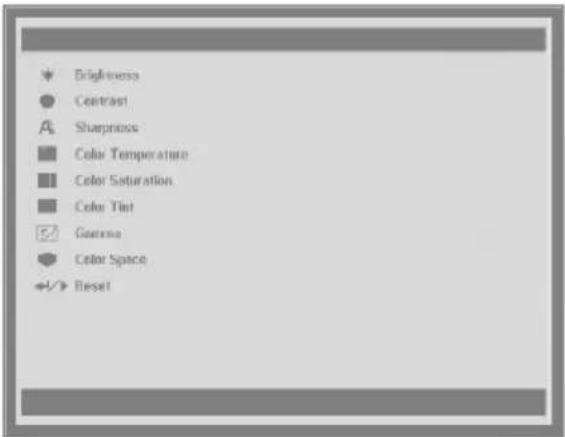

MAIN MENU 25

Main Menu Functions Available for Connected Source 26

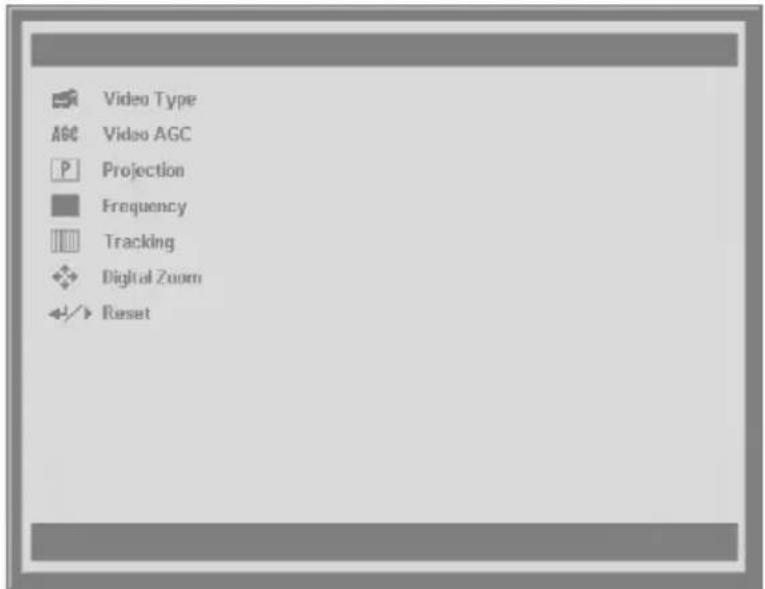

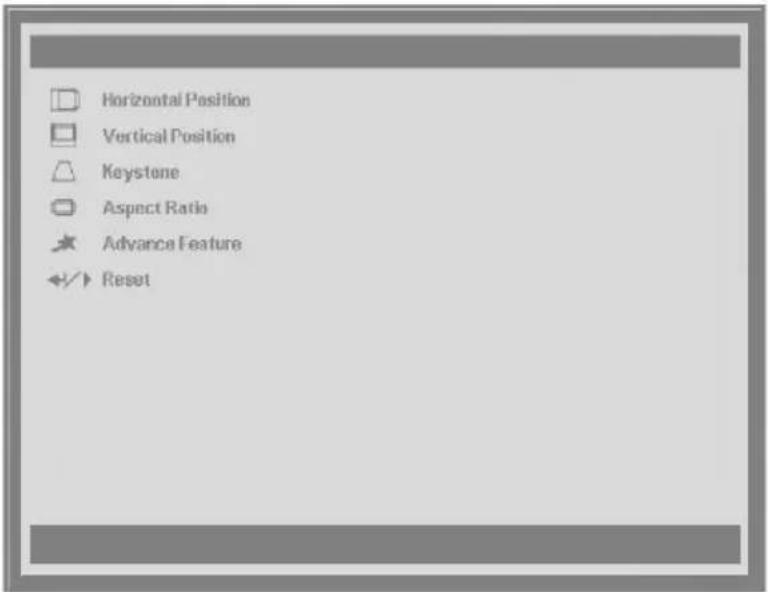

SETUP MENU 27

Setup Menu Functions Available for Connected Source 27

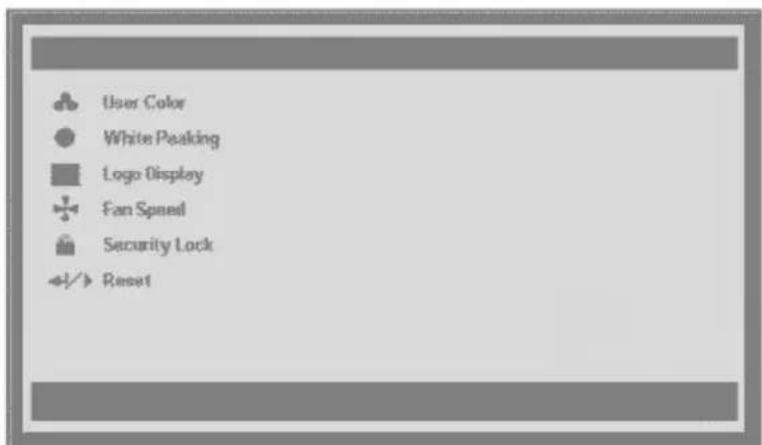

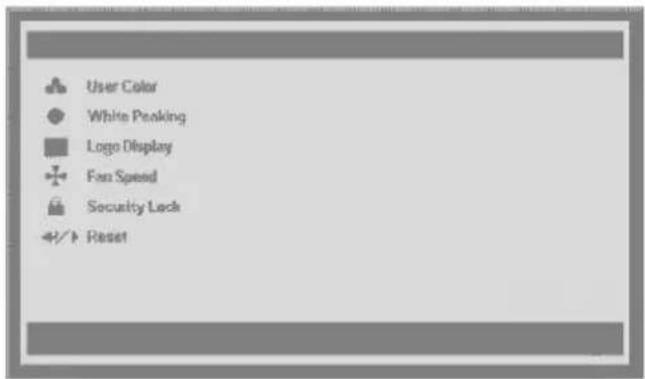

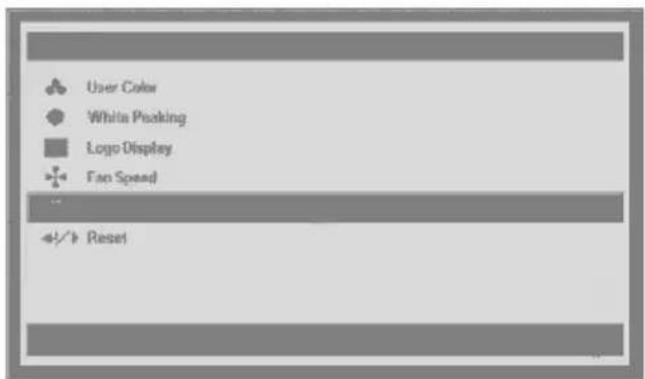

Advance Feature 28

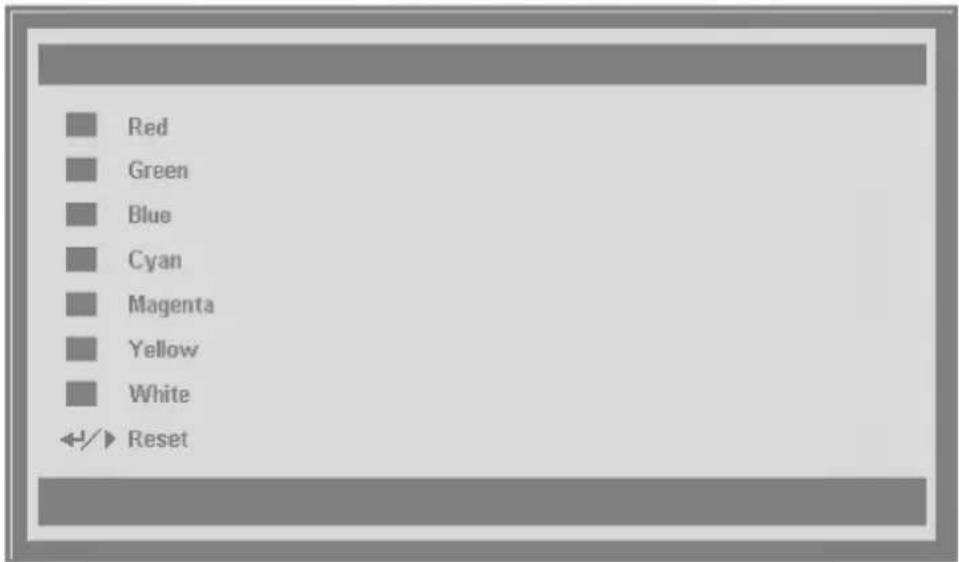

User Color 30

CONFIG MENU 31

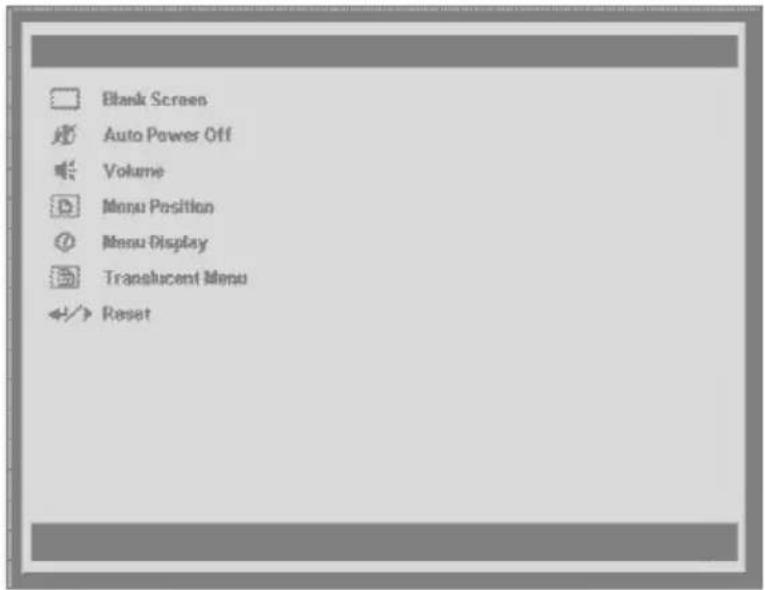

UTILITY MENU 32

Utility Menu Functions Available for Connected Source 33

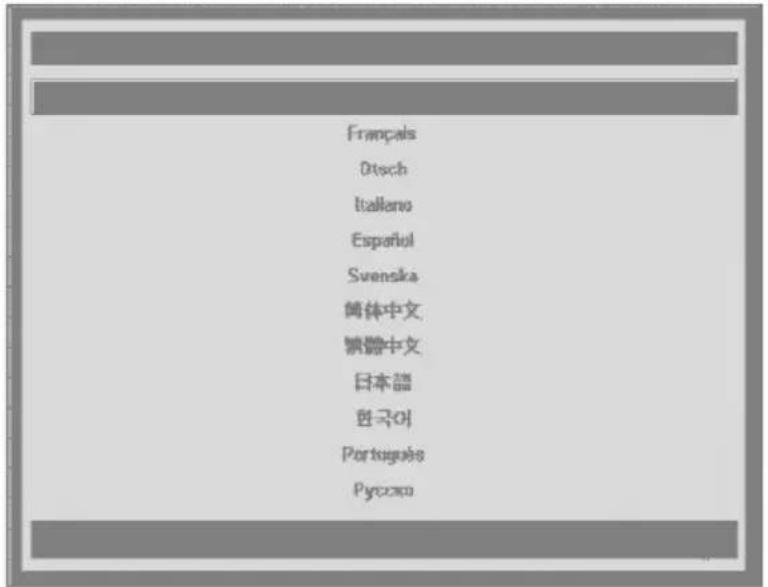

LANGUAGE MENU 34

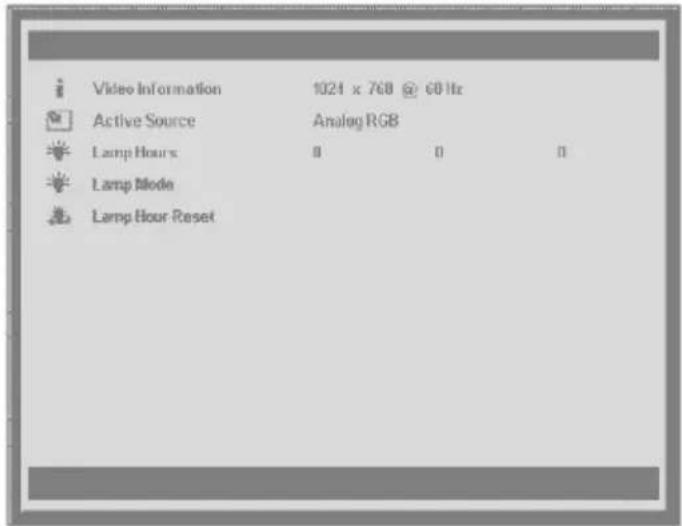

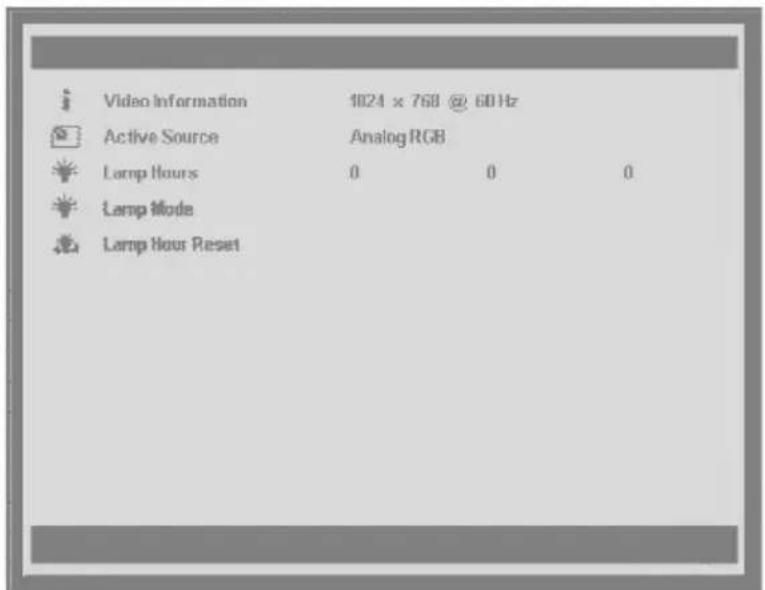

STATUS MENU 35

MAINTENANCE AND SECURITY 36

REPLACING THE PROJECTION LAMP 36

Resetting the Lamp 38

CLEANING THE PROJECTOR 38

Cleaning the Lens 39

Cleaning the Case 39

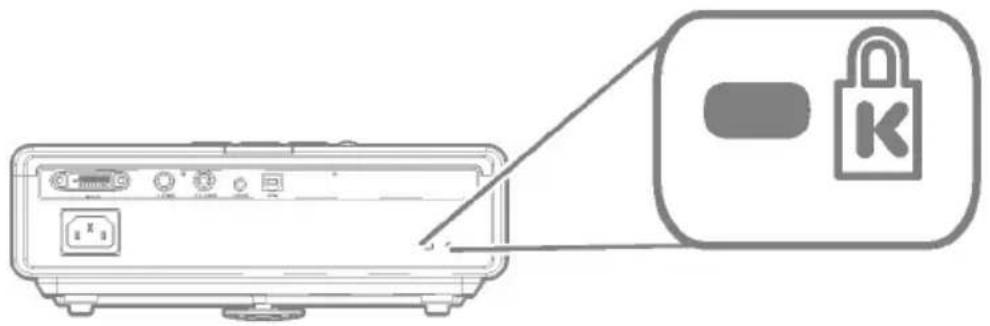

USING THE KENSINGTON® LOCK 39

TROUBLESHOOTING 40

COMMON PROBLEMS AND SOLUTIONS 40

TIPS FOR TROUBLESHOOTING....40

LED ERROR MESSAGES 41

IMAGE PROBLEMS 41

LAMP PROBLEMS 42

REMOTE CONTROL PROBLEMS 42

AUDIO PROBLEMS 42

HAVING THE PROJECTOR SERVICED 43

SPECIFICATIONS 44

SPECIFICATIONS 44

Input/output connectors....46

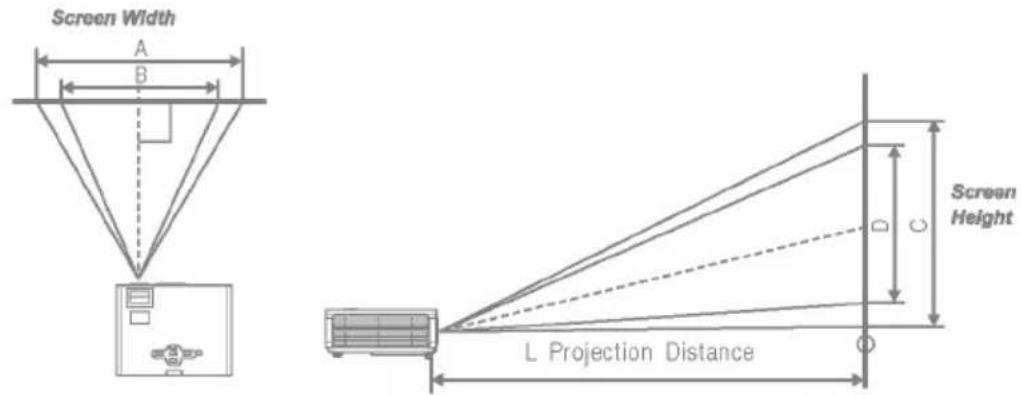

PROJECTION DISTANCE V.S. PROJECTION SIZE 47

DX130 47

DX125/DS125 48

AB110 49

TIMING MODE TABLE 50

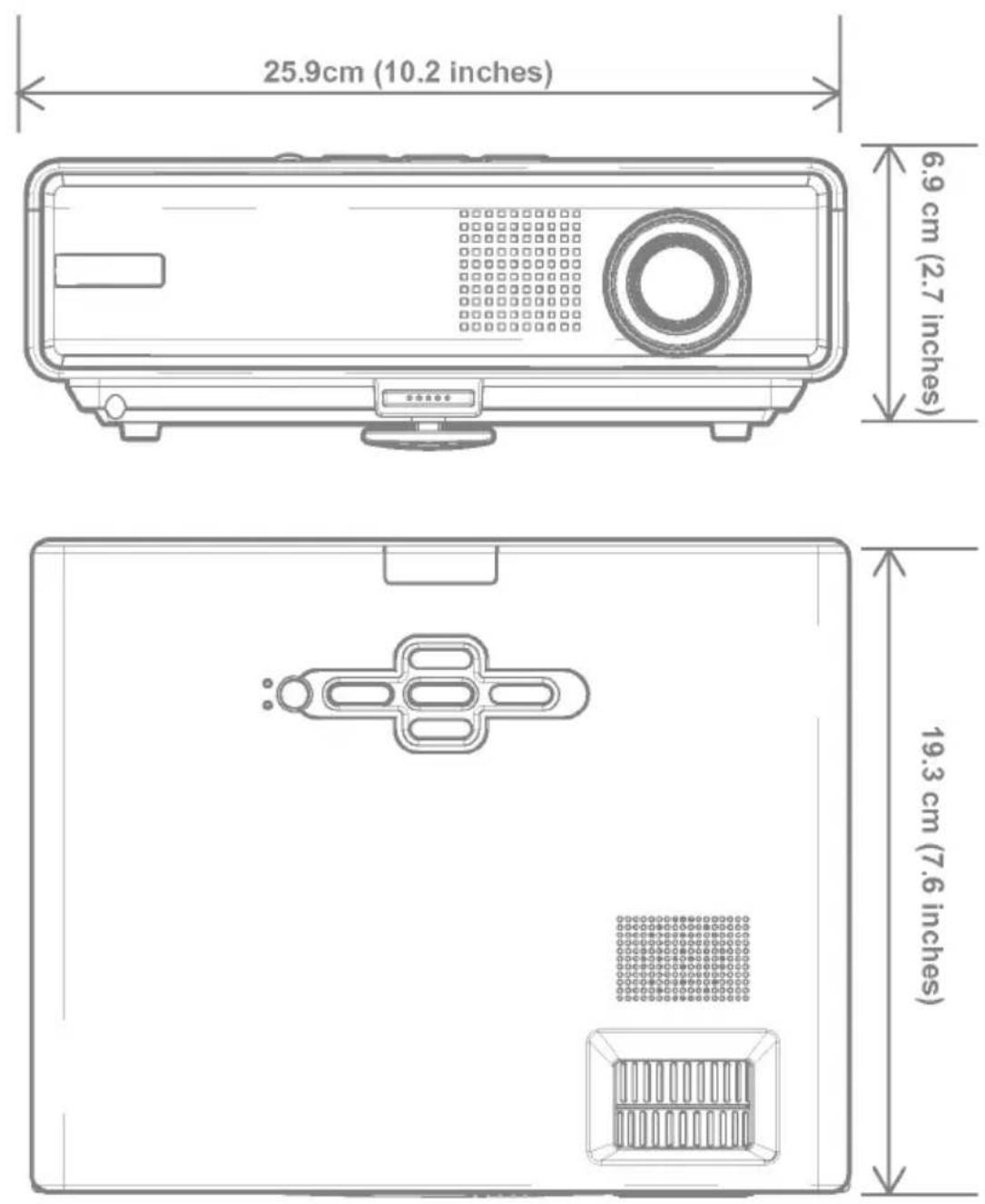

PROJECTOR DIMENSIONS 52

REGULATORY COMPLIANCE 53

FCC WARNING 53

CANADA 53

SAFETY CERTIFICATIONS 53

EN 55022 WARNING 53

GETTING STARTED

Packing Checklist

The remote control that ships with the projector depends on the model you purchased.

Carefully unpack the projector and check that the following items are included:

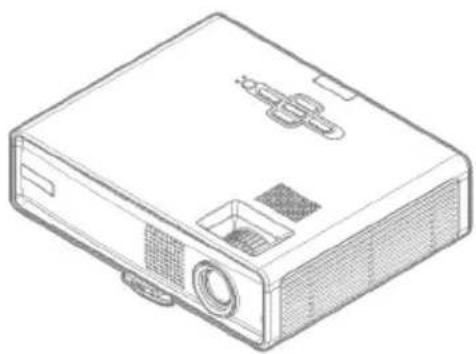

Line drawing of a projector with front panel and internal components (no text or symbols)

DLP PROJECTOR

Line drawing of a remote control with buttons and a battery (no text or symbols)

Models: DS125/AB110

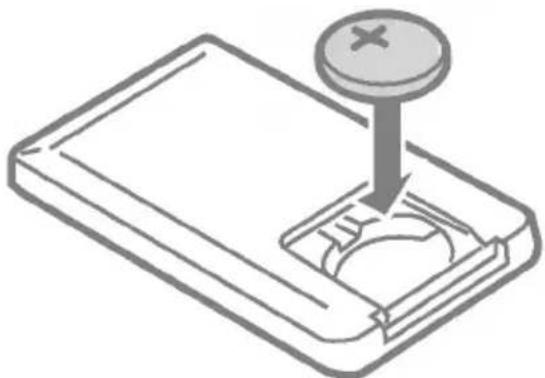

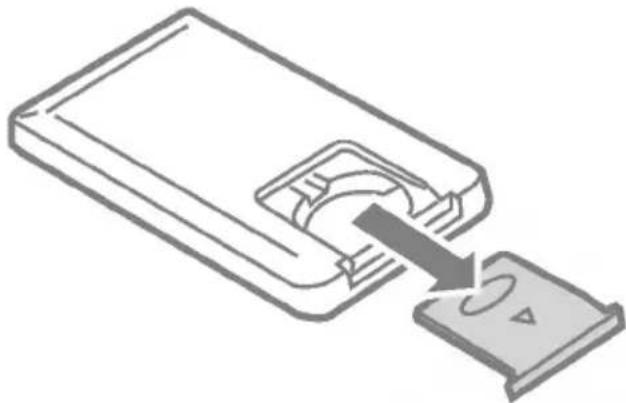

REMOTE CONTROL (WITH ONE 3V CR2025 BATTERY)

Illustration of a remote control with two batteries (no text or symbols)

Models: DX125/DX130
REMOTE CONTROL (WITH TWO AAA BATTERIES)

POWERCORD

Line drawing of a USB cable with multiple connectors (no text or symbols)

USB CABLE

S-VIDEO CABLE

Line drawing of a U2G cable with two connectors (no text or symbols)

Line drawing of an open suitcase with handle and compartments (no text or symbols)

CARRYING CASE

Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work.

Caution:

Avoid using the projector in dusty environments.

Accessories

You can purchase the following accessories from your dealer:

AUDIO CABLE

Pure electrical connector diagram showing a two-pin cable with three input/output terminals (no text or symbols)

DVI-TO-YPBPR CABLE

Pure electrical circuit lines without any symbols

DVI-TO-DVI COMPUTER CABLE

VIDEO CABLE

MAC ADAPTER

Technical line drawing of an electrical contactor or motor assembly (no text or symbols visible)

REPLACEMENT LAMP

Views of Projector Parts

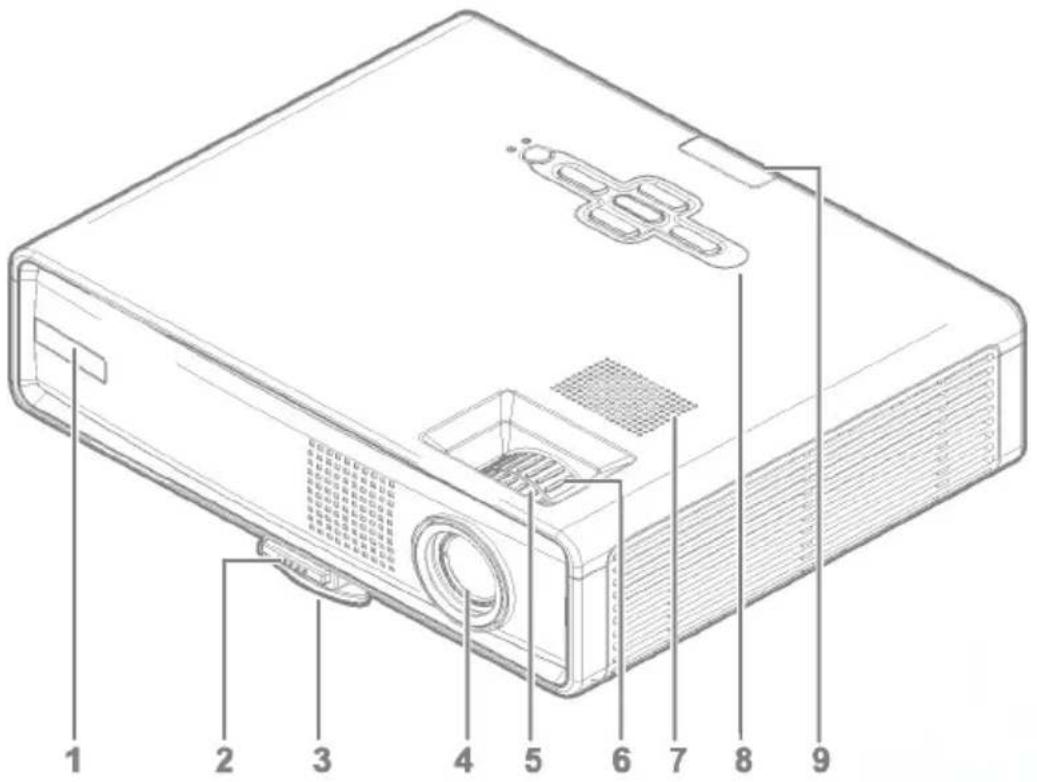

Front-right View

			SEE PAGE
1.	Front IR receiver	Receiver for IR signal from remote control	11

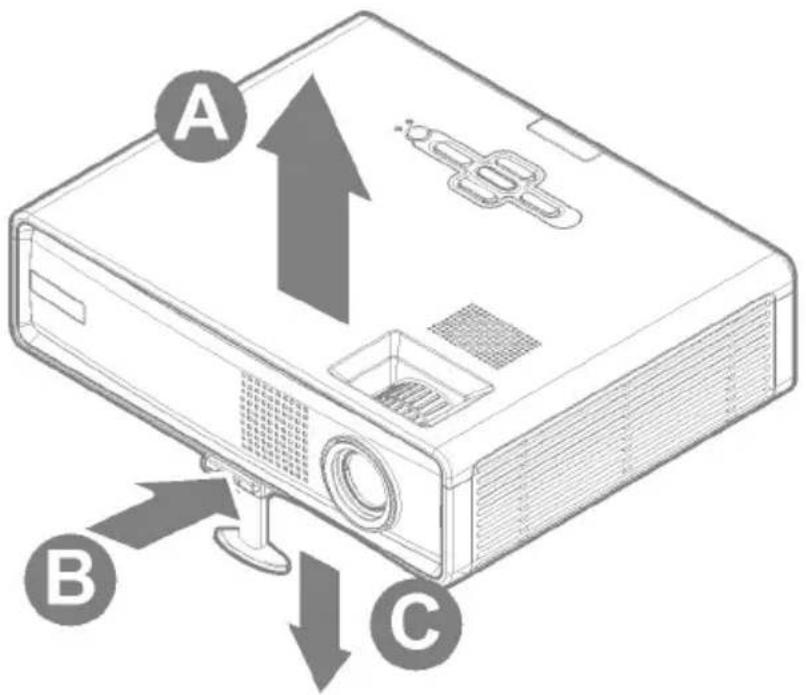

2.	Height-adjuster button	Push to release height adjuster	19
3.	Height adjuster	Adjusts level of projector
4.	Lens	Adjust focus/zoom on top opening
5.	Focus	Focuses the projected image	20
6.	Zoom	Enlarges the projected image
7.	Speaker	Built-in mono speaker
8.	See “Top view—OSD buttons and LEDs” on next page
9.	Rear IR receiver	Receiver for IR signal from remote control	11

Important: Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp cool. Do not obstruct any of the ventilation openings.

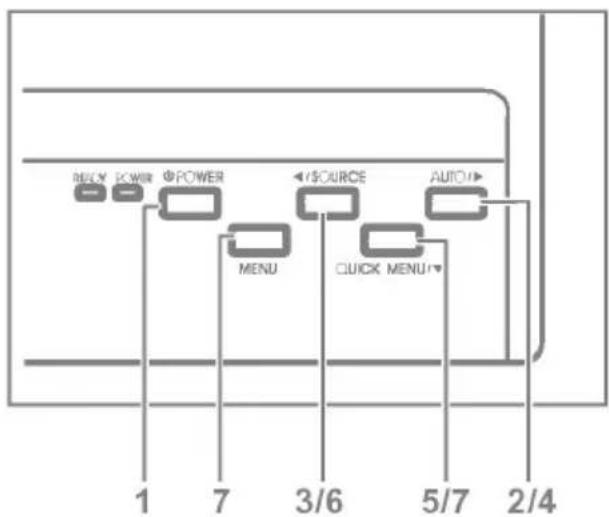

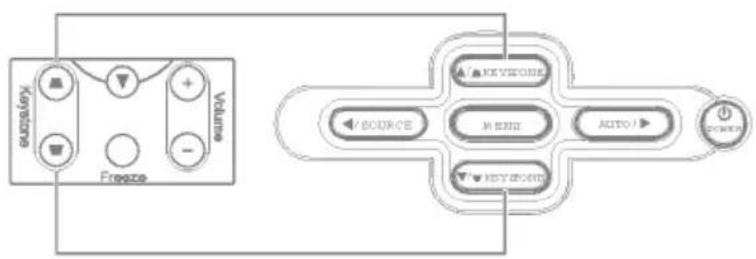

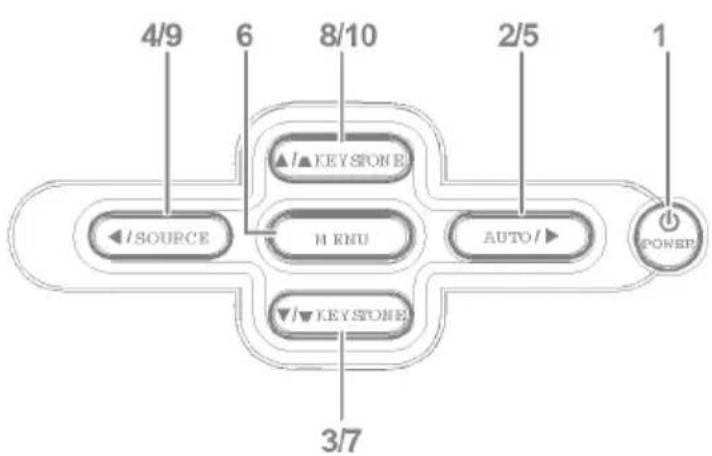

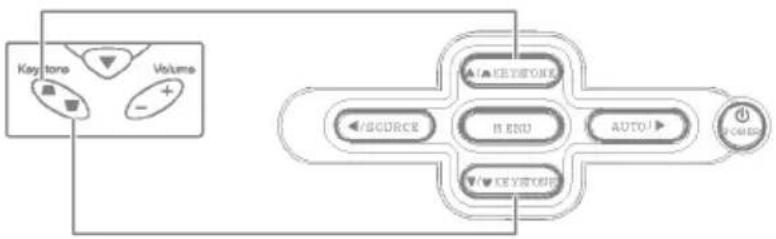

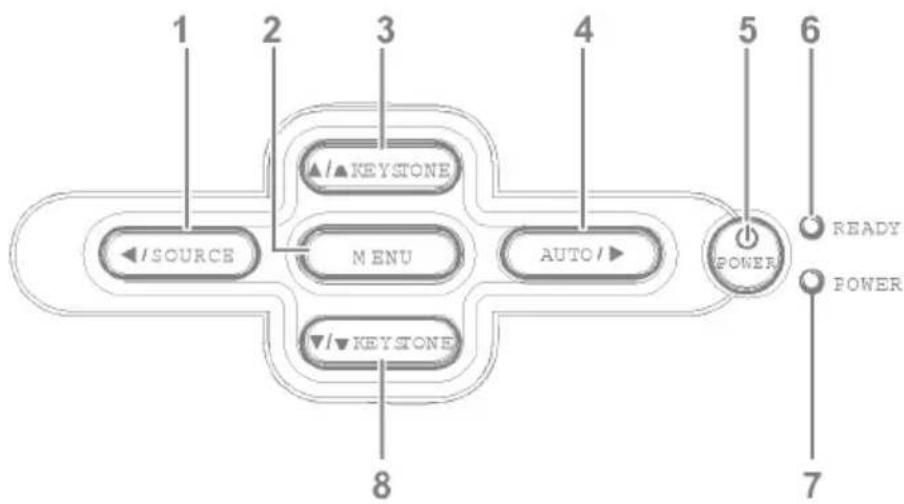

Top view—On-screen Display (OSD) buttons and LEDs

				SHE PAGE
1.	Source/Left cursor	Detects the input deviceNavigates and changes settings in the OSD		16
2.	Menu	Opens and exits the OSD		22
3.	Keystone/Up cursor	Corrects image-trapezoid (wider top) effectNavigates and changes settings in the OSD		20
4.	Auto/Right cursor	Optimizes image size, position, and resolutionNavigates and changes settings in the OSD
5.	Power button	Turns the projector on or off		16
6.	Ready LED	Orange	Lamp ready—you can safely turn on or off the projector
		Flashing	Lamp not ready—do not press the power button
7.	Power LED	Green	Unit is powered on and working correctly
		Off	Unit is powered off
		Flashing	Operational error code(refer to “LED Error Messages” on page 41)
8.	Keystone/Down cursor	Corrects image-trapezoid (wider bottom) effectNavigates and changes settings in the OSD		20

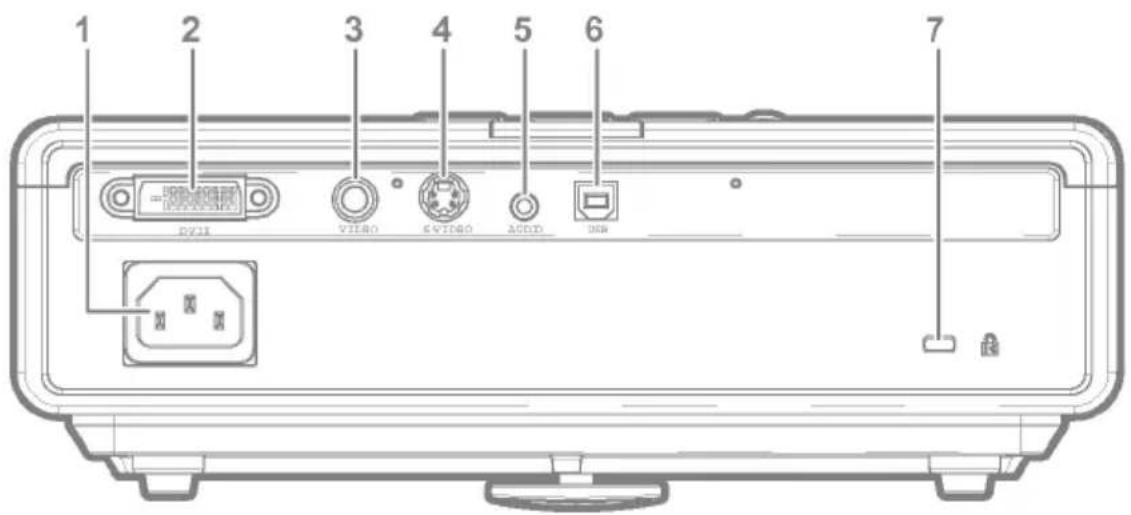

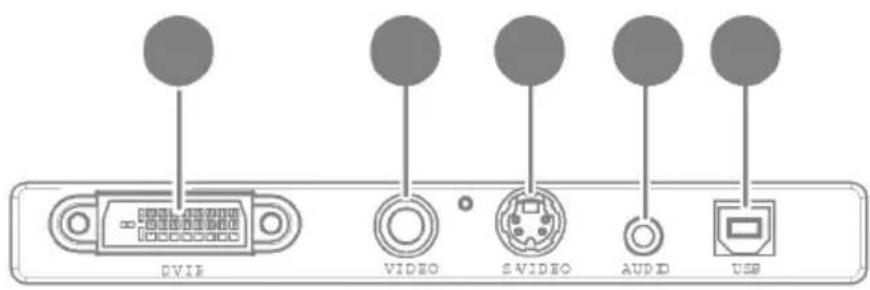

Rear view

1.	Power	Connect the supplied power cord	16
2.	DVI-I	Connect the computer cable (supplied) from a computer	15
3.	Video	Connect a composite video cable from a video device
4.	S-video	Connect the S-video cable (supplied) from a video device
5.	Audio-in	Connect the audio cable (not supplied) from the input device
6.	USB	Connect the USB cable (supplied) from a computer
7.	Security Lock	Secure to permanent object with a Kensington® Lock system	39

Note:

If your video equipment has both S-video and RCA jacks (composite video) connect to the S-video connector.

S-video provides a better quality signal.

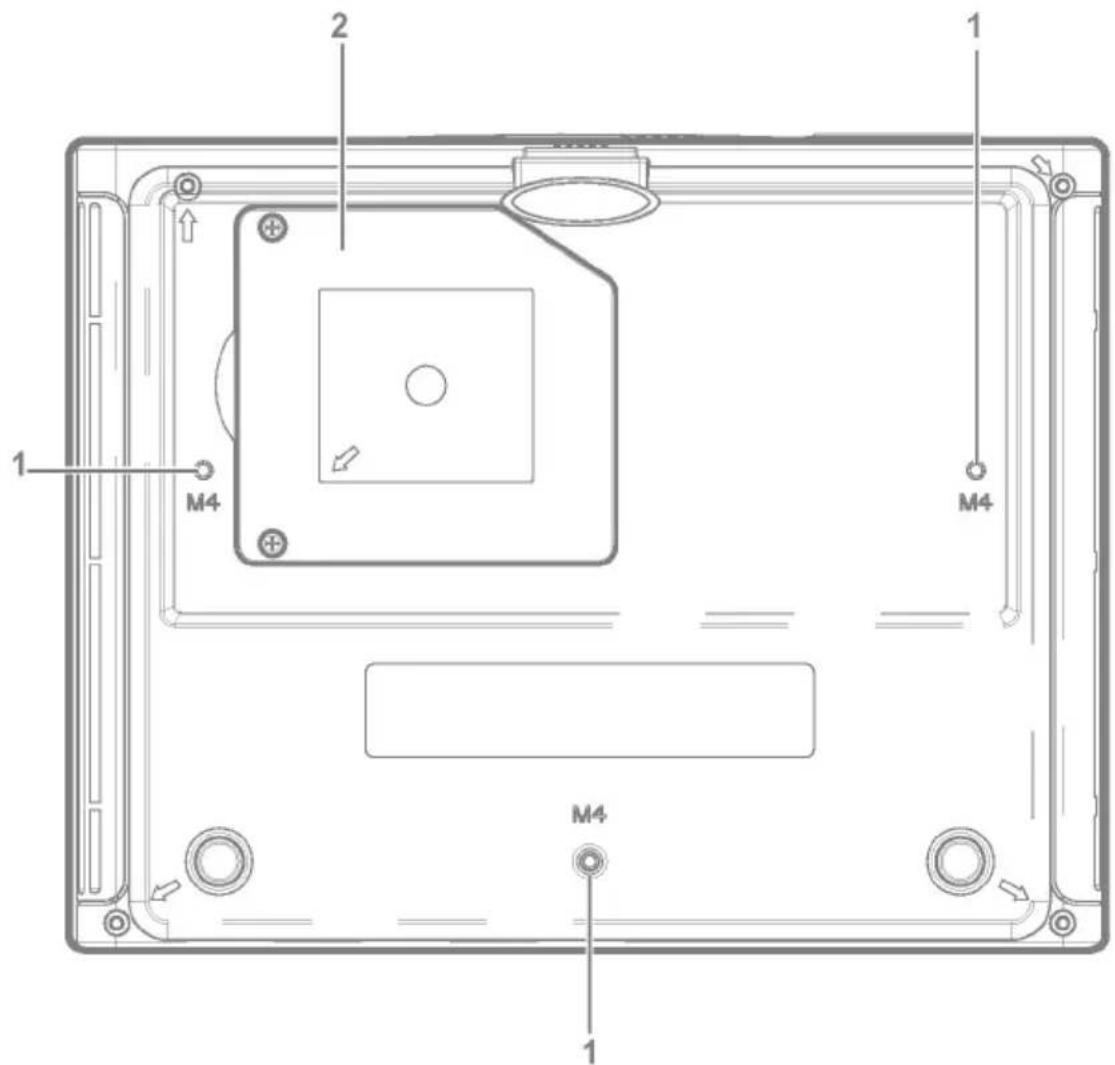

Bottom view

1.	Ceiling support holes	Contact your dealer for information on mounting the projector on a ceiling.

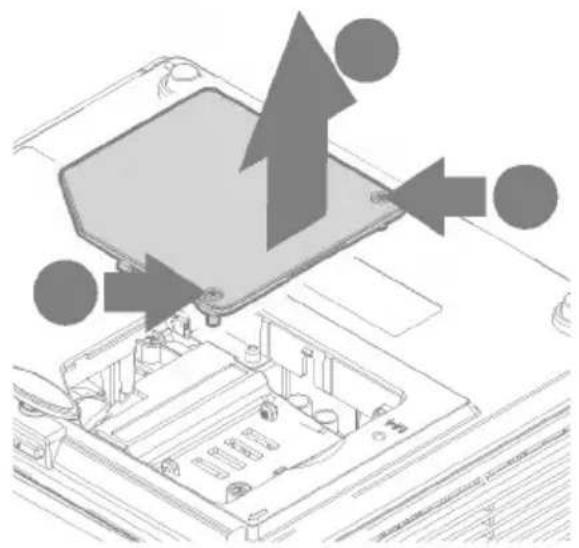

2.	Projection lamp cover	Remove when changing lamp	36

Caution:

For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw depth of 6 mm (1/4 inch). To allow for proper ventilation, keep a distance of 50 cm (20 inches) from walls and ceiling. For permanent installations, follow local codes.

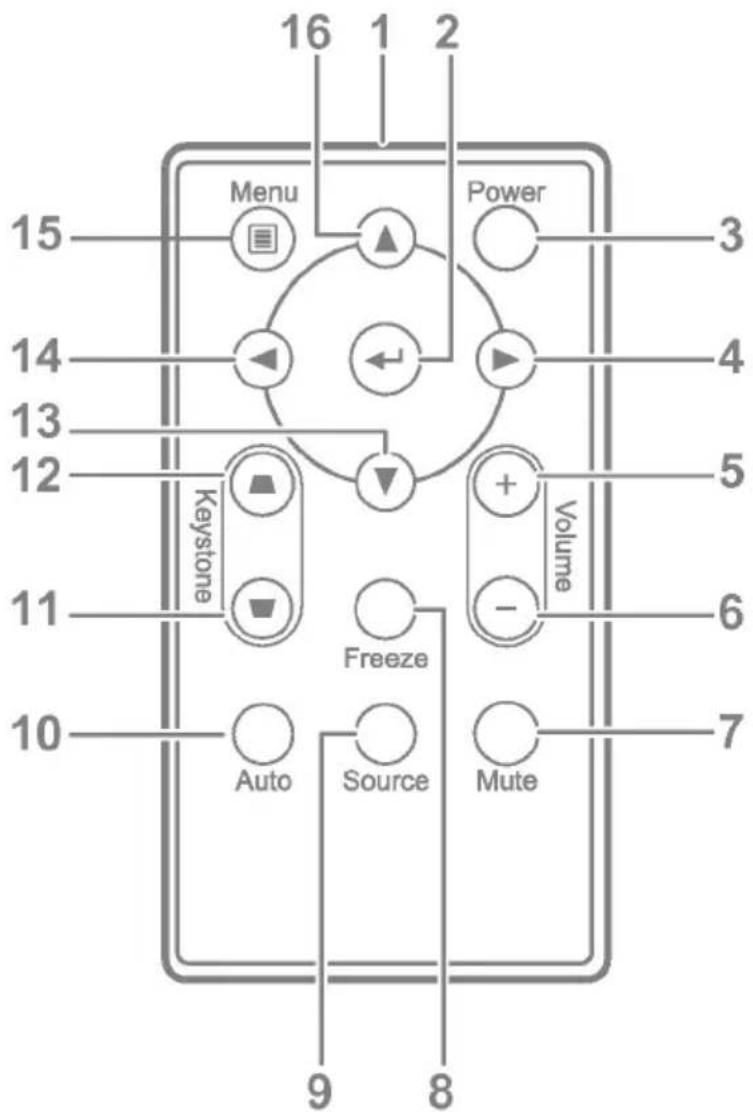

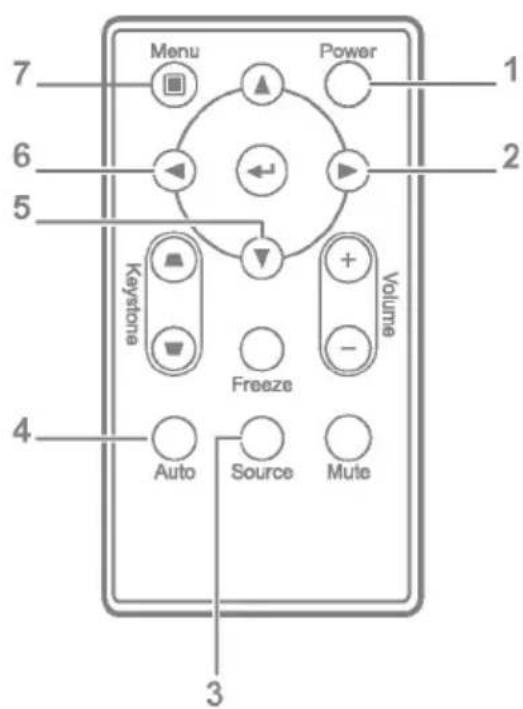

Remote Control Parts (DS125/AB110)

Important:

1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluorescent lights can disrupt remote control operation.
2. Be sure nothing obstructs the path between the remote control and the projector. If the path between remote control and the projector is obstructed, you can bounce the signal off certain reflective surfaces such as projector screens.
3. The buttons and keys on the projector have the same functions as the corresponding buttons on the remote control. This user's manual describes the functions based on the remote control.

1.	IR transmitter	Transmits signals to projector
2.	Enter	Changes settings in the OSD	22
3.	Power	Turns the projector on or off	16
4.	Right cursor	Navigates and changes settings in the OSDRight arrow when connected through USB to a PC and OSD is Off	22
5.	Volume up	Adjusts volume	21
6.	Volume down	Adjusts volume
7.	Mute	Mutes the built-in speaker
8.	Freeze	Freeze/unfreezes the on-screen picture
9.	Source	Detects the input device	16
10.	Auto	Auto adjustment for phase, tracking, size, position
11.	Keystone bottom	Corrects image-trapezoid (wider bottom) effect	20
12.	Keystone top	Corrects image-trapezoid (wider top) effect
13.	Down cursor	Navigates and changes settings in the OSDDown arrow when connected through USB to a PC and OSD is Off	22
14.	Left cursor	Navigates and changes settings in the OSDLeft arrow when connected through USB to a PC and OSD is Off
15.	Menu	Opens the OSD
16.	Up cursor	Navigates and changes settings in the OSDUp arrow when connected through USB to a PC and OSD is Off

Note:
The remote control can only interface with a computer when connected to the computer through a USB cable connection. The computer cable connects a computer to the projector for display purposes only.

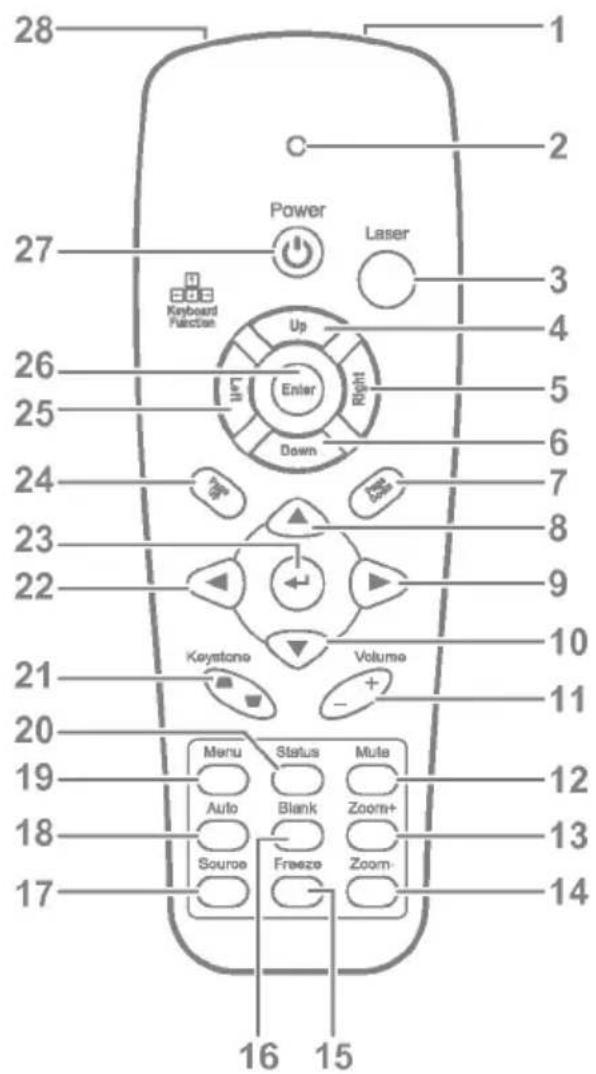

Remote Control Parts (DX125/DX130)

Important:

1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluorescent lights can disrupt remote control operation.
2. Be sure nothing obstructs the path between the remote control and the projector. If the path between the remote control and the projector is obstructed, you can bounce the signal off certain reflective surfaces such as projector screens.
3. The buttons and keys on the projector have the same functions as the corresponding buttons on the remote control. This user's manual describes the functions based on the remote control.

1.	IR transmitter	Transmits signals to projector
2.	Status LED	Lights when the remote control is used
3.	Laser	Press to operate the on-screen pointer

ITEM	LABEL	DESCRIPTION	SEE PAGE:
4.	Up	Up arrow when connected through USB to a PC
5.	Right	Right arrow when connected through USB to a PC
6.	Down	Down arrow when connected through USB to a PC
7.	Page Down	Page down when connected through USB to a PC
8.	Up cursor	Navigates and changes settings in the OSD	22
9.	Right cursor
10.	Down cursor
11.	Volume +/-	Adjusts volume	21
12.	Mute	Mutes the built-in speaker
13.	Zoom+	Zoom in
14.	Zoom-	Zoom out
15.	Freeze	Freeze/unfreezes the on-screen picture
16.	Blank	Makes the screen blank
17.	Source	Detects the input device
18.	Auto	Auto adjustment for phase, tracking, size, position
19.	Menu	Opens the OSD	22
20.	Status	Opens the OSD Status menu (the menu only opens when an input device is detected)	35
21.	Keystone top/bottom	Corrects image-trapezoid (wider top/bottom) effect	20
22.	Left cursor	Navigates and changes settings in the OSD	22
23.	Enter	Changes settings in the OSD
24.	Page Up	Page up when connected through USB to a PC
25.	Left	Left arrow when connected through USB to a PC
26.	Enter	Enter key when connected through USB to a PC
27.	Power	Turns the projector on or off	16
28.	Laser	Use as on-screen pointer. DO NOT POINT IN EYES.

Note:

The remote control can only interface with a computer when connected to the computer through a USB cable connection. The computer cable connects a computer to the projector for display purposes only.

Remote Control Operating Range

The remote control uses infrared transmission to control the projector. It is not necessary to point the remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or the rear of the projector, the remote will function well within a radius of about 10 meters (33 feet) and 30 degrees above or below the projector level. If the projector does not respond to the remote control, move a little closer.

Projector and Remote Control Buttons

The projector can be operated using the remote control or the buttons on the top of the projector. All operations can be carried out with the remote control; however the buttons on the projector are limited in use. The following illustration shows the corresponding buttons on the remote control and on the projector.

Remote Control (DS125/AB110)

Some buttons on the projector have two functions. For example, item 3/6 on the projector functions both as the source button and as the left cursor key in OSD menus.

Remote Control (DX125/DX130)

Some buttons on the projector have two functions. For example, item 8/10 on the projector functions both as the keystone button and as the up cursor key in OSD menus.

Inserting the Remote Control Batteries (DS125/AB110)

1. Remove the battery compartment cover by sliding the cover in the direction of the arrow.

Diagram of a device being inserted into a slot, showing the process from a rectangular component to a slot (no text or symbols present)

1. Insert the supplied battery with the positive side facing up.

Isometric line drawing of a device with a circular knob and a downward arrow, no text or symbols present

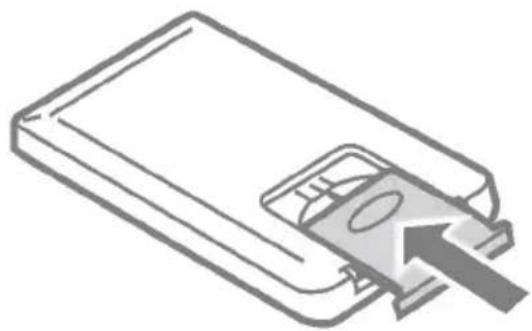

1. Replace the cover.

Pure technical line drawing of a mechanical component with no text or symbols

Caution:

1. Only use a 3V lithium battery (CR2025).
2. Dispose of used batteries according to local ordinance regulations.
3. Remove the battery when not using the projector for prolonged periods.

Inserting the Remote Control Batteries (DX125/DX130)

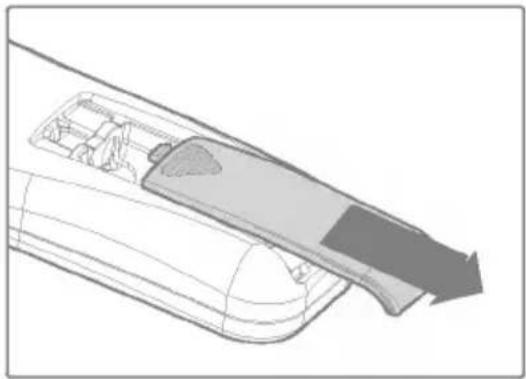

1. Remove the battery compartment cover by sliding the cover in the direction of the arrow.

Technical line drawing of a mechanical component with internal parts and a downward arrow indicating motion (no text or symbols)

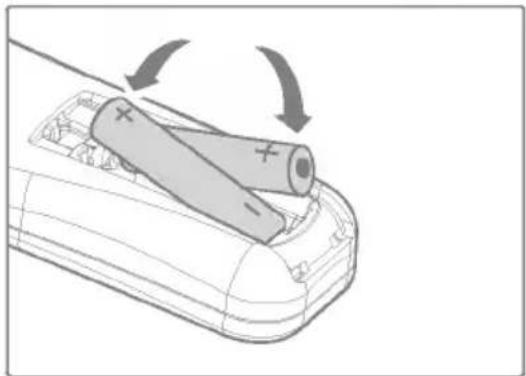

1. Insert the supplied batteries taking note of the polarity (+/-) as shown here.

Diagram of a remote control box with two cylindrical batteries, showing battery arrangement and rotation arrows (no text or symbols)

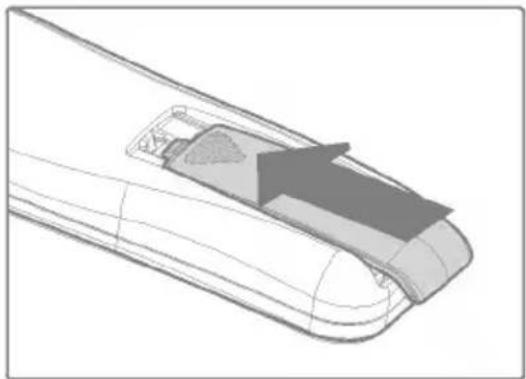

1. Replace the cover.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Caution:

1. Only use AAA alkaline batteries.
2. Dispose of used batteries according to local ordinance regulations.
3. Remove the batteries when not using the projector for prolonged periods.

Connecting Input Devices

A PC or notebook computer as well as video devices can be connected to the projector at the same time. Video devices include DVD, VCD, and VHS players, as well as movie camcorders and digital still cameras. Check the user manual of the connecting device to confirm it has the appropriate output connector.

	DVI-I	Connect the supplied computer cable from a computer.
	DVI-I + DVI-to-RGB adapter	Connect the DVI-to-RGB adapter to the DVI-I connector. Connect a VGA cable from a computer to the DVI-to-RGB adapter.
	DVI-I + DVI-to-YPbPr adapter	Connect the DVI-to-YPbPr adapter to the DVI-I connector. Connect a component video cable from a video device to the DVI-to-YPbPr adapter.
	Video	Connect a composite video cable from a video device.
	S-video	Connect the supplied S-video cable from a video device.
	Audio-in	Connect an audio cable (not supplied) from the computer's audio-out connector. Connect an audio cable - mini jack-to-RCA x 2(not supplied) from a video device.
	USB	Connect the supplied USB cable from a computer.

	DVI-I	Connect the supplied computer cable from a computer.
	DVI-I + DVI-to-RGB adapter	Connect the DVI-to-RGB adapter to the DVI-I connector. Connect a VGA cable from a computer to the DVI-to-RGB adapter.
	DVI-I + DVI-to-YPbPr adapter	Connect the DVI-to-YPbPr adapter to the DVI-I connector. Connect a component video cable from a video device to the DVI-to-YPbPr adapter.
	Video	Connect a composite video cable from a video device.
	S-video	Connect the supplied S-video cable from a video device.
	Audio-in	Connect an audio cable (not supplied) from the computer's audio-out connector. Connect an audio cable - mini jack-to-RCA x 2(not supplied) from a video device.
	USB	Connect the supplied USB cable from a computer.

Warning: As a safety precaution, disconnect all power to the projector and connecting devices before making connections.

Starting and Shutting down the Projector

1. Connect the power cord to the projector. Connect the other end to a wall outlet. The POWER and READY LEDs on the projector turn on.
2. Turn on the connected devices.
3. Ensure the Ready LED is on a steady (not flashing) orange and then press the Power button to turn on the projector.

The projector splash screen displays and connected devices are detected.

If the connected device is a PC, press the appropriate keys on the computer keyboard to switch the display output to the projector. (Check the user manual of the PC to determine the appropriate Fn key combination to change display output.)

See "Setting an Access Password (Security Lock)" on page 18 if Security Lock is enabled.

1. If more than one input device is connected, press the Source button repeatedly to switch among devices.

(DVD and HDTV are supported through the DVI-I connector.)

Simple diagram showing a house inside a rectangular frame with an arrow pointing to it (no text or symbols)

DX125/DX130

AB110

DS125
(Above screens depend on the input and projector model)

1. To turn off the projector, press the Power button. The projector prepares for shutdown and a "Wait a moment please..." message appears.
2. When the "Power Off?/Press Power again" message appears, press the Power button. The projector turns off.

Solid gray image with no visible content, text, or symbols.

Solid gray image with no visible content, text, or symbols.

Caution: Do not unplug the power cord until the Ready LED stops flashing, indicating the projector has cooled down.

Setting an Access Password (Security Lock)

You can use the four cursor (arrow) buttons to set a password and prevent unauthorized use of the projector. When enabled, the password must be entered after you power on the projector. (See "Navigating the OSD" on page 22 and "Setting the OSD Language" on page 24 for help on using OSD menus.)

Important:

Keep the password in a safe place. Without the password, you will not be able to use the projector. If you lose the password, contact your reseller for information on clearing the password.

1. Press the Menu button to open the OSD menu.
2. Press the cursor ◀▶ button to move to the Setup menu.
3. Press the cursor ▲▼ button to select Advance Feature and press Enter or ▶.
4. Press the cursor ▲▼ button to select Security Lock.
5. Press the cursor ◀▶ button to select Enable. (White text is selected.) A password dialog box automatically appears.
6. You can only use the cursor buttons ▼▲◀▶ in the password fields. You can use any combination including the same arrow four times, but not less than four.

Press the cursor buttons in any order to set the password. When you confirm the password, OK appears.

Every time you start the projector, a password dialog box appears.

Enter the password in the order you set it at step 6. (Press the Menu button to cancel if you enter the wrong password.)

Simple diagram with four gray squares arranged horizontally on a white background (no text or symbols)

Adjusting the Projector Level

Take note of the following when setting up the projector:

• The projector table or stand should be level and sturdy.
• Position the projector so that it is perpendicular to the screen.
- Be sure cables are not in the way or can cause the projector to be knocked over.

1. To raise the level of the projector, lift the projector [A] and press the height-adjuster button [B].

The height adjuster drops down [C].

1. To lower the level of the projector, press the height-adjuster button and push down on the top of the projector.

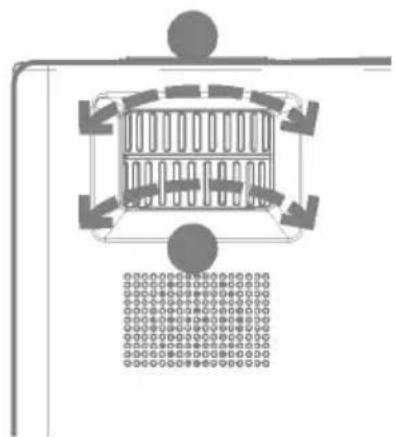

Adjusting the Zoom, Focus and Keystone

1. Use the Image-focus control (on the projector only) to sharpen the projected image ●.
2. Use the Image-zoom control (on the projector only) to resize the projected image and screen size ●.
3. Use the Keystone buttons (on the projector or the remote control) to correct image-trapezoid (wider top or bottom) effect.

Top-down diagram of a building interior with directional arrows and circular markers (no text or symbols)

(DS125/AB110)

(DX125/DX130)

The keystone control appears on the display.

Adjusting the Volume

1. Press the Volume +/- buttons on the remote control. The volume control appears on the display.

(DS125/AB110)

1. Use the Volume +/- buttons to adjust the level.

(DX125/DX130)

1. Press the Mute button to turn off the volume.

ON-SCREEN DISPLAY (OSD) MENU SETTINGS

OSD Menu Controls

The projector has an OSD that lets you make image adjustments and change various settings.

Navigating the OSD

You can use the remote control cursor buttons or the buttons on the top of the projector to navigate and make changes to the OSD. The following illustration shows the corresponding buttons on the remote control and on the projector.

(DS125/AB110)

(DX125/DX130)

1. To open the OSD, press the Menu button.
2. There are six menus. Press the cursor ◀ button to move through the menus.
3. Press the cursor ▲▼ button to move up and down in a menu.
4. Press ◀▶ to change values for settings, and then press Enter or ▶ to confirm the new setting.
5. Press Menu to close the OSD or leave a sub-menu.

Note: Depending on the video source not all items in the OSD are available. For example, the Horizontal/Vertical Position items in the Setup menu can only be modified when connected to a PC. Items that are not available cannot be accessed and are grayed out.

Setting the OSD Language

You may want to reference the OSD on your projector while reading this section. Set the OSD language to your preference before continuing. (The default language is English.)

1. Press the Menu button. The Main menu appears.

1. Press the cursor ◀ button until Language is highlighted.

1. Press the cursor ▲▼ button until the language you want is highlighted.
2. Press the cursor ▶ or Enter button to confirm the language.
3. Press the Menu button twice to close the OSD.

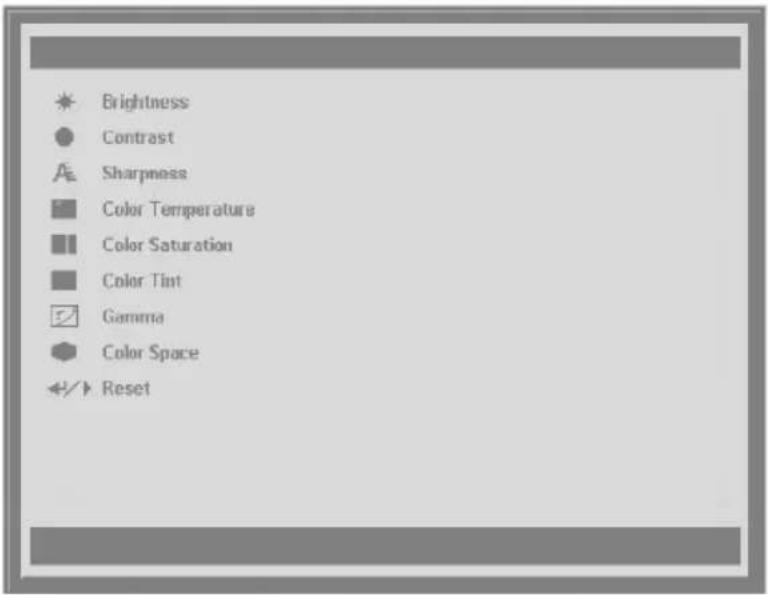

Main Menu

Press the Menu button to open the OSD menu. Press the cursor ◀▶ button to move to the Main menu. Press the cursor ▲▼ button to move up and down in the Main menu. Press ◀▶ to change values for settings, and then press Enter or ▶ to confirm the new setting.

Brightness	Press the cursor ◀► button to adjust the brightness. (Range: 0 – 100)	50
Contrast	Press the cursor ◀► button to adjust the contrast. (Range: 0 – 100)	50
Sharpness	Press the cursor ◀► button to adjust the display sharpness (Range: 1-5)	3
Color Temperature	Press the cursor ◀► button to adjust the video tint/hue.(Range: Cool/Normal/Warm)	Normal
Color Saturation	Press the cursor ◀► button to adjust the video saturation. (Range: 0 – 100)	50
Color Tint	Press the cursor ◀► button to adjust the video tint/hue. (Range: 0 – 100)	50
Gamma	Press the cursor ◀► button to adjust the gamma correction of the display.Input Gamma BrightnessPC 2.2 HighMAC 1.8 HighVideo 2.4 LowChart 2.2 LowB&W 2.4 High	PC
Color Space	Press the cursor ◀► button to adjust the color space.(Range: Auto – RGB – YPbPr- YCbCr )	Auto
Reset	Resets all Main settings to default values	—

Main Menu Functions Available for Connected Source

Press the Menu button to open the OSD menu. Press the cursor ◀▶ button to move to the Setup menu. Press the cursor ▲▼ button to move up and down in the Setup menu. Press ◀▶ to change values for settings, and then press Enter or ▶ to confirm the new setting.

Horizontal Position	Press the cursor ◀▶ button to move the image left or right. (Range: 0 – 100)	50
Vertical Position	Press the cursor ◀▶ button to move the image up or down. (Range: 0 – 100)	50
Keystone	Press the cursor ◀▶ button to correct distortion of the projected image. (Range: -50 – +50)	0
Aspect Ratio	Press the cursor ◀▶ button to toggle between the 4:3 standard format and the 16:9 High Definition TV (HDTV) format.	DS125 4:3DX125 4:3DX130 4:3AB110 16:9
Advance Feature	See “Advance Feature” on page 28.	—
Reset	Resets Keystone and Aspect Ratio to default values	—

Setup Menu Functions Available for Connected Source

Function/Source	RGB	DVI	Component Video	Composite Video	S-video
H Position	O
V Position	O
Keystone correction	O	O	O	O	O
Aspect Ratio	O	O	O	O	O
Advance Feature	O	O	O	O	O
Reset	O	O	O	O	O

O = User adjustable

Advance Feature

Press the Menu button to open the OSD menu. Press ◀▶ to move to the Setup menu. Press ▲▼ to move to the Advance Feature menu and then press Enter or ▶. Press ▲▼ to move up and down in the Advance Feature menu. Press ◀▶ to change values for settings, and then press Enter or ▶ to confirm the new setting.

User Color	This feature adjusts the color balance in each color of RGB(red, green, blue), and their neutral colors (cyan, magenta,yellow, white) by using color correction adjustment. Increasing a color's setting heightens the intensity of that color onthe screen, while a lower setting makes the color less intense.Press ▲▼ to select a color.Press ◀▶ to adjust the selected color. (Range: 0 – 100)	80
White Peaking	White Peaking increases the output in the brightest whiteswithout changing the blacks and dark grays. It crushes thewhites slightly, but it does not appear to clip them or seriously obscure white detail. If you prefer a stronger image,adjust toward the maximum setting. For a smoother, morenatural image, adjust toward the minimum setting.Press ◀▶ to adjust the value of white peaking. (Range: 0 –10)	Data source:DX125 10 0DX130 10 0DS125 10 0AB110 5 0
Logo Display	Press ◀▶ to enable or disable if the logo displays when the projector starts, and when no source is detected. (Range: On - Off)	On
Fan Speed	Press the cursor ◀▶ button to toggle between Normal and High fan speeds.Set Fan Speed to High in altitudes over 3,000 meters (10,000 feet).	Normal
Security Lock	Press the cursor ◀▶ button to enable or disable Security Lock. When you enable Security Lock a Register Password dialog box appears:You can only use the cursor buttons ▼▲◀ ▶ in the password fields. Press the cursor buttons in any order and confirm to set the password. When the password is enabled, it must be entered every time after you power on the projector. See “Setting an Access Password (Security Lock)” on page 18 for steps on setting the password.	No password
Reset	Resets White Peaking, Logo Display and Auto Keystone settings to default values	—

Note: If Security Lock is enabled, you must enter the password every time the projector is turned on. However, if the projector is already turned on, Security Lock can be disabled without knowing the current password.

User Color

Press the Menu button to open the OSD menu. Press ◀▶to move to the Setup menu. Press ▲▼ to move to the Advance Feature menu and then press Enter or ▶. Press ▲▼ to move to the User Color menu and then press Enter or ▶. Press ▲▼ to move up and down to select a color. Press ◀▶ to change values for settings, and then press Enter or ▶ to confirm the new setting.

Red	Press the cursor ◀▶ button to adjust the red color level. (Range: 0 - 100)	80
Green	Press the cursor ◀▶ button to adjust the green color level. (Range: 0 - 100)	80
Blue	Press the cursor ◀▶ button to adjust the blue color level. (Range: 0 - 100)	80
Cyan	Press the cursor ◀▶ button to adjust the cyan color level. (Range: 0 - 100)	80
Magenta	Press the cursor ◀▶ button to adjust the magenta color level. (Range: 0 - 100)	80
Yellow	Press the cursor ◀▶ button to adjust the yellow color level. (Range: 0 - 100)	80
White	Press the cursor ◀▶ button to adjust the white color level. (Range: 0 - 100)	80
Reset	Resets all User Color settings to default values	—

Config Menu

Press the Menu button to open the Main menu. Press the cursor ◀▶ button to move to the Config menu. Press the cursor ▲▼ button to move up and down in the Config menu. Press ◀▶ to change values for settings, and then press Enter or ▶ to confirm the new setting.

Blank Screen	Press the cursor ◀▶ button to select a background color for the blank screen. (Range: Black – Red – Green – Blue – White)	Blue
Auto Power Off	Press the cursor ◀▶ button to enable or disable automatic shut-down of lamp after 10 minutes of inactivity. (Range: On – Off)	Off
Volume	Press the cursor ◀▶ button to adjust the audio volume level. (Range: 0 - 8)	4
Menu Position	Press the cursor ◀▶ button to position the OSD on screen.(Range: Left – Right – Center – Down – Up)	Center
Menu Display	Press the cursor ◀▶ button to determine the timeout delay of the OSD.(Range: 10 – 20 sec.)	15
Translucent Menu	Press the cursor ◀▶ button to set menu screen translucency.(Range: 0% – 100%)	0%
Reset	Resets all Config items to default values	—

Note: The Config menu functions are available to all video sources.

Utility Menu

Press the Menu button to open the Main menu. Press the cursor ◀▶ button to move to the Utility menu. Press the cursor ▲▼ button to move up and down in the Utility menu. Press ◀▶ to change values for settings, and then press Enter or ▶ to confirm the new setting.

Video Type	Press the cursor ◀▶ button to select the video standard (Range: Auto - NTSC - PAL - SECAM)	Auto
Video AGC	Press the cursor ◀▶ button to enable or disable automatic gain control for the video source. (Range: On - Off)	On
Projection	Press the cursor ◀▶ button to choose from four projection methods:P Desktop mount, front of screenq Desktop mount, rear of screend Ceiling mount, front of screenb Ceiling mount, rear of screen	Desktop front
Frequency	Press the cursor ◀▶ button to adjust the A/D sampling clock. (Range: 0° - 180°)	Auto detected
Tracking	Press the cursor ◀▶ button to adjust the A/D sampling number. (Range: 1 - 100)	Auto detected
Digital Zoom	Digital operation for zoom and pan adjustment. Press Enter or ▶. The Zoom menu appears.Press ▲ to zoom in; press ▼ to zoom out. Press Enter or ▶ to open the Pan menu. (You must zoom in before you can open the Pan menu.)Use the cursor buttons to pan the zoomed image. Press the Menu button to exit.	—
Reset	Resets Video Type, Video AGC, Projection, and Digital Zoom to default values	—

Utility Menu Functions Available for Connected Source

Function/Source	RGB	DVI	Component Video	Composite Video	S-video
Video Type				O	O
Video AGC				O	O
Projection	O	O	O	O	O
Frequency	O		O
Tracking	O
Digital Zoom	O		O	O	O
Reset	O	O	O	O	O

O = User adjustable

Language Menu

Press the Menu button to open the Main menu. Press the cursor ◀▶ button to move to the Language menu. Press the cursor ▲▼ button to move up and down in the Language menu. Press Enter or ▶ to confirm the new setting.

English	Press the cursor ▲▼ button to move up and down in the menu.Press the Enter or ► to confirm the language.	English
Français
Dtsch
Italiano
Español
Svenska
简体中文
繁體中文
日本語
한국어
Português
Ру с с к о

Status Menu

Press the Menu button to open the Main menu. Press the cursor ◀▶ button to move to the Status menu. Press the cursor ▲▼ button to move up and down in the Status menu.

Video Information	Displays the resolution and refresh rate for RGB/DVI mode.Displays the color standard for video mode.	These items are display only.
Active Source	Displays the active source.
Lamp Hours	Shows the number of hours the lamp has been in use for Low; Middle; and High modes.
Lamp Mode	Press the cursor ◀▶ button to choose the lamp mode.Range: Low; Middle; and High.Low mode uses less power and extends lamp life, but decreases lamp brightness. High mode uses more power and increases lamp brightness, but shortens lamp life.	Middle
Lamp Hour Reset	After replacing the lamp, this item should be reset. Refer to “Replacing the Projection Lamp” on page 36.	—

Replacing the Projection Lamp

The projection lamp should be replaced when it burns out. It should only be replaced with a certified replacement part, which you can order from your local dealer.

Important:

1. The lamp contains a certain amount of mercury and should be disposed of according to local ordinance regulations.
2. Avoid touching the glass surface of the new lamp: Doing so may shorten its operation life.

Warning:

Be sure to turn off and unplug the projector at least an hour before replacing the lamp. Failure to do so could result in a severe burn.

1. Loosen the two captive screws on the lamp compartment cover (A).

2. Remove the lamp compartment cover (B).

Diagram of a computer monitor with an open rear panel and directional arrows indicating assembly or operation (no text or symbols present)

1. Remove the two screws from the lamp module (A).
2. Lift the module handle up (B).
3. Pull firmly on the module handle to remove the lamp module.
4. Reverse steps 1 to 5 to install the new lamp module.

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Technical illustration of an automotive engine compartment showing internal components and a highlighted section (no text or symbols)

Resetting the Lamp

After replacing the lamp, you should reset the lamp hour counter to zero. Refer to the following:

1. Press the Menu button to open the Main menu.

2. Press the cursor ◀▶ button to move to the Status menu.

3. Press the cursor ▲▼ button to move down to Lamp Hour Reset.

4. Press the cursor ▶ or Enter button.

A message screen appears.

1. Press the cursor buttons in this order:

The Status menu appears again showing the Lamp Hours reset to zero.

Cleaning the Projector

Cleaning the projector to remove dust and grime will help ensure trouble-free operation.

Warning:

1. Be sure to turn off and unplug the projector at least an hour before cleaning. Failure to do so could result in a severe burn.
2. Use only a dampened cloth when cleaning. Do not allow water to enter the ventilation openings on the projector.
3. If a little water gets into the projector interior while cleaning, leave unplugged in a well-ventilated room for several hours before using.
4. If a lot of water gets into the projector interior when cleaning, have the projector serviced.

Cleaning the Lens

You can purchase optic lens cleaner from most camera stores. Refer to the following to clean the projector lens.

1. Apply a little optic lens cleaner to a clean soft cloth. (Do not apply the cleaner directly to the lens.)
2. Lightly wipe the lens in a circular motion.

Caution:

1. Do not use abrasive cleaners or solvents.

2. To prevent discoloration or fading, avoid getting cleaner on the projector case.

Cleaning the Case

Refer to the following to clean the projector case.

1. Wipe off dust with a clean dampened cloth.
2. Moisten the cloth with warm water and mild detergent (such as used to wash dishes), and then wipe the case.
3. Rinse all detergent from the cloth and wipe the projector again.

Caution:

To prevent discoloration or fading of the case, do not use abrasive alcohol-based cleaners.

Using the Kensington® Lock

If you are concerned about security, attach the projector to a permanent object with the Kensington slot and a security cable.

Front view of a portable electronic device with control panel and display, connected to a padlock icon (no text or symbols)

Note:

Contact your vendor for details on purchasing a suitable Kensington security cable.

The security lock corresponds to Kensington's MicroSaver Security System. If you have any comment, contact: Kensington, 2853 Campus Drive, San Mateo, CA94403, U.S.A. Tel: [phone], http://www.Kensington.com.

Common problems and solutions

These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains unsolved, contact your dealer for assistance.

Often after time spent troubleshooting, the problem is traced to something as simple as a loose connection. Check the following before proceeding to the problem-specific solutions.

• Use some other electrical device to confirm that the electrical outlet is working.
• Ensure the projector is turned on.
- Ensure all connections are securely attached.
• Ensure the attached device is turned on.
- Ensure a connected PC is not in suspend mode.
- Ensure a connected notebook computer is configured for an external display. (This is usually done by pressing an Fn-key combination on the notebook.)

Tips for Troubleshooting

In each problem-specific section, try the steps in the order suggested. This may help you to solve the problem more quickly.

Try to pin point the problem and thus avoid replacing non-defective parts.

For example, if you replace batteries and the problem remains, put the original batteries back and go to the next step.

Keep a record of the steps you take when troubleshooting: The information may be useful when calling for technical support or for passing on to service personnel.

LED Error Messages

LED	STATUS/ NUMBER OF FLASHES	DESCRIPTION
Ready	Flashing	Lamp not ready-do not press the power button
	1	Burner Fan error
	2	Ballast Fan error
	3	Lamp Fan error
	5	Power Fan error
Power	2	System task created error
	3	System overheating
	4	System interface error
	5	Lamp error
	6	Fan error (refer to Ready LED status to determine which fan)
	7	Lamp cover open
	8	DLP driver error
	9	Color wheel error

Image Problems

Problem: No image appears on the screen

1. Verify the settings on your notebook or desktop PC.
2. Turn off all equipment and power up again in the correct order.

Problem: The image is blurred

1. Adjust the Focus on the projector.
2. Press the Auto button on the remote control or projector.
3. Ensure the projector-to-screen distance is within the 10-meter (33-feet) specified range.
4. Check that the projector lens is clean.

Problem: The image is wider at the top or bottom (trapezoid effect)

1. Position the projector so it is as perpendicular to the screen as possible.
2. Use the Keystone button on the remote control or projector to correct the problem.

Problem: The image is reversed or upside down

Check the Projection setting on the Utility menu of the OSD.

Problem: The image is streaked

1. Set the Frequency and Tracking settings on the Utility menu of the OSD to the default settings.

2. To ensure the problem is not caused by a connected PC's video card, connect to another computer.

Problem: The image is flat with no contrast

Adjust the Contrast setting on the Main menu of the OSD.

Problem: The color of the projected image does not match the source image.

Adjust the Color Temperature and Gamma settings on the Main menu of the OSD.

Lamp Problems

Problem: There is no light from the projector

1. Check that the power cable is securely connected.
2. Ensure the power source is good by testing with another electrical device.
3. Restart the projector in the correct order and check that the Power LED is green.
4. If you have replaced the lamp recently, try resetting the lamp connections.
5. Replace the lamp module.
6. Put the old lamp back in the projector and have the projector serviced.

Problem: The lamp goes off

1. Power surges can cause the lamp to turn off. Press the power button twice to turn off the projector. When the Ready LED is on, press the power button.
2. Replace the lamp module.
3. Put the old lamp back in the projector and have the projector serviced.

Remote Control Problems

Problem: The projector does not respond to the remote control

1. Direct the remote control towards remote sensor on the projector.
2. Ensure the path between remote and sensor is not obstructed.
3. Turn off any fluorescent lights in the room.
4. Check the battery polarity.
5. Replace the batteries.
6. Turn off other Infrared-enabled devices in the vicinity.
7. Have the remote control serviced.

Audio Problems

Problem: There is no sound

1. Adjust the volume on the remote control.
2. Adjust the volume of the audio source.
3. Check the audio cable connection.
4. Test the source audio output with other speakers.
5. Have the projector serviced.

Problem: The sound is distorted

1. Check the audio cable connection.
2. Test the source audio output with other speakers.
3. Have the projector serviced.

Having the Projector Serviced

If you are unable to solve the problem, you should have the projector serviced. Pack the projector in the original carton. Include a description of the problem and a checklist of the steps you took when trying to fix the problem: The information may be useful to service personnel. For servicing, return the projector to the place you purchased it.

Specifications

Display type	DX130	TI DMD 0.7-inch x 1, 12 degrees, DDR DLP w/DDP2000
	DX125	TI DMD 0.55-inch x 1, 12 degrees, DDR DLP w/DDP2000
	DS125	TI DMD 0.55-inch x 1, 12 degrees, DDR DLP w/DDP2000
	AB110	TI DMD 0.53-inch x 1, 12 degrees, DDR DLP w/DDP2000
Resolution	DX130	Native	XGA 1024 x 768
	DX125		XGA 1024 x 768
	DS125		SVGA 800 x 600
	AB110		480P 854 x 480
Bandwidth	DX130	Up to SXGA 1280x 1024 @ 75 Hz <140MHz >
	DX125	Up to SXGA 1280x 1024 @ 75 Hz <140MHz >
	DS125	Up to SXGA 1280x 1024 @ 60 Hz <110MHz >
	AB110	Up to 1920 x 1080i @60Hz
Color	DX130DX125DS125AB110	16.7 Million (24-bits/Pixel)
Brightness Uniformity	DX130DX125DS125AB110	Min.:	75%
		Typical:	85%
Color	DX130DX125DS125AB110	16.7 Million (24-bits/Pixel)
Projection distance(Wide/Tele)		1.5 to 7 meters (overdrive 1m to 10m)
Projection screen size	DX130	100”@3.66m1.04m~4.86m(Wide) 0.89m~4.17m(Tele)
	DX125	100”@3.94m0.97m~4.15m(Wide) 0.83m~3.85m(Tele)
	DS125	100”@3.94m0.97m~4.15m(Wide) 0.83m~3.85m(Tele)
	AB110	100”@4.30m0.89m~4.14m(Wide) 0.76m~3.54m(Tele)
Projection lens	DX130DX125DS125AB110	Manual Zoom and Focus
Zoom ratio	DX130DX125DS125AB110	1.16:1
Keystone correction	DX130DX125DS125AB110	+/- 15°
Projection methods		Desktop front/rear; Ceiling front/rear
Data compatibility	DX130DX125DS125AB110	RGB Digital	Up to 110MHz
			SXGA 1280x1024@60Hz
		RGB Analog	Up to 140 MHz
			SXGA+ 1400x1050@60Hz
Video compatibility	DX130DX125DS125AB110	SDTV	480i (thru DVI_I)
		EDTV	480p (thru DVI_I)
		HDTV	720p, 1080i (thru DVI_I)
		NTSC/NTSC 4.43, PAL (B/G/H/I/M/N 60), SECAM
H-Sync	DX130DX125	15, 31 - 90 kHz
	DS125AB110	15, 31 - 70 kHz
V-Sync	DX130DX125	50 - 85 Hz
Operating temperature		5° ~ 35°C @ sea level
Dimensions (WxDxH)	DS125AB110	See “Projector Dimentions” on page 49
Weight		2.05Kg (4.5 lbs)
Power consumption	DX130DX125DS125AB110	Middle Mode :	typical 255 watts @ 110Vac
		Low Mode :	typical 230 watts @ 110Vac
		High Mode :	typical 290 watts @ 110Vac
Stand-By Power		< 8 watts
Lamp Power		Middle Mode :	200 watts
		Low Mode :	180 watts
		High Mode :	230 watts
Audio speaker		1W mono speaker

Input/output connectors

PC	DVI-I
	USB
Video	Composite video (RCAx1)
	S-video (Mini-DIN)
Audio	Mini-jack
Security	Kensington slot

Projection Distance V.S. Projection Size

DX130

	Max. Screen Size			Max. Screen Size
1.00 m	0.69 m	0.56 m	0.42 m	0.60 m	0.48 m	0.36 m
	27.34"	21.67"	16.40"	23.43"	18.75"	14.06"
1.50 m	1.04 m	0.83 m	0.63 m	0.89 m	0.71 m	0.54 m
		32.61"	24.61"	35.15"	28.12"	21.09"
2.40 m	1.67 m	1.33 m	1.00 m	1.43 m	1.14 m	0.86 m
	65.62"	52.49"	39.37"	56.24"	44.99"	33.75"
2.80 m	1.94 m	1.56 m	1.17 m	1.67 m	1.33 m	1.00 m
	76.55"	61.24"	45.93"	65.62"	52.49"	39.37"
3.20 m	2.22 m	1.78 m	1.33 m	1.90 m	1.52 m	1.14 m
10.50'	87.49"	69.99"	52.49"	74.99"	59.99"	44.99"
3.60 m	2.50 m	2.00 m	1.50 m	2.14 m	1.71 m	1.29 m
	98.43"	78.74"	59.06"	84.36"	67.49"	50.62"
4.00 m	2.78 m	2.22 m	1.67 m	2.38 m	1.90 m	1.43 m
	109.36"	87.49"	65.62"	93.74"	74.99"	56.24"
4.40 m	3.06 m	2.44 m	1.83 m	2.62 m	2.10 m	1.57 m
	120.30"	96.24"	72.18"	103.11"	82.49"	61.87"
4.80 m	3.33 m	2.67 m	2.00 m	2.86 m	2.29 m	1.71 m
	131.23"	104.99"	78.74"	112.49"	89.99"	67.49"
5.20 m	3.61 m	2.89 m	2.17 m	3.10 m	2.48 m	1.86 m
17.06'	142.17"	113.74"	85.30"	121.86"	97.49"	73.12"
5.60 m	3.89 m	3.11 m	2.33 m	3.33 m	2.67 m	2.00 m
18.37'	153.11"	122.48"	91.86"	131.23"	104.99"	78.74"
7.00 m	4.86 m	3.89 m	2.92 m	4.17 m	3.33 m	2.50 m
22.96'	191.38"	153.11"	114.83"	164.04"	131.23"	98.43"
10.00 m	6.94 m	5.56 m	4.17 m	5.95 m	4.76 m	3.57 m
32.80'	273.40"	218.72"	164.04"	234.35"	187.48"	140.61"

Shaded rows are equivalent measurement in feet and inches

DX125/DS125

	Max. Screen Size			Max. Screen Size
1.00 m	0.64 m	0.52 m	0.39 m	0.55 m	0.44 m	0.33 m
	25.37"	20.29"	15.22"	21.68"
1.50 m	0.97 m	0.77 m	0.58 m	0.83 m	0.66 m	0.50 m
	38.05"	30.44"	22.83"	32.52"	26.02"
2.40 m	1.55 m	1.24 m	0.93 m	1.32 m	1.06 m	0.79 m
	60.88"		36.53"	52.03"	41.62"	31.22"
2.80 m	1.80 m	1.44 m	1.08 m	1.54 m	1.23 m	0.93 m
	71.03"	56.82"	42.62"	60.70"	48.56"	36.42"
3.20 m	2.06 m	1.65 m	1.24 m	1.76 m	1.41 m	1.06 m
10.50'		64.94"		69.37"	55.50"	41.62"
3.60 m	2.32 m	1.86 m	1.39 m	1.98 m	1.59 m	1.19 m
	91.32"	73.06"	54.79"	78.05"	62.44"	46.83"
4.00 m	2.58 m	2.06 m	1.55 m	2.20 m	1.76 m	1.32 m
	101.47"	81.18"	60.88"	86.72"	69.37"	52.03"
4.40 m	2.84 m	2.27 m	1.70 m	2.42 m	1.94 m	1.45 m
	111.62"	89.29"	66.97"	95.39"	76.31"	57.23"
4.80 m	3.09 m	2.47 m	1.86 m	2.64 m	2.11 m	1.59 m
	121.76"		73.06"	104.06"	83.25"	62.44"
5.20 m	3.35 m	2.68 m	2.01 m	2.86 m	2.29 m	1.72 m
17.06'	131.91"	105.53"	79.15"	112.73"	90.19"	67.64"
5.60 m	3.61 m	2.89 m	2.16 m	3.08 m	2.47 m	1.85 m
18.37'	142.06"	113.65"	85.29"	121.41"	97.12"	72.84"
7.00 m	4.51 m	3.61 m	2.71 m	3.85 m	3.08 m	2.31 m
22.96'	177.57"	142.06"	106.54"	151.76"	121.41"	91.05"
10.00 m	6.44 m	5.15 m	3.87 m	5.51 m	4.41 m	3.30 m
32.80'	253.67"	202.94"	152.20"	216.80"	173.44"	130.08"

Shaded rows are equivalent measurement in feet and inches

AB110

	Max. Screen Size			Max. Screen Size
1.00 m	0.59 m	0.52 m	0.29 m	0.51 m	0.44 m	0.25 m
	23.28"	20.29"		19.09"
1.50 m	0.89 m	0.77 m	0.43 m	0.76 m	0.66 m	0.37 m
	34.92"	30.44"		29.84"	26.02"	14.63"
2.40 m	1.42 m	1.24 m	0.70 m	1.21 m	1.06 m	0.59 m
	55.86"		27.40"		41.62"	23.41"
2.80 m	1.66 m	1.44 m	0.81 m	1.41 m	1.23 m	0.69 m
	65.18"	56.82"	31.96"	55.70"	48.56"	27.32"
3.20 m	1.89 m	1.65 m	0.93 m	1.62 m	1.41 m	0.79 m
10.50'	74.49"	64.94"	36.53"	63.66"	55.50"	31.22"
3.60 m	2.13 m	1.86 m	1.04 m	1.82 m	1.59 m	0.89 m
	83.80"	73.06"		71.62"	62.44"	35.12"
4.00 m	2.36 m	2.06 m	1.16 m	2.02 m	1.76 m	0.99 m
		81.18"	45.66"	79.57"	69.37"	39.02"
4.40 m	2.60 m	2.27 m	1.28 m	2.22 m	1.94 m	1.09 m
	102.42"	89.29"	50.23"	87.53"	76.31"	42.93"
4.80 m	2.84 m	2.47 m	1.39 m	2.43 m	2.11 m	1.19 m
	111.73"		54.79"	95.49"	83.25"	46.83"
5.20 m	3.07 m	2.68 m	1.51 m	2.63 m	2.29 m	1.29 m
17.06'	121.04"	105.53"	59.36"	103.44"	90.19"	50.73"
5.60 m	3.31 m	2.89 m	1.62 m	2.83 m	2.47 m	1.39 m
18.37'	130.35"	113.65"	63.93"	111.40"	97.12"	54.63"
7.00 m	4.14 m	3.61 m	2.03 m	3.54 m	3.08 m	1.73 m
22.96'	162.94"	142.06"	79.91"	139.25"	121.41"	68.29"
10.00 m	5.91 m	5.15 m	2.90 m	5.05 m	4.41 m	2.48 m
32.80'	232.77"	202.94"	114.15"	198.93"	173.44"	97.56"

Shaded rows are equivalent measurement in feet and inches

Timing Mode Table

The projector can display several resolutions. The following table outlines the resolutions that can be displayed by the projector.

Signal	Resolution	Frequency H. (KHz)	Refresh Rate (Hz)	Video	Digital	Analog
Video Source
NTSC	-	15.734	60.0	O	-	-
PAL/SECAM	-	15.625	50.0	O	-	-
SDTV	480i	15.8	60.0	O	-	-
	576i	15.6	50.0	O	-	-
EDTV	480p	31.5	60.0	O	-	-
	576p	31.3	50.0	O	-	-
HDTV	720p	45.0	60.0	O	-	-
	1080i	33.8	60.0	O	-	-
	1080i	28.1	50.0	O	-	-
Data Source
VESA	640 x 400	37.9	85.0	-	O	O
	640 x 480	31.5	60.0	-	O	O
	640 x 480	37.9	72.0	-	O	O
	640 x 480	37.5	75.0	-	O	O
	640 x 480	43.3	85.0	-	O	O
	800 x 600	35.2	56.0	-	O	O
	800 x 600	37.9	60.0	-	O	O
	800 x 600	46.9	75.0	-	O	O
	800 x 600	48.1	72.0	-	O	O
	800 x 600	53.7	85.0	-	O	O
	1024 x 768	48.4	60.0	-	O	O
	1024 x 768	56.5	70.0	-	O	O
	1024 x 768	60.0	75.0	-	O	O
	1024 x 768	68.7	85	-	O	O
	1440 x 900	55.6	60	-	O	O
	1280 x 1024	63.98	60.0	-	O	O
	1280 x 1024	79.98	75.0	—	—	O
	1400 x 1050	65.3	60	—	—	O
	1400 x 1050	64.7	60	—	—	O
Apple Macintosh	640 x 480	34.98	66.66	—	O	O
	640 x 480	35.0	66.68	—	O	O
	832 x 624	49.725	74.55	—	O	O
	1024 x 768	60.24	75	—	O	O
	1152 x 870	68.68	75.06	—	O	O

• Frequency supported
  --: Frequency not supported

Projector Dimensions

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Changes or modifications not expressly approved by the parties responsible for compliance could void the user's authority to operate the equipment.

Canada

This class B digital apparatus complies with Canadian ICES-003.

Safety Certifications

FCC Class B, UL, CE, CB, GOST, MIC, SABS, C-TICK

EN 55022 Warning

This is a Class B product. In a domestic environment, it may cause radio interference, in which case the user may be required to take adequate measures. The typical use is in a conference room, meeting room, or auditorium.
