L50HBSS12 - Hand blender Logik - Free user manual and instructions

Type	Hand Blender
Brand	Logik
Model	L50HBSS12
Power Consumption	400 W
Voltage	220-240 V ~ 50/60 Hz
Speed Settings	2 variable speeds + Turbo boost
Shaft Material	Stainless steel
Blade Material	Stainless steel
Beaker Capacity	800 ml
Cable Length	1.2 m
Weight	0.8 kg
Dimensions (L x W x H)	40 x 7 x 7 cm
Functions	Blending, mixing, pureeing, whipping
Included Attachments	Blending shaft, whisk, 800 ml beaker
Dishwasher Safe Parts	Yes (detachable shaft and whisk)
Safety Features	Auto shut-off, overheat protection
Warranty	2 years

Frequently Asked Questions - L50HBSS12 Logik

How do I clean the hand blender?

Detach the blending shaft and whisk from the motor unit. Wash the shaft and whisk in warm soapy water or place them in the dishwasher. Wipe the motor unit with a damp cloth; never immerse it in water.

Can I blend hot liquids?

Yes, but allow liquids to cool slightly before blending. Do not blend boiling liquids as pressure can build up and cause splashing. Never fill the beaker more than halfway with hot liquids.

What is the maximum operating time?

The motor is designed for short bursts. Do not run the blender continuously for more than 1 minute. Let it cool down for at least 2 minutes between uses to prevent overheating.

Can I use the hand blender for crushing ice?

No, this hand blender is not intended for crushing ice. Use it for soft ingredients only. For ice, consider a dedicated blender or food processor.

How do I attach the whisk?

Ensure the motor unit is unplugged. Insert the whisk attachment into the coupling until it clicks. The whisk is suitable for whipping cream, egg whites, and light batters.

What does the turbo button do?

The turbo button provides a quick burst of maximum power for tough ingredients. Press and hold the turbo button while blending to activate. Release to return to the selected speed.

Is the hand blender suitable for making baby food?

Yes, it is ideal for pureeing cooked vegetables and fruits. Ensure ingredients are soft and cooked thoroughly. Blend until smooth and let cool before serving.

Can I use the hand blender directly in a pot?

Yes, you can blend directly in a pot, but avoid contact with the bottom and sides to prevent scratches. Use a non-stick safe utensil. Also, ensure the pot is not too hot.

How do I store the hand blender?

After cleaning and drying, store the motor unit and attachments in a dry place. You can use the provided beaker or a wall mount if available. Keep the cord wrapped loosely.

What should I do if the blender stops working?

Check if the appliance is properly plugged in. If it has overheated, it may have shut off automatically. Unplug it and let it cool down for 15 minutes. If the problem persists, contact Logik customer support.

USER MANUAL L50HBSS12 Logik

The appliance is designed to process average domestic quantities of food; it may be operated without interruption for a maximum of 30 seconds, after which it should then be allowed to cool down for approximately 1 minute.

OPERATION

• The hand blender blends and mixes fast and easily. Use it to make sauces, soups, mayonnaise, purees, dietary and baby food, mixed drinks or cocktails.
• Should you want to blend directly in the saucepan while cooking, first take the pan away from the stove, to protect your hand blender from over heating.
• To avoid splashing, insert the hand blender into the vessel first, and then press the operation button.
• Press and hold the operation button for continuous blending.
  • To turn off your hand blender, simply release the operation button.

CLEANING AND MAINTENANCE

• Always remove the mains plug from the mains socket before cleaning the appliance.
- To avoid the risk of electric shock, do not clean the drive unit or the mains cable with water and do not immerse them in water. The drive unit may be wiped with a slightly damp, lint-free cloth.
- Do not use abrasives, harsh cleaning solutions or sharp/pointed objects for cleaning.
- The blade can be cleaned under hot, running water. Ensure that only the blender and blade units are cleaned this way. All other parts of the appliance must be kept well away from water. To remove persistent food residues, a suitable brush may also be used.

SPECIFICATIONS

Mains Supply: 220 - 240V \~50Hz

Power Consumption: 500W

We continually strive to improve our products. Specifications may change without prior notice.

LOGIK

Instruction Manual

Hand Blender

L50HBSS12

White LOGIK blender with a metallic handle and stand (no visible text or symbols on the device body)

KNOWHOW

For general information about this appliance

and handy hints and tips, please visit

www.knowhow.com/knowledgebank or call 0844 5611234

Partmaster

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and

____ ____ COUR accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

DSG Retail Ltd. (co. no. 504877)

Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK

Thank you for purchasing your new Logik Blender.

We recommend that you spend some time reading this instruction manual in order to fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference.

SAFETY FIRST!

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

- Read all the instructions carefully before using the appliance and keep them for future reference.

- Retain the manual. If you pass the appliance onto a third party, make sure to include this manual.

- Check that the voltage marked on the rating label matches your mains voltage.

- Before using this appliance, the main body as well as any attachments fitted should be checked thoroughly for any defects.

- This appliance can be used by persons aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instructions concerning the use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children unless they are older than 8 years old and are supervised.

- Keep the appliance and its cord out of reach of children less than 8 years old.

• Children should be supervised to ensure that they do not play with the appliance.

- If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

- Do not let the mains cable overhang the edge of the work surface or allow it to touch hot surfaces or sources of heat or flame.

- Always switch the appliance off, wait until the motor has come to a complete stop and remove the plug from the mains socket, before attempting to clean any attachments. The blades are extremely sharp. To prevent injuries, take special care when handling these parts. After switching off, always wait until the motor has come to a complete stop. Do not touch any moving parts.

• Always remove the plug from the mains socket after use, if a malfunction occurs and during cleaning.

- During operation, the appliance should be placed on a scratch-resistant container. - This appliance is intended for domestic use only and not for commercial applications.

- In order to comply with safety regulations and to avoid hazards, repairs of electrical appliances must be carried out by qualified personnel, including the replacement of the mains cable.

- To protect from electrical hazard, do not immerse the appliance or mains cable in any liquid.

- This appliance has not been designed for any other uses other than those specified in this manual.

- After each operation, allow the hand blender to cool down for 3 minutes before using again.

- Always disconnect from the mains supply if left unattended, and before removing, attaching or cleaning.

UNPACKING

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

• The Main Unit

• Instruction Manual

If items are missing or damaged, please contact Partmaster (UK only). Tel: [phone] for assistance.

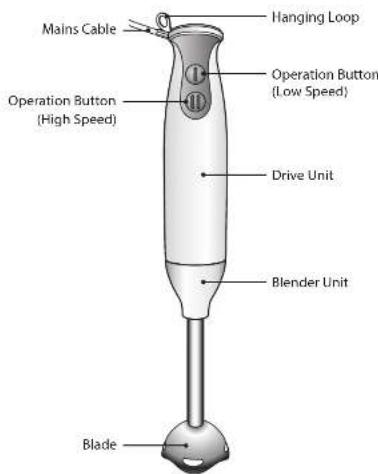

PRODUCT OVERVIEW

FIRST TIME USE

• Before the appliance is used for the first time, it must be thoroughly cleaned as described in the section Cleaning and Maintenance.
• Always use a suitable container for operation. A tall container with a wide flat base is best.
• Push the hand blender down into the ingredients in the bowl before briefly switching the appliance on with the operation button.
• Make sure that the appliance can rotate freely inside the bowl and is not blocked during operation.
• As soon as the operation button is released, the blender will switch off. Always wait until the motor has come to a complete stop before lifting the blender attachment from the mixture.
  • Always remove the mains plug from the wall socket after use.

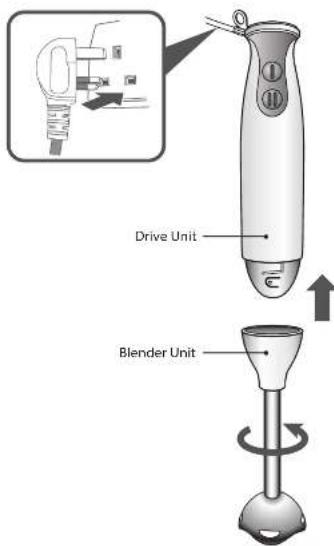

ASSEMBLING

1. Plug the blender unit to the drive unit and turn it anti-clockwise to lock with the drive unit, to unlock, turn it clockwise.
2. Connect to the mains socket.
