PB011 - Power bank Valore - Free user manual and instructions

Product Type	Portable Power Bank
Model Number	PB011
Brand	Valore
Battery Capacity	10000 mAh / 37 Wh
Input Port	Micro USB 5V/2A
Output Port 1	USB-A 5V/2.1A
Output Port 2	USB-A 5V/1A
Total Output Current	3.1A max (shared)
Charging Time	Approx. 6 hours (5V/2A)
Dimensions	145 x 68 x 14 mm
Weight	235 g
Battery Type	Lithium-Polymer
Operating Temperature	0°C – 45°C
Storage Temperature	-20°C – 60°C
LED Indicator	4 LEDs for battery level
Key Functions	Charge smartphones, tablets, and other USB devices
Safety Features	Overcharge, over-discharge, short circuit, and temperature protection
Care and Cleaning	Wipe with a dry cloth; avoid moisture and heat
Spare Parts and Repairability	Battery not user-replaceable; contact Valore support
Included Accessories	Micro USB charging cable, user manual
Compatibility	Most USB-charged devices up to 2.1A
Certification	CE, RoHS

Frequently Asked Questions - PB011 Valore

How do I check the battery level on the Valore PB011?

Press the power button on the side of the power bank. The four LED indicators will light up to show the remaining capacity: 1 LED = 25%, 2 LEDs = 50%, 3 LEDs = 75%, 4 LEDs = 100%.

Can I charge two devices simultaneously?

Yes, the PB011 has two USB-A output ports. You can charge two devices at the same time, but the total output current is shared up to 3.1A.

How long does it take to fully charge the power bank?

Using the included Micro USB cable and a 5V/2A charger, it takes approximately 6 hours. Using a lower current charger will increase charging time.

Is the Valore PB011 safe to use with my smartphone?

Absolutely. The power bank features multiple safety protections including overcharge, over-discharge, short circuit, and temperature control. It automatically stops charging when the device is full.

What is the capacity of the Valore PB011?

The PB011 has a capacity of 10000 mAh (37 Wh), which can charge a typical smartphone 2-3 times depending on the device model.

Can I take the Valore PB011 on an airplane?

Yes, power banks with a capacity under 100 Wh (like this 37 Wh model) are allowed in carry-on luggage. Check with your airline for any restrictions.

Why isn't my device charging?

First, ensure the power bank has enough charge by checking the LED indicators. Then verify the cable is fully inserted and try a different cable. If the issue persists, press the power button to activate the output.

How should I store the power bank when not in use?

Store in a cool, dry place away from direct sunlight and extreme temperatures. For optimal battery health, keep the charge between 50% and 80% if storing for long periods.

Can I replace the battery inside the Valore PB011?

The battery is not user-replaceable. Do not attempt to open the casing. If the power bank no longer holds a charge, please contact Valore support for disposal and replacement options.

Does the Valore PB011 support fast charging?

This model does not support Qualcomm Quick Charge or USB PD fast charging. It outputs a standard 5V up to 2.1A per port, which provides normal charging speed for most devices.

USER MANUAL PB011 Valore

Thank you for purchasing the Valore 6000mAh Power Bank.

Designed to travel light with its brilliantly thin and light profile. Always be ready for a quick charge with the built-in charging cable, 8-pin and type-C adaptor.

Important: Please read the user manual thoroughly before using your 6000mAh Power Bank.

Specifications:

• Battery type: Built-in Polymer Lithium-ion
• Battery capacity: 6000mAh
• Input: 5V/2.0A (max)
  • Output: 5V/2.1A (max)
• Charging time: 7 hours (5V/2.0A USB adapter)
• Recharging cycle: 300 times cycle
• Operating temperature: 0^ to 40^
• Material: ABS + PC
• Dimensions (H x W x D): 130 x 72 x 6.5mm
• Weight: 144g

Package Contents:

• 6000mAh Power Bank
• 8-Pin adaptor
• Type-C adaptor
• Soft pouch

UNDERSTANDING THE PRODUCT

① LED indicator
② Micro USB charging cable
③ USB charging cable
④ USB charging port
⑤ Micro USB charging port (5V/2.0A)

START USING THE 6000MAH POWER BANK

1) Charging the power bank (2.0A USB adapter to wall plug)

Connect your power bank to the USB adaptor (2.0A) using the built-in charging cable.

When the LED indicator displays 4 blue LED lights, it indicates that the

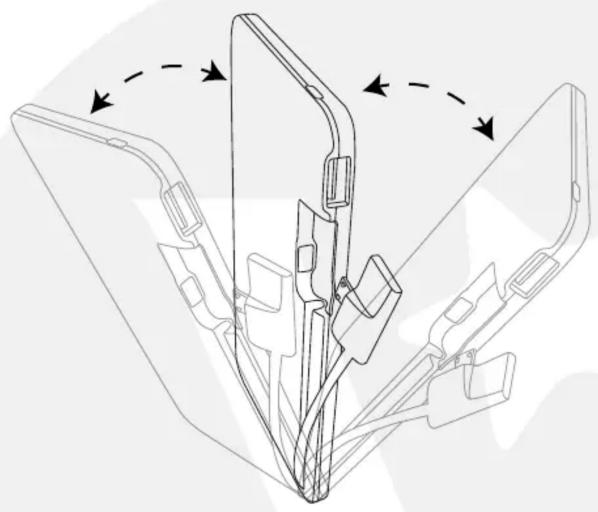

battery is fully charged. Gently shake the power bank forward and backwards 90^ for awhile, and the LED indicators will light up.

Technical line drawing of a mechanical component with arrows indicating motion or assembly (no text or symbols)

Power level:

One LED: <25%

Two LED: <50%

Three LED: <75%

Four LED: < 100%

*The above mentioned is for reference only

Note: Fully charge the power bank for at least 14-16 hours before first use. This is to maximise the battery performance and prolonging the life of lithium ion batteries.

Recharge your power bank once every three months when not in use or seldom used.

2) Charging of micro usb devices

Connect your power bank to your mobile device's micro usb port, using the built-in charging cable.

3) Charging of iOS devices

Connect your power bank to your iOS device's charging port, using the built-in charging cable and 8-pin adaptor provided.

Diagram showing a device connected to a smartphone via battery, with no text or symbols present.

*IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

TROUBLESHOOTING

Issue 1:

Power bank is unable to charge your mobile device

Problem 1: Power bank battery is flat

Solution: Fully charge the power bank and resume charging your mobile device.

Issue 2:

Power bank drains off quickly

Problem: Running multiple applications on your mobile device

Solution: Turn off all running applications on the mobile device and leave it to charge till full.

Extra consumption of energy would be due to heat produced during the charging of your mobile device.

Issue 3:

Unable to charge (power indicator is not flashing)

Problem 1: The voltage of the power adapter is too low.

Solution: Use 5V supply with at least 800mAh for charging.

Problem 2: Faulty cable

Solution: Check the cable to ensure that it is well connected or replace damaged cables.

TECHNICAL SUPPORT & WARRANTY

• For Technical Support, email us at [e-mail].
• For Warranty Registration, visit www.valore.sg.

Cautions:

Read all the instructions and warnings carefully prior to using this product.

• Do not dismantle or open the power bank
• Do not subject the power bank to mechanical shock such as crushing, bending, puncturing or shredding. Avoid dropping or placing heavy object on the power bank.
• Do not expose the power bank to water or other liquids
• Do not expose the power bank to hear and/or fire. Avoid storage in direct sunlight.
• Do not attempt to insert foreign objects into the power bank. Do not short-circuit the power bank by storing it haphazardly in receptacle where it may be short-circuited by other metallic or conductive objects.
• Do not use any charger* other than that specifically provided for use with the power bank. Battery usage by children should be supervised.
  *The charger may also be known as the adaptor, and is used to charge the power bank

DISCLAIMER & TRADEMARKS

All information, trademarks, logos, graphics, and images (“Materials”) provided on this user manual are copyrighted or trademarked and are the property of Valore Lifestyle Pte Ltd. Any unauthorized use of any material contained on the instruction manual may violate copyright laws, trademark laws, laws of privacy and communications statutes. The trademarks, service marks and logos used and displayed in the Materials are registered and unregistered

trademarks and service marks of Valore and others. All other registered and unregistered company names, product names and marks mentioned herein the (“Materials”) are the property of their respective owners and may be trademarks or registered trademarks.
