PB03 - Power bank Valore - Free user manual and instructions

Product Type	Portable Charger / Power Bank
Model	PB03
Brand	Valore
Battery Capacity	10000 mAh (37 Wh)
Battery Type	Lithium-ion
Input Port	Micro USB 5V / 2A
Output Port 1	USB-A 5V / 2.1A
Output Port 2	USB-A 5V / 2.1A (shared output)
Total Output Current	Up to 2.1A
Dimensions	140 x 72 x 15 mm
Weight	Approx. 250 g
Charging Time (full)	Approx. 6 hours (with 2A charger)
LED Indicator	4 LED lights for battery level
Protection Features	Overcharge, over-discharge, short circuit, overcurrent
Compatibility	Smartphones, tablets, cameras, and other USB devices
Included Accessories	Micro USB charging cable
Material	ABS plastic with matte finish
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 60°C
Maintenance	Clean with a soft dry cloth; avoid liquids
Safety Instructions	Do not disassemble, expose to heat, or dispose in fire
Repairability / Spare Parts	Battery not replaceable; contact Valore for support
Certification	CE, RoHS

Frequently Asked Questions - PB03 Valore

How do I charge the power bank?

Connect the supplied Micro USB cable to the input port and a USB charger (5V/2A recommended). The LED lights will indicate charging progress.

How long does it take to fully charge the PB03?

With a 5V/2A charger, it takes approximately 6 hours to fully charge the power bank.

Can I charge two devices at the same time?

Yes, the PB03 has two USB output ports. However, the total output is limited to 2.1A, so charging speeds may be shared.

How do I check the remaining battery level?

Press the power button (if present) or simply connect a device. The LED indicator will show the remaining capacity: 4 LEDs = 100%, 1 LED = low.

Is the power bank safe to use while charging?

It is generally safe, but for best performance, avoid pass-through charging (charging the power bank while it charges a device) as it may generate extra heat.

What devices can I charge with the PB03?

It is compatible with most USB-powered devices such as smartphones, tablets, Bluetooth devices, cameras, and more.

Why is my device not charging?

Ensure the power bank has sufficient charge (check LED). Use a compatible cable and press the power button if necessary. If still not working, try a different cable.

Can I take the PB03 on an airplane?

Yes, power banks with capacity under 100 Wh (27,000 mAh) are allowed in carry-on luggage. The PB03 (37 Wh) is permitted. Always check airline regulations.

How should I clean the power bank?

Wipe the exterior with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners. Keep ports dry.

What does the red light mean?

A red LED may indicate low battery or an error. Charge the power bank fully. If the red light persists, contact Valore support.

USER MANUAL PB03 Valore

Thank you for purchasing the Valore 5000mAh Power Bank.

Charge Up your mobile devices quickly with Valore 5000mAh Power Bank. The 2.4A output dual port accessibility lets you charge two iOS and Android devices simultaneously.

Plus, you will always have your charging cables wherever you go with detachable micro USB and 8-pin cables designed to be tucked into both sides of the power bank.

Important: Please read the user manual thoroughly before using your Power Bank.

Specifications:

• Battery type: Built-in Li-Polymer battery
• Battery capacity: 5000mAh
• Input: 5V/2.0A (max)
  • Output 1: 5V/2.4A (max)
  • Output 2: 5V/2.4A (max)
• Charging time: 3.5 hours (5V/2.0A USB adaptor)
• Recharging cycle: >500 times cycle
• Material: ABS + PC
• Dimensions (H x W x D): 148 x 75 x 8mm
• Weight: 155g

Package Contents:

- 5000mAh Power Bank

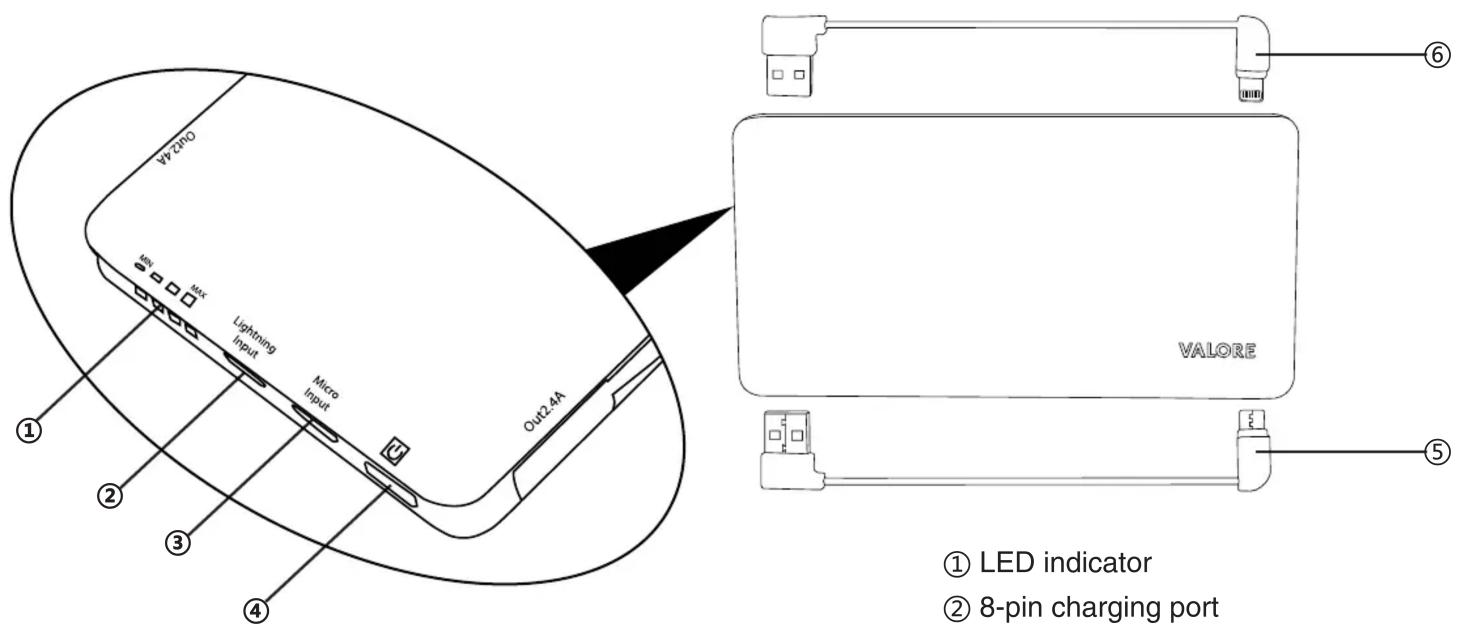

UNDERSTANDING THE PRODUCT

① LED indicator
② 8-pin charging port
③ Micro USB charging port
④ Power button
⑤ Micro USB cable
⑥ 8-Pin cable

START USING THE 5000MAH POWER BANK

1) Charging the power bank

Connect your power bank to the USB adapter (2.0A) using the charging cable provided.

When the LED indicator displays 4 green LED lights, it indicates that the battery is fully charged.

Line drawing of a laptop and its external screen device (no text or symbols)

Power level:

One LED: <25%

Two LED: <50%

Three LED: <75%

Four LED: < 100%

*The above mentioned is for reference only

Note: Fully charge the power bank for at least 14-16 hours before first use. This is to maximise the battery performance and prolonging the life of lithium ion batteries.

Recharge your power bank once every three months when not in use or seldom used.

2) Charging of devices

Connect your power bank to your mobile device's micro usb port using the Micro USB cable and 8-pin cable provided.

TROUBLESHOOTING

Issue 1:

Power bank is unable to charge your mobile device

Problem 1: Power bank battery is flat

Solution: Fully charge the power bank and resume charging your mobile device.

Issue 2:

Power bank drains off quickly

Problem: Running multiple applications on your mobile device

Solution: Turn off all running applications on the mobile device and leave it to charge till full.

Extra consumption of energy would be due to heat produced during the charging of your mobile device.

Issue 3:

Unable to charge (power indicator is not flashing)

Problem 1: The voltage of the power adapter is too low.

Solution: Use 5V supply with at least 800mAh for charging.

Problem 2: Faulty cable

Solution: Check the cable to ensure that it is well connected or replace damaged cables.

TECHNICAL SUPPORT & WARRANTY

• For Technical Support, email us at [e-mail].
• For Warranty Registration, visit www.valore.sg.

Cautions:

Read all the instructions and warnings carefully prior to using this product.

• Do not dismantle or open the power bank
• Do not subject the power bank to mechanical shock such as crushing, bending, puncturing or shredding. Avoid dropping or placing heavy object on the power bank.
• Do not expose the power bank to water or other liquids
• Do not expose the power bank to hear and/or fire. Avoid storage in direct sunlight.
• Do not attempt to insert foreign objects into the power bank. Do not short-circuit the power bank by storing it haphazardly in receptacle where it may be short-circuited by other metallic or conductive objects.
• Do not use any charger* other than that specifically provided for use with the power bank. Battery usage by children should be supervised.
  *The charger may also be known as the adaptor, and is used to charge the power bank
