PB15 - Power bank Valore - Free user manual and instructions

Type	Power Bank
Brand	Valore
Model	PB15
Battery Type	Rechargeable Lithium-ion
Battery Capacity	10000 mAh (estimated)
Input Port	Micro USB (5V, 2A)
Output Port(s)	1x USB-A (5V, 2.1A)
Dimensions (approx)	100 mm x 60 mm x 20 mm
Weight (approx)	200 g
LED Indicator	Yes, for battery level
Power Button	Yes, to check battery level
Charging Time (approx)	5-6 hours
Operating Temperature	0°C to 45°C
Compatibility	Smartphones, tablets, and other USB devices
Safety Features	Overcharge, over-discharge, short circuit protection
Cleaning	Wipe with dry cloth; do not use liquids
Storage	Store in cool, dry place away from heat
Replacement Parts	Not available; device is not serviceable
Repair	Do not attempt to open; professional service only

Frequently Asked Questions - PB15 Valore

How long does it take to fully charge the Valore PB15?

Charging the PB15 via a 2A adapter takes approximately 5-6 hours. Using a lower current adapter may extend charging time.

Can I charge two devices simultaneously?

The Valore PB15 has only one output port, so it can charge only one device at a time.

How do I know the battery level?

Press the power button; the LED indicator will light up showing the remaining battery level. Usually 4 LEDs represent 25%, 50%, 75%, and 100%.

Is it safe to use while charging?

Yes, the PB15 supports pass-through charging, but it may generate more heat. It is recommended to avoid extended use in this mode.

What devices can I charge with this power bank?

Any device that charges via USB-A, such as smartphones, tablets, Bluetooth headphones, and portable speakers. Ensure the device's input current does not exceed 2.1A.

How many times can it charge my phone?

The number of full charges depends on your phone's battery capacity. For a typical 3000 mAh phone battery, the PB15 can provide about 2-3 full charges, accounting for energy loss.

Can I take it on a plane?

Yes, power banks under 100 Wh (most portable ones) are allowed in carry-on luggage. The PB15 is estimated at ~37 Wh, so it's permitted.

What does the LED indicator mean?

When charging, LEDs flash to indicate progress. When charging devices, steady LEDs show remaining power. If only one LED flashes, it's low on battery.

How to clean the Valore PB15?

Disconnect all cables. Wipe the exterior with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners.

My power bank stopped working. What can I do?

First, try charging it for a few hours. If it still doesn't work, press the reset button (if available). If not, it may be defective. Do not open the device; contact Valore support for assistance.

USER MANUAL PB15 Valore

Thank you for purchasing the Valore 10000mAh Power Bank With 3W Wireless.

Do double duty with your power bank; charge quickly with its 10,000mAh capacity while enjoying it as a portable wireless speaker too. Conveniently-sizes for maximum portability, it also comes in brown.

Important: Please read the user manual thoroughly before using your Power Bank.

Specifications:

• Wireless range: 10m
• Battery capacity: 10000mAh
• Battery type: Built-in Li-polymer
• Charging time: Up to 7 hours
• Playback time: Up to 12 hours
  • Power output: DC5V/2.1A (max)
  • Power input: DC5V/2A (max)
• Speaker output: 3W
• Operating temperature: -10 to 45^
• Material: ABS
• Weight: 278g

- Storage expansion: Micro SD (TF) max 32GB (not included)

- Dimensions (L x W x H): 160 x 75 x 16mm

Package Contents:

• 10000mAh power bank with 3W wireless speaker
- Micro USB charging cable
- 8-pin charging cable
- Type-C adaptor
- Soft pouch

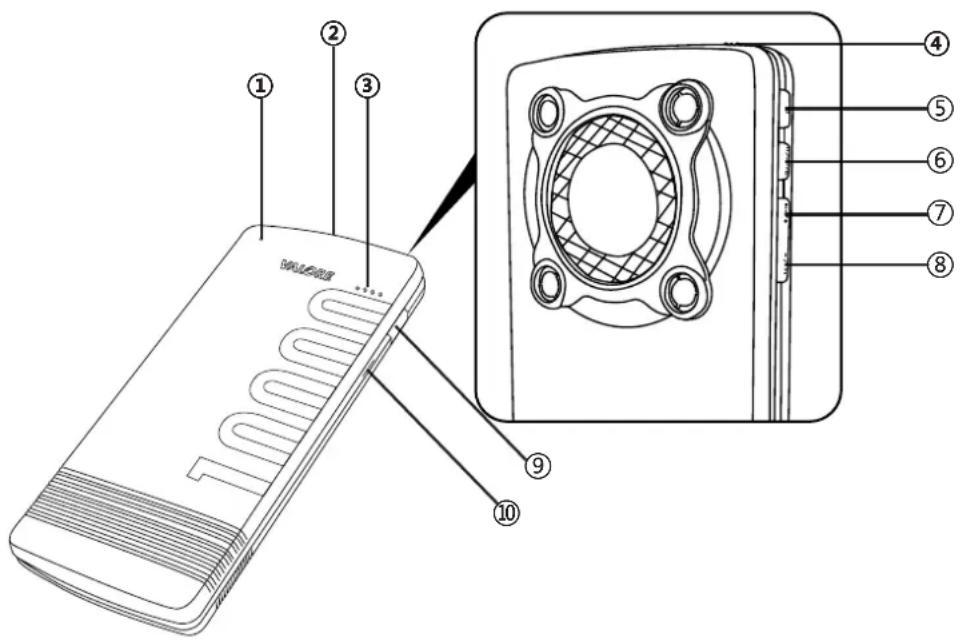

UNDERSTANDING THE PRODUCT

① Bluetooth LED indicator
② Micro USB charging port
③ LED indicator
④ Power switch
⑤ Bluetooth On/Off button
⑥ Multi-functional button
⑦ Volume + / Next song
⑧ Voume - / Previous song
⑨ USB output
⑩ TF card slot

START USING THE 10000MAH POWER BANK

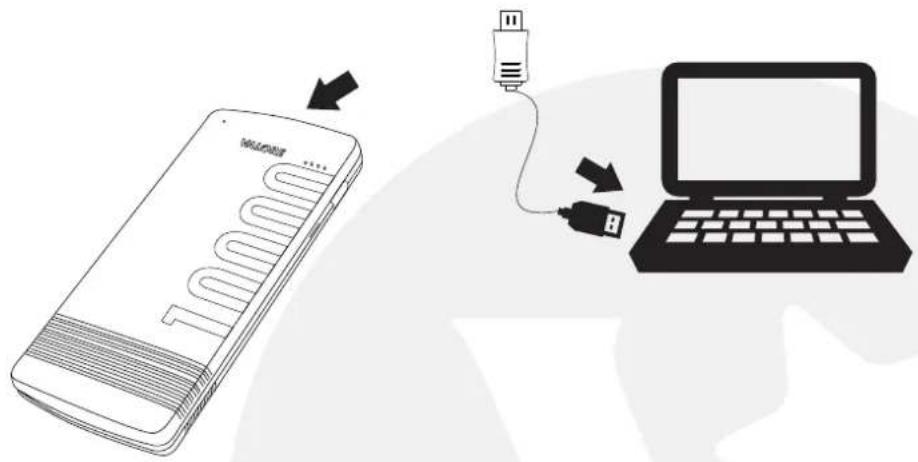

1) Charging the power bank

Connect your power bank to the USB adapter (2.0A) using the charging cable provided. When the LED indicator displays 4 lit indicator, it indicates that the battery is fully charged.

Power level:

1 LED : <25%

2 LED : <50%

3 LED : <75%

4 LED: < / = 100%

*The above mentioned is for reference only

Note: Fully charge the power bank for at least 14-16 hours before first use. This is to maximise the battery performance and prolonging the life of lithium ion batteries. Recharge your power bank once every three months when not in use or seldom used.

2) Charging of devices

Connect your power bank to your mobile device's micro usb port using the Micro USB cable, 8-pin cable and adaptor provided.

3) Pairing the wireless speaker (switched off)

Switch on the power button located at the top of the power bank. Press and hold the Bluetooth On/Off button for 3 seconds till the Bluetooth LED indicator starts to flash. Search and connect to 'Valore PB15' on your mobile device to complete pairing. Onces connected, Bluetooth LED indicator will be solid blue.

Press and hold the Bluetooth On/Off button to turn off Bluetooth speaker.

Line drawing of a hand pointing at a device panel with a mesh vent (no text or symbols)

3) Button functions

Multi-functional button - Short press to play and pause music

- Long press to control mobile phone's camera shutter

Volume + / Next song - Short press to go to next song

- Long press to increase volume

Volume - / Previous song - Short press to go to previous song

- Long press to decrease volume

TROUBLESHOOTING

Issue 1:

Power bank is unable to charge your mobile device

Problem 1: Power bank battery is flat

Solution: Fully charge the power bank and resume charging your mobile device.

Issue 2:

Power bank drains off quickly

Problem: Running multiple applications on your mobile device

Solution: Turn off all running applications on the mobile device and leave it to charge till full.

Extra consumption of energy would be due to heat produced during the charging of your mobile device.

Issue 3:

Unable to charge (power indicator is not flashing)

Problem 1: The voltage of the power adapter is too low.

Solution: Use 5V supply with at least 800mAh for charging.

Problem 2: Faulty cable

Solution: Check the cable to ensure that it is well connected or replace damaged cables.

TECHNICAL SUPPORT & WARRANTY

• For Technical Support, email us at [e-mail].
• For Warranty Registration, visit www.valore.sg.

Cautions:

Read all the instructions and warnings carefully prior to using this product.

• Do not dismantle or open the power bank
• Do not subject the power bank to mechanical shock such as crushing, bending, puncturing or shredding. Avoid dropping or placing heavy object on the power bank.
• Do not expose the power bank to water or other liquids
• Do not expose the power bank to hear and/or fire. Avoid storage in direct sunlight.
• Do not attempt to insert foreign objects into the power bank. Do not short-circuit the power bank by storing it haphazardly in receptacle where it may be short-circuited by other metallic or conductive objects.
• Do not use any charger* other than that specifically provided for use with the power bank. Battery usage by children should be supervised.
  *The charger may also be known as the adaptor, and is used to charge the power bank

DISCLAIMER & TRADEMARKS

All information, trademarks, logos, graphics, and images (“Materials”) provided on this user manual are copyrighted or trademarked and are the property of Valore Lifestyle Pte Ltd. Any unauthorized use of any material contained on the instruction manual may violate copyright laws, trademark laws, laws of privacy and communications statutes. The trademarks, service marks and logos used and displayed in the Materials are registered and unregistered

trademarks and service marks of Valore and others. All other registered and unregistered company names, product names and marks mentioned herein the (“Materials”) are the property of their respective owners and may be trademarks or registered trademarks.

Complies with IMDA Standards DA103331
