Product Type	Digital Photo Frame
Brand	Sandstrøm
Model	S8KDPF10
Screen Size	8 inches
Resolution	800 x 600 pixels
Display Type	LCD
Supported Memory Cards	SD, SDHC, MMC
USB Port	USB 2.0 for data transfer
Power Supply	5V DC, 2A via included adapter
Power Consumption	Approximately 5W
Dimensions (W x H x D)	220 x 170 x 25 mm
Weight	Approximately 0.5 kg
Supported Image Formats	JPEG, BMP, PNG
Supported Video Formats	AVI, MPEG4
Audio Playback	MP3 (via built-in speaker)
Built-in Speaker	Yes, mono
Clock and Calendar	Yes, with auto-sync
Slideshow Modes	Fade, dissolve, random
Mounting Options	Tabletop stand and wall-mountable (VESA 75x75)
Remote Control	Included
Cleaning	Wipe with a soft, dry cloth. Do not use liquids.
Safety	Keep away from moisture and heat sources.
Spare Parts Availability	Power adapter and remote control available separately.
Repairability	User serviceable parts: none. Contact support for repairs.

Frequently Asked Questions - S8KDPF10 Sandstrøm

How do I insert a memory card into the S8KDPF10?

Insert the memory card (SD, SDHC, or MMC) into the card slot on the side of the frame with the label facing up until it clicks into place.

Can I display photos directly from a USB drive?

Yes, you can connect a USB drive (FAT32 formatted) to the USB port. The frame will automatically detect and display images.

How do I set up a slideshow?

Press the 'Slideshow' button on the remote control or select 'Slideshow' from the menu. You can choose transition effects and interval times.

Can I use the frame as a clock?

Yes, the frame has a built-in clock and calendar. You can set the time manually or enable auto-sync from the menu.

What image formats are supported?

The frame supports JPEG, BMP, and PNG image formats. For best results, use JPEG with resolution up to 2048x1536.

How do I clean the screen?

Use a soft, dry microfiber cloth to gently wipe the screen. Do not use any liquid cleaners or abrasive materials.

Why won't my photos display?

Ensure the photo file is in a supported format (JPEG, BMP, PNG) and not corrupted. Also check that the memory card or USB drive is properly inserted and formatted as FAT32.

Can I mount the frame on a wall?

Yes, the frame has a VESA 75x75 mount pattern on the back. Use appropriate wall anchors and screws (not included) to mount it securely.

How do I replace the remote control?

If the remote control is lost or damaged, you can order a replacement from Sandstrøm support. The remote uses standard AAA batteries.

The frame is not turning on. What should I do?

First, ensure the power adapter is securely connected to both the frame and a working power outlet. If it still doesn't turn on, try a different outlet or contact Sandstrøm support for assistance.

USER MANUAL S8KDPF10 Sandstrøm

Interior scene with a desk, framed pictures, and a digital tablet displaying a photo of a person in a red dress (no visible text or symbols)

Two people in red and blue outfits hanging from a tree in a green forest (no text or symbols visible)

Contents

Unpacking the Photo Frame....4

Product Overview....5

Preparations......6

Attaching the Stand 6

Connecting to the Mains Power....7

Inserting a Memory Card / USB Flash Drive....8

Main Menu 8

Selecting the Memory Drive....8

Viewing Photos....9

Main Menu....9

Selecting the Memory Drive....9

Viewing Thumbnails....10

Playing a Slideshow....10

Using the Tool Bar....11

Changing Frame Settings 12

Troubleshooting....13

Specifications....14

Safety Warnings.... 15

Congratulations on the purchase of your new Sandstrøm Digital Photo Frame.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking the Photo Frame

Remove all packaging from the unit. Retain the packaging. If you dispose it please do so according to local regulations.

Simple gray rectangular shape with two diagonal lines inside, no text or symbols present.

1. Digital Photo Frame

2. Photo Frame Stand (P.N.: 27-155-06440200)

Line drawing of a power plug connected to a coiled cable (no text or symbols)

1. Mains Adapter (P.N.: 49-501-05100059)

1. Instruction Manual (P.N.: 46-007-44010309)

If items are missing or damaged, please contact partmaster (UK only). Tel: [phone] for assistance.

Product Overview

Main Unit

Name	Description
1 MENU	• To access the menu mode
2 button	• Press to move right in the menu / thumbnail mode / option settings• To display the next photo
3 button	• Press to move up in the menu / thumbnail mode / option settings
4 Play / Pause ▶	• To start / pause the slideshow• To confirm a setting or function
5 button	• Press to move left in the menu / thumbnail mode / option settings• To display the previous photo
6 button	• Press to move down in the menu / thumbnail mode / option settings
7 Esc / button	• To return to the main menu
8 SD/MMC/MS slot	• To accommodate SD, MMC, MS cards
9 USB host	• To accommodate USB devices such as portable USB flash drives or flash memory card readers
10 DC-IN socket	• To connect to the mains
11 ON / OFF button	• To turn the photo frame on and off
12 Stand receptacle	• To attach the supplied stand

Preparations

Attaching the Stand

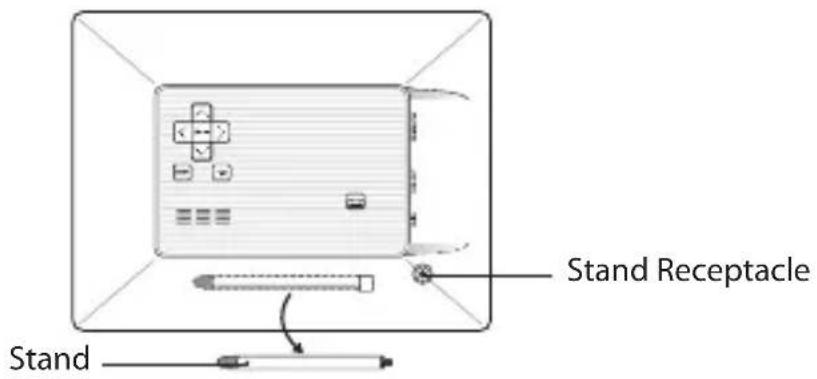

1. Take out the stand attached at the back of the photo frame.

1. Screw in the stand into the stand receptacle.

Top-down line drawing of a device with a screen and a pen, no text or symbols present

1. Now the stand is fixed, you can choose to display your photo frame in a landscape or portrait position.

Diagram of a device with a screen, lens, and pen (no text or symbols)

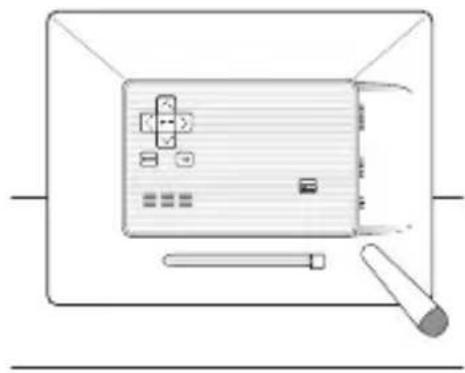

Landscape Position

Simple line drawing of a rectangular device with internal components and a cylindrical rod, no text or symbols present.

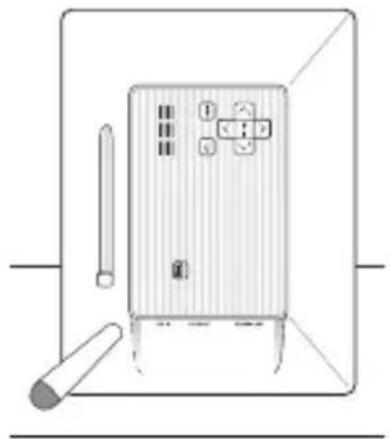

Portrait Position

To take off the stand, unscrew it from its receptacle.

Connecting to the Mains Power

1. Connect the supplied mains adapter (5V DC, 1A) to the photo frame, and plug in the mains adapter into the mains socket.

1. Slide the ON/OFF button to the ON position to turn on the photo frame.
2. Slide the ON/OFF button to the OFF position to turn off the photo frame.

Illustration of a hand interacting with a touchscreen device, showing buttons and an upward arrow (no text or symbols)

Inserting a Memory Card / USB Flash Disk

This photo frame can only display one storage media's contents at a time.

If more than one storage device is connected, please refer to "Selecting the Memory Drive" and select your desired drive to be displayed in the main menu.

This frame can only play images (JPEG). If fi les in other formats are played, please use your computer to convert the images to a readable format.

- Insert your memory card into the appropriate slot following the orientation marked on the photo frame.

1. To remove MMC/SD/MS card, pull the card straight out.
2. Some of the newer higher capacity cards may not be compatible with this frame.

Viewing Photos

Main Menu

1. When a memory device is inserted into the Photo Frame, the corresponding icon appears on the main menu.
2. On the main menu, you can select connected source to view photos or change frame settings.

Selecting the Memory Drive

Press the MENU button to access the main menu. All connected source and setup icons are displayed.

USB Highlighted when you select a USB fl ash driver.

Card Highlighted when you select a SD / MMC / MS card.

Setup To customise the settings of Digital Photo Frame.

• In the main menu, if you insert a SD / MMC / MS card or a USB device, the frame will start to the slideshow automatically. In the slideshow mode, press the → button to return to the thumbnail page and then press the MENU button to access the main menu and select the memory drive.
• There is a button indicator on the right of the screen, indicating which button you are pressing.

Viewing Thumbnails

Grid of grayscale photo frames showing various scenes including animals, landscapes, butterflies, and cars (no text or symbols)

In Photo mode, the photos on the selected memory source can be displayed on the screen as thumbnails. Up to 15 photos are displayed at a time.

1. Select a memory source (e.g. USB, SD/MMC/MS) on the main menu and press the ▶ button. The photos are displayed on the screen as thumbnails.
2. To navigate through the thumbnails or move to the next or previous page of thumbnails, press the _ , _ or button.

Playing a Slideshow

In thumbnail mode, select a photo and then press the button to start a slide show from the current photo. The selected photo is displayed on the screen, and a "hint" pop up window will appear to guide user.

Do not set hint time to "0" in setup menu, if you want the Photo Frame to display a hint for button operation.

• To pause the slideshow and view a single photo, press the button. To resume the slideshow, press the button again.
• Skip to previous or next photo, press the button.
• Press or button to rotate a photo clockwise or counterclockwise.
• Press the MENU button to show tool bar.
• Press the ➤ button to exit the slideshow and view the photos in thumbnail.

Using the Tool Bar

Black and white photo of a dog running on grass, no visible text or symbols

You also can use the OSD menu to view the photos one by one manually.

1. Press the MENU button during viewing a photo or slideshow. The OSD menu appears on the screen and the slideshow will pause.

2. Press the button to navigate between the icons on the OSD menu.

3. To start or resume a slideshow from the current photo, highlight ▶ on the screen and press the ▶ button, and then the icon will change to on the screen.

4. To zoom in on a photo, highlight 🔒 on the screen and press the ▶ button repeatedly to magnify a photo.
5. To rotate a photo clockwise, highlight ⏻ on the screen and press the ▶ button repeatedly.
6. To rotate a photo counterclockwise, highlight 📊 on the screen and press the ▶ button repeatedly.
7. To set a photo to display on full screen or standard screen if its resolution is higher than the resolution of the screen, highlight □ on the screen and press the ▶ button.
8. To change the slideshow into 4 split screen, highlight ⊕ on the screen and press the ▶ button.
   • To delete a photo, highlight the screen and press the button.
9. To exit and close the tool bar, highlight ➤ on the screen and press the 🔊 button.

Changing Frame Settings

The system settings let you customize and configure your Photo Frame.

Select the Setup icon on the main menu and press the ▶ button. The Setup Menu appears on the screen.

1. To select a setting item, press the or button and then press the button.
2. To change the value, press the or button and then press the button. Or press button to exit.
3. Press the MENU button to return to the main menu.

Setting Items Description
Slide show time Set up	the interval time for slideshow.The available options include: 3s, 5s, 15s, 1 min, 15min.
Transition Effect Set up	the style of transition while playing a slide show.The available options include Random / Off.
Language Set up the display language.
Brightness Adjust the brightness of the screen.The available options include: 3, 2, 1, 0, -1, -2, -3.
Contrast Adjust the contrast of the screen.The available options include: 3, 2, 1, 0, -1, -2, -3.
Saturation Adjust the saturation of the screen.The available options include: 3, 2, 1, 0, -1, -2, -3.
Hint time Set how long to display the hint for button operationwhile playing a slideshow.The available options include: 0s, 5s, 10s, 20s.
Default Reset all settings to the default settings.

Troubleshooting

No power

• Check to make sure the mains plug is plugged into the mains socket.
• Make sure there is power in the mains socket.

Unable to view photos on the Photo Frame

• Not all JPEG files are compatible. Please open the files in a computer and resave them as JPEG files and then try to playback in the photo frame.
• Check if the memory card is compatible.

If the photo displayed is distorted or cannot display properly

- Go to the main menu, then the SETUP and change the display mode to match your photo (Full / Standard).

If photo display seems slow

- Use lower resolution photos.

The image is distorted or blurred.

- Resolution of the image is too low. Try playing a file with a higher resolution. Resolution of 800 X 600 pixels is recommended.

Cannot detect any external device via the USB 2.0 A-Type port

- This photo frame only supports a USB flash drives. It does not support any external hard disks or MP3 player via the USB port.

The photo frame does not work properly

- Please switch the photo frame off and then on again.

Specifications

Display Digital LCD, TFT	Panel size: 8 inchesScreen aspect ratio: 4:3Resolution: 800*600 pixels
I/O DC in
Power Supply AC Adapter (Input: 100~240V AC, 50~60Hz; Output: DC 5V 1A)
USB Port USB Host 2.0 (High Speed)	Supports USB flash mediaUSB Max Load : DC 5V, 400mA
Supported Peripheral Devices	SDTM (Secure Digital Card), MMCTM (MultiMedia Card), MSTM (Memory Stick)
Supported Photo Format JPEG only
Storage Condition Humidity<95%,-20~60°C
Working Condition Humidity <80%,0~45°C
Size L x W x H : (mm) 222 x 181.5 x 22mm
Weight (g) 470.6g

Features and specifications are subject to change without prior notice.

Safety Warnings

When using electrical appliances, basic precautions should always be followed, including the following:

• Read all the instructions and retain this instruction manual.
• Ensure that all electrical connections (including the mains adaptor and power cable) are properly made and in accordance with the manufacturer's instructions. Switch off and withdraw the mains adaptor before making or changing connections.
• Consult your dealer if you are ever in doubt about the installation, operation or safety of your photo frame.
• Do not allow the photo frame to be exposed to dripping or splashing.
• Never store in hot or very cold areas. Recommended operating temperature is 0\~40°C.
• Do not use the photo frame in areas with high moisture (e.g. bathroom) or dusty areas.
• Do not place hot objects or naked flame sources such as lighted candles or night lights on or close to the photo frame. High temperatures can melt plastic and lead to fires.
• Do not obstruct the ventilation openings of the photo frame with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life of the photo frame.
• Do not handle the power cable with wet hands.
• Be careful with the LCD panels on the photo frame.

• Only use attachments/accessories specified by the manufacturer.

• When the photo frame is not in use or unattended for a long period of time, disconnect it from the mains socket.

• Do not remove any fixed cover as this may expose dangerous voltages.
• Do not continue to operate the photo frame if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains adaptor and consult your dealer.
• Never let anyone especially children push anything into holes, slots or any other opening on the case - this could result in a fatal electrical shock.
• Route the power cable so that it is not likely to be walked on, crushed, chafed, or subjected to excessive wear, tear or heat.

Note about LCD screen

The LCD screen is manufactured using high-precision technology. However, some tiny black points and/or bright points (red, blue or green in colour) may constantly appear on the LCD screen. These points are generated in the manufacturing process and are normal.

Note: If you require a replacement for any of the items listed below, please quote their corresponding part numbers:
Replacement Part Part Number
Photo Frame Stand 27-155-06440200
Mains Adapter 49-501-05100059
Instruction Manual 46-007-44010309

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very

next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

DSG Retail Ltd • Maylands Avenue • Hemel Hempstead

Herts · HP2 7TG · England
