Product Type	Digital Photo Frame
Brand	Sandstrøm
Model	S07DPF11
Display Size	7 inches
Display Type	TFT LCD
Resolution	800 x 480 pixels
Aspect Ratio	16:9
Supported Image Formats	JPEG, BMP, PNG
Storage Media	SD/SDHC/MMC card (up to 32GB)
USB Port	USB 2.0 for file transfer
Power Supply	5V DC via included adapter
Power Consumption	Approx. 5W
Dimensions (with stand)	20.0 x 15.0 x 3.5 cm
Weight	Approx. 500 g
Color	Black / White
Frame Material	Plastic with acrylic lens
Remote Control	Included
Slideshow Modes	Manual, auto, random, repeat
Clock & Calendar	Yes, with alarm option
Auto On/Off Timer	Yes, programmable
Energy Saving Mode	Yes, auto dimming
Mounting Options	Tabletop stand, wall-mountable
Cleaning Instructions	Wipe with a soft dry cloth; no abrasive cleaners
Safety	Keep away from moisture; do not disassemble
Spare Parts & Repairability	Replacement remote and adapter available; not user-serviceable
Warranty	1 year

Frequently Asked Questions - S07DPF11 Sandstrøm

How do I load photos onto the frame?

Insert an SD/SDHC/MMC card (up to 32GB) with photos in JPEG, BMP, or PNG format into the card slot. You can also connect the frame to a computer via USB to transfer files directly to the internal memory (if available) or card.

What image file formats are supported?

The frame supports JPEG, BMP, and PNG images. For best results, use JPEG files with resolution up to 800x480 pixels.

How do I set the time and date?

Press the Settings button on the remote or menu, navigate to Clock settings, and use the arrow keys to adjust year, month, day, and time. Confirm with OK.

Can I rotate photos on the screen?

Yes, during slideshow press the Rotate button on the remote to rotate the current image 90 degrees clockwise. Some models also support auto-orientation based on EXIF data.

How do I use the remote control?

Aim the remote at the frame's IR receiver (usually at the bottom edge) and press buttons. The remote has navigation keys, play/pause, menu, rotate, and settings. Replace batteries when range reduces.

Can the frame play videos or music?

The S07DPF11 is primarily for still images. It may support basic video playback (e.g., AVI, MPG) but check the manual for compatibility. Audio playback is not typical for this model.

What is the power consumption?

The frame uses approximately 5W when operating. It is powered by a 5V DC adapter (included). Unplug when not in use to save energy.

How do I clean the screen and frame?

Use a soft, dry microfiber cloth to gently wipe the screen and frame. Avoid using any liquids or abrasive cleaners, as they may damage the surface.

What should I do if the frame freezes?

Try pressing the Reset button (small hole) with a paperclip, or unplug the power for 30 seconds. If issues persist, remove and reinsert the memory card.

What is the warranty and where can I get spare parts?

The frame comes with a 1-year limited warranty. For spare parts (remote, adapter), contact Sandstrøm customer support or check their website. The frame is not user-repairable; open only by service personnel.

USER MANUAL S07DPF11 Sandstrøm

Interior scene with a desk featuring framed pictures, a globe, and a lamp, alongside a digital photo frame (no visible text or symbols)

Scenic landscape view of a calm lake surrounded by green hills and a small red-roofed structure in the foreground (no text or symbols visible)

Contents

Unpacking....4

Product Overview....5

Main Unit 5

Preparations......6

Attaching the Stand....6

Connecting to the Mains Power....7

Inserting a Memory Card / USB Flash Drive 8

Main Menu 9

Selecting the Memory Drive 9

Viewing Photos....10

Thumbnail View 10

Playing a Slideshow 11

Changing Frame Settings ....12

Setting Auto Run.... 13

Hints and Tips....14

Specifications....15

Safety Warnings....16

Thank you for purchasing your new Sandstrøm Digital Photo Frame.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose it please do so according to local regulations.

The following items are included:

Simple rectangular object with two diagonal lines inside, no text or symbols present.

Digital Photo Frame

Photo Frame Stand P.N.: 27-155-06930100

Simple line drawing of a plug connected to a cable (no text or symbols)

Mains Adapter P.N.: 49-501-00600059

If items are missing or damaged, please contact Partmaster (UK only). Tel: [phone] for assistance.

Product Overview

Main Unit

Name	Description
1. ON / OFF switch • To turn the unit on and off
2. ◀ button	• To move right in the menu / thumbnail mode / option settings• To display the next photo
3. ∧ button • To move up in the menu / thumbnail mode / option settings
4. Play / Pause ▶II	• To start / pause the slideshow• To confirm a setting or function
5. ➤ button	• To move left in the menu / thumbnail mode / option settings• To display the previous photo
6. √ button • To move down in the menu / thumbnail mode / option settings
7. USB host • To accommodate USB devices such as portable USB flash drives or flash memory card readers
8. SD/MMC/MS slot • To accommodate SD, MMC, MS cards
9. DC-IN socket • To connect to the mains
10. Stand receptacle • To attach the supplied stand

Preparations

Attaching the Stand

1. Take out the stand attached at the back of the unit.

1. Screw the stand into the stand receptacle.

1. Once the stand is fixed, you can choose to display your unit in a landscape or portrait position.

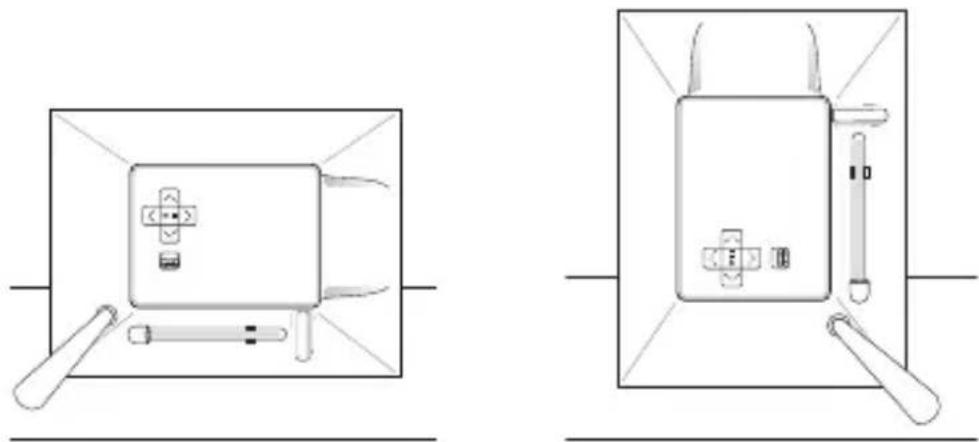

Two technical line drawings of electronic devices with no visible text or symbols

Landscape Position Portrait Position

To take off the stand, unscrew it from the stand receptacle.

Connecting to the Mains Power

1. Connect the supplied mains adapter (5V DC, 1A) to the unit, and then plug into the mains socket.

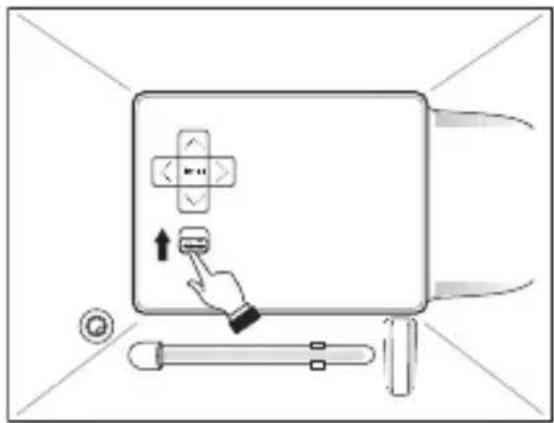

1. Slide the ON/OFF switch to the ON position to turn the unit on.

2. To turn off the unit, slide the ON/OFF switch to the OFF position.

Inserting a Memory Card / USB Flash Drive

This unit can only display one storage media's contents at a time.

If more than one storage device is connected, please refer to "Selecting the Memory Drive" and select your desired drive to be displayed in the main menu.

This frame can only play images (JPEG). If files in other formats are played, please use your computer to convert the images to a readable format.

• To remove MMC/SD/MS card, pull the card straight out.
- Some of the newer higher capacity cards may not be compatible with this frame.

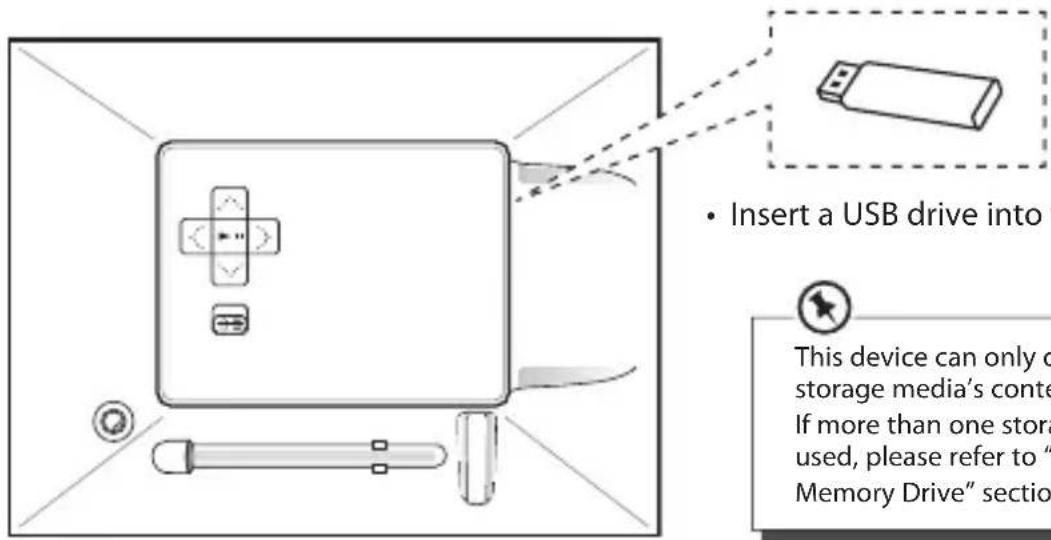

- Insert a USB drive into the USB port.

This device can only display one storage media's contents at a time. If more than one storage media is used, please refer to "Selecting the Memory Drive" section on page 9.

Main Menu

In the main menu, you can select the connected source to view photos and change frame settings.

Press and hold the ▶ II button to access the main menu. All connected sources, setup and now playing icons are displayed.

Selecting the Memory Drive

Use the .or buttons to navigate between the options in the main menu, and then press the ▶button to confirm or enter the submenu.

USB Highlights when you select a USB flash driver.

Card Highlights when you select a SD / MMC / MS card.

Setup To customise the settings of the unit.

• In the main menu, if you press the > button, the frame will automatically start the slideshow of the preinstalled photos. If you insert a SD / MMC / MS card or a USB device, the frame will automatically start the slideshow.
• There is a button indicator on the right of the screen, indicating which button you are pressing.

Viewing Photos

Thumbnail View

In Photo mode, the photos on the selected memory source can be displayed on the screen as thumbnails. Up to 12 photos are displayed at a time.

Grid of grayscale images showing animals and landscapes, no text or symbols present

1. Select a memory source (e.g. USB, SD/MMC/MS) on the main menu and press the ▶ button. The thumbnail mode appears.
2. Press the 🎥, 🐘 or buttons to select a photo, and then press the button. The photo will be displayed on the screen.
3. To navigate through the thumbnails or move to the next or previous page of thumbnails, press the _ , , or buttons.

Playing a Slideshow

You have two ways to start playing a slideshow:

1. While browsing a single photo, press the ▶ button to start a slide show from the current photo.

2. Press the ▶ I button once to open the OSD menu and pause the slideshow, press twice to carry on the slide show.

3. Press the button to exit the slideshow and view thumbnails of the photos.
4. Press the √ button to rotate the photo.

Using OSD menu

You also can use the OSD menu to view photos manually one by one.

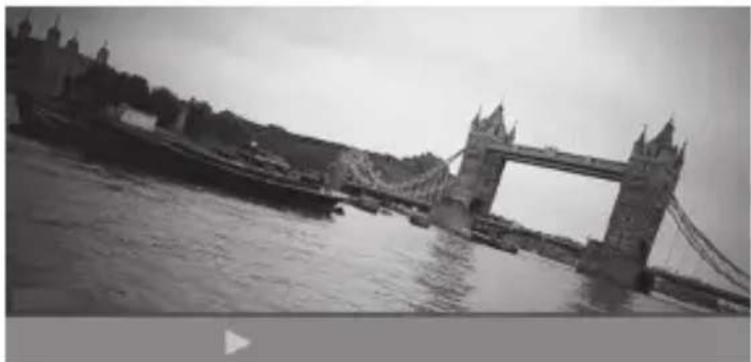

Black-and-white photo of a historic tower bridge spanning a river, with a small boat visible on the water (no text or symbols)

Press the ▶ button while viewing a photo or slideshow. The OSD menu appears on the screen and the slideshow pauses.

1. Press the ◀ or ➤ button to navigate between icons on the OSD menu.

2. To start or resume a slideshow from the current photo, highlight ▶ on the screen and press the ▶ button. The icon changes to the icon on the screen.

3. To select previous/next photo, highlight ▶ or ▶ on the screen, and then press the ▶ button.
4. To rotate a photo, highlight ⏻ on the screen and press the ▶ button repeatedly.
5. To zoom in on a photo, highlight 🔒 on the screen and press the ▶ button repeatedly to magnify a photo in the following sequences: X2, X4, X8, X16. When a photo is magnified, hold the ▶, ▽ or ▶ button to view another part of the photo.
6. To exit and return to the previous screen, highlight ▶ on the screen and press the ▶ button.

Changing Frame Settings

The system settings let you customise and configure your unit.

1. Select the Setup icon in the main menu and press the button. The Setup Menu appears on the screen.
2. To select a setting option, press the 🔊 or √ buttons.
3. To change the value, press the ▶ button. Secondly, press the ▶, or buttons to select an option. Thirdly, press the ▶ button to conform.
4. Press and hold the ▶ button to return to the main menu.

	Setting Items Description
Photo Setup	Slide show time	Set up the interval time for the slideshow. The available options include: 3s, 5s, 15s, 1 min, 15mins, 1 hour.
	Photo Mode	Set photos to Full Screen or Standard Screen when you are viewing them.
	Transition Effect	Set up the style of photo transition while playing a slide show.
	Date Stamp	Display the time information of photos when you are viewing them.
	Shuffle	To play photos in a random order or in order while playing a slideshow.
General Setup	Language Set up the	language of the OSD menu.
	Brightness	Adjust the brightness of the screen.The available options include: +3, +2, +1, 0, -1, -2, -3.
	Contrast	Adjust the contrast of the screen.The available options include: +3, +2, +1, 0, -1, -2, -3.
	Saturation	Adjust the saturation of the screen.The available options include: +3, +2, +1, 0, -1, -2, -3.
	Auto run	Set the unit to run a specified mode automatically when you switch it on.
	Default Reset all settings to the default settings.

Setting Auto Run

You can set the unit to run a specified mode automatically when you switch it on.

1. Select the SETUP icon on the main menu and then press the ▶■button. The Setup Menu appears on the screen.
2. Press the or buttons to select General Setup, and then press the button.
3. Press the 🔊 or buttons to select Auto run, and then press the button.
4. Press the or buttons to select a specified mode you like:

• Photo: The unit will start a slideshow when you switch it on.
- Main menu: The unit will display the main menu when you switch it on.

1. Press the ▶ button to confirm.

2. Press and hold the ▶ button to exit.

Hints and Tips

No power

• Check to make sure the mains plug is plugged into the mains socket.
  • Make sure there is power in the mains socket.

Unable to view photos on the unit

• Not all JPEG files are compatible. Please open the files in a computer and resave them as JPEG files and then try to playback in the unit.
• Check if the memory card is compatible.

If the photo display is distorted or cannot display properly

- Go to the main menu, then the SETUP and change the display mode to match your photo (Full / Standard).

If photo display seems slow

- Use lower resolution photos.

The image is distorted or blurred.

- Resolution of the image is too low. Try playing a file with a higher resolution. Resolution of 432 x 234 pixels is recommended.

Cannot detect any external device via the USB 2.0 A-Type port

- This unit only supports a USB flash drives and it does not support any external hard disks or MP3 player via the USB port.

The unit does not work properly

- Please switch off the unit and on again.

Specifications

Display Analog LCD	Panel size:7 inchesScreen aspect ratio: 16:10Resolution: 432*234 pixels
I/O DC in
Power Adapter Input: 100~240V	AC, 50~60HzOutput: DC 5V 1.0A
USB Port USB Host 2.0	Supports USB flash mediaUSB Max Load : DC 5V, 400mA
Supported Peripheral Devices	SDTM (Secure Digital Card), MMCTM (MultiMedia Card), MSTM (Memory Stick)
Supported Photo Format JPEG,	Maximum resolution: 8000*8000 pixels
Storage Condition Humidity<90%,-20~60°C
Working Condition Humidity <80%,0~45°C
Dimension (L x W x H) 204 x 151	x 20mm
Weight 293g

Features and specifications are subject to change without prior notice.

Safety Warnings

When using electrical appliances, basic precautions should always be followed, including the following:

• Read all the instructions and retain this instruction manual.
• Ensure that all electrical connections (including the mains adapter and power cable) are properly made and in accordance with the manufacturer's instructions. Switch off and withdraw the mains adapter before making or changing connections.
• Consult your dealer if you are ever in doubt about the installation, operation or safety of your unit.
• Do not allow the unit to be exposed to dripping or splashing.
• Never store in hot or very cold areas. Recommended operating temperature is 0\~40°C.
• Do not use the unit in areas with high moisture (e.g. bathroom) or dusty areas.
• Do not place hot objects or naked flame sources such as lighted candles or night lights on or close to the unit. High temperatures can melt plastic and lead to fires.
• Do not obstruct the ventilation openings of the unit with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life of the unit.
• Do not handle the power cable with wet hands.
• Be careful with the LCD panels on the unit.

• Only use attachments/accessories specified by the manufacturer.

• When the unit is not in use or unattended for a long period of time, disconnect it from the mains socket.

• Do not remove any fixed cover as this may expose dangerous voltages.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains adapter and consult your dealer.
• Never let anyone especially children push anything into holes, slots or any other opening on the case - this could result in a fatal electrical shock.
• Route the power cable so that it is not likely to be walked on, crushed, chafed, or subjected to excessive wear, tear or heat.

Note about LCD screen

The LCD screen is manufactured using high-precision technology. However, some tiny black points and/or bright points (red, blue or green in colour) may constantly appear on the LCD screen. These points are generated in the manufacturing process and are normal.

Note: If you require a replacement for any of the items listed below, please quote their corresponding part numbers:
Replacement Part Part Number
Photo Frame Stand 27-155-06930100
Mains Adapter 49-501-00600059

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very

next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

DSG Retail Ltd • Maylands Avenue • Hemel Hempstead

Herts • HP2 7TG • England
