CCTV-192 - Security Camera Steren - Free user manual and instructions

Product Type	Security Camera
Brand	Steren
Model	CCTV-192
Input Voltage	12 V --- 800 mA
Power Consumption	9.6 W (approx.)
Minimum Illumination	0.01 lux / f1.2
Video Format	AHD 1920 x 1080
Image Sensor	Color CMOS
Video Output	BNC
Resolution	2.0 MP (1920 x 1080)
Operating Temperature	-10 to 55 °C
Compatibility	Compatible with digital DVRs
Mounting Type	Wall or ceiling mount
Dimensions (approx.)	6.5 x 6.5 x 5 cm
Weight (approx.)	200 g
Safety Warnings	Not a toy; keep away from children. Do not expose to extreme temperatures, high humidity, or direct sunlight.
Maintenance	Clean with a soft, dry cloth. Avoid using solvents.
Warranty	Unauthorized repair may void warranty.

Frequently Asked Questions - CCTV-192 Steren

How do I install the CCTV-192 camera?

First, turn the mounting base until the marks align and pull it off. Choose a solid surface, drill holes using the base as a template, then secure the base. Connect the cables as shown in the manual.

What power supply is needed?

The camera requires a 12 V DC power supply with a minimum current of 800 mA.

Is the camera compatible with analog DVRs?

The manual states it is compatible with digital DVRs. It uses AHD format, so it may not work with older analog-only DVRs.

What is the video output type?

The camera uses a BNC connector for video output.

Can the camera be used outdoors?

The manual warns not to expose the camera to extreme temperatures, high humidity, or direct sunlight. It is likely intended for indoor use or sheltered outdoor areas.

What is the minimum illumination for the camera?

The minimum illumination is 0.01 lux at f/1.2, allowing it to capture images in very low light conditions.

How do I clean the camera lens?

Use a soft, dry cloth to gently clean the lens. Avoid using harsh chemicals or abrasive materials.

What is the resolution of the camera?

The camera has a resolution of 2.0 MP, which corresponds to 1920 x 1080 pixels (Full HD).

Does the camera come with a mounting kit?

The manual describes a mounting base and drilling instructions, so it likely includes the base and necessary screws.

What is the operating temperature range?

The camera can operate between -10°C and 55°C (14°F to 131°F).

USER MANUAL CCTV-192 Steren

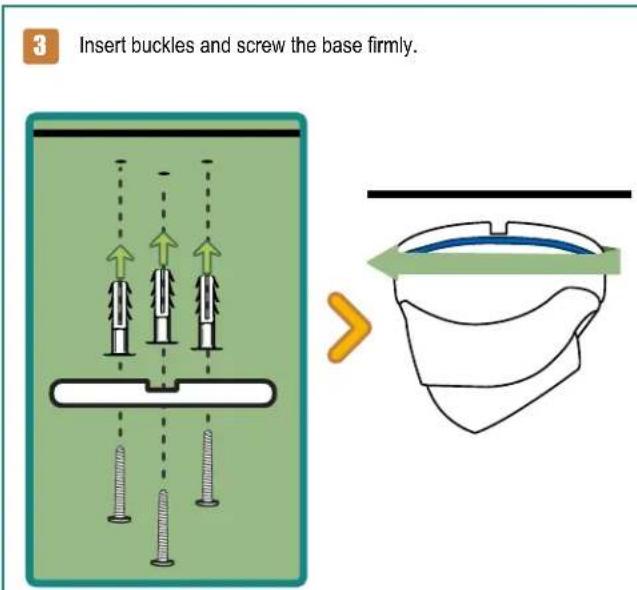

Diagram of three vertical pins with arrows indicating direction, no text or symbols present

Simple line drawing of a helmet with a blue cap and green arrow, no text or symbols present

IMPORTANTE

Simple line drawing of a bucket with a blue cap and green arrow indicating direction (no text or symbols)

IMPORTANT

Before to use the product, please read carefully this manual to avoid any malfunction.

The info in this manual is shown as reference. Due to updates can exist differences. Consult our website www.steren.com to obtain the current version of this manual.

CAUTIONS

• This product is NOT a toy; keep it away from children.
• This device is compatible with digital DVRs.
- Any reparation not authorized may cause malfunction and avoid the warranty.
- Don't expose the camera to extreme temperatures, high humidity, splashes or sunlight directly.

INSTRUCTIONS

1 Turn the mounting base until the marks are match and pull it.

Simple line drawing of a bucket with a blue arrow indicating downward motion (no text or symbols)

Select a surface to install the camera. We recommend a solid and fixed surface.

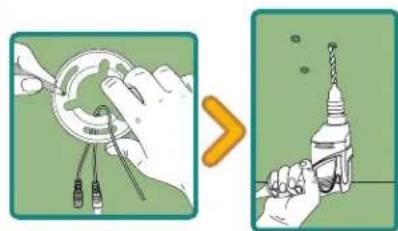

2 Take the mounting base and make dirll marks. Then, drill the surface.

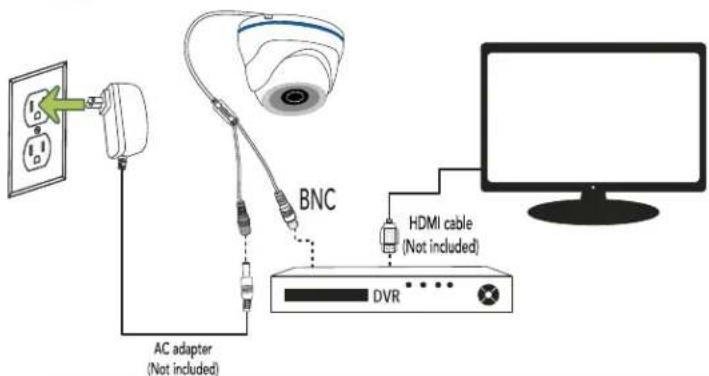

3 Make the connections as shown below:

Specifications:

Input: 12 V --- 800 mA

Minimum light: 0.01 lux/f1.2

Format: AHD 1920 x 1080

Image sensor: color CMOS

Video output: BNC

Resolution: 2.0 MP

Operating temperature: -10 to 55°C

Specifications may change without notice
