SC15814N - Vacuum Cleaner SWAN - Free user manual and instructions

Product Type	Cylinder Vacuum Cleaner
Model	SC15814N
Brand	Swan
Dust Bin Capacity	2 Litres
Motor Power	700 Watts
Energy Class	A
Dust Pick-up on Hard Floor	A
Dust Pick-up on Carpet	D
Dust Re-emission	A
Sound Level	78 dBA
Cleaning Radius	8 metres
Net Weight	4.8 kg
Product Size (LxWxH)	38 x 25 x 35 cm
Power Cord Length	5 metres
Hose Length	1.5 metres
Telescopic Metal Tube Length	78 cm
Included Accessories	Main brush, Crevice tool, Dusting brush, Furniture brush, Accessory holder
Filtration System	Washable filter cotton and filter assembly
Main Brush Bristles	Retractable (extend for hard floors, retract for carpets)
Suction Power Adjustment	Not adjustable (single on/off)
Automatic Cord Rewind	Yes, via foot pedal button
Bagless Operation	Yes (dust tank empties directly)
Warranty	2 years (UK and Eire only)

Frequently Asked Questions - SC15814N SWAN

How do I turn on the vacuum cleaner?

Press the ON/OFF button on the main unit to start or stop the vacuum cleaner. Ensure it is plugged into the mains supply.

How do I rewind the power cord?

Press the take-up button (foot pedal) on the main unit. The power cord will automatically roll back into the machine. Hold the plug to avoid whipping.

How often should I empty the dust tank?

Empty the dust tank when it is full or when suction noticeably decreases. Lift the dust tank handle, push the release button, and empty it over a bin.

How do I clean the filter?

Open the dust tank cover, remove the filter cotton and filter assembly. Wash them under running water. Ensure they are completely dry before refitting. Water inside can cause malfunction.

Why is my vacuum losing suction?

Empty the dust tank and clean the filters. Check for blockages in the hose, tube, or main brush. Switch off and unplug before removing debris.

Can I use this vacuum on hardwood floors?

Yes, for hard floors extend the main brush bristles by stepping on the pedal. Retract the bristles for carpeted floors to avoid damage.

What accessories come with the SC15814N?

It includes a main brush, crevice tool, dusting brush, furniture brush, and an accessory holder. The pet turbo tool is not included (available on SC15816N).

How do I store the vacuum cleaner?

Store in a cool, dry area. Ensure filters are completely dry before storing. Keep the power cord coiled and avoid sharp edges.

What should I not vacuum up?

Do not vacuum flammable liquids (petrol, lighter fluid), hot ashes, cigarettes, matches, sharp objects (glass, nails, coins), or harmful fluids like chlorine or bleach.

What is the warranty period?

The vacuum cleaner has a 2-year warranty from the date of original purchase. It covers faulty materials or workmanship, but not wear and tear, misuse, or consumable parts. Valid in the UK and Eire only.

USER MANUAL SC15814N SWAN

Help line: 0333 220 6050

v1.0

eureka | Swan

IMPORTANT SAFEGUARDS

Follow caution information wherever you see this symbol.

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING

This vacuum cleaner is intended for household use only and NOT for commercial or industrial use.

• Only use the vacuum cleaner indoors on dry surfaces and keep the area you're cleaning well lit.
• Keep fingers, hair and loose clothing away from moving parts and openings whilst using the vacuum cleaner.
• Use only Eureka | Swan recommended tools and accessories with this vacuum cleaner.
• Don't use the vacuum cleaner if it has been dropped, damaged or left outdoors.
• Don't run over the power cord or use the vacuum cleaner if the power cord or plug is damaged.
• Don't handle the plug or use the vacuum cleaner with wet hands.
• Don't pull or carry the vacuum cleaner by the power cord.
• Don't use the power cord as a handle, pull the power cord around corners, sharp edges or close a door over the power cord.
• Don't unplug vacuum cleaner by pulling on the power cord.
• Turn off all controls on the vacuum cleaner before disconnecting or connecting the power cord.
  • Always make sure the filters are in place before use.
• Always switch off the vacuum cleaner before disconnecting or connecting the hose and accessories.
• Keep all openings clear and free from debris as this may affect the air flow/suction.
  • Always replace the fuse in the plug with a British 13 amp fuse.

eureka | Swan

IMPORTANT SAFEGUARDS

• Always protect the power cable from heated surfaces and open flames.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the vacuum cleaner in a safe way and understand the hazards involved. Children shall not play with the vacuum cleaner. Cleaning and user maintenance shall not be made by children without supervision.
• Don't vacuum up any flammable or combustible materials (lighter fluid, petrol, kerosene etc.) or use the vacuum cleaner in an area with explosive vapours or liquid.
• Don't vacuum up hot coals, cigarette butts, matches or smoking hot, burning items or use in an area where there may be harmful fluids (chlorine, bleach, and ammonia drain cleaner).
• Don't attempt to remove blockages with sharp objects as this may cause damage to the vacuum cleaner.
• Don't vacuum up hard or sharp objects such as glass, nails, screws or coins etc.
• Don't use the vacuum cleaner with incorrect voltage as this may result in damage or injury to the user. The correct voltage is listed on the rating label.
• Take extra care when positioning and using the vacuum cleaner on the stairs.
• Use only CE marked 13 amp extension cords, non-approved extension cords may overheat. Care should be taken to arrange the extension cord as it can be a trip hazard.
• Store the vacuum cleaner in a cool, dry area. If filters have been cleaned as per user guide instructions ensure they are thoroughly dry before storing away.

Please keep instructions for future reference

eureka | Swan

UNPACKING

Carefully unpack and inspect your new Eureka | Swan vacuum cleaner for shipping damage.

Each unit is tested and thoroughly inspected before shipping. For instructions regarding any shipping damage, call the Eureka | Swan Customer Service HELPLINE at 0333 220 6050 immediately.

Make sure your vacuum cleaner is switched off and unplugged when cleaning, removing or refitting parts.

eureka

Swan

WHAT'S IN THE BOX

Dusting brush

Crevice tool Pet turbo tool

SC15816N model only

Furniture brush Accessory holder

5

eureka

Swan

eureka | Swan

GET TO KNOW YOUR VACUUM

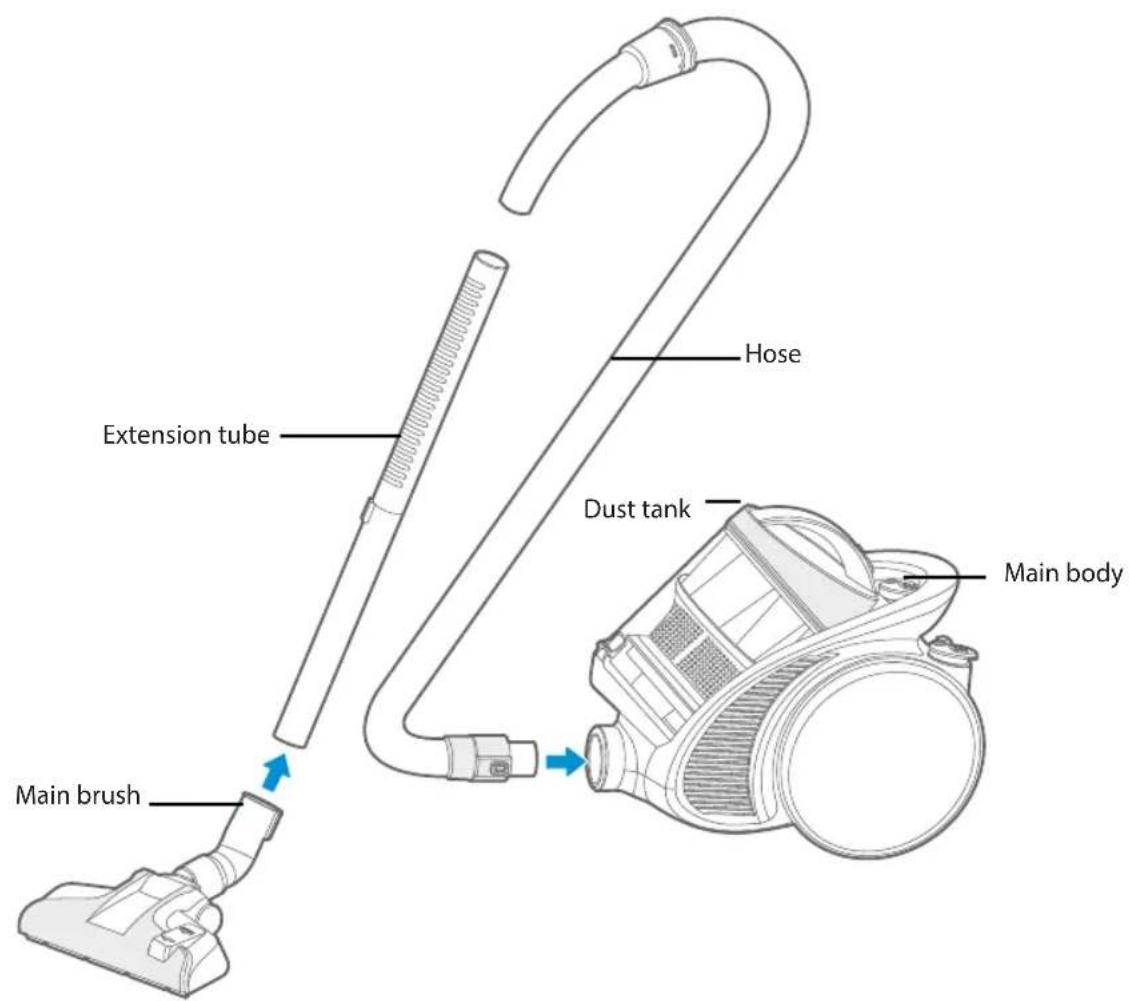

Illustration of the main unit

1

Pull out the power cord to connect the power supply: When you see the red mark on the power cord, do not pull the power cord outward.

2

Press the ON/OFF button: Control the start and stop of the vacuum cleaner.

3

Press the take up button: The power cord is automatically rolled back into the machine.

Dust tank maintenance

Open the dust tank: Gently lift the dust tank open button, and then lift up to open the dust tank cover.

Remove the filter cotton for cleaning: Open the dust tank, remove the filter cotton and clean it.

How to remove and empty the dust tank

1. Gently lift the handle of the dust tank
2. Push the release button and carefully empty the tank over the bin. Keep it close to the bin to prevent overspill.
3. Clean the filter cotton periodically to maintain best performance.
4. Open the dust tank at the top. Remove and wash the filter cotton.
5. Ensure it is COMPLETELY dry before refitting.

eureka | Swan

eureka | Swan

GET TO KNOW YOUR VACUUM

Periodically remove and clean the filter assembly. PLEASE NOTE: it must be COMPLETELY dry before refitting.

Water inside the vacuum could cause malfunction.

put the filter and its bottom cover under the tap for washing.

Take out the filter

Main Brush. Step down the pedal of main brush to extend or retract the bristles. As a general rule: extended for hard floor, retract for carpeted floors.

Pet Turbo Tool (SC15816N only) Connect to end of the hose in place of the Main Brush to make short work of pet hairs etc.

eureka | Swan

TROUBLESHOOTING

Problem Solution
Motor will not start	Make sure cleaner is connected to mains supply
Not enough suction power	Empty dust tank and clean the filters.Remove anything that may be clogging the tubes or main brushTHE VACUUM MUST BE SWITCHED OFF WHEN REMOVING DEBRIS

eureka | Swan

DISPOSAL

Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information about the recycling of electrical items. Please visit www.weeeireland.ie for access to information about the recycling of electrical items purchased in Ireland. The WEEE directive, introduced in

August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.

eureka | Swan

TECHNICAL DATA

SC15814N

Performance

• Dust bin capacity: 2 Litres
- Energy class: A
• Dust pick-up on hard floor: A
• Dust pick-up on carpet: D
- Dust re-emission: A
• Motor power: 700 Watts
• Sound level: 78dBA
• Cleaning radius: 8 Metres

Accessories

• 1 x Main brush
• 1 x 1.5m hose
  • 1 x 78cm telescopic metal tube
  • 1 x Crevice tool and dusting brush
• 1 x Furniture brush
• 1 x Accessory holder

Weight & Dimensions

• Net weight: 4.8kg
  • Product size (LxWxH): 38 x 25 x 35cm
  • Power cord length: 5 Metres

SC15816N

Performance

• Dust bin capacity: 2 Litres
- Energy class: A
• Dust pick-up on hard floor: A
• Dust pick-up on carpet: D
• Dust re-emission: A
• Motor power: 700 Watts
• Sound level: 78dBA
- Cleaning radius: 8 Metres

Accessories

• 1 x Main brush
• 1 x Pet turbo tool
• 1 x 1.5m hose
  • 1 x 78cm telescopic metal tube
  • 1 x Crevice tool and dusting brush
• 1 x Furniture brush
  • 1 x Accessory holder

Weight & Dimensions

• Net weight: 4.8kg
  • Product size (LxWxH): 38 x 25 x 35cm
  • Power cord length: 5 Metres

eureka | Swan

SPARES

www.eureka-swan.co.uk

Main brush

Furniture brush

eureka | Swan

WARRANTY

This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

• The product must be returned to the retailer with proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this instruction guide.
• It must be used only for domestic purposes.
• It does not cover wear and tear, damage, misuse or consumable parts.
• Swan Products Ltd has limited liability for incidental or consequential loss or damage.
• This guarantee is valid in the UK and Eire Only.

eureka

Swan

NOTES

12
