Product Type	Upright Freezer
Brand	Tricity Bendix
Model	BF413W
Colour	White
Total Net Capacity	250 Litres
Freezing Capacity	18 kg/24h
Energy Efficiency Class	A+
Annual Energy Consumption	275 kWh/year
Climate Class	SN-T
Noise Level	42 dB(A)
Power Supply	220-240 V, 50 Hz
Current	0.8 A
Dimensions (H x W x D)	1850 x 595 x 650 mm
Weight	62 kg
Temperature Range	-18°C to -24°C
Defrost Type	Manual (Frost Free)
Number of Shelves	5 adjustable wire shelves
Number of Drawers	3 plastic drawers
Door Reversible	Yes
Interior Light	Yes
Control Type	Mechanical thermostat
Refrigerant Type	R600a
Spare Parts Availability	Manufacturer supports for 10 years
Warranty	2 years parts and labour

Frequently Asked Questions - BF413W Tricity Bendix

How do I set the temperature on my Tricity Bendix BF413W freezer?

The temperature is adjusted using the dial inside the freezer compartment. Turn it to a higher number for colder temperatures. The recommended setting is typically 3-4 for normal operation.

What should I do if the freezer is not cold enough?

Check that the temperature dial is set correctly, the door is sealing properly, and the condenser coils at the back are clean. Also ensure the freezer is not overfilled, blocking air circulation.

How often should I defrost the BF413W freezer?

This model features a manual defrost system (frost free). You should defrost when ice build-up exceeds 5 mm, typically every 6-12 months, or when you notice reduced cooling efficiency.

Can I reverse the door opening direction?

Yes, the door is reversible. You will need a screwdriver and follow the instructions in the manual. Note that it may require two people to safely handle the door.

What is the correct way to clean my freezer?

Unplug the freezer, remove all food, and defrost if necessary. Use a mixture of warm water and mild detergent. Do not use abrasive cleaners or sharp objects. Wipe dry before reconnecting.

Why is my freezer making unusual noises?

Normal operating sounds include refrigerant flow, compressor hum, and occasional clicks. Loud or persistent noises may indicate the freezer is not level, or parts are loose. Check the manual for troubleshooting.

How long should I wait after plugging in the freezer before adding food?

Allow the freezer to run for at least 2-4 hours to reach the optimal temperature before placing food inside. This ensures proper freezing from the start.

Is it normal for the outside of the freezer to feel warm?

Yes, it is normal for the sides or back to feel warm during operation as the heat from inside is dissipated. This is not a fault.

What should I do during a power outage?

Keep the door closed. A full freezer can stay cold for about 24 hours if unopened. Do not refreeze thawed food unless it still has ice crystals.

Where can I find spare parts or service for my BF413W?

Contact Tricity Bendix customer service or an authorized service centre. Many common parts like shelves and door seals are available from the manufacturer for up to 10 years after production.

USER MANUAL BF413W Tricity Bendix

Better Products. Better Value.

Illustration of various household appliances including refrigerator, washing machine, microwave, and oven (no text or symbols)

Operating and Installation Instructions

CONTENTS

Warnings....page 3
Conservation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5
Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5
Before using . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5
The electrical connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 6
Instructions for totally built-in appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7
Your appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 9
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10
Freezer Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10
Start your appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10
Temperature control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10
Freezing fresh food . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10
Frozen food storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 11
Thawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 11
Ice making . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 11
Health and safety guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 12
Defrosting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 13
Maintenance and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 14
Internal cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 14
When the appliance is not in use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 14
What happens if something goes wrong? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 15
Guarantee conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 16
Tricity Bendix Service Centres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 17

TECHNICAL SPECIFICATIONS

POWER SUPPLY VOLTAGE AND FREQUENCY	220-240 V / 50 Hz
TOTAL POWER ABSORBED	120 W
AVERAGE DAILY UNITS ELECTRICITY*	1.05 kWh
GROSS CAPACITY	120 l
NET CAPACITY	100 l
STAR RATING

* This figure id based on standard test results in accordance with the European Standard EN 153. Actual consumption will depend on how the appliance is used and where it is located.

WARNINGS

IT IS MOST IMPORTANT THAT THIS INSTRUCTION BOOK SHOULD BE RETAINED WITH THE APPLIANCE FOR FUTURE REFERENCE. SHOULD THE APPLIANCE BE SOLD OR TRANSFERRED TO ANOTHER OWNER, OR SHOULD YOU MOVE HOUSE AND LEAVE THE APPLIANCE, ALWAYS ENSURE THAT THE BOOK IS SUPPLIED WITH THE APPLIANCE IN ORDER THAT THE NEW OWNER CAN GET TO KNOW THE FUNCTIONING OF THE APPLIANCE AND THE RELEVANT WARNINGS.

THESE WARNINGS ARE PROVIDED IN THE INTEREST OF SAFETY. YOU MUST READ THEM CAREFULLY BEFORE INSTALLING OR USING THE APPLIANCE.

■ This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the product.
- Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
■ This product should be serviced by an authorised Tricity Bendix Service Centre, and only genuine spare parts should be used.
■ It is dangerous to alter the specifications or modify this product in any way.
■ Care must be taken to ensure that the appliance does not stand on the electrical supply cable.
- Tricity Bendix domestic refrigerators, freezers and fridge/freezers are designed to be used specifically for the storage of edible foodstuffs only.
- There are working parts in this product which heat up. Always ensure that there is adequate ventilation as a failure to do this will result in possible food loss. See installation instructions.
- Parts which heat up should not be exposed. Wherever possible, the back of the appliance should be close to a wall but leaving the required distance for ventilation as stated in the installation instructions.
■ Before defrosting, cleaning or maintenance work is carried out, be sure to switch off the appliance and unplug it.
■ Frozen food must NOT be re-frozen once it has thawed out.
- Do not place carbonated or fizzy drinks in the freezer as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.

• The cooling plate or refrigerated freezer shelves in this appliance contain channels through which the refrigerant passes. If these are punctured this would cause substantial damage to the appliance and result in food loss. DO NOT USE SHARP INSTRUMENTS to scrape off frost or ice. Under NO circumstances should solid ice be forced off the lining or shelves. Solid ice should be allowed to thaw, when defrosting the appliance. See Defrost instructions.
  ■ The appliance should be left for 2 hours after installation before it is turned on in order to allow the refrigerant to settle.
  ■ This appliance is heavy. Care should be taken when moving it.
• Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or "frost/freezer burns".
  ■ Ice lollies can cause "frost/freezer burns" if consumed straight from the freezer.
  ■ Manufacturers' storage recommendations should be strictly adhered to. Refer to relevant instructions.
  ■ Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Refer to your local Tricity Bendix Service Centre and always insist on genuine spare parts.

CONSERVATION

In the interests of the Environment:

When disposing of your old fridge, freezer or fridge/freezer.

Help to keep your country tidy - use authorised disposal sites for your old appliances.

For maximum efficiency:

Make sure that the appliance is cleaned properly.

Make sure that the door is closed properly.

Do not position the appliance near to sources of heat.

Do not over-fill your appliance, air MUST be allowed to circulate.

INSTALLATION

Warning

IF YOU ARE DISCARDING AN OLD APPLIANCE THAT HAS A LOCK OR CATCH ON THE DOOR, YOU MUST ENSURE THAT IT IS MADE UNUSABLE TO PREVENT YOUNG CHILDREN BEING TRAPPED INSIDE.

Positioning

This appliance is designed to operate in ambient temperatures between 16°C (60°F) and 32°C (90°F). It should be located in a dry atmosphere, out of direct sunlight and away from extreme temperature e.g. not next to a cooker or other sources of direct heat, or in a very cold room e.g. an outhouse, where the temperatures may fall below 16°C (60°F). If these temperatures are exceeded i.e. colder or warmer, then the appliance may not operate correctly.

For building-in and door reversibility, if necessary, refer to the relevant instructions in the following pages.

Before using

Remove all securing tapes. Wash inside the appliance with lukewarm water and bicarbonate of soda (5 ml to 0.5 litre of water). Do not use soap or detergent as the smell may linger. Dry thoroughly.

The electrical connections

WARNING: THIS APPLIANCE MUST BE EARTHED.

The manufacturer declines any liability should this safety measure not be observed.

If the plug that is fitted to your appliance is not suitable for your socket outlet, it must be cut off and the appropriate plug fitted.

Remove the fuse from the cut off plug.

The cut off plug should then be disposed of to prevent the hazard of shocks in case it should be plugged into a 13amp socket in another part of your home.

Important

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow	- Earth
Blue	- Neutral
Brown	- Live

If you fit your own plug, the colours of the wires in the mains lead of your appliance may not correspond with the markings identifying the terminals in your plug, proceed as follows:

Fig. 1

Connect the Green and Yellow (earth) wire to the terminal in the plug which is marked with the letter «E» or the earth symbol ⊕, or coloured green and yellow.

Connect the blue (neutral) wire to the terminal in the plug which is marked with the letter «N» or coloured black.

Connect the brown (live) wire to the terminal in the plug which is marked with the letter «L» or coloured red.

The plug moulded onto the lead incorporates a fuse. For replacement, use a 13amp BS1362 fuse. Only ASTA or BSI approved fuses should be used.

The plug must not be used if the fuse cover/carrier is lost. The cover/carrier is indicated by the coloured insert at the base of the plug.

A replacement cover/carrier must be obtained from your local Tricity Bendix Service Centre whose address is listed at the back of this instruction book.

This appliance complies with the E.E.C. Directive No. 87/308 of 2.6.87 relative to radio interference suppression.

CE This appliance complies with the following E.E.C. Directives:

• 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
• 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

Please ensure that when the appliance is installed it is easily accessible for the engineer in the event of a breakdown.

Instructions for totally built-in appliances

Dimensions of the recess

Height of housing

880 mm

Depth of housing

550 mm

Width of housing

560 mm

The appliance's door has been locked in position for transport by means of pins on both sides. According to the door opening direction, remove relevant pins at the top and at the bottom.

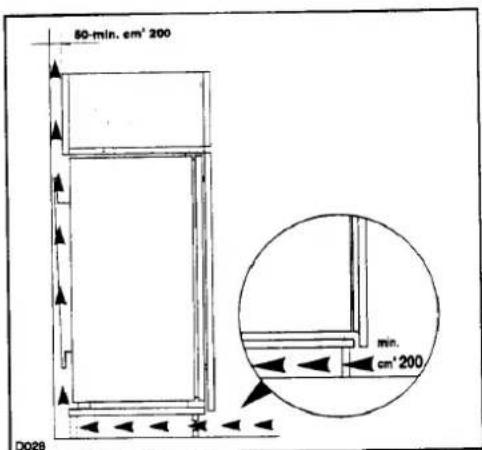

For appropriate venting, follow indications in Fig. 2.

Fig. 2

Push appliance into the housing until stop strip (A) touches the kitchen unit.

Fig. 3

If after having carried out the operation previously described there is still some space left between the appliance and the kitchen unit, fit the trimming, provided with the appliance, on the stop strip (A).

Fig. 4

Open the door and push the appliance against the side of kitchen furniture opposite to that of appliance hinges.

Fasten the appliance with 4 screws provided in the kit included with the appliance. Snap vent grille (C) and hinge cover (D) into position.

Fig. 5

Press in the joint covers between the appliance and the kitchen furniture.

Line drawing of a door handle with a magnified inset showing the blade and handle (no text or symbols)

Fig. 6

Apply covers (B) on joint cover lugs and into hinge holes.

Technical line drawing of a mechanical bracket or mounting bracket with labeled component B (no text or symbols beyond label)

Fig. 7

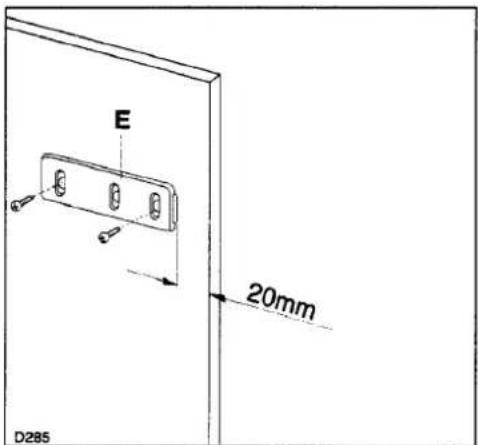

Position the runners (E) at the top and bottom of the inside of the kitchen unit as shown in Fig. 8 and mark the position of the external holes.

After preparing the holes, screw the runners to the kitchen unit door using 3.5x16 mm screws.

Fig. 8

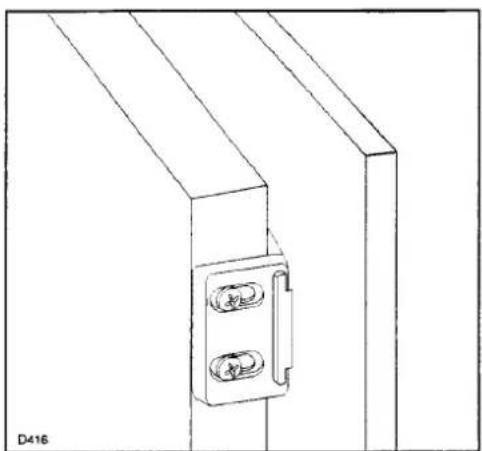

Open both the appliance door and that of the kitchen unit to approx. 90°.

Place the little plates over the runners. Hold the doors of the appliance and the unit together and mark the holes.

Fig. 9

Remove the little plates and make the holes with a diam. of 2 mm. Replace the little plates over the runners and screw in the screws provided (3.5x16 mm).

For the alignment of the kitchen unit door, if necessary, use the clearance size of the slotted holes.

At the end of the procedure, check that the doors of the appliance and the kitchen unit open properly.

Technical line drawing of a mechanical bracket or mounting bracket with two circular components attached (no text or symbols)

Fig. 10

YOUR APPLIANCE

A - Freezer calendar (recommended storage times for frozen foods)
B - Freezer controls
C - Frozen food storage
D - Freezing fresh foods

OPERATION

Freezer Controls (Fig. 11)

Fig. 11
A - Thermostat control
B - Fast freeze switch
C - Fast freeze light (yellow)
D - Mains-on light (green)
E - Warning light (red)

Start your appliance

Insert the plug into the wall socket. The pilot light (D-Fig. 11) will light up to show that the appliance is on.

Temperature control

The temperature within the freezer is controlled by the thermostat situated at the top of the cabinet (A-Fig. 11).

To operate the freezer proceed as follows:

Turn the thermostat control beyond the «O» position.

When you first start the freezer, we suggest that you turn the thermostat control to a medium setting, between 2 and 4. For easier turning of this control, use a small coin.

The internal temperature of the freezer is automatically adjusted by the thermostat to ensure safe food storage. However, if the appliance is working in unfavourable room conditions such as poor ventilation, high temperature and frequent door openings, it may be necessary to select a more suitable setting.

To obtain a lower temperature, turn the thermostat control to the higher numbers; to obtain a higher temperature turn the control to the lower numbers.

Warning light (red)

If the temperature warning light (E) lights up, it indicates that the temperature within the freezer has reached a level where the safe food storage is no longer ensured.

When the freezer is first switched on, the warning light will stay on until the temperature has dropped to a safe level for the storage of frozen food.

Freezing fresh food

In any 24 hour period you can freeze up to 13 kg of fresh food.

When you first start the freezer or after a period of non-use, slide the fast-freeze switch (B-Fig. 11) to the left (fast freeze position) 2-3 hours before you want to freeze your food (the yellow light (C) lights up).

If the freezer is already in operation, the fast-freeze switch should be activated about 24 hours before freezing fresh food. This time can be shortened, depending on the quantity of food to be frozen. After the time has elapsed place the food to be frozen in the top compartment of the freezer as this is the coldest part.

Once the food is completely frozen (which could take up to 24 hours) return the fast freeze switch to the «OFF» position; the yellow light (C) goes off.

Distribute the frozen food packages in the other compartments, so that the top compartment can be used for a further freezing operation.

Only freeze top quality, fresh and thoroughly cleaned foodstuffs.

Do not allow fresh food to touch food which is already frozen.

During the freezing process, ensure that the freezer door remains closed.

Frozen food storage

When you first start the freezer or if the freezer has been out of use for some time, we advise you to run your appliance for at least two hours in the «fast freeze» mode before storing frozen food.

To obtain the best performance from this appliance, we strongly recommend that you ensure any commercially frozen foodstuffs were adequately stored by the retailer.

It is also advisable not to exceed the storage period indicated by the manufacturer of the food.

Finally, do not open the door frequently or leave it open longer than is absolutely necessary.

Warning

Do not put carbonated liquids, (fizzy drinks etc.), in the freezer compartment.

Water ices, if consumed immediately after removal from the freezer, can possibly result in a low temperature skin burn.

Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions on "frost/freezer burns".

If there is a power failure during the storage of frozen food, do not open the door during the whole time of the power failure. If the freezer is fully loaded, the frozen food will not be affected if the power cut is of short duration; otherwise, it is recommended to consume the food within a very short time (see page 13).

Thawing

Deep frozen or frozen food, prior to being used, can be thawed in the fridge or at room temperature depending on the time available. Small food items may even be cooked from frozen; in this case cooking will take longer.

Any frozen food which is allowed to thaw accidentally should either be eaten as soon as possible or thrown away. Alternatively, if the food is uncooked and has not been completely defrosted it can be cooked and then refrozen.

Defrosted cooked food must never be refrozen.

Ice making

Fill the ice tray with water to the top of each ice cube compartment, and place it in the freezer compartment. To release the ice cubes, twist the tray along its length.

Never use a sharp instrument to remove ice tray.

HEALTH AND SAFETY GUIDELINES

Because of consumer demand, preservatives have been removed from many pre-prepared foods. This together with the changes in shopping habits to a once-a-week shop, mean that safe handling and storage of food is even more important than ever.

The following tips should help you to ensure that the food in your home is in as perfect condition as possible.

• Keep the time between buying chilled food and placing it in your freezer as short as possible. Tests showed that the temperature of 1 litre of orange juice rose to 22°C in an hour between the supermarket and home. It then took 11 hours to get down to 7°C in the refrigerator.
• Keep the freezer door closed as much as possible. Remember that warm air is flowing in as you are deciding what to have for tea!
  ■ Do not push food together too much, try to allow air circulate around each item.
• Cool cooked food as quickly as possible but do NOT place in the freezer until cool. (Leave food in a place as cool as possible in order that it can then be placed in the freezer as soon as possible).
  ■ Do not store food uncovered.

■ The best way to defrost food is to put it in the refrigerator to thaw slowly.
- Ensure that food placed in the freezer is dated and labelled and used in date order to ensure that food is consumed at its best.
- It is important that food is used before its "best before" date.
■ Always wash your hands with soapy water and dry them with a clean towel before handling food.
- Keep work surfaces clean and avoid cross contamination by not using the same work surface or knife, without washing them thoroughly in between.
■ Use kitchen roll wherever possible for cleaning up food. If you use a dishcloth, be sure to boil it frequently.

Defrosting

The freezer compartment will become progressively covered with frost. This should be removed with the special plastic scraper provided, whenever the thickness of the frost exceeds 1/4".

During this operation it is not necessary to switch off the power supply or to remove the foodstuffs. However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out and it is advisable to perform this operation when the appliance is empty.

To carry out complete defrosting proceed as follows:

Remove any stored food, wrap it in several layers of newspaper and put it in a cool place.

Turn the thermostat control (A-Fig. 11) to the «O» setting.

Leave the door open.

To accelerate the defrosting process, place a bowl of hot water inside the freezer (with a piece of cardboard underneath as a protection). The defrost water should be collected in a basin placed under the gutter in the central part between base and door. A small flexible hose (supplied with the freezer and fixed inside the plastic scraper handle), to be used as a gutter extension, will make it easier to collect the defrost water.

Line drawing of a window with a rectangular sink and a curved handle, no text or symbols present

Fig. 12

When defrosting is completed, dry the interior thoroughly.

Turn the thermostat control to a medium setting between 2 and 4 and, after letting the appliance run for at least two hours in the «fast freeze» mode. Replace the previously removed food into the compartment and return the «fast freeze» switch to the off position.

Important

A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.

Never use sharp metal tools to scrape off frost from the evaporator as this could damage the appliance beyond repair.

Warning

"In the event of a power failure causing the temperature within your freezer to rise, do not re--freeze the food without checking its condition. The following guidelines should assist you."

Ice-cream: once thawed should be discarded.

Fruits & Vegetables: if soft should be cooked and used up.

Breads & Cakes: can be re-frozen without danger.

Shellfish: should be refrigerated and used up quickly.

Cooked Dishes: i.e. casseroles should be refrigerated and used up.

Large Pieces of Meat: can be re-frozen providing there are still ice crystals remaining within them.

Small Joints: should be cooked and can then be re-frozen as cooked dishes.

Chicken: should also be cooked and re-frozen as a cooked dish.

MAINTENANCE AND CLEANING

Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply.

Internal cleaning

Clean the inside and accessories with warm water and bicarbonate of soda (5ml to 0.5 litre of water). Rinse and dry thoroughly.

NEVER USE DETERGENTS, ABRASIVE POWDERS, HIGHLY PERFUMED CLEANING PRODUCTS OR WAX POLISHES, TO CLEAN THE INTERIOR AS THESE WILL DAMAGE THE SURFACE AND LEAVE A STRONG SMELL.

When the appliance is not in use

When the appliance is not in use for long periods, disconnect from the electricity supply, empty all foods and clean the appliance, leaving the door ajar to prevent unpleasant smells.

WHAT HAPPENS IF SOMETHING GOES WRONG?

Before contacting your local Tricity Bendix Service Force Centre, check the following points:

The appliance does not work...

Check that:

■ There is power at the socket.
■ Ensure that there is not a power cut by checking the household lights.
■ The fuse has not blown.
■ The air circulation passages are not covered.

Vibration or abnormal noises...

- You may hear faint gurgling or bubbling sounds when the refrigerant is pumped through the coils of tubing, to the cooling plate/evaporator or to the fixed freezer shelves. When the compressor is on, the refrigerant is being pumped round, and you will hear a whirring or pulsating noise from the compressor.

A thermostat controls the compressor, and you will hear a faint "click" when the thermostat cuts in and out.

Other points to check...

Check that:

■ Have you turned the thermostat to the correct setting?
■ Has the door been left open causing the temperature to rise?
- Sometimes the freezer door will be difficult to open shortly after you have closed it. Don't worry this is due to pressure difference which will quickly equalise and allow the door to open normally.

If, after the above checks, there is still a fault, call your local Tricity Bendix Service Centre, whose address can be found in the accompanying Complete Care leaflet, and can also be found in your local telephone directory under «T».

In-guarantee customers should ensure that the above checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

Please note that proof of purchase is required for any in-guarantee service calls.

Before contacting your local Tricity Bendix Service Centre, make a note of the model and serial number. This information can be found on the rating plate situated inside the cabinet behind the bottom freezer drawer.

PEACE OF MIND FOR TWELVE MONTHS

Guarantee conditions

We, Tricity Bendix, undertake that if, within twelve months of the date of the purchase, this Tricity Bendix appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option, repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that:

■ The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
■ The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's operating and maintenance instructions.
■ The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.

All service work under this guarantee must be undertaken by a Tricity Bendix service representative or authorised agent.

Any appliance or defective part replaced shall become the property of Tricity Bendix.

This guarantee is in addition to your statutory and other legal rights.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a charge will be made.

Exclusions

This guarantee does not cover:

■ Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.
■ Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the United Kingdom.
■ Appliances found to be in use within a commercial environment, plus those which are the subject of rental agreements.
■ Products of Tricity Bendix manufacture which are NOT marketed by Tricity Bendix.
- EU Countries - The standard guarantee is applicable but is subject to the owner's responsibility and cost to ensure the appliance meets the standards set by the country to which the product is taken. Proof of purchase may be required. Electrolux Aftersales Service in the country concerned, with whom Tricity Bendix have an arrangement, will be pleased to advise further.

Tricity Bendix After Sales Service Service Centres Addresses

CENTRE	POSTAL DISTRICTS	SERVICE APPTS.	ADDRESS
ABERDEEN	AB	01224-696569	Tricity Bendix After Sales ServiceNortheast Appliance Service, 8 Cornhill Arcade, Cornhill Arcade,Aberdeen, AB2 5UT
ARGYLL	PA24-61	01369-703161	Tricity Bendix After Sales ServiceT.D.C. Refrigeration, Briar Hill, 7 Hill Street, Dunoon, Argyll, PA23 7AL
BARNSTAPLE	EX18-23, 31-39	01271-328826	Tricity Bendix After Sales ServiceMc Bain Refrigeration, Unit 4 Upcott Avenue,Pottington Industrial Estate, Barnstaple, N. Devon, EX31 1HN
BORDERS	TD	01573-224411	Tricity Bendix After Sales ServiceJames Stewart & Son, 2-8 Wood Market,Kelso, Borders, TD5 7AX
BRISTOL	BA BS TA SP	0117-9211876	Tricity Bendix After Sales ServiceUnit BE46, PO Box 372, Bristol, BS 99 1UD
CANVEY	E EC EN N NW W WCAL CB HA HP LU MK SGUB WDCM CO IG RM SSIP NR PE14-19, 30-38	0181-443-34640181-965-96990181-965-969901268-69414401603-667017	Tricity Bendix After Sales Service2-4 Sandhurst,Kings Road, Canvey Island, SS8 0QY
CARDIFF	CF NP1-4, 6, 9-44 SA1-18SA21-32	01222-460131	Tricity Bendix After Sales ServiceGuardian Industrial Estate, Clydesmuir Road,Tremorfa, Cardiff, CF2 2QS
CUMBRIA	CA	01228-594747	Tricity Bendix After Sales ServiceETB Services, Carlisle Enterprise Centre, James Street,Carlisle, CA2 5AP
DUMFRIES &GALLOWAY	DG1-14	01387-265166	Tricity Bendix After Sales ServiceAllan Crossan (service), 93 Irish Street, Dumfries, Scotland, DG1 2PQ
DUNDEE	Parkinson Cowan Gas Only	01382-642828	Tricity Bendix After Sales ServiceTayside Refrigeration, 3-7 Blackness Street,Dundee, DD1 5LR
DUNDEE	DD1-14PH8-18	01250-876285	Tricity Bendix After Sales ServiceI Brogan Domestics, 41 Leslie Street,Blairgowrie, Perthshire, PH10 6AT
GLASGOW	EH FK G KA KY1-16 MLPA1-23 PH1-7	0141-647-4381	Tricity Bendix After Sales Service20 Cunningham Road, Clyde Estate, Rutherglen, Glasgow, G73 1PP
GUERNSEY	All Codes	01481-46931	Guernsey ElectricityPO Box 4., Vale Guernsey, Channel Islands
HAVERFORDWEST	SA33-39SA41-44SA61-73	01437-710914	Tricity Bendix After Sales ServiceC Butherway, 1 Church Road, Roch, Haverfordwest,Dyfed, SA62 6AG
HEREFORD	HR1-9 LD1-8 SY7,18NP5 NP7-8	01432-340334	Tricity Bendix After Sales ServiceDomestic Repair Centre, Unit 3 Bank Buildings,Cattle Market, Hereford, HR4 9HX
HULL	Y04 Y011-18 Y025HU1-19 DN14	01482-585678	Tricity Bendix After Sales ServiceJohn Sizer, Unit 1 Boulevard Unit, Factory Estate, Hull, HU3 4AY
INVERNESS	IV1-28, 30-36, 52-56PH19-26, 42-44 KW1-14	01463-792952	Tricity Bendix After Sales ServiceHighland Appliances, Unit 3B3 Smithton Industrial Estate,Smithton, Inverness
INVERNESS	PH30-41 IV40-51	01855-821315	Tricity Bendix After Sales ServiceGeorge Ross Electrical, Forrestry Workshop,Inchree, Onich, Inverness-shire, PH33 6SE
ISLE OF WIGHT	PQ30-41	01983-872552	Tricity Bendix After Sales ServiceWyatts Electrical Service, 4 Forelands Road,Bembridge, I O W, PQ35 5XW
ISLE OF ARRAN	KA27	01770-302909	Tricity Bendix After Sales ServiceArran Domestics, Unit 4 The Douglas Centre,Brodick, Isle of Arran, KA27 8AJ
ISLE OF MAN	IM	01624-663455	Tricity Bendix After Sales ServiceManx Electricity, Service Workshop,North Quay, Douglas, Isle of Man
ISLE OF MULL	PA62-75	01688-302262	Tricity Bendix After Sales ServiceB Hogg, Braeside, Raeric Road,Tobermory, Isle of Mull, PA75 6PU
JERSEY	ALL CODES	01534-505050	Jersey Electricity CompanyPC Box 45 Queens Road, St Helier JE4 BNY,Jersey, Channel Islands
LAMPETER	SA19.20 SA40 SA45-46SY23-25	01570-423020	Tricity Bendix After Sales ServiceLampeter Domestic Appliance Service,Unit 16 Lampeter industrial Estate, Lampeter, SA48 7DY

Tricity Bendix After Sales Service Service Centres Addresses

CENTRE	POSTAL DISTRICTS	SERVICE APPTS	ADDRESS
LANCASTER	LA1-23	01772-316175	Tricity Bendix After Sales ServiceNL Services, Unit 333 Ranglet Road, Walton Summit,Bamber Bridge, Preston, Lancs, PR5 8AR
LEEDS	BD DN1-7, 10-12 HD HG HXLS S WF Y01-3, 5-8 DENG-1-22 & 25	0113-2608511	Tricity Bendix After Sales Service64-66 Cross Gates Road,Leeds, LS15 7NN
LINCOLN	DN21 sub codes 1,2 & 5 onlyLN 1,2,4-6LN3 sub codes 4,5 onlyLN8-10 NG23,24 31-34 PE1-13, 20-25	01522-514603	Tricity Bendix After Sales ServiceBrian Hudson, Unit 8 Stonefield Park,Clifton Street, Lincoln, LN5 8AA
LIVERPOOL	FY PR L WN CH CW WA(Not WA14/15)	0151-2541724	Tricity Bendix After Sales ServiceUnit 1 Honeys Green Precinct, Honeys Green Lane,West Derby, Liverpool, L12 9JH
MANCHESTER	BB BL OL M SKWA14 & 15 only	0161-4777758	Tricity Bendix After Sales ServiceUnit 30 Oakhill Trading Estate, Devonshire Road,Worsley, Manchester, M28 3PT
NEWTON ABBOTT	EX1-17 TQPL1-9,16,19-21	01626-65909	Tricity Bendix After Sales ServiceSouth West Domestic Service, Unit 2 Zealley Industrial Estate,Kingsteignton, Newton Abbott, South Devon, TQ12 3SJ
NORTH WALES	LL	01745-591616	Tricity Bendix After Sales ServiceGMS (Cymru), Unit 2 Coed - Parc, Abergale Road,Rhuddlan, Ciwyd, Wales, LL18 5UG
NORTHERN	DL TS DH YO21,22DH NE SR	01325-3014000191-493-2025	Tricity Bendix After Sales ServicePO Box 40 Preston Road, Aycliffe Industrial Estate,Newton Aycliffe, Co. Durham, DL5 6XA
NORTHERNIRELAND EAST	BT1-30, 36-57, 63-67	01232-746591	Tricity Bendix After Sales ServiceUnit C3, Edenderry Industrial Estate,326, Crumlin Road, Belfast, BT14 7EE
NORTHERNIRELAND WEST	BT31-35, 60-62, 68-82, 92-94	01861-510400	Tricity Bendix After Sales ServiceG & O (Armagh) Service, Owenmore House, Kilwee Business Park, UpperDunmurray Lane, Belfast, BT17 OHD
NUNEATON	B1-48 62-79, 90-94, DY STWS WVNNCV LE	0121-358-70760121-358-505101993-70441101203-350420	Tricity Bendix After Sales ServiceUnit 23-24 Alliance Business Park, Townsend Drive,Nuneaton, Warwickshire, CV11 6RX
ORKNEY	KW15-17	01856-875457	Tricity Bendix After Sales ServiceRefrigeration Sales and Services, Hatson Ind. Estate,Kirkwall, Orkney
REDDITCH	GL OX WR SNB49, 50, 60, 61, 80, 95-98..	01527-512919	Tricity Bendix After Sales ServiceHeming Road, Washford, Redditch, Worcestershire, B98 0DH
REDRUTH	TR1-20,26,27PL10-15,17,18, 22-35	01209-314407	Tricity Bendix After Sales ServiceCornwall Domestic Service, Unit 7D Pool Industrial Estate, Wilson Way,Redruth, Cornwall, TR15 3QW
ROTHSAY	PA20	01700-504777	Tricity Bendix After Sales ServiceD McGiashan Walker, Walker Engineering, Glenmhor,Upper Serpentine, Rothesay, PA20
SHETLAND	Own Sales	01595-692225	Tricity Bendix After Sales ServiceTait Electronic Systems Ltd, Holmsgarth Road,Lerwick, Shetland, ZE1 0PW
SHETLAND	Own Sales	01595-692855	Tricity Bendix After Sales ServiceBolts Shetland Ltd, 26 North Road, Lerwick, Shetland, ZE1 0PE
SHETLAND	ZE2	01806-566546	Tricity Bendix After Sales ServiceLeask Electrical, Harsdale, Symbister, Shetland, ZE2 9AA
SHREWSBURY	SY1-6 SY8-17 SY19-22 TF	01743-450279	Tricity Bendix After Sales ServiceBLI Service, 6 Harlescott Bam, Harlescott Lane, Shrewsbury, SY1 3SY
SOUTH COAST	BN16-18, GU27-35P01-22, BH DT SOTR21-25	01705-66741101705-6674110117-9211876	Tricity Bendix After Sales ServiceLimberline Road, Hilsea, Portsmouth, Hampshire, P03 5JJ
SOUTH HUMBERSIDE	DN8,9 DN15-20DN21 Sub codes 3.4 onlyDN31-40 - LN (3 sub code 6 only), 7LN11-13	01472-267978	Tricity Bendix After Sales ServiceJohn Robinson (Electrical). Unit 74 New Enterprise Centre.King Edward Street. Gt. Grimsby, DN31 3JP
TONBRIDGE	SL GU1-26,RGCT DA ME TNBN1-15 20-27 RHTW BR CR SE SW SM KT	01252-2450501732-35772201273-6943410181-658-9069	Tricity Bendix After Sales ServiceUnit 30, Deacon Trading Estate, Morley Road,Tonbridge, Kent, TN9 1RA

TRICITY BENDIX

Better Products. Better Value.

Tricity Bendix, 99 OAKLEY ROAD, Luton, Beds LU4 9QQ

Model No.

BF 413 W

A DIVISION OF EMACO LIMITED REGISTERED IN ENGLAND NO. 176547

Part No.

2222 276-04/1
