Product Type	Freezer
Brand	Tricity Bendix
Model	BF422W
Height	85 cm
Width	55 cm
Depth	60 cm
Weight	30 kg
Power Supply	220-240 V, 50 Hz
Energy Consumption	200 kWh/year
Climate Class	N-ST
Freezing Capacity	10 kg/24h
Storage Volume	100 L
Fast Freeze Function	Yes
Adjustable Thermostat	Yes
Interior Light	Yes
Door Alarm	Yes
Defrosting Method	Manual
Refrigerant	R600a
Noise Level	40 dB
Spare Parts Availability	Yes
Repairability Index	8.5/10

Frequently Asked Questions - BF422W Tricity Bendix

How do I install the BF422W freezer?

Place the freezer on a level, stable surface away from direct sunlight and heat sources. Allow at least 10 cm clearance around the sides and back for ventilation. Let the freezer stand upright for 4 hours before plugging in.

What is the recommended temperature setting?

The ideal temperature for freezing is -18°C. Use the adjustable thermostat to set the desired level. The fast freeze function can be used to quickly freeze fresh food.

How do I defrost the freezer?

When frost builds up more than 5 mm, unplug the freezer and remove all food. Leave the door open and place towels to absorb water. Never use sharp tools to remove ice.

Why is my freezer noisy?

Normal operating noises include a humming sound from the compressor and gurgling from the refrigerant. If the noise is excessive, check that the freezer is level and not touching walls or cabinets.

How do I clean the freezer?

Unplug the freezer and remove all food. Wipe interior and exterior with a soft cloth and mild detergent. Rinse with clean water and dry thoroughly. Do not use abrasive cleaners.

What should I do if the door alarm sounds?

The alarm sounds if the door is left open for too long. Close the door properly. If the alarm persists, check the door seal for damage or obstructions.

Can I change the door swing direction?

Yes, the door hinges are reversible. Refer to the user manual for step-by-step instructions. You may need a screwdriver and a helper.

What is the energy rating of the BF422W?

The BF422W typically has an energy rating of A+ or A++, consuming around 200 kWh per year. Actual consumption depends on usage.

Where can I find spare parts?

Spare parts are available from authorized service centers. Contact Tricity Bendix customer support or visit their website to order.

How long is the warranty period?

The standard warranty is 2 years from the date of purchase. Register your product online to extend coverage. Keep your proof of purchase.

USER MANUAL BF422W Tricity Bendix

Operating and Installation Instructions

CONTENTS

Warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3
Conservation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5
Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5
Before using . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5
The electrical connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 6
Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7
Door reversibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7
Fitting a decorative door panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 8
Your appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 11
Operation page 12
The controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 12
Frozen food storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 12
Ice making. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 13
Thawing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 13
Freezing fresh food. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 13
Helpful hints when buying food. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 13
Defrosting. page 14
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 14
Normal sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 14
Health and safety guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 15
Maintenance and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 16
Internal cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 16
When the appliance is not in use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 16
What happens if something goes wrong? . . . . . . . . . . . . . . . . . . . . . . . . . . page 17
Guarantee conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 18
Tricity Bendix Service Centres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 19

TECHNICAL SPECIFICATIONS

POWER SUPPLY VOLTAGE AND FREQUENCY	220-240 V / 50 Hz
TOTAL POWER ABSORBED	120 W
AVERAGE DAILY UNITS ELECTRICITY	1.30 kWh
GROSS CAPACITY	120 I
NET CAPACITY	101 I
STAR RATING	***

IT IS MOST IMPORTANT THAT THIS INSTRUCTION BOOK SHOULD BE RETAINED WITH THE APPLIANCE FOR FUTURE REFERENCE. SHOULD THE APPLIANCE BE SOLD OR TRANSFERRED TO ANOTHER OWNER, OR SHOULD YOU MOVE HOUSE AND LEAVE THE APPLIANCE, ALWAYS ENSURE THAT THE BOOK IS SUPPLIED WITH THE APPLIANCE IN ORDER THAT THE NEW OWNER CAN GET TO KNOW THE FUNCTIONING OF THE APPLIANCE AND THE RELEVANT WARNINGS.

THESE WARNINGS ARE PROVIDED IN THE INTEREST OF SAFETY. YOU MUST READ THEM CAREFULLY BEFORE INSTALLING OR USING THE APPLIANCE.

■ This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the product.
■ Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
■ This product should be serviced by an authorised Tricity Bendix Service Centre, and only genuine spare parts should be used.
- It is dangerous to alter the specifications or modify this product in any way.
■ Care must be taken to ensure that the appliance does not stand on the electrical supply cable.
■ Tricity Bendix domestic refrigerators, freezers and fridge/freezers are designed to be used specifically for the storage of edible foodstuffs only.
- There are working parts in this product which heat up. Always ensure that there is adequate ventilation as a failure to do this will result in possible food loss. See installation instructions.
■ Parts which heat up should not be exposed. Wherever possible, the back of the appliance should be close to a wall but leaving the required distance for ventilation as stated in the installation instructions.
■ Before defrosting, cleaning or maintenance work is carried out, be sure to switch off the appliance and unplug it.
■ Frozen food must NOT be re-frozen once it has thawed out.
- Do not place carbonated or fizzy drinks in the freezer as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.

• The cooling plate or refrigerated freezer shelves in this appliance contain channels through which the refrigerant passes. If these are punctured this would cause substantial damage to the appliance and result in food loss. DO NOT USE SHARP INSTRUMENTS to scrape off frost or ice. Under NO circumstances should solid ice be forced off the lining or shelves. Solid ice should be allowed to thaw, when defrosting the appliance. See Defrost instructions.
• The appliance should be left for 2 hours after installation before it is turned on in order to allow the refrigerant to settle.
  ■ This appliance is heavy. Care should be taken when moving it.
• Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or "frost/freezer burns".
• Ice lollies can cause "frost/freezer burns" if consumed straight from the freezer.
  ■ Manufacturers' storage recommendations should be strictly adhered to. Refer to relevant instructions.
  ■ Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Refer to your local Tricity Bendix Service Centre and always insist on genuine spare parts.

CONSERVATION

In the interests of the Environment:

When disposing of your old fridge, freezer or fridge/freezer.

Help to keep your country tidy – use authorised disposal sites for your old appliances.

For maximum efficiency:

Make sure that the appliance is cleaned properly.

Make sure that the door is closed properly.

Do not position the appliance near to sources of heat.

Do not over-fill your appliance, air MUST be allowed to circulate.

INSTALLATION

Warning

IF YOU ARE DISCARDING AN OLD APPLIANCE THAT HAS A LOCK OR CATCH ON THE DOOR, YOU MUST ENSURE THAT IT IS MADE UNUSABLE TO PREVENT YOUNG CHILDREN BEING TRAPPED INSIDE.

Positioning

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc.; best performance is obtained with ambient temperature between +16°C and +32°C.

For building-in and door reversibility, if necessary, refer to the relevant instructions in the following pages.

Before using

Remove all securing tapes. Wash inside the appliance with lukewarm water and bicarbonate of soda (5 ml to 0.5 litre of water). Do not use soap or detergent as the smell may linger. Dry thoroughly.

The electrical connections

WARNING: THIS APPLIANCE MUST BE EARTHED.

The manufacturer declines any liability should this safety measure not be observed.

If the plug that is fitted to your appliance is not suitable for your socket outlet, it must be cut off and the appropriate plug fitted.

Remove the fuse from the cut off plug.

The cut off plug should then be disposed of to prevent the hazard of shocks in case it should be plugged into a 13amp socket in another part of your home.

Important

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow - Earth

Blue - Neutral

Brown - Live

If you fit your own plug, the colours of the wires in the mains lead of your appliance may not correspond with the markings identifying the terminals in your plug, proceed as follows:

Fig. 1

Connect the Green and Yellow (earth) wire to the terminal in the plug which is marked with the letter «E» or the earth symbol ⊕ or coloured green and yellow.

Connect the blue (neutral) wire to the terminal in the plug which is marked with the letter «N» or coloured black.

Connect the brown (live) wire to the terminal in the plug which is marked with the letter «L» or coloured red.

The plug moulded onto the lead incorporates a fuse. For replacement, use a 13amp BS1362 fuse. Only ASTA or BSI approved fuses should be used.

The plug must not be used if the fuse cover/carrier is lost. The cover/carrier is indicated by the coloured insert at the base of the plug.

A replacement cover/carrier must be obtained from your local Tricity Bendix Service Centre whose address is listed in the Customer Care Booklet which accompanies your instruction manual.

This appliance complies with the E.E.C. Directive No. 87/308 of 2.6.87 relative to radio interference suppression.

CE This appliance complies with the following E.E.C. Directives:

• 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
• 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

Please ensure that when the appliance is installed it is easily accessible for the engineer in the event of a breakdown.

Location

This appliance is designed to be built-in to a space having the dimensions given in Fig. 2.

Fig. 2

The height of the appliance can be altered if required by means of adjustable feet situated at its base (Fig. 3).

Technical line drawing of a mechanical assembly with mounting brackets and a curved arrow indicating rotation (no text or symbols)

Fig. 3

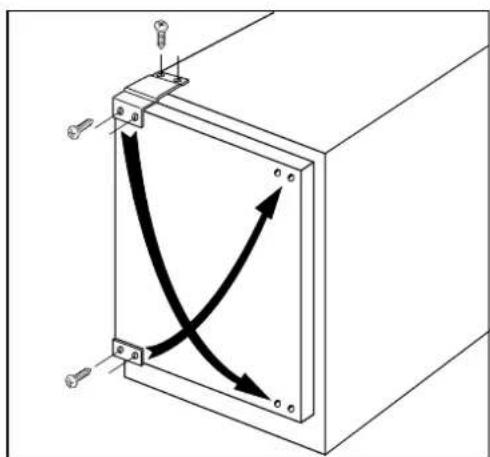

Door reversibility

Remove the two screws which fix the upper hinge to the door.

Carefully lean the appliance on its back and remove the plastic insert (Fig. 4).

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 4

Remove the two screws which fix the lower hinge to the door.

Remove the four screws which fix the lower hinge to the base of the appliance and remove the hinge itself; be very careful to recover all the screws.

Remove the four screws that fix the upper hinge to the appliance and remove the hinge itself.

Take the hinge removed from the upper part of the appliance on the opposite side (see Fig. 5), and, using the screws removed from the lower part, fix it to the base of the appliance itself.

Remove and refit the other hinge on the upper part of the appliance on the opposite side.

Fix the two front screws into the upper and lower hinges (Fig. 5).

Diagram of a mechanical or electrical component with arrows indicating direction, no text or symbols present

Fig. 5

Finally, check the alignment of the door and make sure it closes properly.

After having reversed the opening direction of the door, discard the original plastic insert removed and fit the insert supplied with the appliance on the opposite side.

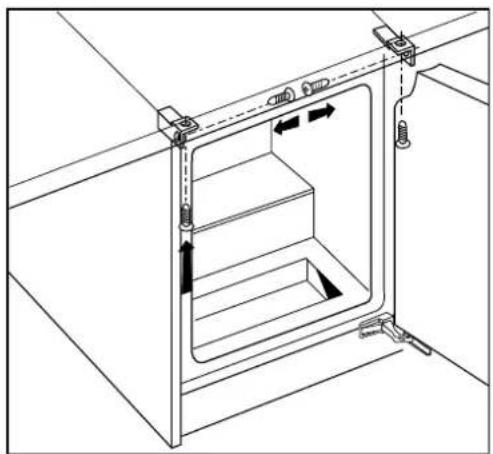

Fitting a decorative door panel

Important: The components needed to fit the decorative panel have been pre-fitted on the appliance.

The brackets are secured to the panel by means of the 7 ∅ 3.5x13 screws supplied.

Before starting to fit the panel, remove the large top bracket by unscrewing the screws and adjusting pins pre-fitted on the appliance door. The small bottom bracket need not be removed.

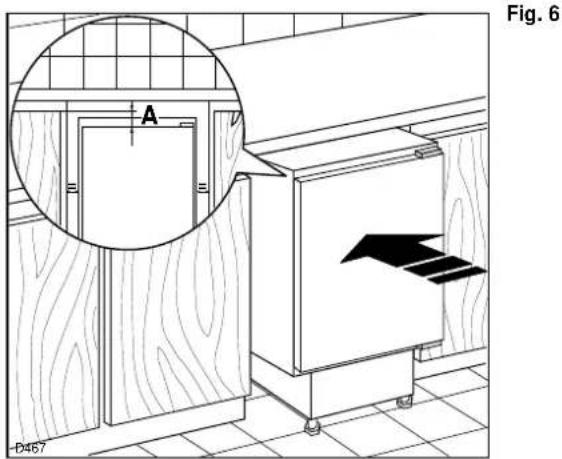

Place the appliance in the position where it is to be built in (Fig. 6).

The appliance is fitted with adjustable feet; screw the front and rear feet in or out to adjust the height of the appliance to that of the recess.

Keeping the appliance central in the recess, slide it in until its back touches the wall.

With a tape measure (or similar instrument), measure distance (A) between the top edge of the door and the top edge of the decorative panel, placing it next to the recess.

Lay the panel face down (Fig. 7). Position the top bracket on the panel, making sure that there is an equal distance between it and the sides and that its distance from the top edge is equal to distance (A) less 1 cm.

Secure the bracket with the screws supplied.

Take care not to damage the front face of the panel whilst working.

Fig. 7

Insert the adjusting pins (B-Fig. 8) into their locations in the door and screw them in.

Technical diagram of a mechanical assembly with two bolts and a base plate, labeled D532 (no text or symbols on the diagram itself)

Fig. 8

Hook the decorative panel onto the top part of the door, inserting the pins (B) (on the door) into the elongated holes (1) (in the top bracket fitted to the panel) (Fig. 9).

Insert the securing screws (C) through elongated holes (2) and fix the panel without tightening the screws (Fig. 9).

Fig. 9

Once the top of the panel has been correctly positioned, fix it through the holes in the bottom bracket, without tightening the screws (Fig. 10).

Technical line drawing of a wooden frame structure with screws and fasteners, labeled Fig. 10 (no text or symbols on the diagram itself)

Check the position again by slackening the screws and pins then, once the best position has been obtained, fully tighten all the fixings.

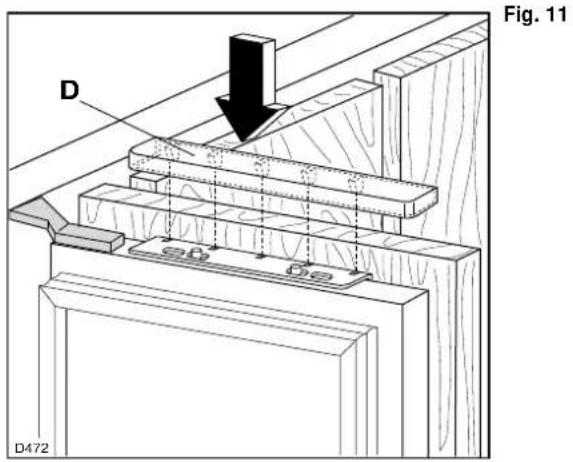

Cover the visible part of the top bracket on the panel with plastic cover (D), inserting it in the locations provided in the bracket.

Once the door has been correctly aligned, tighten the holding nuts on the fixing brackets and attach the appliance to the adjacent units and the bottom of the work surface (Fig. 12).

Technical line drawing of a cabinet or storage unit with mounting brackets and directional arrows indicating movement (no text or symbols)

Fig. 12

If the appliance has been fitted into a space 820 mm high and the maximum height of the base plate is 100 mm, fit the front cover plate by pushing the two vertical lugs into the rectangular holes on the bottom side of the ventilation duct until they click. The plate can be adjusted backwards or forwards in the holes (Fig. 13).

Fig. 13

If the base plate is between 100 and 135mm high, cut it as shown in Fig. 15 and mount as described above.

If the base plate is between 135 and 170mm high, cut it as shown in Fig. 13.

Fig. 14

If the appliance has been fitted into a space 870mm high and the maximum height of the base plate is 150 mm, fit the front cover plate as described in Fig. 14.

If the base plate is between 150 and 185 mm high, cut it as shown in Fig. 15.

If the base plate is between 185 and 220mm high, cut it as shown in Fig. 13.

Fig. 15

A - Freezing fresh foods
B - Frozen food storage
C - Freezer calendar

OPERATION

Fig. 16

This 4 (✗***) freezer is suitable for the storage of commercially frozen food marked with 2 -4 stars. The normal operating temperature of -18^ is suitable for long term storage of frozen food. Pre-packaged, commercially frozen food is normally suitable for storage of up to 3 months, unless otherwise stated by the manufacturer. This appliance is also suitable for freezing fresh food.

The top basket should be used to freeze fresh food.

The controls (See Fig. 16)

The control panel is situated at the base of the appliance, and can be seen under the door.

A. Fast freeze button

When you place fresh food in the appliance, you press the fast freeze button; the length of time you need to leave the appliance on fast freeze. depends on the weight of food .

B. Red temperature alarm indicator light

The red temperature alarm light will come on as soon as the freezer is plugged in, or when it has been filled with fresh food until it reaches the correct temperature. This light will come on when the temperature rises above normal in the cabinet.

C. Thermostat Control

Turn the thermostat control knob clockwise to the required setting, which is 3-4.

D. Mains On button

The green mains on button is illuminated continuously, to show that the appliance is on.

Frozen food storage

Your appliance has the following frozen food net storage volume: 92 litres weight of stored food 29.4 kg.

Operate the fast freeze switch BEFORE placing fresh food to be frozen in the freezer.

Place fresh food to be frozen in the top basket; food is completely frozen 24 hours later.

When the food is completely frozen it can be transferred to one of the other 2 baskets. If a very small quantity of fresh food is to be frozen, it is NOT necessary to adjust the thermostat control in advance. Always ensure that air can circulate around the food to be frozen; this will help it to freeze quicker.

Do not allow fresh food which is to be frozen, touch food which is already frozen.

During the freezing process, please make sure that the door remains closed.

Important

If the temperature of frozen food rises because of:

a) Non compliance with manufacturer's recommendations,
b) Electric power failure,
c) Defrosting,

then recommended storage life may be reduced and storage times may not apply.

Frozen food which is allowed to thaw accidentally should either be used immediately or thrown away.

Alternatively if the food is uncooked and has not been completely defrosted it can be cooked and then refrozen.

Ice making

Fill the ice tray with fresh drinking water to just below the top of each cube compartment and place in the top compartment where it will freeze quickly.

To release the ice cubes, twist the ice tray along its length and the cubes will come out. They can then be stored in a container to use at a later date.

Thawing

Thaw frozen food in the fridge or at room temperature, depending on the time available.

Some small items may be cooked from frozen, but please allow extra time for cooking.

Any frozen food which has defrosted accidentally should either be consumed as soon as possible or thrown away. If the thawed food is uncooked and has not been completely defrosted, it can be cooked and refrozen.

DEFROSTED FOOD MUST NEVER BE REFROZEN

Importants points to remember...

DO...

* Label the food stored in your freezer, and use in date order, ensuring that you are consuming food at its best.

* Leave the door ajar when the freezer is not in use.

DO NOT...

* Use a SHARP INSTRUMENT to remove ice and frost.

Note

1. Do not place sealed containers of carbonated liquids such as fizzy drinks into the freezer as it creates pressure on the container which may cause it to explode, resulting in damage to the freezer.
2. Water ices and ice lollies should not be consumed immediately after removal from the freezer as it may result in low temperature skin abrasions.

Freezing fresh food

The maximum quantity of food you can freeze in 24 hours is 10 kg. Run for 3 - 4 hours before loading with food. After 24 hours the food will be fully frozen.

Note

Aim to check dates on packets and rotate food regularly. Although storage longer than recommended is not harmful, flavours and textures begin to deteriorate.

Warning

Do NOT remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or "frost/freezer" burns.

Helpful hints when buying food

1. Always ensure that fresh food you purchase is of a good quality and in prime condition.
2. Shop at a reliable source and buy the "freshest" looking packages; avoid shopworn labels or produce covered in dust.
3. Avoid buying frozen food if you cannot store it straight away. The use of insulated containers is advisable. When you arrive home place the frozen food in the freezer immediately.

Defrosting

The frost should be occasionally removed using either a stiff bristle brush or a plastic scraper.

Heavy frosting (about 1/4" thick) will reduce the freezer's efficiency and complete defrosting should be carried out at this stage.

It is preferable to defrost the freezer when there is little or no food in it. The procedure is as follows:

Any remaining frozen food should be placed in newspaper, wrapped in blankets and stored in a cardboard box which you should then put in a cool, dry place, or put the food in another freezer.

Then turn the mains on indicator light switch OFF.

Defrosting can be speeded up by putting bowls of hot (NOT boiling) water on the shelves of the freezer.

When the ice has melted, remove the water collected in the base of the freezer.

After defrosting, clean and dry the interior of the freezer, plug the appliance in and turn on the mains on indicator light switch and the fast freeze switch.

Replace the frozen food and check that the thermostat is at the correct setting.

\* Please note:

If the temperature of the frozen food is allowed to rise during defrosting, its storage life may be shortened.

Starting

Before the appliance is installed into the recess plug into the mains and switch on. Check that the mains on light comes on and the control dial is correctly set. (See "The controls"). You will hear the compressor start up.

Normal sound

It is quite normal for refrigerators and freezers to make a certain amount of noise. The noise level will vary according to where the cabinet is positioned.

Noise and vibration can arise if the cabinet is unsteady or is close up to some other fitment such as a sink unit or dishwasher.

Refrigeration system. A faint gurgling or bubbling sound can be heard when the refrigerant is pumped through the coils of tubing at the rear or cooling system.

Compressor. When the refrigerant is pumped round, a whirring or pulsating noise may be heard from the compressor.

Thermostat. The compressor is started and stopped by the thermostat. A click can be heard when the thermostat cuts in and out.

Important notice

In line with our continuing policy of research and development we reserve the right to alter models and specifications without prior notice.

This instruction booklet is accurate at the date of printing but will be superseded and should be disregarded if specifications or appearance are changed.

HEALTH AND SAFETY GUIDELINES

Because of consumer demand, preservatives have been removed from many pre-prepared food. This together with the changes in shopping habits to a once-a-week shop, mean that safe handling and storage of food is even more important than ever.

The following tips should help you to ensure that the food in your home is in as perfect condition as possible.

• Keep the time between buying chilled food and placing it in your freezer as short as possible. Tests showed that the temperature of 1 litre of orange juice rose to 22^ in an hour between the supermarket and home. It then took 11 hours to get down to 7^ in the refrigerator.
• Keep the freezer door closed as much as possible. Remember that warm air is flowing in as you are deciding what to have for tea!
• Do not push food together too much, try to allow air circulate around each item.
  ■ Cool cooked food as quickly as possible but do NOT place in the freezer until cool. (Leave food in a place as cool as possible in order that it can then be placed in the freezer as soon as possible).
  ■ Do not store food uncovered.

■ The best way to defrost food is to put it in the refrigerator to thaw slowly.
■ Ensure that food placed in the freezer is dated and labelled and used in date order to ensure that food is consumed at its best.
- It is important that food is used before its “best before” date.
■ Always wash your hands with soapy water and dry them with a clean towel before handling food.
- Keep work surfaces clean and avoid cross contamination by not using the same work surface or knife, without washing them thoroughly in between.
■ Use kitchen roll wherever possible for cleaning up food. If you use a dishcloth, be sure to boil it frequently.

MAINTENANCE AND CLEANING

Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply.

Internal cleaning

Clean the inside and accessories with warm water and bicarbonate of soda (5ml to 0.5 litre of water). Rinse and dry thoroughly.

NEVER USE DETERGENTS, ABRASIVE POWDERS, HIGHLY PERFUMED CLEANING PRODUCTS OR WAX POLISHES, TO CLEAN THE INTERIOR AS THESE WILL DAMAGE THE SURFACE AND LEAVE A STRONG SMELL.

When the appliance is not in use

When the appliance is not in use for long periods, disconnect from the electricity supply, empty all foods and clean the appliance, leaving the door ajar to prevent unpleasant smells.

WHAT HAPPENS IF SOMETHING GOES WRONG?

Before contacting your local Tricity Bendix Service Force Centre, check the following points:

The appliance does not work...

Check that:

■ There is power at the socket.
■ Ensure that there is not a power cut by checking the household lights.
■ The fuse has not blown.
■ The air circulation passages are not covered.

Vibration or abnormal noises...

- You may hear faint gurgling or bubbling sounds when the refrigerant is pumped through the coils of tubing at the rear, to the cooling plate/evaporator or to the fixed freezer shelves. When the compressor is on, the refrigerant is being pumped round, and you will hear a whirring or pulsating noise from the compressor.

A thermostat controls the compressor, and you will hear a faint “click” when the thermostat cuts in and out.

Other points to check...

Check that:

■ Have you turned the thermostat to the correct setting?
■ Has the door been left open causing the temperature to rise?
- Sometimes the freezer door will be difficult to open shortly after you have closed it. Don't worry this is due to pressure difference which will quickly equalise and allow the door to open normally.

If, after the above checks, there is still a fault, call your local Tricity Bendix Service Force Centre, whose address can be found in the accompanying Customer Care Booklet, and can also be found in your local telephone directory under «Z».

In-guarantee customers should ensure that the above checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

Please note that proof of purchase is required for any in-guarantee service calls.

Before contacting your local Tricity Bendix Service Force Centre, make a note of the make, model and date of purchase of your machine: the Service Department require this information.

PEACE OF MIND FOR TWENTYFOUR MONTHS

Guarantee conditions

We, Tricity Bendix, undertake that if, within twenty-four months of the date of the purchase, this Tricity Bendix appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option, repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that:

■ The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
- The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's operating and maintenance instructions.
■ The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.

All service work under this guarantee must be undertaken by a Tricity Bendix service representative or authorised agent.

Any appliance or defective part replaced shall become the property of Tricity Bendix.

This guarantee is in addition to your statutory and other legal rights.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a charge will be made.

Exclusions

This guarantee does not cover:

■ Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.
■ Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the United Kingdom.
■ Appliances found to be in use within a commercial environment, plus those which are the subject of rental agreements.
■ Products of Tricity Bendix manufacture which are NOT marketed by Tricity Bendix.
- EEC Countries - The standard guarantee is applicable but is subject to the owner's responsibility and cost to ensure the appliance meets the standards set by the country to which the product is taken. Proof of purchase may be required. Tricity Bendix Aftersales Service in the country concerned, with whom Tricity Bendix have an arrangement, will be pleased to advise further.

Tricity Bendix After Sales Service Service Centres Addresses

CENTRE POSTAL DISTRICTS SERVICE APPTS. ADDRESS
ABERDEEN AB 01224-696569 Tricity Bendix After Sales Service			Northeast Appliance Service, 8 Cornhill Arcade, Cornhill Arcade, Aberdeen, AB2 5UT
ARGYLL PA24-61 01369-703161 Tricity Bendix After Sales Service			T.D.C. Refrigeration, Briar Hill, 7 Hill Street, Duncon, Argyll, PA23 7AL
BARNSTAPLE EX18-23, 31-39 01271-328826 Tricity Bendix After Sales Service			Mc Bain Refrigeration, Unit 4 Upcott Avenue,Pottington Industrial Estate, Barnstaple, N. Devon, EX31 1HN
BORDERS TD 01573-224411 Tricity Bendix After Sales Service			James Stewart & Son, 2-8 Wood Market,Kelso, Borders, TD5 7AX
BRISTOL BA BS TA SP 0117-9211876 Tricity Bendix After Sales Service			Unit BE46, PO Box 372, Bristol, BS 99 1UD
CANVEY E EC EN N NW W WC	0181-443-3464	Tricity Bendix After Sales Service
AL CB HA HP LU MK SG	0181-965-9699	2-4 Sandhurst,
UB WD	0181-965-9699	Kings Road, Canvey Island, SS8 0QY
CM CO IG RM SS	01268-694144
IP NR PE14-19, 30-38	01603-667017
CARDIFF CF NP1-4, 6, 9-44 SA1-18	01222-460131 Tricity	Bendix After Sales Service
SA21-32		Guardian Industrial Estate, Clydesmuir Road,Tremorfa, Cardiff, CF2 2QS
CUMBRIA	CA 01228-594747 Tricity Bendix After Sales Service		ETB Services, Carlisle Enterprise Centre, James Street,Carlisle, CA2 5AP
DUMFRIES &GALLOWAY	DG1-14	01387-265166 Tricity Bendix After Sales ServiceAllan Crossan (service), 93 Irish Street, Dumfries, Scotland, DG1 2PQ
DUNDEE	Parkinson Cowan Gas Only	01382-642828	Tricity Bendix After Sales ServiceTayside Refrigeration, 3-7 Blackness Street,Dundee, DD1 5LR
DUNDEE	DD1-14PH8-18	01250-876285 Tricity Bendix After Sales ServiceI Brogan Domestics, 41 Leslie Street,Blairgowrie, Perthshire, PH10 6AT
GLASGOW	EH FK G KA KY1-16 MLPA1-23 PH1-7	0141-647-4381	Tricity Bendix After Sales Service20 Cunningham Road, Clyde Estate, Rutherglen, Glasgow, G73 1PP
GUERNSEY	All Codes	01481-46931	Guernsey ElectricityPO Box 4., Vale Guernsey, Channel Islands
HAVERFORDWEST	SA33-39SA41-44SA61-73	01437-710914 Tricity Bendix After Sales ServiceC Butherway, 1 Church Road, Roch, Haverfordwest,Dyfed, SA62 6AG
HEREFORD	HR1-9 LD1-8 SY7,18NP5 NP7-8	01432-340334 Tricity Bendix After Sales ServiceDomestic Repair Centre, Unit 3 Bank Buildings,Cattle Market, Hereford, HR4 9HX
HULL	YO4 YO11-18 YO25HU1-19 DN14	01482-585678 Tricity Bendix After Sales ServiceJohn Sizer, Unit 1 Boulevard Unit, Factory Estate, Hull, HU3 4AY
INVERNESS	IV1-28, 30-36, 52-56PH19-26, 42-44 KW1-14	01463-792952 Tricity Bendix After Sales ServiceHighland Appliances, Unit 3B3 Smithton Industrial Estate,Smithton, Inverness
INVERNESS	PH30-41 IV40-51	01855-821315	Tricity Bendix After Sales ServiceGeorge Ross Electrical, Forrestry Workshop,Inchree, Onich, Inverness-shire, PH33 6SE
ISLE OF WIGHT	PO30-41	01983-872552	Tricity Bendix After Sales ServiceWyatts Electrical Service, 4 Forelands Road,Bembridge, I O W, PO35 5XW
ISLE OF ARRAN	KA27	01770-302909 Tricity Bendix After Sales ServiceArran Domestics, Unit 4 The Douglas Centre,Brodick, Isle of Arran, KA27 8AJ
ISLE OF MAN	IM	01624-663455 Tricity Bendix After Sales ServiceManx Electricity, Service Workshop,North Quay, Douglas, Isle of Man
ISLE OF MULL	PA62-75 01688-302262 Tricity Bendix After Sales Service		B Hogg, Braeside, Raeric Road,Tobermory, Isle of Mull, PA75 6PU
JERSEY	ALL CODES	01534-505050 Jersey Electricity CompanyPO Box 45 Queens Road, St Helier JE4 8NY,Jersey, Channel Islands
LAMPETER	SA19,20 SA40 SA45-48SY23-25	01570-423020 Tricity Bendix After Sales ServiceLampeter Domestic Appliance Service,Unit 16 Lampeter Industrial Estate, Lampeter, SA48 7DY

Tricity Bendix After Sales Service Service Centres Addresses

CENTRE POSTAL DISTRICTS SERVICE APPTS. ADDRESS
LANCASTER LA1-23 01772-316175 Tricity Bendix After Sales Service			NL Services, Unit 333 Ranglet Road, Walton Summit,Bamber Bridge, Preston, Lancs, PR5 8AR
LEEDS BD DN1-7, 10-12 HD HG HXLS S WF YO1-3, 5-8 DENG-1-22 & 25		0113-2608511 Tricity	Bendix After Sales Service64-66 Cross Gates Road,Leeds, LS15 7NN
LINCOLN DN21 sub codes 1,2 & 5 onlyLN 1,2,4-6LN3 sub codes 4,5 onlyLN8-10 NG23,24 31-34 PE1-13, 20-25		01522-514603 Tricity	Bendix After Sales ServiceBrian Hudson, Unit 8 Stonefield Park,Clifton Street, Lincoln, LN5 8AA
LIVERPOOL FY PR L WN CH CW WA(Not WA14/15)		0151-2541724 Tricity	Bendix After Sales ServiceUnit 1 Honeys Green Precinct, Honeys Green Lane,West Derby, Liverpool, L12 9JH
MANCHESTER BB BL OL M SKWA14 & 15 only		0161-4777758 Tricity	Bendix After Sales ServiceUnit 30 Oakhill Trading Estate, Devonshire Road,Worsley, Manchester, M28 3PT
NEWTON ABBOTT EX1-17 TQPL1-9,16,19-21		01626-65909 Tricity	Bendix After Sales ServiceSouth West Domestic Service, Unit 2 Zealley Industrial Estate,Kingsteignton, Newton Abbott, South Devon, TQ12 3SJ
NORTH WALES LL 01745-591616 Tricity Bendix After Sales Service			GMS (Cymru), Unit 2 Coed - Parc, Abergele Road,Rhuddlan, Clwyd, Wales, LL18 5UG
NORTHERN	DL TS DH YO21,22DH NE SR	01325-3014000191-493-2025	Tricity Bendix After Sales ServicePO Box 40 Preston Road, Aycliffe Industrial Estate,Newton Aycliffe, Co. Durham, DL5 6XA
NORTHERNIRELAND EAST	BT1-30, 36-57, 63-67	01232-746591 Tricity	Bendix After Sales ServiceUnit C3, Edenderry Industrial Estate,326, Crumlin Road, Belfast, BT14 7EE
NORTHERNIRELAND WEST	BT31-35, 60-62, 68-82, 92-94	01861-510400 Tricity	Bendix After Sales ServiceG & O (Armagh) Service, Owenmore House, Kilwee Business Park, UpperDunmurray Lane, Belfast, BT17 OHD
NUNEATON	B1-48 62-79, 90-94, DY STWS WVNNCV LE	0121-358-70760121-358-505101993-70441101203-350420	Tricity Bendix After Sales ServiceUnit 23-24 Alliance Business Park, Townsend Drive,Nuneaton, Warwickshire, CV11 6RX
ORKNEY	KW15-17	01856-875457 Tricity	Bendix After Sales ServiceRefrigeration Sales and Services, Hatson Ind. Estate,Kirkwall, Orkney
REDDITCH	GL OX WR SNB49, 50, 60, 61, 80, 95-98.,	01527-512919 Tricity	Bendix After Sales ServiceHeming Road, Washford, Redditch, Worcestershire, B98 0DH
REDRUTH	TR1-20,26,27PL10-15,17,18, 22-35	01209-314407 Tricity	Bendix After Sales ServiceCornwall Domestic Service, Unit 7D Pool Industrial Estate, Wilson Way,Redruth, Cornwall, TR15 3QW
ROTHSAY	PA20	01700-504777 Tricity	Bendix After Sales ServiceD McGlashan Walker, Walker Engineering, Glenmhor,Upper Serpentine, Rothesay, PA20
SHETLAND	Own Sales	01595-692225 Tricity	Bendix After Sales ServiceTait Electronic Systems Ltd, Holmsgarth Road,Lerwick, Shetland, ZE1 0PW
SHETLAND	Own Sales	01595-692855 Tricity	Bendix After Sales ServiceBolts Shetland Ltd, 26 North Road, Lerwick, Shetland, ZE1 0PE
SHETLAND	ZE2	01806-566546 Tricity	Bendix After Sales ServiceLeask Electrical, Harsdale, Symbister, Shetland, ZE2 9AA
SHREWSBURY	SY1-6 SY8-17 SY19-22 TF	01743-450279	Tricity Bendix After Sales ServiceBLI Service, 6 Harlescott Bam, Harlescott Lane, Shrewsbury, SY1 3SY
SOUTH COAST	BN16-18, GU27-35PO1-22. BH DT SOTR21-25	01705-66741101705-6674110117-9211876	Tricity Bendix After Sales ServiceLimberline Road, Hilsea, Portsmouth, Hampshire, PO3 5JJ
SOUTH HUMBERSIDE DN8,9 DN15-20DN21 Sub codes 3,4 onlyDN31-40 - LN (3 sub code 6 only), 7LN11-13		01472-267978 Tricity	Bendix After Sales ServiceJohn Robinson (Electrical), Unit 74 New Enterprise Centre,King Edward Street, Gt. Grimsby, DN31 3JP
TONBRIDGE	SL GU1-26.RGCT DA ME TNBN1-15 20-27 RHTW BR CR SE SW SM KT	01252-2450501732-35772201273-6943410181-658-9069	Tricity Bendix After Sales ServiceUnit 30, Deacon Trading Estate, Morley Road,Tonbridge, Kent, TN9 1RA

Tricity Bendix, 99 OAKLEY ROAD, Luton, Beds LU4 9QQ

Model No. Part No.

BF 422 W 2222

A DIVISION OF EMACO LIMITED

REGISTERED IN ENGLAND NO. 176547

270-04
