USER MANUAL TB44UF Tricity Bendix
TB 44 UF
This instruction book contains safety precautions, information on use and helpful hints and tips. To ensure you use this appliance effectively and safely, please read this instruction book carefully before installing or using this appliance and retain for future reference.
The symbols below help you to find things more easily:
Safety precautions Warnings and Safety information
Hints, useful information
Environmental information
IMPORTANT SAFETY INSTRUCTIONS
These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of the meanings or these warnings contact the Customer Care Department.
Prior to installation
- Check the appliance for transport damage. Under no circumstances should a damaged appliance be installed. In the event of damage please contact your retailer.
Installation
- This appliance is heavy. Care should be taken when moving it.
- It is dangerous to alter the specifications or attempt to modify this product in any way.
- Ensure that the appliance does not stand on the electrical supply cable. If the supply cable is damaged, it must be replaced by a cable available from your local Service Force Centre.
- Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
- Parts which heat up should not be exposed. Whenever possible, the back of the appliance should be close to a wall, but leaving the required distance for ventilation, as stated in the installation instructions.
- The appliance should be left for 2 hours after installation before it is turned on, in order to allow the refrigerant to settle.
Child Safety
- Do not allow children to tamper with the controls or play with the product.
- There is a risk of suffocation! Keep packaging material away from children!
During Use
- This appliance is designed for domestic use only, specifically for the storage of edible foodstuffs. It is not intended for commercial or industrial use.
- Containers with flammable gases or liquids can leak at low temperatures. Do not store any containers with flammable materials, such as spray cans, fire extinguisher refill cartridges etc. in the freezer.
- Frozen food should not be refrozen once it has thawed out.
-
Do not place carbonated or fizzy drinks in the freezer.
-
Ice lollies can cause 'frost/freezer burns' if consumed straight from the freezer.
- Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
- Bottles and cans must not be placed int the freezer they can burst when the contents freeze.
- Manufacturers' recommended storage times should be adhered to. Refer to relevant instructions.
Maintenance and Cleaning
- Before cleaning, always switch off the appliance and disconnect from the electrical supply.
- When unplugging always pull the plug from the mains socket, do not pull on the cable.
Servicing
- This product should be serviced by an authorised engineer and only genuine spare parts should be used.
- Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre.
At the end of the Appliance Life
- When disposing of your appliance use an authorised disposal site.
- Remove the plug and ensure that any locks or catches are removed, to prevent young children being trapped inside.
The Appliance and the Environment
This appliance does not contain gasses which could damage the ozone layer.
Avoid damaging the cooling unit.
The packaging used on this appliance marked with the symbol is recyclable.
Keep this instruction book for future reference and ensure it is passed on to any new owner.
CONTENTS
Instructions for the User
Guide to use the instruction book 2
Important Safety Information 3
Instructions for the User 5
General Information 5
Description of the Appliance, main parts 5
Indicator Lights 6
Fast Freeze Facility 6
Basket Storage 6
Freezer Tray 6
Using the Appliance 7
Before Use 7
To Start the Appliance 7
Thermostat Control 7
Freezing Fresh Food 7
Frozen Food Storage 8
Thawing 8
Making Ice Cubes 8
Hints and Tips
Food Storage 8
Energy Saving Advice 9
In the Event of a Power Failure 9
Maintenance and Cleaning
Internal cleaning 9
External cleaning 9
When the appliance is not in use 9
Defrosting 9
Something not working 10
Service and Spare Parts 11
Customer Care Department 11
Guarantee Conditions 12
Instructions for the Installer
Technical data 15
Installing the Appliance 15
Transportation, Unpacking 15
Location 15
Ventilation Requirements 16
Levelling 16
Door Reversal 16
Electrical Connection 17
INSTRUCTIONS FOR THE USER
General information
This appliance is designed for the freezing and storage of frozen food in a domestic home.
To ensure correct operation, the appliance should be located where the ambient temperature is between 16-32 °C.
Description of the Appliance, main parts
- Freezing tray (with 4 ice trays)
- Freezing compartment
- Storing compartments (wire baskets)
- Rating Plate
- Control Panel
a) Green Indicator Light
b) Red Indicator Light
c) Yellow Indicator Light
d) Fast Freeze Switch (continuous operation)
e) Thermostat control
- Defrost water outlet
- Adjustable feet
- Door gasket
- Thermostat
- Air grid
- Condenser
- Air circulation
- Compressor
Indicator Lights
The indicator Lights are situated in the control panel.
a.) Green Indicator Light
When the appliance is switched on at the mains the green indicator light will glow and continue to glow until the appliance is switched off at the mains.
b.) Red Indicator Light
A few hours after starting up this will go out to show that the correct temperature has been reached for the setting chosen and will stay out to indicate that everything is in order.
It will come on if the freezer temperature rises unduly for instance, after opening the freezer door or placing food inside the cabinet, but the light should go out again when the temperature returns to normal.
c.) Yellow Indicator Light - (Fast Freeze)
With the fast freeze on the Yellow Indicator Light will come on and stay on as a reminder.
d.) Fast Freeze Facility
To operate the Fast Freeze Facility slide the Switch to the right hand position.
e.) Thermostat Control
This is for setting and changing the temperature inside the appliance.
Basket Storage
Frozen food should be stored in the two lower baskets and the top compartment used for fast freezing.
Freezer Tray
The Freezer Tray is particularly suitable for open freezing, for example strawberries, raspberries etc.
a b c d e
Using the Appliance
Before Use
Remove all packaging and securing tapes. Wash inside the appliance with lukewarm water and bicarbonate of soda (5 ml to 0,5 litre of water). Do not use soap or detergent as the smell may linger. Dry thoroughly.
Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or products containing alcohol.
To Start the Appliance
- Allow the appliance to stand for 2 hrs after installation.
- Plug in the appliance and switch on at the mains supply.
- Slide the 'fast freeze' switch to the right (yellow indicator light will illuminate) and leave to run for 4 hours to allow the correct temperature to be reached before placing food inside.
- The red indicator light will also illuminate until the correct temperature is reached.
- Slide the 'fast freeze' switch back to the left.
Thermostat Control
The temperature within the freezer is controlled by the thermostat situated on the control panel.
$$ 0 = \text { Off } $$
Turning the thermostat clockwise makes the temperature progressively colder.
Freezing Fresh Food
It is important that fresh food placed in the freezer is frozen quickly and that the food already in the freezer is heated as little as possible.
if more than 3-4 kg of food is to be frozen:
- Slide the fast freeze switch (d) to the right 6-24 hours before placing the fresh food in the freezer, the yellow light will illuminate. The compressor will now run continuously, to ensure that the fresh food is frozen as quickly as possible.
- Place the food in the freezing compartment and leave the 'fast freeze' switch on for a further 24 hours.
If the 'fast freeze' switch is accidentally left on, the freezer will not be damaged, but energy will be wasted.
Frozen Food Storage
When first starting the freezer or if the freezer has been out of use for some time, we advise you to run your appliance for at least 4 hours with the 'fast freeze' switch on before storing frozen food.
Do not exceed the storage period indicated by the manufacturer.
Do not open the door frequently or leave it open longer than is necessary.
Important
Do not put carbonated liquids in the freezer.
Ice lollies, if consumed immediately after removal from the freezer can cause a low temperature skin burn.
Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
In the event of a power cut the food in the freezer will not be affected if the power cut is short and the freezer is full. Do not open the lid. Should the food begin to thaw it must be consumed quickly and must not be re-frozen. (See Hints and Tips)
Thawing
Deep frozen or frozen food, prior to being used, can be thawed in a fridge or at room temperature, depending on the time available. Small food items may even be cooked from frozen, in this case cooking will take longer.
Any frozen food which is allowed to thaw accidentally should either be eaten as soon as possible, or thrown away. Alternatively, if the food is uncooked and has not been completely defrosted it can be cooked and then refrozen.
Defrosted cooked food must never be refrozen.
To Make Ice Cubes
-
Fill the ice cube tray 3/4 full with cold water, place in the freezing compartment and leave to freeze.
-
To remove the cubes twist the tray or hold it under running water for a few seconds.
Never try to free an ice tray that is frozen to the freezer compartment by using pointed or sharp edged objects.
Hints & Tips
Food Storage
To obtain the best performance from your freezer:
- Do not store warm food or evaporating liquid.
- Avoid buying frozen food if you cannot store it straight away. The use of an insulated container is advisable. When you arrive home, place the frozen food in the freezer immediately.
- Do not push food together too much, try to allow air to circulate around each item.
- Do not store food uncovered.
- Ensure that food placed in the freezer is dated and labelled and used in date order to ensure that food is consumed at its best.
- Lean food keeps better and longer than fatty food, salt reduces the storage time.
- Wrap the food in polythene or aluminium freezing bags or foil so that they adhere to the food and provide an airtight seal.
- Packaging which is swollen or has traces of refrozen water droplets on the pack could indicate that the product has not been kept at a suitable temperature and that it may have lost its original quality. Partially thawed food must not be refrozen, it must be consumed within 24 hours. Never exceed the storage times indicated by the manufacturer.
Energy Saving Advice
- Do not install the appliance close to sources of heat, such as a boiler or radiator.
- Locate the appliance in a cool well ventilated room and make sure that the air openings of the appliance are not obstructed.
- Avoid unnecessary frosting in the cabinet by packing all foodstuffs into airtight packages before placing them in the freezer.
- Food which is to be frozen (when cool) should be placed in the fridge before being transferred to the freezer.
- Try to avoid keeping the door open for long periods or opening the door too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.
- Ensure there are no obstructions preventing the door from closing properly.
In the Event of a Power Failure
If there is a power failure during the storage of frozen foods, keep the door closed. If the temperature within your freezer should rise, do not refreeze the food without checking its condition. The following guidelines should assist you:
Ice Cream: Once thawed should be discarded.
Fruits & Vegetables: If soft should be cooked and used up.
Breads & Cakes: Can be refrozen without danger.
Shellfish: Should be refrigerated and used up quickly.
Cooked Dishes: i.e. casseroles should be refrigerated and used up.
Large Pieces of Meat: Can be refrozen providing there are still ice crystals remaining within them.
Small Joints: Should be cooked and can then be refrozen as cooked dishes.
Chicken: Should also be cooked and refrozen as a fresh dish.
Maintenance & Cleaning
Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply.
Internal Cleaning
Clean the inside and accessories with warm water and bicarbonate of soda (5 ml to 0.5 litre of water).
Rinse and dry thoroughly.
NEVER use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as these will damage the surface and leave a strong odour.
External Cleaning
Wash the outer cabinet with warm soapy water.
Once or twice a year dust the condenser (black grille) and the compressor at the back of the appliance with a brush or vacuum cleaner, as an accumulation of dust will affect the performance of the appliance and cause excessive electricity consumption.
When the Appliance is not in Use
When the appliance is not in use for long periods, disconnect from the electricity supply, empty all foods and clean the appliance, leaving the door open to prevent unpleasant smells.
Defrosting
The freezer compartment will become progressively covered with frost. This should be removed with the special plastic scraper provided whenever the thickness of frost exceeds 1/4".
During this operation it is not necessary to switch off the power supply or to remove the foodstuffs.
However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out and it is advisable to perform this operation when the appliance is empty.
To carry out complete defrosting:
- Disconnect the appliance from the electrical supply. If the plug is inaccessible turn the thermostat control knob to „0“.
- Remove any stored food, wrap in several layers of newspaper and store in a cool place.
- Leave the door open.
- Carefully draw the plastic drain spout out of the lower part of the appliance according to the direction of the arrow and place a tray of a suitable size in the position shown.
- To accelerate the defrosting process place a bowl of hot (not boiling) water inside the freezer and close the door.
- When defrosting is completed, dry the interior thoroughly, replace the drain spout and close the door.
- Turn the thermostat control knob back to a medium setting and leave to run for at least 4 hours with the 'fast freeze' switch on.
- Replace the previously removed food.
Important
A temperature rise of the frozen food packs during defrosting may shorten their safe storage life.
Never use sharp metal tools to scrape off frost from the evaporator as this could damage the appliance beyond repair.
Something Not Working
If the appliance is not working correctly, please carry out the following checks before contacting your local Tricity Bendix Service Force Centre.
| Problem | Possible Cause | Solution |
| No power to the appliance | No power at the socket.There is a power cut.The fuse has blown.Thermostat control is set at „0“. | Check there is power at the socket.Check there is not a power cut by checking the household lights.Check the fuse has not blown.Check the thermostat setting. |
| The temperature in the appliance is too high | The appliance is located in an unsuitable position.The thermostat control is set too low. | Check the ambient temperature is within the appliances operating limits of 16 °C to 32 °C.Check that the thermostat control knob is turned to the correct setting relative to ambient conditions. |
| The temperature in the appliance is too low | The thermostat control is set too high. | Set the thermostat control knob to a lower position. |
| Excessive frost and ice has built up | The door has been left open.Something is obstructing the door.The door gasket is dirty. | Check the door has not been left open.Check nothing is preventing the door from closing.Check the door gasket is intact and clean. |
| The appliance is noisy. | The appliance is not level. | Check if the appliance stands stable (all four feet should be on the floor). |
If after the above checks your appliance still does not operate correctly, contact your local Tricity Bendix Service Force Centre.
Please note that it will be necessary to provide proof of purchase for any in-guarantee service calls.
In-guarantee customers should ensure that the above checks have been made, as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.
Service and Spare Parts
In the event of your appliance requiring service, or if you wish to purchase spare parts please contact your local Tricity Bendix Service Force Centre by telephoning:
0870 5 929929
Your call be routed to the Service Force Centre covering your post code area.
For service in the Republic of Ireland contact Tricity Bendix
Long Mile Road
Dublin 12
Telephone: 01 4090752.
Before calling out an engineer, please ensure you have read the details under the heading „Something Not Working?“.
When you contact the Service Centre you will need to give the following details:
-
Your name, address and post code
-
Your telephone number
-
Clear and concise details of the fault
-
The model and serial number of the appliance (found on the rating plate)
-
The purchase date
Customer Care Department
For general enquiries concerning your Tricity Bendix appliance or for further information on Tricity Bendix products, you are invited to contact our Customer Care Department by letter or telephone as follows:
Customer Care Department
Tricity Bendix
55-77 High Street
Slough
Berkshire
SL1 1DZ
Tel: 08705 950950 calls to this number may be recorded for training purposes.
Guarantee Conditions
We Tricity Bendix undertake that if within 12 months of the date of the purchase this Tricity Bendix appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, the company will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
- The appliance has been correctly installed and used only on the electrical supply stated on the rating plate.
- The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's instructions.
- The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.
- All service work under this guarantee must be undertaken by a Tricity Bendix Service Force Centre.
- Any appliance or defective part replaced shall become the Company's property.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.
EXCLUSIONS
This Guarantee does not cover:
Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.
- Costs incurred for calls to put right an appliance improperly installed or calls to appliances outside the United Kingdom.
- Appliances found to be in use within a commercial environment, plus those which are the subject of rental agreements.
- Products of Tricity Bendix manufacture which are not marketed by Tricity Bendix.
The guarantee is in addition to your statutory and legal rights.
TRICITY BENDIX EUROPEAN GUARANTEE
If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:
- The guarantee starts from the date you first purchased your product.
- The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this brand or range of products.
- This guarantee relates to you and cannot be transferred to another user.
- Your new home is within the European Community (EC) or European Free Trade Area.
- The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household.
- The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care Centre, list below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.
France Senlis +33 (0) 3 44 62 29 99
Germany Nurnberg +49 (0) 911 323 2600
Italy Pordenone +39 (0) 1678 47053
Sweden Stockholm +46 (0) 8 738 79 50
UK Slough +44 (0) 1753 219898
To contact your local Tricity Bendix Service Centre telephone 08705 929 929
| CHANNEL ISLANDS | ORKNEY(M65) | Corsie Domestics7 King StreetKirkwallOrkney KW15 | NORTH EAST | ||
| GUERNSEY | Guernsey ElectricityPO Box 4Vale, GuernseyChannel Islands | GATESHEAD(M39) | Unit 356aDukesway CourtDukeswayTeam ValleyGateshead NE11 0BH | ||
| PERTH | Hydro ElectricalInveralmond HouseRuthervenfield RoadPerth PH1 3AQ | ||||
| JERSEY | Jersey Electricity CompanyPO Box 45Queens RoadSt HelierJerseyChannel Islands JE4 8NY | GRIMSBY(M42) | 15 Hainton AvenueGrimsbySouth HumbersideDN32 9AS | ||
| PERTH(OWN SALES) | Graham BeggUnit 4Airport Ind EstateWick KW1 4QS | ||||
| SCOTLAND | SHETLAND(OWN SALES) | Tait Electronic Systems LtdHolmsgarth RoadLerwickShetland ZE1 0PW | HULL(M41) | Unit 1Boulevard Industrial EstateHullHU3 4AY | |
| ABERDEEN(M05) | 54 Claremont StreetAberdeen AB10 6RA | LEEDS(M37) | 64-66 Cross Gates RoadLeedsLS15 7NN | ||
| AUCHTERMUCHY(M03) | 33a BurnsideAuchtermuchyFife KY14 7AJ | NEWTON AYCLIFFE(M45) | Unit 16Gurney WayAycliffe Industrial EstateNewton AycliffeDL5 6UJ | ||
| BLANTYRE(M07) | Unit 5Block 2Auchenraith Ind. EstateRosendale WayBlantyre G72 0NJ | SHEFFIELD(M38) | Pennine HouseRoman Ridge Ind.Roman Ridge RoadSheffield S9 1GB | ||
| DUMFRIES(M01) | 93 Irish StreetDumfriesScotland DG1 2 PQ | NORTHERN IRELAND | NORTH WEST | ||
| BELFAST(M27) | Owenmore HouseKilwee Business ParkUpper Dunmury LaneBelfastBT17 0HD | BIRKENHEAD(M11) | 1 Kelvin ParkDock RoadBirkenheadL41 1LT | ||
| DUNOON(M67) | Brair Hill7 Hill StreetDunoonArgyll PA23 7AL | CARLISLE(M10) | Unit 7James Street WorkshopsJames StreetCarlisleCumbria CA2 5AH | ||
| GLASGOW(M04) | 20 Cunningham RoadClyde EstateRutherglenGlasgow G73 1PP | WALES | |||
| CARDIFF(M28) | Guardian Industrial EstateClydesmuir RoadTremorfaCardiffCF2 2QS | ||||
| INVERNESS(M06) | Unit 3BSmithton Ind. EstateSmithtonInverness IV1 AJ | ISLE OF MAN(M64) | South Quay Ind. EstateDouglasIsle of ManIM1 5AT | ||
| ISLE OF ARRAN(OWN SALES) | Arran DomesticsUnit 4 The Douglas CentreBrodickIsle of Arran KA27 8AJ | LIVERPOOL(M15) | Unit 1Honeys Green PrecinctHoneys Green LaneLiverpoolL12 9JH | ||
| ISLE OF BARRA(OWN SALES) | J Zerfah244 BruernishIsle of BarraWestern Islands HS9 5QY | DYFED(M77) | Maes Y CoedHigh MeadLlanybydderCarmarthenshireSA40 9UL | ||
| ISLES OF BUTE | Walker EngineeringGlenmhorUpper Serpentine RoadRothesayIsle of Bute PA20 9EH | MANCHESTER(M09) | Unit BCentral Industrial EstateSt Marks StreetBoltonBL3 6NR | ||
| HAVERFORDWEST(M75) | Cromlech LodgeAmblestonHaverfordwestPembrokeshireSA62 5DS | ||||
| ISLE OF LEWIS | ND Macleod16 James StreetStornowayIsle of Lewis PA87 2QW | PRESTON(M13) | Unit 250Dawson PlaceWalton SummitBamber BridgePrestonLancashire PR5 8AL | ||
| KELSO(M08) | 2-8 Wood MarketKelsoBorders TD5 7AX | OSWESTRY(M17)Plas FfynnonWarehouseMiddleton RoadOswestrySY11 2PP | STOCKPORT(M16) | Unit 20 Haigh ParkHaigh AvenueStockportSK4 1QR | |
To contact your local Tricity Bendix Service Centre telephone 08705 929 929
| MIDLANDS | LONDON & EAST ANGLIA | SUNBURY(M63) | Unit 1aThe SummitHanworth RoadHanworth Ind. EstateSunbury on ThamesTW16 5D | ||
| BIRMINGHAM(M18) | 66 Birch Road EastWyrley Road Ind. EstateWittonBirminghamB6 6DB | BECKENHAM(M79) | 11a Gardener Ind. EstateKent House LaneBeckenhamKent BR3 1QZ | ||
| BOURNE(M44) | Manning Road Ind. EstatePinfold RoadBournePE10 9HT | CHELMSFORD(M47) | Hanbury RoadWidford Ind. EstateChelmsfordEssexCM12 3AE | SOUTH EASTASHFORD(M58) | Unit 2Bridge Road Business Est.Bridge RoadAshfordKent TN2 1BB |
| BRIDGNORTH(M72) | 68 St. Mary's StreetBridgnorthShropshireWV16 4DR | COLINDALE(M53) | Unit 14Capitol ParkCapitol WayColindaleLondon NW9 0EQ | ||
| GLOUCESTER(M23) | 101 Rycroft StreetGloucesterGL1 4NB | ELTHAM(M78) | 194 Court RoadMottinghamElthamLondon SE9 4EW | FLEET(M59) | Unit 1Redsfield Ind. EstateChurch CrookhamFleetHampshire GU13 0RD |
| HEREFORD(M31) | Unit 3Bank BuildingsCattle marketHarefordHE4 9HX | ENFIELD(M49) | 284 Alma RoadEnfieldLondonEN3 7BB | HAYWARDSHEATH(M55) | 21-25 Bridge RoadHaywards HeathSussex RH16 1UA |
| HIGHAM FERRERS(M51) | 30 High StreetHigham FerrersNorthantsNN10 8BB | GRAVESEND(M57) | Unit B4Imperial Business EstateGravesendKentDA11 0DL | SOUTH WESTBARNSTAPLE(M30) | Main RoadFremingtonBarnstapleNorth Devon EX31 2NT |
| ILKESTON(M43) | Unit 2Furnace RoadIlkeston DE7 5EP | HARPENDEN(M46) | Unit 4Riverside EstateColdharbour LaneHarpendenAL5 4UN | BOURNEMOUTH(M26) | 63-65 Curzon RoadBournemouthDorsetBH1 4PW |
| LEICESTER(M22) | Unit 7Oaks Ind. EstateCoventry RoadNarboroughLeicestershireLE0 5GF | LETCHWORTH(M50) | 16-17 Woodside Ind. EstateWorks RoadLetchworthHertsSG6 1LA | BRIDGEWATER(M35) | 6 Hamp Ind. EstateBridgewaterSomerset TA6 3NT |
| LINCOLN(M40) | Unit 8Stonefield ParkClifton StreetLincolnLN5 8AA | LONDON(M76) | 2/4 Royal LaneYiewsleyWest DraytonMiddlesexUB7 8DL | BRISTOL(M25) | 11 Eldon WayEldonwall TradingBristolAvon BS4 3QQ |
| NEWCASTLEUNDER LYME(M12) | 18-21 Croft RoadBrampton Ind. EstateNewcastle under LymeStaffordshireST5 0TW | MAIDENHEAD(M60) | Reform RoadMaidenheadBerkshireSL6 8BY | EMSWORTH(M33) | 266 Main RoadSouthbourneEmsworthPO10 8JL |
| REDDITCH(M20) | 13 Thornhill RoadNorth Moons MoatRedditchWorcestershireB98 9ND | MOLESEY(M61) | 10 Island Farm AvenueWest MoleseySurreyKT8 2UZ | ISLE OF WIGHT(M34) | Unit 8Enterprise CourtRyde Business ParkRydeIsle of Wight PO33 1DB |
| TAMWORTH(M19) | Unit 3Sterling ParkClaymoreTamworthB77 5DO | NEWBURY(M24) | 9 Pipers CourtBerkshire DriveThatchamBerkshireRG19 4ER | NEWTON ABBOT(M29) | Unit 2Zealley Ind. EstateKingsteigntonNewton AbbotS. DevonTQ12 3TD |
| WORCESTER(M73) | Units 1 & 2Northbrook CloseGregorys Mill Ind. EstateWorcesterWR3 8BP | IPSWICH(M48) | Unit 6CELton Park Business CentreHadleigh RoadIpswichIP2 0DD | REDRUTH(M36) | Unit 7DPool Ind. EstateWilson WayRedruthCornwall TR15 3QW |
| NORWICH(M52) | 2b Trafalgar StreetNorwichNR1 3HN | ||||
Instructions for the Installer
Technical data
| Model | TB 44 UF |
| Gross capacity (l) | 117 |
| Net capacity (l) | 100 |
| Width (mm) | 550 |
| Height (mm) | 850 |
| Depth (mm) | 600 |
| Energy consumption (kWh/day) | 0.90 |
| (kWh/year) | 329 |
| Energy class, according to EU Standards | C |
| Freezing capacity (kg/24h) | 16 |
| Rising time (h) | 17 |
| Rated power (W) | 120 |
| Weight (kg) | 39 |
Installing the appliance
Transportation, unpacking
The appliance and the interior fitting are protected for transport.
- Remove all packaging and any adhesive tape.
- Any remnants of adhesive can be removed using white spirit.
- After transportation the appliance must not be switched on for 2 hours. This is to allow the refrigerant to settle.
Cleaning
Clean the accessories and the inside of the appliance with warm water and bicarbonate of soda (5 ml to 0.5 litres of water). Rinse and dry thoroughly.
Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or cleaning products containing bleach or alcohol.
Location
The appliance should be positioned in a well ventilated, dry room.
Energy use is affected by the ambient temperature.
The appliance should therefore:
- not be installed next to radiators, cookers or other sources of heat
- only be installed at a location where the ambient temperature corresponds to the climate classification, for which the appliance is designed.
The climate classification can be found on the serial plate.
The following table shows which ambient temperature is correct for each climate classification:
| Climate Classification | Ambient Temperature |
| SN +10 to +32 °C | |
| N +16 to +32 °C | |
| ST +18 to +38 °C | |
Ventilation Requirements
The appliance must have adequate ventilation to ensure correct operation.

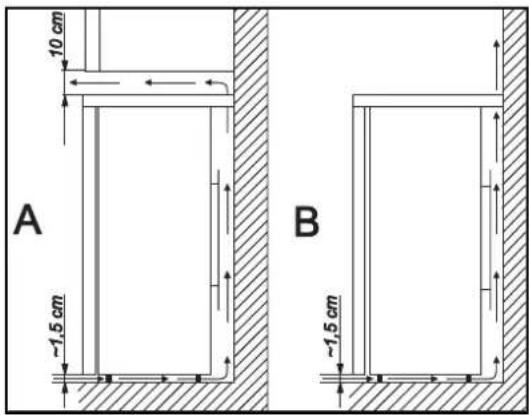

Diagram shows the ventilation requirements when installed:
A* Under a worktop, or cupboard.
* The clearance space of 10 cm above the appliance may be reduced to 5 cm providing a clearance space 2.5 cm is left on either side of the appliance.
B When freestanding
Levelling
The appliance must be level. Level the appliance by adjusting the two adjustable feet (1) at the front of the appliance.
Door Reversal

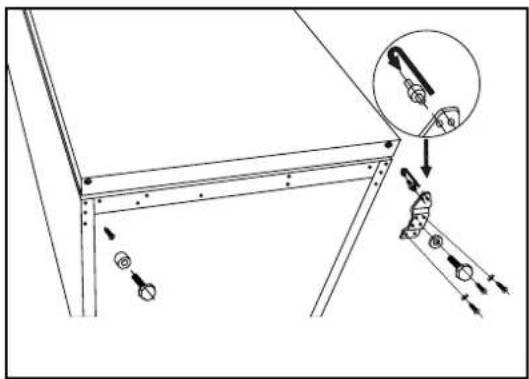

If required the opening direction of the door can be changed as follows:
- Disconnect the appliance from the electricity supply.
- Tilt the appliance backwards, resting the top edge of the appliance on a stool or something similar.
- Unscrew the adjustable feet situated on both sides at the front (2 pieces). Remove the lower door hinge plate by unscrewing the 3 retaining screws.
- Remove the hinge pin from the bottom of the door.
- Slot the hinge pin into the hole in the hinge plate.
• Take the door off.
• Fit the door in place on the hinge pin.
- Refit the bottom hinge plate assembly on the opposite side, taking care that the edge of the door is parallel with the side of the cabinet.
- Slot the hinge pin into the hole in the hinge plate and relocate the hinge assembly to the opposite location and refit using the retaining screws.
Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
This appliance must be earthed.
The manufacturer declines any liability should these safety measures not be observed.
Electrical Requirements
Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance rating plate.
The appliance is supplied with a 13 amp plug fitted. In the event of having to change the fuse in the plug supplied, a 13 amp ASTA approved (BS 1362) fuse must be used. Should the plug need to be replaced for any reason. The wires in the mains lead are coloured in accordance with the following code:
Green and Yellow: Earth
Blue: Neutral
Brown: Live
The wire coloured green and yellow must be connected to the terminal marked with the letter „E“ or by the earth symbol or coloured green and yellow.
The wire coloured blue must be connected to the terminal „N“ or coloured black.
The wire coloured brown must be connected to the terminal marked „L“ or coloured red.
Upon completion there must be no cut, or stray strands of wire present and the cord clamp must be secure over the outer sheath.
CE This appliance complies with the following E.E.C. Directives:
- 73/23 EEC of 19.02.73 (Low Voltage Directive) and subsequent modifications,
- 89/336 EEC of 03.05.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. 14 billion USD in more than 150 countries around the world.
From the Electrolux Group. The world's No.1 choice.
- IMPORTANT SAFETY INSTRUCTIONS
- Prior to installation
- Installation
- Child Safety
- During Use
- Maintenance and Cleaning
- Servicing
- At the end of the Appliance Life
- The Appliance and the Environment
- CONTENTS
- Instructions for the User
- Instructions for the Installer
- General information
- Description of the Appliance, main parts
- Indicator Lights
- a.) Green Indicator Light
- b.) Red Indicator Light
- c.) Yellow Indicator Light - (Fast Freeze)
- d.) Fast Freeze Facility
- e.) Thermostat Control
- Basket Storage
- Freezer Tray
- Using the Appliance
- Before Use
- To Start the Appliance
- Thermostat Control
- Freezing Fresh Food
- Frozen Food Storage
- Important
- Thawing
- To Make Ice Cubes
- Hints & Tips
- Food Storage
- Energy Saving Advice
- In the Event of a Power Failure
- Maintenance & Cleaning
- Internal Cleaning
- External Cleaning
- When the Appliance is not in Use
- Defrosting
- To carry out complete defrosting:
- Something Not Working
- Service and Spare Parts
- 5 929929
- Customer Care Department
- Guarantee Conditions
- EXCLUSIONS
- This Guarantee does not cover:
- TRICITY BENDIX EUROPEAN GUARANTEE
- Installing the appliance
- Transportation, unpacking
- Cleaning
- Location
- Ventilation Requirements
- Levelling
- Door Reversal
- Electrical Connection
- Electrical Requirements
- From the Electrolux Group. The world's No.1 choice.
Brand : Tricity Bendix
Model : TB44UF
Category : Freezer
