Product Type	Smartphone
Brand	LG
Model	U8100
Dimensions	98 x 48 x 16 mm
Weight	95 g
Battery	Li-Ion 820 mAh
Display	2.0 inches, 176x220 pixels
Camera	1.3 MP
Internal Memory	64 MB
Expandable Memory	microSD slot (up to 2 GB)
Connectivity	GSM, 3G, Bluetooth 2.0
Operating System	Proprietary LG OS
Main Functions	Calls, SMS, Camera, Music player, Internet browser
Power Input	5 V, 0.5 A via charger
Care & Cleaning	Wipe with a dry, soft cloth; avoid liquids
Safety Precautions	Do not expose to water or extreme temperatures
Spare Parts	Battery, charger, earphones (available separately)
Repairability	Battery user-replaceable; other parts require service center
General Information	User manual available in PDF format

Frequently Asked Questions - U8100 LG

How do I turn on the LG U8100?

Press and hold the Power button on the top of the device until the screen lights up.

How can I change the language on my U8100?

Go to Settings > Language and select your desired language from the list.

How do I take a screenshot?

This device does not support screenshots natively. You may use an external camera.

How to insert a SIM card?

Remove the back cover and battery, then slide the SIM card into the slot with the gold contacts facing down.

How to reset the phone to factory settings?

Dial 2767*3855# (master reset) or go to Settings > Reset. Warning: all data will be erased.

What type of charger does the U8100 use?

It uses a proprietary LG charger with a 5V 0.5A output. The connector is a small round pin.

How to transfer music to the phone?

Connect the phone via USB cable or insert a microSD card with music files. Then use the Music player to play.

How to unlock the phone if I forgot the password?

Perform a factory reset by dialing 2767*3855#. This will erase all data, including the password.

How to update the software?

LG U8100 does not support over-the-air updates. Visit an LG service center for manual updates.

What is the maximum microSD card size supported?

The LG U8100 supports microSD cards up to 2 GB.

USER MANUAL U8100 LG

Some of contents in this manual may differ from your phone depending on the software of the phone or your service provider.

Two silver flip phone models with visible LCD display and external wiring, displayed against a blurred background (no text or symbols on devices)

User Guide

0018Ω

U8100

Guida utente

Two silver flip-flops with visible phone numbers and external antennas, displayed against a blurred background (no readable text or symbols)

Illustration of a mobile phone with a cable being inserted into it (no text or symbols visible)

Attenzione

Illustration of a mobile phone with cable and plug, showing internal components (no text or symbols)

! Nota

Cross-sectional diagram of a mechanical device with internal components and no visible text or symbols

! Nota

Cross-sectional diagram of a mechanical device with internal components and labeled 'USIM' (no readable text or symbols beyond label)

! Nota

Front view of a white rectangular device with a logo and mounting holes (no readable text or symbols)

Copribatteria

Blank white rectangular object with a small protrusion at the top (no text or symbols)

Batteria

Top-down technical diagram of a car's front wheel and dashboard (no text or symbols)

▶ Password: Password

Illustration of a handheld electronic device with a coiled cable (no text or symbols visible)

Europa

Auricolare

Illustration of a handheld electronic device with two earbuds and a cable (no text or symbols visible)

Cavo USB

Illustration of a USB cable with connector port (no text or symbols)

Accessori

Line drawing of a rope tied with a clip (no text or symbols)

Batteria

Blank white rectangular object with a gray base, no visible text or symbols

CD

! Nota

IrDA (Infrared Data Association)

Declaration of Conformity

LQ Electronics

Name

LG Electronics Inc

Address

LG Electronics Inc. LG Kang-nam Tower 679, Yoksam-dong, Kangnam-gu, Seoul, Korea

Product Name

E-GSM 900 / GSM 1800 / W-CDMA Terminal Equipment

Model Name

U8100

Trade Name

LG

R&TTE Directive 1999/5/EC

EN 301 489-1/7/24:2002

EN 301 908 1/2:2002

EN 60950:2001

EN 50360/361:2001

EN 301 511

The conformity to above standards is verified by 7Layers and Phoenix with Certificate No.(03-510330)

I hereby declare under our sole responsibility that the product mentioned above to which this declaration relates complies with the above mentioned standards and Directives

LG Electronics Inc. Amsterdam Office

Veluwezoom 15, 1327 AE Almere, The Netherlands

Tel: +31 - 36- 547 - 8940, e-mail: seekim @ lge.com

Name

Issued Date

Jin Seog, Kim / Director

1. Oct. 2003

Signature of representative

U8100

User Guide

Table of Contents

Emergency Services and Safety Precautions 8

Getting Started.... 12

Using the Battery, Charger and USIM Card 12

Installing the Battery 12

Removing the Battery 13

Charging the Battery 14

Disconnecting the Charger 15

Battery Information and Care...... 16

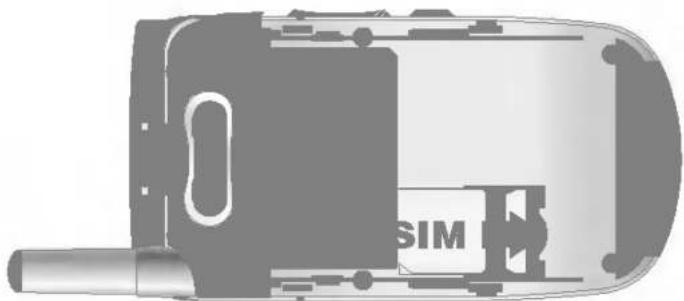

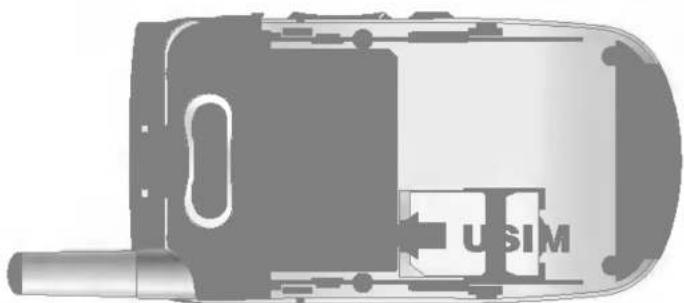

Installing the USIM card 16

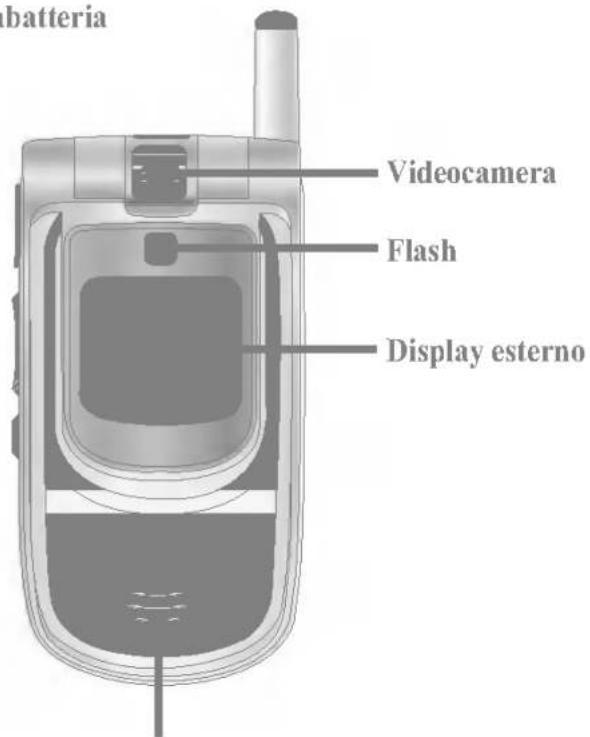

Getting to know your LG U8100 .. 18

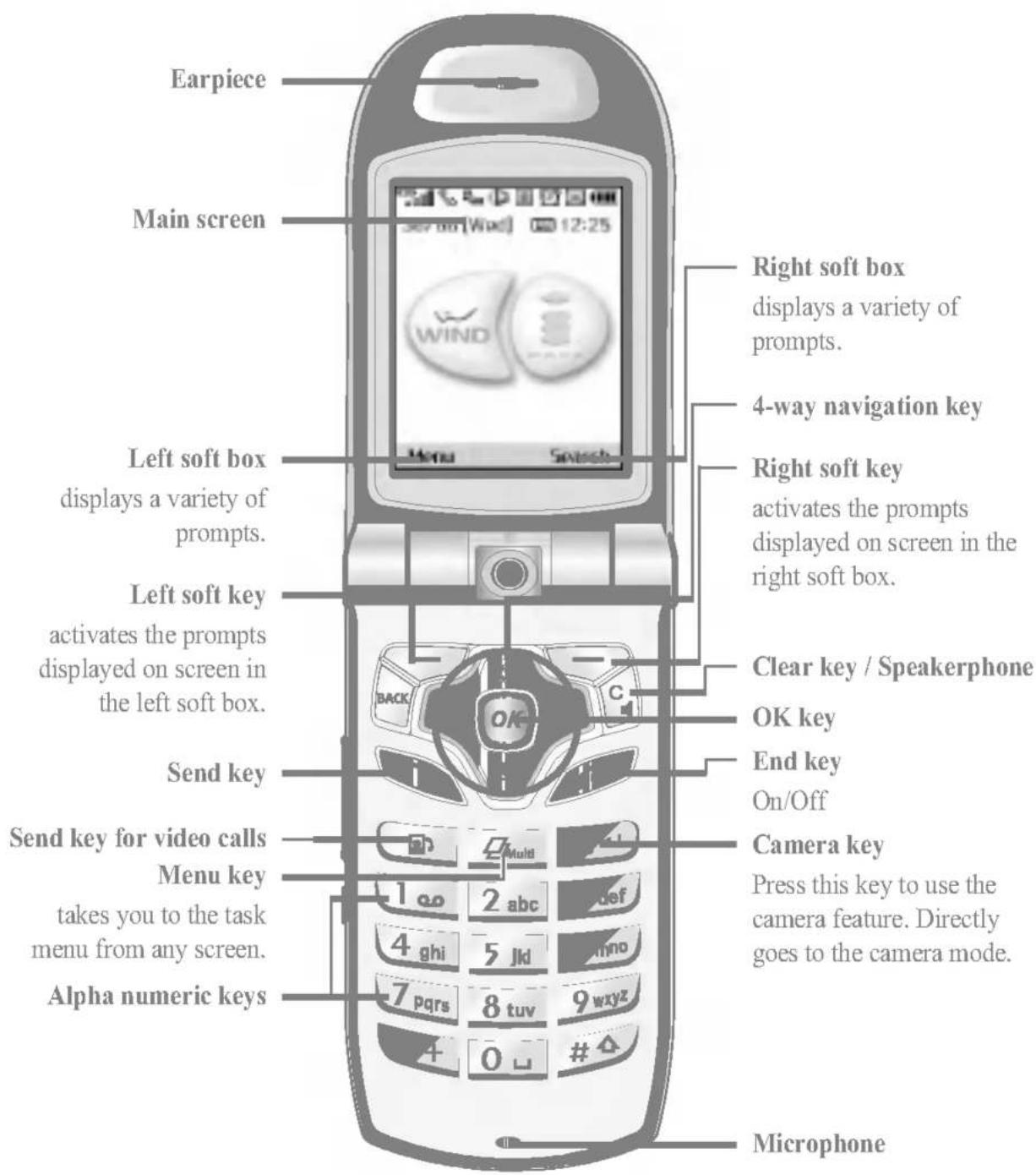

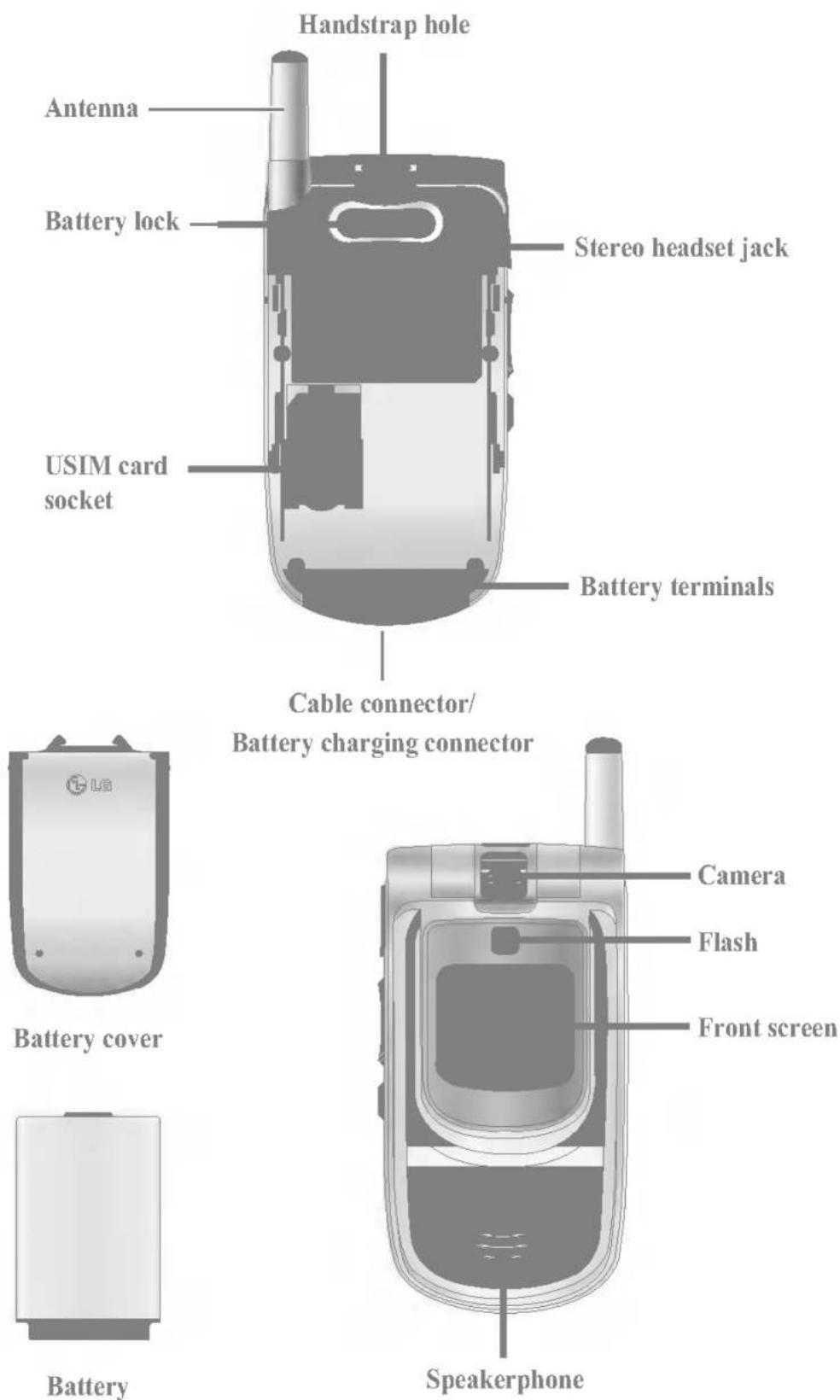

Familiarise yourself with its features.... 18

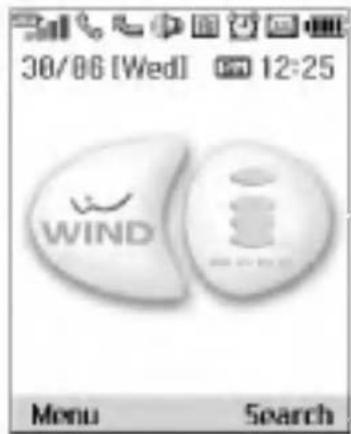

Your handset's home screen...... 20

Display Information 21

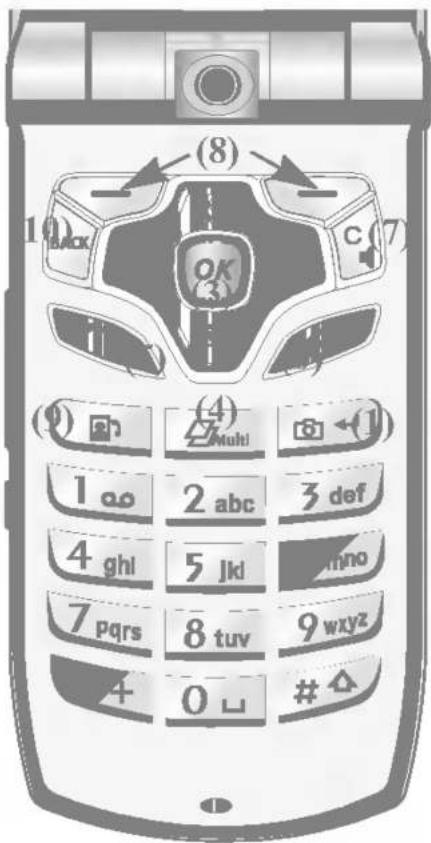

Your handset's keys and navigation 22

Function of keys when phone is idle 24

General Functions.... 26

Turning your handset on 26

Turning your handset off...... 26

Access Codes 26

PIN code (4 to 8 digits)....26

PIN2 code (4 to 8 digits).... 26

PUK code (4 to 8 digits)....27

PUK2 code (4 to 8 digits).... 27

Security code (4 to 8 digits)....27

Barring Password 27

Making and Answering calls ...... 28

Making and Answering a video call.... 28

Making a voice/video call.... 28

Making a voice/ video call from Contacts ....29

Making International Calls 29

Adjusting the Volume.... 29

Answering a Call 29

Signal Strength 30

Entering Text 30

Changing the Text Input Mode...... 30

Using the T9 Mode.... 31

Using the ABC Mode 32

Using the 123 (Number) Mode...... 32

Using the Symbol Mode.... 32

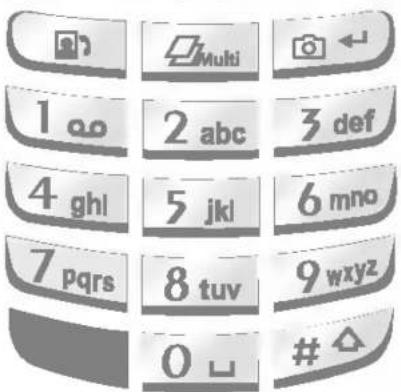

Character chart.... 33

Menu tree.... 34

Messages 38

New message.... 38

Inbox 42

Outbox 43

Drafts 43

Mailbox 44

Templates 45

Emoticons 45

Settings...... 45

Calling....50

Video calls....50

My picture size 50

My picture position.... 50

Hide my picture 50

Block my picture 50

Call history 50

Missed calls 51

Received calls 51

Dialled calls 51

All calls....51

Call divert 52

Voice calls 52

Video calls 52

All fax calls.... 52

Call duration 53

Last call....53

Received calls 53

Dialled calls 53

All calls....53

Call costs.... 53

Fixed dial numbers 53

Call barring 54

Voice calls 54

Video calls 54

Deactivate all 54

Closed user group(CUG)...... 55

Settings.... 55

Multimedia 58

Camera 58

Video camera....58

Image viewer 59

Audio player....60

Video player 61

VOD/AOD 63

Browser 66

Home 66

Bookmarks 67

Saved pages 67

Settings.... 67

Go to URL 68

Security certificates 68

Organiser 70

Contacts 70

Calendar 73

To do 75

Memo 76

Secret memo 77

Profiles 80

Tools 84

Quick menu 84

Alarm clock 84

Calculator 85

World time.... 85

Unit Converter 85

Timers 88

Voice recorder 89

Server sync 89

Settings....92

Handset 92

Time....92

Date....92

Auto update date/time....92

Daylight saving....93

Handset information 93

Screen....93

Backlight....93

Contrast....94

Colour scheme 94

Dialling font....94

Clock display 94

Menu style 94

Screen theme....95

Front screen colour 95

Greeting message....95

Network 96

Network selection.... 96

Preferred list 96

Access points 96

Security 97

PIN code request.... 97

Change codes....97

Handset lock 98

Connectivity 98

Memory status....98

Common memory 98

Reserved memory 99

USIM memory....99

Language 99

Reset settings....99

Applications.... 102

My applications.... 102

Connect....102

Settings.... 103

Troubleshooting 106

Accessories....108

Glossary 110

mergency Services and Safety Precautions

• Do not allow battery to come into direct contact with an electric outlet or car cigarette lighter socket
• Do not pierce battery with sharp objects
• Do not drop or subject the phone to physical shock
• When the battery has reached the end of its life, dispose of it in accordance with environmental regulations. Do not dispose of your battery in household rubbish.
• Do not immerse in water
• Do not disassemble or modify the battery
• Stop using the battery if abnormal heat, odour, discolouration, deformation, or abnormal conditions are detected during use, charge, or storage
• Do not use damaged or deformed batteries. In the unlikely event of a battery leak, take care to keep the battery discharge away from your eyes or skin.
• If the leakage does come into contact with the eyes or skin, please wash thoroughly in clean water and consult with a doctor
• The earpiece may become warm during normal use. The handset itself may become warm while the battery is being charged
• Use a damp or anti-static cloth to clean the handset. Do not use a dry cloth or electrostatically charged cloth. Do not use chemical or abrasive cleaners as these could damage the phone
• Retain the cardboard packing supplied with this handset. It should be used if the phone has to be returned for service. This packaging can be recycled when no longer required
• Remember to make backup copies of all important data on your handset

Aircraft safety

In accordance with CAA regulations, you must switch off your phone on aircraft. Mobile phone signals can interfere with aircraft equipment. Follow the instructions given by airline staff at all times

Hospital safety

Switch off your phone in areas where the use of handsets is prohibited. Follow the instructions given by the respective medical facility regarding the use of handsets on their premises

General safety

• Observe ‘Turn off 2-way radio’ signs, such as those near petrol stations, chemicals or explosives, and turn off your handset
• Do not allow children to play with the handset, charger or batteries
• Do not use the handset where blasting is in progress
• The operation of some medical electronic devices, such as hearing aids and pacemakers, may be affected if a handset is used next to them. Observe any warning signs and the manufacturer's recommendations

Road safety

• You MUST exercise the proper control of your vehicle at all times. Give your full attention to driving
• Observe all laws in respect to the use of mobile phones when driving
• Pull off the road and park before making or answering a call where it is safe to do so. UK law prohibits the use of hand held mobile phones when driving
• You MUST NOT stop on the hard shoulder of a motorway to answer or make a call, except in an emergency
• Switch off your handset at refueling points and petrol stations, even if you are not refueling your own car
• Do not store or carry flammable or explosive materials near your handset
  • Electronic vehicle systems, such as anti-lock brakes, speed control and fuel injection systems are not normally affected by radio transmissions
• The manufacturers of such equipment can advise if it is adequately shielded from radio transmissions. Consult your dealer and do not switch on the handset until it has been checked by qualified installers

Vehicles equipped with an air bag

An air bag inflates with great force. Do not place objects, including either installed or portable wireless equipment, in the area over the air bag or in the air bag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag inflates, serious injury could result

Third party equipment

The use of third party equipment, cables or accessories, not made or authorized by LG, may invalidate the warranty of your handset and also adversely affect the handset's safety or operation

Service

The handset, batteries and charger contain no user-serviceable parts. LG recommend that your LG U8100 handset is serviced or repaired by an LG authorized service centre

Efficient use

The handset has an antenna. For optimum performance with minimum power consumption, please do not cover the antenna area with your hand. Covering the antenna affects call quality and may cause the handset to operate at a higher power level than required. This decreases talk and standby time.

Radio frequency energy

Your handset is a low-power radio transmitter and receiver. When it is turned on, it receives and transmits radio frequency (RF) energy (radio waves). The system that handles the call (the network) controls the power level at which the handset transmits.

• Further detailed information is given in this manual.

Exposure to radio frequency energy

Radio wave exposure and Specific Absorption Rate (SAR) information

• This handset model U8100 has been designed to comply with safety, requirements for exposure to radio waves. This requirement is based on scientific guidelines that include safety margins designed to assure the safety of all persons, regardless of age and health
• The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate, or SAR. Tests for SAR are conducted using a standardized method with the phone transmitting at its highest certified power level in all used frequency bands
• While there may be differences between the SAR levels of various LG phone models, they are all designed to meet the relevant guidelines for exposure to radio waves
  • The SAR limit recommended by the International Commission on Non-Ionizing Radiation Protection (ICNIRP), is 2W/kg averaged over ten (10) gramme of tissue
• The highest SAR value for this model phone tested by DASY3 for use at the ear is 1.1100 W/kg (10g)
• The SAR limit recommended by the Institute of Electrical and Electronics Engineers (IEEE), which is 1.6 W/kg averaged over one (1) gramme of tissue (for example USA, Canada, Australia and Taiwan).

etting Started

Using the Battery, Charger and USIM Card

Installing the Battery

To install the battery, insert the bottom of the battery into the opening on the back of the phone. Then push the battery down until the latch clicks and then install battery cover.

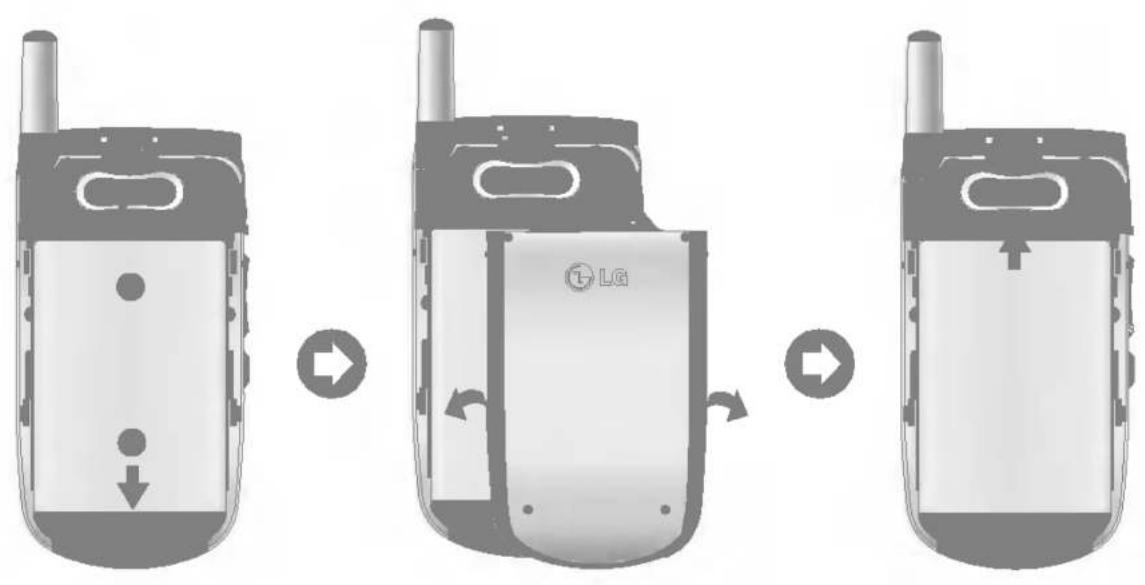

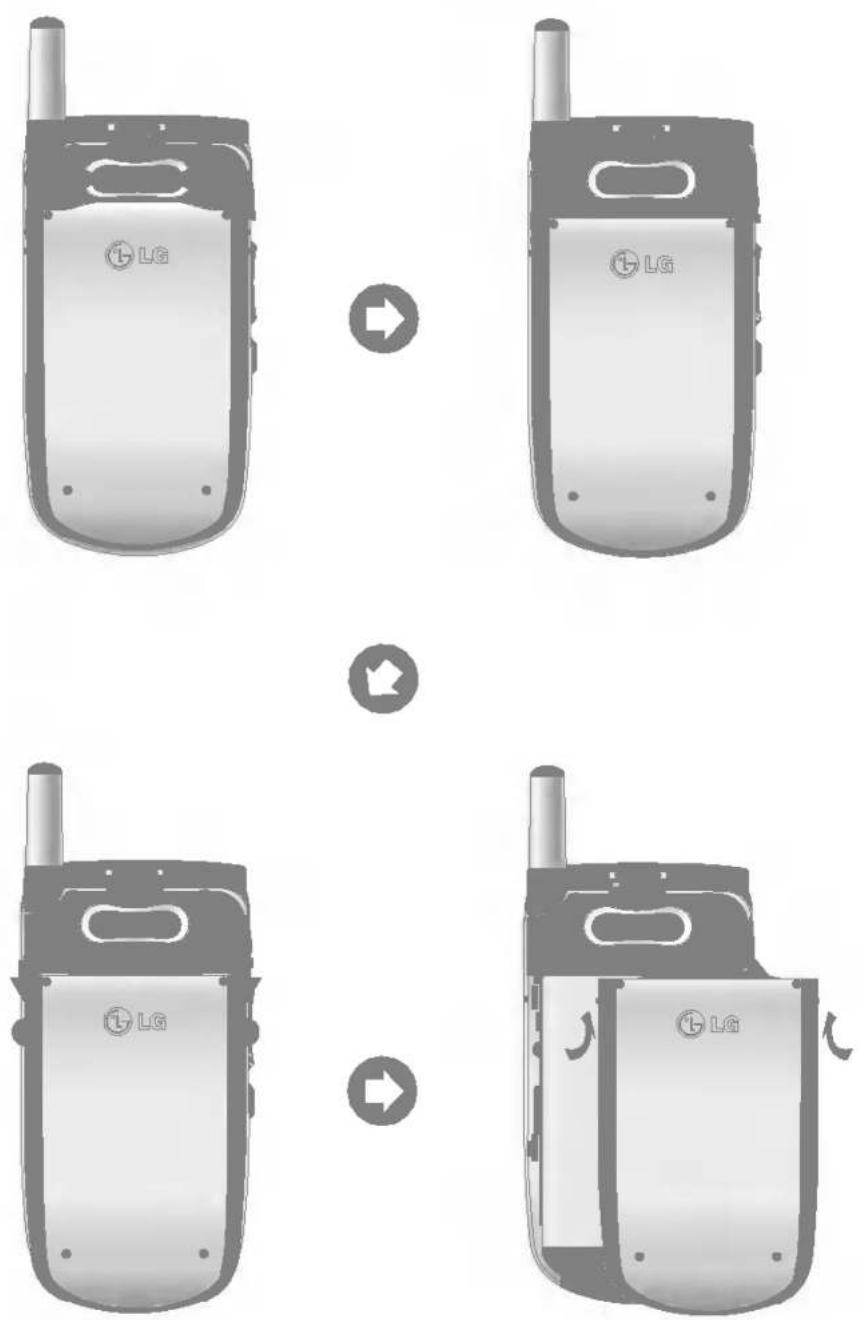

Removing the Battery

Turn the power off. (If power is left on, there is a chance you could lose the stored telephone numbers and messages.) Press the latches ① and open the battery cover ②. Then remove the battery.

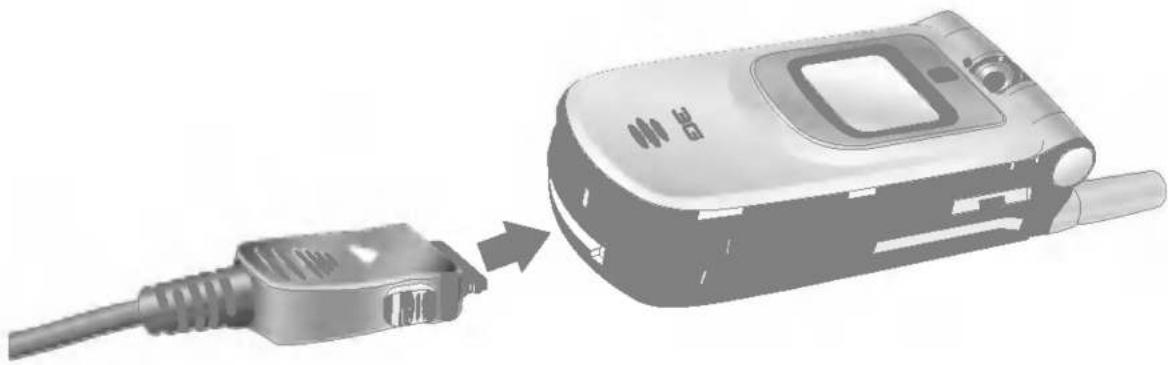

Charging the Battery

To use the charger provided with your phone:

1. With the battery in position on the phone, connect the lead from the charger to the bottom of the phone. Check that the arrow on the lead connector is facing towards the front of the phone.
2. Connect the charger to a standard AC wall outlet. Only use the charger that comes included with the package.

Illustration of a mobile phone with a cable and a separate plug, showing the device's internal structure (no text or symbols)

! Warning

Do not force the connector as this may damage the phone and/or the charger.

If the backlight of sub-display is red when you connect charger:

The battery is fully discharged and it will take sometime (under 30 minutes) to charge the battery to minimum operating level. When the red light is on, the handset can not be powered on. The red light will be turned off if the battery is charged to minimum operating level.

! Warning

You can make video call with charger connected.

But if the battery capacity is under 10% the battery can be discharged when you use video call even though the charger is connected.

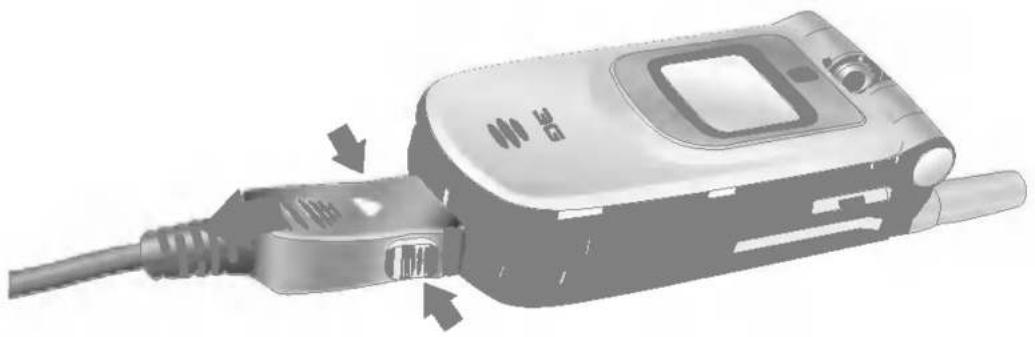

Disconnecting the Charger

When charging is finished, disconnect the charger from the power outlet and from the phone by pressing on the gray tabs on both sides of the connector while pulling the connector out.

Illustration of a mobile phone with cable and plug, showing internal components and directional arrows (no text or symbols)

Notice

The battery delivered with your phone has to be fully charged before using it. Do not remove the battery or the USIM card while charging.

If your phone is being charged, the display will show the charging status.

Sub-display

Charging > 75%

Sub-display

Battery full

If the battery fails to charge completely:

After turning the phone on and off, please attempt to recharge the battery.

After detaching and reattaching the battery, please attempt to recharge the battery.

Battery Information and Care

1. Never use an unapproved battery since this could damage the phone and / or battery and could cause the battery to explode.
2. The battery does not need to be fully discharged before recharging.
3. Use only LG approved chargers specific to your phone model since they are designed to maximize battery life.
4. Do not disassemble or short-circuit the battery.
5. Keep the battery's metal contacts clean.
6. Replace the battery when it no longer provides acceptable performance. The battery can be recharged several hundred times before replacement.
7. Recharge the battery after long periods of non-use to maximize battery life.
8. Do not expose the battery charger to direct sunlight or use it in areas of high humidity such as a bathroom.
9. Battery life will decrease if exposed to extremely hot or cold temperatures.
10. Battery life will vary due to usage patterns and environmental conditions.
11. The use of extended backlighting, Browser, and data connectivity kits affect battery life and talk/standby time.

Installing the USIM card

Your USIM card contains your phone number, service details and contacts and must be inserted into your handset.

If your USIM card is removed then your handset becomes unusable until a valid one is inserted. Always disconnect the charger and other accessories from your handset before inserting and removing your USIM card.

Your USIM card may only be used in handsets which are enabled for the customer services. Any attempt to use the USIM card in other handsets may result in serious damage to the handset and may prevent you from being able to use it, including the making of emergency calls.

Cross-sectional diagram of a mechanical device with no visible text or symbols

Notice

When you need to remove the USIM card, slide it towards the top of the phone and take it out of the holder.

Cross-sectional diagram of a mechanical device with internal components and labeled 'USIM' (no readable text or symbols beyond label)

Notice

Before installing always make sure that the phone is switched off and remove the battery. The metal contact of the USIM card can be easily damaged by scratches. Pay special attention to the USIM card while handling and installing. Follow the instructions supplied with the USIM card.

etting to know your LG U8100

Familiarise yourself with its features

Your handset's home screen

Your handset's home screen is divided into three basic displays: the icon indicator bar; a central window that includes the home screen; and the prompt bar. Each of these is described below:

The icon indicator bar

The icon indicator bar shows what operations are taking place and reminds you of battery and signal strength. This appears through all activities. The table below gives a brief explanation of the icons and their function.

The home screen

The central window of your start screen displays an image of your choice, when in use, this screen will display all of your functions and services.

The prompt bar

The prompt bar displays in the soft boxes. These are activated by pressing the appropriate soft key under each one.

Display Information

The table below describes various display indicators or icons that appear on the phone's display screen.

On-Screen Icons

Icon	Description
	Battery level - indicates the amount of power in your battery. The greater the amount of solid colour the greater the power.
	Call diverting - indicates call divert option has been selected.
	Call reject - indicates call reject option has been selected.
	Voice message - indicates when you have a new voice message.
	Text - indicates when you have a new new text message.
	Multimedia - indicates when you have a new Multimedia message.
	3G network - indicates whether you are in the UMTS service area.
	When you leave the GPRS service area, your handset roams onto the voice & picture network or when abroad onto another network (2G/3G)
	2G network - indicates the strength of your handset's connection with a 2G network.
[X4K]	No-service area - indicates you are in the no-service area.
	Roaming service - indicates that you are using a roaming service.
	You have received a push message.
	Alarm - indicates an Alarm.
	Normal - indicates the General profile is activated
[X236]	Silent - indicates the silent menu in Profile.
[XXX4]	Vibrate only - indicates whether the vibrate function is on or off.
[2XX6]	Headset - indicates the headset menu in Profile.
	Outdoor - Indicates the loud profile is activated.

Your handset's keys and navigation

(1) The Camera key

(2) The navigation key

Use for quick access to phone functions.

(3) The OK key

The button in the centre of the Navigation key allows you to select objects on the screen. Once you have scrolled to your desired choice use the OK key to select it. This function can be used in the majority of screens.

(4) The Menu key

This key takes you to the main menu from any screen.

(5) The Send key

This key is used to make and answer voice calls.

(6) The End key (On/Off)

This key is used to end calls and close down applications.

(7) The Clear key

This key has two functions. It will take you back to your previous screen and when in a text entry screen, it acts as a delete key.

(8) The soft keys

The left and right soft keys activate the prompts that appear in the soft boxes directly above them. These prompts change according to the screen content.

(9) The Video call key

To make and answer a video call.

(10) The Back key

This key takes you back to the previous screen.

Function of keys when phone is idle

Side of handset Keys

Cross-sectional diagram of a mechanical device with internal components (no text or labels)

Volume keys (Key tone)

Time and Date switch in the Sub-display Down: Read message

Voice recorder key

Infrared port

activates the infrared features to communicate with an IrDA-compliant device and to send or receive data.

Navigation key

Up

: Browser menu

Down

: Quick menu

Right

:(short press) Messages menu

(long press) New message

Left

: (short press) Profiles popup window

(long press) Profile vibrate mode

Call history

BACK : Back to previous screen.

C: In a text entry screen, it acts as a delete key.

General Functions

Turning your handset on

Ensure that your USIM card is in your handset and the battery is charged.

Press and hold the key until power is on.

Enter the USIM PIN code that was supplied with your USIM card if PIN code setting is on.

After a few seconds you will be registered on the network.

Turning your handset off

Press and hold the ⚡ key until power is off.

There may be some delay while the handset powers down.

Do not re-power the handset during this time.

Access Codes

You can use the access codes described in this section to avoid unauthorized use of your phone. The access codes (except PUK and PUK2 codes) can be changed by using the Change codes feature [Menu 9.6.2].

PIN code (4 to 8 digits)

The PIN (Personal Identification Number) code protects your USIM card against unauthorized use. The PIN code is usually supplied with the USIM card. When the PIN Code Request is set to Enable, your phone will request the PIN code every time it is switched on. When the PIN Code Request is set to Disable, your phone connects to the network directly without the PIN code.

PIN2 code (4 to 8 digits)

The PIN2 code, supplied with some USIM cards, is required to access functions such as Fixed Dial Number. These functions are only available if supported by your USIM card.

PUK code (4 to 8 digits)

The PUK (PIN Unblocking Key) code is required to unlock a blocked PIN code. Contact Customer Services for the code.

PUK2 code (4 to 8 digits)

The PUK2 code, is required to unlock a blocked PIN2 code. Contact Customer Services.

Security code (4 to 8 digits)

The security code protects the unauthorized use of your phone. The default security code is set to '0000' and the security code is required to delete all phone entries and to restore the handset to factory setting.

Barring Password

The barring password is required when you use the call barring function. The password is obtained from the Customer Services when you subscribe to this function.

Making and Answering calls

Ensure you tell the other party before recording a voice call.

Making and Answering a video call

You can make/answer a video call to a 3G video phone the other party must have a 3G video phone and be in a video service area.

To make/answer a video call, do the following.

1. Input the phone number using the keypad, or select the phone number from the calls made/received lists.

Note

To correct mistakes, press the Ⓞ key briefly to delete the last number, or press and hold the Ⓞ key to delete all numbers.

1. If you do not want to use the speakerphone, ensure you have the headset plugged in.

2. To start the video function, press the left soft key [Options].

Note

The video call may take some time to connect. Please be patient. The connection time will also depend on how quickly the other party answers the call. While the video call is connecting, you will see your own images; after the other party has answered, their image will be displayed on screen.

1. Adjust the camera position if necessary.

2. Press the end key to finish the call, or close the handset.

Making a voice/video call

1. Make sure your handset is powered on.
2. Enter the number including the full area code.

▶ To delete a digit press the Ⓞ key. To delete all digits press and hold the Ⓞ key.

1. Press the 📄 key to make a voice call. Press the 🔒 key to make a video call.

2. Press the key to finish the call, or close the handset.

Note

To activate the speakerphone during a call, you have to press and hold the Ⓞ key for at least 2 secs.

Making a voice/video call from Contacts

It is easy to call anyone whose number you have stored in your Contacts.

Press the down navigation key to access contact list.

Scroll to your chosen contact and press the i key. To make a voice call press the i key.

To make a video call press the 📄 key. Press the 🔍 key to finish the call.

Making International Calls

1. Press and hold the ■ key for the international prefix. The ‘+’ character can be replaced with the international access code.

2. Enter the country code, area code, and the phone number.

3. Press the i key.

Adjusting the Volume

During a call, if you want to adjust the earpiece volume, use the side keys of the handset. In idle mode with the flip cover open, you can adjust the key volume using the side keys.

Answering a Call

When you receive a call, the phone rings and the flashing phone icon appears on the screen. If the caller can be identified, the caller's phone number (or name if stored in your Contacts) is displayed.

1. Open the flip and press the key to answer an incoming call.

If the Press any key menu option has been set to 🔍 key, Press any key will answer a call except for the 🔍 key.

Notice

▶ To reject an incoming call, press and hold down the side key on the left side twice of the handset without opening the flip(See page 56). If the flip is open, press the 🔊 key or the right soft key twice.
▶ If the Open flip menu option ((Menu 2.9.5) is simply by opening) is on 📋, you can answer the call simply by opening the flip.

1. End the call by closing the handset or pressing the key.

Notice

You can answer a call while using the Contacts or other menu features.

Signal Strength

If you are inside a building, being near a window may give you better reception. You can see the strength of your signal by the signal indicator see the strength (35) on your handset's display screen.

Entering Text

You can enter alphanumeric characters using the keypad.

For example, storing names in the Contacts, writing a message, creating a personal greeting or scheduling events in the calendar all require entering text.

Following text input methods are available in the handset.

Changing the Text Input Mode

1. When you are in a field that allows characters to be entered, you will notice the text input mode indicator in the upper right corner of the display.
2. Short pressing the key cycles between abc, Abc, T9 abc and T9 Abc. A long press changes mode to 123.

Press 4, 3, 5, 5, 6, to type Hello
Press 0(space), 2, 6, 6, 6 To type ann

Note

Please refer to the Using the ABC

Mode on page 30.

Using the T9 Mode

The T9 predictive text input mode allows you to enter words easily with a minimum number of key presses. As you press each key, the handset begins to display the characters that it thinks you are typing based on a built-in dictionary. As new letters are added, the word changes to reflect the most likely candidate from the dictionary.

1. When you are in the T9 predictive text input mode, start entering a word by pressing keys ☐ to ☐. Press one key per letter.

The word changes as letters are typed - ignore what's on the screen until the word is typed completely.

If the word is still incorrect after typing completely, press the key once or more to cycle through the other word options.

Example

Press to type Good Press the key to get Home

▶ If the desired word is missing from the word choices list, add it by using the ABC mode.

1. Enter the whole word before editing or deleting any keystrokes.

General Functions

1. Complete each word with a space by pressing the □ key.

To delete letters, press the 🔔 key.

Press and hold down the Ⓞ key to erase entire words.

Using the ABC Mode

Use the keys to enter your text.

1. Press the key labeled with the required letter:

▶ Once for the first letter

▶ Twice for the second letter

▶ And so on

1. To insert a space, press the ■ key once. To delete letters, press the ⓒ key. Press and hold down the ⚫ key to clear the display.

Using the 123 (Number) Mode

The 123 Mode enables you to enter numbers in a text message (a telephone number, for example).

Press the keys corresponding to the required digits before manually switching back to the appropriate text entry mode.

Using the Symbol Mode

The symbol mode enables you to enter various symbols or special characters.

To enter a symbol, press the right soft key [Symbol]. Use the navigation and numeric keys to select the desired symbol and press the 🔊 key.

General text entry rules for use with the abc mode.

Use the keypad to enter letters, numbers, symbols, and other characters with the abc mode. Press the same key repeatedly to cycle through available characters.

If you do not press a key for 2 seconds, the character in the block cursor is accepted, and the cursor moves to the next position.

Notice

Refer to the table below for more information on the characters available using the keys.

	@ :/.	@ :/.
1	.,?!‘“1-()@/:_	.,?!‘“1-()@/:_
2	abc2àáâãääæç	ABC2ÀÁÂÃÄÄÆÇ
3	def3èéêë	DEF3ÈÉÊË
4	ghi4ìíīī	GHI4ìíīī
5	jkl5£	JKL5£
6	mno6òóñôõöøœ	MNO6ÑÒÓÓÕÖ∅
7	pqrs7ß	PQRS7ß
8	tuv8ùúüü	TUV8ÙÚÜÜ
9	wxyz9	WXYZ9
0	space 0	space 0

	@ :/.	@ :/.
1	.,?!‘“1-() @/:_	.,?!‘“1-() @/:_
2	abc2àáâãääæç	ABC2ÀÁÂÃÄÄÆÇ
3	def3èéêë	DEF3ÈÉÊË
4	ghi4ìíīī	GHI4ìíīī
5	jkl5£	JKL5£
6	mno6òóñôõöøœ	MNO6ÑÒÓÔÕÖ∅
7	pqrs7ß	PQRS7ß
8	tuv8ùúüü	TUV8ÙÚÜÜ
9	wxyz9	WXYZ9
0	space 0	space 0

enu tree

Your handset offers a set of functions that allow you to use and customise the handset. These functions are arranged in menus and sub-menus, accessed via the two soft keys marked left soft key and right soft key.

Each menu and sub-menu allows you to view and alter the settings of a particular function. The roles of the soft keys vary according to the applications and services; the label on the bottom line of the display just above each key indicates its current role.

Press the left soft key to access the available Menu.
Press the right soft key to access the available Search.

1. Messages (see page 37)

1.1 New message

1.1.1 Text message

1.1.2 Multimedia message

1.1.3 Email

1.2 Inbox

1.3 Outbox

1.4 Drafts

1.5 Mailbox

1.6 Templates

1.7 Emoticons

1.8 Settings

2. Calling (see page 49)

2.1 Video calls

2.1.1 My picture size

2.1.2 My picture position

2.1.3 Hide my picture

2.1.4 Block my picture

2.2 Call history

2.3 Call divert

2.4 Call duration

2.5 Call costs

2.6 Fixed dial numbers

2.7 Call barring

2.8 Closed user group

2.9 Settings

3. Multimedia (see page 57)

3.1 Camera

3.2 Video camera

3.3 Image viewer

3.4 Audio player

3.5 Video player

3.6 VOD/AOD

4. Browser (see page 65)

4.1 Home

4.2 Bookmarks

4.3 Saved pages

4.4 Settings

4.4.1 Profile

4.4.2 Clear cache

4.4.3 Encoding

4.4.4 Scrolling control

4.5 Go to URL

4.6 Security certificates

5. Organiser (see page 69)

5.1 Contacts

5.1.1 Add new contact

5.1.2 Search

5.1.3 Group

5.1.4 Speed dials

5.1.5 Service numbers

5.1.6 Clear Contacts

5.1.7 Copy all

5.1.8 Move all

5.1.9 Own number

5.1.10 Settings

5. Organiser (see page 69)

5.2 Calendar
5.3 Todo
5.4 Memo
5.5 Secret memo

6. Profiles (see page 79)

7. Tools (see page 83)

7.1 Quick menu
7.2 Alarm clock
7.3 Calculator
7.4 World time

7.5 Unit converter

7.5.1 Currency
7.5.2 Surface
7.5.3 Length
7.5.4 Weight
7.5.5 Temperature
7.5.6 Volume
7.5.7 Velocity

7.6 Timers
7.7 Voice recorder
7.8 Server sync

8. Settings (see page 91)

8.1 Handset
8.2 Screen
8.3 Network
8.4 Access points
8.5 Security
8.6 Connectivity
8.7 Memory status
8.8 Language
8.9 Reset settings

9. Applications (see page 101)

9.1 My applications
9.2 Connect
9.3 Settings

1. Messages

1.1 New message
1.2 Inbox
1.3 Outbox
1.4 Drafts
1.5 Mailbox
1.6 Templates
1.7 Emoticons
1.8 Settings

New message

Menu 1.1

Text message

Press the Message shortcut key to display Messages menu, select New message and then select Text message.

You can write and edit a single text message up to 160 characters. You can write and edit up to 10 concatenated messages.

1. Press the left soft key [Options]/ [Search contacts] to specify the recipient from Contacts.
2. When you input content, a new window allowing you to input content appears. By using the left soft key [Options], you can input emoticons, templates, and phone numbers through the Contacts. By using the right soft key on the bottom, you can input various symbols.
3. When the message has been sent, it will be saved in the Outbox automatically. If the message has not been sent, you can determine whether to save the message in the Drafts or not.

Multimedia message

Creating a Multimedia message

Select Messages from the top menu or pressing the Message shortcut key displays the message menu. In the menu, select Write message, and then select Multimedia message and create a Multimedia message.

You can simply send picture with a Multimedia message attaching the picture from your album or directly from the multimedia menu.

Multimedia message

1. You can create a Multimedia message.
2. Select Multimedia message from the New message menu and then press the key.
3. You can edit a Multimedia message field using the Down navigation Key.

1. Move the highlight to the To field, and input the recipient of the message. You can specify the recipient by either phone number or Email address. You can search the Contacts by pressing the left soft key [Options].
   When a recipient has been specified, another field where you can specify another recipient appears.
2. Move the highlight to the title field, and write a title. You can select and input a template or emoticon by pressing the left soft key [Options].
3. You can add, delete, or edit by moving the highlight to the desired slide item.
4. You can save the message in the Drafts by using the left soft key [Options] while creating a message.
5. You can preview the message by using the left soft key [Options] while creating a message.
6. When you have completed creating a message, press the ⚪ key. You can send the message by selecting Send now and Send later from the popup list, and you can save the message by selecting Save to drafts. You can preview the message by selecting Preview from the popup list.

Creating a Multimedia message slide

1. Press the right soft key [Edit] in the slide item while creating a Multimedia message.
2. You can change the slide duration in the Slide Duration field. If you do not change it, the default value is used.
3. You can attach your desired image, audio, or video file by moving the highlight to the desired file to attach, and selecting Attach. If there is an attached image or audio file, you cannot attach a video file. If there is an attached video file, you cannot attach an image or audio file. You can cancel the attached file by using the left soft key [Options]
4. You can insert your desired content into a slide by moving the highlight to the message. You can insert templates or emoticons into the content input window by using the left soft key [Options]. You can insert the name, or phone number saved in the Contacts into the content input window by using the left soft key [Options].
5. You can add, or delete slides by using the left soft key [Options] while creating a slide.

Multimedia message send menu

Send now

Sends the created Multimedia message immediately.

Send later

Sends the created Multimedia message at the specified time.

Save as draft

Saves the created Multimedia message to Drafts.

Preview

Shows the created Multimedia message before sending it.

Viewing Multimedia messages in the Preview and Drafts

1. You can preview a created Multimedia message.
2. If the message is too long to be displayed on screen, you can scroll the contents of the message by using the up and down navigation key.
3. Press the 🔒 key to pause playback of the message, and press the 🔒 key to resume playing the message.
4. If an audio or video file is attached to a Multimedia message, press the right soft key [Unmute] to cancel the mute function.
5. Press the left soft key [Info] to stop playback, and then you can see detailed information about the Multimedia message.

Viewing Multimedia messages in the Inbox and Outbox

1. Select a Multimedia message to view its contents.
2. If the message is too long to be displayed on a screen, you can scroll the contents of the message by using the up and down direction key.

3. Press the 🔊 key to pause playback of the message, and press the 🔊 key to resume playing the message.

4. If an audio or video file is attached to a Multimedia message, press the right soft key [Mute] to activate the mute function. Press the right soft key [Unmute] to cancel the mute function.

When the multimedia message includes URL, you can try to connect the site. If the slide includes URL, you can connect the URL by long press 🔊 key.

On the other hand, when you try to press up or down navigation key, the slide show is paused automatically, and the screen shows the menu "Use link" on the right soft key if URL is included in the slide. You can connect the URL for browsing, downloading, and streaming.

1. Move to a desired message by using the left and right navigation keys.

2. Press the left soft key [Info] to stop playback, and then you can see detailed information about the Multimedia message.

3. Press the 🔊 key to play the message.

4. You can select the following functions using the left soft key [Options].

▶ Reply with: Creates reply to the selected message.
▶ Forward: Forwards the selected message.
▶ Save address: Saves the telephone numeric in the Contacts.
▶ Use number: Extracts the phone number included in the text of the message.
▶ Use email address: View Email addresses up to 10 in the received message containing text. You can send a message or save as a contact by selected number.
▶ Use link: View URL up to 10 in the received message containing text. You can browser web or save as bookmark by selected number.
▶ Delete: Deletes the selected message.
▶ Mute: Uses this menu only when the message includes audio media file.
▶ View attachment: Shows the attachment file list.
▶ Play again: Plays attached files.
▶ Message info.: Displays information about the selected message.

Email

To send the email, you should set up the email account. Refer to Email at page 46\~47 first.

Message edit

1. Select Email from the Write Message menu.
2. Input the desired Email address(es) in the To, Cc and Bcc fields. You can input up to 4 addresses in each field.

Tip

To input @, select the right soft key [Symbol], and then press 9 numeric key pad to input or press video call key.

1. Input the title of the mail to be sent in the Subject field.
2. Input the content of the mail to be sent in the Message field.

3. Specify up to 4 files to attach in the Attach field.

4. When you have finished writing a message, press the 🔊 key. You can send the message by selecting Send now from the popup list and you can save the message by selecting Save as draft. You can also preview the message by selecting Preview from the popup list.

Inbox

Menu 1.2

1. You can view saved messages. Select a message and then press the ⏻ key to view the message.

2. You can view the previous or next message by using the left and right soft keys.

3. To view an Multimedia message, select Retrieve in the message view screen. Then the file is transmitted, and you can view the file when the message is received.

4. You can use the following functions by using the left soft key [Options].

▶ New message: You can write a new message.
▶ Reply with: You can create a reply to the selected message.
▶ Forward: You can forward a selected message.

▶ Delete: You can delete a selected message.
▶ Multiple delete: You can delete multiple selected messages.
▶ Delete all: You can delete all messages.
▶ Message info.: You can view the information on a selected message.
▶ Memory info.: You can see how much free memory you have.

Outbox

Menu 1.3

1. You can view sent messages. Select a message and then press the ⏻ key to view the message.
2. You can view the previous or next message by using the left and right soft keys.
3. You can use the following functions by using the left soft key [Options].

▶ New message: You can write a new message.

▶ Forward: You can forward a selected message.

▶ Edit: You can edit a selected message.

▶ Delete: You can delete a selected message.

▶ Multiple delete: You can delete multiple selected messages.

▶ Delete all: You can delete all messages.

▶ Message Info.: You can view the information on a selected message.

▶ Memory info.: You can see how much free memory you have.

Drafts

Menu 1.4

1. You can view saved messages. Select a message and then press the 🔒 key to view the message.
2. You can view the previous or next message by using the navigation key.
3. You can use the following functions by using the left soft key [Options].

▶ New message: You can write a new message.

▶ Send: You can send a selected message.

▶ Edit: You can edit a selected message.

Messages

▶ Delete: You can delete a selected message.
▶ Multiple delete: You can delete multiple selected messages.
▶ Delete all: You can delete all messages.
▶ Message info.: You can view the information on a selected message.
▶ Memory info.: You can see how much free memory you have.

Mailbox

Menu 1.5

1. Select Mailbox.
2. Select Trash to retrieve messages from the Server List.
3. To retrieve new messages in the Mail Header screen, select Retrieve to retrieve the new Mail Header List.
4. Select your desired message from the retrieved mail headers to retrieve the mail contents from the server.

You can use the following functions by using the left soft key [Options].

▶ New message: You can write a new message.
▶ Reply with: You can reply a selected message.
▶ Retrieve: You can retrieve a selected message.
▶ Delete: You can delete a selected message.
▶ Multiple delete: You can delete multiple selected messages.
▶ Delete all: You can delete all messages.
▶ Message info.: You can view the information on a selected message.
▶ Memory info.: You can see how much free memory you have.

Templates

Menu 1.6

You can add, edit, and delete frequently-used useful phrases.

You can save frequently-used phrases in the input window in advance.

Emoticons

Menu 1.7

You can add, edit, and delete frequently used emoticons.

You can save emoticons that are frequently used in the input window in advance.

Settings

Menu 1.8

Text message

▶ Delivery report

Allows you to activate or deactivate the report function. When this function is activated, the network informs you whether or not your message has been delivered.

▶ Message types

The default message type should be Text.

▶ Validity period

Allows you to set the length of time for which your text messages will be stored at the Text message center while attempts are made to deliver them to the recipient.

▶ Text message centre

The number of the Text message gateway is pre-loaded in your handset and you should not change this. If you delete or change this by mistake contact Customer Services for support.

Multimedia message

Select Multimedia message from the Settings menu to configure Multimedia message related options.

Messages

▶ Delivery report

This menu allows you to determine whether to request a delivery confirmation mail to a recipient, and whether to allow sending delivery confirmation mail to a sender.

Request report: Determines whether to request a delivery confirmation mail for a Multimedia message.

Allow report: Determines whether to allow sending a delivery confirmation mail for a delivery confirmation mail request.

▶ Read reply

▶ Auto retrieve

This menu allows you to determine whether to automatically download a Multimedia message when a Multimedia message notification message arrives.

▶ Validity period

This menu allows you to configure the term of validity for a message when transmitting a Multimedia message. The message would be saved in the Multimedia server only for the configured term.

▶ Slide duration

This menu allows you to configure the duration of each page when writing the message.

▶ Message size

This menu allows you to configure the maximum size of a Multimedia message when writing the message.

▶ Multi. msg centre

The details for the Multimedia gateway are pre-loaded onto your handset and should not be changed. If you change or delete these by mistake contact customer services for support.

Email (To set up an account)

This menu allows you to edit, delete and add an Email account.

To set up an Email account, do the follows.

1. Select Messages/Settings/Email after pressing the _key in the idle screen.
2. Enter details Username, Password, Email address, Reply email address.
3. You can authenticate by pressing the left soft key [Authen.].

Once you have set up details of your other accounts, you can collect mail from those accounts by selecting Check for new mail from the Mail home page.

To retrieve an email, do the following:

1. Select the mail server you want to retrieve in the Mailbox.
2. Choose the email by using the navigation key.
3. Press the right soft key [Retrieve].
4. Press the 🔒 key.

Voicemail

This menu allows you to get the voice mail if this feature is supported by the network service provider. Please check with your network service provider for details of their service in order to configure the handset accordingly.

ExpressLink

You can order ExpressLink from WAP service providers.

ExpressLink is notifications of, for example, news headlines and it may contain a text message or address of a WAP service. For availability and subscription, contact your WAP service provider.

Info. Service

Info service messages are text messages sent by the network to GSM phone users. They provide general information such as weather reports, traffic news, taxis, pharmacies, and stock prices.

Each type of information is associated with a number, which can be obtained from the service provider. When you receive an info service message, a popup message will indicate a new message receipt or the info service message will be displayed directly.

2. Calling

2.1 Video calls
2.2 Call history
2.3 Call divert
2.4 Call duration
2.5 Call costs
2.6 Fixed dial numbers
2.7 Call barring
2.8 Closed user group
2.9 Settings

Video calls

Menu 2.1

My picture size

This menu allows you to configure your own picture size to either Large, Medium or Small.

My picture position

This menu allows you to configure your screen alignment to bottom right or bottom left.

Hide my picture

This menu allows you to hide your picture.

Block my picture

This menu allows you to block transmission of your picture.

Call history

Menu 2.2

You can access the call register by pressing the 🔍 key or the 🔍 key. Different icons show you the type of the recent calls registered in the list (see following page for icon description).

▶ You can view missed, received, dialled and entire call records. Each call record menu provides the following functions.
▶ You can make a voice or video call to the number in the call record.
▶ You can save the number in the call record to the Contacts.
▶ You can send a message to the number in the call record.
▶ You can view detailed information about the call records such as the date, time and call duration.
▶ You can clear call records.

Missed calls

Allows you to view missed call records, make a call, send a message and save the number in the Contacts.

Received calls

Allows you to view received call records, make a call, send a message and save the number in the Contacts.

Dialled calls

Allows you to view dialled call records, make a call, send a message and save the number.

All calls

This menu allows you to view all of the missed, received, and dialled call records. You can make a call, or send a message to the number you have selected from the records. You can also save the number in the Contacts.

Received video call

Received voice call

Dialled video call

Dialled voice call

Missed video call

Missed voice call

Reject Silent

Reject Disconnect

Call divert

Menu 2.3

This menu allows you to configure the call divert service which diverts incoming calls to a user-specified number.

1. Press the key in the idle screen.
2. Press the navigation key down to display Call and press Call divert.

Voice calls

▶ All voice calls Diverts all incoming voice calls unconditionally.
▶ If busy Diverts incoming voice calls when the line is busy.
▶ If no answer Diverts incoming voice calls when there is no answer.
▶ If unreachable Diverts incoming voice calls when the handset is turned off or the handset is out of the network service coverage

Video calls

You can divert video calls to other handsets that support video calling.

▶ All video calls Diverts all incoming video calls unconditionally.
▶ If busy Diverts incoming video calls when the line is busy.
▶ If no answer Diverts incoming video calls when there is no answer.
▶ If unreachable Diverts incoming video calls when the handset is turned off or the handset is out of the network service coverage.

All fax calls

Diverts fax calls unconditionally.

Call duration

Menu 2.4

Shows call duration time by type. Press the right soft key [Reset] to reset. A security code will be requested.

Last call

Displays the duration of the last call made in hours/minutes/seconds.

Received calls

Displays received call duration.

Dialled calls

Displays dialled call duration.

All calls

Displays overall call duration.

Call costs

Menu 2.5

This network service enables you to check the cost of the last call made and of all calls made to date. You must enter your PIN 2 code to access this menu.

Fixed dial numbers

Menu 2.6

You can fix dialling to specified phone numbers only. This information is saved on the USIM card. You must enter your PIN2 code for authentication.

▶ On: Enables Fixed Dial Numbers.
▶ Off: Disables Fixed Dial Numbers.
▶ Number list: You can view and edit the Fixed Dial Number list.

Call barring

Menu 2.7

Call barring allows you to restrict from making and receiving calls with your handset. For this function, you need the barring password, which you can obtain from Customer Service.

Voice calls

The following options are available:

▶ All outgoing: Calls cannot be made.
▶ Outgoing international: International calls cannot be made.
▶ Outgoing international calls except home country: When abroad, calls can be made only to numbers within the current country and to your home country, which is where your home network provider is located.
▶ All incoming: Calls cannot be received.
▶ Incoming when abroad: Calls cannot be received when you are using your handset outside your home service area.

Video calls

The following options are available:

▶ All outgoing: Calls cannot be made.
▶ Outgoing international: International calls cannot be made.
▶ Outgoing international calls except home country: When abroad, calls can be made only to numbers within the current country and to your home country, which is where your home network provider is located.
▶ All incoming: Calls cannot be received.
▶ Incoming when abroad: Calls cannot be received when you are using your handset outside your home service area.

Deactivate all

All call barring settings are deactivated; calls can be made and received normally.

Closed user group(CUG)

Menu 2.8

This is a network service that specifies the group of people who you can call and who can call you. For more information, contact your network operator or service provider. If a group index is specified, it is used for all outgoing calls. If no group index is specified, the network will use the preferential index.

(A specific index is stored in the network.)

▶ Standard: Select this to activate the previous CUG index.
▶ On: You can edit the CUG indexes and activate it.
▶ Off: Deactivates this function.

Settings

Menu 2.9

Call waiting

The network will notify you of a new incoming call while you have a call in progress. Select Activate to request the network to activate call waiting, Deactivate to request the network to deactivate call waiting, or View status, to check if the function is active or not.

Send my number

This network service allows you to set your phone number to be displayed (On) or hidden (Off) from the person whom you are calling. Select Set by network to reset the handset to the setting that you have agreed upon with Customer Service.

Call reject

This menu allows you to enable or disable call reject for all numbers or a specific number.

Configures conditional call reject mode. Press the right soft key [Setup] to add the phone number to be rejected. When you add a number to the list, you can select either Silent or End call as a reject method. When you add a number to the list, you can add the number by entering it directly or by searching for the number in the Contacts by selecting Search.

▶ Reject all calls

Auto redial

The menu enables you to configure the auto redial function when a call attempt has failed.

Answer mode

Allows you to determine when to answer the handset.

▶ Press send key: You can answer an incoming call by only pressing the i key.
▶ Open flip: This option allows you to answer a call simply by opening the flip.
▶ Press any key: You can answer an incoming call by pressing any key, except the 🔍 key, soft keys and side keys.

Minute minder

This function sounds an alert notification every 1 minute after call connection.

3. Multimedia

3.1 Camera
3.2 Video camera
3.3 Image viewer
3.4 Audio player
3.5 Video player
3.6 VOD/AOD

ultimedia

Camera

Menu 3.1

This application enables you to take a still picture. You can take a picture in your desired size, and use it for the contacts photo, home screen and other more general purposes. Once taken, a still image can be sent by Multimedia msg or Email.

Press the left soft key [Options] to display the following popup menu items.

▶ Size: Determines the size of an image.
▶ Quality: Determines the quality of an image.
▶ Flash: Determines the flash operation.
▶ Multishot: Determines whether to enable multi-shot photography.
▶ Zoom: Determines the zoom rate.
▶ Brightness: Determines the brightness.
▶ Delay timer: Determines the delay time.
▶ Camera effect: Determines the special effect to the picture.
▶ Shutter sound: Determines the sound when the shutter is pressed.
▶ Image viewer: Shows the still images taken.

Video camera

Menu 3.2

This application enables you to record a video clip. You can play and watch a saved video file while using this function. Once recorded, a video clip can be sent by Multimedia message or Email.

Press the left soft key [Options] to display the following popup menu items.

▶ Flash: Determines the flash operation.
▶ Zoom: Determines the zoom rate.
Quality: Determines the quality of a video clip.
▶ Brightness: Determines the brightness.
▶ Camera effect: Determines the special effect to the video clip.
▶ Duration: Determines the recording time.
▶ Sound: Determines the mute function.
▶ Video player: Shows the video clips recorded.

Image viewer

Menu 3.3

This application enables you to view still images. The image files saved in the handset are represented by thumbnails. Select the desired image to view the enlarged image.

Notice

Features within the Edit Image might not work due to large image size or lack of internal phone resource. For example, Rotate will not work for images greater than 640x480.

Press the left soft key [Options] to display the following popup menu items (in 1. Image list).

▶ Go to camera: Moves to the camera application for taking still image photographs.
▶ Send as message: Enables the selected image to be attached to a message and the message sent.
▶ Animated image: Enables the image to be an Animated image.
▶ Rename: Enables the image to be renamed.
▶ Delete: Deletes the selected image.
▶ Multiple delete: Deletes multiple image files at a time.
▶ Delete all: Deletes all images.
▶ Screen theme: You can set an image as the screen theme (Home screen, Incomong call, Outgoing call, Sending message, Switch on, Switch off).
▶ Sort: Sorts images.
▶ Slide show: You can start the slide show.
▶ File info.: Shows information about the selected image file.
▶ Memory info.: Shows the current memory usage.

Press the left soft key [Options] to display the following popup menu items (in 2. Picture Viewer).

▶ Go to camera: Moves to the camera application taking still image photographs.
▶ Send as message: Enables the selected image to be attached to a message and the message sent.
▶ Rename: Enables the image to be renamed.

Multimedia

▶ Delete: Deletes the selected image.
▶ Zoom: You can zoom in and out the image.
▶ Edit picture: You can edit the image.
▶ Screen theme: You can set an image as the screen theme (Home screen, Incoming call, Outgoing call, Sending message, Switch on and Switch off).
▶ Slide show: You can start the slide show.
▶ File info.: Shows information about the selected image file.

Audio player

Menu 3.4

This application plays MP3, MIDI and AAC files so that you can listen to them. Select your desired audio file in the list mode showing audio files.

The following options are provided by the My sounds in the Audio Player.

There are two scenarios: 1) Unmute status and

2) Mute status.

Press the left soft key [Options] to display the following popup menu items (when 1. Unmute status).

▶ Delete: Deletes all audio files.
▶ Mute: Mutes the sound temporarily.
▶ Set repeat: Repeats the audio file.
▶ Next file: Plays the next audio file.
▶ Previous file: Plays the previous audio file.
▶ View file list: Shows a list of audio files.

▶ File info.: Shows information about the selected audio file.

Press the left soft key [Options] to display the following popup menu items (when 2. Mute status).

▶ Delete: Deletes all audio files.
▶ Unmute: Cancels the Mute function so that you can hear the sound again.
▶ Set repeat: Repeats the audio file.

▶ Next file: Plays the next audio file.
▶ Previous file: Plays the previous audio file.
▶ View file list: Shows a list of audio files.
▶ File info.: Shows information about the selected audio file.
Press the left soft key [Options] to display the following popup menu items
▶ Send as message: You can attach the selected audio file to a message and send the message.
▶ Rename: You can rename the selected audio file.
▶ Delete: Deletes the selected audio file.
▶ Multiple delete: Deletes multiple audio files at a time.
▶ Delete all: Deletes all audio files.
▶ Sound theme: You can set an audio file as the sound theme (Voice ringtune, Video ringtune, Switch on, Switch off).
▶ Sort: Sorts audio files.
▶ File info.: Shows information about the selected audio file.
▶ Memory info.: Shows the current memory usage.

Video player

Menu 3.5

This application plays recorded video (.3gp or MPEG4 files). Select a desired video.

The following options are provided by the Video Player.

There are two scenarios; 1) Mute/Unmute status and

2) Pause status

Press the left soft key [Options] to display the following popup menu items (when 1. Unmute/Mute status).

▶ Delete: Deletes the selected video file.
▶ Mute/Unmute: Mutes/Unmutes the sound temporarily.
▶ Contrast: Adjusts the contrast.
▶ Next file: Plays the next video file.

Multimedia

▶ Previous file: Plays the previous video file.

▶ View file list: Shows a list of video files.

▶ File info.: Shows information about the selected video file.

Press the left soft key [Options] to display the following popup menu items (when 2. Pause status).

▶ Delete: Deletes the selected video file.

▶ Capture: Captures an image from the video file.

▶ Contrast: Adjusts the contrast.

▶ Next file: Plays the next video file.

▶ Previous file: Plays the previous video file.

▶ View file list: Shows a list of video files.

▶ File info.: Shows information about the selected video file.

Press the left soft key [Options] to display the following popup menu items

▶ Send as message: You can attach the selected video file to a message and send the message if not content protected.

▶ Rename: You can rename the selected video file.

▶ Delete: Deletes the selected video file.

▶ Multiple delete: Deletes multiple video files at a time.

▶ Delete all: Deletes all video files.

▶ Sort: Sorts video files.

▶ File info.: Shows information about the selected video file.

▶ Memory info.: Shows the current memory usage.

VOD/AOD

Menu 3.6

Using the VOD or AOD service enables you to play a desired audio file in real-time. In addition, you can download and save a desired audio file using this service.

Connecting: Connects to the AOD service so that you can play an audio file in real-time or download audio files.
▶ Settings: You can configure the VOD or AOD server to connect.

4. Browser

4.1 Home
4.2 Bookmarks
4.3 Saved pages
4.4 Settings
4.5 Go to URL
4.6 Security certificates

owser

You can ask for directions within major cities, get the latest news, keep up to date with Premier League action and much, much more.

The browser is available in the 3G coverage area.

To launch the browser in standby mode, press the 📄 key.

Home

Menu 4.1

Select Home in the Internet Menu and then press the ⚠ key.

If you want to reload current page, press the right soft key [Reload].

The following options are available. Press the left soft key [Options].

Home: Moves to the initial homepage.
▶ Reload: Loads the current page again.
Bookmarks: You can add or save the current page to the Bookmarks or view the list saved under Bookmarks.
▶ Settings: You can set the Browser related things such as Clear cache, Session info., Clear cookies, etc.
▶ Back: Moves to the previous page.
Forward: Moves to the previous page.

The following example shows the functionality of browser menu 'Foward'.

1. Navigation Page A → Page B → Page C → Page D
2. On Page D, select a menu 'Back', it will place a user in Page C.
3. On Page C, if select a menu 'Back', move to Page B. Else if select a menu 'Forward', move to Page D again.
   Enter URL: Connect to the specific URL after editing.

Bookmarks

Menu 4.2

This function allows you to store and edit frequently accessed sites.

▶ Send as message: Selected bookmark URL can be sent via text message or multimedia message.
▶ Add new: Adds a new site to the bookmarks list.
▶ Edit: You can edit and save the name and address of the selected bookmark.
▶ Delete: Deletes the selected bookmark.
▶ Delete all: Deletes all of the currently saved bookmarks.

Saved pages

Menu 4.3

Saves the page on display as an off-line file.

A maximum of 20 pages can be saved.

Settings

Menu 4.4

• Profile
  Select the profiles by press 🔒 key to launch browser.
• Clear cache
  Deletes the data saved in the cache memory.
• Encoding
  Select the character set one of the following list
  : Automatic, English(ASCII), English(ISO), English(LATIN), Unicode(UCS2 BE), Unicode(UCS2 LE), Unicode(UCS2 Auto), Unicode(UTF-16 BE), Unicode(UTF-16 LE), Unicode(UTF-16 Auto), Unicode(UTF-8)
• Scrolling control
  Allows you to determine the scroll speed and select from 1 Line, 2 Lines and 3 Lines.

Go to URL

Menu 4.5

Connect to the specific URL after editing.

Security certificates

Menu 4.6

A list of the available certificates is shown.

5. Organiser

5.1 Contacts
5.2 Calendar
5.3 To do
5.4 Memo
5.5 Secret memo

rganiser

Contacts

Menu 5.1

This menu allows you to save and manage contact address information. The Contacts functions provide functions to add a new address or search saved contact addresses by name, phone number and group information.

Add new contact

This menu allows you to add a new contact address. You can input contact address information including name, phone numbers, email addresses, group information items, memo, homepage address, ringtune, and avatar or image (photograph).

You have to select Handset or USIM card memory using the left and right navigation keys.

Search

This menu allows you to search your contact addresses. Generally the search operation is performed by name. In the search window, the current search function and results for the search condition are displayed.

On the screen, a saved image or avatar is displayed for the selected contact address. You can change the configuration in the [Options] menu so that no image or avatar is displayed. You can also make a phone call or send a message to the selected phone number.

Group

This menu allows you to manage group information. By default, there are 4 groups: family, friends, colleagues and school. You can edit and delete a group. You can also configure ringtune for a group so that the group ringtune sounds when a call from a specific contact address within that group arrives and there is no ringtune configured for the contact address.

Speed dials

This menu allows you to configure speed dial numbers. You can select a number as a speed dial between 2 and 9. You can configure speed dial numbers for any of the 5 numbers for a specific contact address so that a contact address may have multiple speed dial numbers.

Service numbers

This menu allows you to make a call to one of the numbers provided by Customer Service by moving the highlight to the desired number and pressing the key.

Clear Contacts

This menu deletes contact address information. You can delete contact addresses saved in the handset memory and you can delete the numbers saved on the USIM card.

Copy all

This menu allows you to copy all information from your USIM card, e.g. name, handset number, etc., to your handset. If a name is duplicated during the copying operation, the information is duplicated.

▶ Handset to USIM: You can copy the entry from the handset memory to the USIM card (not all the data will be copied).
▶ USIM to handset: You can copy the entry from the USIM card to phone memory.
The following options are available:

All together: You can copy all your contacts at a time.

One by one: You can copy selected contacts one by one.

Move all

This menu allows you to move all the information from your USIM card, e.g. name, handset number etc., to your handset. This differs from the Copy all operation in that the target information is saved only in the destination location.

▶ Handset to USIM: You can move the entry from the phone memory to the USIM card.
USIM to handset: You can move the entry from the USIM card to phone memory.
The following options are available:

All together: You can move all your contacts at a time.

One by one: You can move selected contacts one by one.

Own number

ThAllows you to display your phone number in the USIM card. You may change or add to the information.

Settings

Allows you to set the display way as for the following items.

Display data: Handset & USIM / Handset / USIM

Show image/avatar: On / Off

Calendar

Menu 5.2

Monthly Schedule Management

1. Select the Organiser from the top menu.
2. Select Calendar and press the 🔒 key.
3. The monthly view is displayed.
4. Initially, the cursor appears on today's date according to your handset settings.
5. You can move the date cursor to the desired location using the up, down, left and right navigation keys.
6. On a date where a schedule item, anniversary or birthday is saved, corresponding icons and the number of saved schedule items are displayed on the bottom left of the screen.

Adding a New Schedule Item

1. Select the left soft key [Options] in the Monthly schedule management screen, select the Add new from the popup menu and then press the 🔊 key. Alternatively, select the right soft key [Add] in the Monthly schedule management screen.
2. Input the desired date using the numeric keys.
3. Input the desired time using the numeric keys.
4. Input the subject.
5. Select the schedule item type using the left and right navigation keys.
6. Select the repeat type using the left and right navigation keys.
7. Select the alarm type using the left and right navigation keys.
8. Press thekey to save the new schedule item.

Deleting a Schedule Item

1. Select the left soft key [Options] in the Monthly schedule management screen, select Delete, and then press the 🔒 key.
2. Popup menus including Delete past, Multiple delete and Delete all will be displayed.

Organiser

1. Select Delete past and press the 🔊 key to delete all schedule items prior to today.

2. Select Multiple delete and press the 🔊 key.

A screen asking you to specify the term to delete schedule items for will then appear. In this screen, input the desired term and press the ⚠️ key to delete the schedule items within the specified period.

1. Select Delete all, and press the ⏻ key to delete all of the schedule items.

Set holiday

1. Select the left soft key [Options] in the Monthly schedule management screen, select Set holiday and then press the ⚠️ key to display the Holiday configuration popup window.
2. Supported holiday types include On the day, Weekly, Monthly, Annually and Multiple setting.
3. Select the holiday configuration type and press the ⚪ key to configure the holiday.
4. The date corresponding to the configured holiday is represented in green in the Monthly schedule management screen.

Searching for a Schedule Item

Select the left soft key [Options] in the Monthly schedule management screen, select Search and then press the 🔊 key to display the Search schedule items screen.

1. Input the desired subject of the schedule item to find.
2. Select the schedule type to find.
3. Press the 🔒 key.
4. If there are schedule items that meet the search criteria, the schedule items are displayed. If there is no schedule item satisfying the search criteria, No match schedule Item message appears.

Moving to a Specific Date

1. Select the left soft key [Options] in the Monthly schedule management screen, select Go to date and then press the ⏻ key to display Go to date window.

2. Input the desired date to move to and press the ⏻ key.

3. The date cursor of the Monthly schedule management screen will then move to the specified date.

Go to Today

1. Select the left soft key [Options] in the Monthly schedule management screen, select the Today and then press the 🔒 key.

2. The date cursor of the Monthly schedule management screen will then move to today's date.

Memory info.

Shows the current memory usage.

To do

Menu 5.3

To do Enquiry

1. Select the Organiser from the top menu.
2. Select the To do item and press the 🔒 key.
3. The saved To do list is displayed.

Adding To do Items

1. To add a new To do item, select Add new using the left soft key [Options] in the To do enquiry screen or select the right soft key [Add].
2. Input Job to do, Date and notes when you add an item.
3. Press the 🔊 key to save the To do item.

To do Delete/Delete All

1. Select the desired item to delete from the To do list and press the Delete using the left soft key [Options] to delete the To do item.
2. Select the Delete all using the left soft key [Options] to delete all the saved To do items.

Organiser

To do Done/Not yet done

1. If you wish to mark an item in the saved To do list as done, select the item from the To do list.
2. Select the Done using the left soft key [Options] to draw a line over the schedule item to mark it as done.
3. To cancel Done, select the Not yet done.

To do Detailed View

To view detailed information, select the desired item from the To do list and press the 🔊 key to display the detailed view screen about the item.

Memo

Menu 5.4

Saved Memo's

1. Select the Organiser from the top menu.
2. Select the Memo item and press the ⏻ key.
3. The saved memo list is displayed.

Memo Add

1. To add a new memo, select Add new using the left soft key [Options] in the General memo screen or select the right soft key [Add].
2. Input the contents of the memo to be saved.
3. Press the ⏻ key to save the memo.

Memo Lock/Unlock

1. Select the desired item to lock from the saved memos list. The locked memo is converted to a secret memo.
2. Select Move to secret memo using the [Options] key to lock the memo item.
3. To release the lock again, select Move to memo in the Secret memo item.

Memo Delete/Delete All

1. Select the desired item to delete from the Memo list and select Delete using the left soft key [Options] to delete the memo.
2. Select Delete all using the left soft key [Options] to delete all the saved memos.

Change background

You can change the background image using the navigation key in the memo item.

File info.

You can view the title, size and created date of the memo item you select.

Memory info.

You can view the memory status: In Use and Free.

Secret memo

Menu 5.5

1. Select the Organiser from the top menu.
2. Select the Secret memo item and press the ⚠ key.
3. To view or delete the memo set up as a secret memo, you have to input the password configured in the phone.

6. Profiles

ofiles

You can configure Voice/Vibration ringtune, key tone, flip tone, sound effects, switch on, switch off, and volume. The ringtune type supports MP3, .3gp, AAC, MIDI, WAV and AMR.

Supported profiles are Normal, Silent, Vibrate only, Headset, Outdoor, Customised 1, Customised 2 and Customised 3 profile. Select a desired profile, and press the 🔊 key to activate the profile. The Normal, Silent, Vibrate only, Headset and Outdoor profile does not provide an option menu. When the cursor is moved to a profile, the corresponding menu appears on the soft bar. If you select View/Edit menu, you can view the settings of the profile, or can edit settings of the profile.

Profiles menu have the submenus as shown below.

▶ Alert by

This option determines the incoming call notification mode. You can select from Ring, Vibration, Ring & Vibration, Ring after vibration and Silent.

▶ Voice ringtune

This option determines the Voice ringtune for incoming call notification.

▶ Video ringtune

This option determines the Video ringtune for incoming call notification.

Volume

This option determines the ringtune volume for incoming call notification.

▶ Message alert

This option determines the message alert that sounds when a message has arrived. You can select one of None, Once, Every 1 minute, Every 2 minutes, Every 5 minutes, and Every 10 minutes mode.

▶ Message tone

This option determines the message tone that sounds when a new message has arrived.

▶ Confirmation tone

This option determines if warning alerts are on or off.

▶ Key tone

This option determines the key tone that is sounded when a key is pressed.

▶ Key tone volume

This option determines the volume of the key tone.

▶ Flip tone

This menu option allows you to select a melody that the phone sounds when it is filp open and closed.

▶ Switch on sound

This option determines the switch on effect that is sounded when the handset is turned on.

▶ Switch off sound

This option determines the switch off effect that is sounded when the handset is turned off.

7. Tools

7.1 Quick menu
7.2 Alarm clock
7.3 Calculator
7.4 World time
7.5 Unit converter
7.6 Timers
7.7 Voice recorder
7.8 Server sync

Quick menu

Menu 7.1

Quick menu allows you to add your own favourites to the list already provided. Once you create your own menu, you can access the desired function quickly in the idle screen by pressing the down navigation key. To move to your desired menu directly, select your desired menu from the Favourites menu press the up and down navigation keys.

▶ Add new: In the [Empty] list, press the right soft key [Add]. Select the item from the menu and save the desired menu item.
▶ Edit: In the added menu items list, press the right soft key [Edit] or the left soft key [Options]. Select Edit from the menu to edit a saved menu item.
▶ Delete: In the added menu items list, press the left soft key [Options]. Select Delete from the menu to delete a saved menu item.
▶ Delete all: In the added menu items, press the left soft key [Options]. Select Delete all from the menu to delete Quick menu items 6 to 0.
▶ View info.: In the added menu item list, press the left soft key [Options].

Select View info. from the menu to view the information about the actual location of the added menu item.

Alarm clock

Menu 7.2

The alarm function allows you to set up multiple separate alarms. You can also set the time, repetition interval and alarm sound.

▶ Select your desired alarm to configure in the alarm list. If there is no alarm, press the right soft key [Add] to add a new alarm.
▶ Set/Cancel alarm: On or Off the alarm using the navigation key.
▶ Input alarm time: Input your desired alarm time by specifying hour and minute. If the time format is 12 hours-based format, you have to select either 'am' or 'pm' using the right soft key.
▶ Select repeat mode: Select desired repeat mode using the navigation key.
▶ Select bell: Select the bell to use for the alarm using the navigation key.
▶ Input memo: Input alarm name.

When you have completed configuration, press the ⚠️ key to save the changed alarm configuration.

Note

The alarm function does not work if the handset is turned off.

Calculator

Menu 7.3

The calculator function allows you to add, subtract, multiply and divide. You can input numbers using the number keys, and operators using the up, down, left, and right navigation key.

You can input a decimal point by pressing the ▶ key.

Whenever you press the ▶ key, characters are sequentially deleted in reverse direction.

World time

Menu 7.4

The World time function provides time information on major cities worldwide.

1. You can view the time of desired country or city using the navigation or right soft key [List].
2. You can select a desired city as a base using the left soft key [set].

Unit Converter

Menu 7.5

This function converts any measurement into a unit you want.

There are 7 types of units that can be converted: Currency, Surface, Length, Weight, Temperature, Volume, and Velocity.

Note

You can input a decimal number by pressing the ☐ key.

Currency

1. Select the Currency menu.
2. Users can set a currency exchange rate using the right soft key [Rate].
3. Input standard unit in Domestic and then press the ⚠ key.

Tools

Then you can view converted value in Foreign.

1. You can view the value in home country currency unit in Domestic by inputting standard unit in Foreign, and then press the key.
2. Press the left soft key [Reset] to clear the current input field, and locate the cursor in the input field.
3. To exit currency conversion function, press the key.

Surface

1. Select Surface menu.
2. Select desired unit to convert using the right soft key [Unit].
3. Input standard unit and then press the ⏻ key to view converted value.
4. Press the left soft key [Reset] to clear the current input field, and locate the cursor in the input field.
5. To exit area conversion function, press the key.

Length

1. Select Length menu.
2. Select the desired unit to convert using the right soft key [Unit].
3. Input the standard unit and then press the ⚠️ key to view your converted value.
4. Press the left soft key [Reset] to clear the current input field, and locate the cursor in the input field.
5. To exit length conversion function, press the key.

Weight

1. Select Weight menu.
2. Select desired unit to convert using the right soft key [Unit].
3. Input standard unit and then press the ⏻ key to view converted value.
4. Press the left soft key [Reset] to clear the current input field, and locate the cursor in the input field.

1. To exit weight conversion function, press the 🔊 key.

Temperature

1. Select Temperature menu.
2. Input standard unit and then press the ⚡ key to view converted value.
3. Press the left soft key [Reset] to clear the current input field, and locate the cursor in the input field.
4. To exit temperature conversion function, press the BACK key.

Volume

1. Select Volume menu.
2. Select desired unit to convert using the right soft key [Unit].
3. Input standard unit and then press the ⏻ key to view converted value.
4. Press the left soft key [Reset] to clear the current input field, and locate the cursor in the input field.
5. To exit volume conversion function, press the key.

Velocity

1. Select Velocity menu.
2. Select desired unit to convert using the right soft key [Unit].
3. Input standard unit and then press the ⏻ key to view converted value.
4. Press the left soft key [Reset] to clear the current input field, and locate the cursor in the input field.
5. To exit velocity conversion function, press the key.

Timers

Menu 7.6

Date finder

The Date finder shows the number of remaining days until the specified day of event.

Dateulator

1. Select the Dateulator menu.
2. Select the desired item in the list to view Title, Target date on days remaining.
3. Press the ⏻ key to view the list.
4. Press the right soft key [Add] to input title and new date.
   Then press the 2 key to add the item in the list.

Stopwatch

A Stopwatch function is provided.

1. Select Stopwatch menu.
2. Press the 🔒 key to start the stopwatch.
3. Press the ⏻ key to stop the stopwatch and view the measured duration of time.
4. Press the 🔒 key to resume the stopwatch.
5. Press the left soft key [Lap] during operation to record the duration of time at the moment, and continue the stopwatch.
6. You can save up to 6 time records by pressing the left soft key [Lap]. If the number of recorded time exceeds 6, the oldest one is deleted.

Press the right soft key [Reset] to reset the stopwatch.

Voice recorder

Menu 7.7

This function allows you to record a voice memo. You can record voice messages with each message up to 60 seconds.

Server sync

Menu 7.8

The Server sync function synchronises the data in a phone and the data on a server such as contact address information, schedule items, etc. via a wireless network.

Connect

Select Server sync from the Tools menu and then press the 🔊 key.

Select the Connect item and then press the 🔒 key.

Connect to the server with the selected server profile and the synchronization animation is displayed while the synchronization is performed.

Log

Select a Server sync item in the Tools menu and then press the 🔊 key. Select Log item and then press the 🔊 key to view the log for the last synchronisation operation performed.

Settings

This menu allows you to configure the profile for a Sync Server.

▶ Adding a new profile

1. Input and choose the Profile name, Host address, Username, Password, Contacts, Contact name, Calendar, Calendar name, To do, To do name and Access point.

2. Press the 🔊 key to save the new profile.

3. In the Settings screen, press the left soft key [Options] key and select Add new to add a new profile.

Tools

▶ Editing a profile

1. Select a profile to edit.
2. Press the left soft key [Options], select Edit, and edit the selected profile.

▶ Deleting profiles

1. Press the left soft key [Options] and select Delete.
2. Select Yes to delete the selected profile.

▶ Selecting a server

Select a desired server profile to synchronise in the Settings screen and then press the 🔊 key.

8. Settings

8.1 Handset
8.2 Screen
8.3 Network
8.4 Access points
8.5 Security
8.6 Connectivity
8.7 Memory status
8.8 Language
8.9 Reset settings

ttings

Handset

Menu 8.1

You can change the format of the time and date display as well as the actual time and date using the Time settings menu.

Time

1. Select the Time item from the handset settings list and then press the 🔊 key.
2. Select the time format using the left and right navigation keys.
3. Input the current time using the numeric keys.
4. Press the 1 key to save the time.

Note

To change AM/PM, you have to press the right soft key [am/pm].

Date

1. Select the Date item from the handset settings list, and then press the key.
2. Select the date format using the left and right navigation keys.
3. Input the date using the numeric keys.
4. Press the ⏻ key to save the date.

Note

Please make sure that you set the exact date and time to ensure that all services operate correctly.

Auto update date/time

When Auto Update is configured to On, the time and date are automatically updated according to the current time zone. If Confirm first is selected, time and date update are confirmed before the automatic update.

Daylight saving

This function enables Summer time. Configuring Daylight saving to On immediately applies summer time (For example, if the current time is 04:53, summer time is then 05:53).

Handset information

This menu is used to view software version information.

Screen

Menu 8.2

In this menu, you can configure screen display options including Screen settings and themes.

Backlight

Use this to select whether or not the phone uses the backlight.

Item	Default Value
Main screen duration	Off5 seconds10 seconds15 seconds20 secondsOn
Main screen level	BrightNormal
Front screen duration	Off5 seconds10 seconds15 seconds20 seconds
Keypad duration	Off5 seconds10 seconds15 seconds20 secondsOn

Contrast

You can adjust the brightness of the main screen by using the left and right navigation keys.

Colour scheme

You can change the colour of the menu, soft key area, title bar area, and cursor by changing the menu colour.

You can select the menu colour from Blue, Violet, Orange, and Green.

Dialling font

You can configure the font size and colour of the numbers which appear in the home screen when you make a call.

Clock display

You can configure the font size and color of the clock displayed on the main screen. You can configure size to Do not show, Small, or Large. If Small or Large is selected, you can set the colour using the colour chart.

Menu style

You can configure the menu style to Icon style, Arc style or List style.

Screen theme

You can configure the background by themes.

▶ Home screen
You can select a wallpaper (animated or static) to display in idle mode.

▶ Incoming call

You can select an image to display when an incoming call arrives. The configuration is applied to both voice and video calls.

▶ Outgoing call

You can select an image to display when dialing a call. The configuration is applied to both voice and video calls.

▶ Sending message

You can select an image to display when sending a message.

▶ Switch on

You can select an image to display when turning on the handset.

▶ Switch Off

You can select an image to display when turning off the handset.

Front screen colour

You can configure the backlight colour of the front screen.

Greeting message

Set a message that is displayed when the handset is turned on.

Network

Menu 8.3

Network selection

▶ Automatic

This function automatically searches for the network and registers the handset to the network.

▶ Manual

This function enables you to search the network list and specify which network to attempt registration with.

Preferred list

You can select preferred lists to display it saved in the current USIM card and can edit the current preferred list.

Access points

Menu 8.4

This menu shows the Access Point List. Select the right soft key [Edit]. Access Point has the following items.

▶ Connection title: Profile Name
▶ Bearer: UMTS/GPRS/CSD
▶ Username: User name
▶ Password: Password
▶ APN: APN information of the service provider
To modify these settings please call Customer Service.

Security

Menu 8.5

You can set a PIN code. When it is activated, a window asking you to enter the PIN code appears when you turn on the handset so as to prevent unauthorized use of the handset.

PIN code request

You can activate a PIN (Personal Identification Numeric).

You can check the current status of configuration from the status bar.

1. Select PIN code request from the security menu and press the 🔊 key.

2. Configure this item to On or Off. If it is On, a PIN code will be required whenever the handset is turned on.

3. Input the current PIN code and press the key.

4. Entering an incorrect PIN code 3 times in the PIN code input window invalidates the PIN code. In this case, the PUK code must be entered in order to reset the PIN code.

5. The maximum number of attempts at PUK code input permitted is 10. Entering an incorrect PUK code 10 times will restrict use of the handset. In this case, ask Customer Service to unlock your handset.

Press the Back key in the PIN code input window to return to the previous step.

Change codes

You can change PIN, PIN2, the security code and the call barring password.

Note

If you change the code and then forget it you will need to contact your place of purchase to unlock it or solve this problem.

▶ PIN/PIN 2 code

This menu allows you to change the PIN or PIN2 code.

1. Select Change codes from the Security Settings List and press the 🔊 key.

2. Select PIN or PIN2 Code and press the 🔊 key.

Settings

1. Input the current PIN or PIN2 code, and then a new PIN or PIN2 code. Entering an incorrect PIN code 3 times invalidates the PIN code. In this case, you will need to enter the PUK or PUK2 code in order to reset the PIN code.
2. Entering an incorrect PUK code 10 times will restrict use of the handset. In this case, ask Customer Service to unlock your phone.

▶ Security code

This menu allows you to change the handset password. The maximum allowed numeric of attempts of security code input is not limited like PIN and PIN2.

▶ Barring password

This menu allows you to change the call barring password.

Handset lock

You can use security code to avoid unauthorized use of your handset.

When you switch on your handset, your handset will request security code always if you set phone lock to "Power on".

You can select the menu from When switching on, If USIM changed, Immediate, and None.

Connectivity

Menu 8.6

This function shows the status of the connection between other devices and this handset. You can select USB or IrDA.

Memory status

Menu 8.7

This menu is used to view the memory usage of the phone and USIM card. You can obtain information about the amount of memory used by the contacts, the calendar, to do, memos, secret memos and text message and multimedia messages.

Common memory

This function shows the status of the user memory of the handset.

Reserved memory

This function shows the available memory for the user.

USIM memory

This function shows the status of the USIM card user memory.

Language

Menu 8.8

This function allows you to set the language used in the handset.

Reset settings

Menu 8.9

This function allows you to restore factory settings.

Undertaking a reset will not remove any user content.

9. Applications

9.1 My applications
9.2 Connect
9.3 Settings

applications

This Handset supports JavaTM so that you can download games from Portal site, and play them on your handset.

Games can be downloaded from the game page of the portal site. Users can go to that page using the 🔒 key. The 🔒 key loads the portal page.

Users should select the game icon in the main page. In the game page, users can view the game list, select, and download games. Or, users can use the Download applications menu to go to the game page.

Note

Please note that downloading a game usually requires additional charge.

My applications

Menu 9.1

This menu is used to locate and run downloaded applications, e.g. games. Select Download to view the list of applications that have been downloaded to the handset.

Connect

Menu 9.2

This menu is used to go directly to the game download page, so that users can browse and select the games to download. This is possible because the Internet browser is launching with the game portal URL setting. This URL is specified in the Settings menu - Java Portal URL.

By default, the setting is on the game page of the portal (or, it can be left blank if the Operator does not specify the URL). If users want to change the default setting, the game portal URL can be modified in the Settings menu.

Settings

Menu 9.3

This menu is used to configure the Java Internet portal site to connect to in order to download applications.

If this menu is selected, the list of currently saved Java Internet portal sites and the configured displayed.

The first Settings screen: Shows the item list if there are saved items.

1. Select an item using the up or down navigation keys.
2. Press the ⏻ key to activate the selected item service.
3. Press the left soft key [Options] to display the popup menu. Select [Edit] from the popup menu to edit the contents of the selected item.

Press the left soft key [Options] to display the following popup menu items.

▶ Add new: New profile is added.
▶ Edit: You can edit the selected item.
▶ Delete: Deletes the selected item.
▶ View: Shows the contents of the selected item.

And so on...

Troubleshooting

Accessories

Glossary

oubleshooting

Please check to see if any problems you have encountered with the phone are described in this section before calling Customer Service.

Q How do I view the list of outgoing calls, incoming calls and missed calls?

A Press the key.

Q How do I view all numbers stored in memory?

A Press right soft key [Search].

Q Why is the connection inconsistent or not audible in certain areas?

A When frequency environment is unstable in a certain area, connection may be inconsistent and not audible. Relocate to another area and try again.

Q Why does the display not turn on?

A Remove and insert the battery, then attempt to power-on. If there is no change, fully charge the battery and try again.

Q Why is there an echo when a connection is made with certain telephones in a certain area?

A This is called the ‘Echo Phenomenon’, where it occurs if connection volume is too high or caused by special properties (semi electronic telephone exchange) of the equipment on the other end.

Q Why does the handset heat up?

A The phone may get hot when there is a very long call duration or when games are played or when using the browser. This has no effect upon the life of the product or performance.

Q Why is there no ringtune, but only a blinking LCD screen?

A Phone may be set to 'Vibrate only' or in 'Silent' mode. In the Profiles menu, please select 'Normal' or 'Outdoor.

Q Why does the battery life get shorter in standby mode?

A The battery is worn out. As time passes, the battery life gradually becomes shorter. If the battery lasts about half the amount of time as when first purchased, it's time to purchase a new battery.

Q Why does the battery run out so quickly during normal use?

A It is due to the user environment or a large number of calls or weak signal.

Q Why is no number dialed when you recall a Contacts entry?

A Check that the number has been stored correctly by using the Contacts feature. Restore them, if necessary.

Q Incoming calls do-not reach me.

A Is your phone switched on (pressed for more than three seconds)? Are you accessing the right cellular network? Or, you may have set an incoming call barring option.

Q I cannot find the lock, PIN, or PUK code. What is my PIN?

A The default lock code is '0000'. If you forget or lose the lock code, contact your phone dealer. If you forget or lose a PIN or PUK code, or if you have not received such a code, contact Customer Services.

Q What happens to the handset if it is dropped?

A The handset could power off or reset, but this does not necessarily imply any permanent damage.

ecessories

There are a variety of accessories available for your mobile phone.

You can select these according to your personal communication requirements.

Consult your local dealer for availability.

Charger

This adapter allows you to charge the battery.

It takes 3.5 hours to charge a completely discharged battery.

Illustration of a connected electrical plug with a cable (no text or symbols)

Europe

Headset

Connects to your phone, allowing hands-free operation. Includes earpiece, microphone, and integrated call answer/termination button.

Illustration of a pair of earphones with connectors and earplids (no text or symbols)

USB cable

Connects your phone to a PC.

Illustration of a USB cable with two connectors (no text or symbols)

Neck strap

Line drawing of a rope tied with a clip (no text or symbols)

Battery

Blank white rectangular object with a gray base, no visible text or symbols

CD

Note

• Always use genuine LG accessories. Failure to do this may invalidate your warranty.
- Accessories may be different in different regions; please check with our regional service company or agent for further enquiries.

ossary

2G

Second Generation wireless communication system. 2G system supports low quality voice and low-rate packet-data service. 2G refers to GSM in European countries, and CDMA in America.

3G

Third Generation wireless communication system. 3G means next generation wireless communication system developed based on the second generation wireless communication systems. 3G system supports real-time communication service and high-rate packet-data service. 3G refers to UMTS developed based on GSM in European countries.

Access point

Access point refers to a point through which users can connect to the network so that the users can use the network services.

AMR

Adaptive Multirate codec. A voice codec developed by ETSI for GSM. AMR supports 8 coding rates (from 4.75 to 12.2Kbps) so as to adaptively provide the quality of voice service in various radio channel conditions.

Download

Download means transmitting files from one computer system to another.

Downloading usually means transmitting files from a big system to a small system.

IrDA (Infrared Data Association)

A standard defined by the IrDA consortium. It specifies a way to wirelessly transfer data via infrared radiation.

The IrDA specifications include standards for both the physical devices and the protocols they use to communicate with each other.

Java™

Programming language generating applications that can run on all hardware platforms, whether small, medium or large, without modification. It has been promoted for and geared heavily to the Web, both for public Web sites and Intranets. When a Java program runs from a Web page, it is called a Java applet. When it is run on a mobile phone or pager, it is called a MIDlet.

Line Identification Services (Caller ID)

Service allowing subscribers to view or block the telephone numbers of callers.

MIDI

Musical Instrument Digital Interface. A file format to save digitized musical instrumental data. The original meaning of MIDI, or Music Instrument Digital Interface is a protocol to exchange data between a computer and electric instruments.

MMS (Multimedia Message Service)

A message service for the handset environment, standardized by the WAP Forum and the 3rd Generation Partnership Program (3GPP). For phone users, MMS is similar to Short Message Service (SMS)-it provides automatic, immediatedelivery of user-created content from phone to phone. The message addressing used is primarily phone numbers, thus the traffic goes from phone to phone. MMS also provides support for e-mail addressing, so that messages can also be sent by email. In addition to the text content of SMS, MMS messages can contain still images, voice or audio clips, and later also video clips and presentation information.

MP3

A file format to provide high-quality audio whose quality is equal to that of CD. MP3 is a digital audio standard developed by MPEG, or Moving Picture Experts Group and is widely used for digital audio files.

MPEG4

Motion Picture Experts Group 4. A digital video standard developed by MPEG, or Moving Picture Experts Group. MPEG4 compresses video data so that a large video file can be transmitted, and saved more easily. MPEG4 is suitable especially for mobile environment.

Multimedia

Multimedia means media that include various media data such as voice, character string, image, and video data. Currently, the meaning of multimedia includes services provided through multimedia.

Multiparty Calls

Ability to establish a conference call involving up to five additional parties.

Roaming

Use of your phone when you are outside your home area (when traveling for example).

SDN (Service Dial Number)

Telephone numbers supplied by your network provider and giving access to special services, such as voice mail, directory inquiries, customer support and emergency services.

SMTP

Simple Mail Transfer Protocol. A protocol to transfer e-mails between computers over the Internet. SMTP defines the format of control messages between computers, and interaction procedures between them to send e-mails.

Sync

Sync means synchronizing PIM (Personal Information Management) data such as contact information, schedule, to-do, and memo with a PC or an external server.

UMTS

Universal Mobile Telephony System. UMTS refers to asynchronous 3G wireless technology of WCDMA that is developed based on GSM, the 2G wireless technology.

USB

Universal Serial Bus. A bus type interface that provides fast and flexible connection between devices and a computer.

USIM

Universal Subscriber Identity Module. An IC card used for UMTS the shape of which is the same as that of the SIM card of GSM. USIM is provided by network operator, and carries the authentication and service grade data for the network operator as well as user-specific data.

Video call

A communications service that enables users to talk watching each other over a 64Kbps data channel. Real-time video call service is a new type of service provided by WCDMA wireless communication system that is developed based on GSM+GPRS technology.

Voice mail

Computerised answering service that automatically answers your calls when you are not available, plays a greeting and records a message.
