Product Type	DVD Player
Brand	Logik
Model	L10SPDVD17
Dimensions (W x D x H)	360 mm x 250 mm x 45 mm
Weight	1.2 kg
Power Supply	AC 100-240V, 50/60 Hz
Power Consumption	10 W (typical)
Disc Formats Supported	DVD, DVD±R/RW, CD, CD-R/RW, MP3, JPEG
Video Outputs	HDMI, Composite (RCA)
Audio Outputs	Coaxial Digital, Stereo RCA
Progressive Scan	Yes
Playback Features	Zoom, Repeat A-B, Slow Motion
Remote Control	Included (batteries not included)
Maintenance	Clean with a soft, dry cloth. Do not use liquids or abrasives.
Safety Precautions	Do not expose to moisture or extreme temperatures. Use in a well-ventilated area.
Spare Parts / Repairability	Spare parts are available through authorized service centers. For repairs, contact Logik support.

Frequently Asked Questions - L10SPDVD17 Logik

How do I connect the DVD player to my TV?

Use the HDMI cable for best quality. Alternatively, connect the composite (yellow, red, white) RCA cables to the corresponding inputs on your TV.

The disc won't play. What should I check?

First, ensure the disc is inserted correctly with the label facing up. Clean the disc with a soft cloth from the center outward. Verify that the disc format is compatible (DVD, CD, etc.).

Can I play MP3 files on this player?

Yes, the player supports MP3 files burned on CD-R/RW or DVD±R/RW discs. Ensure the files are in a standard format and the disc is finalized.

How do I use the remote control?

Insert two AAA batteries (not included) into the remote. Point it at the player's infrared sensor. Make sure there are no obstacles between the remote and the player.

What does 'No Disc' mean on the display?

This message appears when no disc is detected. Insert a compatible disc properly. If the issue persists, try cleaning the disc or the player's lens with a lens cleaning disc.

Is the player region-free?

No, this player is set to Region 2 (Europe) for DVDs. Other region discs may not play. Check the DVD region code before purchasing.

How do I switch the audio output to stereo?

Use the Audio Setup menu on the player. Select 'Audio Output' and choose 'Stereo' instead of 'Bitstream' or 'Surround' if needed.

The player is not powering on. What can I do?

Check that the power cord is securely connected to both the player and the wall outlet. Try a different outlet. If it still doesn't work, the fuse may be blown; contact support.

Can I use this player to view photos?

Yes, the player can display JPEG images from a disc. Insert a disc containing JPEG files and select 'Photo' from the menu.

How do I clean the DVD player?

Unplug the player before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use any liquids or spray cleaners. Clean the disc tray gently with a dry cloth.

USER MANUAL L10SPDVD17 Logik

LOGIK | Instruction Manual

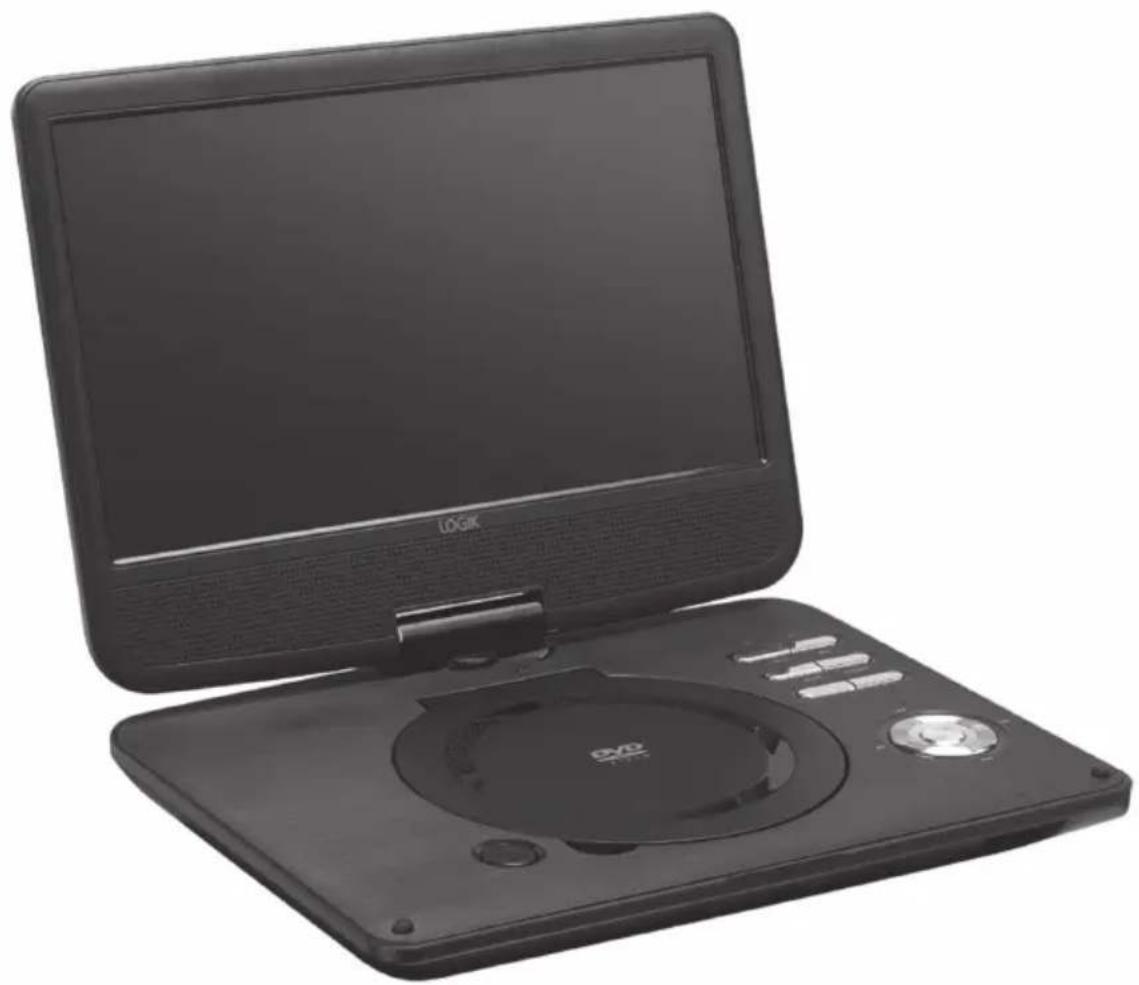

10" Portable DVD Player

L10SPDVD17

Black LOGIK portable electronic device with open lid and open base (no visible text or symbols on device body)

Safety Warnings....5

Unpacking....7

Product Overview......8

Front View....8

Right Side View....9

Remote Control....10

Removing the Plastic Strip from the Remote Control....12

Battery Installation for the Remote Control....12

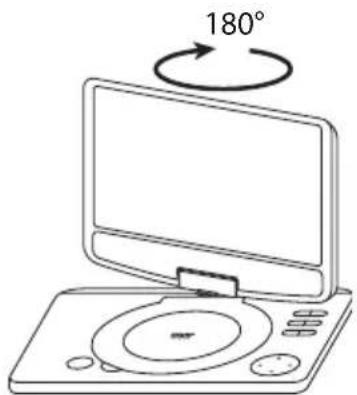

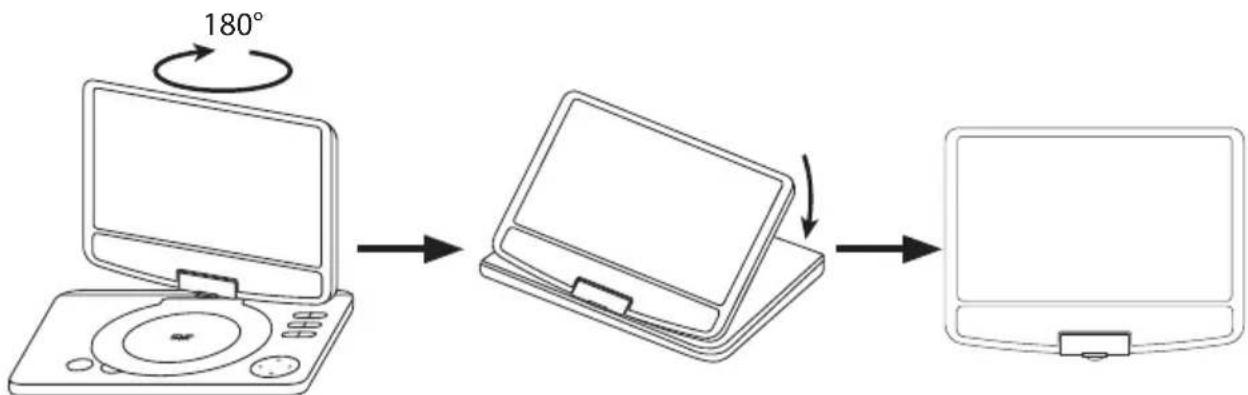

How to Swivel the Display....13

Swivel Mode 13

Handheld Mode 13

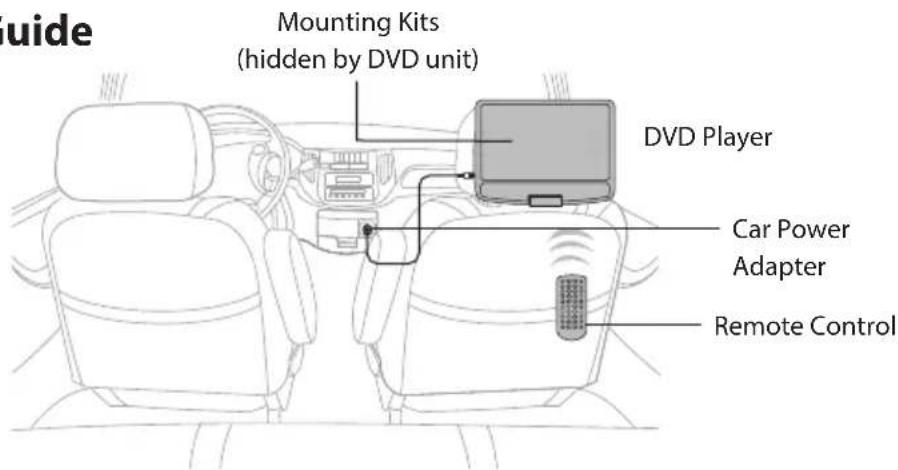

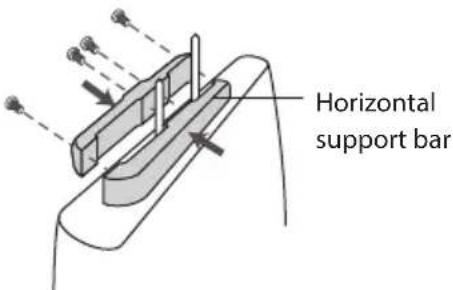

Mounting the DVD player in a Car....14

Installation Guide....15

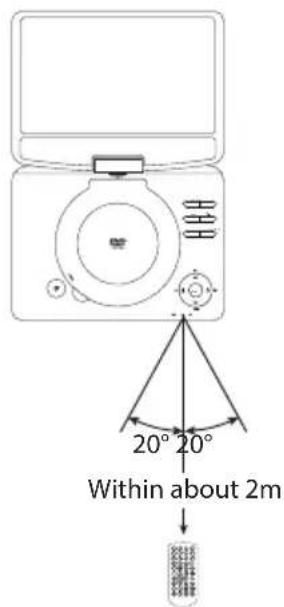

Remote Control Operation Range....16

Power Supply 16

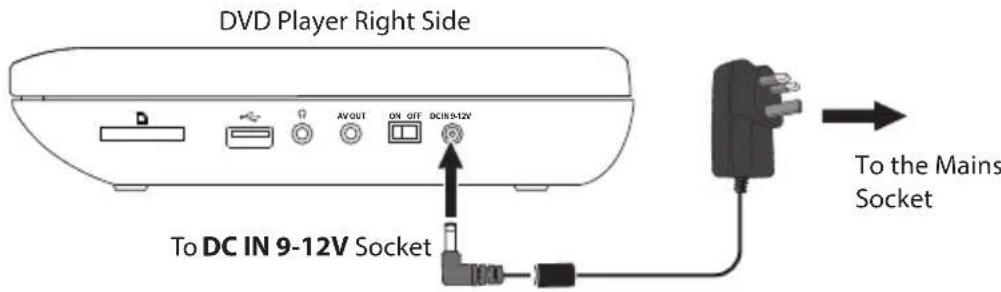

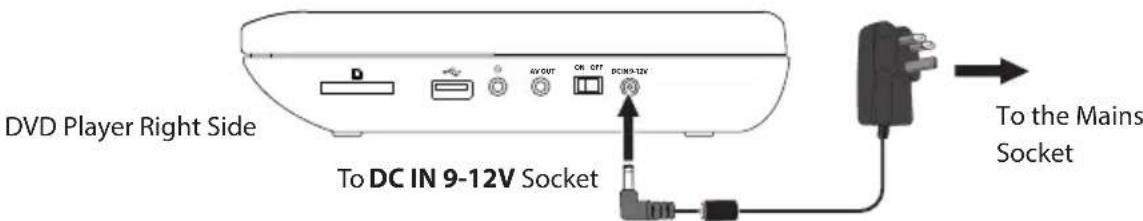

Mains Power 16

Charging the Battery 17

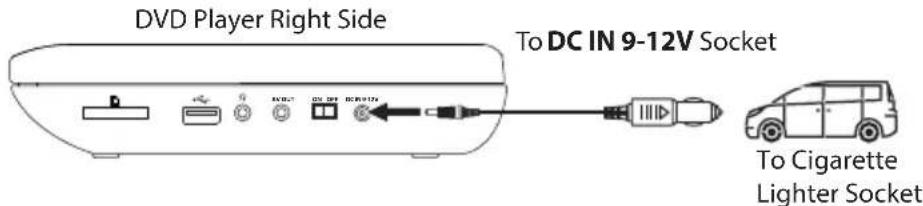

Using the Car Power Adapter (for in-car use) 17

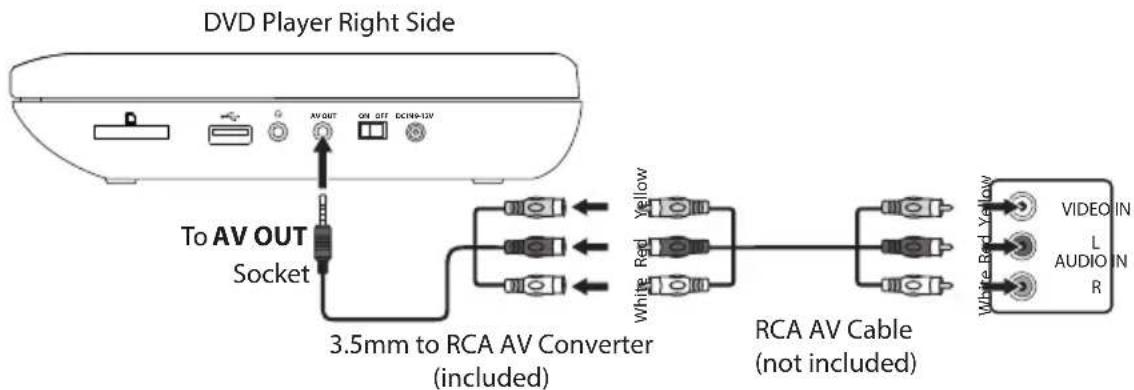

Connections 18

Connecting to a TV....18

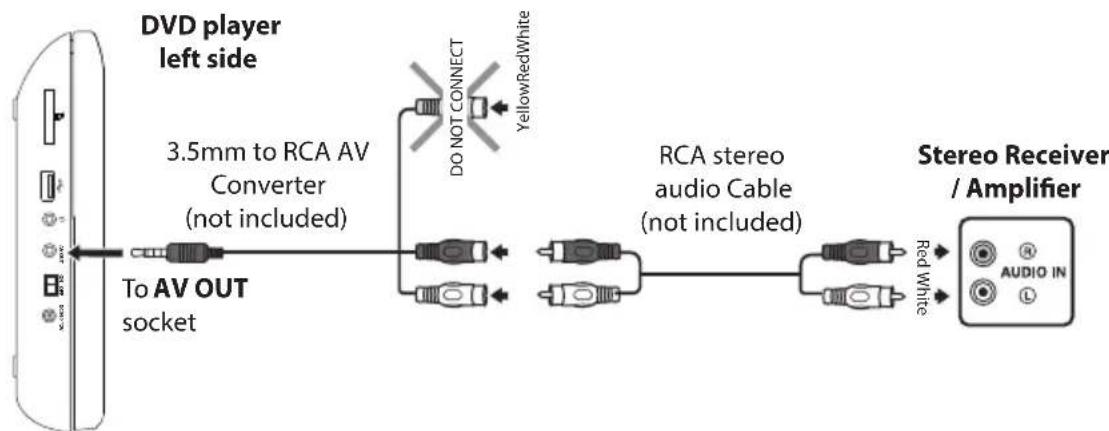

Connecting to a Multi-channel Audio Receiver....18

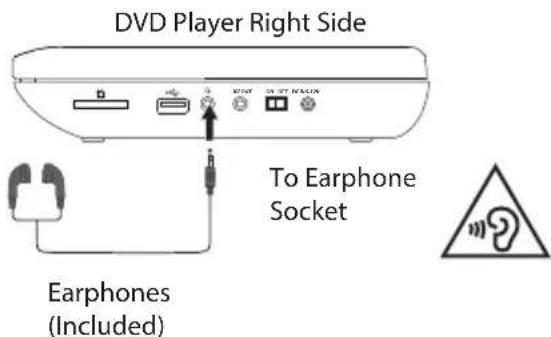

Using Earphones....18

Using a USB Device....19

General Operation....19

Compatible Disc Types 20

Supported Formats 20

Region Code 21

Turning On the DVD Player 21

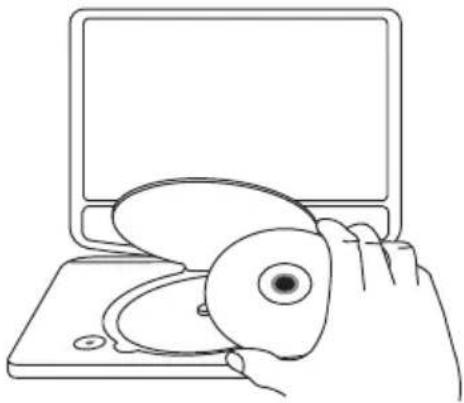

Basic Playback....21

Basic DVD Playback....22

Pausing Playback 22

Selecting Chapter / Title time / Chapter time (for DVD) 22

Selecting Disc GOTO / Track GOTO / Select Track (for CD) 22

Stop Playback....23

Previous and Next....23

Fast Forward and Fast Reverse....23

Repeat Mode 23

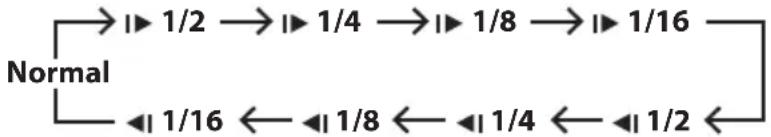

Slow 24

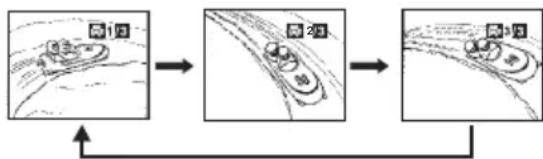

Angle Selection 24

Audio Channel 24

Subtitle Language 24

Info 24

Programmable Memory 25

Zoom Selection 25

Title 25

Menu 25

Customising the General Settings....25

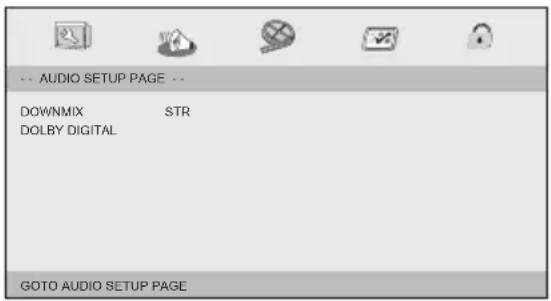

Customising the Audio Settings....27

Customising the Video Settings 28

Customising the Preferences....28

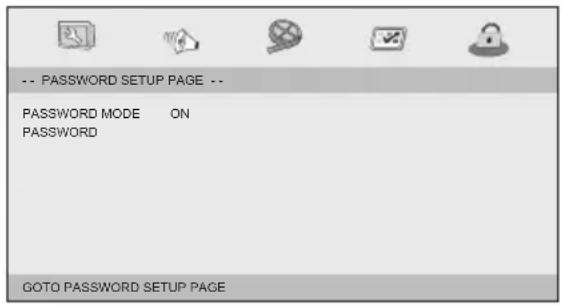

Customising the Password Settings....30

Maintenance ....31

Hints and Tips ....32

Specifications....34

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains adapter and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and not subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas / electric fires.
• Avoid exposure to direct sunlight and other sources of heat.
• Attention should be drawn to the use of apparatus in moderate climates.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit. Do not operate the unit with wet hands, near water or other liquid.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
• A minimum distance of 5cm around the unit should be maintained to allow for sufficient ventilation.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting / disconnecting other devices or moving the unit.
• Unplug the unit from the mains socket during a lightning storm.
• In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains plug from the mains socket.

Mains Adapter Cable

- Make sure the unit or unit stand is not resting on top of the mains adapter cable, as the weight of the unit may damage the cable and create a safety hazard.

Mains Adapter

- The mains adapter will continue to draw electricity from the mains supply when plugged in the mains socket. In the interests of safety and to avoid unnecessary energy consumption, never leave the adaptor plugged in the mains socket while unattended for long periods of time. Disconnect the adapter from the power supply.

Use only power supplies listed in the user instructions.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the working of the unit, and cause a distorted sound.

Earphones

- Listening to loud sounds for prolonged periods of time may permanently damage your hearing.

- Before putting on earphones, turn the volume down then put the earphones on and slowly increase the volume until you reach a comfortable listening level.

Batteries

• Batteries used in the unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the unit. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.
• Do not expose the battery to direct sunlight or sources of excessive heat.
• Attention should be drawn to the environmental aspects of battery disposal.

Supervision

• Children should be supervised to ensure that they do not play with the unit.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

Class 1 Laser Product

- This unit utilises a laser. Use of controls, adjustments or performance of

procedures other than those specified herein may result in hazardous radiation exposure.

• Before moving the unit, ensure the disc tray is empty.
  • Always remove the disc when the unit is not in use.
• Failure to do so will risk severely damaging the disc and the unit.
• Do not stack devices; heat from other devices may affect the performance of the unit.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the power supply before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
  • Do not use liquids to clean the unit.

Use only power supplies listed in the user instructions.

Adapter Model: PEA-090100VG

Made By: Shenzhen Mass Power Electronic Limited

Thank you for purchasing your new product.

These operating instructions will help you use it properly and safely. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a portable radio with front panel and control buttons (no text or symbols)

Simple line drawing of a cord with a cable and a separate electrical plug (no text or symbols)

DVD Player Mains Adapter Remote Control Earphones

Coiled electrical connector with three terminal blocks (no text or symbols visible)

AV Converter

Technical line drawing of a mechanical clamp and housing component (no text or symbols)

Support Screws × 4 (ø4 × 25mm) Car Power Adapter 3.5mm to RCA

Instruction Manual

Quick Start Guide

If items are missing, or damaged please contact Partmaster (UK only).

Tel: [phone] for assistance.

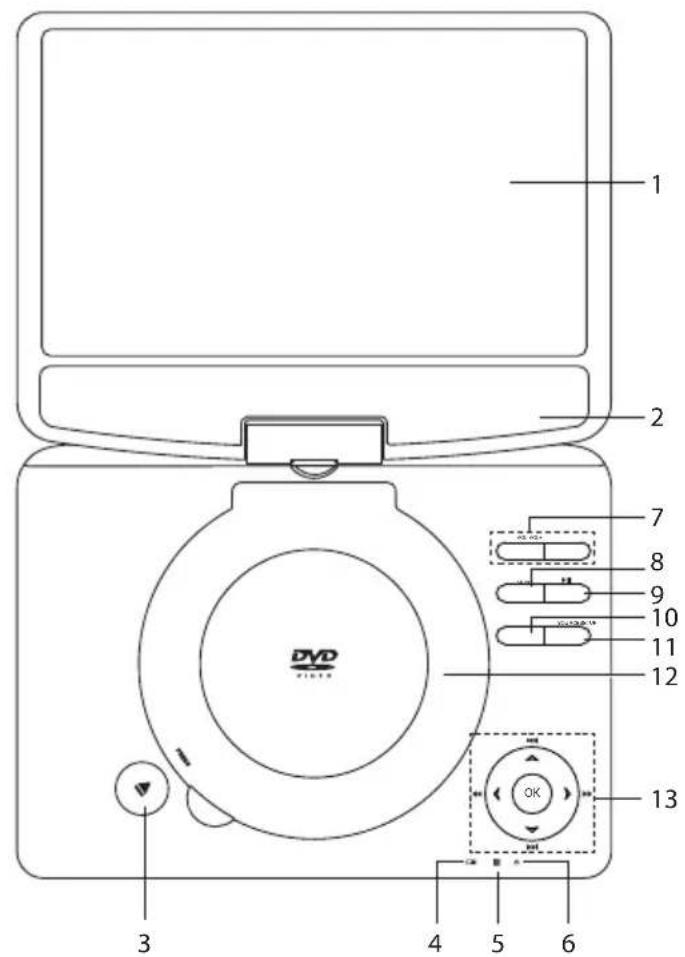

Front View

1. LCD Display
2. Speakers
3. OPEN Button

Open the disc tray cover.

1. Battery Charging Indicator

• Flash when the battery is charging.
• Light up green when the battery is fully charged.

1. Remote Sensor

Receive signals from the remote control.

1. Power Indicator

Light up red when the unit is turned on.

1. VOL-/VOL+ Button

Increase or decrease the volume.

1. MENU Button

Enter and exit the main DVD menu.

1. PLAY / PAUSE Button

Start/pause/resume playback of a disc.

1. SETUP Button

Press to display/exit from GENERAL SETUP PAGE.

1. SOURCE Button

Select the desired input signal source: DVD / MEDIA (USB device / SD/MMC card).

1. Disc tray cover

2. /Button

Move forward/backward to the previous chapter/track/title on a disc.

Fast forward/rewind playback at 5 speeds ( × 2, × 4, × 8, × 16, × 32).

Right Side View

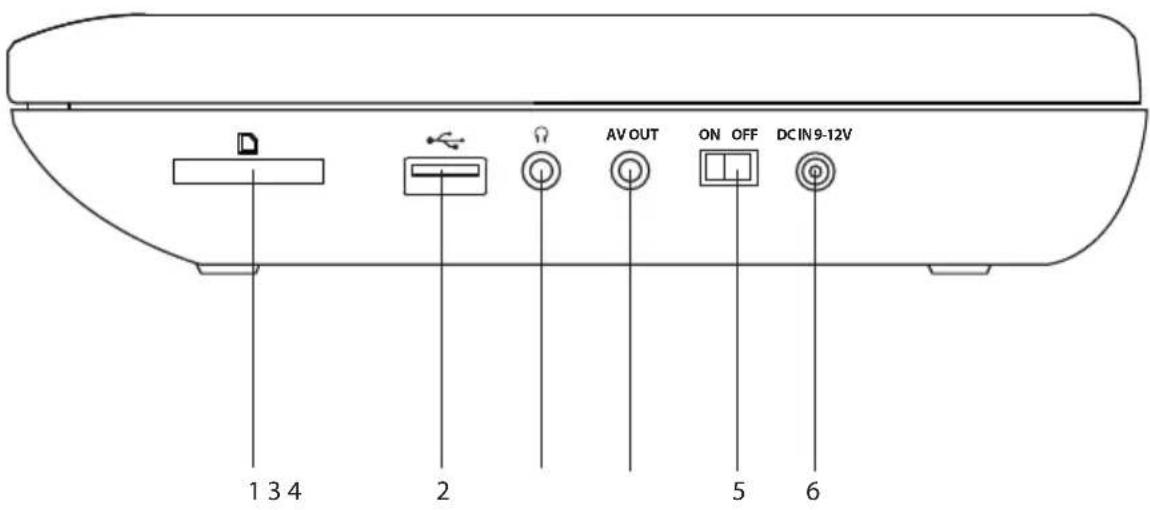

1. SD/MMC Card Slot
2. USB Slot
3. Earphones Socket
4. AV OUT Socket
5. ON/OFF Switch
6. DC IN 9-12V Socket

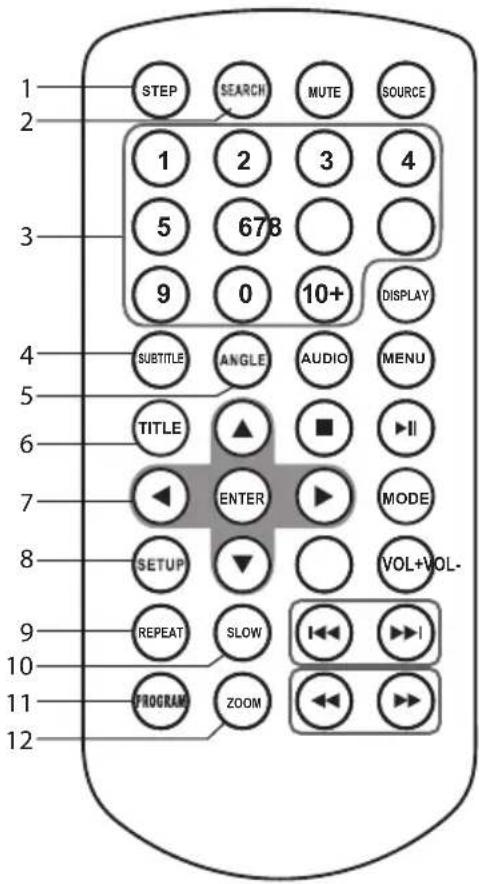

1. STEP Button

Frame Advance in DVD mode.

2. SEARCH Button

Search and start playback from a selected point on the disc.

3. 0-9, 10+ Number Buttons

Create programmes or locate a title/chapter/track or specific time.

4. SUBTITLE Button

Select a subtitle language programmed on a DVD (if available).

5. ANGLE Button

Switch between multiple camera angles when the DVD you are playing has been programmed with multiple camera angles.

6. TITLE Button

Return to DVD Title Menu.

7. Cursor Buttons

Move between selections on a menu screen and adjust certain settings.

ENTER Button

Confirm selections on a menu screen.

8. SETUP Button

Display the SETUP menu.

9. REPEAT Button

Repeat a DVD chapter or title.

Repeat a CD or MP3 track or the entire disc.

10. SLOW Button

Press repeatedly to enter slow playback, and cycle between different speeds.

11. PROGRAM Button

Programme the playback of favourite titles/chapters/tracks from the disc in DVD mode.

Press repeatedly to select the slide show mode for playing JPEG pictures.

12. ZOOM Button

- Zoom in during DVD playback. (2×, 3×, 4×, 12 ×, 13 ×, 14 ×)

• Activate zoom feature in USB mode.

13. SOURCE Button

Select from amongst the different input sources (DVD / USB)

14. MUTE Button

Mute or restore your DVD sound output.

15. DISPLAY Button

Display the playtime and show status information on the screen.

16. MENU Button

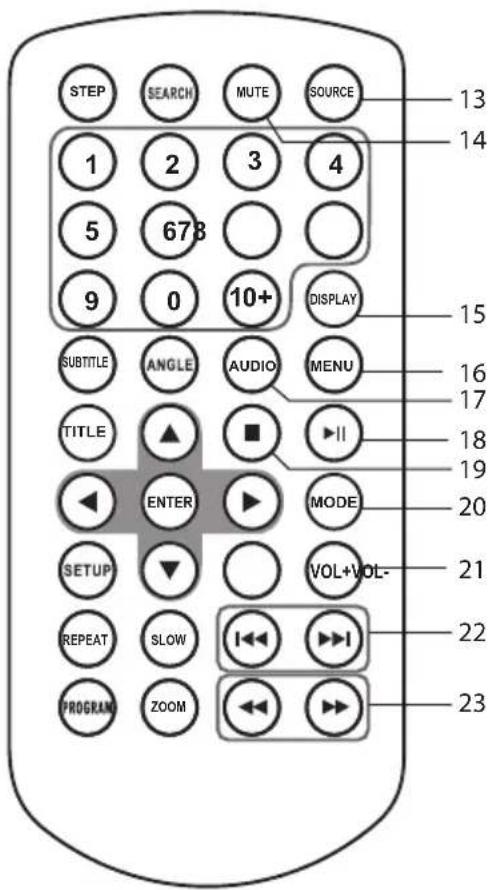

Enter and exit the main DVD menu.

17. AUDIO Button

Select one of the audio sound tracks on a DVD (if more than one is available) or select the audio output mode on a CD.

18. ▶Button

Start playback or pause.

19. STOP Button

Stop playing a disc.

20. MODE Button

Adjust BRIGHTNESS, CONTRAST, HUE and COLOUR of the LCD display.

21. VOL + / - Button

Adjust the volume.

22. Buttons

Move forward/backward to next/previous chapters/tracks.

23. Buttons

Fast forward/rewind playback at 5 speeds ( × 2, × 4, × 8, × 16, × 32).

Removing the Plastic Strip from the Remote Control

Remove the plastic strip from the battery if the battery is being used for the first time. It is located at the bottom end of the remote control.

Diagram of a hand holding a curved object with an arrow indicating direction (no text or symbols)

Battery Installation for the Remote Control

The remote control requires a CR2025, 3V Lithium battery.

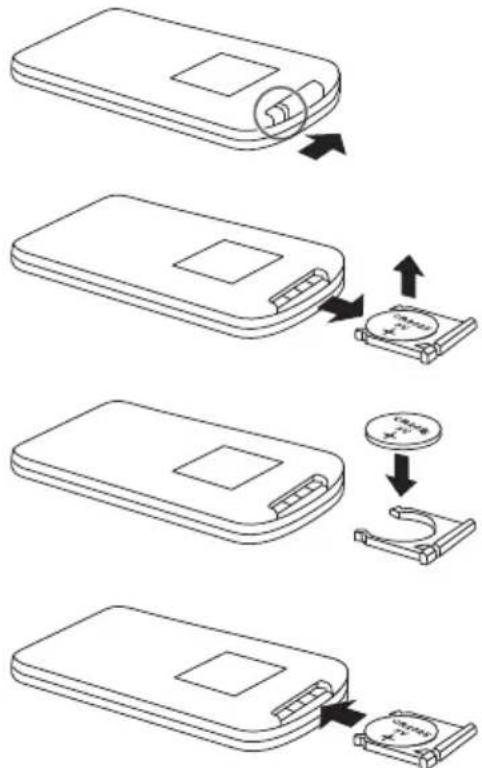

1. Slide and hold the battery release tab in the direction of the arrow.

2. Pull out the battery holder and remove the old battery.

3. Replace with a new one battery.

4. Insert the battery holder back into the remote control.

Handling the Battery

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.
• Install the battery correctly by following the polarity (+ and -) indications in the battery compartment.
• When the battery is exhausted, the remote control will not function.
  • Only use the battery type indicated in this manual.

- Do not dispose of the used battery as domestic waste. Dispose of it in accordance with the local regulations.

- Small button cell batteries such as the one used in the remote control are easily swallowed by young children and this is dangerous. Keep loose button cells away from young children and make sure that the battery holder tray is secure in the remote control. Seek medical advice if you believe a cell has been swallowed.

Handling the Remote Control

• If you are having difficulty with the tab, use a paper clip to help squeeze the release tab.
• Do not drop or cause impact to the remote control.
• Do not spill water or any liquid on the remote control.
• Do not place the remote control on a wet object.
• Do not place the remote control under direct sunlight or near sources of excessive heat.
- Remove the battery from the remote control when not in use for a long period of time, as it could cause corrosion or battery leakage and may result in physical injury and/or property damage including fire.

How to Swivel the Display

Swivel Mode

This product has a swivel display. The display can swivel 180^ clockwise.

Handheld Mode

Swivel the display 180^ clockwise and then fold it down with the display facing out.

Mounting the DVD player in a Car

Use the supplied mounting kit to install the DVD player on the back of the vehicle's headrests.

1. Align the angled support's bolt to the screw hole on the back of the DVD unit. Turn the bolt clockwise and secure the support.

1. For car headrests which can be removed, use the following method:

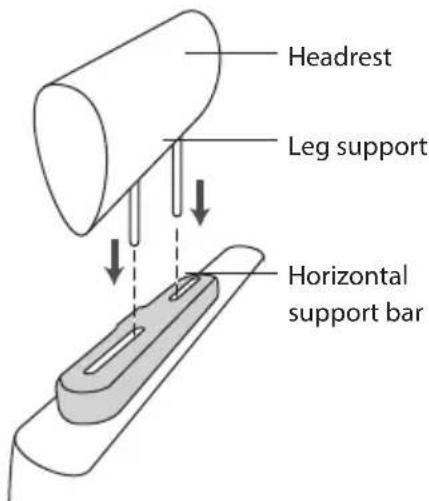

Lift the headrest off its leg supports. Align the horizontal support with the headrest leg slots and ensure the horizontal support rests securely on the top of the car seat. Reattach the headrest.

1. For car headrests which cannot be removed, use the following method to secure the car mount:

Unscrew the screws holding the horizontal mounting bar together. Slip both halves of the mounting bar around the headrests' leg supports. Screw in the screws, loosely. Ensure that the mounting bar is level. Tighten the screws.

If the set of 4 × screws ( 4 × 20mm ) is not long enough to secure the horizontal support bar to leg supports, please use the longer set of screws ( 4 × 25mm ).

1. Grip the DVD firmly with both hands and slot the angled support firmly into the support bar. It will click. Ensure the entire unit is secure.
2. Adjust the angle of the DVD unit, then secure by tightening the bolt on the right.
3. To remove the DVD from the horizontal support bar, support the DVD unit with one hand. With the other hand, firmly squeeze the release buttons either side of the angled support and pull.

Diagram of a mechanical latch or bracket assembly with a rotating handle (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with a rotating arrow indicating rotation (no text or symbols)

Diagram showing a mechanical assembly with a bracket and a handle, no text or symbols present

• This unit should never be used by the vehicle's driver or left unsecured in the vehicle while driving.
• If this unit is being used in your vehicle, be sure that it is securely fixed to the headrests' leg supports or held safely, and does not obstruct any safety device, including air bags or seat belts, or it may cause injury in case of accidents. Ensure all rear passengers are correctly restrained when this product is in use in the car.
• All passengers should always wear seat belts when using this unit in a moving vehicle.
  • If in doubt, please contact your vehicle manufacturer for further advice.

Installation Guide

Remote Control Operation Range

Point the remote control at the unit no more than 2 metres from the remote control sensor and within a 40^ arc of the front of the unit. The operating distance may vary depending on the brightness of the interior environment.

Power Supply

Mains Power

• This unit operates with a DC 9V 1.0A mains adapter (included).
- Connecting the unit to any other power source may damage to the unit. Unwind the mains adapter to its full length. Connect the mains adapter to the DC IN 9-12V Socket on the right side of the unit and then to a mains socket. Make sure the mains adapter is fully inserted into the mains socket. The unit is now connected and ready to use.
• To switch the unit off completely, unplug the mains adapter from the mains socket.

• Turn off the unit before unplugging the mains adapter from the unit to avoid damaging the unit.
• When the unit is not going to be used for a long period of time, disconnect the mains adapter from the mains socket.
• The mains socket must be located near the unit and should be easily accessible. If a malfunction occurs, disconnect the plug from the mains socket at once.
• When the mains adapter is plugged in, the unit is not completely disconnected from the mains power source, even when the unit is turned off.

Charging the Battery

1. Connect the mains adapter (included) to the DC IN 9-12V socket at the right side of the unit and then connect the mains adapter to a mains socket.

a) The Battery Charging Indicator flashes to indicate that the battery is charging. When the battery is charged to full capacity, the Battery Charging Indicator lights up green.

1. Unplug the mains adapter. The battery is now fully charged and the unit is ready for use.

* Battery Operation time using a fully charged battery = Approx. 2 hours

• The battery is partially charged at shipment. We suggest that for first time use fully charge the battery. It may take up to 4 hours to fully charge the battery.
• Every time you see the Low Battery indicator on the screen, you must connect your mains adapter to the unit and the mains socket. The battery will now start recharging.
• The battery will charge at a slower rate than normal when the DVD player is in use.
  • It is recommended that the unit is turned off while charging the battery.

Using the Car Power Adapter (for in-car use)

The 12V car power adapter (included) allows the unit to be used with vehicles that have a 12V negative ground electrical system.

• Before plugging in this car adapter, please check the output rating of your car cigarette lighter first.
  • Disconnect the car power adapter when not in use.
• Use the provided 12V car power adapter only. Using other car power adapters could damage the unit.
• In the interest of traffic safety, do not operate this unit or view videos while driving.
• Make sure the unit is securely fastened to prevent it from falling or flying through the air in the event of an accident.
• When the inside of the cigarette lighter socket is dirty with ash or dust, the plug section may become hot due to poor contact. Be sure to clean the cigarette lighter socket before use.
  • After use, disconnect the 12V car power adapter from both the unit and the cigarette lighter socket.

Connecting to a TV

If your TV has audio/video inputs, you can connect the unit to your TV using a 3.5mm RCA AV Cable (not included).

Watching a DVD on your TV

1. Turn on the unit.

2. Turn on the TV and follow the instructions included with your TV to switch it to AV mode.

Connecting to a Stereo Receiver or Amplifier

Using Earphones

• Turn down the volume before connecting, and then adjust the level.
- When earphones are connected, no sound will be emitted from the unit's speaker.

Avoid listening to sound at levels which may be harmful to your ears.

General Operation

You can play or view picture files (JPEG) or music files (MP3) from a USB device or SD/MMC card.

Step Action DVD Unit / Remote Control
1	Connect the USB device or or SD/MMC card to the respective slot.
2	Press SOURCE to access the data in the device	OR
3	Press ▲ to select MEDIA.	OR
4	Press▶	OR
5	Press ▲ to highlight USB.	OR
6	Press▶ to start playback	OR
7	To stop USB device playback, press■

8	Press SOURCE.		OR
9	Press SOURCE to access the data in the device. Press ▲ to highlight DVD, and the press ▶ to confirm.		OR
10	The DVD player will return to disc mode automatically.	-

Compatible Disc Types

Disc Types Disc Logo Recorded Content
DVD-VIDEO (Digital Versatile Disc) AUDIO + VIDEO
DVD±RW (Audio/Video format or JPEG files)		AUDIO (MP3) + JPEG
DVD±R (DVD Recordable - Audio/Video format or JPEG files)		AUDIO (MP3) + JPEG
CD-R (CD Recordable - Audio/Video format or JPEG files)		AUDIO (MP3) + JPEG
CD-RW (CD-Rewritable - Audio/Video format or JPEG files)		AUDIO (MP3) + JPEG
AUDIO-CD (Compact Disc Digital Audio) AUDIO

Supported Formats

JPEG

• The file extensions must be .jpg and not .jpeg
• Picture encoding must comply with the JPEG/ISO format.

Some recorded files may not playable due to the type and format of disc or condition of the recording.

Region Code

Both the DVD player and the discs are coded by region. These regional codes must match in order to play the disc. If the codes do not match, the disc will not play.

The Region Number for this DVD player is described at the bottom of the DVD player.

Disc Type DVD-VIDEO

Region code

Turning On the DVD Player

1. Slide the ON/OFF switch on the unit to ON position on the right panel to turn the DVD player on.
2. The LOGIK DVD logo (start-up picture) will appear on the screen and the unit will start loading the disc automatically (if available).
3. After use, slide the ON/OFF switch on the unit to OFF position on the right panel to turn the DVD player off.

Basic Playback

Ensure that the screen protection film is removed before use.

Some DVDs are produced in a manner that allows for specific or limited operation during playback. Therefore, this unit may not respond to all operating commands. This is not a defect.

Please refer to the instructions accompanying the specific DVD in question for more information about the options available on that DVD.

"may appear on the screen during operation." means that the desired operation is not permitted by the unit or disc.

Basic DVD Playback

1. Make sure the unit is either plugged into the power socket through the mains adapter or the battery is fully charged.

2. Slide the ON/OFF switch on the unit to the ON position.

3. Press the OPEN button on the unit to open the disc cover.

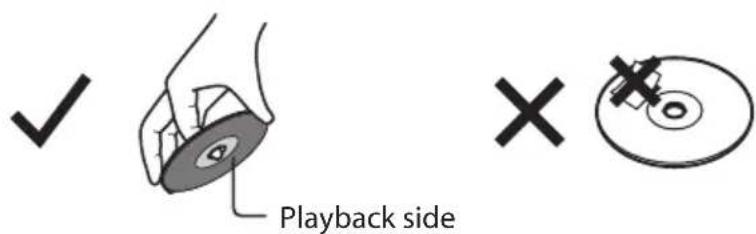

4. Hold the disc by its edges and carefully place onto the disc holder with the label side facing up. Gently push the disc down until you hear a "click".

5. Close the disc cover. The unit starts playback if the disc does not have any menus recorded on it. If the disc has one or more titles recorded on it, a menu screen will appear on the screen.

6. To play a title, press the ◀ button on the unit or the remote control or press the / 0-9 / 10+ buttons on the remote control to highlight the track title and then press the ENTER button on the unit or the remote control to confirm.

Line drawing of a hand holding an open CD to open a laptop (no text or symbols)

• The screen saver will automatically activate after 5 minutes of no activity. Press any button to exit the screen saver.
• If there is no-activity after 20 minutes, the unit will automatically enter standby mode.

Pausing Playback

1. During playback, press the button on the unit or the remote control to pause playback.
2. Press the button again on the unit or the remote control to resume normal playback.

Selecting Chapter / Title time / Chapter time (for DVD)

1. During Playback, press the SEARCH button repeatedly on the remote control to display the disc information text line for Chapter / Title time / Chapter time.
2. Press the 0-9, 10+ buttons on the remote control to enter valid Chapter / Title time / Chapter time number. The playback skips to the selected Chapter / Title time / Chapter time.

Selecting DISC GOTO / TRACK GOTO / SELECT TRACK (for CD)

1. During Playback, press the SEARCH button on the remote control to display the disc information text line for DISC GOTO / TRACK GOTO / SELECT TRACK.
2. Press the 0-9 buttons on the remote control to enter valid Disc time / Track time / Track number. The playback skips to the selected Disc time / Track time / Select track.

Stop Playback

1. Press the button on the remote control to stop playback where you stopped watching. The display will show "With some discs, the unit can recall the stopped location, such as on DVDs.
2. Press the ▶ button on the unit or the remote control to resume playback from the location where playback was stopped or from the beginning of the disc.
3. Press the button on the remote control twice to stop completely.

Previous and Next

1. During playback, press the button on the remote control or button on the unit to go back to the start of the previous chapter. Each press of this button will skip a chapter until the start of the disc.
2. Each press of the ▶ button on the remote control or button on the unit during playback will skip the current chapter and play the next one.
3. For audio CDs, use the 0-9, 10+ buttons on the remote control to play the desired track immediately.

Fast Forward and Fast Reverse

1. Press the ◀ buttons on the remote control or buttons on the unit to fast reverse / fast forward through the disc. Each time the ◀ buttons on the remote control or ▶ buttons on the unit are pressed, the fast reverse / fast forward motion speed changes. There are 5 speeds: ×2, ×4, ×8, ×16 and ×32.

2. Press the ▶ button on the unit or the remote control to resume normal playback.

Repeat Mode

Press the REPEAT button on the remote control repeatedly to select different repeat modes.

Action DVD Description CD Description USB
First Press	Repeat Chapter	Repeat Track	Random
Second Press	Repeat Title	Repeat All	Repeat one
Third Press	Repeat All	Repeat off	Repeat folder
Forth Press	Repeat off	-	Normal

Slow

Press the SLOW button on the remote control when a DVD is playing to enter slow playback. Each time you press the SLOW button on the remote control, the playback speed changes in the following sequence:

Angle Selection

Some DVDs contain scenes which have been shot from a number of different angles. For these discs, the same scene can be viewed from each of these different angles.

1. While you are playing a DVD with different angles recorded, press the ANGLE button on the remote control to view the number of current angles available.
2. Press the ANGLE button repeatedly on the remote control to change the scene to the next recorded angle.

a) After approximately two seconds, playback will continue from the new angle you selected.

Sequence of angle shots

(Example)

• This function can only be used for discs on which scenes shot from multiple angles have been recorded.
• If only one angle is recorded, " is displayed.

Audio Channel

Press the AUDIO button on the remote control repeatedly to select different audio languages.

Subtitle Language

Press the SUBTITLE button on the remote control repeatedly to switch between different subtitle languages that are available on the disc.

Info

You can view disc information (such as current title / chapter / track number, total playing time or remaining time on the disc) without interrupting the disc playback.

During playback, press the DISPLAY button on the remote control to show the available disc information.

Programmable Memory

DVD, CD	Press thePROGRAMbutton on the remote control to display thePROGRAM MENU. Press the0-9, 10+buttons on the remote control to input the title/chapter/track number and then press the▲▼ buttons on the unit or the remote control to selectSTART.To resume normal playback, press thePROGRAMbutton and press the▲buttons on the unit or remote control to selectSTOP.
JPEGPress thePROGRAMbutton on the remote control repeatedly to select the slide show mode. There are 16 types of slide shows.

Zoom Selection

This function allows you to enlarge or shrink the video image or picture on the screen.

DVD	During playback, press the ZOOM button repeatedly to zoom in/out the picture. (2× size, 3× size, 4× size, 1/2 size, 1/3 size, 1/4 size, normal size)
JPEG 1. During play	2. Press 🔊 Button to zoom in/out the picture. (ZOOM 50%, ZOOM 75%, ZOOM 100%, ZOOM 125%, ZOOM 150%, ZOOM 200%)

Title

Press the TITLE button on the remote control to return to the DVD title menu.

Menu

Press the MENU button on the remote control to return to the DVD main menu.

Customising the General Settings

1. Press the SETUP button to display the setup menu.
2. Press the ◀ buttons to select GENERAL SETUP PAGE.
3. Press the ▲buttons to select the following options and then press the ◀buttons to change the setting. Press▶II button on the unit or the remote control to confirm.

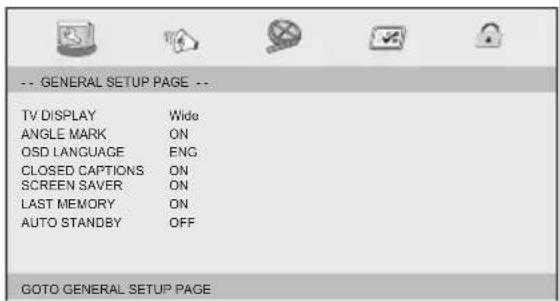

TV DISPLAY To select the aspect ratio of the playback picture:
4:3 PANSCANIf you have a conventional TV and want both sides of the wide picture to be trimmed or formatted to fit your TV screen.
4:3 LETTERBOXIf you have a normal TV. A wide picture with black bands on the upper and lower portions of the TV screen will be displayed.
16:9Wide screen display.
WIDE SQUEEZESets the screen mode to 4:3. A wide picture will be squeezed to fit a 4:3 conventional display.
ANGLE MARK If this is turned on, the multi-angle logo with the number of available angles will be displayed when playing a DVD that offers multiple angles.
OSD LANGUAGE Allows you to select the setup menu and OSD language.
CLOSEDCAPTIONS	For hearing-impaired viewers, the programme can display recorded explanatory captions.
SCREEN SAVER	Select ON to display the screen saver. A moving DVD logo appears on a dark screen to prevent screen burn when disc playback is stopped, paused, or you have not used the DVD player or its remote control for more than 5 minutes when the power is still on.Select OFF to turn off the screen saver function.
LAST MEMORY	Select ON/OFF for last memory settings on DVD playback.When ON is selected, the unit will resume the last stopped playback:The last memory will be clear whenYou press th STOP button twice, orYou have replaced another DVD into the unit.
AUTO STANDBY	Select 3 HOURS or 4 HOURSto set the idle length. While idling, a pop up warning window will display for 10 seconds before the unit turns itself off. Press any button to extend the time.Select OFF to turn off the auto standby function.

1. Press the SETUP button to exit the menu.

2. Press the SETUP button to display the setup menu.

3. Press the ◀buttons to select AUDIO SETUP PAGE.

1. Press the ▲buttons to select the following options and then press the ●buttons to change the setting. Press▶button on the unit or the remote control to confirm.

DOWNMIX Allows you to set the stereo analogue output of your DVD player.LT/RTSelect this option if your DVD player is connected to a Dolby decoder.STEREOSelect this option to change channel output to stereo which delivers sound from only the two front speakers.
DOLBY DIGITAL •	DUAL MONOIf your amplifier / decoder has Dolby Digital output, you may select STEREO, L – MONO, R – MONO, or MIX MONO mode for your amplifier decoder.DYNAMICDynamic range compression.

1. Press the SETUP button to exit the menu.

2. Press the SETUP button to display the setup menu.

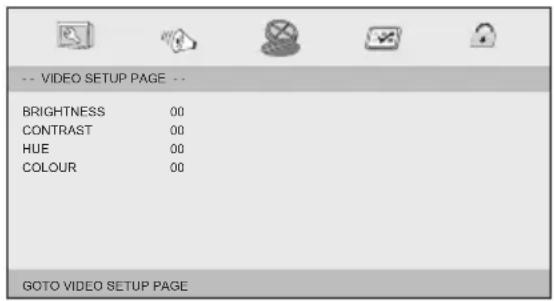

3. Press the ◀buttons to select VIDEO SETUP PAGE.
4. Press the SETUP button to display the setup menu.
5. Press the ◀buttons to select VIDEO SETUP PAGE.

1. Press the ▲buttons to select the following options and then press the ●buttons to change the setting. Press ▶button on the unit or the remote control to confirm.

BRIGHTNESS Set the brightness level of video output.

CONTRAST Set the contrast level of video output.

HUE Set the hue value of the video.

COLOUR Set the colour level of the video.

1. Press the SETUP button to exit the menu.

Customising the Preferences

1. Press the SETUP button to display the setup menu.

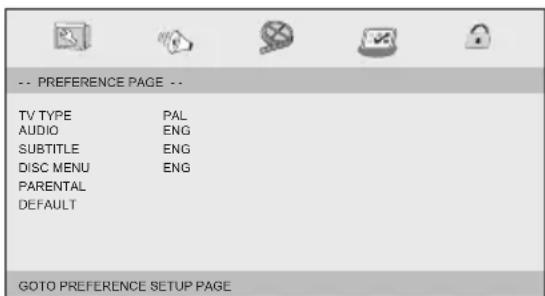

2. Press the ◀buttons to select PREFERENCE PAGE.

1. Press the buttons to select the following options and then press the buttons to change the settings.

TV TYPE Select the colour system that corresponds to your TV when connecting to your TV's AV outputs. This DVD player is compatible with both NTSC and PAL.PAL: Select this if the connected TV uses the PAL system. It will change the video signal of an NTSC disc and output in PAL format.NTSC: Select this if the connected TV uses the NTSC system. It will change the video signal of a PAL disc and output in NTSC format.Auto: Change the video signal output automatically according to the selected disc's format.
AUDIO Allows you to choose the preferred audio language of your disc. If the preferred language is not available on the disc, the DVD player will automatically use the DVD disc's default language.
SUBTITLE Allows you to choose the preferred subtitle language of your disc. If the preferred language is not available on the disc, the DVD player will automatically use the DVD disc's default language.
DISC MENU	Allows you to choose the preferred menu language of your disc. If the preferred language is not available on the disc, the DVD player will automatically use the DVD disc's default language.
PARENTAL This feature allows you to block disc playback with specific ratings.The rating levels are from 1 to 8 and are country dependent. You can prohibit the playing of certain discs that are not suitable for your children, or you can have certain discs played with alternative scenes.The parental lock levels are equivalent to the following ratings:1: Kid Safe 2: G 3: PG 4: PG135: PGR 6: R 7: NC17 8: AdultUnlock the disc by entering the 4-digit password you have set in PASSWORD setup at the PASSWORD SETUP PAGE.If you change the control level, you must input the password.(Initial password: 1369)In case you forget your password, the master password is "1369".To disable the parental control and allow the DVD player to play all discs, select ADULT.Use the 0-9 buttons to enter the 4-digit password again.DVD discs that are rated above the selected level will not be played unless the 4-digit password is entered.TipsThe following disc types will not be affected by the Parental Control feature:Discs that are not coded by the disc manufacturer.Discs that are not coded by the disc manufacturer despite having a movie rating printed on the disc cover.CDs as they have no rating level indication.Most copied DVD discs or illegal DVDs.
DEFAULT Resets all to the manufacturer's original settings for this DVD player.The parental lock setting will not be reset.

1. Press the SETUP button to exit the menu.

2. Press the SETUP button to display the setup menu.

3. Press the ◀buttons to select PASSWORD SETUP PAGE.

1. Press the ▲buttons to select the following options and then press the ▲buttons to change the setting. Press ▶button on the unit or the remote control to confirm.

PASSWORD MODE

Sets the password mode ON/OFF. If set to OFF, changing parental levels will not activate a password check.

PASSWORD A 4-digit password will be required to play a prohibited disc.If the disc is locked and the system prompts you to enter the password:1. Use the 0-9 buttons to input the current password in the OLD PASSWORD box (if the password has not yet been reset or set even after purchasing this unit, it is “1369”).a) In case you forget your password, the master password is “1369”.2. Press the number buttons to input the new password in the NEW PASSWORD box.3. Enter the new password again in the CONFIRM PWD box.4. The cursor will automatically jump to the OK button, press the ENTER button to confirm the setting.

1. Press the SETUP button to exit the menu.

Handling Discs

• Do not touch the playback side of the disc.
• Do not attach paper or tape to the disc.

Cleaning Discs

- Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth. Always keep the disc clean.

• If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened cloth and finish with a dry cloth.
• Do not use any type of solvent such as thinner, benzine, commercially available cleaners or antistatic spray. They may damage the disc.

Storing Discs

• Do not store discs in places subjected to direct sunlight or near heat sources.
• Do not store discs in places subjected to moisture and dust such as a bathroom or near a humidifier.
• Storing discs vertically in a case, stacking discs or placing objects on discs outside of their cases may cause warping.

Cleaning the Unit

Ensure the unit is fully unplugged from the mains socket before cleaning.

• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
• Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
• Do not spray an aerosol at or near the unit.

If a problem does occur, it may often be due to something very minor. The following table contains various tips.

Problem Solution
No power.	· Ensure the car power adapter or the mains adapter is connected.· Make sure that the unit is turned on.· Make sure that you select ON mode.
The remote control does not function.	· Use the remote near the unit.· Point the remote at the remote sensor on the unit.· Replace the battery in the remote with a new one.· Make sure the plastic sheet has been removed from the remote control.· Remove any obstacles between the remote and the unit.
Very little or no sound is coming from a DVD.	· Make sure the unit is not paused. Press the button.· Make sure the unit is not in fast-forward or fast-reverse mode. Press the button.· Make sure the AUDIO/VIDEO input/output connections are correct.· The DTS DVD cannot be decoded to have speaker output. Press the AUDIO button repeatedly to switch to other languages recorded on the disc.· The unit has overheated. Shut it off for 30 minutes to allow it to cool down.
No picture. · The region number of the disc doesn't match the region number of this unit.
The picture is not clear.	· The DVD is dirty. Gently clean the disc.· The disc is scratched.· Please adjust the display's sharpness, BRIGHTNESS, CONTRAST, HUE and COLOUR using the MODE button on the remote control.
Loud hum or noise is heard.Problem Solution	· The plugs and sockets are dirty. Wipe them with a cloth slightly moistened with alcohol.· Clean the disc.
The disc does not play.	There is no disc inside the unit ("NO DISC" appears on the display).Insert the disc correctly with the graphics facing up.Clean the disc.A non-valid disc has been inserted, or the disc region number does not match the region number of the unit.Condensation may have formed inside the unit due to a sudden change in temperature. Wait about an hour for it to clear and try again.It may not be possible to play CD-R/RW or DVD-R/RW in all cases due to the type of disc or condition of the recording. If you are having trouble playing a certain disc, remove the disc and try a different one. Improperly formatted discs will not play on this DVD player.
No key operation (via the DVD Player and/or the remote control) is effective.	Turn the unit off and then back to on. Alternatively, turn off the unit, disconnect the mains adapter and then re-connect it. (The DVD player may not be operating properly due to lightning, static electricity or some other external factor.)

If any anomaly is encountered, turn off the unit by switching the ON/OFF switch to OFF position and turn it on again.

Specifications

Model L10SPDVD17
Power Adapter (Use only power adapter listed below)
Power Adapter Manufacturer Mass Power		Power
Power Adapter Model PEA-090100VG
Input AC 100-240V~50/60Hz, 0.3 A
Output DC 9 V 1.0 A		==
Main Unit
Main Unit Input DC 9-12 V 1.0A		---
Information on Power Consumption	Power Consumption of Off Mode	0.5 W
	Power Consumption of Standby Mode	N/A
	Network Standby Power Consumption	N/A
Time interval for power management function switches the unit automatically into standby		Switch to standby mode after 20 minutes after intended use
Power consumption in network standby if all wireless network ports are activated		N/A
Power Consumption 10 W
Speaker Output Power 1.5 W rms × 2
USB Power 5 V 0.2 A		---
Battery Power
Output Power 7.4 V		---
Charge Time 3 hr ~ 4 hr
Operation Time 2 hours
Battery Capacity 1,200 mAh
Feature
Decoding Format		CD, CD-R, CD-RW, DVD+/-R, DVD+/-RW, JPEG, MP3
Video System		PAL, NTSC
Connectivity USB Port 2.0 × 1, SD/MM		C card Port 2.0 × 1, AVOut Socket × 1, Earphones Socket × 1, CD Tray × 1
Dimension (W) × (D) × (H)		246 × 203.3 × 42 mm (DVD player)
Net Weight		0.83 kg (DVD player only, not including the accessories)

Features and specifications are subject to change without prior notice.

For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0344 5611234.

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit

www.partmaster.co.uk or call 0344 800 3456 (UK customers only) Calls charged at National Rate.

Rovi Proprietary Rights

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Restriction on Use & Rovi Trade Mark Rights

Use of the copyright protection technology contained in this product must be authorised by Rovi Corporation and is intended for home and other limited viewing uses only unless otherwise authorised by Rovi Corporation. The names "Rovi Corporation" and "Macrovision" are protected by trademarks.

Notes for battery disposal

The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

All trademarks are the property of their respective owners and all rights are acknowledged.

DSG Retail Ltd. (co. no. 504877) 1 Portal Way, London, W3 6RS, UK
