Product Type	DVD Player
Model	L7TWIN11
Brand	Logik
Dimensions (W x D x H)	430 mm x 250 mm x 45 mm
Weight	2.0 kg
Power Supply	AC 220-240V, 50/60Hz
Power Consumption	< 20 W (standby < 1 W)
Playable Discs	DVD, DVD-R/RW, CD, CD-R/RW, VCD
Video Output	Composite video, Component video, HDMI
Audio Output	2-channel analog audio, Coaxial digital audio
Region Code	2 (Europe) or multi-region
Remote Control	Includes infrared remote with batteries
Additional Features	USB playback, Karaoke function, Parental lock, PAL/NTSC compatible
Maintenance & Cleaning	Use a soft, dry cloth. Do not use liquids or sprays.
Safety	Class 1 laser, do not open. Keep away from moisture and heat.
Spare Parts & Repairability	Contact Logik service center for genuine parts. No user-serviceable parts inside.
General Information	Designed for home entertainment. Manual available in multiple languages.

Frequently Asked Questions - L7TWIN11 Logik

How do I connect the DVD player to my TV?

Use the HDMI cable for best quality, or the composite (yellow, red, white) cables for standard definition. Connect the cables to matching inputs on your TV and select the correct input source.

Can this DVD player play Blu-ray discs?

No, the L7TWIN11 is a DVD player and only supports DVDs, CDs, and similar formats. It cannot play Blu-ray discs.

How do I clean the lens?

Do not attempt to clean the lens yourself. Use a commercial DVD lens cleaning disc if needed. If problems persist, contact a service center.

Why won't my DVD play?

Ensure the disc is clean and free of scratches. Check that the disc format is supported (DVD, CD, etc.). Also verify the region code matches your region or is multi-region.

How do I change the region code?

Region codes are typically locked by firmware. Some units may be multi-region. Refer to the manual or contact Logik support for options.

Can I use a USB drive with this player?

Yes, the USB port allows playback of media files such as MP3, JPEG, and DivX. Format the USB drive to FAT32 for best compatibility.

What does the parental lock do?

Parental lock allows you to restrict playback of discs with certain maturity ratings. You can set a password and rating level in the setup menu.

Why is there no sound?

Check audio cable connections and TV volume. If using HDMI, ensure the TV is set to the correct audio input. Also check that the disc audio format is supported.

How do I reset the player to factory settings?

Press the 'Setup' button on the remote, navigate to 'Factory Reset' or 'Default Settings', and confirm. This will erase all custom settings.

What is the warranty period?

Logik typically offers a 1-year warranty for manufacturing defects. Keep your receipt for proof of purchase.

USER MANUAL L7TWIN11 Logik

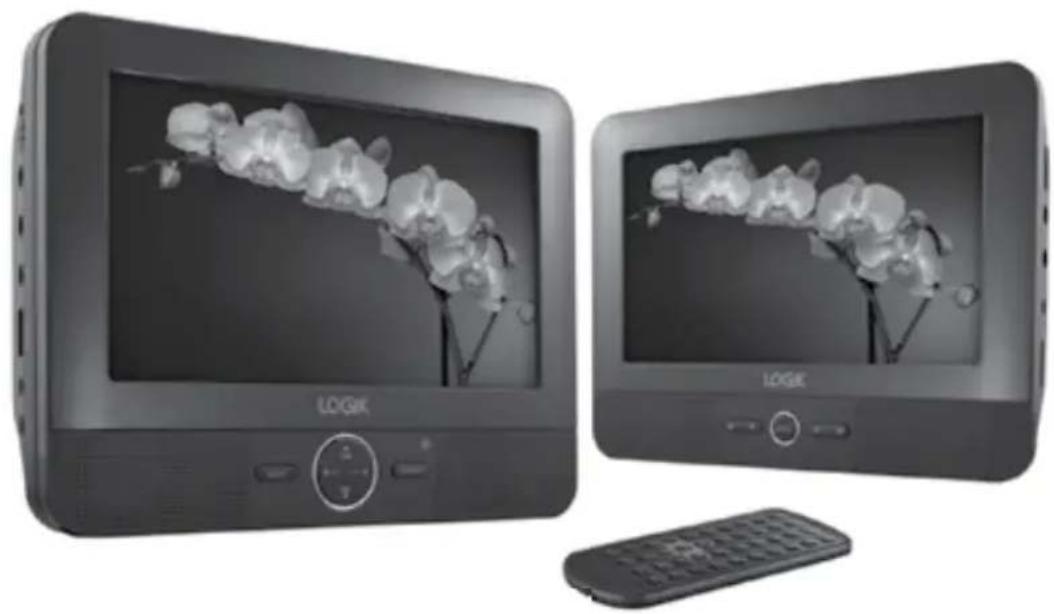

7" In Car Twin Portable DVD Player

L7TWIN11

Two black LOGIC TV screens displaying orchid imagery, one with a control panel and the other with a keyboard (no visible text or symbols on screens)

Safety Warnings....4

Unpacking....6

Product Overview....7

DVD Player....7

Monitor....8

Remote Control....9

Removing the Insulating Strip from the Remote Control ....11

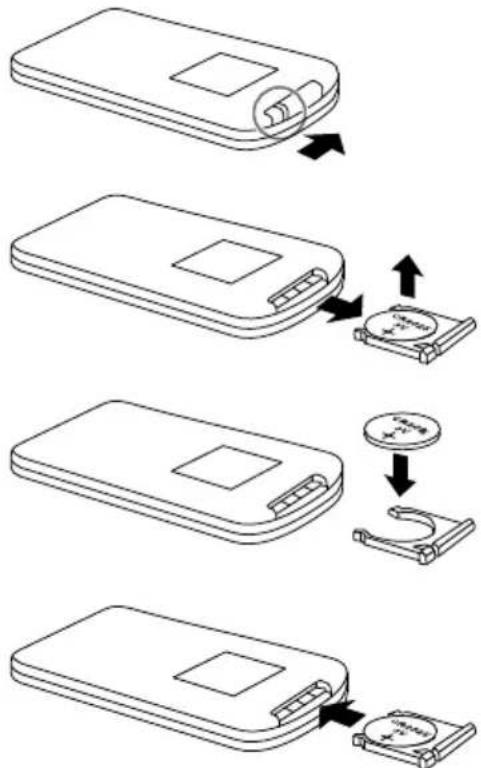

Battery Replacement for the Remote Control....11

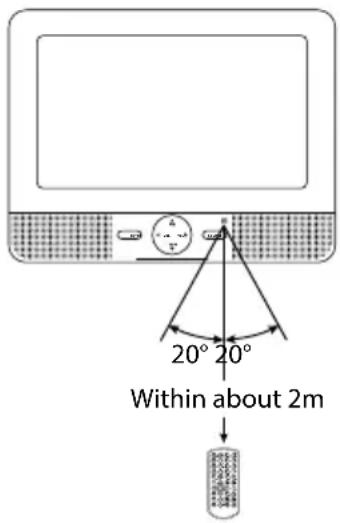

Remote Control Operation Range....12

Using in a Car ....13

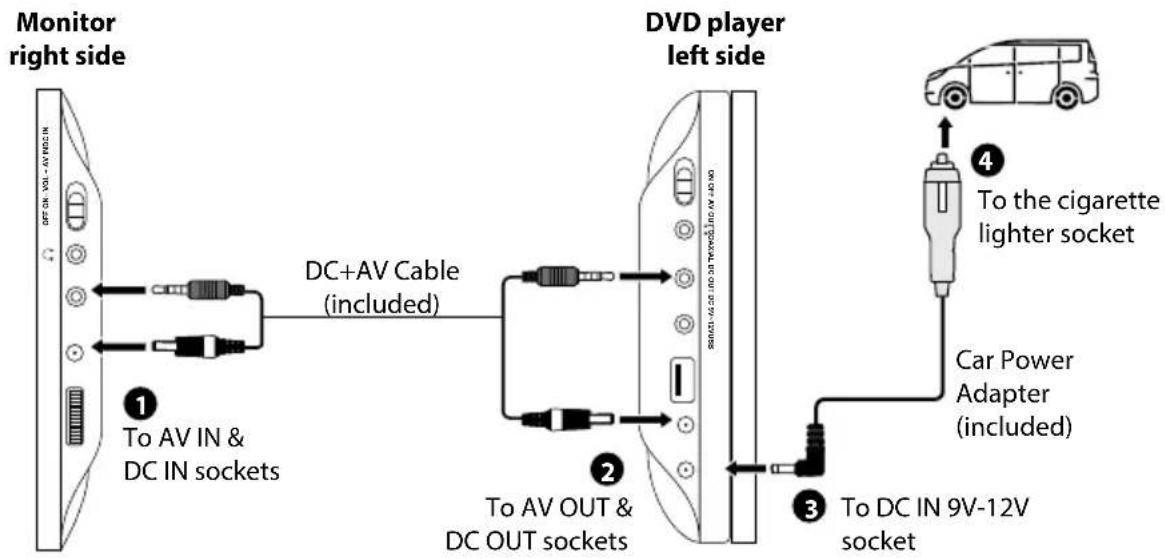

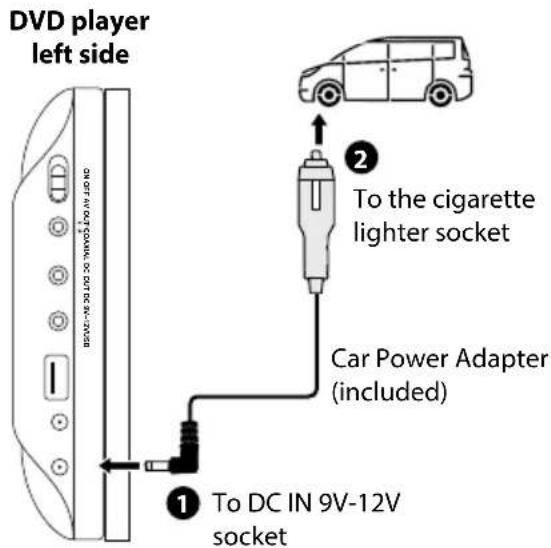

Using the Car Power Adapter (for in-car use) 13

Using the DVD Player Only....13

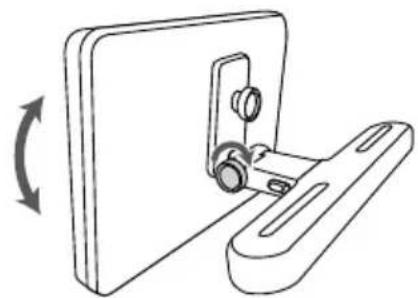

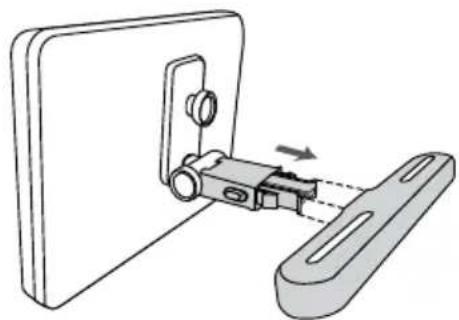

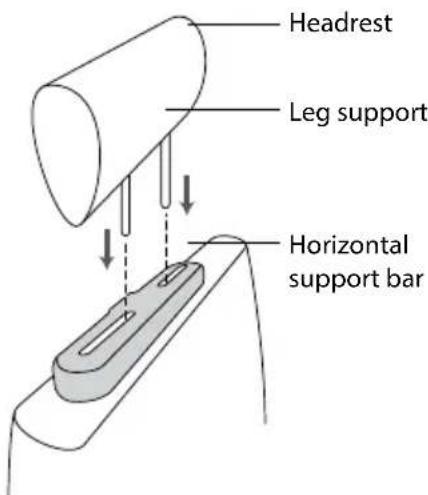

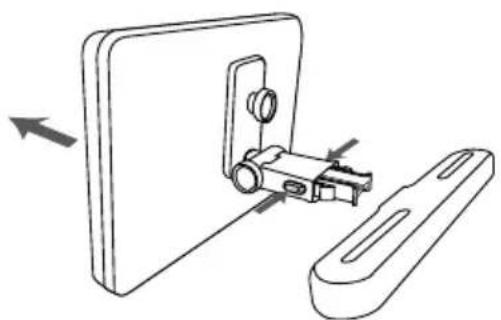

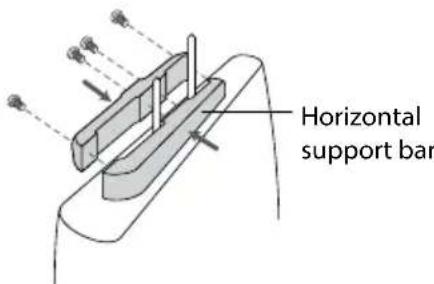

Mounting the DVD in a Car....14

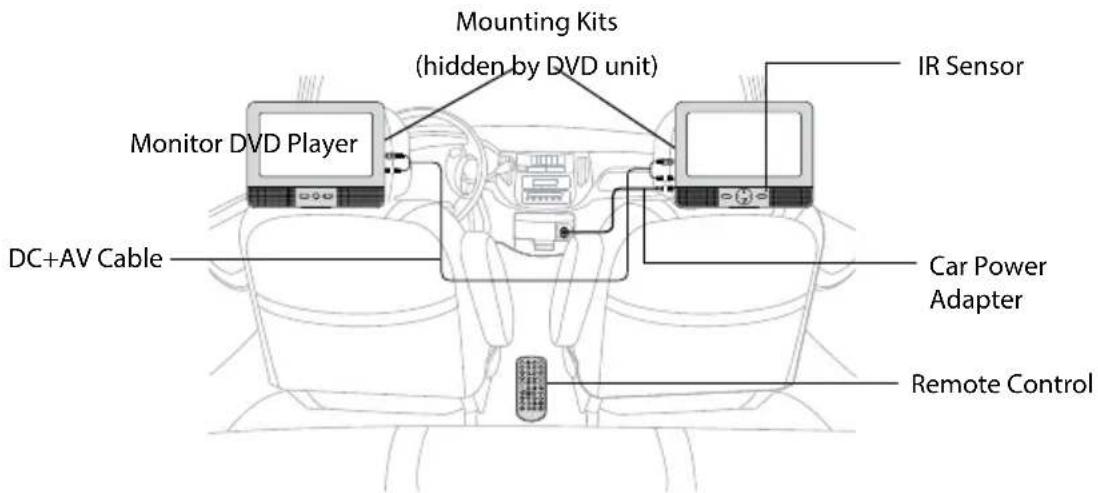

Installation Guide....15

Using Indoor ....16

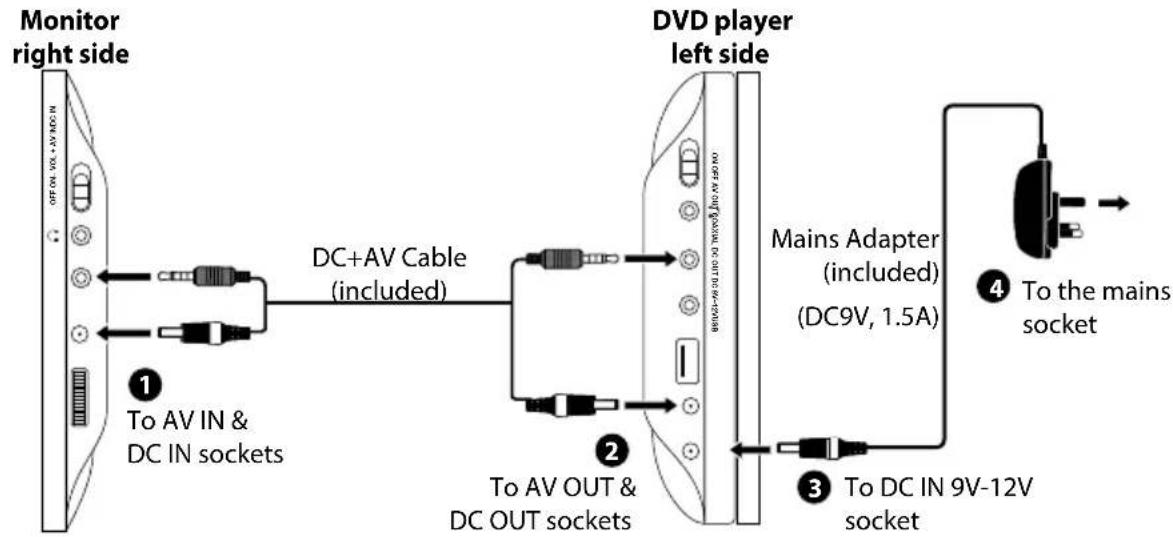

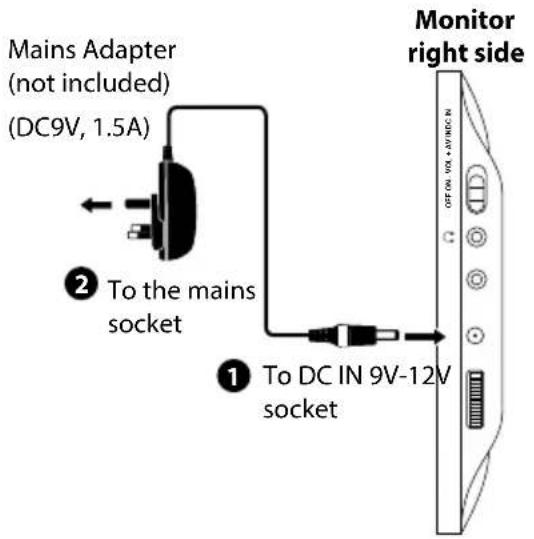

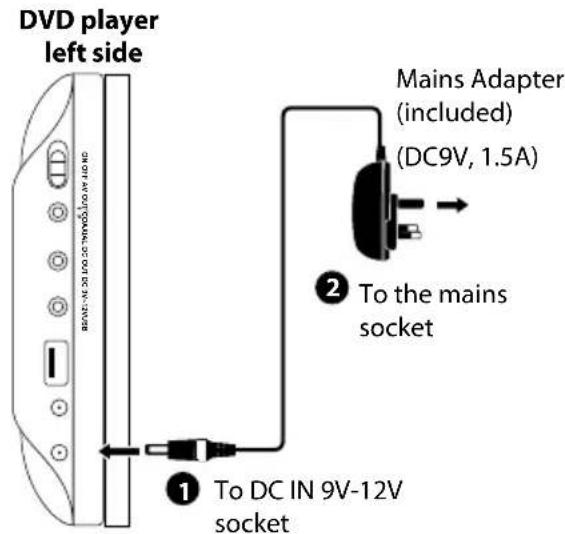

Using the Mains Adapter (for indoor use)....16

Connections 17

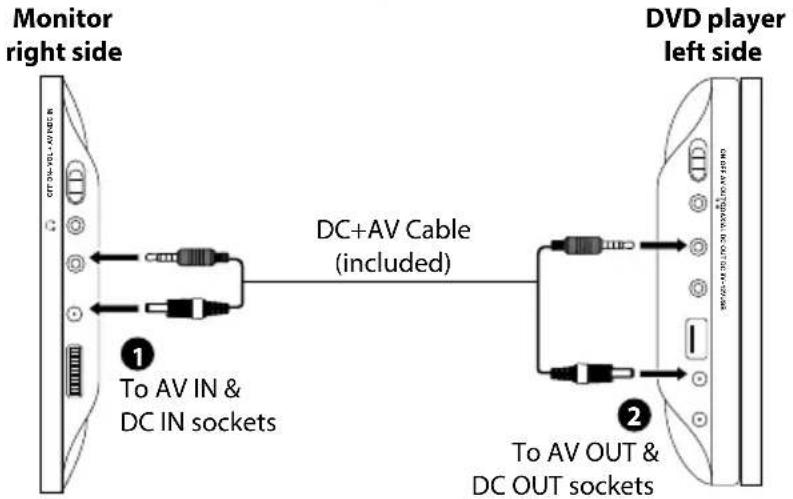

Watching a DVD on the DVD Player and the Monitor 17

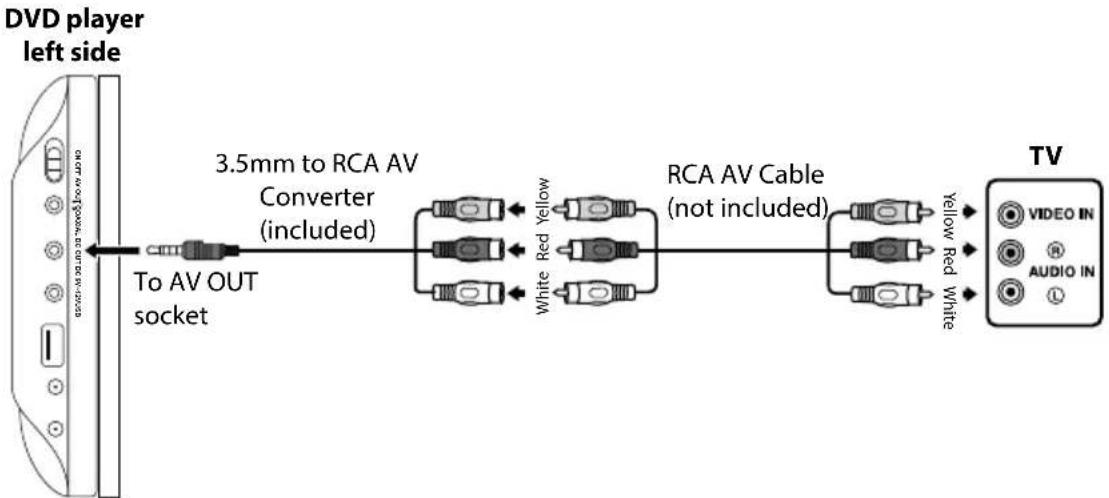

Connecting a TV (for the DVD Player Only)....17

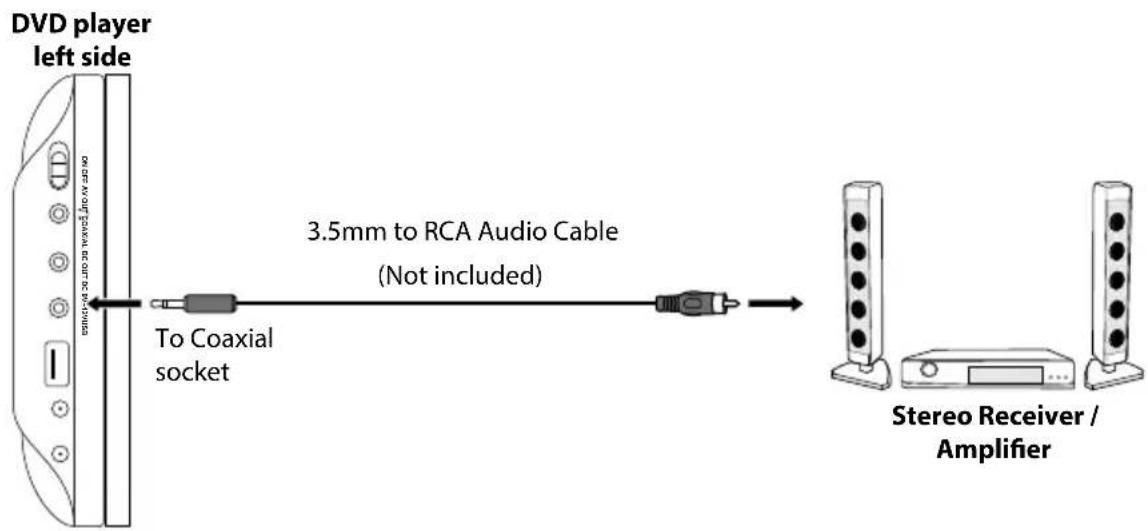

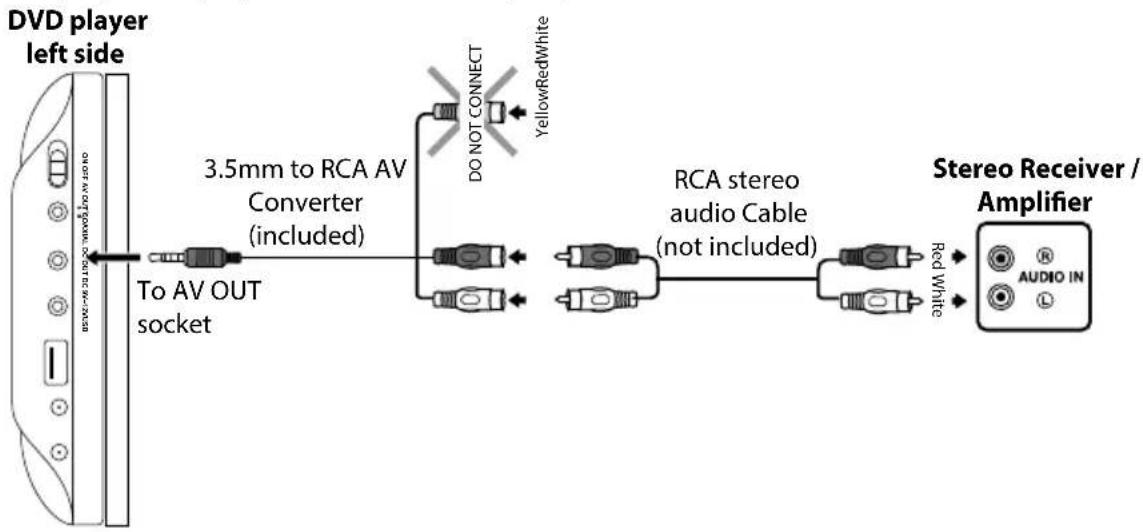

Connecting a Stereo Receiver or Amplifier (for the DVD Player Only) 18

Connecting to a Multi-channel Audio Receiver....18

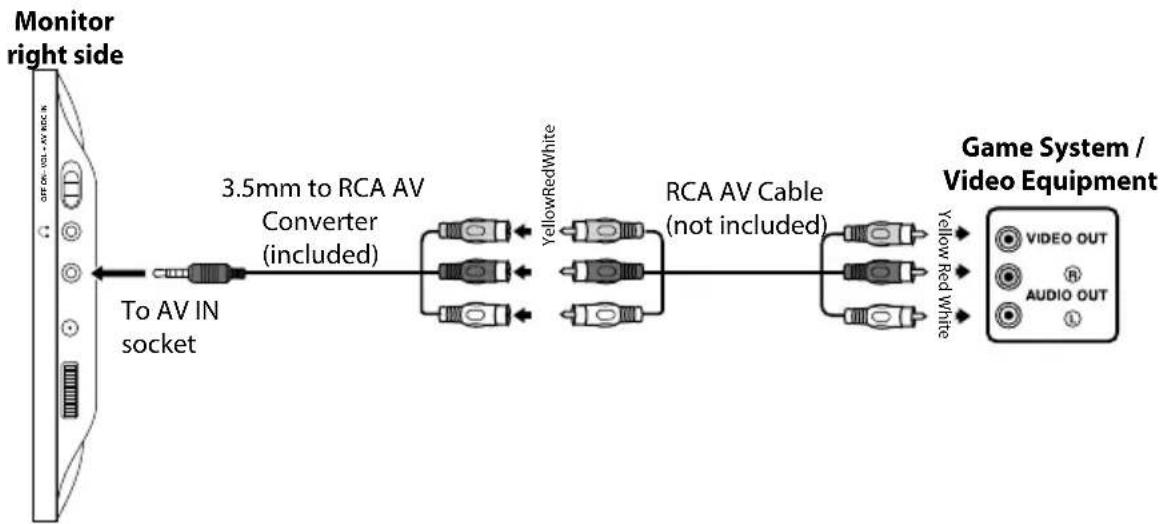

Connecting Game Consoles/Video Devices (for the Monitor Only)....19

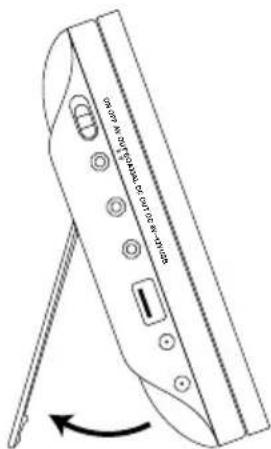

Using The Stand For Indoor Use ....20

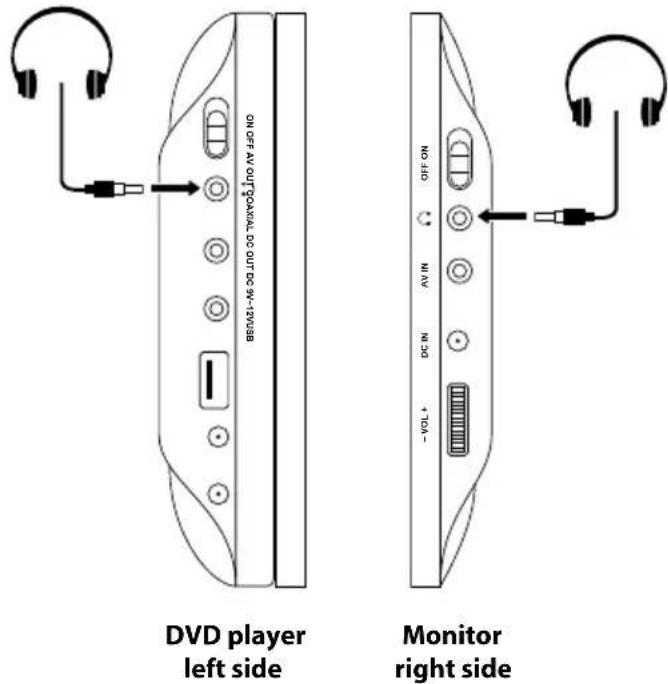

Using Earphones....20

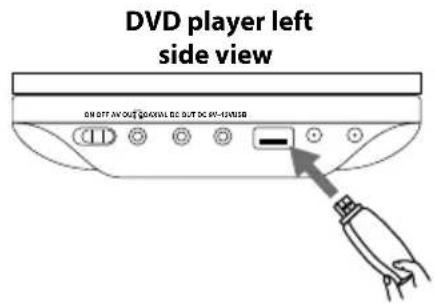

Using an USB Device or/and SD/MMC/MS Card 21

General Operation....21

Compatible Disc Types 22

Supported Formats....22

Region Code 22

Turning On the DVD Player....23

Basic Playback....23

Basic DVD Playback....23

Playback Pausing 24

Selecting Chapter / Title time / Chapter time (for DVD) 24

Selecting Disc GOTO / Track GOTO / Select Track (for CD) 24

Stop Playback....24

Previous and Next....24

Fast Forward and Fast Reverse....24

Repeat Mode 25

Slow 25

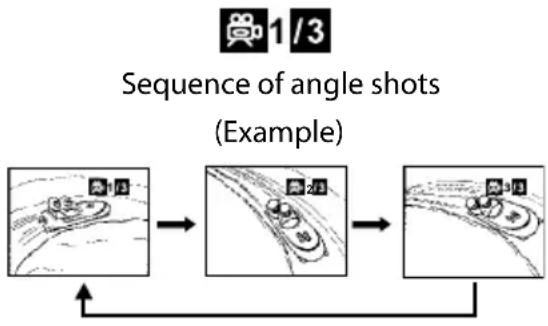

Angle Selection 25

Audio Channel 25

Subtitle Language 25

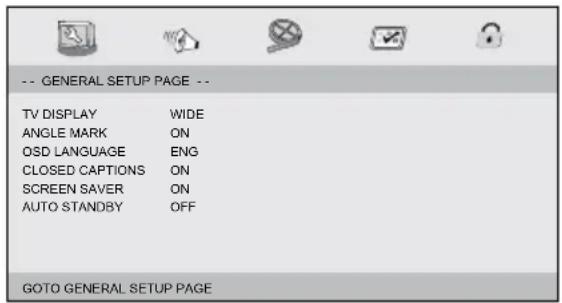

Customising the General Settings....26

Info....26

Programmable Memory....26

Zoom Selection 26

Title 26

Menu 26

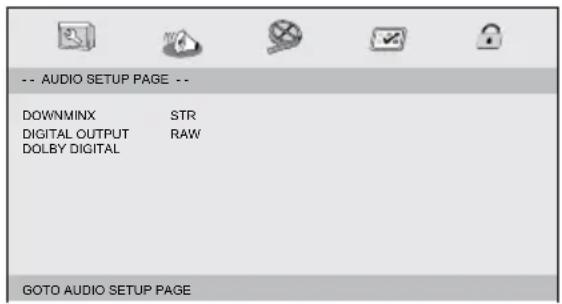

Customising the Audio Settings....28

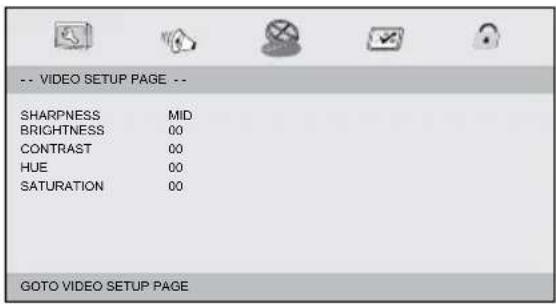

Customising the Video Settings 29

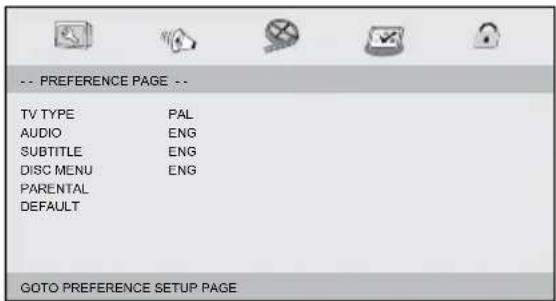

Customising the Preference Settings....29

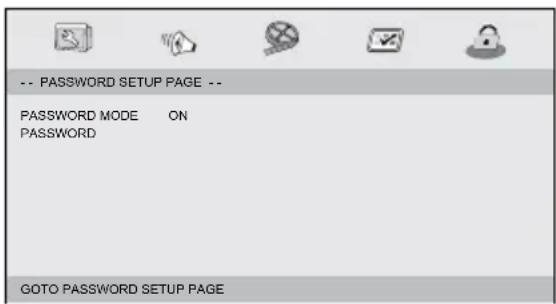

Customising the Password Settings....31

Maintenance 32

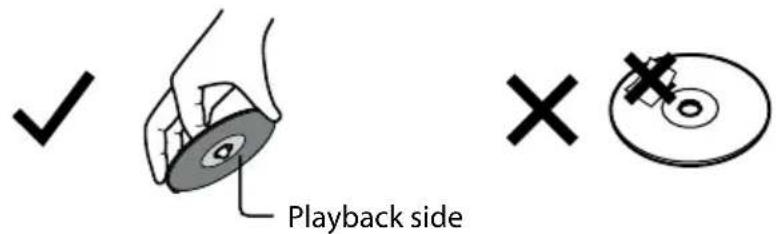

Handling Discs 32

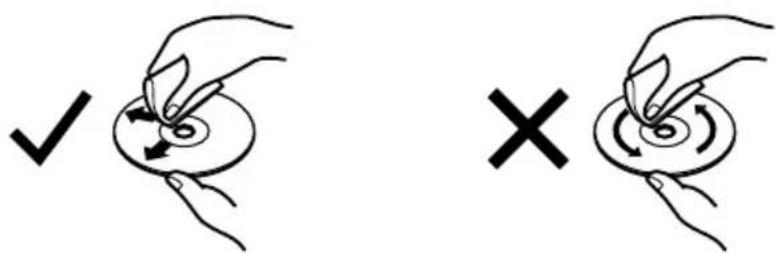

Cleaning Discs....32

Storing Discs....32

Cleaning the Unit....32

Hints and Tips ......33

Specifications....35

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains adapter and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and not subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas / electric fires.
• Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

- To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.

• A minimum distance of 5cm around the unit should be maintained to allow for sufficient ventilation.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting / disconnecting other devices or moving the unit.
- Unplug the unit from the mains socket during a lightning storm.
- In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains plug from the mains socket.

Mains Adapter Cable

- Make sure the unit or unit stand is not resting on top of the mains adapter cable, as the weight of the unit may damage the cable and create a safety hazard.

Mains Adapter

- The mains adapter will continue to draw electricity from the mains supply when plugged in the mains socket. In the interests of safety and to avoid unnecessary energy consumption, never leave the adaptor plugged in the mains socket while unattended for long periods of time. Disconnect the adapter from the power supply.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the working of the unit, and cause a distorted sound.

Earphones

- Listening to loud sounds for prolonged periods of time may permanently damage your hearing.

- Before putting on earphones, turn the volume down then put the earphones on and slowly increase the volume until you reach a comfortable listening level.

Batteries

• Batteries used in the unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the unit. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.
• Do not expose the battery to direct sunlight or sources of excessive heat.

Supervision

• Children should be supervised to ensure that they do not play with the unit.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

Class 1 Laser Product

- This unit utilises a laser. Use of controls, adjustments or performance of

procedures other than those specified herein may result in hazardous radiation exposure.

• Before moving the unit, ensure the disc tray is empty.
• Always remove the disc when the unit is not in use.
• Failure to do so will risk severely damaging the disc and the unit.
• Do not stack devices; heat from other devices may affect the performance of the unit.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the unit’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the power supply before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
• Do not use liquids to clean the unit.

Thank you for purchasing your new Logik DVD Player.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Front view of a computer monitor with control buttons and a blank screen (no text or symbols visible)

DVD Player x 1 Monitor x 1 Remote Control x 1

Simple line drawing of a rectangular device with a horizontal bar and control buttons at the bottom (no text or symbols)

Earphones x 2

Mains Adapter x 1

Car Power Adapter x 1 DC+AV Cable x 1 3.5mm to RCA

AV Converter x 1

Screws x 8 (ø4 x 25mm)

Technical line drawing of a mechanical clamp and housing (no text or symbols)

Instruction Manual x 1 Mounting Kit x 2 Quick Start Guide x 1

If items are missing, or damaged please contact Partmaster (UK only). Tel: [phone] for assistance.

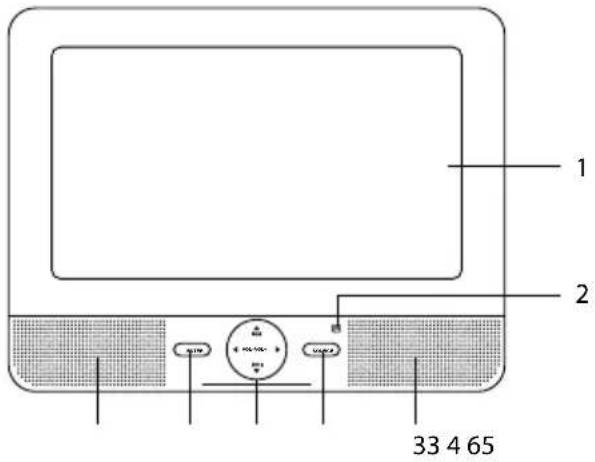

DVD Player

1. LCD Display
2. Remote Sensor

Receives signals from the remote control.

1. Speakers
2. ENTER Button

Press to confirm selections on the menu screen.

1. Cursor △Buttons

Allows you to navigate the menu screen and adjust certain settings.

◀◀ Button: previous track

Press to move back to the previous chapter/track/title on a disc.

▶▶I Button: next track

Press to move forward to the next chapter/track/title on a disc.

VOL + / - Button

Press to increase or decrease the volume.

1. SOURCE Button

Press to select the desired input signal source: DVD / USB / MEMORY CARD.

1. SD/MMC/MS Memory Card Slot
2. OPEN Latch

Opens the disc door.

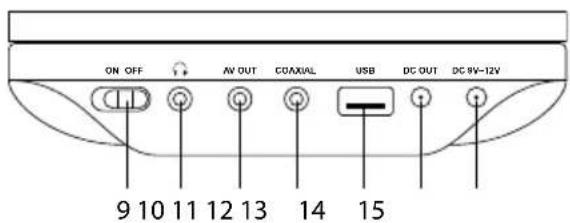

1. ON / OFF Switch

2. 🙏 Earphones Socket

3. AV OUT Socket
4. COAXIAL Socket
5. USB Slot
6. DC OUT Socket
7. DC IN 9\~12V Socket
8. Strap Eyelets
9. Stand

Front View

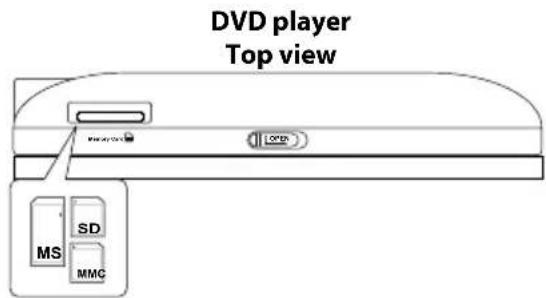

Top View

Left Side View

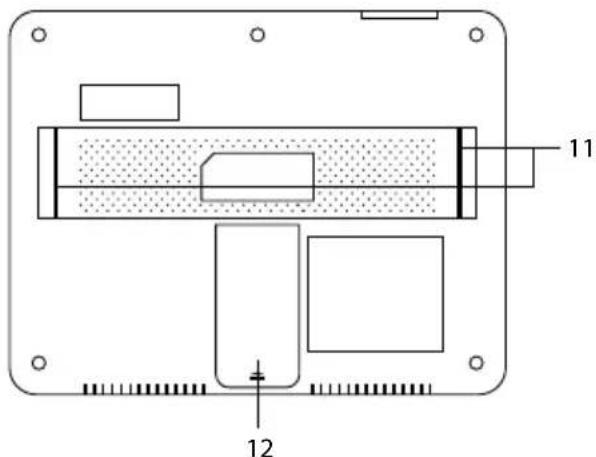

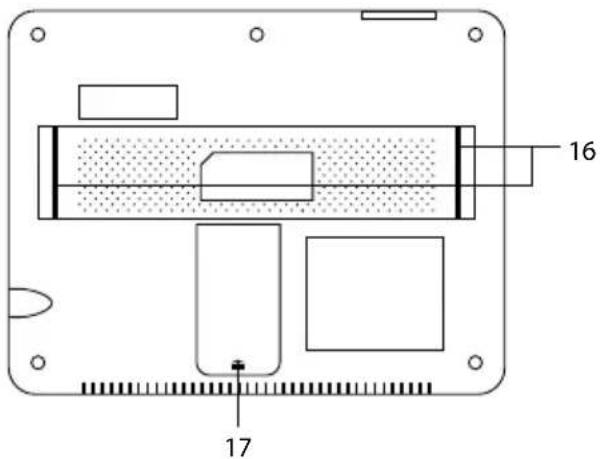

Rear View

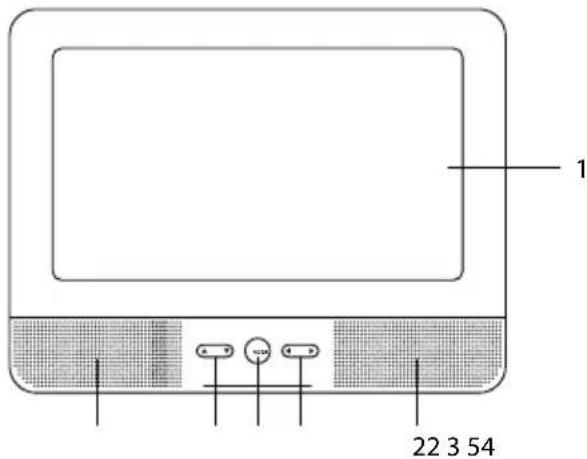

Monitor

1. LCD Display
2. Speakers
3. Cursor ▲▼ Buttons

Allows you to navigate the menu screen and adjust certain settings.

1. MODE Button

Adjusts Brightness, Contrast, Colour, Language or Resets the setting on the monitor.

1. Cursor ◀▶Buttons

Allows you to navigate the menu screen and adjust to certain settings.

1. VOLUME Control

Adjusts the volume.

1. DC IN Socket
2. AV IN Socket
3. Earphones Socket
4. ON / OFF Switch
5. Strap Eyelets
6. Stand

Front View

Right Side View

Rear View

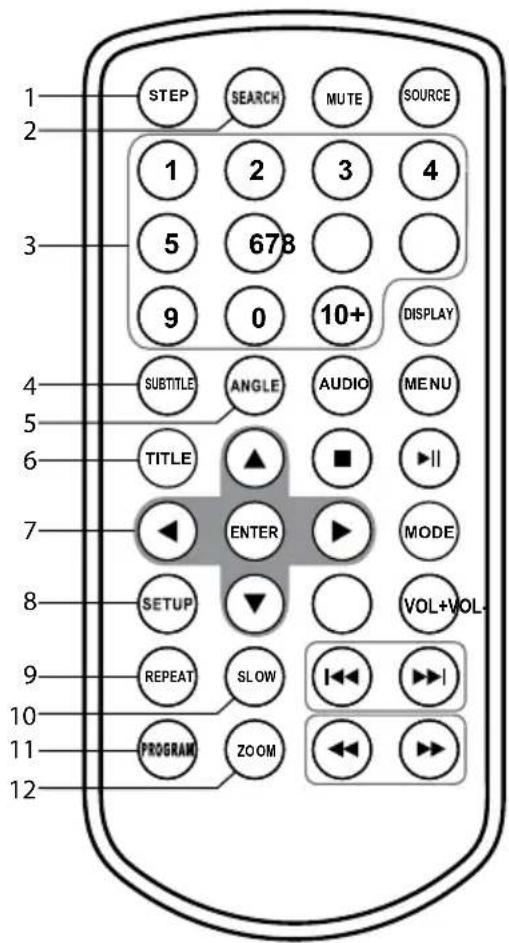

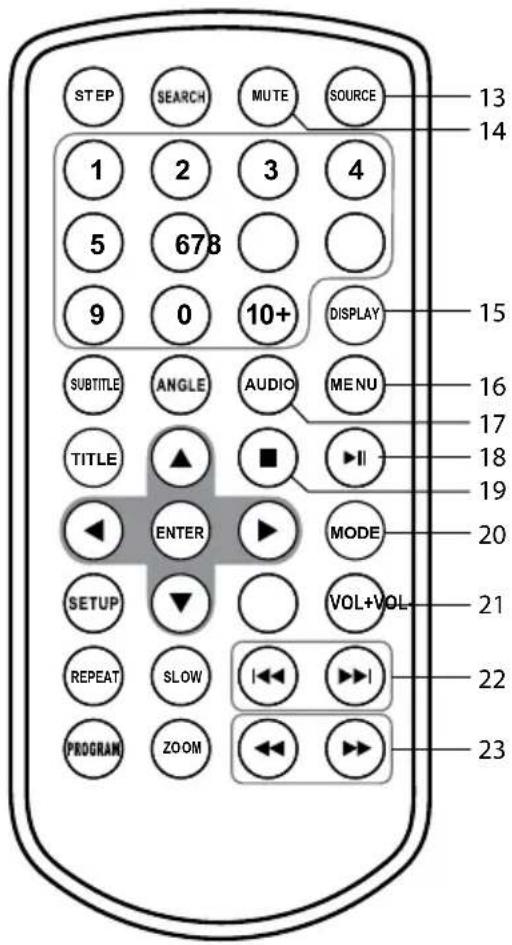

1. STEP Button

Frame Advance in DVD mode.

2. SEARCH Button

To search and start playback from a selected point on the disc.

3. 0-9, 10+ Number Buttons

Create programs or locate a title/chapter/track or specific time.

4. SUBTITLE Button

Select one of the subtitle languages programmed on a DVD (if available).

5. ANGLE Button

Switch between multiple camera angles when the DVD you are playing has been programmed with multiple camera angles.

6. TITLE Button

Return to DVD Title Menu.

7. Cursor ◀▲▼► Buttons

Move between selections on a menu screen and adjust certain settings.

ENTER Button

Confirm selections on a menu screen.

8. SETUP Button

Display the SETUP menu.

9. REPEAT Button

Repeat a DVD chapter or title.

Repeat a CD track or the entire disc.

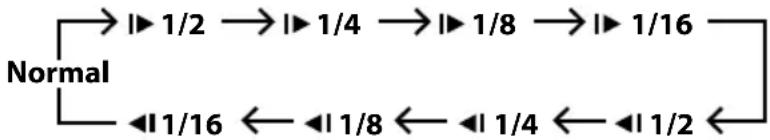

10. SLOW Button

Press repeatedly to enter slow playback, and cycle between different speeds.

11. PROGRAM Button

Program the playback of favourite titles/chapters/tracks from the disc in DVD / CD mode.

Press repeatedly to select the slide show mode for playing JPEG pictures.

12. ZOOM Button

To zoom in during DVD playback. (2x, 3x, 4x, 12 x, 13 x, 14 x)

13. SOURCE Button

Select among the different input sources: DVD / USB / Memory Card.

14. MUTE Button

To mute or restore your DVD sound output.

15. DISPLAY Button

To display the playtime and show status information on the screen.

16. MENU Button

To enter and exit the main DVD menu.

17. AUDIO Button

To select one of the audio sound tracks on a DVD (if more than one is available) or select the audio output mode on a CD.

18. ▶||Button

Press to start playback or pause.

19. ■ STOP Button

Press to stop playing a disc.

20. MODE Button

Adjusts Sharpness, Brightness, Contrast, Hue and Saturation of the LCD display.

21. VOL + / - Button

Press to adjust the volume.

22. Buttons

Press to move forward/backward to next/previous titles/chapters/tracks.

23. Buttons

Press to start fast forward/reverse playback at 5-level speed (x2, x4, x8, x16, x32).

Removing the Insulating Strip from the Remote Control

Remove the insulating mylar strip from the battery if the battery is being used for the first time. It is located at the bottom back side of the remote control.

Diagram showing a hand holding a curved object with an arrow indicating direction (no text or symbols present)

Battery Replacement for the Remote Control

The remote control requires a CR2025, 3V Lithium battery.

1. Slide and hold the battery release tab in the direction of the arrow.

2. Pull out the battery holder and remove the old battery.

3. Replace with a new battery.

4. Insert the battery holder back into the remote control.

Handling the Battery

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.
• Install the battery correctly by following the polarity (+ and -) indications in the battery compartment.
• When the battery is exhausted, the remote control will not function.

• Only use the battery type indicated in this manual.

• Do not dispose of the used battery as domestic waste. Dispose of it in accordance with the local regulations.

• Small button cell batteries such as the one used in the remote control are easily swallowed by young children and this is dangerous. Keep loose button cells away from young children and make sure that the battery holder tray is secure in the remote control. Seek medical advice if you believe a cell has been swallowed.

Handling the Remote Control

• Take care of your fingernails when you press and hold the battery release tab.
- Do not drop or cause impact on the remote control.
- Do not spill water or any liquid on the remote control.
- Do not place the remote control on a wet object.
- Do not place the remote control under direct sunlight or near sources of excessive heat.
- Remove the battery from the remote control when not in use for a long period of time, as it could cause corrosion or battery leakage and may result in physical injury and/or property damage including fire.

Remote Control Operation Range

Point the remote control at the DVD Player no more than 2 metres from the remote control sensor and within 40^ of the front of the DVD Player. The operating distance may vary depending on the brightness of the room.

Using the Car Power Adapter (for in-car use)

The included 12V car power adapter is designed for use with vehicles that have a 12V negative ground electrical system.

Using the DVD Player Only

• Disconnect the car power adapter when not in use. Not for use in 24V vehicles.
• Use the provided 12V car power adapter only. Using other car power adapters could damage the unit.
  • In the interest of traffic safety, do not operate this unit or view videos while driving a vehicle.
• Make sure the unit is securely fastened to prevent it from falling or flying through the air in the event of an accident.
• When the inside of the cigarette lighter socket is dirty with ash or dust, the plug section may become hot due to poor contact. Be sure to clean the cigarette lighter socket before use.
  • After use, disconnect the 12V car power adapter from both the unit and the cigarette lighter socket.

Mounting the DVD in a Car

Use the supplied mounting kit to install the DVD players on the back of the vehicle's headrests.

1. Align the angled support's bolt to the screw hole on the back of the DVD unit. Turn the bolt clockwise and secure the support.

1. For car headrests which can be removed, use the following method:

Lift the headrest off its leg supports. Align the horizontal support with the headrest leg slots and ensure the horizontal support rests securely on the top of the car seat. Reattach the headrest.

1. For car headrests which cannot be removed, use the following method to secure the car mount:

Unscrew the bolts holding the horizontal mounting bar together. Slip both halves of the mounting bar around the headrests' leg supports. Screw in the bolts, loosely. Ensure that the mounting bar is level. Tighten the bolts.

If the set of 4 x screws ( 4 x 20mm) is not long enough to secure the horizontal support bar to the leg supports, please use the longer set of screws ( 4 x 25mm).

1. Grip the DVD firmly with both hands and slot the angled support firmly into the support bar. It will click. Ensure the entire unit is secure.

Diagram of a mechanical device with a bracket and handle, showing a force or movement direction (no text or symbols)

1. Adjust the angle of the DVD unit, then secure by tightening the bolt on the right.

Technical line drawing of a mechanical bracket with rotational arrow indicating rotation (no text or symbols)

1. To remove the DVD from the horizontal support bar, support the DVD unit with one hand. Firmly squeeze and pull the release buttons on either side of the angled support with the other hand.

Technical line drawing of a mechanical assembly with a bracket and housing (no text or symbols)

• This unit should never be used by the vehicle's driver or left unsecured in the vehicle while driving.
• If this unit is being used in your vehicle, be sure that it is securely fixed to the headrests' leg supports or held safely, and does not obstruct any safety device, including air bags or seat belts, or it may cause injury in case of accidents. Ensure all rear passengers are correctly restrained when this product is in use in the car.
• All passengers should always wear seat belts when using this unit in a moving vehicle.
  • If in doubt, please contact your vehicle manufacturer for further advice.

Installation Guide

Using the Mains Adapter (for indoor use)

The mains adapter (DC9V, 1.5A output) supplied is for using the DVD player and the monitor together.

For using the DVD Player and the Monitor separately, one more adapter is needed and sold separately. Please contact Partmaster for ordering the adapter.

Using the DVD Player or the Monitor Separately

• One mains adapter is provided for operating the DVD player and the monitor together. If you need to use them separately, Please use a proper mains adapter with correct electrical rating (Input: 100-240V\~50/60Hz 0.4A; Output: 9V DC 1.5A) and output plug size (Outer diameter: 4.0mm; Inner diameter: 1.7mm).
• Turn off the unit before unplugging the mains adapter from the unit to avoid damaging the unit.
• When the unit is not going to be used for a long period of time, disconnect the mains adapter from the mains socket.
• The mains socket must be located near the unit and should be easily accessible. If a malfunction occurs, disconnect the plug from the mains socket at once.
• When the mains adapter is plugged in, the unit is not completely disconnected from the main power source even when the unit is turned off.

Watching a DVD on the DVD Player and the Monitor

You can watch the same DVD on the DVD player and the monitor.

1. Connect the DVD player and the monitor by using the included DC+AV Cable.
2. Turn on the DVD player and the monitor.
3. If you play a DVD on the DVD player, the monitor will play the same DVD at the same time.

Connecting a TV (for the DVD Player Only)

If your TV has Audio/Video inputs, you can connect the DVD player to your TV by using a standard AV cable (not included).

Watching a DVD on your TV

1. Connect your TV to the DVD player by using the included 3.5mm to RCA AV Converter and a standard AV Cable (not included).
2. Turn on the DVD player.
3. Turn on the TV and follow the instructions included with it to play the DVD.

• Make sure to use the correct Audio/Video cable. Connecting the plugs incorrectly may cause a weak signal.
• If your TV does not have Audio/Video inputs, you will need to purchase an RF modulator (sold separately) and follow the instructions included with it to connect the unit to your TV.

Connecting a Stereo Receiver or Amplifier (for the DVD Player Only)

The DVD player can play two channels Dolby Digital.

Listening with an External Audio Device

1. Connect the DVD player to the left/right Audio In sockets on the audio device by using the included 3.5mm to RCA AV Converter and a standard RCA Stereo Audio Cable (not included).
2. Turn on your audio device and follow the instructions provided with it to select the AUDIO IN function.

• Make sure to use the correct Audio cable. Connecting the plugs incorrectly may cause a weak signal.
- If you have a stereo VCR, make sure you set it to stereo mode.
- Due to copyright protection, DVD movies cannot be copied. If you copy a DVD movie onto a videotape, the resulting copy will be unclear, with poor sound quality. This is NOT caused by a defective DVD system.

Connecting to a Multi-channel Audio Receiver

For better sound quality, you may want to play the DVD audio through your multi-channel audio receiver. (DVD mode)

Connecting Game Consoles/Video Devices (for the Monitor Only)

You can use the monitor as a display for game consoles or other video devices.

Playing Games or Watching Videos on the Monitor Only

1. Connect the game console / video device to the monitor by using the included 3.5mm to RCA AV Converter and a standard RCA AV Cable (not included).
2. Turn on the monitor.
3. Turn on the game console / video device and follow the instructions provided with it to playback.

• Make sure to use the correct Audio/Video cable. Connecting the plugs incorrectly may cause a weak signal.
• If you have a mono VCR, the volume level from the speakers will be low.

Using Earphones

Turn down the volume before connecting the headphones/earphones. Slowly raise the volume of the headphones/earphones until you reach your desired volume. When headphones/ earphones are connected, the speaker is automatically disabled.

Avoid listening to sound at excessive levels which could be harmful to your ears. At full power, the prolonged listening can damage the ears of the user.

Headphones / Earphones
[1/8" (3.5mm) diameter plug] (included)

EARPHONES VOLUME WARNING
Maximum output voltage < 150mV

Using The Stand For Indoor Use

You can stand the DVD player and the monitor up on a desk or table by using the stand on the bottom.

DVD player

Line drawing of a handheld electronic device with a stand and control buttons, showing an arrow indicating rotation (no text or symbols present)

Monitor

General Operation

You can play or view picture files (JPEG) or music files (MP3) from a USB device or SD/MMC/MS card.

1. Connect the USB device or SD/MMC/MS card directly to the USB slot or SD/MMC/MS slot on the DVD player.

1. Press the SOURCE button to access the data in the drive.

2. Use the ▲▼ buttons to select "Media".

3. Press the ▶ button, and then press the ▲ buttons to highlight "USB", "SD", "MMC" or "MS" depending on the type of device you have connected and then press the ENTER button to start playback.

4. To remove the USB device or SD/MMC/MS card, press the ■ button to stop playback and then press the SOURCE button followed by the ENTER button to exit the USB, SD/MMC/MS card menu. The DVD player will return to disc mode.

Disc Types Disc Logo Recorded Content
DVD-VIDEO (Digital Versatile Disc)		AUDIO + VIDEO
DVD±RW (Audio/Video format or JPEG files)		AUDIO (MP3) + JPEG
DVD±R (DVD Recordable - Audio/Video format or JPEG files)		AUDIO (MP3) + JPEG
CD-R (CD Recordable - Audio/Video format or JPEG files)		AUDIO (MP3) + JPEG
CD-RW (CD-Rewritable - Audio/Video format or JPEG files)		AUDIO (MP3) + JPEG
AUDIO-CD (Compact Disc Digital Audio)		AUDIO

Supported Formats

JPEG

• The file extensions has to be .jpg and not .jpeg
• Pictures encoding must comply with JPEG/ISO format.

Some recorded files may not be able to be played due to the type and format of disc or condition of the recording.

Region Code

Both the DVD player and the discs are coded by region. These regional codes must match in order to play the disc. If the codes do not match, the disc will not play.

The Region Number for this DVD player is described at the bottom of the DVD player.

Disc Type DVD-VIDEO
Region code

Turning On the DVD Player

1. Slide the ON/OFF switch to ON position on the left panel to turn the DVD player on and the ON/OFF switch to ON position on the right panel to turn the monitor on.
2. The LOGIK DVD logo (start-up picture) will appear on the screen and the unit will start loading the disc automatically (if available).
3. After use, slide the ON/OFF switch to OFF position on the left panel to turn the DVD player on and the ON/OFF switch to OFF position on the right panel to turn the monitor off.

Basic Playback

Ensure that the screen protection film is removed before use.

This instruction manual explains the basic instructions for operating this unit. Some DVDs are produced in a manner that allows for specific or limited operation during playback. Therefore, this unit may not respond to all operating commands. This is not a defect.

Please refer to the instructions accompanying the specific DVD in question for more information about the options available on that DVD.

"∅" may appear on the screen during operation. "∅" means that the desired operation is not permitted by the unit or disc.

Basic DVD Playback

1. Slide the ON/OFF switch to the ON position on both the DVD player and the monitor.
2. Slide the OPEN latch to open the disc tray.
3. Hold the disc by its sides and carefully place onto the disc holder with the label side facing to the front panel. Gently push the disc down until you hear a "click" sound.
4. Close the disc cover. The unit starts playback if the disc does not have any menus recorded on it. If the disc has one or more titles recorded on it, a menu screen will appear on the screen.
5. To play a title, press the ◀▲▼▶ button on the unit or press the ◀▲▼9 / 10+ buttons on the remote control to highlight the title and then press the ENTER button on the unit or the remote control to confirm.

• The screen saver will automatically activate after 5 minutes of no activity. Press any button to exit the screen saver.
• If there is no-activity after 20 minutes, the unit will automatically enter standby mode.

Playback Pausing

1. During playback, press the button on the remote control to stop playback for a while.
2. Press the ▶II button again on the remote control to resume normal playback.

Selecting Chapter / Title time / Chapter time (for DVD)

1. During Playback, press the SEARCH button repeatedly on the remote control to display the disc information text line for Chapter / Title time / Chapter time.
2. Press the 0-9, 10+ buttons to enter valid Chapter / Title time / Chapter time number. The playback skips to the selected Chapter / Title time / Chapter time.

Selecting Disc GOTO / Track GOTO / Select Track (for CD)

1. During Playback, press the SEARCH button on the remote control to display the disc information text line for Disc GOTO / Track GOTO / Select track.
2. Press the 0-9 buttons on the remote control to enter valid Disc time / Track time / Track number. The playback skips to the selected Disc time / Track time / Select track.

Stop Playback

1. Press the ■ button on the remote control to go to pre-stop mode, the display will show "With some discs, the unit can recall the stopped location, such as on DVDs.
2. Press the ▶II button on the unit or the remote control to resume playback from the location where playback was stopped or from the beginning of the disc.
3. Press the ■ button on the remote control twice to stop completely.

Previous and Next

1. During playback, press the button on the unit or the remote control to go back to the start of the previous chapter. Each press of this button will skip a chapter until the start of the disc.
2. Each press of the ▶ button on the unit or the remote control during playback will skip the current chapter and play the next one.
3. For audio CDs, use the 0-9, 10+ buttons on the remote control to play the desired track immediately.

Fast Forward and Fast Reverse

1. Press the ◀buttons on the remote control to fast reverse / fast forward through the disc. Each time the ◀buttons on the remote control are pressed, the fast reverse / fast forward motion speed changes. There are 5 levels of speed available: x2, x4, x8, x16 and x32.
2. Press the ▶II button on the unit or the remote control to resume normal playback.

Repeat Mode

Press the REPEAT button on the remote control repeatedly to select different repeat modes.

Menu DVD Description CD Description
First Press Repeat Chapter Repeat	Track
Second Press Repeat Title Repeat All
Third Press Repeat All Repeat off
Forth Press Repeat off –

Slow

Press the SLOW button on the remote control when a DVD is playing to enter slow playback. Each time you press the SLOW button on the remote control, the playback speed changes in the following sequence:

• This function can only be used for discs on which scenes shot from multiple angles have been recorded.
• If only one angle is recorded, “∅” is displayed.

Angle Selection

Some DVDs contain scenes which have been shot from a number of different angles. For these discs, the same scene can be viewed from each of these different angles.

1. While you are playing a DVD with different angles recorded, press the ANGLE button on the remote control to view the number of current angles available.
2. Press the ANGLE button repeatedly on the remote control to change the scene to the next recorded angle.

a) After approximately two seconds, playback will continue from the new angle you selected.

Audio Channel

Press the AUDIO button on the remote control repeatedly to select different audio languages.

Subtitle Language

Press the SUBTITLE button on the remote control repeatedly to switch between different subtitle languages that are available on the disc.

Info

You can view the disc information (such as current title / chapter / track number, total playing time or remaining time on the disc) without interrupting the disc playback.

During playback, press the DISPLAY button on the remote control to display the available disc information on operation status.

Programmable Memory

For DVD, CD	Press the PROGRAM button to display the PROGRAM MENU. Press the 0-9, 10+ buttons to input the title/chapter/track number and then press the ▲▼ buttons to select START.To resume normal playback, press the PROGRAM button and press the ▲▼ buttons to select STOP.
For JPEG	Press the PROGRAM button repeatedly to select the slide show mode. There are 16 types of slide shows.

Zoom Selection

This function allows you to enlarge or shrink the video image or picture on the screen.

For DVD

During playback, press the ZOOM button. Press the ZOOM button repeatedly to display the picture with different scales. (2X size, 3X size, 4X size, 1/2 size, 1/3 size, 1/4 size, Normal size)

Title

Press the TITLE button to return to the DVD title menu.

Menu

Press the MENU button to return to the DVD main menu.

Customising the General Settings

1. Press the SETUP button to display the setup menu.
2. Press the ◀▶buttons to select GENERAL SETUP PAGE.

1. Press the buttons to select the following options and then press the buttons to change the setting.

TV DISPLAY To select the aspect ratio of the playback picture.
	4:3 PANSCANIf you have a conventional TV and want both sides of the wide picture to be trimmed or formatted to fit your TV screen.
	4:3 LETTERBOXIf you have a normal TV. A wide picture with black bands on the upper and lower portions of the TV screen will be displayed.
	16:9Wide screen display.
	WIDE SQUEEZESet screen mode to 4:3. A wide picture will be squeezed to fit a 4:3 conventional display.
ANGLE MARK The multi-angle logo with the number of available angles will be displayed when playing a DVD that offers multiple angles, or if this is turned on.
OSD LANGUAGE Allows you to select the setup menu and OSD language.
CLOSEDCAPTIONS	For hearing-impaired people, the program can display recorded explanatory captions.
SCREEN SAVER	Select ON to display the screen saver. A moving DVD logo appears on a dark screen to prevent screen from burning when disc playback is stopped, paused, or you have not used the DVD player or its remote control for more than 5 minutes when the power is still on.Select OFF to turn off the screen saver function.
AUTO STANDBY	Select 3H or 4H (hours) to set the idle length.While idling, a pop up warning window will display for 10 seconds before the unit turns itself off. Press any button to extend the time.Select OFF to turn off the auto standby function.

1. Press the SETUP button to exit the menu.

2. Press the SETUP button to display the setup menu.

3. Press the ◀▶buttons to select AUDIO SETUP PAGE.

1. Press the buttons to select the following options and then press the buttons to change the setting.

DOWNMIX Allows you to set the stereo analog output of your DVD player.LT/RTSelect this option if your DVD player is connected to a Dolby decoder.STEREOSelect this option to change channel output to stereo which delivers sound from only the two front speakers.

DIGITAL OUTPUT Select the SPDIF Output.SPDIF OffTurns off the digital output.SPDIF/RAWIf you have connected your DIGITAL AUDIO OUT to a multi-channel decoder/receiver.SPDIF/PCMOnly if your receiver is not capable of decoding multi-channel audio.

DOLBY DIGITAL · DUAL MONOIf your amplifier / decoder has Dolby Digital output, you may select stereo, left mono, right mono, or mixed mono mode for your amplifier decoder.DYNAMICDynamic range compression.

1. Press the SETUP button to exit the menu.

Customising the Video Settings

1. Press the SETUP button to display the setup menu.
2. Press the ◀buttons to select VIDEO SETUP PAGE.

1. Press the buttons to select the following options and then press the buttons to change the setting.

SHARPNESS Set the sharpness level of video output.

BRIGHTNESS Set the brightness level of video output.

CONTRAST Set the contrast level of video output.

HUE Set the hue value of the video.

SATURATION Set the saturation of the video.

1. Press the SETUP button to exit the menu.

Customising the Preference Settings

1. Press the SETUP button to display the setup menu.
2. Press the ◀▶buttons to select PREFERENCE PAGE.

1. Press the ▲▼ buttons to select the following options and then press the ◀▶buttons to change the setting.

TV TYPE Selecting the colour system that corresponds to your TV when connecting to your TV's AV outputs. This DVD player is compatible with both NTSC and PAL.
AUDIO Allows you to choose the preferred audio language of your disc. If the preferred language is not available on the disc, the DVD player will automatically use the DVD disc's default language.
SUBTITLE Allows you to choose the preferred subtitle language of your disc. If the preferred language is not available on the disc, the DVD player will automatically use the DVD disc's default language.
DISC MENU A	lows you to choose the preferred menu language of your disc. If the preferred language is not available on the disc, the DVD player will automatically use the DVD disc's default language.
PARENTAL This feature allows you to block disc playback with specific ratings.The rating levels are from 1 to 8 and are country-dependent. You can prohibit the playing of certain discs that are not suitable for your children, or you can have certain discs played with alternative scenes.The parental lock levels are equivalent to the following ratings:1 : Kid Safe 2 : G 3 : PG 4 : PG135 : PGR 6 : R 7 : NC17 8 : AdultUnlock the disc by entering the 4-digit password you have set in PASSWORD setup at the PASSWORD SETUP PAGE.If you change the control level, you must input password. (Initial password : 1369)In case you forget your password, the master password is "1369".To disable the parental control and allow the DVD player to play all discs, select ADULT.Use the 0-9 buttons to enter the 4-digit password again.DVD discs that are rated above the selected level will not be played unless the 4-digit password is entered.TipsThe following disc types will not be affected by the Parental Control feature:Discs that are not coded by the disc manufacturer.Discs that are not coded by the disc manufacturer despite having movie rating printed on the disc cover.CDs as they have no rating level indication.Most copied DVD discs or illegal DVDs.
DEFAULT Resets to all the manufacturer's original settings for this DVD player.The parental lock setting will not be reset.

1. Press the SETUP button to exit the menu.

2. Press the SETUP button to display the setup menu.

3. Press the ◀▶buttons to select PASSWORD SETUP PAGE.

1. Press the buttons to select the following options and then press the buttons to change the setting.

Password Mode

Set password mode ON / OFF. If set to OFF, changing parental level will not activate a password check.

Password A 4-digit password will be required to play a prohibited disc.If the disc is locked and the system prompts you to enter the password.Use the 0-9 buttons to input the current password in the OLD PASSWORD box (If the password has not been set yet after you purchased this unit, it is “1369”).a) In case you forget your password, the master password is “1369”.Press the number buttons to input the new password in the NEW PASSWORD box.Enter the new password again in the CONFIRM PWD box.If the cursor is on OK button, press the ENTER button to confirm setting.

1. Press the SETUP button to exit the menu.

Handling Discs

• Do not touch the playback side of the disc.
• Do not attach paper or tape to the disc.

Cleaning Discs

- Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth. Always keep the disc clean.

• If you cannot wipe off the dust with a cloth, wipe the disc lightly with a slightly moistened soft cloth and finish with a dry cloth.
• Do not use any type of solvent such as thinner, benzine, commercially available cleaners or antistatic spray. They may damage the disc.

Storing Discs

• Do not store discs in places subjected to direct sunlight or near heat sources.
• Do not store discs in places subjected to moisture and dust such as a bathroom or near a humidifier.
• Storing discs vertically in a case, stacking discs or placing objects on discs outside of their cases may cause warping.

Ensure to unplug the unit from the mains socket before cleaning.

Cleaning the Unit

• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
- Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
- Do not spray an aerosol at or near the unit.

If a problem does occur, it may often be due to something very minor. The following table contains various tips.

Symptom Cause / Solution
No power. • Ensure the car power adapter or the mains adapter is connected.• Make sure that the unit is turned on.• Make sure that you select ON mode.
The remote control does not function.	• Use the remote near the unit.• Point the remote at the remote sensor on the unit.• Replace the battery in the remote with a new one.• Make sure the plastic sheet has been removed from the remote control.• Remove any obstacles between the remote and the unit.
Very little or no sound is coming from a DVD.	• Make sure the unit is not paused. Press the ▶II button.• Make sure the unit is not in fast-forward or fast-reverse mode. Press the ▶II button.• Make sure the AUDIO/VIDEO input/output connections are correct.• The DTS DVD cannot be decoded to have speaker output. Press theAUDIObutton repeatedly to switch to other languages recorded on the disc.• The unit has overheated. Shut it off for 30 minutes to allow it to cool down.• The volume control is located on the front panel – please try or press theVOL+/- buttons on the remote control.
No picture. • The region number of the disc doesn’t match the region number of this unit.
The picture is not clear.	• The DVD is dirty. Gently clean the disc.• The disc is scratched.• Please adjust the display’s sharpness, brightness, contrast, hue and saturation by using theMODEbutton on the remote control.
Loud hum or noise is heard.	• The plugs and sockets are dirty. Wipe them with a cloth slightly moistened with alcohol.• Clean the disc.
The disc does not play.	There is no disc inside the unit ("NO DISC" appears on the display).Insert the disc correctly with the graphics facing up.Clean the disc.A non-valid disc has been inserted, or the disc region number does not match the region number of the unit.Condensation may have formed inside the unit due to a sudden change in temperature. Wait about an hour for it to clear and try again.It may not be possible to play CD-R/RW or DVD-R/RW in all cases due to the type of disc or condition of the recording. If you are having trouble playing a certain disc, remove the disc and try a different one. Improperly formatted discs will not play on this DVD player.
If no key operation (by the DVD player and/or the remote control) is effective.	Turn the unit off and then back to on. Alternatively, turn off the unit, disconnect the mains adapter and then re-connect it. (The DVD player may not be operating properly due to lightning, static electricity or some other external factor.)

If any abnormality is encountered, turn off the unit by switching the ON/OFF switch to OFF position and turn it on again.

Model L7TWIN11
Power
Mains Adapter Input: AC 100-240V~ 50/60Hz 0.4AOutput: DC 9V ≡5A
Car Cigarette Lighter Adapter Input: DC 12V = 2.0AOutput: DC 12V = 2.0A
Main Unit Input: DC 9-12V	== 1.5A
Power Consumption <10W
Speaker Output Power 1W rms x 2
USB Power 5V	== 0.2A
Feature
LCD Screen 7" Wide-Screen Active-Matrix TFT Type
Speaker 2 Built-in stereo speaker
Decoding Format	DVD, CD, CD-R, CD-RW, JPEG Picture CD
Video System	PAL, NTSC
ConnectivityDVD PlayerLCD Monitor	AV OUT Socket x 1, Digital Coaxial Output Socket x 1,Headphones Socket x 1, SD/MMC/MS Card Reader x 1,USB Port x 1SD/MS/MMC Card Reader x 1, USB Port x 1AV IN Socket x 1, Headphones Socket x 1
Dimension (W) x (D) x (H)DVD PlayerLCD Monitor	190 x 37 x 145 mm190 x 21.5 x 143 mm
Net WeightDVD PlayerLCD Monitor	650g420g

Features and specifications are subject to change without prior notice.

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit

www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

Rovi Proprietary Rights

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Restriction on Use & Rovi Trade Mark Rights

Use of the copyright protection technology contained in this product must be authorised by Rovi Corporation and is intended for home and other limited viewing uses only unless otherwise authorised by Rovi Corporation. The names "Rovi Corporation" and "Macrovision" are protected by trademarks.

Notes for battery disposal

The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

All trademarks are the property of their respective owners and all rights are acknowledged.

DSG Retail Ltd. (co. no. 504877)

Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK
