Product Type	Electric Kettle
Brand	Logik
Model	L17KBS11
Capacity	1.7 L
Power Rating	2200 W
Voltage	220-240 V ~ 50/60 Hz
Dimensions (W x D x H)	22 x 15 x 22 cm
Weight	1.2 kg
Material	Stainless Steel and Plastic
Color	Silver/Black
Base Type	Cordless 360° base
Cord Length	Approx. 75 cm
Filter	Removable limescale filter
Water Level Indicator	Yes, transparent window with markings
Auto Shut-off	Yes, after boiling
Boil-Dry Protection	Yes
Lid Opening	One-button push-open
Heating Element	Concealed, stainless steel
Cleaning	Descale regularly with vinegar or citric acid
Spare Parts Available	Lid, filter, base unit (via manufacturer)
Repairability Index	Not officially rated; typical for budget kettles

Frequently Asked Questions - L17KBS11 Logik

How do I descale my Logik L17KBS11 kettle?

Fill the kettle halfway with a mixture of equal parts water and white vinegar or citric acid. Boil, then let it sit for 30 minutes. Rinse thoroughly with fresh water and boil again to remove any residue. Repeat if necessary.

What is the capacity of this kettle?

The Logik L17KBS11 has a capacity of 1.7 liters, ideal for boiling up to 7 cups of water.

How long does it take to boil water?

With a 2200W element, it typically boils 1 liter of water in about 3-4 minutes, depending on starting temperature.

What is the cord length?

The cord is approximately 75 cm (30 inches) long. The kettle sits on a 360° cordless base for easy handling.

Does it have automatic shut-off?

Yes, the kettle automatically switches off once the water reaches boiling point. It also has boil-dry protection to prevent damage if operated with insufficient water.

Can I boil milk or other liquids?

No, this kettle is designed for water only. Boiling milk or other liquids can damage the heating element and is a safety hazard.

How do I clean the filter?

The filter is removable. Rinse it under running water with a soft brush. For stubborn limescale, soak it in vinegar or descaling solution before rinsing.

What materials is it made of?

The body is made of stainless steel with plastic components. The lid and handle are plastic, and the base is plastic with a stainless steel contact plate.

Is the kettle guaranteed?

Logik typically offers a 1-year warranty. Keep your proof of purchase and register the product on the manufacturer's website for support.

Can I use this kettle with an extension cord?

It is not recommended, as it may cause overheating. Plug directly into a wall socket. If necessary, use a heavy-duty extension cord rated for at least 10A.

USER MANUAL L17KBS11 Logik

Mains supply: 230V-50Hz

Power consumption: 2200W

We continually strive to improve our products. Specifications may change without prior notice.

SAFETY FIRST!

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

- Read all the instructions carefully before using this appliance and keep them for future reference.

- Retain the manual. If you pass the appliance on to a third party, make sure to include this manual.

- Unplug the appliance from the mains socket when not in use, or before cleaning any part of the appliance.

- Allow the appliance to completely cool down before cleaning.

- Never immerse the appliance in water and always keep the electrical contacts dry.

- Never place the appliance on or near a source of heat such as a cooker ring or gas flame.

• Always place the appliance on a dry, flat and stable surface.

- Avoid contact with the steam from the appliance's spout. Take care when pouring or refilling after boiling.

• To prevent from boiling dry, do not fill the appliance with water less than the minimum fill level as indicated on the appliance.

- Do not use the appliance to heat anything other than water.

- Do not interfere with the normal working of the switch.

• Always keep the appliance out of the reach of small children. Children should be taught about the dangers of boiling water.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

- If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

- Do not let the mains cable overhang the edge of the work surface or allow it to touch hot surfaces or sources of heat or flame.

- This appliance is intended to be used in households and similar places such as: - Staff kitchen areas in shops, offices and other work places.

- By clients in motels, hotels and Bed & Breakfast establishments.

NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers:

Partmaster couk

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to www.partmaster.co.uk as doi: 0044-000-2456/UK

your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

DSG Retail Ltd • Maylands Avenue • Hermel Hempstead Herts • HP2 7TG • England

(P.N.L17KB511-001)

LOGIK

Stainless Steel Kettle

Instruction Manual L17KBS11

Modern stainless steel water heater with black handle and black base (no text or symbols visible)

Thank you for purchasing your new Logik Kettle.

We recommend that you spend some time reading this instruction manual in order to fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

UNPACKING

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

• The Main Unit

• Instruction Manual (P.N.: L17KBS11-001)

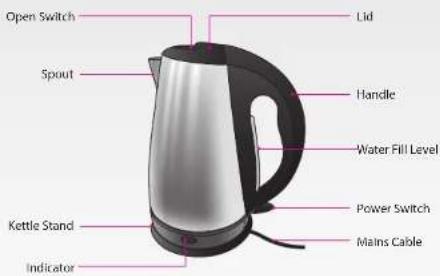

PRODUCT OVERVIEW

FIRST TIME USE

Clean your kettle by boiling a full kettle of water twice and then discarding the water.

KEEPING THE MAINS CABLE TIDY

Extend the mains cable in the kettle stand to the required length. Locate the mains cable in the slot in the stand. For safety it is recommended that the length of exposed mains cable is kept as short as possible.

GB-1 GB-2 GB-3

FILLING THE KETTLE

Slide the open switch to open the lid and fill the kettle with the required amount of water.

Do not exceed the maximum fill level (Max 1.7L) as indicated inside the kettle and not less than the minimum fill level (Min 0.5L).

If the kettle is overfilled, boiling water may be ejected from the spout and cause scalding.

Illustration of a hand holding a 90-degree pointer on a silver kettle (no text or symbols)

SWITCHING ON

Place the kettle on the stand. Connect the stand's mains cable to the mains socket. Press the power switch to the ON position (indicated by the symbol 1).

The indicator on the side of the kettle will light up to indicate that the kettle is heating.

- Never open the lid while the water is boiling. The steam coming out from the kettle is very hot.

If there is insufficient water in the kettle, the automatic safety cut-out will operate. If this happens, allow the kettle to cool for ten minutes before refilling with cold water and re-boiling.

WHEN THE WATER HAS BOILED

The kettle will automatically switch off (indicated by the symbol '0').

- Ensure that the switch is not obstructed and the lid is firmly closed. The kettle will not turn off if the switch is obstructed or if the lid is open.

After removing the kettle, there may be some water on the surface of the stand. This is condensation from the steam that causes the kettle to automatically switch off after boiling. This is normal and should not be a cause for alarm.

CLEANING THE KETTLE

The kettle exterior should be cleaned with a soft damp cloth. Do not use abrasive cleaners or scouring pads which may damage the finish of the kettle. Never immerse the kettle or the stand in water and always keep the electrical contacts dry. Always disconnect from the mains before cleaning the stand.

Do not insert any foreign objects or allow any liquid to spill into the Power Connector Hole.

DESCALING THE KETTLE

Depending on the hardness of the water in your area, limescale may be deposited on the heating element and the inside of the kettle. This normal build-up is not harmful to health but an excessive amount of scale may affect the performance of the kettle.

To descale, fill the kettle with distilled water up to three-quarters of the Max level and bring the water to boil. After the kettle has switched off, add a descaling solution following the manufacturers instructions. Never attempt to descale the kettle by chipping or scraping with a sharp implement.

Illustration of a hand pouring liquid into a silver kettle (no text or symbols)

CLEANING THE REMOVABLE SCALE FILTER

To prevent loose particles of limescale being poured into your beverage, your kettle is fitted with a scale filter. You may remove the filter and fit it back in after cleaning.

To remove the filter, open the lid, push the filter towards the inside of the kettle from the bracket at the spout.

To fit in the filter, open the lid, place the filter inside the bracket at the spout and push it down till it fits in place.
