Product Type	Electric Kettle
Brand	Logik
Model	L17PKB13E
Capacity	1.7 Liters
Power Rating	3000 Watts
Power Supply	220-240V AC, 50/60Hz
Dimensions (approx.)	22 x 22 x 26 cm
Weight (approx.)	1.0 kg
Material	Stainless Steel and Plastic
Cordless Base	Yes, 360° rotation
Auto Shut-Off	Yes, after boiling
Boil-Dry Protection	Yes
Concealed Heating Element	Yes
Water Level Indicator	Yes, transparent window
Lid Type	Flip-top with one-button opening
Spout	Gooseneck or standard (typical)
Filter	Removable mesh filter
Cleaning Instructions	Descale regularly with vinegar or citric acid; wipe exterior with damp cloth
Safety Features	Auto shut-off, boil-dry protection, cool-touch handle
Color	Black (typical)

Frequently Asked Questions - L17PKB13E Logik

What is the capacity of the Logik L17PKB13E kettle?

The kettle has a capacity of 1.7 liters, ideal for boiling water for multiple cups at once.

How do I descale the kettle?

Fill the kettle with a mixture of equal parts water and white vinegar or use a descaling solution. Boil, let it sit for 15-20 minutes, then rinse thoroughly. Repeat if necessary.

Does the kettle have an automatic shut-off feature?

Yes, the kettle automatically switches off once the water reaches boiling point. It also features boil-dry protection to prevent damage if operated without water.

Can I open the lid while the kettle is boiling?

It is not recommended to open the lid during operation to avoid steam burns. Wait until the kettle has switched off and cooled down.

How do I clean the exterior of the kettle?

Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or immerse the kettle or base in water.

Is the heating element visible?

No, the heating element is concealed inside the kettle, making it easier to clean and reducing limescale buildup.

What is the power consumption of this kettle?

The kettle operates at 3000 watts on a 220-240V supply, ensuring fast boiling times.

Does the kettle have a water level indicator?

Yes, there is a transparent water level window on the side for easy measurement and viewing.

Can I use the kettle on a 360-degree base?

Yes, the kettle sits on a cordless base that allows 360-degree rotation for convenient lifting and placement.

Where can I find replacement parts or spare filters?

Contact Logik customer service or check the instruction manual for authorized service centers. Some parts may be available online.

USER MANUAL L17PKB13E Logik

Black and silver LogK stand mixer with digital display, no visible text or symbols on the device itself.

Contents

GB

Safety Warnings....5

Unpacking......26

Product Overview....27

First Time Use 27

Keeping the Mains Cable Tidy......28

Filling the Kettle....28

Switching On....29

When the Water has Boiled 29

Cleaning the Kettle 30

Descaling the Kettle 30

Cleaning the Removable Scale Filter ....31

Specifications....31

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all the instructions carefully before using this appliance and keep them for future reference.
• Retain the manual. If you pass the appliance on to a third party, make sure to include this manual.
• Unplug the appliance from the mains socket when not in use, or before cleaning any part of the appliance.
• Allow the appliance to completely cool down before cleaning.
• Never immerse the appliance in water and always keep the electrical contacts dry.

• Never place the appliance on or near a source of heat such as a cooker ring or gas flame.
  • Always place the appliance on a dry, flat and stable surface.

• Avoid contact with the steam from the appliance's spout. Take care when pouring or refilling after boiling.

• To prevent from boiling dry, do not fill the appliance with water less than the minimum fill level as indicated on the appliance.
• Do not use the appliance to heat anything other than water.
• Do not interfere with the normal working of the switch.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.

• Children should be taught about the dangers of boiling water.
• Children should be supervised to ensure that they do not play with the appliance.
- If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
- Do not let the mains cable overhang the edge of the work surface or allow it to touch hot surfaces or sources of heat or flame.
• This appliance is intended to be used in households and similar places such as:

- Staff kitchen areas in shops, offices and other work places.

- By clients in motels, hotels and Bed & Breakfast establishments.

Thank you for purchasing your new Logik Kettle.

We recommend that you spend some time reading this instruction manual in order to fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

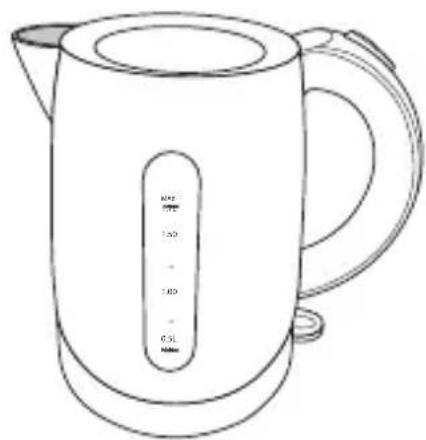

Line drawing of a white kettle with handle and spout, showing internal measurement scale (no text or symbols)

The Main Unit Kettle Stand

Simple line drawing of a circular object with a central hole and a black cable extending from its side (no text or symbols)

Simple illustration of a shield-shaped object with internal geometric patterns (no text or symbols)

Filter Instruction Manual

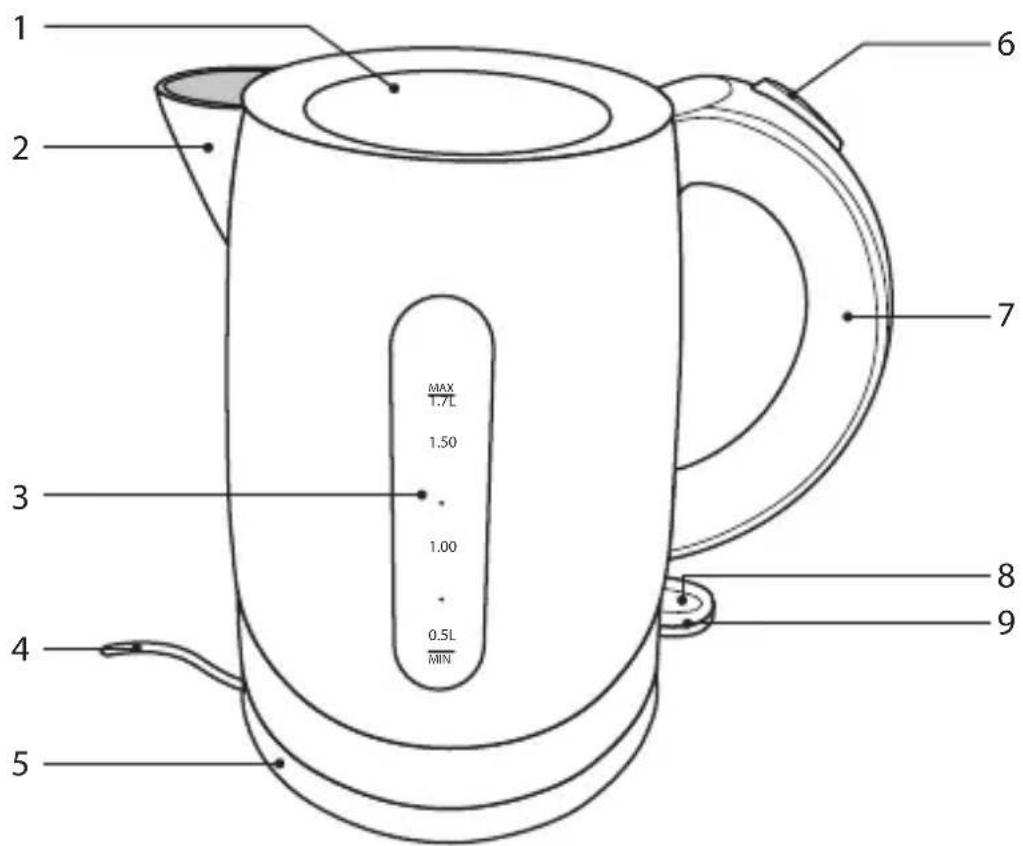

1. Lid
2. Spout
3. Water Fill Level
4. Mains Cable

5. Kettle Stand

6. Open Button

7. Handle
8. Power Indicator
9. Power Switch

First Time Use

Clean your kettle by boiling a full kettle of water twice and then discarding the water.

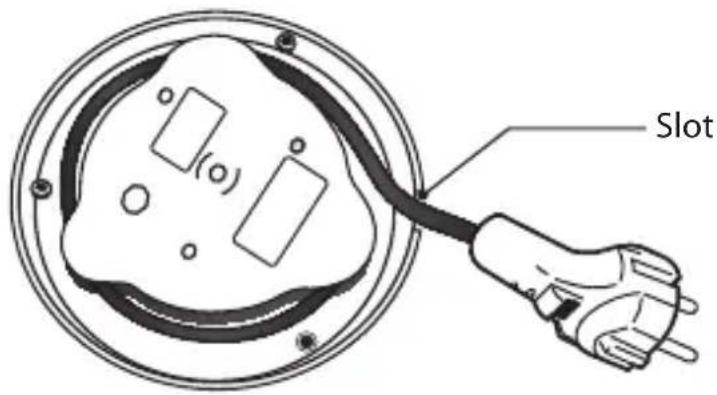

Keeping the Mains Cable Tidy

Extend the mains cable to the required length. Locate the mains cable in the slot in the stand. For safety purposes it is recommended that the length of the exposed mains cable is kept as short as possible.

This kettle must only be used with the stand provided.

Filling the Kettle

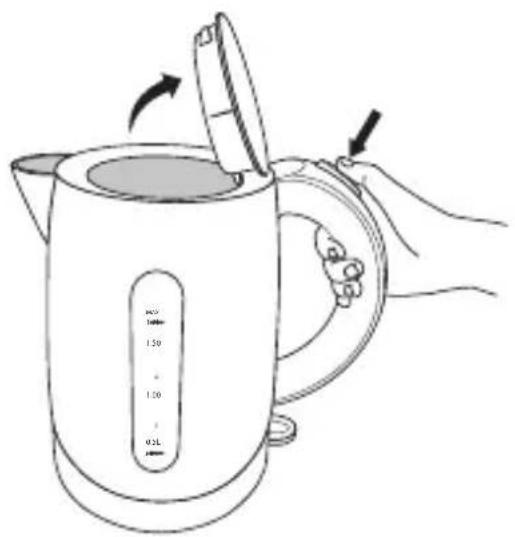

Press the open button to open the lid and fill the kettle with the required amount of water.

Do not exceed the maximum fill level (Max 1.7L) as indicated by the "MAX" mark on the kettle.

Always ensure the kettle is filled passed the minimum fill level (MIN 0.5L) as indicated by the "0.5L" mark on the kettle.

Gently push the lid closed. It will click shut to indicate it is fully and securely closed.

If the kettle is overfilled, boiling water may be ejected from the spout and scald.

Switching On

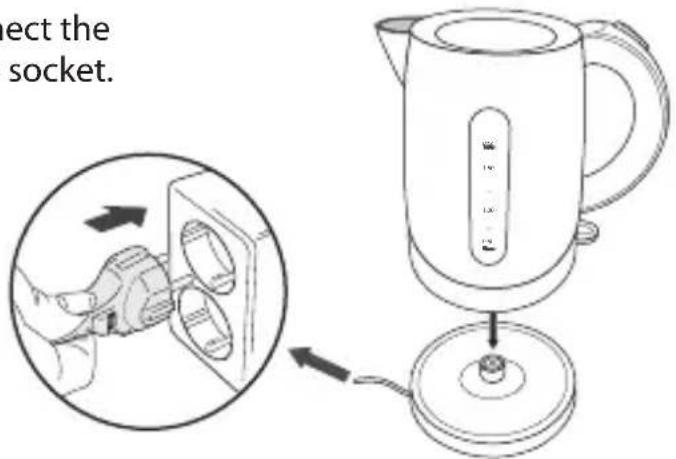

1. Place the kettle on its stand. Connect the stand's mains cable to the mains socket.

1. Press the power switch to the ON position (indicated by the symbol '1'). The indicator will light up to show that the kettle is heating.

• Never open the lid while the water is boiling. The steam coming out from the kettle is very hot.
• If there is insufficient water in the kettle, the automatic safety cut-out will operate. If this happens, remove the kettle from its stand. Allow the kettle to cool for ten minutes before refilling with cold water. Place the kettle on its stand and re-boil.

Simple line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

When the Water has Boiled

The kettle will automatically switch off (indicated by the symbol '0').

• Ensure that the switch is not obstructed and the lid is firmly closed. The kettle will not turn off if the switch is obstructed or if the lid is open.
• After removing the kettle, there may be some water on the surface of the stand. This is condensation from the steam that causes the kettle to automatically switch off after boiling. This is normal and should not be a cause for alarm.

Simple line drawing of a mechanical component with an arrow indicating upward motion (no text or symbols)

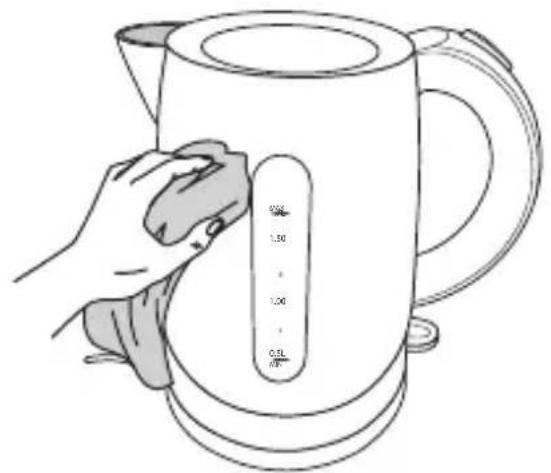

Cleaning the Kettle

The kettle exterior should be cleaned with a soft damp cloth. Do not use abrasive cleaners or scouring pads which may damage the finish of the kettle.

Never immerse the kettle or the stand in water and always keep the electrical contacts dry. Always disconnect from the mains before cleaning the stand.

Line drawing of a hand holding a white kettle with a digital scale on its side (no text or symbols)

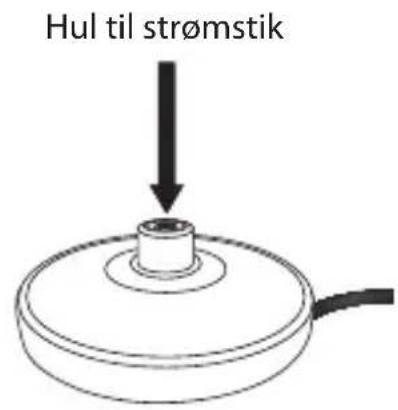

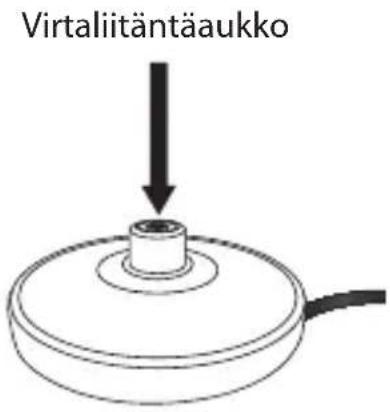

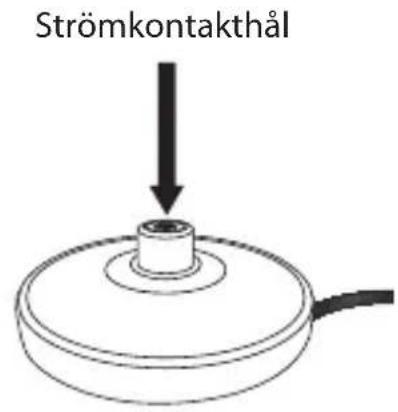

Power Connector Hole

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Do not insert any foreign objects or allow any liquid to spill into the Power Connector Hole.

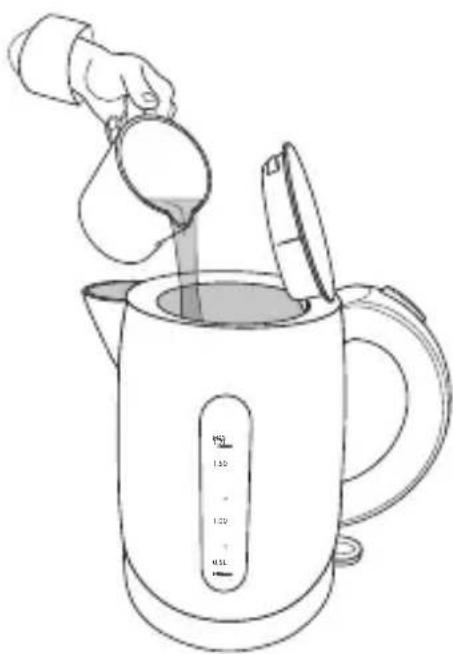

Descaling the Kettle

Depending on the hardness of the water in your area, limescale may be deposited on the heating element and the inside of the kettle. This normal build-up is not harmful to health but an excessive amount of scale may affect the performance of the kettle.

To descale, fill the kettle with distilled water up to three-quarters of the Max level and bring the water to boil. After the kettle has switched off, add a descaling solution following the manufacturers instructions. Never attempt to descale the kettle by chipping or scraping with a sharp implement.

Line drawing of a hand pouring liquid into a kettle with a lid, showing volume measurement (no text or symbols)

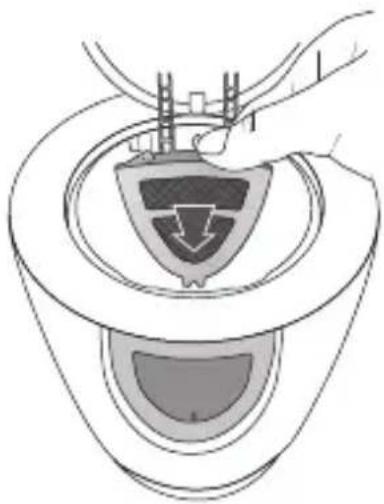

Cleaning the Removable Scale Filter

GB

Ensure the kettle is cool before removing the filter.

To prevent loose particles of limescale being poured into your beverage, your kettle is fitted with a scale filter. You may remove the filter and fit it back in after cleaning.

To remove the filter, open the lid. Push down on the lip of the filter then push the filter inwards. Lift and remove.

Illustration of a hand holding a small object with an arrow pointing to it, no text or symbols present

To fit in the filter, open the lid. Place the filter inside the spout, ensuring the bottom fork rests on its ledge inside the spout. Push the filter towards the spout. It will click into place.

Diagram of a medical device with a shield and catheter, showing internal components (no text or labels)

Specifications

Model L17PKB13E
Mains Supply 220-240V~50Hz
Power Consumption 1850-2200W

Features and specifications are subject to change without prior notice.

NO

Takk for at du kjøpte ny Logik vannkokeren.

Line drawing of a standard white kettle with handle and spout, no text or symbols present

Hovedenhet Vannkokerbase

Simple line drawing of a circular object with a central hole and a curved stem (no text or symbols)

Simple illustration of a shield-shaped object with internal grid pattern (no text or symbols)

Line drawing of a hand holding a kettle with lid and handle, showing temperature scale (no text or symbols)

Simple line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

Når vannet har kokt

Vannkokeren slås av automatisk (angitt med symbolet «0»).

Simple line drawing of a mechanical component with an arrow indicating upward motion (no text or symbols)

NO

Line drawing of a hand holding a white kettle with a pressure scale (no text or symbols on the device itself)

Strømkontaktåpning

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Line drawing of a hand pouring liquid into a kettle with a lid, showing volume measurement (no text or symbols)

Illustration of a hand holding a small object with an arrow pointing to it, no text or symbols present

Diagram of a medical device with a central shield and surrounding tissue (no text or symbols)

Spesifikasjoner

Modell L17PKB13E
Strømforsyning 220-240V~50Hz
Strømforbruk 1850-2200W

Line drawing of a white kettle with handle and spout, showing measurement markings (no text or symbols on the device itself)

Simple line drawing of a circular object with a central stem and a curved base (no text or symbols)

Simple illustration of a shield-shaped object with two internal rectangular cutouts (no text or symbols)

Simple line drawing of a hand holding a curved object with an arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a hand holding a white kettle with a digital scale on its side (no text or symbols on the device itself)

Line drawing of a hand pouring liquid into a kettle with a lid, showing volume measurement (no text or symbols)

Illustration of a hand holding a small object with an arrow pointing to it, no text or symbols present

Diagram of a hand placing a shield-shaped object into a container with arrows indicating flow or movement (no text or symbols present)

Specifikationer

Modell L17PKB13E
Nätanslutning 220-240V~50Hz
Nätanslutning 1850-2200W

Line drawing of a white kettle with handle and spout, showing internal measurement scale (no text or symbols)

Simple line drawing of a circular object with a central hole and a curved stem, resembling a lid or knob (no text or symbols)

Simple illustration of a shield-shaped object with two internal rectangular cutouts (no text or symbols)

Simple line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

Simple line drawing of a curved pipe or tube with a circular component and an upward arrow, no text or symbols present.

Line drawing of a hand holding a white kettle with a water level scale (no text or symbols on the device itself)

Line drawing of a hand pouring liquid into a kettle using a stand mixer (no text or symbols)

Illustration of a hand inserting a small object into a container with a downward arrow (no text or symbols)

Diagram of a medical device with a shield and catheter, showing internal components (no text or labels)

Tekniset tiedot

Malli L17PKB13E
Teho 220-240V~50Hz
Virrankulutus 1850-2200W

Line drawing of a white kettle with handle and side legs, no text or symbols present

Simple line drawing of a circular object with a central hole and a curved base (no text or symbols)

Simple line drawing of a shield-shaped object with internal mesh pattern (no text or symbols)

Line drawing of a hand holding a white kettle with lid, showing temperature scale and cooling mechanism (no text or symbols)

Simple line drawing of a hand holding a curved object with an arrow indicating direction (no text or symbols)

Når vandet har kogt

Simple line drawing of a curved pipe or tube with an arrow pointing to a circular component (no text or symbols)

Rengøring af kedlen

Line drawing of a hand holding a white kettle with a handle, showing its interior and lid (no text or symbols)

Line drawing of a hand pouring liquid into a kettle with a lid, showing volume measurement (no text or symbols)

Illustration of a hand inserting a small object into a container with a curved handle (no text or symbols)

DK

Diagram of a hand holding a shield with a downward arrow, partially enclosed in a container (no text or symbols)

Specifikationer

Model L17PKB13E
Strømforsyning 220-240V~50Hz
Strømforbrug 1850-2200W

Line drawing of a white kettle with handle and spout, showing internal measurement scale (no text or symbols)

Simple line drawing of a circular object with a central hole and a curved stem, resembling a lid or cover (no text or symbols)

Simple illustration of a shield-shaped object with internal geometric patterns (no text or symbols)

Simple line drawing of a hand holding a curved object with an arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Čištění konvice

Line drawing of a hand holding a white kettle with a pressure gauge (no text or symbols on the device itself)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Line drawing of a hand pouring liquid into a kettle using a lid (no text or symbols)

Illustration of a hand holding a small object with a shaded area, no text or symbols present

CZ

Diagram of a medical device with a central shield and surrounding tissue (no text or symbols)

Specifikace

Line drawing of a white kettle with handle and spout, showing internal measurement scale (no text or symbols)

Hlavné zariadenie Stojan kanvice

Simple line drawing of a circular object with a central hole and a black cable extending from its side (no text or symbols)

Simple illustration of a shield-shaped object with internal geometric patterns (no text or symbols)

Filter stupnice Návod s pokynmi

Prehl'ad výrobku

Simple line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

SK

Po zovretí vody

Kanvica sa automaticky vypne (označené symbolom „0“).

Simple line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Čistenie kanvice

Line drawing of a hand holding a white kettle with a water level scale (no text or symbols on the device itself)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Line drawing of a hand pouring liquid into a kettle with a lid, showing volume measurement (no text or symbols)

Illustration of a hand holding a curved object with a shaded area, no text or symbols present

SK

Diagram of a medical device with a central shield and surrounding tissue (no text or symbols)

Technické parametre

Model L17PKB13E
Napájanie zo siete 220-240V~50Hz
Spotreba energie 1850-2200W

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

NO
