Product Type	Cordless Electric Kettle
Brand	Logik
Model	L10KBS13E
Capacity	1.7 L
Power Rating	220-240 V ~ 50/60 Hz, 3000 W
Base Type	360° swivel cordless base
Housing Material	Stainless steel and plastic
Dimensions (Approx)	23.5 x 23.5 x 26.0 cm
Net Weight	1.2 kg
Water Level Indicator	Transparent window with scale
Lid Opening	Push-button with wide opening
Filter	Removable scale filter
Boil-Dry Protection	Automatic shut-off when empty
Auto Shut-Off	Yes, after boiling
Cord Storage	Underneath base
Cleaning	Wipe exterior with damp cloth; descale regularly with vinegar or citric acid
Safety Features	Boil-dry protection, auto shut-off, cool-touch handle
Spare Parts Availability	Lid, filter, base (contact manufacturer or authorized service)
Repairability	Replaceable power cord and base; professional service required for internal components
General Information	For household use only; do not immerse in water; unplug when not in use

Frequently Asked Questions - L10KBS13E Logik

What is the capacity of the Logik L10KBS13E kettle?

The Logik L10KBS13E kettle has a capacity of 1.7 liters, ideal for making several cups of tea or coffee.

How do I clean the kettle?

Clean the exterior with a damp cloth. To descale, fill with a mixture of water and white vinegar or citric acid, boil, let sit, then rinse thoroughly. Do not use abrasive cleaners.

Why does the kettle turn off before boiling?

This may be due to scale buildup on the heating element. Descale the kettle regularly. Also, ensure the lid is closed properly and the water level is above the minimum.

Is the kettle cordless?

Yes, it is a cordless kettle that sits on a 360° swivel base for easy lifting and pouring.

Can I boil less than 1 liter?

You can boil as little as 0.5 liters, but always ensure the water covers the heating element to avoid damage.

What safety features does this kettle have?

It includes boil-dry protection (auto shut-off if empty) and automatic shut-off after boiling. The handle stays cool to the touch.

How often should I descale the kettle?

Descaling frequency depends on water hardness. As a guide, descale every 1-3 months or when you notice white deposits or slower boiling.

The lid does not close properly. What should I do?

Check if the lid hinge or latch is blocked by debris. If the issue persists, the lid may need replacement. Contact Logik customer service for spare parts.

Can I use the kettle for anything other than water?

Only water should be boiled in this kettle. Boiling other liquids (e.g., milk) will damage the appliance and void the warranty.

Where can I find a replacement filter?

Replacement scale filters are available from Logik’s official spare parts website or through authorized service centers. Use the model number L10KBS13E.

USER MANUAL L10KBS13E Logik

Stainless Steel Cordless Kettle

Instruksjonsmanual

Ledningsfri Vannkoker i Rustfritt Stål

Instruktionsbok

Sladdlös Vattenkokare i Rostfritt Stål

GB

NO

SE

L10KBS13E

Käyttöopas

Exterior view of a modern stainless steel kettle with black handle and control panel (no visible text or symbols)

Contents

GB

Unpacking....25

Product Overview......26

First Time Use 26

Keeping the Mains Cable Tidy......27

Filling the Kettle....27

Switching On....28

When the Water has Boiled 28

Cleaning the Kettle 29

Descaling the Kettle 29

Cleaning the Removable Scale Filter ....30

Specifications....30

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all the instructions carefully before using this appliance and keep them for future reference.
• Retain the manual. If you pass the appliance on to a third party, make sure to include this manual.
• Unplug the appliance from the mains socket when not in use, or before cleaning any part of the appliance.
• Allow the appliance to completely cool down before cleaning.
• Never immerse the appliance in water and always keep the electrical contacts dry.

• Never place the appliance on or near a source of heat such as a cooker ring or gas flame.
  • Always place the appliance on a dry, flat and stable surface.

• Avoid contact with the steam from the appliance's spout. Take care when pouring or refilling after boiling.
  • To prevent from boiling dry, do not fill the appliance with water less than the minimum fill level as indicated on the appliance.

• Do not use the appliance to heat anything other than water.
• Do not interfere with the normal working of the switch.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.

• Children should be taught about the dangers of boiling water.
• Children should be supervised to ensure that they do not play with the appliance.
- If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
- Do not let the mains cable overhang the edge of the work surface or allow it to touch hot surfaces or sources of heat or flame.
• This appliance is intended to be used in households.

Thank you for purchasing your new Logik Kettle.

We recommend that you spend some time reading this instruction manual in order to fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

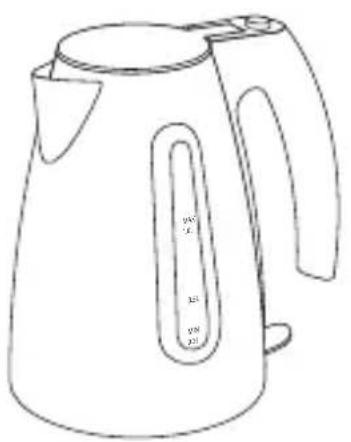

Line drawing of a simple water kettle with handle and side arm, no text or symbols present

The Main Unit Kettle Stand

Simple line drawing of a circular mechanical component with a central hub and a cable (no text or symbols)

* All images in this instruction manual are for indication only; please refer to your individual unit for details.

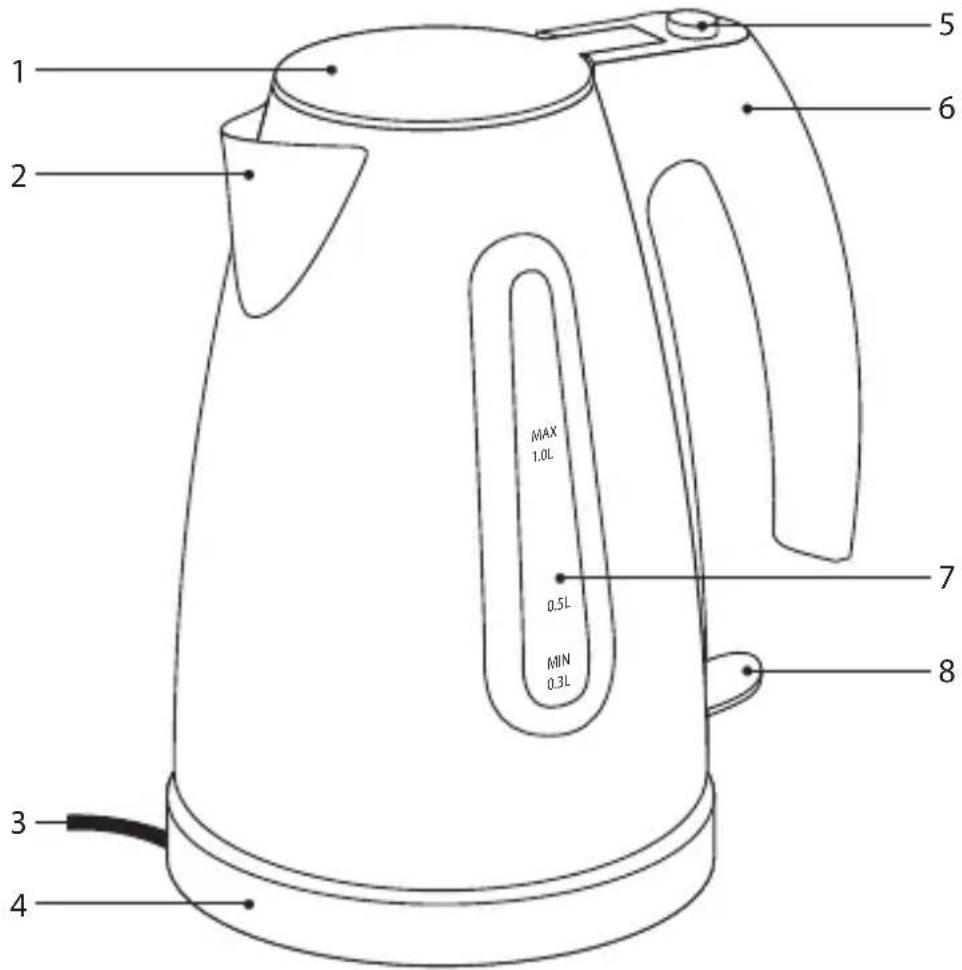

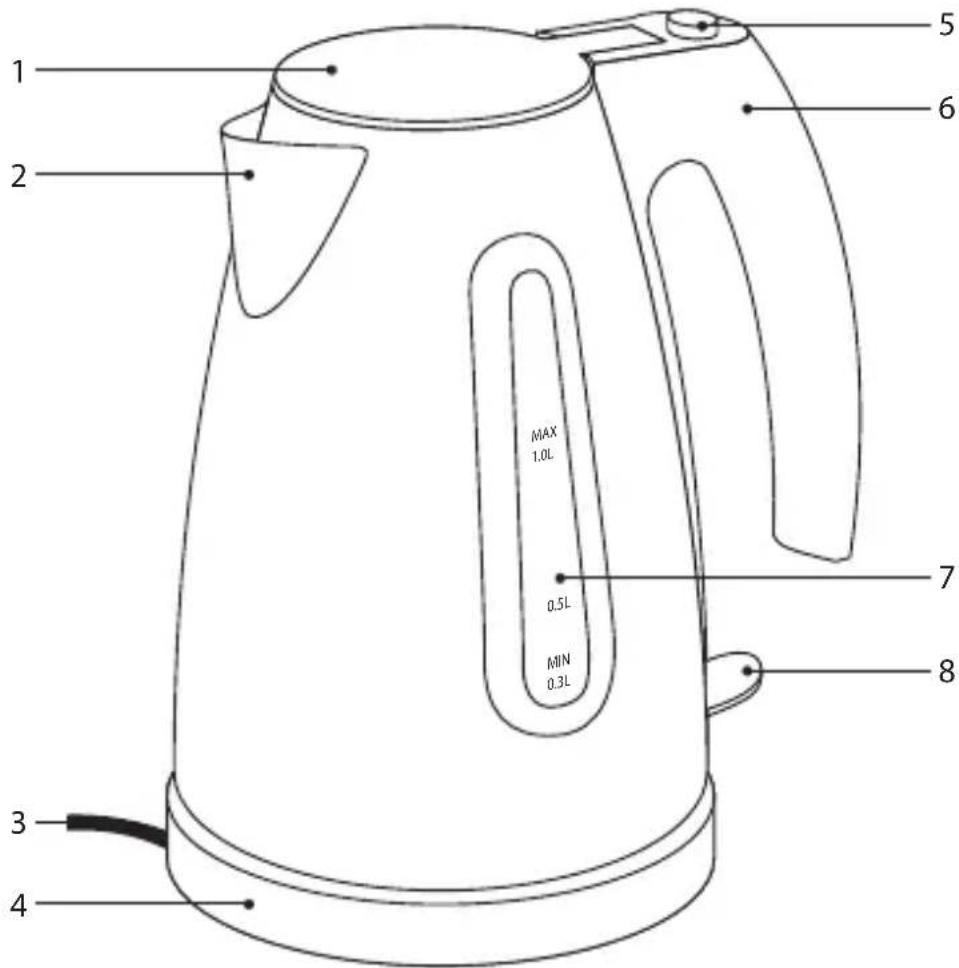

1. Lid
2. Spout
3. Mains Cable

4. Kettle Stand

5. Open Button

6. Handle
7. Water Fill Level
8. Power Switch

First Time Use

Clean your kettle by boiling a full kettle of water twice and then discarding the water.

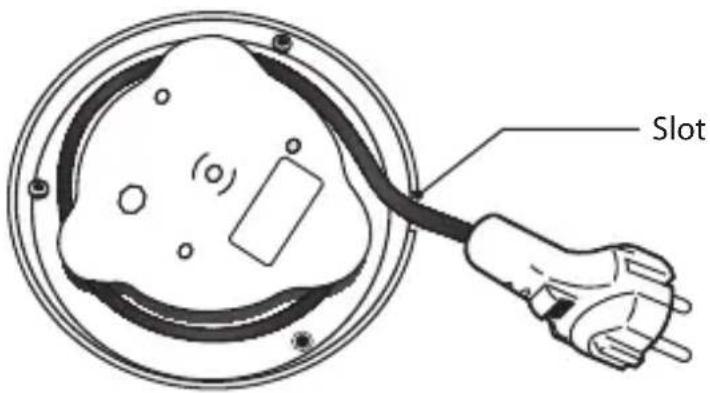

Keeping the Mains Cable Tidy

GB

Extend the mains cable to the required length. Locate the mains cable in the slot in the stand. For safety purposes it is recommended that the length of the exposed mains cable is kept as short as possible.

This kettle must only be used with the stand provided.

Filling the Kettle

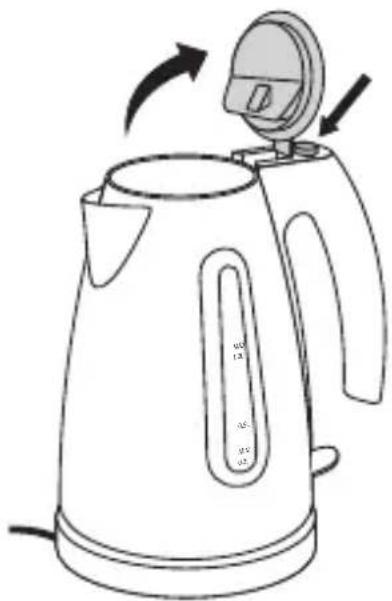

Push the open button to open the lid and fill the kettle with the required amount of water.

Do not exceed the maximum fill level (Max 1.0L) as indicated by the "MAX 1.0L" mark on the kettle.

Always ensure the kettle is filled passed the minimum fill level (MIN 0.3L) as indicated by the "MIN 0.3L" mark on the kettle.

Gently push the lid closed. It will click shut to indicate it is fully and securely closed.

Line drawing of a kettle with a lid and arrow indicating rotation (no text or symbols)

If the kettle is overfilled, boiling water may be ejected from the spout and scald.

Switching On

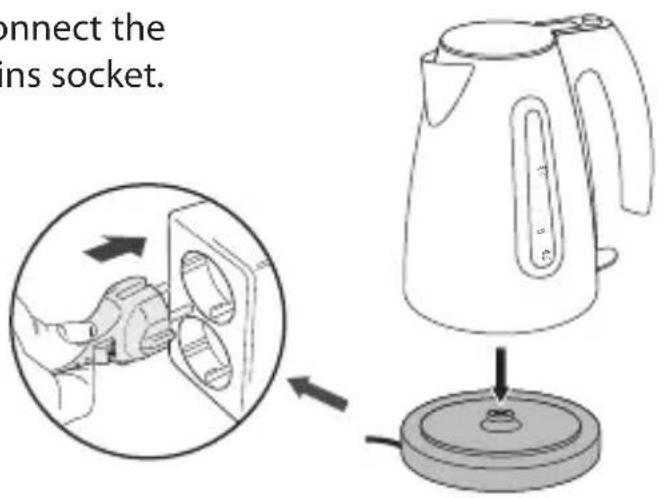

1. Place the kettle on its stand. Connect the stand's mains cable to the mains socket.

1. Push the Power Switch down, until it clicks. The indicator will light up to show that the kettle is heating.

• Never open the lid while the water is boiling. The steam coming out from the kettle is very hot.
• If there is insufficient water in the kettle, the automatic safety cut-out will operate. If this happens, remove the kettle from its stand. Allow the kettle to cool for 10 minutes before refilling with cold water. Place the kettle on its stand and re-boil.

When the Water has Boiled

The kettle will automatically switch off.

• Ensure that the switch is not obstructed and the lid is firmly closed. The kettle will not turn off if the switch is obstructed or if the lid is open.
• After removing the kettle, there may be some water on the surface of the stand. This is condensation from the steam that causes the kettle to automatically switch off after boiling. This is normal and should not be a cause for alarm.

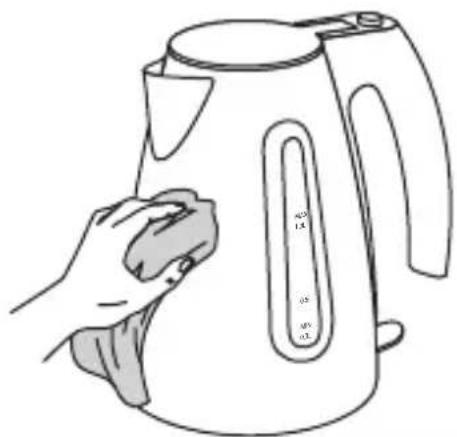

Cleaning the Kettle

The kettle exterior should be cleaned with a soft damp cloth. Do not use abrasive cleaners or scouring pads which may damage the finish of the kettle.

Never immerse the kettle or the stand in water and always keep the electrical contacts dry. Always disconnect from the mains before cleaning the stand.

Line drawing of a hand cleaning a water heater with a cloth (no text or symbols)

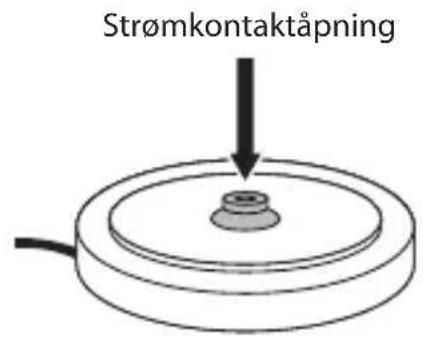

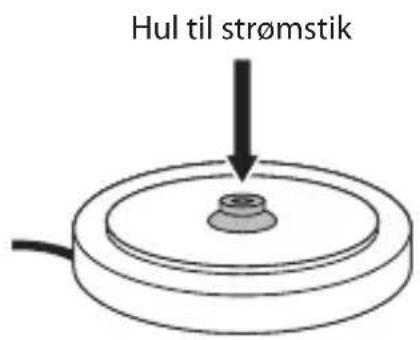

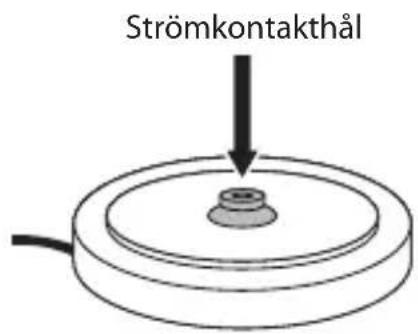

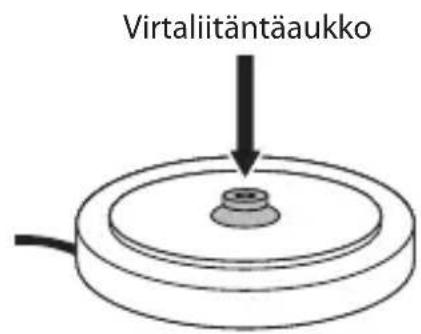

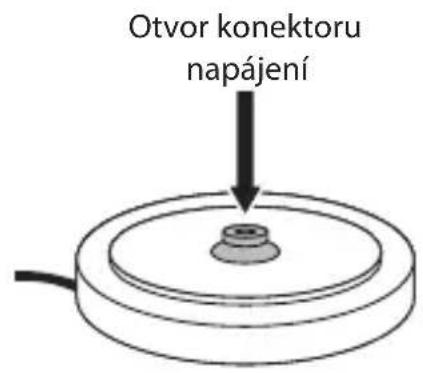

Power Connector Hole

Simple line drawing of a mechanical component with a central base and downward arrow (no text or symbols)

Do not insert any foreign objects or allow any liquid to spill into the Power Connector Hole.

Descaling the Kettle

Depending on the hardness of the water in your area, limescale may be deposited on the heating element and the inside of the kettle. This normal build-up is not harmful to health but an excessive amount of scale may affect the performance of the kettle.

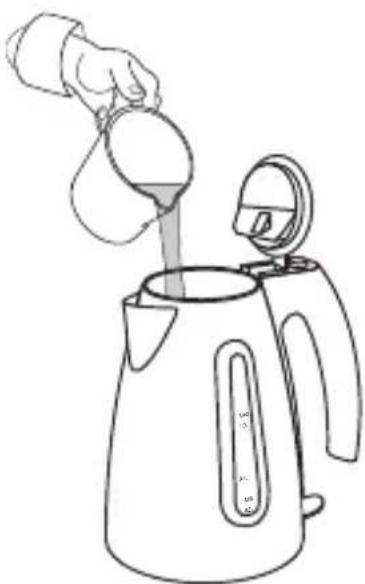

To descale, fill the kettle with distilled water up to three-quarters of the Max level and bring the water to boil. After the kettle has switched off, add a descaling solution following the manufacturers instructions. Never attempt to descale the kettle by chipping or scraping with a sharp implement.

Line drawing of a hand pouring liquid into a kettle with a lid, no text or symbols present

Cleaning the Removable Scale Filter

Ensure the kettle is cool before removing the filter.

To prevent loose particles of limescale being poured into your beverage, your kettle is fitted with a scale filter. You may remove the filter and fit it back in after cleaning.

To remove the filter, open the lid. Grasp the lip of the filter and push down gently but firmly.

To fit in the filter, open the lid. Place the filter inside the spout, ensuring the bottom tabs rest on the bottom hole of the spout. Push the filter towards the spout. It will click into place.

Diagram of a curved mechanical component with two arrows indicating force or movement (no text or symbols)

Specifications

Model L10KBS13E
Mains Supply 230V~50Hz
Power Consumption 1920W

Features and specifications are subject to change without prior notice.

Takk for at du kjøpte ny Logik vannkokeren.

Line drawing of a kettle with measurement markings (no text or symbols on the object itself)

Hovedenhet

Simple line drawing of a circular mechanical component with a central hub and a cable (no text or symbols)

Vannkokerbase

* Alle bilder i denne bruksanvisningen er kun for illustrasjon – detaljene kan være annerledes på den enkelte enheten.

Line drawing of a kettle with a lid and arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a small water heater with a pressure gauge (no text or symbols)

Line drawing of a hand pouring liquid into a kettle using a stand mixer (no text or symbols)

NO

Ensure the kettle is cool before removing the filter.

Diagram of a boat hull with two arrows indicating direction (no text or symbols)

Spesifikasjoner

Modell L10KBS13E
Strømforsyning 230V~50Hz
Strømforbruk 1920W

Line drawing of a kettle with measurement markings (no text or symbols on the object itself)

Simple line drawing of a circular mechanical component with a central hub and a cable (no text or symbols)

Line drawing of a kettle with a lid and arrow indicating rotation (no text or symbols)

Line drawing of a hand cleaning a kettle with a cloth (no text or symbols)

Line drawing of a hand pouring liquid into a kettle using a stand mixer (no text or symbols)

Diagram of a curved mechanical component with two arrows indicating direction (no text or symbols)

Specifikationer

Line drawing of a kettle with handle and side ports, no text or symbols present

Simple line drawing of a circular mechanical component with a central hub and a cable (no text or symbols)

Line drawing of a kettle with a lid and cooling fan, showing heat transfer arrows (no text or symbols)

Line drawing of a hand cleaning a kettle with a cloth (no text or symbols)

Line drawing of a hand pouring liquid into a kettle with a pressure gauge (no text or symbols)

To remove the filter, open the lid. Grasp the lip of the filter and paina alas gently but firmly.

Diagram of a mechanical component with two arrows indicating direction (no text or symbols)

Tekniset tiedot

Malli L10KBS13E
Teho 230V~50Hz
Virrankulutus 1920W

Line drawing of a simple water heater with handle and spout, no text or symbols present

Simple line drawing of a circular mechanical component with a central hub and a cable (no text or symbols)

Line drawing of a kettle with a lid and arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a water heater with a measuring scale (no text or symbols)

Line drawing of a hand pouring liquid into a kettle using a stand mixer (no text or symbols)

Diagram of a mechanical or structural component with two arrows indicating direction (no text or symbols present)

Specifikationer

Model L10KBS13E
Strømforsyning 230V~50Hz
Strømforbrug 1920W

Simple line drawing of a circular mechanical component with a central hub and a cable (no text or symbols)

Line drawing of a kettle with a lid and arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a small water heater with a pressure gauge (no text or symbols)

Line drawing of a hand pouring liquid into a kettle using a stand mixer (no text or symbols)

Diagram of a mechanical or structural component with two arrows indicating direction (no text or symbols present)

Specifikace

Line drawing of a simple water heater with label markings (no text or symbols on the device itself)

Hlavné zariadenie Stojan kanvice

Simple line drawing of a circular mechanical component with a central hub and a cable (no text or symbols)

Line drawing of a kettle with a lid and arrow indicating rotation (no text or symbols)

Line drawing of a hand cleaning a white kettle with a handle (no text or symbols)

Line drawing of a hand pouring liquid into a kettle using a stand mixer (no text or symbols)

Diagram of a curved mechanical component with two arrows indicating direction (no text or symbols)

Technické parametre

Model L10KBS13E
Napájanie zo siete 230V~50Hz
Spotreba energie 1920W

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

NO

Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK

IB-L10KBS13E-130828V1
