SMWLHYP15 - Mouse Sandstrøm - Free user manual and instructions

Product Type	Wireless Mouse
Brand	Sandstrøm
Model	SMWLHYP15
Dimensions (L x W x H)	Approx. 100 x 60 x 35 mm
Weight	Approx. 80 g
Power Supply	2 x AAA batteries (not included)
Connectivity	2.4 GHz wireless via USB receiver
Buttons	Left, Right, Scroll wheel (clickable)
DPI Resolution	800/1200/1600 DPI switchable
Wireless Range	Up to 10 m
Compatible Systems	Windows, macOS, Linux, Chrome OS
Color	Black
Maintenance	Clean with a soft, dry cloth; avoid liquids
Safety Precautions	Do not expose to water or extreme temperatures; remove batteries if not used for long periods
Spare Parts	Not available; device is not user-serviceable
Package Contents	Mouse, USB receiver, user manual

Frequently Asked Questions - SMWLHYP15 Sandstrøm

How do I connect the Sandstrøm SMWLHYP15 mouse to my computer?

Insert the USB receiver into an available USB port on your computer. Turn on the mouse using the power switch on the bottom. The mouse should connect automatically. If not, try pressing the connect button (if available) or reinsert the receiver.

Why is my mouse cursor not moving?

Check if the mouse is turned on (power switch on the bottom). Ensure the USB receiver is firmly plugged in. Try replacing the batteries. If using a USB hub, connect directly to the computer. Restart your computer.

How do I change the DPI (cursor speed) on this mouse?

Press the DPI button located on top of the mouse (usually near the scroll wheel) to cycle through available DPI settings. The LED indicator may change color to indicate the current DPI level.

What batteries does the SMWLHYP15 mouse use and how long do they last?

The mouse uses 2 AAA batteries (not included). Battery life depends on usage, but typically lasts several months with normal use. Turn off the mouse when not in use to extend battery life.

Can I use this mouse with a Mac or Chrome OS?

Yes, the SMWLHYP15 mouse is compatible with Windows, macOS, Linux, and Chrome OS. No additional drivers are required; it works as a standard HID device.

How do I clean the mouse?

Use a soft, dry cloth to wipe the exterior. For stubborn dirt, lightly dampen the cloth with water (do not use solvents). Avoid getting moisture into the openings. Do not use abrasive cleaners.

What should I do if the mouse stops working or the cursor is erratic?

First, replace the batteries. Ensure the sensor lens on the bottom is clean and free from debris. Move the mouse on a flat, non-reflective surface. Check for interference from other wireless devices. Re-pair the mouse by removing and reinserting the USB receiver.

Is the mouse left-hand friendly?

The SMWLHYP15 is designed for right-handed use. The shape and button placement are optimized for the right hand. Left-handed users may find it less comfortable.

How do I store the mouse when not in use?

Turn off the mouse using the power switch. Remove the batteries if storing for an extended period (more than a month) to prevent battery leakage. Store in a cool, dry place away from direct sunlight and extreme temperatures.

Where can I download the user manual for the SMWLHYP15?

The manual can be downloaded for free from the notice-facile.com website. Search for 'Sandstrøm SMWLHYP15' or visit the product page directly. You can also request a translated version by email.

USER MANUAL SMWLHYP15 Sandstrøm

Long-life hyper-scroll mouse with Bluetrace

SMWLHYP15

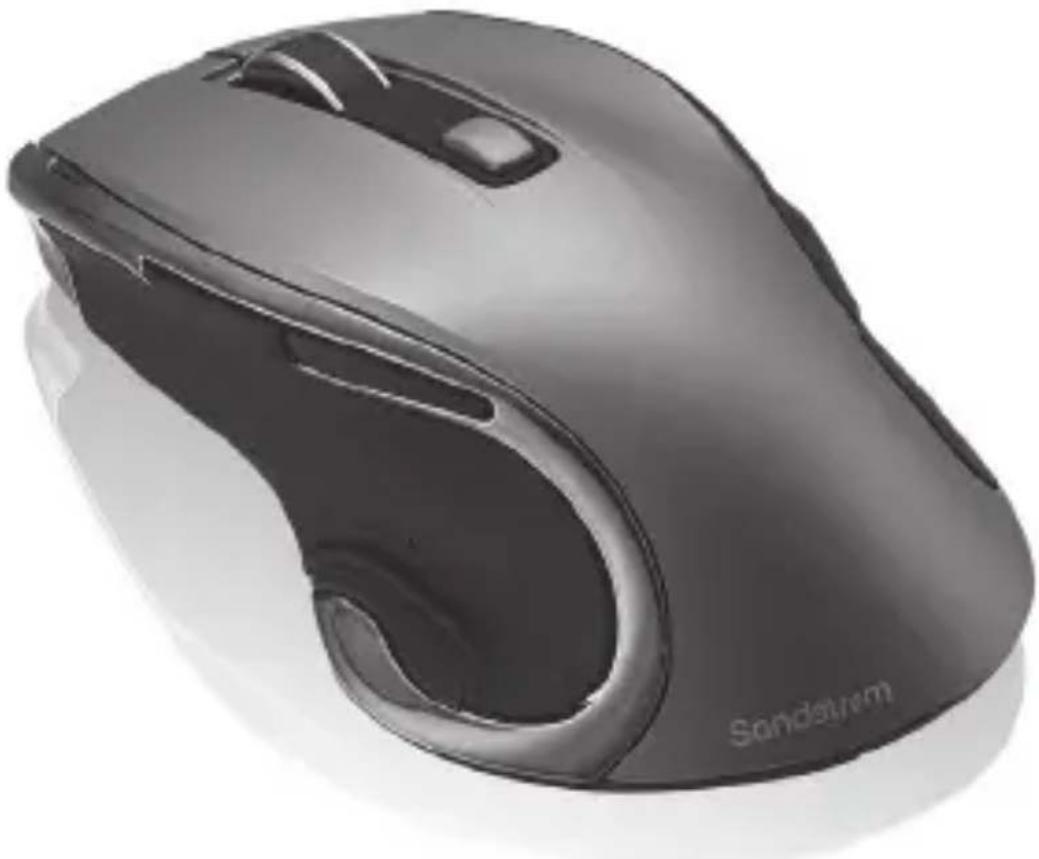

Close-up of a Sandstrom computer mouse with visible scroll wheel and control buttons (no text or symbols on the device itself)

Sandstrøm

Contents

Safety Warnings....4

Unpacking 5

Product Overview......6

Top View....6

Bottom View....6

System Requirements ....7

Installing the Batteries....7

Connecting the Nano Dongle 8

Activating the Wireless Mouse ....8

DPI Button....9

Scrolling Mode......9

Hints and Tips......9

Specifications....10

Wireless Devices:

• Before boarding any aircraft or packing a wireless device in luggage that will be checked in, remove the batteries from the wireless device.
• Wireless devices can transmit radio frequency (RF) energy, whenever batteries are installed and the wireless device is turned on (If it has an On/Off switch).

Battery-Powered Devices:

• Improper use of batteries may result in battery fluid leakage, overheating, or explosion.
• Released battery fluid is corrosive and may be toxic. It can cause skin and eye burns, and is harmful if swallowed.

To Reduce the Risk of Injury:

• Keep batteries out of the reach of children.
• Do not heat, open, puncture, mutilate, or dispose of batteries in fire.
• Do not mix new and old batteries or batteries of different types.
• Do not allow metal objects to touch the battery terminals on the device; they can become hot and cause burns.

Thank you for purchasing your new Mouse.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

• Main Unit (with Nano Dongle)
• AA Size Battery x 2
• Instruction Manual

Product Overview

Top View

Bottom View

System Requirements

Operating Systems: Microsoft® Windows®7 / 8 / 10 MAC® OS X

Hardware: 1 available USB port

Installing the Batteries

When battery is low, the LED indicator will flash.

1. Lift the battery cover up.
2. Insert 2 x AA battery.
3. Close the battery cover.

Please ensure the batteries' polarities (+ / -) match the battery compartment's polarities.

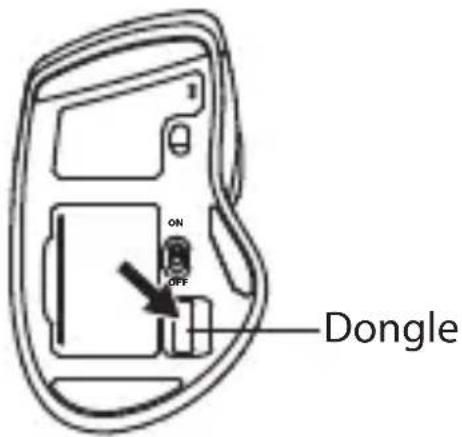

Connecting the Nano Dongle

Remove the Nano Dongle from the mouse and then plug the Nano Dongle directly into your computer's USB port.

Diagram of a computer interface showing a keyboard and mouse (no text or symbols)

Activating the Wireless Mouse

Switch the ON/OFF button to power on the mouse and then the mouse will automatically connect to the Nano Dongle plugged into your computer.

To save energy, switch the ON/OFF button to the off position to turn off the mouse and disconnect the mouse and the Nano Dongle.

DPI Button

Press the DPI button to adjust the resolution:

1. 800 dpi - LED indicator flashes once.
2. 800 - 1600 dpi (default) - LED indicator flashes twice.

Scrolling Mode

Press the Hyperfast Scrolling button to change the scrolling speed:

Hints and Tips

Mouse not working:

1. Check that the power switch is in the on position.
2. Make sure the Nano Dongle is plugged into a USB port and the computer is on or try the Nano Dongle in a different USB port.
3. Check battery installation. Replace battery if needed.

4. If mouse performance is slow or intermittent around a wireless network, unplug the Nano Dongle from the USB port and then reinsert it. To reactivate the mouse, switch it on, off and on again using the ON/OFF switch on the bottom of the mouse.

5. Repeat the connection procedure. You can also try moving the mouse closer to the Nano Dongle.

6. If the mouse is moving erratically, change the working surface which the mouse is operating on.

Specifications

Model SMWLHYP15
Wireless Frequency 2.4GHz
Operating Range 8 m
Resolution 800 / 800 - 1600 dpi
Frequency Band(s) 2403	- 2479 MHz
Max. Radio Frequency Power Transmitted	-5 dBm
Dimension (L) x (W) x (H)	124 x 75 x 44 mm
Net Weight 97 g

Features and specifications are subject to change without prior notice.
