SWLOM10E - Mouse Sandstrøm - Free user manual and instructions

Product Type	Wireless Optical Mouse
Brand	Sandstrøm
Model	SWLOM10E
Connectivity	Wireless 2.4GHz via USB receiver
Power Source	1 AA battery (included)
Battery Type	AA alkaline (PN: BT-7026-01-Z3-Y)
Sensor Type	Optical
Receiver	USB nano receiver (PN: R07UMN021P-Y)
System Compatibility	Microsoft Windows 2000/XP/Vista/7
Hardware Requirements	1 available USB port
Package Contents	Mouse, USB receiver, AA battery, Quick Start Guide
Color	Black
Safety Precautions	Do not look into optical sensor; keep batteries away from children; remove batteries before flying
Cleaning Instructions	Wipe with a dry cloth; do not use liquids
Disposal Instructions	Dispose of electronic waste separately; dispose batteries according to local laws
Spare Parts Availability	Battery and receiver are replaceable; contact retailer for spare parts

Frequently Asked Questions - SWLOM10E Sandstrøm

How do I install the battery in the Sandstrøm SWLOM10E mouse?

Press and lift the battery cover on the bottom of the mouse. Insert one AA battery with correct polarity. Close the battery cover securely.

How do I connect the mouse to my computer?

Plug the included USB receiver directly into a USB port on your computer. The mouse should be automatically detected. No additional software is required.

What operating systems are supported by the SWLOM10E?

The mouse is compatible with Microsoft Windows 2000, XP, Vista, and Windows 7. It may also work with other systems, but official support is limited to those listed.

Why is my mouse not working?

First, ensure the USB receiver is firmly plugged into a USB port and the computer is on. Check that the battery is inserted correctly and has power. If the mouse performance is slow near a wireless network, unplug the receiver and reinsert it.

How do I replace the battery?

Open the battery cover by pressing and lifting it. Remove the old battery and insert a new AA battery with correct polarity. Close the cover. Dispose of the old battery according to local regulations.

Can I use rechargeable batteries with this mouse?

Yes, you can use rechargeable AA batteries. However, note that the mouse may not indicate low battery, and rechargeable batteries typically have lower voltage, so performance might be slightly reduced.

What should I do if the mouse cursor moves erratically?

Try moving the mouse closer to the receiver. Avoid using the mouse on reflective or glass surfaces. Also, check for interference from other wireless devices and consider reinserting the USB receiver.

How do I dispose of the mouse or batteries?

Do not dispose of electronic devices or batteries with household waste. Follow local laws for recycling. The mouse can be taken to an e-waste collection point, and batteries should be recycled separately.

Is the Sandstrøm SWLOM10E compatible with Mac OS?

The official compatibility list only includes Windows 2000/XP/Vista/7. While it may work with Mac OS, there is no guarantee. You can try plugging the receiver into a USB port, but limited functionality may occur.

What is the range of the wireless mouse?

The manual does not specify a maximum range, but typical wireless mice with 2.4GHz work up to 10 meters (30 feet). For best performance, keep the mouse within a few meters of the receiver.

USER MANUAL SWLOM10E Sandstrøm

Wireless Optical Mouse

SWLOM10E

Top: Office desk with computer and mouse; Bottom: Black computer mouse on dark background (no visible text or symbols)

Quick Start Guide

Wirless Optical Mouse

GB

System Requirements ...... 7

Install the Battery 7

Connect the USB Receiver 8

Product Overview 8

Hints and Tips 9

Safety Warnings 15

Contents

ES

Desembalaje 11

Thank you for purchasing your new Sandstrøm Wireless Optical Mouse.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

GB

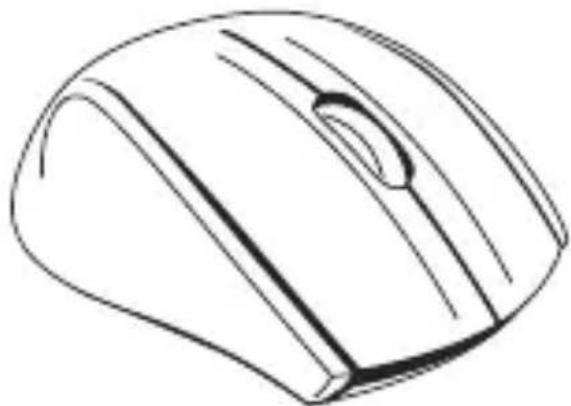

Line drawing of a computer mouse with no text or symbols

Mouse

Receiver
(PN.: R07UMN021P-Y)

AA Size Battery
(PN.: BT-7026-01-Z3-Y)

Quick Start Guide
(PN.: SWLOM10E-001)

System Requirements

Operating Systems: Microsoft® Windows®2000/ XP/ Vista™ & Windows®7

Hardware: 1 available USB port

Install the Battery

GB

1. Press and lift the battery cover.
2. Insert one AA battery.
3. Close the battery cover.

Diagram showing battery, capacitor, and internal components with an arrow indicating direction (no text or symbols)

Please insert the battery with the correct polarity.

Connect the USB Receiver

Plug the Receiver directly into the computer's USB port.

Diagram showing a USB port connected to a network device, with a magnified inset highlighting the port's internal structure (no text or symbols present)

Receiver

Product Overview

GB-8

Hints and Tips

Mouse Not Working:

1. Make sure the USB receiver is plugged into a USB port and the computer is on.
2. Check battery installation. Replace battery if needed.
3. If mouse performance is slow or intermittent around a wireless network, unplug the USB receiver from the USB port and then reinsert it.

Line drawing of a computer mouse (no text or symbols)

Ratón

Receptor
(N.° pieza: R07UMN021P-Y)

Diagram showing battery, resistor, and connector components (no text or symbols)

Diagram showing a USB port connected to an internal network device, with a magnified inset highlighting the port's connector (no text or symbols present)

Receptor

ES

Never point the optical sensor towards the face, particularly the eyes, to avoid possible injury.

While the mouse is functioning, optical light is visible to the naked eye. Be careful not to look directly into the emitter hole while the mouse is active.

Wireless Devices :

Before boarding any aircraft or packing a wireless device in luggage that will be checked, remove the batteries from the wireless device.

Wireless devices can transmit radio frequency (RF) energy, whenever batteries are installed and the wireless device is turned on.

Battery-Powered Devices :

Improper use of batteries may result in battery fluid leakage, overheating, or explosion. Released battery fluid is corrosive and may be toxic. It can cause skin and eye burns, and is harmful if swallowed.

To reduce the risk of injury :

• Keep batteries out of the reach of children.
• Do not heat, open, puncture, mutilate, or dispose of batteries in fire.
• Do not mix new and old batteries or batteries of different types.
• Do not allow metal objects to touch the battery terminals on the device; they can become hot and cause burns.

Luz óptica:

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

GB

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

ES

Notes for battery disposal

The batteries used with this product contain chemicals that are harmful to the environment.

To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

ES
