USER MANUAL BL493W Tricity Bendix
Better Products. Better Value.
CONTENTS
Warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3
Conservation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5
Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5
Before using . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5
The electrical connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 6
Instructions for totally built-in appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7
Your appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 9
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10
Setting the temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10
Fresh food refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10
Positioning the door shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10
Defrosting. .page 10
Health and safety guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 11
Maintenance and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 12
Internal cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 12
External cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 12
When the appliance is not in use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 12
Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 12
What happens if something goes wrong? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 13
Guarantee conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 14
Tricity Bendix Service Centres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 15
TECHNICAL SPECIFICATIONS
| POWER SUPPLY VOLTAGE AND FREQUENCY | 220-240 V / 50 Hz |
| TOTAL POWER ABSORBED | 110 W |
| AVERAGE DAILY UNITS ELECTRICITY | 0.75 kWh |
| GROSS CAPACITY | 160 l |
| NET CAPACITY | 158 l |
WARNINGS
IT IS MOST IMPORTANT THAT THIS INSTRUCTION BOOK SHOULD BE RETAINED WITH THE APPLIANCE FOR FUTURE REFERENCE. SHOULD THE APPLIANCE BE SOLD OR TRANSFERRED TO ANOTHER OWNER, OR SHOULD YOU MOVE HOUSE AND LEAVE THE APPLIANCE, ALWAYS ENSURE THAT THE BOOK IS SUPPLIED WITH THE APPLIANCE IN ORDER THAT THE NEW OWNER CAN GET TO KNOW THE FUNCTIONING OF THE APPLIANCE AND THE RELEVANT WARNINGS.
THESE WARNINGS ARE PROVIDED IN THE INTEREST OF SAFETY. YOU MUST READ THEM CAREFULLY BEFORE INSTALLING OR USING THE APPLIANCE.
■ This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the product.
■ Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
■ This product should be serviced by an authorised Tricity Bendix Service Centre, and only genuine spare parts should be used.
■ It is dangerous to alter the specifications or modify this product in any way.
■ Care must be taken to ensure that the appliance does not stand on the electrical supply cable.
- Tricity Bendix domestic refrigerators, freezers and fridge/freezers are designed to be used specifically for the storage of edible foodstuffs only.
- There are working parts in this product which heat up. Always ensure that there is adequate ventilation as a failure to do this will result in possible food loss. See installation instructions.
- Parts which heat up should not be exposed. Wherever possible, the back of the appliance should be close to a wall but leaving the required distance for ventilation as stated in the installation instructions.
■ Before defrosting, cleaning or maintenance work is carried out, be sure to switch off the appliance and unplug it.
■ Frozen food must NOT be re-frozen once it has thawed out.
- Do not place carbonated or fizzy drinks in the freezer as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
- The cooling plate or refrigerated freezer shelves in this appliance contain channels through which the refrigerant passes. If these are punctured this would cause substantial damage to the appliance and result in food loss. DO NOT USE SHARP INSTRUMENTS to scrape off frost or ice. Under NO circumstances should solid ice be forced off the lining or shelves. Solid ice should be allowed to thaw, when defrosting the appliance. See Defrost instructions.
■ The appliance should be left for 2 hours after installation before it is turned on in order to allow the refrigerant to settle.
■ This appliance is heavy. Care should be taken when moving it.
- Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or "frost/freezer burns".
■ Ice lollies can cause "frost/freezer burns" if consumed straight from the freezer.
■ Manufacturers' storage recommendations should be strictly adhered to. Refer to relevant instructions.
■ Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Refer to your local Tricity Bendix Service Centre and always insist on genuine spare parts.
CONSERVATION
In the interests of the Environment:
When disposing of your old fridge, freezer or fridge/freezer.
Help to keep your country tidy – use authorised disposal sites for your old appliances.
For maximum efficiency:
Make sure that the appliance is cleaned properly.
Make sure that the door is closed properly.
Do not position the appliance near to sources of heat.
Do not over-fill your appliance, air MUST be allowed to circulate.
INSTALLATION
Warning
IF YOU ARE DISCARDING AN OLD APPLIANCE THAT HAS A LOCK OR CATCH ON THE DOOR, YOU MUST ENSURE THAT IT IS MADE UNUSABLE TO PREVENT YOUNG CHILDREN BEING TRAPPED INSIDE.
Positioning
The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc.; best performance is obtained with ambient temperature between +10°C and +32°C.
For building-in and door reversibility, if necessary, refer to the relevant instructions in the following pages.
Before using
Remove all securing tapes. Wash inside the appliance with lukewarm water and bicarbonate of soda (5 ml to 0.5 litre of water). Do not use soap or detergent as the smell may linger. Dry thoroughly.
The electrical connections
WARNING: THIS APPLIANCE MUST BE EARTHED.
The manufacturer declines any liability should this safety measure not be observed.
If the plug that is fitted to your appliance is not suitable for your socket outlet, it must be cut off and the appropriate plug fitted.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to prevent the hazard of shocks in case it should be plugged into a 13amp socket in another part of your home.
Important

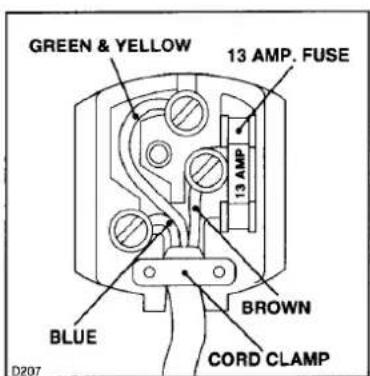

The wires in the mains lead are coloured in accordance with the following code:
| Green and Yellow | - Earth |
| Blue | - Neutral |
| Brown | - Live |
If you fit your own plug, the colours of the wires in the mains lead of your appliance may not correspond with the markings identifying the terminals in your plug, proceed as follows:
Fig. 1
Connect the Green and Yellow (earth) wire to the terminal in the plug which is marked with the letter «E» or the earth symbol ⊕, or coloured green and yellow.
Connect the blue (neutral) wire to the terminal in the plug which is marked with the letter «N» or coloured black.
Connect the brown (live) wire to the terminal in the plug which is marked with the letter «L» or coloured red.
The plug moulded onto the lead incorporates a fuse. For replacement, use a 13amp BS1362 fuse. Only ASTA or BSI approved fuses should be used.
The plug must not be used if the fuse cover/carrier is lost. The cover/carrier is indicated by the coloured insert at the base of the plug.
A replacement cover/carrier must be obtained from your local Tricity Bendix Service Centre whose address is listed in the Customer Care Booklet which accompanies your instruction manual.
This appliance complies with the E.E.C. Directive No. 87/308 of 2.6.87 relative to radio interference suppression.
CE This appliance complies with the following E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
Please ensure that when the appliance is installed it is easily accessible for the engineer in the event of a breakdown.
Instructions for totally built-in appliances
Dimensions of the recess
Height of housing 880 mm
Depth of housing 550 mm
Width of housing 560 mm
The appliance's door has been locked in position for transport by means of pins on both sides. According to the door opening direction, remove relevant pins at the top and at the bottom.
For appropriate venting, follow indications in Fig. 2.
Fig. 2
Push appliance into the housing until stop strip (A) touches the kitchen unit.
Fig. 3
If after having carried out the operation described in section 2 there is still some space left between the appliance and the kitchen unit, fit the trimming provided together with the appliance on the stop strip (A).
Fig. 4
Open the door and push the appliance against the side of kitchen furniture opposite to that of appliance hinges.
Fasten the appliance with 4 screws provided in the kit included with the appliance. Snap vent grille (C) and hinge cover (D) into position.
Fig. 5

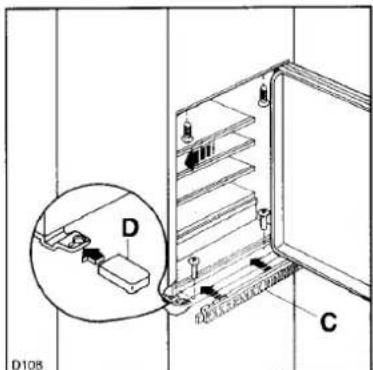

Press in the joint covers between the appliance and the kitchen furniture.
Apply covers (B) on joint cover lugs and into hinge holes.
Position the runners (H) at the top and bottom of the inside of the kitchen unit as shown in Fig. 8 and mark the position of the external holes.
After preparing the holes, screw the runners to the kitchen unit door using 3.5x16 mm screws.
Fig. 8
Open both the appliance door and that of the kitchen unit to approx. 90°.
Place the little plates over the runners. Hold the doors of the appliance and the unit together and mark the holes.
Fig. 9
Remove the little plates and make the holes with a diam. of 2 mm. Replace the little plates over the runners and screw in the screws provided (3.5x16 mm).
For the alignment of the kitchen unit door, if necessary, use the clearance size of the slotted holes.
At the end of the procedure, check that the doors of the appliance and the kitchen unit open properly.


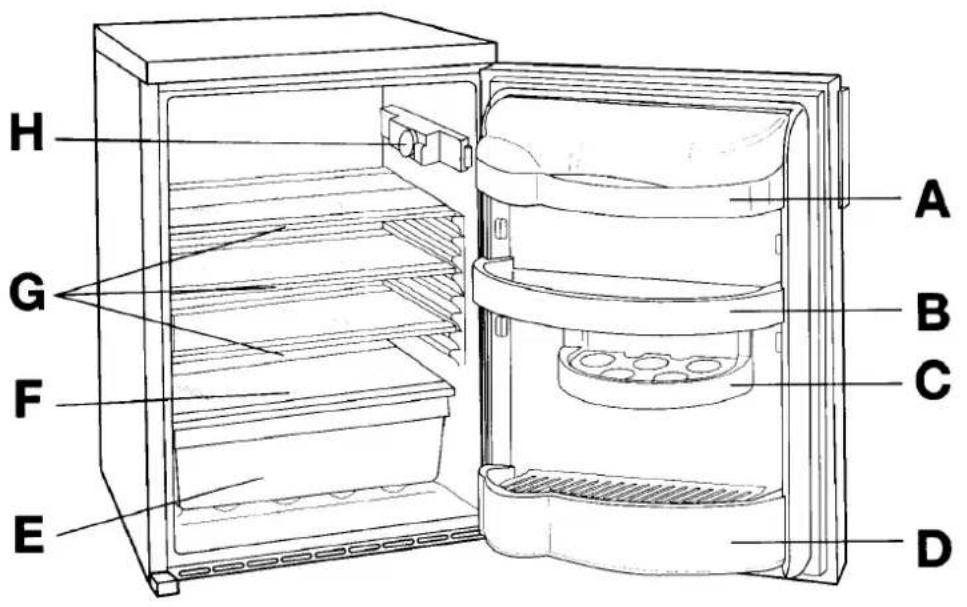

A - Dairy compartment
B - Can storage shelf with egg tray
C - Movable shelf
D - Bottle storage shelf
E - Salad drawers
F - Glass shelf (for storing fresh meat)
G - Storage shelves
H - Thermostat control
Setting the temperature
The temperature inside the refrigerator is regulated by a thermostat with 6 temperature positions and one «OFF» (O) position.
Position 1 = minimum coldness
Position 6 = maximum coldness
Turn the thermostat dial to the required position; the intermediate position is usually the most suitable (3-4).
The thermostat setting can vary as the temperature inside the refrigeration compartment depends on the following factors:
- room temperature
- how often the door is opened
- how much food is stored
- position of the appliance
Important
If the fridge is not defrosting correctly, it is possible that because a very low temperature has been selected, the motor is working continuously, which prevents the defrost cycle from operating.
To ensure correct defrosting, a lower number should be selected on the thermostat and you should notice that the motor cuts out from time to time, which is correct.
If you wish to return to a lower temperature, turn the thermostat to a higher number, however you should turn the setting lower occasionally to allow automatic defrosting.
Fresh food refrigeration
To obtain the best performance, do not store warm food or evaporating liquids in the refrigerator; do cover or wrap the food, particularly if it has a strong flavour.
Do not cover the shelves with any protective material, such as paper, cardboard or plastic, which may obstruct the air circulation through them.
To help you use your refrigerator correctly, here are some more useful hints:
Raw meat (beef, pork, lamb & wild fowl): wrap in polythene bags and place on top of the salad crisper.
Meat can only be stored safely in this way for one or two days at the most.
Fruit & vegetables: these should be thoroughly cleaned and placed in the bottom salad crisper.
Butter & cheese: these should be placed in special air-tight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.
Milk bottles: these should have a cap and should be stored in the bottle rack on the door.

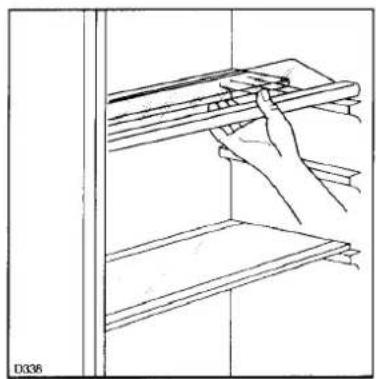

The walls of the refrigerator are equipped with runners so that shelves can be positioned as desired.


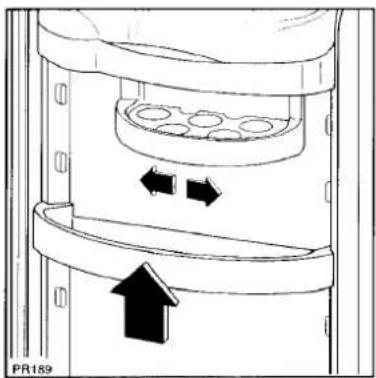

Positioning the door shelves
To permit storage of food packages of various sizes, the door shelves can be adjusted in height.
To make these adjustments proceed as follows: Gradually pull the shelf in the direction of the arrows until it comes free, then reposition as required.
Defrosting
The refrigerator automatically defrosts every time the compressor stops. The water is discharged, via the pipe, into a tray located at the back of the appliance above the compressor, where it evaporates.
Important: To avoid defrost water overflowing into the fridge, periodically clean the water discharge hole in the centre of the V shaped drip collector at the back of the refrigerator compartment behind the fruit and vegetable drawers. Use the special cleaner provided which you will find already inserted into the discharge hole (Fig. 13).
HEALTH AND SAFETY GUIDELINES
Because of consumer demand, preservatives have been removed from many pre-prepared food. This together with the changes in shopping habits to a once-a-week shop, mean that safe handling and storage of food is even more important than ever.
The following tips should help you to ensure that the food in your home is in as perfect condition as possible.
- Keep the time between buying chilled food and placing it in your fridge as short as possible. Tests showed that the temperature of 1 litre of orange juice rose to 22°C in an hour between the supermarket and home. It then took 11 hours to get down to 7°C in the refrigerator.
- Keep the refrigerator door closed as much as possible. Remember that warm air is flowing in as you are deciding what to have for tea!
■ Do not push food together too much, try to allow air to circulate around each item. - Cool cooked food as quickly as possible but do NOT place in the refrigerator until cool. (Leave food in a place as cool as possible in order that it can then be placed in the refrigerator as soon as possible).
- Do NOT mix raw and cooked meat, they must be in separate containers. Take care not to let the meat juices drip onto other food. If the meat does drip, remove everything and clean thoroughly.
■ Do not store food uncovered.
■ Remove suspect food from your refrigerator and clean the interior with a solution of bicarbonate of soda in warm water (5ml to 0.5 litre of water).
■ Never allow spillages to dry and harden.
■ Store eggs in the egg rack provided in the refrigerator door. Discard any broken or chipped eggs.
■ Regularly check the refrigerator door seal to ensure that it is clean and free from bits and pieces.
■ Always wash your hands with soapy water and dry them with a clean towel before handling food.
- Keep work surfaces clean and avoid cross contamination by not using the same work surface or knife, without washing them thoroughly in between.
■ Use kitchen roll wherever possible for cleaning up food. If you use a dishcloth, be sure to boil it frequently.
MAINTENANCE AND CLEANING
Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply.
Internal cleaning
Clean the inside and accessories with warm water and bicarbonate of soda (5ml to 0.5 litre of water). Rinse and dry thoroughly.
NEVER USE DETERGENTS, ABRASIVE POWDERS, HIGHLY PERFUMED CLEANING PRODUCTS OR WAX POLISHES, TO CLEAN THE INTERIOR AS THESE WILL DAMAGE THE SURFACE AND LEAVE A STRONG SMELL.
Clean the drain hole of the water trough at regular intervals and make sure that the drain hole is never obstructed, so that the defrost water may flow freely.
When the appliance is not in use
When the appliance is not in use for long periods, disconnect from the electricity supply, empty all foods and clean the appliance, leaving the door ajar to prevent unpleasant smells.
Changing the light bulb
Should the interior light fail to work, first switch off the appliance and disconnect from the electricity supply, then replace the bulb as follows, see Fig. 14.
Unscrew the light cover and then pull it outward toward the middle of the cabinet. Unscrew the bulb and replace it with a new 15 watt bulb (available from your nearest Tricity Bendix Service Centre).
Replace the light cover by sliding it into its original position and replacing the screw.
WHAT HAPPENS IF SOMETHING GOES WRONG?
Before contacting your local Tricity Bendix Service Centre, check the following points:
The appliance does not work...
Check that:
■ There is power at the socket.
■ Ensure that there is not a power cut by checking the household lights.
■ The fuse has not blown.
■ The air circulation passages are not covered.
■ The thermostat dial is in the correct position.
Vibration or abnormal noises...
- You may hear faint gurgling or bubbling sounds when the refrigerant is pumped through the coils of tubing at the rear, to the cooling plate/evaporator. When the compressor is on, the refrigerant is being pumped round, and you will hear a whirring or pulsating noise from the compressor.
A thermostat controls the compressor, and you will hear a faint "click" when the thermostat cuts in and out.
Traces of water on the bottom of the fridge compartment...
Check that:
■ The defrosting water discharge hole is not obstructed.
The light does not come on...
Check that:
■ The bulb is fitted correctly.
■ Replace the bulb if it has blown.
Fridge does not defrost...
Check that:
■ The thermostat setting is not too high (see page 10).
Other points to check...
Check that:
■ Have you turned the thermostat to the correct setting?
■ Have door been left open causing the temperature to rise?
If, after the above checks, there is still a fault, call your local Tricity Bendix Service Centre. Please make sure you give the model and serial number of the appliance. This information can be found on the rating plate inside the fridge compartment on the left side behind the vegetable drawer, or on the guarantee certificate.
Original spare parts can be purchased from Tricity Bendix Service Centres.
In-guarantee customers should ensure that the above checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.
Please note that proof of purchase is required for any in-guarantee service calls.
PEACE OF MIND FOR TWENTYFOUR MONTHS
Guarantee conditions
We, Tricity Bendix, undertake that if, within twenty-four months of the date of the purchase, this Tricity Bendix appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option, repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that:
■ The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
- The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's operating and maintenance instructions.
- The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.
All service work under this guarantee must be undertaken by a Tricity Bendix service representative or authorised agent.
Any appliance or defective part replaced shall become the property of Tricity Bendix.
This guarantee is in addition to your statutory and other legal rights.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a charge will be made.
Exclusions
This guarantee does not cover:
■ Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic, or vacuum cleaner drive belts, brushes or dust bags.
■ Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the United Kingdom.
■ Appliances found to be in use within a commercial environment, plus those which are the subject of rental agreements.
■ Products of Tricity Bendix manufacture which are NOT marketed by Tricity Bendix.
- EEC Countries - The standard guarantee is applicable but is subject to the owner's responsibility and cost to ensure the appliance meets the standards set by the country to which the product is taken. Proof of purchase may be required. Tricity Bendix Aftersales Service in the country concerned, with whom Tricity Bendix have an arrangement, will be pleased to advise further.
Tricity Bendix After Sales Service Service Centres Addresses
| CENTRE | POSTAL DISTRICTS | SERVICE APPTS. | ADDRESS |
| ABERDEEN | AB | 01224-696569 | Tricity Bendix After Sales ServiceNortheast Appliance Service, 8 Cornhill Arcade, Cornhill Arcade,Aberdeen, AB2 5UT |
| ARGYLL | PA24-61 | 01369-703161 | Tricity Bendix After Sales ServiceT.D.C. Refrigeration, Briar Hill, 7 Hill Street, Dunoon, Argyll, PA23 7AL |
| BARNSTAPLE | EX18-23, 31-39 | 01271-328826 | Tricity Bendix After Sales ServiceMc Bain Refrigeration, Unit 4 Upcott Avenue,Pottington Industrial Estate, Barnstaple, N Devon, EX31 1HN |
| BORDERS | TD | 01573-224411 | Tricity Bendix After Sales ServiceJames Stewart & Son, 2-8 Wood Market,Kelso, Borders, TD5 7AX |
| BRISTOL | BA BS TA SP | 0117-9211876 | Tricity Bendix After Sales ServiceUnit BE46, PO Box 372, Bristol, BS 99 1UD |
| CANVEY | E EC EN N NW W WCAL CB HA HP LU MK SGUB WDCM CO IG RM SSIP NR PE14-19, 30-38 | 0181-443-34640181-965-96990181-965-969901268-69414401603-667017 | Tricity Bendix After Sales Service2-4 Sandhurst,Kings Road, Canvey Island, SS8 0QY |
| CARDIFF | CF NP1-4, 6, 9-44 SA1-18SA21-32 | 01222-460131 | Tricity Bendix After Sales ServiceGuardian Industrial Estate, Clydesmuir Road,Tremorfa, Cardiff, CF2 2QS |
| CUMBRIA | CA | 01228-594747 | Tricity Bendix After Sales ServiceETB Services, Carlisle Enterprise Centre, James Street,Carlisle, CA2 5AP |
| DUMFRIES &GALLOWAY | DG1-14 | 01387-265166 | Tricity Bendix After Sales ServiceAllan Crossan (service), 93 Irish Street, Dumfries, Scotland, DG1 2PQ |
| DUNDEE | Parkinson Cowan Gas Only | 01382-642828 | Tricity Bendix After Sales ServiceTayside Refrigeration, 3-7 Blackness Street,Dundee, DD1 5LR |
| DUNDEE | DD1-14PH8-18 | 01250-876285 | Tricity Bendix After Sales ServiceI Brogan Domestics, 41 Leslie Street,Blairgowrie, Perthshire, PH10 6AT |
| GLASGOW | EH FK G KA KY1-16 MLPA1-23 PH1-7 | 0141-647-4381 | Tricity Bendix After Sales Service20 Cunningham Road, Clyde Estate, Rutherglen, Glasgow, G73 1PP |
| GUERNSEY | All Codes | 01481-46931 | Guernsey ElectricityPO Box 4., Vale Guernsey, Channel Islands |
| HAVERFORDWEST | SA33-39SA41-44SA61-73 | 01437-710914 | Tricity Bendix After Sales ServiceC Butherway, 1 Church Road, Roch, Haverfordwest,Dyfed, SA62 6AG |
| HEREFORD | HR1-9 LD1-8 SY7,18NP5 NP7-8 | 01432-340334 | Tricity Bendix After Sales ServiceDomestic Repair Centre, Unit 3 Bank Buildings,Cattle Market, Hereford, HR4 9HX |
| HULL | YO4 YO11-18 YO25HU1-19 DN14 | 01482-585678 | Tricity Bendix After Sales ServiceJohn Sizer, Unit 1 Boulevard Unit, Factory Estate, Hull, HU3 4AY |
| INVERNESS | IV1-28, 30-36, 52-56PH19-26, 42-44 KW1-14 | 01463-792952 | Tricity Bendix After Sales ServiceHighland Appliances, Unit 3B3 Smithton Industrial Estate,Smithton, Inverness |
| INVERNESS | PH30-41 IV40-51 | 01855-821315 | Tricity Bendix After Sales ServiceGeorge Ross Electrical, Forrestry Workshop,Inchree, Onich, Inverness-shire, PH33 6SE |
| ISLE OF WIGHT | PO30-41 | 01983-872552 | Tricity Bendix After Sales ServiceWyatts Electrical Service, 4 Forelands Road,Bembridge, I O W, PO35 5XW |
| ISLE OF ARRAN | KA27 | 01770-302909 | Tricity Bendix After Sales ServiceArran Domestics, Unit 4 The Douglas Centre,Brodick, Isle of Arran, KA27 8AJ |
| ISLE OF MAN | IM | 01624-663455 | Tricity Bendix After Sales ServiceManx Electricity, Service Workshop,North Quay, Douglas, Isle of Man |
| ISLE OF MULL | PA62-75 | 01688-302262 | Tricity Bendix After Sales ServiceB Hogg, Braeside, Raeric Road,Tobermory, Isle of Mull, PA75 6PU |
| JERSEY | ALL CODES | 01534-505050 | Jersey Electricity CompanyPO Box 45 Queens Road, St Helier JE4 8NY,Jersey, Channel Islands |
| LAMPETER | SA19,20 SA40 SA45-48SY23-25 | 01570-423020 | Tricity Bendix After Sales ServiceLampeter Domestic Appliance Service,Unit 16 Lampeter Industrial Estate, Lampeter, SA48 7DY |
Tricity Bendix After Sales Service Service Centres Addresses
| CENTRE | POSTAL DISTRICTS | SERVICE APPTS. | ADDRESS |
| LANCASTER | LA1-23 | 01772-316175 | Tricity Bendix After Sales ServiceNL Services, Unit 333 Ranglet Road, Walton Summit,Bamber Bridge, Preston, Lancs, PR5 8AR |
| LEEDS | BD DN1-7, 10-12 HD HG HXLS S WF YO1-3, 5-8 DENG-1-22 & 25 | 0113-2608511 | Tricity Bendix After Sales Service64-66 Cross Gates Road,Leeds, LS15 7NN |
| LINCOLN | DN21 sub codes 1,2 & 5 onlyLN 1,2,4-6LN3 sub codes 4,5 onlyLN8-10 NG23,24 31-34 PE1-13, 20-25 | 01522-514603 | Tricity Bendix After Sales ServiceBrian Hudson, Unit 8 Stonefield Park,Clifton Street, Lincoln, LN5 8AA |
| LIVERPOOL | FY PR L WN CH CW WA(Not WA14/15) | 0151-2541724 | Tricity Bendix After Sales ServiceUnit 1 Honeys Green Precinct, Honeys Green Lane,West Derby, Liverpool, L12 9JH |
| MANCHESTER | BB BL OL M SKWA14 & 15 only | 0161-4777758 | Tricity Bendix After Sales ServiceUnit 30 Oakhill Trading Estate, Devonshire Road,Worsley, Manchester, M28 3PT |
| NEWTON ABBOTT | EX1-17 TQPL1-9,16,19-21 | 01626-65909 | Tricity Bendix After Sales ServiceSouth West Domestic Service, Unit 2 Zealley Industrial Estate,Kingsteignton, Newton Abbott, South Devon, TQ12 3SJ |
| NORTH WALES | LL | 01745-591616 | Tricity Bendix After Sales ServiceGMS (Cymru), Unit 2 Coed - Parc, Abergel Road,Rhuddlan, Clwyd, Wales, LL18 5UG |
| NORTHERN | DL TS DH YO21,22DH NE SR | 01325-3014000191-493-2025 | Tricity Bendix After Sales ServicePO Box 40 Preston Road, Aycliffe Industrial Estate,Newton Aycliffe, Co. Durham, DL5 6XA |
| NORTHERNIRELAND EAST | BT1-30, 36-57, 63-67 | 01232-746591 | Tricity Bendix After Sales ServiceUnit C3, Edenderry Industrial Estate,326, Crumlin Road, Belfast, BT14 7EE |
| NORTHERNIRELAND WEST | BT31-35, 60-62, 68-82, 92-94 | 01861-510400 | Tricity Bendix After Sales ServiceG & O (Armagh) Service, Owenmore House, Kilwee Business Park, UpperDunmurray Lane, Belfast, BT17 OHD |
| NUNEATON | B1-48 62-79, 90-94, DY STWS WVNNCV LE | 0121-358-70760121-358-505101993-70441101203-350420 | Tricity Bendix After Sales ServiceUnit 23-24 Alliance Business Park, Townsend Drive,Nuneaton, Warwickshire, CV11 6RX |
| ORKNEY | KW15-17 | 01856-875457 | Tricity Bendix After Sales ServiceRefrigeration Sales and Services, Hatson Ind. Estate,Kirkwall, Orkney |
| REDDITCH | GL OX WR SNB49, 50, 60, 61, 80, 95-98 . | 01527-512919 | Tricity Bendix After Sales ServiceHeming Road, Washford, Redditch, Worcestershire, B98 0DH |
| REDRUTH | TR1-20,26,27PL10-15,17,18, 22-35 | 01209-314407 | Tricity Bendix After Sales ServiceCornwall Domestic Service, Unit 7D Pool Industrial Estate, Wilson Way,Redruth, Cornwall, TR15 30W |
| ROTHSAY | PA20 | 01700-504777 | Tricity Bendix After Sales ServiceD McGlashan Walker, Walker Engineering, Glenmhor,Upper Serpentine, Rothesay, PA20 |
| SHETLAND | Own Sales | 01595-692225 | Tricity Bendix After Sales ServiceTait Electronic Systems Ltd, Holmsgarth Road,Lerwick, Shetland, ZE1 0PW |
| SHETLAND | Own Sales | 01595-692855 | Tricity Bendix After Sales ServiceBolts Shetland Ltd, 26 North Road, Lerwick, Shetland, ZE1 0PE |
| SHETLAND | ZE2 | 01806-566546 | Tricity Bendix After Sales ServiceLeask Electrical, Harsdale, Symbister, Shetland, ZE2 9AA |
| SHREWSBURY | SY1-6 SY8-17 SY19-22 TF | 01743-450279 | Tricity Bendix After Sales ServiceBLI Service, 6 Harlescott Bam, Harlescott Lane, Shrewsbury, SY1 3SY |
| SOUTH COAST | BN16-18, GU27-35PO1-22. BH DT SOTR21-25 | 01705-66741101705-6674110117-9211876 | Tricity Bendix After Sales ServiceLimberline Road, Hilsea, Portsmouth, Hampshire, PO3 5JJ |
| SOUTH HUMBERSIDE | DN8,9 DN15-20DN21 Sub codes 3,4 onlyDN31-40 - LN (3 sub code 6 only), 7LN11-13 | 01472-267978 | Tricity Bendix After Sales ServiceJohn Robinson (Electrical), Unit 74 New Enterprise Centre,King Edward Street, Gt. Grimsby, DN31 3JP |
| TONBRIDGE | SL GU1-26.RGCT DA ME TNBN1-15 20-27 RHTW BR CR SE SW SM KT | 01252-2450501732-35772201273-6943410181-658-9069 | Tricity Bendix After Sales ServiceUnit 30, Deacon Trading Estate, Morley Road,Tonbridge, Kent, TN9 1RA |
TRICITY BENDIX
Better Products. Better Value.
Tricity Bendix, 99 OAKLEY ROAD, Luton, Beds LU4 9QQ
Model No.
BL 493 W
A DIVISION OF EMACO LIMITED
REGISTERED IN ENGLAND NO. 176547
Part No.
2222 746-31
- Better Products. Better Value.
- Operating and Installation Instructions
- CONTENTS
- TECHNICAL SPECIFICATIONS
- WARNINGS
- CONSERVATION
- In the interests of the Environment:
- For maximum efficiency:
- INSTALLATION
- Warning
- Positioning
- Before using
- The electrical connections
- WARNING: THIS APPLIANCE MUST BE EARTHED.
- Important
- Instructions for totally built-in appliances
- Dimensions of the recess
- Setting the temperature
- Fresh food refrigeration
- Meat can only be stored safely in this way for one or two days at the most.
- Positioning the door shelves
- Defrosting
- HEALTH AND SAFETY GUIDELINES
- MAINTENANCE AND CLEANING
- Internal cleaning
- When the appliance is not in use
- Changing the light bulb
- WHAT HAPPENS IF SOMETHING GOES WRONG?
- The appliance does not work...
- Vibration or abnormal noises...
- Traces of water on the bottom of the fridge compartment...
- The light does not come on...
- Fridge does not defrost...
- Other points to check...
- PEACE OF MIND FOR TWENTYFOUR MONTHS
- Guarantee conditions
- Exclusions
- TRICITY BENDIX
Brand : Tricity Bendix
Model : BL493W
Category : Refrigerator
