| Product Type | Fridge (Undercounter) |
| Brand | Tricity Bendix |
| Model | BL602W |
| Overall Height | 85 cm |
| Overall Width | 60 cm |
| Overall Depth | 55 cm |
| Net Weight | 30 kg |
| Voltage | 220-240 V |
| Frequency | 50 Hz |
| Power Consumption | 100 W (approx.) |
| Temperature Control | Adjustable thermostat (dial) |
| Defrost Type | Manual (requires periodic defrosting) |
| Door Reversibility | Yes (can be reversed for left or right opening) |
| Interior Light | Yes (bulb replaceable) |
| Shelf Material | Glass shelves (adjustable) |
| Thermostat Location | Inside fridge compartment (top right) |
| Cleaning | Use mild detergent and warm water; avoid abrasive cleaners |
| Spare Parts Availability | Common parts (shelves, door seals, thermostat) available from authorized service centers |
| Noise Level | < 42 dB (approx.) |
| Energy Efficiency Class | Class A (older model, typical for era) |
| Refrigerant | R600a (isobutane) – environmentally friendly |
Frequently Asked Questions - BL602W Tricity Bendix
User questions about BL602W Tricity Bendix
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Refrigerator in PDF format for free! Find your manual BL602W - Tricity Bendix and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BL602W by Tricity Bendix.
USER MANUAL BL602W Tricity Bendix
Operating and Installation Instructions
CONTENTS
Warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3
Conservation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5
Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5
Before using. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5
The electrical connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 6
Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7
Door reversibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7
Fitting a decorative door panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 8
Your appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 11
Operation page 12
Setting the temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 12
Health and safety guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 13
Fresh food refrigeration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 14
Defrosting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 14
Maintenance and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 15
Internal cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 15
When the appliance is not in use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 15
Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 15
What happens if something goes wrong? . . . . . . . . . . . . . . . . . . . . . . . . . . . page 16
Guarantee conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 17
Tricity Bendix Service Centres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 18
TECHNICAL SPECIFICATIONS
| POWER SUPPLY VOLTAGE AND FREQUENCY | 220-240 V / 50 Hz |
| TOTAL POWER ABSORBED | 110 W |
| AVERAGE DAILY UNITS ELECTRICITY | 0.80 kWh |
| GROSS CAPACITY | 155 l |
| NET CAPACITY | 153 l |
IT IS MOST IMPORTANT THAT THIS INSTRUCTION BOOK SHOULD BE RETAINED WITH THE APPLIANCE FOR FUTURE REFERENCE. SHOULD THE APPLIANCE BE SOLD OR TRANSFERRED TO ANOTHER OWNER, OR SHOULD YOU MOVE HOUSE AND LEAVE THE APPLIANCE, ALWAYS ENSURE THAT THE BOOK IS SUPPLIED WITH THE APPLIANCE IN ORDER THAT THE NEW OWNER CAN GET TO KNOW THE FUNCTIONING OF THE APPLIANCE AND THE RELEVANT WARNINGS.
THESE WARNINGS ARE PROVIDED IN THE INTEREST OF SAFETY. YOU MUST READ THEM CAREFULLY BEFORE INSTALLING OR USING THE APPLIANCE.
■ This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the product.
■ Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
■ This product should be serviced by an authorised Tricity Bendix Service Centre, and only genuine spare parts should be used.
- It is dangerous to alter the specifications or modify this product in any way.
■ Care must be taken to ensure that the appliance does not stand on the electrical supply cable.
- Tricity Bendix domestic refrigerators, freezers and fridge/freezers are designed to be used specifically for the storage of edible foodstuffs only.
- There are working parts in this product which heat up. Always ensure that there is adequate ventilation as a failure to do this will result in possible food loss. See installation instructions.
■ Parts which heat up should not be exposed. Wherever possible, the back of the appliance should be close to a wall but leaving the required distance for ventilation as stated in the installation instructions.
■ Before defrosting, cleaning or maintenance work is carried out, be sure to switch off the appliance and unplug it.
■ Frozen food must NOT be re-frozen once it has thawed out.
- Do not place carbonated or fizzy drinks in the freezer as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
- The cooling plate or refrigerated freezer shelves in this appliance contain channels through which the refrigerant passes. If these are punctured this would cause substantial damage to the appliance and result in food loss. DO NOT USE SHARP INSTRUMENTS to scrape off frost or ice. Under NO circumstances should solid ice be forced off the lining or shelves. Solid ice should be allowed to thaw, when defrosting the appliance. See Defrost instructions.
- The appliance should be left for 2 hours after installation before it is turned on in order to allow the refrigerant to settle.
■ This appliance is heavy. Care should be taken when moving it. - Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or “frost/freezer burns”.
- Ice lollies can cause "frost/freezer burns" if consumed straight from the freezer.
■ Manufacturers' storage recommendations should be strictly adhered to. Refer to relevant instructions.
■ Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Refer to your local Tricity Bendix Service Centre and always insist on genuine spare parts.
CONSERVATION
In the interests of the Environment:
When disposing of your old fridge, freezer or fridge/freezer.
Help to keep your country tidy – use authorised disposal sites for your old appliances.
For maximum efficiency:
Make sure that the appliance is cleaned properly.
Make sure that the door is closed properly.
Do not position the appliance near to sources of heat.
Do not over-fill your appliance, air MUST be allowed to circulate.
INSTALLATION
Warning
IF YOU ARE DISCARDING AN OLD APPLIANCE THAT HAS A LOCK OR CATCH ON THE DOOR, YOU MUST ENSURE THAT IT IS MADE UNUSABLE TO PREVENT YOUNG CHILDREN BEING TRAPPED INSIDE.
Positioning
The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc.; best performance is obtained with ambient temperature between +16°C and +32°C.
For building-in and door reversibility, if necessary, refer to the relevant instructions in the following pages.
Before using
Remove all securing tapes. Wash inside the appliance with lukewarm water and bicarbonate of soda (5 ml to 0.5 litre of water). Do not use soap or detergent as the smell may linger. Dry thoroughly.
The electrical connections
WARNING: THIS APPLIANCE MUST BE EARTHED.
The manufacturer declines any liability should this safety measure not be observed.
If the plug that is fitted to your appliance is not suitable for your socket outlet, it must be cut off and the appropriate plug fitted.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to prevent the hazard of shocks in case it should be plugged into a 13amp socket in another part of your home.
Important
The wires in the mains lead are coloured in accordance with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
If you fit your own plug, the colours of the wires in the mains lead of your appliance may not correspond with the markings identifying the terminals in your plug, proceed as follows:
Fig. 1
Connect the Green and Yellow (earth) wire to the terminal in the plug which is marked with the letter «E» or the earth symbol ⊕ or coloured green and yellow.
Connect the blue (neutral) wire to the terminal in the plug which is marked with the letter «N» or coloured black.
Connect the brown (live) wire to the terminal in the plug which is marked with the letter «L» or coloured red.
The plug moulded onto the lead incorporates a fuse. For replacement, use a 13amp BS1362 fuse. Only ASTA or BSI approved fuses should be used.
The plug must not be used if the fuse cover/carrier is lost. The cover/carrier is indicated by the coloured insert at the base of the plug.
A replacement cover/carrier must be obtained from your local Tricity Bendix Service Centre whose address is listed in the Customer Care Booklet which accompanies your instruction manual.
This appliance complies with the E.E.C. Directive No. 87/308 of 2.6.87 relative to radio interference suppression.
CE This appliance complies with the following E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
Please ensure that when the appliance is installed it is easily accessible for the engineer in the event of a breakdown.
Location

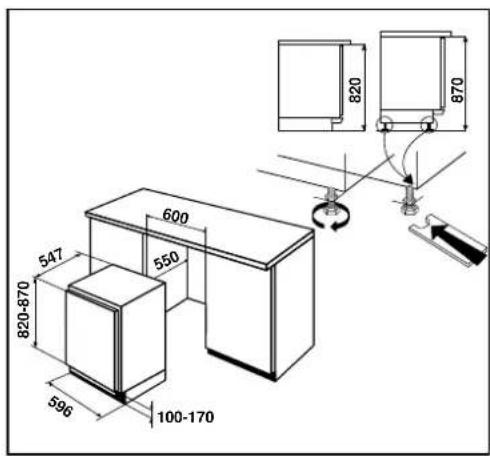

This appliance is designed to be built-in to a space having the dimensions given in Fig. 2.
Fig. 2

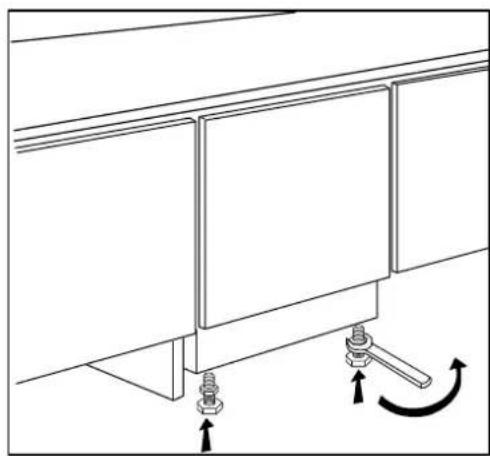

The height of the appliance can be altered if required by means of adjustable feet situated at its base (Fig. 3).
Door reversibility
Remove the two screws which fix the upper hinge to the door.

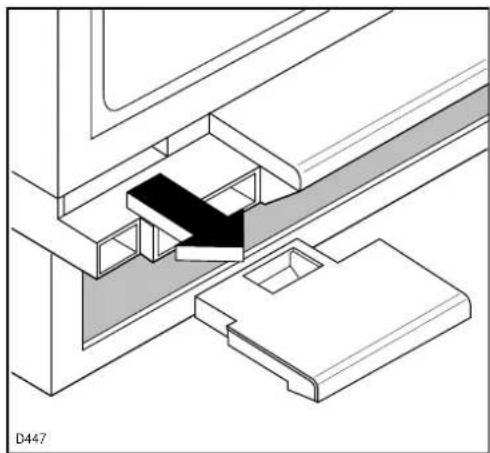

Carefully lean the appliance on its back and remove the plastic insert (Fig. 4).
Remove the two screws which fix the lower hinge to the door.
Remove the four screws which fix the lower hinge to the base of the appliance and remove the hinge itself; be very careful to recover all the screws.
Remove the four screws that fix the upper hinge to the appliance and remove the hinge itself.
Take the hinge removed from the upper part of the appliance on the opposite side (see Fig. 5), and, using the screws removed from the lower part, fix it to the base of the appliance itself.
Remove and refit the other hinge on the upper part of the appliance on the opposite side.
Fix the two front screws into the upper and lower hinges (Fig. 5).
Finally, check the alignment of the door and make sure it closes properly.
After having reversed the opening direction of the door, discard the original plastic insert removed and fit the insert supplied with the appliance on the opposite side.
Fitting a decorative door panel
Important: The components needed to fit the decorative panel have been pre-fitted on the appliance.
The brackets are secured to the panel by means of the 7 ∅ 3.5x13 screws supplied.
Before starting to fit the panel, remove the large top bracket by unscrewing the screws and adjusting pins pre-fitted on the appliance door. The small bottom bracket need not be removed.
Place the appliance in the position where it is to be built in (Fig. 6).
The appliance is fitted with adjustable feet; screw the front and rear feet in or out to adjust the height of the appliance to that of the recess.
Keeping the appliance central in the recess, slide it in until its back touches the wall.
With a tape measure (or similar instrument), measure distance (A) between the top edge of the door and the top edge of the decorative panel, placing it next to the recess.

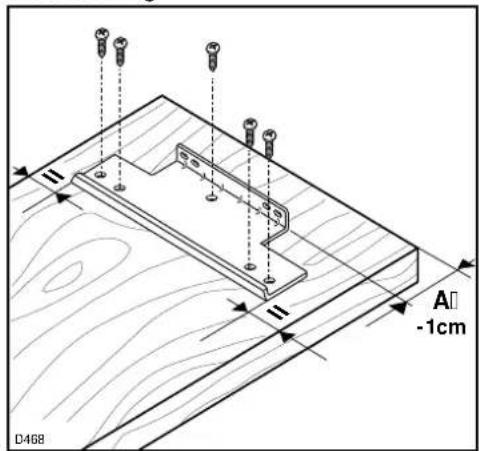

Lay the panel face down (Fig. 7). Position the top bracket on the panel, making sure that there is an equal distance between it and the sides and that its distance from the top edge is equal to distance (A) less 1 cm.
Secure the bracket with the screws supplied.
Take care not to damage the front face of the panel whilst working.
Fig. 7
Insert the adjusting pins (B-Fig. 8) into their locations in the door and screw them in.


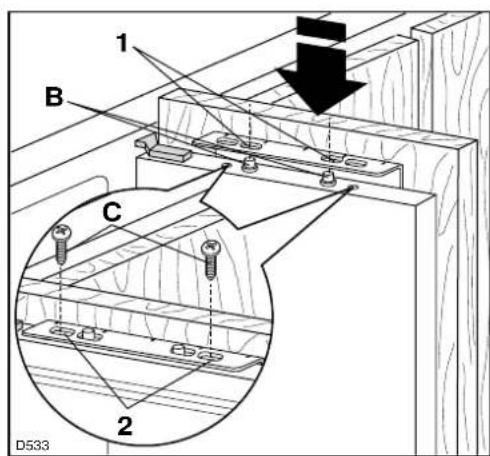

Hook the decorative panel onto the top part of the door, inserting the pins (B) (on the door) into the elongated holes (1) (in the top bracket fitted to the panel) (Fig. 9).
Insert the securing screws (C) through elongated holes (2) and fix the panel without tightening the screws (Fig. 9).
Fig. 9

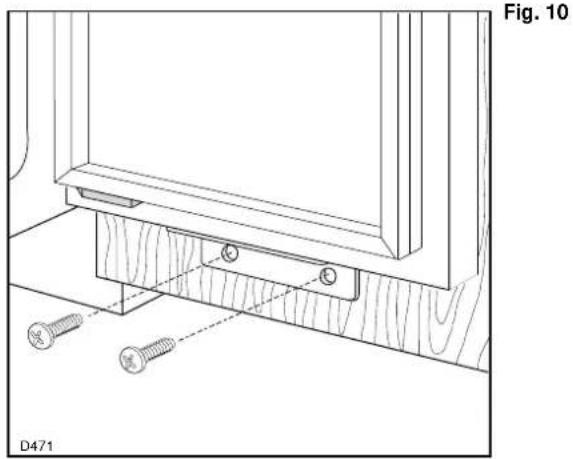

Once the top of the panel has been correctly positioned, fix it through the holes in the bottom bracket, without tightening the screws (Fig. 10).
Cover the visible part of the top bracket on the panel with plastic cover (D), inserting it in the locations provided in the bracket.
Once the door has been correctly aligned, tighten the holding nuts on the fixing brackets and attach the appliance to the adjacent units and the bottom of the work surface (Fig. 12).
If the appliance has been fitted into a space 820 mm high and the maximum height of the base plate is 100 mm, fit the front cover plate by pushing the two vertical lugs into the rectangular holes on the bottom side of the ventilation duct until they click. The plate can be adjusted backwards or forwards in the holes (Fig. 13).
Fig. 13
If the base plate is between 100 and 135mm high, cut it as shown in Fig. 15 and mount as described above.
If the base plate is between 135 and 170mm high, cut it as shown in Fig. 13.
Fig. 14
If the appliance has been fitted into a space 870mm high and the maximum height of the base plate is 150 mm, fit the front cover plate as described in Fig. 14.
If the base plate is between 150 and 185 mm high, cut it as shown in Fig. 15.
If the base plate is between 185 and 220mm high, cut it as shown in Fig. 13.
Fig. 15

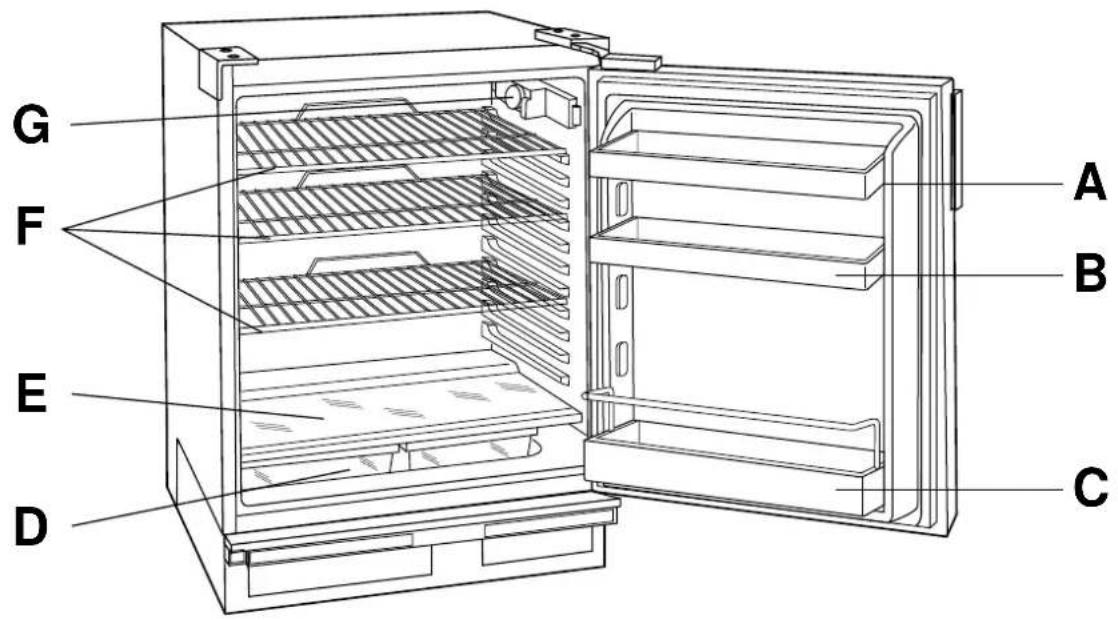

A - Dairy compartment
B - Shelf with egg trays
C - Bottle storage shelf
D - Salad drawers
E - Glass shelf (for storing meat)
F - Storage shelves
G - Thermostat control
Setting the temperature
The temperature inside the refrigerator is regulated by a thermostat with 6 temperature positions and one «OFF» (O) position.
Position 1 = minimum coldness
Position 6 = maximum coldness
Turn the thermostat dial to the required position; the intermediate position is usually the most suitable (3-4).
The thermostat setting can vary as the temperature inside the refrigerator compartment depends on the following factors:
- room temperature
– how often the door is opened
– how much food is stored
- position of the appliance
Important
If the fridge is not defrosting correctly, it is possible that because a very low temperature has been selected, the motor is working continuously, which prevents the defrost cycle from operating.
To ensure correct defrosting, a lower number should be selected on the thermostat and you should notice that the motor cuts out from time to time, which is correct.
If you wish to return to a lower temperature, turn the thermostat to a higher number; however you should turn the setting lower occasionally to allow automatic defrosting.
HEALTH AND SAFETY GUIDELINES
Because of consumer demand, preservatives have been removed from many pre-prepared food. This together with the changes in shopping habits to a once-a-week shop, mean that safe handling and storage of food is even more important than ever.
The following tips should help you to ensure that the food in your home is in as perfect condition as possible.
- Keep the time between buying chilled food and placing it in your fridge as short as possible. Tests showed that the temperature of 1 litre of orange juice rose to 22°C in an hour between the supermarket and home. It then took 11 hours to get down to 7°C in the refrigerator.
- Keep the refrigerator door closed as much as possible. Remember that warm air is flowing in as you are deciding what to have for tea!
- Do not push food together too much, try to allow air to circulate around each item.
- Cool cooked food as quickly as possible but do NOT place in the refrigerator until cool. (Leave food in a place as cool as possible in order that it can then be placed in the refrigerator as soon as possible).
- Do NOT mix raw and cooked meat, they must be in separate containers. Take care not to let the meat juices drip onto other food. If the meat does drip, remove everything and clean thoroughly.
■ Do not store food uncovered.
■ Remove suspect food from your refrigerator and clean the interior with a solution of bicarbonate of soda in warm water (5ml to 0.5 litre of water).
■ Never allow spillages to dry and harden.
■ Store eggs in the egg rack provided in the refrigerator door. Discard any broken or cracked eggs.
■ Regularly check the refrigerator door seal to ensure that it is clean and free from bits and pieces.
■ Always wash your hands with soapy water and dry them with a clean towel before handling food.
- Keep work surfaces clean and avoid cross contamination by not using the same work surface or knife, without washing them thoroughly in between.
■ Use kitchen roll wherever possible for cleaning up food. If you use a dishcloth, be sure to boil it frequently.
Fresh food refrigeration
To obtain the best performance, do not store warm food or evaporating liquids in the refrigerator; do cover or wrap the food, particularly if it has a strong flavour.
Do not cover the shelves with any protective material, such as paper, cardboard or plastic, which may obstruct the air circulation through them.
To help you use your refrigerator correctly, here are some more useful hints:
Raw meat (beef, pork, lamb & game): wrap in polythene bags and place on top of the salad crispers.
Meat can only be stored safely in this way for one or two days at the most.
Fruit & vegetables: these should be thoroughly cleaned and placed in the bottom salad crispers.
Butter & cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.
Milk bottles: these should have a cap and should be stored in the bottle rack on the door.

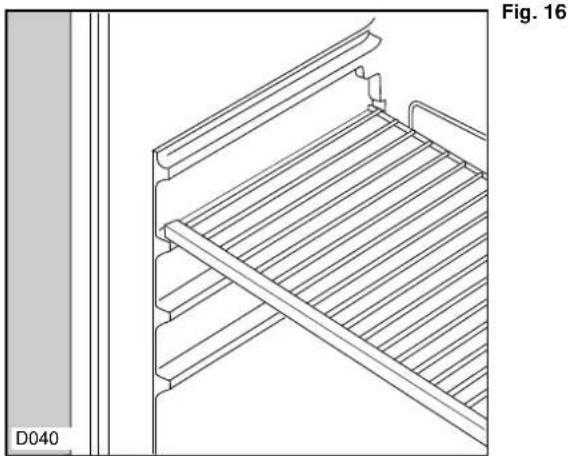

The walls of the refrigerator are equipped with runners so that shelves can be positioned as desired.
The refrigerator automatically defrosts every time the compressor stops. The water is discharged, via a pipe, into a bowl located at the base of the back of the appliance, where it evaporates.
Important

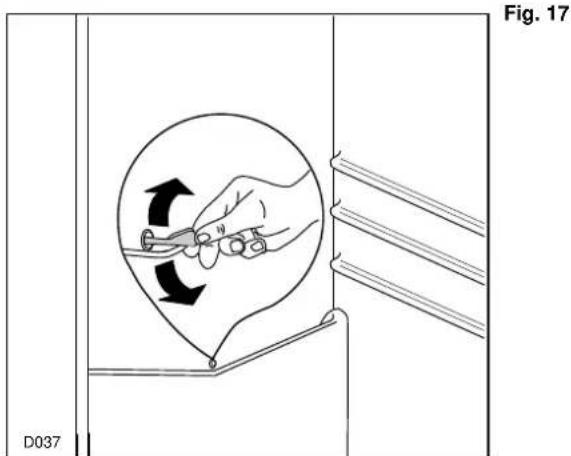

To avoid defrost water overflowing into the fridge, periodically clean the water discharge hole in the centre of the V shaped drip collector at the back of the refrigerator compartment behind the fruit and vegetable drawers. Use the defrost cleaner provided which you will find already inserted into the discharge hole (Fig. 17).
Remember to wash the defrost cleaner in hot soapy water at regular intervals. Dry thoroughly before replacing.
Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply.
Internal cleaning
Clean the inside and accessories with warm water and bicarbonate of soda (5ml to 0.5 litre of water). Rinse and dry thoroughly.
NEVER USE DETERGENTS, ABRASIVE POWDERS, HIGHLY PERFUMED CLEANING PRODUCTS OR WAX POLISHES, TO CLEAN THE INTERIOR AS THESE WILL DAMAGE THE SURFACE AND LEAVE A STRONG SMELL.
Clean the drain hole of the water trough at regular intervals and make sure that the drain hole is never obstructed, so that the defrost water may flow freely.
When the appliance is not in use
When the appliance is not in use for long periods, disconnect from the electricity supply, empty all foods and clean the appliance, leaving the door ajar to prevent unpleasant smells.
Changing the light bulb
Should the interior light fail to work, first switch off the appliance and disconnect from the electricity supply, then replace the bulb as follows, see Fig. 18.
Unscrew the light cover and then pull it outward toward the middle of the cabinet. Unscrew the bulb and replace it with a new 15 watt bulb (available from your nearest Tricity Bendix Service Centre).
Replace the light cover by sliding it into its original position and replacing the screw.
WHAT HAPPENS IF SOMETHING GOES WRONG?
Before contacting your local Tricity Bendix Service Centre, check the following points:
The appliance does not work...
Check that:
■ There is power at the socket.
■ Ensure that there is not a power cut by checking the household lights.
■ The fuse has not blown.
■ The air circulation passages are not covered.
■ The thermostat dial is in the correct position.
Vibration or abnormal noises...
- You may hear faint gurgling or bubbling sounds when the refrigerant is pumped through the coils of tubing at the rear, to the cooling plate/evaporator. When the compressor is on, the refrigerant is being pumped round, and you will hear a whirring or pulsating noise from the compressor.
A thermostat controls the compressor, and you will hear a faint “click” when the thermostat cuts in and out.
Traces of water on the bottom of the fridge compartment...
Check that:
■ The defrost water discharge hole is not obstructed.
The light does not come on...
Check that:
■ The bulb is fitted correctly.
■ Replace the bulb if it has blown.
Fridge does not defrost...
Check that:
■ The thermostat setting is not too high (see page 12).
Other points to check...
Check that:
■ Have you turned the thermostat to the correct setting?
■ Has the door been left open causing the temperature to rise?
If, after the above checks, there is still a fault, call your local Tricity Bendix Service Centre, whose address can be found in the accompanying Customer Care Booklet, and can also be found in your local telephone directory under «Z». Please make sure you give the model and serial number of the appliance. This information can be found on the rating plate inside the fridge compartment on the left side behind the salad drawer, or on the guarantee certificate.
Original spare parts can be purchased from Tricity Bendix Service Centres.
In-guarantee customers should ensure that the above checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.
Please note that proof of purchase is required for any in-guarantee service calls.
PEACE OF MIND FOR TWENTYFOUR MONTHS
Guarantee conditions
We, Tricity Bendix, undertake that if, within twenty-four months of the date of the purchase, this Tricity Bendix appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option, repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that:
■ The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
- The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's operating and maintenance instructions.
■ The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.
All service work under this guarantee must be undertaken by a Tricity Bendix service representative or authorised agent.
Any appliance or defective part replaced shall become the property of Tricity Bendix.
This guarantee is in addition to your statutory and other legal rights.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a charge will be made.
Exclusions
This guarantee does not cover:
■ Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.
■ Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the United Kingdom.
■ Appliances found to be in use within a commercial environment, plus those which are the subject of rental agreements.
■ Products of Tricity Bendix manufacture which are NOT marketed by Tricity Bendix.
- EEC Countries - The standard guarantee is applicable but is subject to the owner's responsibility and cost to ensure the appliance meets the standards set by the country to which the product is taken. Proof of purchase may be required. Tricity Bendix Aftersales Service in the country concerned, with whom Tricity Bendix have an arrangement, will be pleased to advise further.
Tricity Bendix After Sales Service Service Centres Addresses
| CENTRE POSTAL DISTRICTS SERVICE APPTS. ADDRESS | |||
| ABERDEEN AB 01224-696569 Tricity Bendix After Sales Service | Northeast Appliance Service, 8 Cornhill Arcade, Cornhill Arcade, Aberdeen, AB2 5UT | ||
| ARGYLL PA24-61 01369-703161 Tricity Bendix After Sales Service | T.D.C. Refrigeration, Briar Hill, 7 Hill Street, Duncon, Argyll, PA23 7AL | ||
| BARNSTAPLE EX18-23, 31-39 01271-328826 Tricity Bendix After Sales Service | Mc Bain Refrigeration, Unit 4 Upcott Avenue,Pottington Industrial Estate, Barnstaple, N. Devon, EX31 1HN | ||
| BORDERS TD 01573-224411 Tricity Bendix After Sales Service | James Stewart & Son, 2-8 Wood Market,Kelso, Borders, TD5 7AX | ||
| BRISTOL BA BS TA SP 0117-9211876 Tricity Bendix After Sales Service | Unit BE46, PO Box 372, Bristol, BS 99 1UD | ||
| CANVEY E EC EN N NW W WC | 0181-443-3464 | Tricity Bendix After Sales Service | |
| AL CB HA HP LU MK SG | 0181-965-9699 | 2-4 Sandhurst, | |
| UB WD | 0181-965-9699 | Kings Road, Canvey Island, SS8 0QY | |
| CM CO IG RM SS | 01268-694144 | ||
| IP NR PE14-19, 30-38 | 01603-667017 | ||
| CARDIFF CF NP1-4, 6, 9-44 SA1-18 | 01222-460131 Tricity | Bendix After Sales Service | |
| SA21-32 | Guardian Industrial Estate, Clydesmuir Road,Tremorfa, Cardiff, CF2 2QS | ||
| CUMBRIA | CA 01228-594747 Tricity Bendix After Sales Service | ETB Services, Carlisle Enterprise Centre, James Street,Carlisle, CA2 5AP | |
| DUMFRIES &GALLOWAY | DG1-14 | 01387-265166 Tricity Bendix After Sales ServiceAllan Crossan (service), 93 Irish Street, Dumfries, Scotland, DG1 2PQ | |
| DUNDEE | Parkinson Cowan Gas Only | 01382-642828 | Tricity Bendix After Sales ServiceTayside Refrigeration, 3-7 Blackness Street,Dundee, DD1 5LR |
| DUNDEE | DD1-14PH8-18 | 01250-876285 Tricity Bendix After Sales ServiceI Brogan Domestics, 41 Leslie Street,Blairgowrie, Perthshire, PH10 6AT | |
| GLASGOW | EH FK G KA KY1-16 MLPA1-23 PH1-7 | 0141-647-4381 | Tricity Bendix After Sales Service20 Cunningham Road, Clyde Estate, Rutherglen, Glasgow, G73 1PP |
| GUERNSEY | All Codes | 01481-46931 | Guernsey ElectricityPO Box 4., Vale Guernsey, Channel Islands |
| HAVERFORDWEST | SA33-39SA41-44SA61-73 | 01437-710914 Tricity Bendix After Sales ServiceC Butherway, 1 Church Road, Roch, Haverfordwest,Dyfed, SA62 6AG | |
| HEREFORD | HR1-9 LD1-8 SY7,18NP5 NP7-8 | 01432-340334 Tricity Bendix After Sales ServiceDomestic Repair Centre, Unit 3 Bank Buildings,Cattle Market, Hereford, HR4 9HX | |
| HULL | YO4 YO11-18 YO25HU1-19 DN14 | 01482-585678 Tricity Bendix After Sales ServiceJohn Sizer, Unit 1 Boulevard Unit, Factory Estate, Hull, HU3 4AY | |
| INVERNESS | IV1-28, 30-36, 52-56PH19-26, 42-44 KW1-14 | 01463-792952 Tricity Bendix After Sales ServiceHighland Appliances, Unit 3B3 Smithton Industrial Estate,Smithton, Inverness | |
| INVERNESS | PH30-41 IV40-51 | 01855-821315 | Tricity Bendix After Sales ServiceGeorge Ross Electrical, Forrestry Workshop,Inchree, Onich, Inverness-shire, PH33 6SE |
| ISLE OF WIGHT | PO30-41 | 01983-872552 | Tricity Bendix After Sales ServiceWyatts Electrical Service, 4 Forelands Road,Bembridge, I O W, PO35 5XW |
| ISLE OF ARRAN | KA27 | 01770-302909 Tricity Bendix After Sales ServiceArran Domestics, Unit 4 The Douglas Centre,Brodick, Isle of Arran, KA27 8AJ | |
| ISLE OF MAN | IM | 01624-663455 Tricity Bendix After Sales ServiceManx Electricity, Service Workshop,North Quay, Douglas, Isle of Man | |
| ISLE OF MULL | PA62-75 01688-302262 Tricity Bendix After Sales Service | B Hogg, Braeside, Raeric Road,Tobermory, Isle of Mull, PA75 6PU | |
| JERSEY | ALL CODES | 01534-505050 Jersey Electricity CompanyPO Box 45 Queens Road, St Helier JE4 8NY,Jersey, Channel Islands | |
| LAMPETER | SA19,20 SA40 SA45-48SY23-25 | 01570-423020 Tricity Bendix After Sales ServiceLampeter Domestic Appliance Service,Unit 16 Lampeter Industrial Estate, Lampeter, SA48 7DY | |
Tricity Bendix After Sales Service Service Centres Addresses
| CENTRE POSTAL DISTRICTS SERVICE APPTS. ADDRESS | |||
| LANCASTER LA1-23 01772-316175 Tricity Bendix After Sales Service | NL Services, Unit 333 Ranglet Road, Walton Summit,Bamber Bridge, Preston, Lancs, PR5 8AR | ||
| LEEDS BD DN1-7, 10-12 HD HG HXLS S WF YO1-3, 5-8 DENG-1-22 & 25 | 0113-2608511 Tricity | Bendix After Sales Service64-66 Cross Gates Road,Leeds, LS15 7NN | |
| LINCOLN DN21 sub codes 1,2 & 5 onlyLN 1,2,4-6LN3 sub codes 4,5 onlyLN8-10 NG23,24 31-34 PE1-13, 20-25 | 01522-514603 Tricity | Bendix After Sales ServiceBrian Hudson, Unit 8 Stonefield Park,Clifton Street, Lincoln, LN5 8AA | |
| LIVERPOOL FY PR L WN CH CW WA(Not WA14/15) | 0151-2541724 Tricity | Bendix After Sales ServiceUnit 1 Honeys Green Precinct, Honeys Green Lane,West Derby, Liverpool, L12 9JH | |
| MANCHESTER BB BL OL M SKWA14 & 15 only | 0161-4777758 Tricity | Bendix After Sales ServiceUnit 30 Oakhill Trading Estate, Devonshire Road,Worsley, Manchester, M28 3PT | |
| NEWTON ABBOTT EX1-17 TQPL1-9,16,19-21 | 01626-65909 Tricity | Bendix After Sales ServiceSouth West Domestic Service, Unit 2 Zealley Industrial Estate,Kingsteignton, Newton Abbott, South Devon, TQ12 3SJ | |
| NORTH WALES LL 01745-591616 Tricity Bendix After Sales Service | GMS (Cymru), Unit 2 Coed - Parc, Abergele Road,Rhuddlan, Clwyd, Wales, LL18 5UG | ||
| NORTHERN | DL TS DH YO21,22DH NE SR | 01325-3014000191-493-2025 | Tricity Bendix After Sales ServicePO Box 40 Preston Road, Aycliffe Industrial Estate,Newton Aycliffe, Co. Durham, DL5 6XA |
| NORTHERNIRELAND EAST | BT1-30, 36-57, 63-67 | 01232-746591 Tricity | Bendix After Sales ServiceUnit C3, Edenderry Industrial Estate,326, Crumlin Road, Belfast, BT14 7EE |
| NORTHERNIRELAND WEST | BT31-35, 60-62, 68-82, 92-94 | 01861-510400 Tricity | Bendix After Sales ServiceG & O (Armagh) Service, Owenmore House, Kilwee Business Park, UpperDunmurray Lane, Belfast, BT17 OHD |
| NUNEATON | B1-48 62-79, 90-94, DY STWS WVNNCV LE | 0121-358-70760121-358-505101993-70441101203-350420 | Tricity Bendix After Sales ServiceUnit 23-24 Alliance Business Park, Townsend Drive,Nuneaton, Warwickshire, CV11 6RX |
| ORKNEY | KW15-17 | 01856-875457 Tricity | Bendix After Sales ServiceRefrigeration Sales and Services, Hatson Ind. Estate,Kirkwall, Orkney |
| REDDITCH | GL OX WR SNB49, 50, 60, 61, 80, 95-98., | 01527-512919 Tricity | Bendix After Sales ServiceHeming Road, Washford, Redditch, Worcestershire, B98 0DH |
| REDRUTH | TR1-20,26,27PL10-15,17,18, 22-35 | 01209-314407 Tricity | Bendix After Sales ServiceCornwall Domestic Service, Unit 7D Pool Industrial Estate, Wilson Way,Redruth, Cornwall, TR15 3QW |
| ROTHSAY | PA20 | 01700-504777 Tricity | Bendix After Sales ServiceD McGlashan Walker, Walker Engineering, Glenmhor,Upper Serpentine, Rothesay, PA20 |
| SHETLAND | Own Sales | 01595-692225 Tricity | Bendix After Sales ServiceTait Electronic Systems Ltd, Holmsgarth Road,Lerwick, Shetland, ZE1 0PW |
| SHETLAND | Own Sales | 01595-692855 Tricity | Bendix After Sales ServiceBolts Shetland Ltd, 26 North Road, Lerwick, Shetland, ZE1 0PE |
| SHETLAND | ZE2 | 01806-566546 Tricity | Bendix After Sales ServiceLeask Electrical, Harsdale, Symbister, Shetland, ZE2 9AA |
| SHREWSBURY | SY1-6 SY8-17 SY19-22 TF | 01743-450279 | Tricity Bendix After Sales ServiceBLI Service, 6 Harlescott Bam, Harlescott Lane, Shrewsbury, SY1 3SY |
| SOUTH COAST | BN16-18, GU27-35PO1-22. BH DT SOTR21-25 | 01705-66741101705-6674110117-9211876 | Tricity Bendix After Sales ServiceLimberline Road, Hilsea, Portsmouth, Hampshire, PO3 5JJ |
| SOUTH HUMBERSIDE DN8,9 DN15-20DN21 Sub codes 3,4 onlyDN31-40 - LN (3 sub code 6 only), 7LN11-13 | 01472-267978 Tricity | Bendix After Sales ServiceJohn Robinson (Electrical), Unit 74 New Enterprise Centre,King Edward Street, Gt. Grimsby, DN31 3JP | |
| TONBRIDGE | SL GU1-26.RGCT DA ME TNBN1-15 20-27 RHTW BR CR SE SW SM KT | 01252-2450501732-35772201273-6943410181-658-9069 | Tricity Bendix After Sales ServiceUnit 30, Deacon Trading Estate, Morley Road,Tonbridge, Kent, TN9 1RA |
Tricity Bendix, 99 OAKLEY ROAD, Luton, Beds LU4 9QQ
Model No. Part No.
BL 602 W
A DIVISION OF EMACO LIMITED REGISTERED IN ENGLAND NO. 176547
2222 268-04
- Operating and Installation Instructions
- CONTENTS
- TECHNICAL SPECIFICATIONS
- CONSERVATION
- In the interests of the Environment:
- For maximum efficiency:
- INSTALLATION
- Warning
- Positioning
- Before using
- The electrical connections
- WARNING: THIS APPLIANCE MUST BE EARTHED.
- The manufacturer declines any liability should this safety measure not be observed.
- Important
- Green and Yellow - Earth
- Blue - Neutral
- Brown - Live
- This appliance complies with the E.E.C. Directive No. 87/308 of 2.6.87 relative to radio interference suppression.
- Location
- Door reversibility
- Fitting a decorative door panel
- Setting the temperature
- HEALTH AND SAFETY GUIDELINES
- Fresh food refrigeration
- Meat can only be stored safely in this way for one or two days at the most.
- Defrosting
- Internal cleaning
- When the appliance is not in use
- Changing the light bulb
- WHAT HAPPENS IF SOMETHING GOES WRONG?
- The appliance does not work...
- Vibration or abnormal noises...
- Traces of water on the bottom of the fridge compartment...
- The light does not come on...
- Fridge does not defrost...
- Other points to check...
- In-guarantee customers should ensure that the above checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.
- PEACE OF MIND FOR TWENTYFOUR MONTHS
- Guarantee conditions
- Exclusions
Brand : Tricity Bendix
Model : BL602W
Category : Refrigerator
