CH550B - Range hood Tricity Bendix - Free user manual and instructions
Find the device manual for free CH550B Tricity Bendix in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Brand | Tricity Bendix |
| Model | CH550B |
| Product Type | Range Hood |
| Mounting Type | Under-cabinet |
| Width | 90 cm |
| Depth | 50 cm |
| Height | 15 cm |
| Weight | 12 kg |
| Power Supply | 220-240 V, 50 Hz |
| Maximum Extraction Rate | 650 m³/h |
| Noise Level (max) | 65 dB |
| Number of Speeds | 3 |
| Lighting | 2 x 40W halogen |
| Filter Type | Aluminum grease filter (washable) |
| Optional Carbon Filter | Yes (for recirculation mode) |

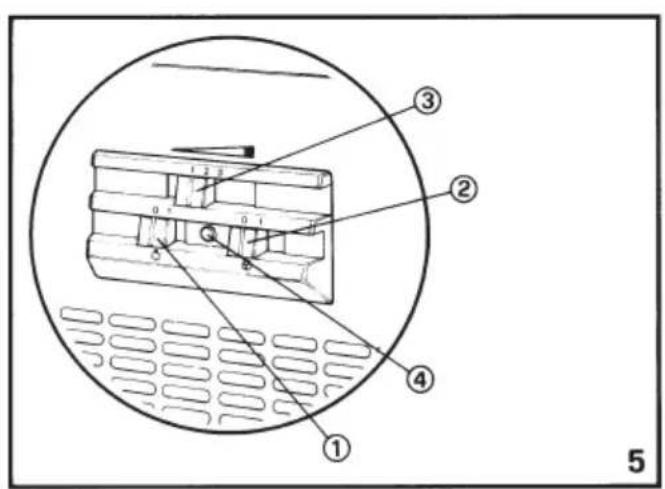

| Control Type | Slider |
| Energy Class | B |
| Duct Diameter | 150 mm |
| Installation Height (min) | 65 cm above gas hob, 55 cm above electric hob |
| Cleaning | Grease filter every 3 months; external surfaces with mild detergent |
| Safety Features | Motor thermal cut-out |
| Spare Parts Availability | Filters, bulbs, motor available from authorized service |
Frequently Asked Questions - CH550B Tricity Bendix

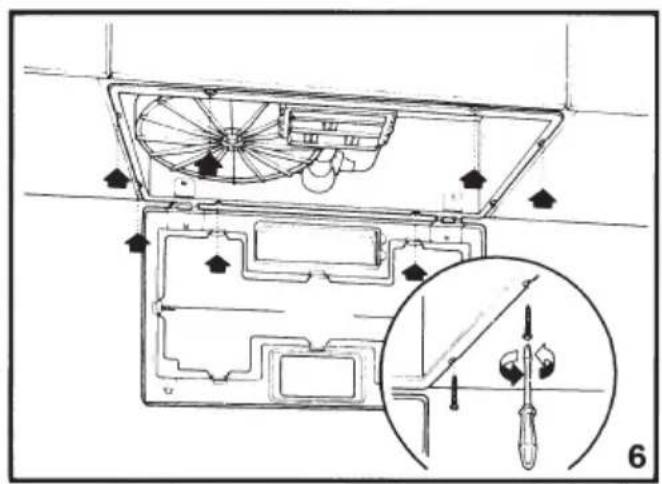

How do I install the CH550B range hood?
Installation must be carried out by a qualified professional. Ensure the hood is at least 65 cm above a gas hob and 55 cm above an electric hob. Use the template provided for drilling, and secure the hood to the cabinet or wall. Connect the ducting (150 mm diameter) for extraction mode, or fit a carbon filter for recirculation.
How often should I clean the grease filter?
The aluminum grease filter should be cleaned every 3 months or more frequently if cooking heavily. Wash it by hand with warm water and mild detergent, or place it in the dishwasher at a low temperature. Ensure it is completely dry before reinserting.
Can I use the hood in recirculation mode?
Yes, the CH550B can be used in recirculation mode with an optional carbon filter. The carbon filter absorbs odors and should be replaced every 6-12 months depending on usage.
What type of light bulbs does the hood use?
The hood uses two 40W halogen bulbs (G9 base). Always replace with bulbs of the same type and wattage. Switch off the power before replacing.
The hood is noisy. Is this normal?
Noise levels up to 65 dB are normal at maximum speed. Excessive noise may indicate a blockage in the duct or a dirty filter. Ensure the grease filter is clean and the duct is not obstructed.

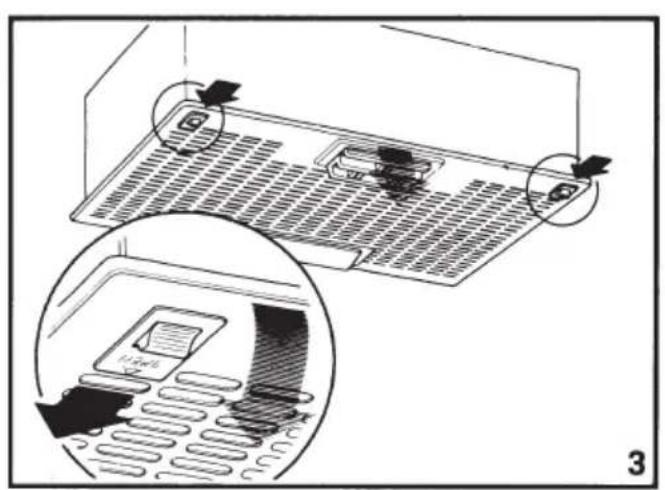

How do I change the carbon filter?
Access the carbon filter by removing the grease filter. The carbon filter is located behind it. Replace with a new filter of the correct size (available from Tricity Bendix). Reassemble in reverse order.
My hood stopped working. What should I check?
First, check the power supply: ensure the plug is inserted and the fuse has not blown. If the motor does not run, the thermal cut-out may have activated; wait 15 minutes and try again. If the issue persists, contact a qualified technician.
How do I clean the exterior of the hood?
Wipe the exterior with a soft cloth dampened with warm water and a mild detergent. Do not use abrasive cleaners or scouring pads. For stainless steel, use a dedicated cleaner and wipe along the grain.
Where can I find spare parts for my CH550B?
Spare parts such as filters, bulbs, and motors can be ordered from Tricity Bendix authorized service centers. Check the manual or visit the manufacturer's website for a list of approved suppliers.
What is the maximum extraction rate?
The maximum extraction rate is 650 m³/h. This ensures efficient removal of cooking fumes and odors. Use lower speeds for normal cooking and maximum speed only when necessary.
