Product Type	Tumble Dryer
Brand	Tricity Bendix
Model	TM 400
Colour	White
Dimensions (H x W x D)	85 cm x 60 cm x 60 cm
Weight	35 kg
Drying Capacity	4 kg
Energy Efficiency Class	C
Drying Programs	Standard, Delicate, Synthetics, Timed Drying
Timer Range	60–120 minutes
Door Type	Front-loading, reversible
Control Type	Rotary knobs
Venting Type	Vented (requires external vent)
Electrical Supply	220–240 V, 50 Hz
Power Consumption	2000 W
Safety Features	Overheat protection, child lock
Lint Filter	Removable, clean after each use
Spare Parts Available	Drum belt, door seal, heating element, timer
Warranty	2 years (manufacturer)

Frequently Asked Questions - TM 400 Tricity Bendix

How do I clean the lint filter on my Tricity Bendix TM 400?

Open the door and pull the lint filter out from the bottom of the door opening. Remove lint by hand or with a soft brush. Rinse under running water if needed, then dry thoroughly before reinserting.

Why isn't my dryer heating up?

Check if the thermal cut-out has tripped (reset by pressing the button at the back). Also ensure the lint filter is clean and the vent hose is not blocked. If problem persists, the heating element may need replacement.

Can I dry all types of fabrics in the TM 400?

No. The dryer has programs for cotton, synthetics and delicates. Do not dry items with rubber, plastic, or foam. Always check garment care labels.

How do I reverse the door on my Tricity Bendix TM 400?

The door is reversible. Unscrew the hinge screws on the current side, lift the door off, and reposition it on the opposite side using the provided screw holes. You may need to swap the door catch plate as well.

Why does the dryer stop mid-cycle?

This could be due to overheating (check lint filter and vent), a full water container (for condenser models, but TM 400 is vented), or a faulty timer. Reset by unplugging for 5 minutes.

How do I change the drum belt?

Unplug the dryer. Remove the top panel and front panel. The belt runs around the drum and idler pulley. Loosen the idler, remove old belt, fit new belt (grooved side to drum) and retension. Reassemble.

What is the maximum load weight for the TM 400?

The maximum dry load weight is 4 kg. Overloading can cause poor drying and excessive wear on the motor.

How often should I clean the vent hose?

Inspect the vent hose every 3 months. Disconnect and remove lint using a vacuum or brush. A blocked vent reduces efficiency and creates a fire hazard.

Can I install the dryer in a cupboard?

Yes, but ensure adequate ventilation for the vented air. The cupboard must have a vent outlet to the outside. Do not block the dryer's air intake.

Where can I find spare parts for the TM 400?

Spare parts like heating elements, belts, door seals and timers are available from online retailers or local appliance shops. Use the model number TM 400 and brand Tricity Bendix when ordering.

USER MANUAL TM 400 Tricity Bendix

Three black rectangular blocks with no visible text, symbols, or markings.

we'll do the homework

Black-and-white illustration of various household appliances including refrigerator, washing machine, microwave, and kitchen appliance (no text or symbols)

Operating and Installation Instructions

Model No.

TM 400

CONTENTS

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	Page	3
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Electric cable replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Getting to know your machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Drying times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Using your machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Hints on drying. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 10
External cleaning . . . . . . . . . . . . . . . . . . . . . 10
Cleaning the door . . . . . . . . . . . . . . . 10
Cleaning the filter . . . . . . . . . . 10
Something not working? . . . 11
Service Centres. . . 12-13

TECHNICAL SPECIFICATIONS

DIMENSIONSAND WEIGHT	Height	85 cm (33.5")
	Width	60 cm (23.6")
	Depth	57 cm (22.4")
	Weight	30 kg
POWER SUPPLY VOLTAGE		220-240 V / 50 Hz
TOTAL POWER ABSORBED		2650 W (13 A)
DRYING CAPACITY	Cotton, linen	4.5 kg (10 lb)
	Synthetics, delicate fabrics	2.25 kg (5 lb)

This appliance complies with E.E.C. directive No. 87/308 of 2.6.87 relative to radio interference suppression.

YOU MUST READ THE WHOLE OF THIS INSTRUCTION BOOK BEFORE YOU USE THE APPLIANCE. FOLLOW THE ADVICE CAREFULLY.

KEEP THE BOOK FOR FUTURE REFERENCE. IF YOU SELL OR GIVE AWAY THE APPLIANCE, MAKE SURE THAT THE BOOK IS PASSED TO THE NEW OWNER.

WARNINGS

■ The following warnings are provided in the interest of overall safety. You must read them before the appliance is installed or used.

INSTALLATION

■ This appliance should not be installed in a bathroom or shower room.
■ Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
■ Make sure that the appliance does not stand on its electrical supply cable.
This tumble dryer is designed to be vented through to the open air. The appliance should have its own ventilation system which should not be joined with any other ventilation system connected to any other appliance.
In order to prevent the appliance from overheating, it is important that the condensation vents are not obstructed.

USAGE

■ Always unplug the appliance after use.
■ Never tumble dry items that have had contact with chemicals such as dry cleaning fluid. These are of a volatile nature and could cause an explosion.
■ The users should always check that they have not left their gas lighters (disposable or otherwise) in their clothing.
■ Leave the porthole door slightly ajar when not in use to preserve the door seal.
■ Fluff filters must be cleaned after every use.
■ Do not operate the appliance with a damaged filter or with no filter at all, as this may cause a fire.

SERVICE/REPAIR

■ You should not attempt to repair the machine yourself. Repairs carried out by inexperienced or unqualified persons may cause injury and/or more serious faults to the machine.
■ This product should be serviced by an authorised Tricity Bendix Service Centre only, and only genuine Tricity Bendix spare parts should be used.

GENERAL SAFETY

■ It is dangerous to modify the specifications of this appliance in any way.
This appliance is designed to be used by adults. Children should not be allowed to touch the controls or play with the product.
■ Pets and small children may climb into tumble dryers. Check your appliance each time before use.
■ The glass door becomes very hot during the drying cycle. Keep children away from the appliance while it is in use.

INSTALLATION

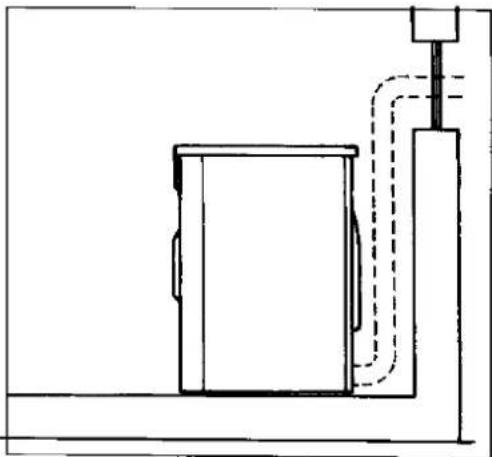

Install the appliance in a well ventilated room or close to a window since, whilst drying, the tumble dryer will expel a certain amount of moist air.

Room temperature must not exceed 35°C.

Simple line drawing of a cabinet with an attached pipe and support structure (no text or symbols)

Condensation may be discharged through a vent outlet provided at the back.

Line drawing of a hand inserting a component into a computer tower (no text or symbols)

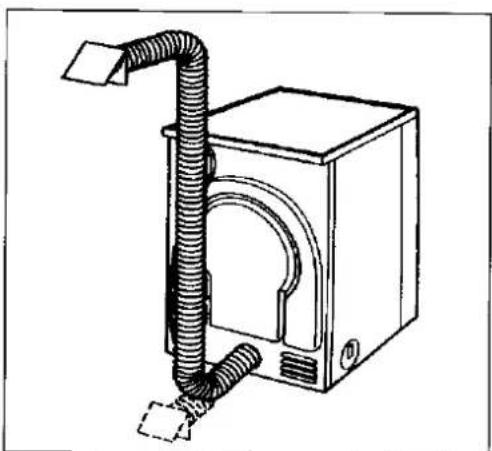

With the special plastic flexible tube (vent hose), available on request by your local dealer, you may discharge condensation directly outdoors.

The length of the vent hose must not be more than 2 m and it must not contain more than two bends when it is placed in position for operation.

Line drawing of a washing machine with coiled tubing and a door (no text or symbols)

It is absolutely essential not to connect the flexible vent hose to, for example, a chimney or flue pipe designed to carry the exhaust from a fuel burning heating appliance.

The capacity of the venting circuit must be at least 150 m^3/h .

Diagram showing a washing machine crossed out by two crossed lines, indicating no overlap or prohibition (no text or symbols present)

The tumble dryer must be installed in a clean place, where dirt does not build up.

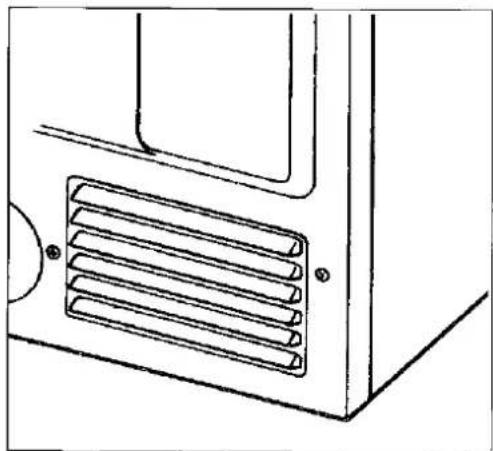

Make sure there are no obstructing items or materials near the air-intake louvres provided at the back (such as for example paper, rags, etc.).

Technical line drawing of a computer tower with ventilation slots and mounting feet (no text or symbols)

Level the tumble dryer into place by screwing or unscrewing the front feet as required. Accurate levelling will keep vibration and noise to a minimum when the dryer is in use.

Simple line drawing of a mechanical component with circular motion arrows, no text or symbols present

Electrical connection

WARNING

THIS APPLIANCE MUST BE EARTHED.

The manufacturer declines any liability should this safety measure not be observed.

1. If the plug fitted to the appliance is not suitable for your socket outlet, it must be cut off, and the appropriate plug fitted.

You should dispose of the cut-off plug, in order to prevent the hazard of electric shocks if it should be plugged into a 13 Amp socket in another part of your home.

2. IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

If you fit your own plug the colours of the wires in the mains lead may not correspond with the markings identifying the terminals in your plug. Fit the plug as follows:

Connect the green and yellow (earth) wire to the terminal in the plug which is marked with the letter «E», or the earth symbol 12 , or coloured green or green and yellow.

Connect the blue (neutral) wire to the terminal in the plug which is marked with the letter «N», or coloured black.

Connect the brown (live) wire to the terminal in the plug which is marked with the letter «L», or coloured red.

3.1 There is a fuse incorporated into the moulded plug. When necessary this should be replaced by a 13 Amp BS 1362 fuse. Only ASTA approved fuses should be used.

3.2 The fuse cover/carrier must be replaced if the fuse is changed. The correct fuse cover/carrier is the one shown by the coloured insert at the base of the plug.

3.3 The plug must not be used if the fuse cover/carrier is lost. A replacement cover/carrier must be obtained from a Tricity Bendix Service Centre. There is a list of these at the end of this instruction book.

Note

Installation and, in particular, connection to the electric mains and to the discharge vent must be carried out by competent personnel or qualified technicians.

Please ensure that when the appliance is installed it is easily accessible for the engineer in the event of a breakdown.

GETTING TO KNOW YOUR MACHINE

Control panel

1 Mains on light
2 Drying time selector knob

Symbols

MAINS: This light comes on when the machine starts ON working.

Drying time selector

The selector dial is marked with times in minutes corresponding with those on the chart (page 8).

To set the machine to the selected time, turn the dial clockwise until the time you want coincides exactly with the pointer.

Never attempt to turn the dial in an anticlockwise direction.

The selected time can be extended when the original programme is completed, by resetting the knob for a further period of drying. It is better to select a time which is too short and then set the dial for a further period if necessary.

Select the drying time according to your experience. The programme guide is designed to help you. Remember that during the last 8 minutes of the operation the heat is cut off in order to carry out a fabric cooling phase, which prevents any creasing or crumpling of the fabrics.

Type of laundry	Degree of drying required	Degree of spin given	Load		Drying time
Cotton & Linen	Store dry	500 rpm	10 lbs.	(4.5 kg)	80-100 mins
			5 lbs.	(2.25 kg)	50- 60 mins
		800 to 1000 rpm	10 lbs.	(4.5 kg)	65- 85 mins
			5 lbs.	(2.25 kg)	45- 55 mins
	Iron dry	500 rpm	10 lbs.	(4.5 kg)	65- 85 mins
			5 lbs.	(2.25 kg)	45- 55 mins
		800 to 1000 rpm	10 lbs.	(4.5 kg)	45- 65 mins
			5 lbs.	(2.25 kg)	30- 40 mins
Synthetics	Store dry	Short and slow	4 lbs.	(1.75 kg)	40- 45 mins
			2 lbs.	(0.9 kg)	25- 30 mins
			1 lb.	(0.5 kg)	20- 25 mins

If the laundry is spin-dried in a washing machine at less than 500 rpm the residual dampness will be higher and consequently the drying time should be increased.

This applies particularly to laundry consisting primarily of towels.

If the laundry is spin-dried at more than 1000 rpm, the residual dampness will be lower and consequently the drying time should be decreased.

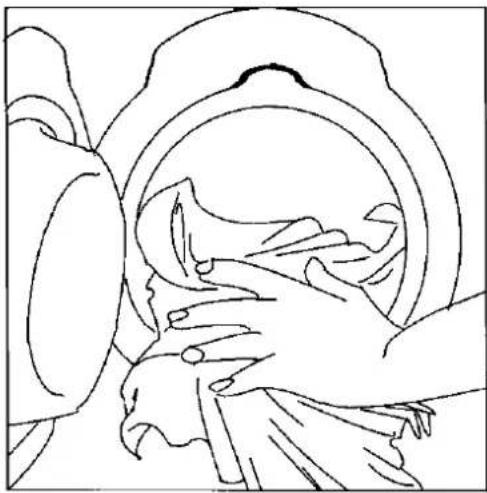

1. Place the laundry in the drum.

Open the loading door by pulling the handle outwards.

Load the items one at a time, shaking them out loosely. Close the door.

Line drawing of a bird in flight inside a circular structure (no text or symbols)

2. Select the drying time

Turn the selector dial clockwise to the required time.

The «mains on» light will illuminate and the dryer starts operating.

Illustration of a hand using a tool to adjust a circular component with a 80-degree angle marker (no text or symbols present)

3. When drying is completed.

The machine stops automatically.

If the laundry is still too damp, select a further brief drying time, bearing in mind that during the 8 last minutes the dryer carries out the cooling and anticrease treatment phase.

HINTS ON DRYING

■ Do not overload the dryer.

Here is a list of the average weights of the more common laundry items according to an approximate basis.

Sheet	700 to 1000 gr
Pillowcase	100 to 200 gr
Tablecloth	400 to 500 gr
Table napkin	50 to 100 gr
Kitchen towel	70 to 120 gr
Linen hand towel	100 to 150 gr
Hand towel	150 to 250 gr
Bath towel	700 to 1000 gr
Bathrobe	1000 to 1500 gr
Shirt	200 to 300 gr
Apron	150 to 200 gr

■ However, the best and most economical load is the maximum indicated for the different types of fabric.
■ Always load well spun laundry:
the higher the spin speed the lower the electric energy consumption and the shorter the drying time.
■ Do not leave the damp laundry load in a heap too long before drying.
■ Sort the laundry out: Separate synthetics from cotton and linen and dry them separately.
■ Close poppers and zips and fasten any buttons found loose.
■ Do not use the tumble dryer to dry the following:

• Dry-cleaned fabrics or fabrics cleaned with chemical solvents.
• Woollen garments and those manufactured from synthetic/wool mixtures of the heat-shrinkable type.
• Very delicate articles such as silk and curtains made of synthetic material.
• Foam-rubber articles.
• Fibre-glass articles.

■ In some cases, labels on articles may also be of help.

Vigorous drying

Delicate drying

Do not tumble dry

■ Avoid drying dark clothes with light coloured fluffy items such as towels as they could attract the fluff.
■ If you overdry the laundry, besides wasting energy, any subsequent ironing may become more difficult because the fabric could be heavily crumpled.
■ Remove the laundry when the dryer has finished drying.
■ To avoid a static charge when drying is completed, use either a fabric softener when you are washing the laundry or a fabric conditioner specifically for tumble dryers.
■ When you have finished tumble drying do not forget to clean the filter. If the filter is dirty, drying times are increased considerably and consequently energy consumption is also increased.

Important

You are advised to unplug the appliance before all cleaning and maintenance operations.

External cleaning

Use only soap and water and then dry thoroughly. From time to time, apply a little wax furniture cream with a soft cloth.

Important: do not use methylated spirit, diluents or similar products.

Cleaning the door

You should occasionally clean the interior part of the door to eliminate any fluff.

Line drawing of a hand cleaning a circular mechanical component with a cloth (no text or symbols)

Cleaning the filter

Your dryer will only function well if the filter is clean. The filter collects all the «fluff» which accumulates during drying and it must therefore be removed and cleaned at the end of each programme.

To remove the filter it is sufficient to lift it up. The filter can be opened for easy cleaning.

It is perfectly normal for fluff to accumulate in the filter during drying. In fact, even fabrics dried in the open air lose their fibres, but we do not notice it.

Technical line drawing of a mechanical assembly with hands operating a circular component (no text or symbols)

SOMETHING NOT WORKING?

If the appliance does not start:

Check that:

■ the door is firmly shut;
■ the mains fuse is intact;
■ the drying time selector dial has been set correctly.

If the appliance does not dry properly:

Check that:

■ the filter is not clogged;
■ the drying time is sufficient;
■ the machine is not overloaded;
■ the installation has been carried out according to the relevant instructions. In particular, check efficiency of air-intake louvres and of the condensation vent.

If you are unable to identify or solve the problem, consult our servicing department. Before telephoning, make a note of the make, model and date of purchase of your machine: the Service Department will require this information.

Service & Spares for Electrolux & Tricity-Bendix
Electrolux SERVICE
Service & Spares for Electrolux & Tricity-Bendix

Service Centre	Postcode areas covered	Telephone	Address
ABERDEEN	DD IV KW AB PH	0224 696569	8 Cornhill Arcade, Cornhill Drive, Aberdeen AB2 5UT
BELFAST	BT	0232 746591	Unit C3, Edenderry Industrial Estate, 326 Crumlin Road, Belfast BT14 7EE
BIRMINGHAM	WR DY B WV TF ST SY WS	021 358 7076	8 Lammermoor Ave, Great Barr, Birmingham, B43 6ET
BRISTOL	(BA BS SN TA)--- (TQ EX TR PL)---	-0272 211876 --0626 65909	3 Waring House, Redcliff Hill, Bristol BS1 6TB
CANVEY ISLAND	RM CM SS CO IG	0268 694144	Canvey Centre 2-4 Sandhurst, Kings Road, Canvey Island, SS8 OQY
CARDIFF	CF HR LD NP SA	0222 460131	Guardian Industrial Estate, Clydesmuir Road, Tremorfa, Cardiff, CF2 2QS
GLASGOW	DG KA ML G PA KY EH TD FK	041 647 4381	20 Cunningham Road, Clyde Estate, Rutherglen, Glasgow, G73 1PP
LEEDS	S DN HU YO WF HX HD LS HG BD	0532 608511	64-66 Cross Gates Road, Leeds, LS15 7NN
LEICESTER	LE DE CV NG LN PE IP NR	0533 515131	10-12 Buckminster Road, Leicester LE3 9AR
LIVERPOOL	CW CH LL L WA	051 254 1724	Unit 1, Honeys Green Lane, West Derby, Liverpool L12 9JR
LONDON (NORTH)	E EC WC N NW W EN	081 443 3464	London North Centre 2-4 Sandhurst, Kings Road, Canvey Island SS8 OQY
LONDON (SOUTH)	SE SM CR BR SW	081 658 9069	London South Centre 2-4 Sandhurst, Kings Road Canvey Island SS8 OQY
LONDON (WEST)	AL CB LU MK SG WD HA UB TW	081 965 9699	London West Centre 2-4 Sandhurst, Kings Road, Canvey Island SS8 OQY
NEWTON AYCLIFFE	(CA DL DH NE SR TS)--- (SK M BL OL BB LA FY PR WN)---	--0325 301400 --0282 74621-4	PO Box 40 Preston Road Aycliffe Industrial Estate, Newton Aycliffe, Co. Durham DL5 6XL
OXFORD	GL HP NN OX SL RG	0993 704411	Suite 3, Windrush Court, 56a High Street, Witney OX8 6BL
PORTSMOUTH	BH DT PO SO SP KT GU	0705 667411	Limberline Road, Hilsea, Portsmouth, P03 5JJ
TONBRIDGE	(CT DA ME TN)--- (BN RH)---	0732 357722 0273 694341	61-63 High Street, Tonbridge, TN9 1SD

AB	Aberdeen	GU	Portsmouth	PO	Portsmouth
AL	London West	HA	London West	PR	Newton Aycliffe
B	Birmingham	HD	Leeds	RG	Oxford
BA	Bristol	HG	Leeds	RH	Tonbridge
BB	Newton Aycliffe	HP	Oxford	RM	Canvey Centre
BD	Leeds	HR	Cardiff	S	Leeds
BH	Portsmouth	HU	Leeds	SA	Cardiff
BL	Newton Aycliffe	HX	Leeds	SE	London South
BS	Bristol	IG	Canvey Centre	SG	London West
BT	Belfast	IP	Leicester	SK	Newton Aycliffe
BN	Tonbridge	IV	Aberdeen	SL	Oxford
BR	London South	KA	Glasgow	SM	London South
CA	Newton Aycliffe	KT	Portsmouth	SN	Bristol
CB	London West	KW	Aberdeen	SO	Portsmouth
CF	Cardiff	KY	Glasgow	SP	Portsmouth
CH	Liverpool	L	Liverpool	SR	Newton Aycliffe
CM	Canvey Centre	LA	Newton Aycliffe	ST	Birmingham
CO	Canvey Centre	LD	Cardiff	SY	Birmingham
CR	London South	LE	Leicester	SS	Canvey Centre
CT	Tonbridge	LL	Liverpool	SW	London South
CV	Leicester	LN	Leicester	TA	Bristol
CW	Liverpool	LS	Leeds	TD	Glasgow
DA	Tonbridge	LU	London West	TF	Birmingham
DD	Aberdeen	M	Newton Aycliffe	TN	Tonbridge
DE	Leicester	ME	Tonbridge	TQ	Bristol
DG	Glasgow	MK	London West	TR	Bristol
DH	Newton Aycliffe	ML	Glasgow	TS	Newton Aycliffe
DL	Newton Aycliffe	N	London North	TW	London West
DN	Leeds	NE	Newton Aycliffe	UB	London West
DT	Portsmouth	NG	Leicester	W	London North
DY	Birmingham	NN	Oxford	WA	Liverpool
E	London North	NP	Cardiff	WC	London North
EC	London North	NR	Leicester	WD	London West
EH	Glasgow	NW	London North	WF	Leeds
EN	London North	OL	Newton Aycliffe	WN	Newton Aycliffe
EX	Bristol	OX	Oxford	WR	Birmingham
FK	Glasgow	PA	Glasgow	WS	Birmingham
FY	Newton Aycliffe	PE	Leicester	WV	Birmingham
G	Glasgow	PH	Aberdeen	YO	Leeds
GL	Oxford	PL	Bristol

TRICITY BENDIX

916760007

we'll do the homework

Tricity Bendix, 99 Oakley Road, Luton, Beds. LU4 9QQ
