USER MANUAL TM 200 Tricity Bendix

OPERATING & INSTALLATION INSTRUCTIONS

Abstract black-and-white ink brush stroke pattern with a circular dot above, resembling a stylized human figure or logo (no text or symbols)

DELUXE TUMBLE DRYER

TM 200

This information is provided in the interest of safety.

You must read it carefully before installing or using the appliance.

Installation

• Any electrical work required to install the appliance must be carried out by a competent qualified person.
• Do not use a two-way adapter or extension lead. The dryer must be connected to its own socket.
• Ensure the appliance does not stand on the electrical supply cable.
• It is dangerous to alter the specifications or modify this product in any way.
• This appliance is designed to be vented through to the open air. It must have its own ventilation system which should not be shared with other appliances ventilation systems for example cooker hood outlets.

Child Safety

• Check your drum before use. Pets and children have been known to climb into tumble dryers.
• This appliance should be operated by adults. Do not allow children to tamper with the controls or play with the product.
• Keep children away from the appliance when it is in operation.

During Use

• This tumble dryer is intended for normal domestic use only.
• Clean the lint filter after each drying cycle.
• The appliance should be unplugged after use.
• Do not block the air inlets at the back of your dryer.
• Do not allow fluff to accumulate around the tumble dryer.
• Do not overload the appliance.
• Do not exceed the recommended maximum load.
• Clothes which are dripping wet must not be placed in the dryer. Only load well spun clothes.
• Do not dry items containing foam rubber or rubber like materials.

• Under no circumstances should anything other than articles recommended for tumble drying be placed in the tumble dryer.

• Do not dry items that have been in contact with flammable chemicals such as dry cleaning fluid.

• Never switch the tumble dryer off and leave a hot load in the drum.

Service

• Do not attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction.
• Repairs should be carried out by Tricity Bendix Service Force.

Please read this instruction book before using the appliance, and retain for future reference

CONTENTS

FOR THE USER Page

Important Safety Information....1

Installation

Child Safety

During Use

Service

Description of the Appliance....3

Temperature Switch

Time Selector Dial

Programme Chart

Programme Chart 4

Hints & Tips on Drying 4

Operating Sequence 5

Loading the Laundry

Selecting the programme

When drying is complete

Maintenance and Cleaning....6

External Cleaning

Cleaning the Lint Filter

Something Not Working....7

Symptoms and Solutions

Service and Spare Parts....8

Customer Care....8

Guarantee Conditions ....11

Tricity Bendix Service Centre Addresses.....9&10

FOR THE INSTALLER Page

Installation Instructions ....12

Technical Information

Electrical Connection....13

Positioning 14

Site preparation

Venting

Temperature Switch

Press the top of the switch for a low temperature setting. Press the bottom of the switch for a high temperature.

Use the high temperature for drying cottons and linens, and the low temperature for drying synthetics and delicates.

Time Selector Dial

The time selector dial is marked in minutes up to a maximum of 120 minutes.

To select a drying time, turn the dial until the time you require is in line with the marker.

To reduce the drying time turn the dial anti-clockwise until the correct time is reached.

Programme Guide

This is a guide to help you select the correct temperature and drying time.

PROGRAMME GUIDE

Maximum load for Cottons and Linens 3 kg Maximum load for Synthetics and Delicates 1 kg

For Synthetics, use a half heat setting for 25 - 45 minutes For Polyester Cottons, use a half heat setting for 40 - 70 minutes For Cotton Dry, use a full heat setting for 70 - 100 minutes For Cotton Damp Dry, use a full heat setting for 55 - 80 minutes For Linens, use a full heat setting for 70 - 100 minutes

HINTS & TIPS ON DRYING

Before placing articles of laundry in your tumble dryer, check the care labels to ensure they are recommended for tumble drying.

Care labels you may find on your laundry

Do not overload the appliance

Here is a list of the approximate weight of some common laundry items:

Sheet 700 to 1000g

Pillowcase 100 to 200g

Tablecloth....400 to 500g

Table Napkin 50 to 100g

Kitchen Towel 70 to 120g

Linen Hand Towel 100 to 150g

Hand Towel 150 to 250g

Bath Towel....700 to 1000g

Bathrobe....1000 to 1500g

Shirt 200 to 300g

Apron 150 to 200g

• Always load well spun laundry. The higher the spin speed the lower the electricity consumption and the shorter the drying time.
• DO NOT load dripping wet laundry into the dryer. Roll the article in a towel or spin to remove excess water.
• Close poppers and zips and fasten any buttons.
• Sort the laundry. Separate synthetics from cottons/linens, and dry separately.
• Remove the laundry immediately after the programme has finished.
• Use a fabric conditioning sheet to reduce static. We recommend the sheet is pinned to an article of laundry (using a safety pin).
  • Mix the load i.e. large and small articles.
• When drying items such as sheets, we recommend you periodically stop the dryer to redistribute the load.

DO NOT use the tumble dryer to dry the following:

• Articles contaminated with inflammable substances e.g. petrol, cleaning solvents, cooking oil, fats or hair lacquer.
• Woollen and synthetic wool mixtures unless the item is labelled as suitable for tumble drying.
  • Very delicate articles such as silk
• Very large and bulky items such as duvets or sleeping bags.

OPERATING SEQUENCE

1. Loading the laundry

• Open the door by pulling it outwards
• Load the items one at a time, shaking them out loosely.
• Where possible mix the load, i.e. large and small items.
• Close the door.
  • Dry your hands and plug in the appliance.

2. Selecting the programme

• Select the temperature
• Select the required drying time
  i Use the programme guide to help you select the correct drying time and temperature.
  i The machine will now start working and rotate in an anti-clockwise direction.
• To lengthen or shorten a timed programme, turn the time selector dial clockwise until the correct time is reached, bearing in mind that during the last 12 minutes the dryer carries out the cooling phase.

3. When drying is complete

• The machine stops automatically
- Remove the laundry
- Switch off the machine

There is an automatic 12 minute cool down period at the end of every cycle, during which the heater is switched off. This helps to minimise creasing.

⚠️ Never switch the dryer off and leave a hot load in the drum.

The filter must be cleaned after every drying programme.

We recommend the machine is disconnected from the electricity supply when not in use.

Illustration of hands cleaning a circular object with a cloth (no text or symbols)

Hand holding a circular dial with numbers 37, 40, 45, 50, 55 (no text or symbols on the dial itself)

MAINTENANCE AND CLEANING

Disconnect the appliance from the electricity supply before carrying out any maintenance or cleaning.

Never use abrasive cleaning products or cleaning agents which contain bleach, acetone, alcohol or methylated spirits.

External Cleaning

Periodically wipe the outside of the appliance, using only water and a soft cloth. Dry thoroughly.

Cleaning the Lint Filter

Your dryer will only function well if the filter is clean.

The filter collects fluff which accumulates during drying and it must therefore be removed and cleaned at the end of each programme.

To remove the filter:

• Pull the filter upwards and away from the appliance.
• Remove any threads of fluff by hand or with a soft brush
• Slide the filter back into position.

Wash the filter occasionally in detergent solution using a soft brush to remove any small particles.

The lint filter must be cleaned after every drying cycle.

Keep the air inlets at the front and back of the appliance clear.

Cleaning the Door

Wipe the interior part of the door to remove any fluff.

Illustration showing two steps of cleaning a mirror panel: adding a brush to clean the surface (no text or symbols present)

SOMETHING NOT WORKING

Before contacting your local Tricity Bendix Service Force please carry out the following checks.

SYMPTOM	SOLUTION
◆ The machine does not work	◆ Check that there is a supply of electricity◆ Check the plug fuse◆ Check the door is closed◆ Check the machine is switched on◆ Check the time selector dial is set correctly
◆ The clothes are not dry after normal drying time	◆ Check you have used the correct temperature setting◆ Check the vent hose is not blocked (sometimes a strong wind may cause back pressure)◆ Check the timer has not been set within a cool down period◆ The heater cut-out has operated. See below

Heater Cut-Out

This cut-out operates if the airflow is severely restricted.

Before resetting it check:

◆ The filter is clean.
◆ The air inlets at the back are not blocked.
◆ The exhaust venting is clear and not kinked.
◆ There are no other restrictions.

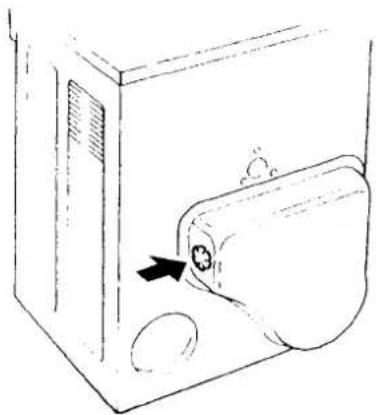

To reset the cut-out, press the red button at the back of the dryer.

If the cut-out continues to operate after checking the above points you should contact Tricity Bendix Service Force.

If after the above checks there is still a fault, contact your local Tricity Bendix Service Force Centre.

Line drawing of a washing machine with a close-up view showing a button and handle (no text or symbols)

If the tumble dryer does not function correctly after these checks, contact Tricity Bendix Service Force.

In the event of your appliance requiring service, or if you wish to purchase spare parts please contact your local Tricity Bendix Service Force Centre by telephoning:

0870 5 929929 (UK) 01 409 0770 (EIRE)

Your telephone call will be automatically transferred to your local Service Centre. The addresses can be found on the pages headed Tricity Bendix Service Force Centres.

When you contact Service Force, they will need to know:

1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number
5. The date of purchase

Before calling out an engineer, please ensure you have read the details under the heading 'Something Not Working'.

In-guarantee customers should ensure that the checks under the heading 'Something Not Working' have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

Please note that it will be necessary to provide proof of purchase for any in-guarantee service calls.

All enquiries concerning service should be addressed to your local Service Centre.

CUSTOMER CARE

For general enquiries concerning your Tricity Bendix appliance or for further information on Tricity Bendix products please contact our Customer Care Department by letter or telephone:

(UK) Customer Care Department

Tricity Bendix

55-77 High Street

Slough

Berkshire

SL1 1DZ

Tel: [phone]*

(EIRE) Customer Care Department

Tricity Bendix

Electrolux Group

Longmile Road

Junction Naas Road

Dublin 12

Tel: [phone]

* calls to this number may be recorded for training purposes.

Tricity Bendix Service Force

To contact your local Tricity Bendix Service Centre telephone [phone]

MIDLANDS		LONDON & EAST ANGLIA		SUNBURY(M63)	Unit 1aThe SummitHanworth RoadHanworth Ind. EstateSunbury on ThamesTW16 5D
BIRMINGHAM(M18)	66 Birch Road EastWyrley Road Ind. EstateWittonBirminghamB6 6DB	BECKENHAM(M79)	11a Gardener Ind. EstateKent House LaneBeckenhamKent BR3 1QZ
BOURNE(M44)	Manning Road Ind. EstatePinfold RoadBournePE10 9HT	CHELMSFORD(M47)	Hanbury RoadWidford Ind. EstateChelmsfordEssexCM12 3AE	SOUTH EASTASHFORD(M58)	Unit 2Bridge Road Business Est.Bridge RoadAshfordKent TN2 1BB
BRIDGNORTH(M72)	68 St. Mary's StreetBridgnorthShropshireWV16 4DR	COLINDALE(M53)	Unit 14Capitol ParkCapitol WayColindaleLondon NW9 0EQ
GLOUCESTER(M23)	101 Rycroft StreetGloucesterGL1 4NB	ELTHAM(M78)	194 Court RoadMottinghamElthamLondon SE9 4EW	FLEET(M59)	Unit 1Redsfield Ind. EstateChurch CrookhamFleetHampshire GU13 0RD
HEREFORD(M31)	Unit 3Bank BuildingsCattle marketHarefordHE4 9HX	ENFIELD(M49)	284 Alma RoadEnfieldLondonEN3 7BB	HAYWARDSHEATH(M55)	21-25 Bridge RoadHaywards HeathSussex RH16 1UA
HIGHAM FERRERS(M51)	30 High StreetHigham FerrersNorthantsNN10 8BB	GRAVESEND(M57)	Unit B4Imperial Business EstateGravesendKentDA11 0DL	SOUTH WESTBARNSTAPLE(M30)	Main RoadFremingtonBarnstapleNorth Devon EX31 2NT
ILKESTON(M43)	Unit 2Furnace RoadIlkeston DE7 5EP	HARPENDEN(M46)	Unit 4Riverside EstateColdharbour LaneHarpendenAL5 4UN	BOURNEMOUTH(M26)	63-65 Curzon RoadBournemouthDorsetBH1 4PW
LEICESTER(M22)	Unit 7Oaks Ind. EstateCoventry RoadNarboroughLeicestershireLE0 5GF	LETCHWORTH(M50)	16-17 Woodside Ind. EstateWorks RoadLetchworthHertsSG6 1LA	BRIDGEWATER(M35)	6 Hamp Ind. EstateBridgewaterSomerset TA6 3NT
LINCOLN(M40)	Unit 8Stonefield ParkClifton StreetLincolnLN5 8AA	LONDON(M76)	2/4 Royal LaneYiewsleyWest DraytonMiddlesexUB7 8DL	BRISTOL(M25)	11 Eldon WayEldonwall TradingBristolAvon BS4 3QQ
NEWCASTLEUNDER LYME(M12)	18-21 Croft RoadBrampton Ind. EstateNewcastle under LymeStaffordshireST5 0TW	MAIDENHEAD(M60)	Reform RoadMaidenheadBerkshireSL6 8BY	EMSWORTH(M33)	266 Main RoadSouthbourneEmsworthPO10 8JL
REDDITCH(M20)	13 Thornhill RoadNorth Moons MoatRedditchWorcestershireB98 9ND	MOLESEY(M61)	10 Island Farm AvenueWest MoleseySurreyKT8 2UZ	ISLE OF WIGHT(M34)	Unit 8Enterprise CourtRyde Business ParkRydeIsie of Wight PO33 1DB
TAMWORTH(M19)	Unit 3Sterling ParkClaymoreTamworthB77 5DO	NEWBURY(M24)	9 Pipers CourtBerkshire DriveThatchamBerkshireRG19 4ER	NEWTON ABBOT(M29)	Unit 2Zealley Ind. EstateKingsteigntonNewton AbbotS. DevonTQ12 3TD
WORCESTER(M73)	Units 1 & 2Northbrook CloseGregorys Mill Ind. EstateWorcesterWR3 8BP	IPSWICH(M48)	Unit 6CELton Park Business CentreHadleigh RoadIpswichIP2 0DD	REDRUTH(M36)	Unit 7DPool Ind. EstateWilson WayRedruthCornwall TR15 3QW
		NORWICH(M52)	2b Trafalgar StreetNorwichNR1 3HN

To contact your local Tricity Bendix Service Centre telephone [phone]

CHANNEL ISLANDS		ORKNEY(M65)	Corsie Domestics7 King StreetKirkwallOrkney KW15	NORTH EAST
GUERNSEY	Guernsey ElectricityPO Box 4Vale, GuernseyChannel Islands			GATESHEAD(M39)	Unit 356aDukesway CourtDukeswayTeam ValleyGateshead NE11 0BH
		PERTH	Hydro ElectricalInveralmond HouseRuthervenfield RoadPerth PH1 3AQ
JERSEY	Jersey Electricity CompanyPO Box 45Queens RoadSt HellerJerseyChannel Islands JE4 8NY			GRIMSBY(M42)	15 Hainton AvenueGrimsbySouth HumbersideDN32 9AS
		PERTH(OWN SALES)	Graham BeggUnit 4Airport Ind EstateWick KW1 4QS
		SHETLAND(OWN SALES)	Tait Electronic Systems LtdHolmsgarth RoadLerwickShetland ZE1 0PW		Unit 1Boulevard Industrial EstateHullHU3 4AY
ABERDEEN(M05)	54 Claremont StreetAberdeen AB10 6RA			LEEDS(M37)	64-66 Cross Gates RoadLeedsLS15 7NN
AUCHTERMUCHY(M03)	33a BurnsideAuchtermuchyFife KY14 7AJ			NEWTON AYCLIFFE(M45)	Unit 16Gurney WayAycliffe Industrial EstateNewton AycliffeDL5 6UJ
BLANTYRE(M07)	Unit 5Block 2Auchenralth Ind. EstateRosendale WayBlantyre G72 0NJ			SHEFFIELD(M38)	Pennine HouseRoman Ridge Ind.Roman Ridge RoadSheffield S9 1GB
DUMFRIES(M01)	93 Irish StreetDumfriesScotland DG1 2 PQ	NORTHERN IRELAND		NORTH WEST
		BELFAST(M27)	Owenmore HouseKilwee Business ParkUpper Dunmury LaneBelfastBT17 0HD
DUNOON(M67)	Brair Hill7 Hill StreetDunoonArgyll PA23 7AL			BIRKENHEAD(M11)	1 Kelvin ParkDock RoadBirkenheadL41 1LT
GLASGOW(M04)	20 Cunningham RoadClyde EstateRutherglenGlasgow G73 1PP			CARLISLE(M10)	Unit 7James Street WorkshopsJames StreetCarlisleCumbria CA2 5AH
INVERNESS(M06)	Unit 3BSmithton Ind. EstateSmithtonInverness IV1 AJ			ISLE OF MAN(M64)	South Quay Ind. EstateDouglasIsle of ManIM1 5AT
ISLE OF ARRAN(OWN SALES)	Arran DomesticsUnit 4 The Douglas CentreBrodickIsle of Arran KA27 8AJ			LIVERPOOL(M15)	Unit 1Honeys Green PrecinctHoneys Green LaneLiverpoolL12 9JH
ISLE OF BARRA(OWN SALES)	J Zerfah244 BruernishIsle of BarraWestern Islands HS9 5QY			MANCHESTER(M09)	Unit BCentral Industrial EstateSt Marks StreetBoltonBL3 6NR
ISLES OF BUTE	Walker EngineeringGlenmhorUpper Serpentine RoadRothesayIsle of Bute PA20 9EH			PRESTON(M13)	Unit 250Dawson PlaceWalton SummitBamber BridgePrestonLancashire PR5 8AL
ISLE OF LEWIS	ND Macleod16 James StreetStornowayIsle of Lewis PA87 2QW			STOCKPORT(M16)	Unit 20 Haigh ParkHaigh AvenueStockportSK4 1QR
KELSO(M08)	2-8 Wood MarketKelsoBorders TD5 7AX

GUARANTEE CONDITIONS

Standard guarantee conditions

We, Tricity Bendix, undertake that if within 12 months of the date of the purchase this Tricity Bendix appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:

• The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's instructions.
• The appliance has not been serviced, maintained repaired, taken apart or tampered with by any person not authorised by us.
• All service work under this guarantee must be undertaken by a Tricity Bendix Service Force Centre.
• Any appliance or defective part replaced shall become the Company's property.
• This guarantee is in addition to your statutory and other legal rights.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.

Exclusions

This guarantee does not cover:

• Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic
  • Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the United Kingdom
  • Appliances found to be in use within a commercial environment, plus those which are subject to rental agreements
  • Products of Tricity Bendix manufacture which are not marketed by Tricity Bendix

European Guarantee

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

• The guarantee starts from the date you first purchased your product
- The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this brand or range of products
• This guarantee relates to you and cannot be transferred to another user
• Your new home is within the European Community (EC) or European Free Trade Area
• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household
• The product is installed taking into account regulations in your new country.

Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.

France	Senlis	[phone]
Germany	Nurenberg	[phone]
Italy	Pordenone	[phone]
Sweden	Stockholm	[phone]
UK	Slough	[phone]

INSTALLATION INSTRUCTIONS

Technical Information

Dimensions:

Height	67 cm
Width	50 cm
Depth	53 cm

Maximum Dry Weight Loads:

Cotton	3 kg
'Easycare' polyester/cotton(for minimum creasing)	3 kg1 kg
Delicates	1 kg

Electrical Ratings

Voltage	220-240v
Frequency	50Hz
Power rating	2040w

ELECTRICAL CONNECTION

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

WARNING - THIS APPLIANCE MUST BE EARTHED

Before switching on make sure the electricity supply voltage is the same as that indicated on the appliance rating plate. The rating plate is located on the back panel of your tumble dryer.

CHANGING A FUSE

Your tumble dryer will be fitted with one of two plugs. When replacing the fuse, always use ASTA approved 13A fuses to British Standard 1362.

Type 1: Prise out the fuse cover (A) with fuse (B). Change the fuse and refit both to the plug.

Important - The fuse cover must be refitted when changing a fuse. If the fuse cover is lost, the plug should not be used until a correct replacement is fitted. Replacements are identified by the colour insert or the colour embossed in words on the base of the plug. They are available from most electrical retail shops.

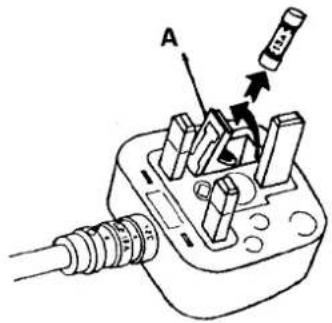

Type 2: Prise up the hinged fuse cover (A) as shown. Replace the fuse and press the cover back into place.

FITTING A REPLACEMENT PLUG

Should the plug need to be replaced for any reason the wires in the mains lead are coloured in accordance with the following code:

Blue - Neutral 'N'

Brown - Live 'L'

Green and Yellow - Earth 'E'

The GREEN & YELLOW wire must be connected to the terminal in the plug which is marked with the letter 'E' or by the earth symbol or coloured green or green and yellow.

The BLUE wire must be connected to the terminal marked with the letter 'N' or coloured black.

The BROWN wire must be connected to the terminal that is marked with the letter 'L' or coloured red.

A cut off plug inserted into a 13 amp socket is a serious safety (shock) hazard. Ensure that the cut off plug is disposed of safely.

POSITIONING

Site Preparation

• The installation surface must be clean and dry.
• Do not install on a deep pile carpet.
• Do not install the appliance where the temperature may fall below freezing or rise above 35^ C.
• Do not use a two way electrical adapter or extension lead. The dryer must be connected to its own socket.
- Please ensure that when the appliance is installed it is easily accessible for the engineer in the event of a breakdown.

Venting

Whilst drying, the tumble dryer will expel a certain amount of warm, very moist air, which should be removed from the room as quickly as possible to prevent condensation.

The most effective solution is to make a permanent connection through a wall. A permanent vent kit can be obtained for this purpose.

Alternatively use the vent hose supplied to direct the warm air to an open window or door. (As shown in Fig 1).

The vent must not be connected to any cooker hood ducting, chimney, or fuel pipe designed to carry exhaust from a fuel burning heating appliance.

Line drawing of a computer tower with a coiled hose attached to its side panel (no text or symbols)

TRICITY BENDIX

Tricity Bendix, 55 - 77 High Street, Slough, Berkshire, SL1 1DZ

Consumer care telephone number... 08705 950 950 (UK) 0752 01 409 0770 (EIRE)

MODEL NO.

TM 200

CE

PART NO.

4213 094 48994
