Product Type	Fixed Wall Mount
Compatible TV Sizes	32" to 55"
Maximum Weight Capacity	35 kg (77 lbs)
VESA Compatible Patterns	100x100 to 400x400 mm
Material	Cold rolled steel
Color	Black
Dimensions (L x H x D)	440 x 180 x 25 mm (17.3 x 7.1 x 1 in)
Weight	1.5 kg (3.3 lbs)
Wall Plate Dimensions	440 x 100 mm (17.3 x 3.9 in)
Distance from Wall	25 mm (1 in)
Level Adjustment	±2 degrees
Installation Hardware Included	Screws, wall anchors, spacers, and bubble level
Max Studs Distance	400 mm (15.75 in)
Compatible Wall Types	Concrete, brick, wood stud
Safety Features	Security locking brackets
Maintenance	Wipe with dry cloth; check screws periodically
Spare Parts Availability	Screws and spacers available via customer support
Warranty	1 year limited
Brand	Logik
Model	LTPSKM18

Frequently Asked Questions - LTPSKM18 Logik

What TV sizes are compatible with the Logik LTPSKM18 wall mount?

The Logik LTPSKM18 wall mount is designed for TVs ranging from 32 inches to 55 inches. Always check the TV's VESA pattern and weight to ensure compatibility.

What is the maximum weight capacity of this wall mount?

The maximum weight capacity is 35 kg (77 lbs). Do not exceed this limit to prevent damage or injury.

Which VESA patterns does the LTPSKM18 support?

It supports VESA patterns from 100x100 mm to 400x400 mm, covering most standard TVs.

Is the wall mount easy to install?

Yes, it includes a bubble level and all necessary hardware (screws, wall anchors, spacers). Follow the included manual for step-by-step instructions.

Can I install this mount on a brick wall?

Yes, the mount is compatible with concrete, brick, and wood stud walls. Use proper anchors for masonry.

How far from the wall will my TV sit?

The TV sits approximately 25 mm (1 inch) from the wall, providing a sleek, low-profile look.

Does the mount allow tilting or swiveling?

No, the LTPSKM18 is a fixed mount with no tilt or swivel. It is designed for a flat, stable installation.

Are replacement screws available?

Yes, spare screws and spacers can be obtained by contacting Logik customer support. Reference the model number LTPSKM18.

How do I clean and maintain the wall mount?

Clean with a dry cloth. Periodically check that all screws and bolts remain tight to ensure safety.

Does the mount come with a warranty?

Yes, it includes a 1-year limited warranty against manufacturing defects.

USER MANUAL LTPSKM18 Logik

Medium Tilting TV Bracket and Power Starter Kit

Instruction Manual

LTPSKM18

Black metal shelving unit with vertical supports and hanging weights (no text or symbols visible)

Thank you for purchasing your new product.

Please follow this quick start guide for a successful first time set up.

Read all the safety instructions carefully before use and keep the quick start guide for future reference.

Team Knowhow

Help with all life's kit

For general information about this appliance and

handy hints and tips, please visit

www.TeamKnowhow.com/discover or call 0344 561 1234

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.

With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only) Calls charged at National Rate.

DSG Retail Ltd. (co. no. 504877)

1 Portal Way, London, W3 6RS, UK

EU Representative

DSG Retail Ireland Ltd (259460)

Omni Park SC, Santry, Dublin 9, Republic of Ireland

IB-LTPSKM18-190322V2

SAFETY

TV SIZE Max. 55"

TV LOAD 30 kg

VESA COMPLIANCE 100 x 100 - 400 x 400 mm

DISTANCE TO WALL 38 mm

TILT ANGLE 0^ +10^

WARNING! READ THE FOLLOWING BEFORE STARTING INSTALLATION

• Assembly is required. Installation must be carried out by qualified personnel only. Incorrect assembly can result in severe personal injury and property damage.

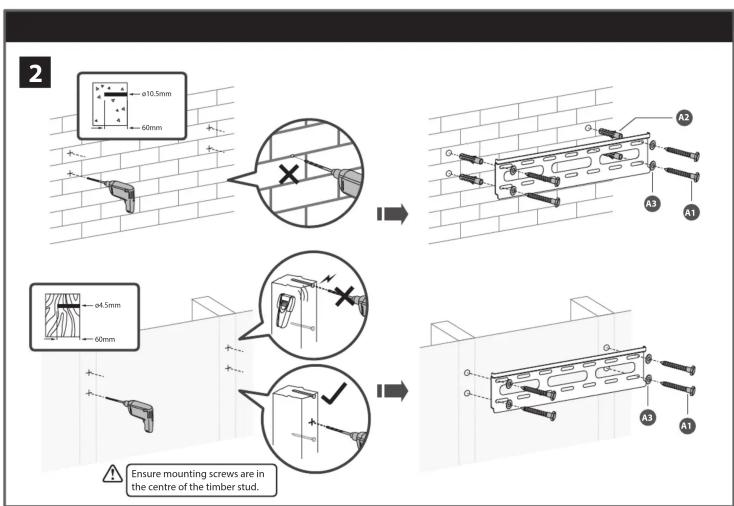

• The supplied TV bracket is only for use on vertical walls constructed from solid brick, solid concrete, solid wood and solid wooden columns.
• It is the installers' responsibility to verify that the wall will safely support the total load of the TV and the TV bracket. Never exceed the
  designated maximum TV load.
• Parts are heavy; take care when handling. For some steps, 2 people are required for installation.
• Check the TV bracket frequently to ensure that it is safe and secure. Additional tools (not included) are required for the installation. Do not over-tighten screws.
• Keep this instruction manual for future reference.

UNPACKING

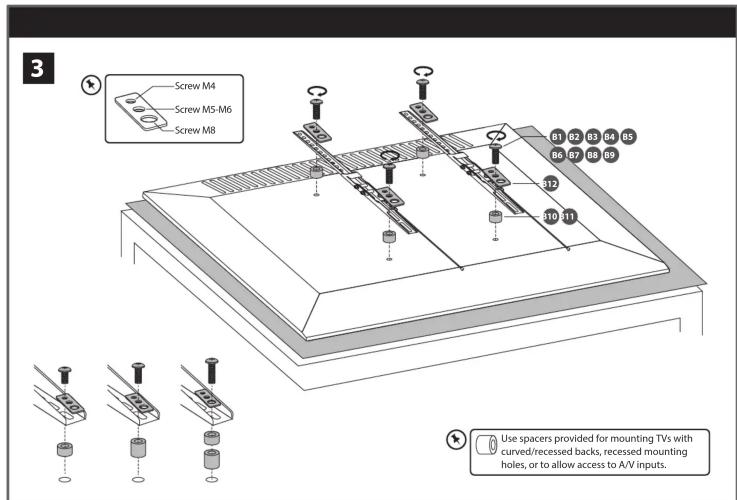

M6-M8 × 5 M6-M8 × 10
M4, M5/M6, M8

Collection of hand tools including a tool, screwdriver, and hammer arranged in a row (no text or symbols visible)
