SW-XIOC-P - Software Crestron - Free user manual and instructions

Product Type	Control System Interface
Brand	Crestron
Model	SW-XIOC-P
Dimensions (H x W x D)	1.7 in x 5.5 in x 3.5 in (4.3 cm x 14 cm x 8.9 cm)
Weight	0.5 lb (227 g)
Power Supply	PoE (Power over Ethernet) or 24 VDC, 0.5 A
Power Consumption	12 W maximum
Inputs	1 x Ethernet (RJ-45), 2 x Digital I/O
Outputs	2 x Relay, 1 x IR/Serial
Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	10% to 90% non-condensing
Mounting	Surface mount or rack mount with optional kit
Primary Functions	Signal routing, device control, and sensor integration
Compatibility	Crestron control systems (e.g., 3-Series, 4-Series)
Software	Compatible with Crestron Toolbox
LED Indicators	Power, Ethernet link/activity, signal status
Maintenance	Wipe with a dry, lint-free cloth; no liquid cleaners
Safety	Indoor use only; avoid exposure to moisture or extreme temperatures
Spare Parts	Contact Crestron for replacement units or accessories
Repairability	No user-serviceable parts; return to Crestron for service

Frequently Asked Questions - SW-XIOC-P Crestron

How do I power the SW-XIOC-P?

The SW-XIOC-P can be powered via PoE (Power over Ethernet) from a PoE switch or injector, or using an external 24 VDC power supply (0.5 A minimum). Connect to the power input or Ethernet port accordingly.

What is the maximum cable length for the Ethernet connection?

For reliable PoE and data transmission, use Cat5e or better cable with a maximum length of 100 meters (328 feet) from the switch to the device.

Can I mount the SW-XIOC-P in a rack?

Yes, the device can be mounted in a rack using the optional Crestron RMK-1U rack mount kit. Alternatively, it can be surface-mounted on a wall or desk using the provided brackets.

How do I connect the digital I/O and relay outputs?

The digital I/O ports accept dry contact or 0-5V digital signals. The relay outputs are Form C contacts rated for 30 VAC/VDC, 1 A. Use shielded twisted-pair wiring for best performance.

What software do I need to configure the SW-XIOC-P?

Use Crestron Toolbox software to discover, configure, and update the device firmware. Ensure you have the latest version from the Crestron website.

Is the SW-XIOC-P compatible with third-party control systems?

The device is designed for Crestron control systems. While it uses standard protocols like TCP/IP, integration with third-party systems may require custom programming and is not officially supported.

How do I reset the device to factory defaults?

Press and hold the Reset button (located near the power input) for 10 seconds using a paperclip. The device will reboot with factory settings. Note that this erases all configurations.

What do the LED indicators mean?

The Power LED glows green when powered. The Link/Activity LED shows Ethernet connectivity (solid green = link, blinking = activity). The Signal LED indicates I/O status (green = active).

Can I use the IR/Serial output for controlling a projector?

Yes, the IR/Serial port can output infrared (with an emitter) or RS-232 serial commands. Configure the signal type in Crestron Toolbox. Use a 3.5mm mono plug for IR or a 3.5mm stereo for serial.

The device is not powering on. What should I check?

First, ensure the Ethernet cable is connected to a PoE-enabled port or that the 24 VDC power supply is plugged in. Check the Power LED; if off, try a different PoE port or power source. If still not working, the device may be faulty.

USER MANUAL SW-XIOC-P Crestron

Crestron XiO Cloud™ Provisioning and Management Service, Premi

• Supports a direct device-to-cloud connection via the Microsoft® Azure® software IoT Hub without requiring additional hardware
• Remotely provision, monitor, and manage Crestron® devices across an enterprise
• Apply changes to multiple devices at once by organizing them into groups and subgroups
• Update firmware and configure settings for multiple simultaneously
• Schedule actions such as program load, firmware up and reboots for a future time, including recurrence
  • Monitor the status of all connected devices remote
• Claim hundreds of devices to the cloud before inst

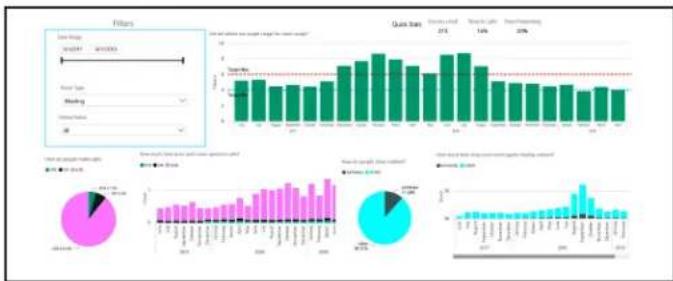

  • View real world device usage information using inte and filterable charts
• Send alert messages to specified users when a de an error state
  • View error logs in an alert status pane that also resolution status
• Track account usage and changes with cloud audit
• Integrate status information into other monitoring to REST API interface

The Crestron XiO Cloud™ service is an IoT (Internet based platform for remotely provisioning, monitoring, managing Crestron® devices across an enterprise or

client base. Built on the Microsoft® Azure® software and utilizing Microsoft's industry-leading Azure IoT Hub technology, Crestron XiO Cloud enables installers and managers to deploy and manage thousands of devices

time it would ordinarily take to manage just one. U virtual machine-based cloud solutions, Azure services pr unlimited scalability to suit the ever-growing needs of enterprise.

Crestron XiO Cloud supports a direct device-to-cloud connection via the Azure IoT Hub without requiring an additional hardware. The service allows for direct internet with Crestron's global manufacturing and logistics networks which means that devices are ready to be configured, they are even received for a true plug-and-play expe

Where other cloud management solutions are focused on narrow set of devices and functions, Crestron XiO Cloud the efficiency of cloud management to dozens of device models—ranging from configured UC solutions to custom-programmed control systems—all in a single interface. Support for new devices is made available via firmware updates. For a complete list of all devices that are supported by the service, refer to the "Supported Device section.

Premium tier licenses (SW-XIOC-P series) for Crestron XiO Cloud enable advanced provisioning and management functions for one device. Licenses can be purchased per for one, two, or three years or for one, two, or three years. For more information about the provided functions features, refer to the "Specifications" section.

Specifications izing them

Cloud-Based Service

devices

No Special Ports or Permissions Required

Crestron XiO Cloud requires no special ports or permission updates. deploy on an enterprise network.

Real-Time Communication

Crestron XiO Cloud is able to communicate with devices time in both directions.

Global Service with Local Redundancy

Crestron XiO Cloud is a worldwide service that is available globally but with local performance and redundancy.

Multitenant Hyperscale Cloud

Crestyon XiO Cloud is a multitenant hyperscale cloud, whi allows an enterprise to deploy thousands of devices with minutes from any location at any time.

Firmware

Update Firmware

Firmware on one or more devices can be updated from Crestron XiO Cloud by selecting the desired firmware venture

Schedule Firmware Updates

Firmware updates can be scheduled for a future time.

Device Configuration and Management

like other

Configure Settings for One Device

Settings for a device can be configured in the cloud e on the device hardware is received.

Configure Settings for Multiple Devices

Settings for a group of devices can be configured in t allowing common settings to be configured only once ins ration repeating the update on each device.

before

ence.

Rev 05/02/19

Crestron XiO Cloud™ Provisioning and Management Service, Premi

License Management

Licenses for device features can be added, removed, transferred between devices.

Remote Reboot

One device or a group of devices can be rebooted interface.

Scheduled Actions

Actions such as program load, firmware updates, and can be scheduled for a future time (including recurre patterns).

Load and Manage Control System Programs

Compiled programs can be added to a program library then Multiple Devices

loaded to a control system. Version management functions of devices can be claimed in bulk by using a allow all devices to be updated to the newest version or rolled back to a previous version of the program code. MAC address-serial number pairs instead of claiming each device individually.

Monitoring

Live Status

In-depth status information is sent to the cloud within of a change being made on the device.

Interactive Dashboard

Device usage information is presented in interactive and filterable charts built using the Microsoft Power BI® by analytics service.

Text Message and Email Alerts

If a device enters an error state, Crestron XiO Cloud text messages or emails to specified users based on the duration of the error, and the severity.

Alert Status Pane

All errors are logged even if they have been re-resolution status is also displayed for each error.

Activity Log

Every change made via the cloud is logged for audit when the change was made, who made the change, nature of the change.

Status API

Status information is available via a REST API so that it can be integrated into other monitoring tools.

User Management

Locally-Provisioned Users

Users can be created and removed within the Crestron XiO Cloud service.

Role-Based Access

Users can be given different levels of access based on the group of devices, including read only, read/write, and administrator access levels.

Hide Groups from Certain Users

Device groups may be hidden from certain users so that only

the appropriate users have access to specific devices with enterprise.

Single Sign-On with Azure Active Directory® Service

Crestron XiO Cloud can be integrated with the Microsoft Active Directory® service for single sign-on using corporate credentials.

Inventory reboots

Claim Single Device

Devices are added to Crestron XiO Cloud for management entering the MAC address and serial number of the device

Claim Multiple Devices

Hundreds of devices can be claimed in bulk by using a MAC address-serial number pairs instead of claiming each device individually.

Organize Devices by Group

Devices can be organized within a hierarchy of groups, subgroups so a single change can be applied to multipli

seconds Download Inventory CSV File

The entire inventory of devices, including MAC address, s number, and location within the group tree, may be do

d Claim and Name Multiple Devices

Business Devices can be renamed when claimed in bulk by adding optional third device name field to the CSV import file.

Unclaim Devices can send

Devices can be removed from the portal, which opens a slot to a different device.

Cloud User Interface

The

Display Key Account Information to User

Users can view key account information, including expirati device count, and service tier, at any time.

ng, including

New the Feature Notification

A pop-up message window tells users about new feature have been added to the service with each release.

Crestron XiO Cloud™ Provisioning and Management Service, Premi

Supported Devices

The following devices are supported by Crestron XiO of release version 11.

DM-DGE-200-C

Digital Graphics Engine 200 with 4K DM 8G+® Input

DIN-AP3

DIN Rail 3-Series® Automation Processor

NOTE: The level of Crestron XiO Cloud functionality

DIN-AP3MEX

DnatioRail 3-Series® Automation Processor with infiNET EX®

available varies by device. New Crestron XiO Cloud

Network and ER Wireless Gateway

may be added for devices in future firmware updo

AM-200

AirMedia® Presentation System 200

AM-300

AirMedia® Presentation System 300

AMP-2800

2-Channel Power Amplifier, 800W/Ch.

AMP-4600

4-Channel Power Amplifier, 600W/Ch.

AMP-8075

8-Channel Power Amplifier, 75W/Ch., 4/8 Ohm or 70V,

America and Japan, 100-120V

AMPI-8075

8-Channel Power Amplifier, 75W/Ch., 4/8 Ohm or 70V,

International, 220-240V

AMP-8150

8-Channel Power Amplifier, 150W/Ch., 4/8 Ohm or 70V

America and Japan, 100-120V

AMPI-8150

8-Channel Power Amplifier, 150W/Ch., 4/8 Ohm or 70V

International, 220-240V

AV3

3-Series Control System® Automated Processor

CCS-UC-1

Crestron Mercury® Tabletop UC Audio Conference Cons

CCS-UC-1-AV

Crestron Mercury® Tabletop UC Video Conference Cons

CCS-UC-1-T

Crestron Mercury® Tabletop UC Audio Conference Cons

Microsoft Teams® Software

CCS-UC-1-T-V

Crestron Mercury® Tabletop UC Video Conference Consc

Microsoft Teams® Software

CP3

3-Series Control System® Automated Processor

CP3N

3-Series Control System® Automated Processor

DGE-100

Digital Graphics Engine 100

DM-MD8X8-CPU3

8x8 DigitalMedia™ Switcher

DM-MD8X8-CPU3-RPS

8x8 DigitalMedia™ Switcher with Redundant Power Supplie

DM-MD16X16-CPU3

16x16 DigitalMedia™ Switcher

DM-MD16X16-CPU3-RPS

16x16 DigitalMedia™ Switcher with Redundant Power Suppl

DM-MD32X32-CPU3

32x32 North DigitalMedia™ Switcher

DM-MD32X32-CPU3-RPS

32x32 DigitalMedia™ Switcher with Redundant Power Supp

DM-NVX-350

DigitalMedia™ 4K60 4:4:4 HDR Network AV Encoder/Decod

DM-NVX-351

'DigitNetMedia™ 4K60 4:4:4 HDR Network AV Encoder/Decod

with Downmixing

DM-NVX-352

DigitalMedia™ 4K60 4:4:4 HDR Network AV Encoder/Decod

with Dante® Audio Networking

DM-NVX-D30

DigitalMedia™ 4K60 4:4:4 HDR Network AV Decoder

DM-NVX-E30

DigitalMedia™ 4K60 4:4:4 HDR Network AV Encoder

DM-NVX-350C

DigitalMedia™ 4K60 4:4:4 HDR Network AV Encoder/Decod

Card

DMFNIVX-351C

DigitalMedia™ 4K60 4:4:4 HDR Network AV Encoder/Decod

Card with Downmixing

DMfNVX-352C

DigitalMedia™ 4K60 4:4:4 HDR Network AV Encoder/Decod

Card with Dante® Audio Networking

DM-NVX-D30C

DigitalMedia™ 4K60 4:4:4 HDR Network AV Decoder Card

DM-NVX-E30C

DigitalMedia™ 4K60 4:4:4 HDR Network AV Encoder Card

DMPS3-200-C

3-Series® DigitalMedia™ Presentation System 200

Rev 05/02/19

Crestron XiO Cloud™ Provisioning and Management Service, Premi

DMPS3-300-C

3-Series® DigitalMedia™ Presentation System 300

DMPS3-300-C-AEC

3-Series® DigitalMedia™ Presentation System 300 with Conferencing Interface

DMPS3-4K-50

3-Series® 4K DigitalMedia™ Presentation System 50

DMPS3-4K-100-C

3-Series® 4K DigitalMedia™ Presentation System 100

DMPS3-4K-150-C

3-Series® 4K DigitalMedia™ Presentation System 150

DMPS3-4K-200-C

3-Series® 4K DigitalMedia™ Presentation System 200

DMPS3-4K-250-C

3-Series® 4K DigitalMedia™ Presentation System 250

DMPS3-4K-250-C-AIRMEDIA

3-Series® 4K DigitalMedia™ Presentation System 250 AirMedia® Presentation System

DMPS3-4K-300-C

3-Series® 4K DigitalMedia™ Presentation System 300

DMPS3-4K-350-C

3-Series® 4K DigitalMedia™ Presentation System 350

DMPS3-4K-350-C-AIRMEDIA

3-Series® 4K DigitalMedia™ Presentation System 350 AirMedia® Presentation System

DSP-860

Crestron Avia™ 8x6 Digital Signal Processor

DSP-1280

Crestron Avia™ 12x8 Digital Signal Processor

DSP-1281

Crestron Avia™ 12x8 Digital Signal Processor with Audio Networking

DSP-1282

Crestron Avia™ 12x8 Digital Signal Processor with AEC, and Audio Conferencing Interface

DSP-1283

Crestron Avia™ 12x8 Digital Signal Processor with Dante Signature Series Black Audio Networking, USB Audio, AEC, and Audio Conferencing Interface TS-1542-TILT-C-SSW

FT-TSC600-B

FlipTop™ Touch Screen Control System, Black Anodized

FT-TSC600-BALUM

FlipTop™ Touch Screen Control System, Brushed Alumin

MPC3-101-B

3-Series® Media Presentation Controller 101, Black

MPC3-102-B

3-Series® Media Presentation Controller 102, Black

MPC3-201-B

3-Series® Media Presentation Controller 201, Black

MPC3-302-B

A3 Series® Media Presentation Controller 302, Black

MPC3-302-W

3-Series® Media Presentation Controller 302, White

PRO3

3-Series Control System® Automated Processor

RMC3

3-Series® Room Media Controller

TS-1542-B-S

15.6 in. HD Touch Screen, Wall Mount or VESA, Black

TS-1542-W-S

15.6 in. HD Touch Screen, Wall Mount or VESA, White

TS-1542-TILT-B-S

15.6 in. HD Touch Screen, Tabletop Tilt, Black Smooth

with TS-1542-TILT-W-S

15.6 in. HD Touch Screen, Tabletop Tilt, White Smooth

TS-1542-TILT-SSB

15.6 in. HD Touch Screen, Tabletop Tilt, Signature Series

TS-1542-TILT-SSW

15.6 in. HD Touch Screen, Tabletop Tilt, Signature Series

,TS-1542-C-B-S

15.6 in. HD Touch Screen with DM 8G+® Input, Wall M VESA, Black Smooth

TS-1542-C-W-S

15.6 in. HD Touch Screen with DM 8G+® Input, Wall M VESA, White Smooth

TS-1542-TILT-C-B-S

15.6 in. HD Touch Screen with DM 8G+® Input, Tabletop

TS-1542-TILT-C-W-S

15.6 in. HD Touch Screen with DM 8G+® Input, Tabletop WaJvideo, Smooth

TS-1542-TILT-C-SSB

15.6 in. HD Touch Screen with DM 8G+® Input, Tabletop

Signature Series Black

ncing TS-1542-TILT-C-SSW

15.6 in. HD Touch Screen with DM 8G+® Input, Tabletop Signature Series White

TSCW-730-B-S

7 in. Touch Screen Control System, Black Smooth

TSCW-730-W-S

7 in. Touch Screen Control System, White Smooth

TSS-7-B-S

7 in. Room Scheduling Touch Screen, Black Smooth

Rev 05/02/19

Crestron XiO Cloud™ Provisioning and Management Service, Premi

TSS-7-W-S

7 in. Room Scheduling Touch Screen, White Smooth

TSS-10-B-S

10.1 in. Room Scheduling Touch Screen, Black Smooth

TSS-10-W-S

10.1 in. Room Scheduling Touch Screen, White Smooth

TSW-560-B-S

5 in. Touch Screen, Black Smooth

TSW-560-W-S

5 in. Touch Screen, White Smooth

TSW-560-NC-B-S

5 in. Touch Screen without Camera, Microphone, or Beacon; Black Smooth

TSW-560-NC-W-S

5 in. Touch Screen without Camera, Microphone, or Beacon; White Smooth

TSW-560P-B-S

5 in. Touch Screen, Portrait, Black Smooth

TSW-560P-W-S

5 in. Touch Screen, Portrait, White Smooth

TSW-760-B-S

7 in. Touch Screen, Black Smooth

TSW-760-W-S

7 in. Touch Screen, White Smooth

TSW-760-NC-B-S

7 in. Touch Screen without Camera, Microphone, or Beacon; Black Smooth

TSW-760-NC-W-S

7 in. Touch Screen without Camera, Microphone, or Beacon; White Smooth

TSW-1060-B-S

10.1 in. Touch Screen, Black Smooth

TSW-1060-W-S

10.1 in. Touch Screen, White Smooth

TSW-1060-NC-B-S

10.1 in. Touch Screen without Camera, Microphone, or PinPoint™ Beacon; Black Smooth

TSW-1060-NC-W-S

10.1 in. Touch Screen without Camera, Microphone, or PinPoint™ Beacon; White Smooth

UC-ENGINE

UC Engine for Microsoft Teams® Software

UC-P100-S

Crestron Flex P100-S - VoIP Desk Phone for Skype® Business Software

UC-P100-T

Crestron Flex P100-T - VoIP Desk Phone for Microsoft Software

UC-P110-S

Crestron Flex P110-S - VoIP Desk Phone with Tilt Scree Skype® for Business Software

UC-P110-T

Crestron Flex P110-T - VoIP Desk Phone with Tilt Scree Microsoft Teams® Software

VC-4-CORE

Virtual Control Server Software - Core License for up 1 Rooms

nPoint™

Virtual Control Server Software - Add-on Single Room L for 1-49 Rooms

nPoint™ VC-4-ROOM-50-99

Virtual Control Server Software - Add-on Single Room L for 50-99 Rooms

VC-4-ROOM-100+

Virtual Control Server Software - Add-on Single Room L for 100+ Rooms

Available Models

SW-XIOC-P-1

Crestron XiO Cloud™ Provisioning and Management Service, Premium, for one device, 1 year subscription

SW-XIOC-P-2

Crestron XiO Cloud™ Provisioning and Management Service, Premium, for one device, 2 year subscription

SW-XIOC-P-3

Crestron XiO Cloud™ Provisioning and Management Service, Premium, for one device, 3 year subscription

SW-XIOC-P-5

Crestron XiO Cloud™ Provisioning and Management Service, Premium, for one device, 5 year subscription

SW-XIOC-P-1Q

Crestron XiO Cloud™ Provisioning and Management Service, Premium, for one device, 1 quarter year subscription

SW-XIOC-P-2Q

Crestron XiO Cloud™ Provisioning and Management Service, Premium, for one device, 2 quarter year subscription

SW-XIOC-P-3Q

Crestron XiO Cloud™ Provisioning and Management Service, Premium, for one device, 3 quarter year subscription

Rev 05/02/19

Crestron XiO Cloud™ Provisioning and Management Service, Premi

This product may be purchased from an authorized Crestron dealer. To find a dealer, please contact the Crestron sales representative for your area. A list of sales representatives is available online at

www.crestron.com/How-To-Buy/Find-a-Representative or by calling 855-263-8754.

The specific patents that cover Crestron products are listed online at www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, visit www.crestron.com/opensource.

Crestron, the Crestron logo, 3-Series, 3-Series Control System, Crestron Avia, Crestron Mercury, Crestron XiO Cloud, DigitalMedia, DM, DM 8G+, FlipTop, infiNET EX, and PinPoint are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. Dante is either a trademark or registered trademark of Audinate Pty Ltd. in the United States and/or other countries. Active Directory, Azure, Microsoft, Microsoft Teams, Power BI, and Skype are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.

Specifications are subject to change without notice.

©2019 Crestron Electronics, Inc.
