"Read this manual before assembling (or using) this product."

Need assistance?

Visit our website at www.sanyoctv.com

or

Call toll free 1.800.877.5032

We can Help!

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THIS UNIT.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE ADHERE TO ALL WARNINGS ON THE PRODUCT AND IN THE OPERATING INSTRUCTIONS. BEFORE OPERATING THE PRODUCT, PLEASE READ ALL OF THE SAFETY AND OPERATING INSTRUCTIONS. RETAIN THIS LITERATURE FOR REFERENCE. Follow all instructions...

Positioning the Appliance

1. Do not place your appliance on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the appliance, may result if it should fall. Your salesperson can recommend approved carts and stands or shelf and wall mounting instructions. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

2. Slots and openings in the cabinet and in the back or bottom are provided for ventilation. To ensure reliable operation of the appliance and to protect it from overheating, these openings must not be blocked or covered. The openings should never be covered with a cloth or other material, and the bottom openings should not be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This appliance should never be placed near or over a radiator or heat register. This appliance should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

3. Do not expose the appliance to rain or use near water . . . for example, near a bathtub, swimming pool, kitchen sink, in a wet basement, etc.

Hooking Up Outdoor Antenna

LIGHTNING PROTECTION FOR YOUR ANTENNA AND SET AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS.

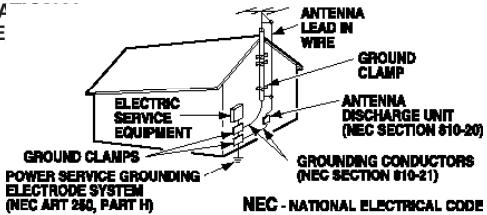

EXAMPLE OF ANTENNA GROUNDING
ACCORDING TO NA ELECTRICAL CODE ANSI/NFPA 70

ANTENNA LEAD IN WIRE GROUND CLAMP ELECTRIC SERVICE EQUIPMENT ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUNDED CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 240, PART H) NEC - NATIONAL ELECTRICAL CODE

"Note to CATV system installer:
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical."

1. If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

Plug in the power cord

1. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. This product is equipped with a three-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

2. Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

Cleaning

1. Before cleaning, unplug the unit from the wall outlet. Do not apply liquid cleaners or aerosol cleaners directly to the unit. Use a dry cloth for cleaning.

Service & Repair

1. Unplug the appliance from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. If the power cord or plug is damaged or frayed.

B. If liquid has been spilled into the appliance.

C. If the appliance has been exposed to rain or water.

D. If the appliance has been dropped or the cabinet has been damaged.

E. If the appliance exhibits a distinct change in performance.

F. If the appliance does not operate normally by following the operating instructions, adjust only those controls that are covered in the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the appliance to normal operation.

1. Upon completion of any service or repair, request the service technician's assurance that only Factory Authorized Replacement Parts that have the same characteristics as the original parts were used, and that routine safety checks have been performed to determine that the appliance is in safe operating condition. Unauthorized substitutions may result in fire, electrical shock, or other hazards.

2. Never add accessories that have not been specifically designed for use with this appliance as they may cause hazards.

3. For added protection during a lightning storm, or when the set is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the set due to lightning or power line surges.

4. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

CHILD SAFETY

Sanyo is committed to making home entertainment safe and enjoyable. Always use an appropriate table or stand when positioning your DTV. Use appropriate brackets, braces, or straps to anchor your furniture in place. But never screw anything directly to the television.

Do not place televisions on dressers, shelves, desks, carts, etc. where curious or excited children could pull, push, or otherwise cause the unit to fall and cause personal injury.

Never place toys or other items on top of the DTV that could pique children's curiosity causing them to climb about the furniture.

Always use stands that are designed to support the size and combined weight of your television and other electronic devices.

Illustration of a person using a computer with a teddy bear on top, crossed out by a diagonal line (no text or symbols)

TO THE OWNER

Welcome to the World of Sanyo

Thank you for purchasing this Sanyo Digital Television. You made an excellent choice for Performance, Reliability, Features, Value, and Styling.

Important Information

Before installing and operating this TV, read this manual thoroughly. This TV provides many convenient features and functions. Operating the TV properly enables you to manage those features and maintain it in good condition for many years to come.

If your TV seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Helpful Hints” section, pages 21 \~ 22 of this manual. If the problem still persists, visit our website at www.sanyoctv.com or call 1.800.877.5032.

We can help!

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ..... 2

Child Safety 2

TO THE OWNER 3

FEATURES 4

SPECIFICATIONS 4

FIRST-THINGS-FIRST (REQUIRED INITIAL SETUP) ..... 5

Initial Signal Connections 5

Digital (DTV) RF Antenna Connection 5

Analog RF Antenna Connection 5

Installing Batteries 6

All Channel Search 6

Ana (Analog) Antenna Signal (Optional) 6

DTV FRONT/BACK—JACKS LOCATIONS & FUNCTIONS .....7

CHOOSE YOUR CONNECTION 8

DIGITAL AV CONNECTIONS

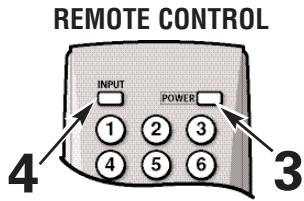

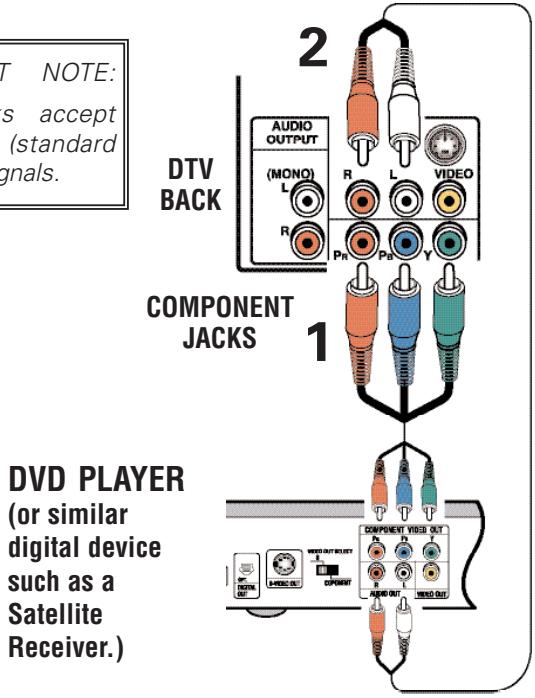

Using the Component Jacks to connect a DVD Player or Other Digital Equipment 9

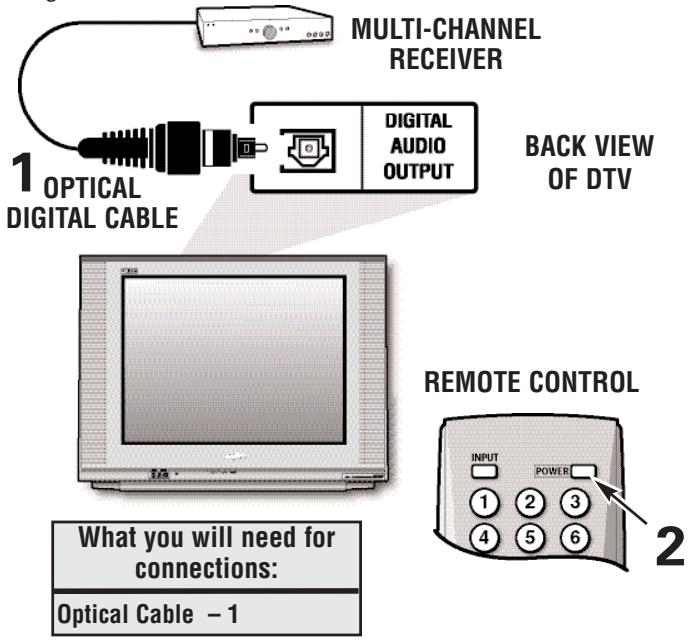

Connecting Digital Audio Out Jacks to a Multi-Channel Receiver 9

ANALOG AV CONNECTIONS

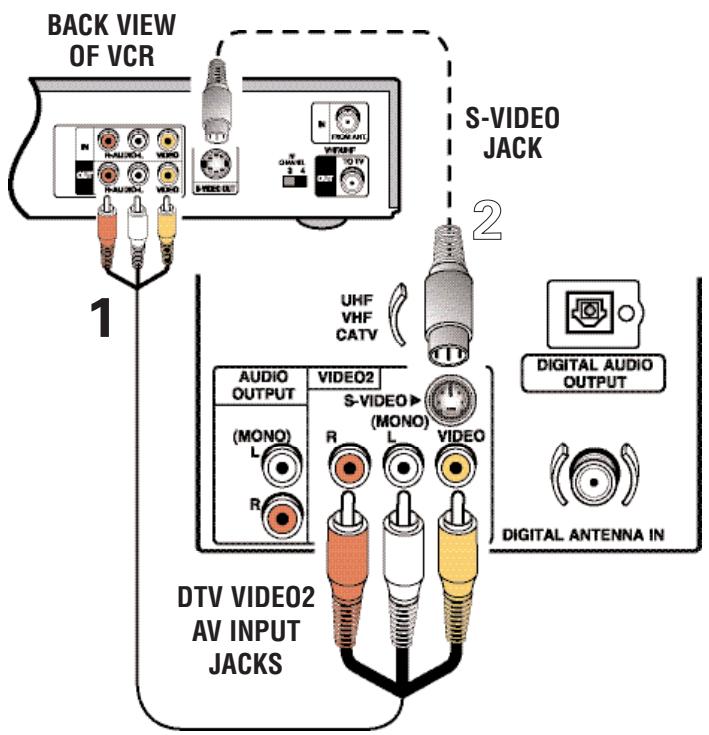

Using the Back Analog Video / Audio Input Jack to connect a VCR (or Other Analog Device) 10

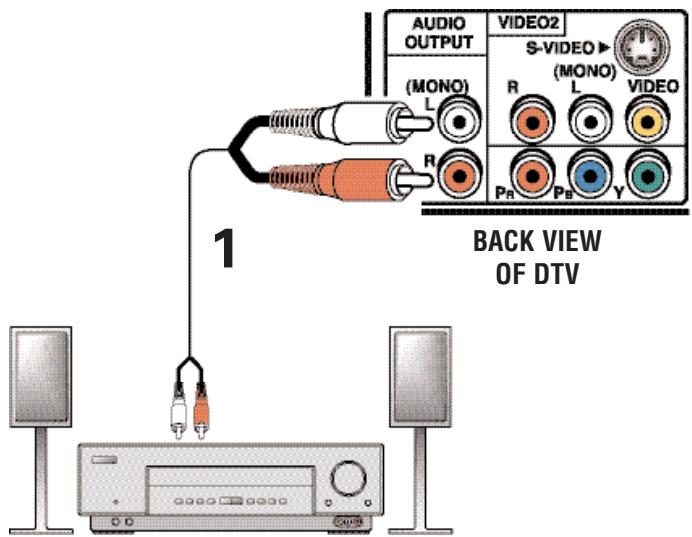

Connecting Analog Audio Out Jacks to a Stereo Amplifier ..... 10

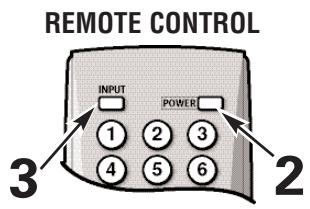

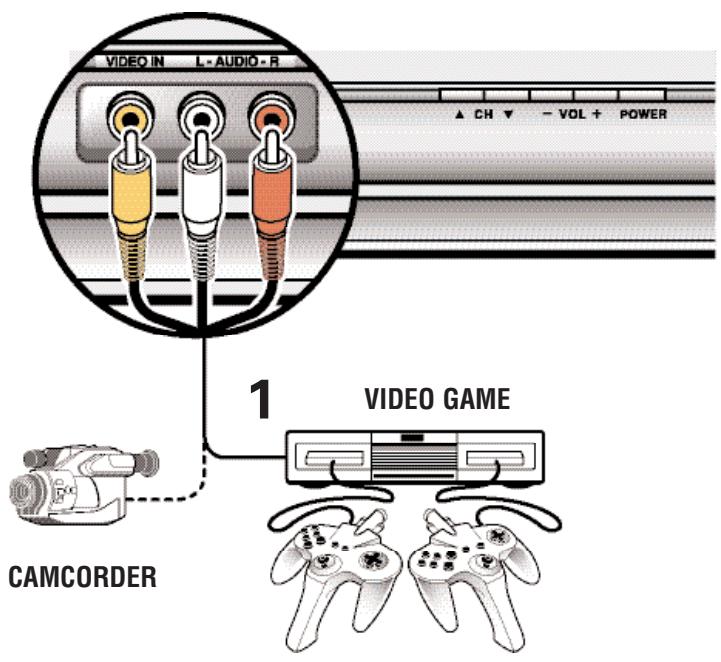

Using the Front Analog Video / Audio Input Jack to connect a Video Game (or Other Analog Device) ..... 11

USING THE REMOTE CONTROL

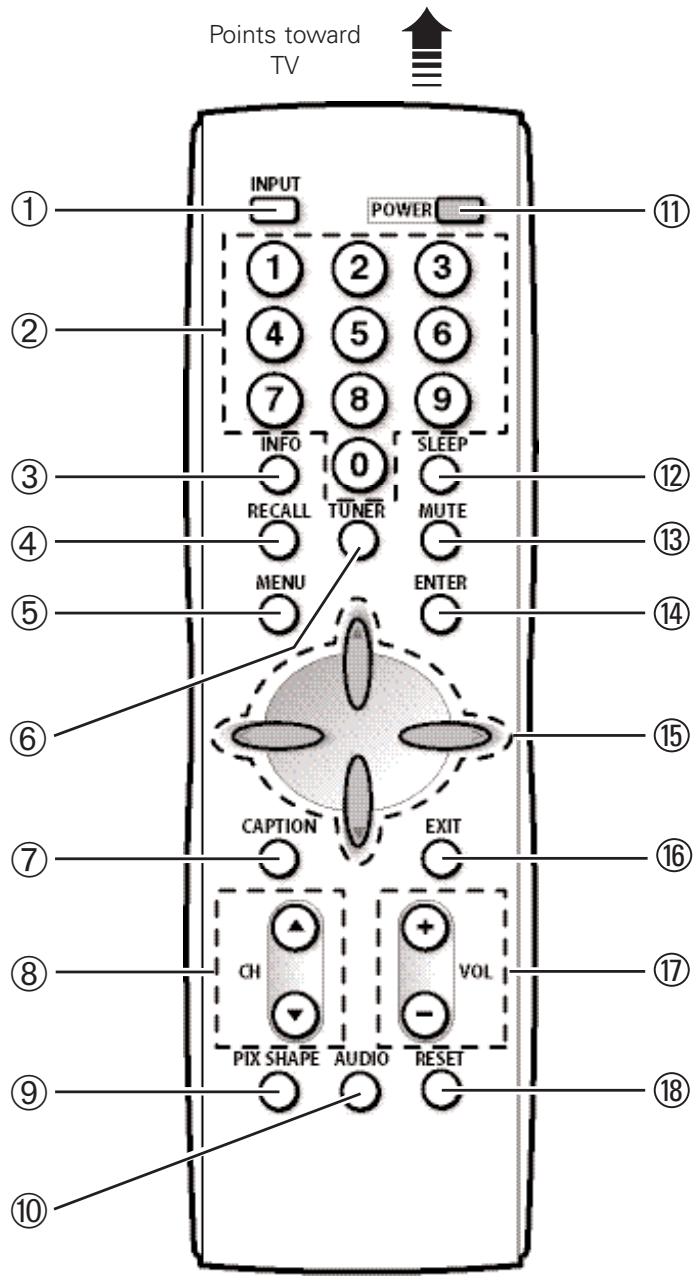

Remote Control Keys (functions) 12 \~ 13

DTV ADJUSTMENT AND SETUP

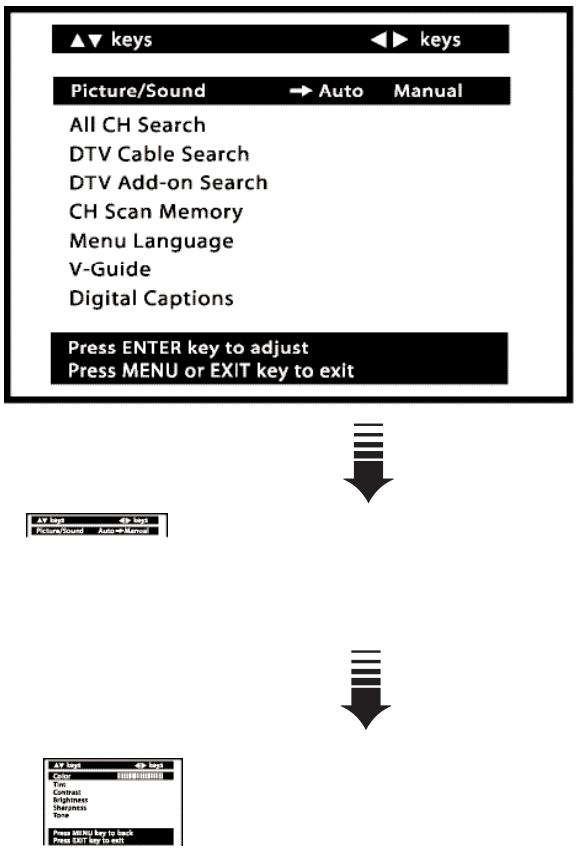

How to Operate the On-Screen Menu .... 14

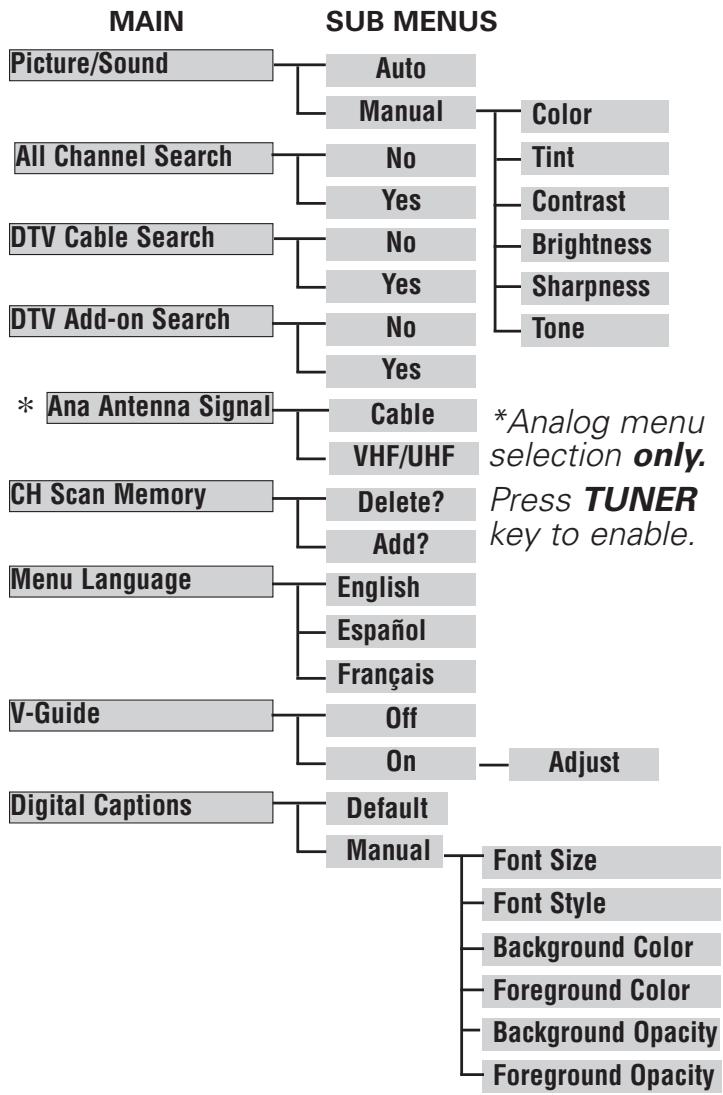

Menu Navigation Map 14

MENU OPTIONS:

Picture/Sound 14

All Channel Search 15

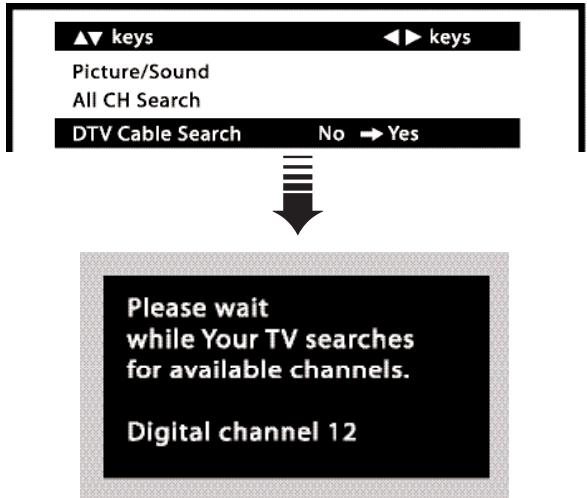

DTV Cable Search (Optional) 15

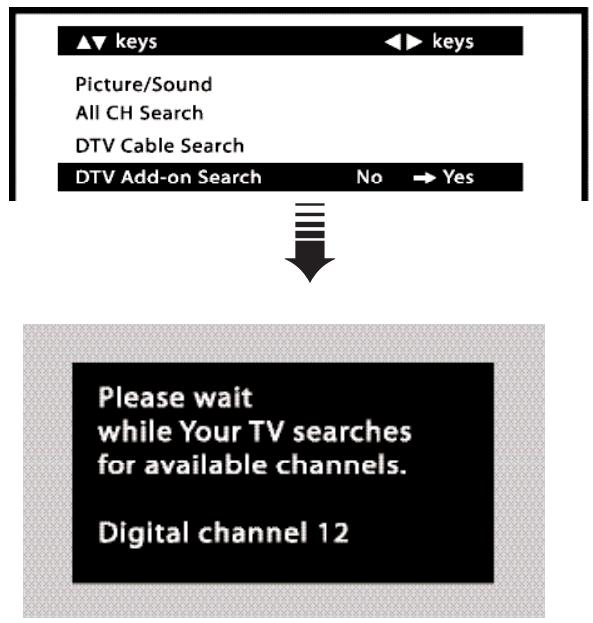

DTV Add-On Search 16

Ana (Analog) Antenna Signal (Optional) 16

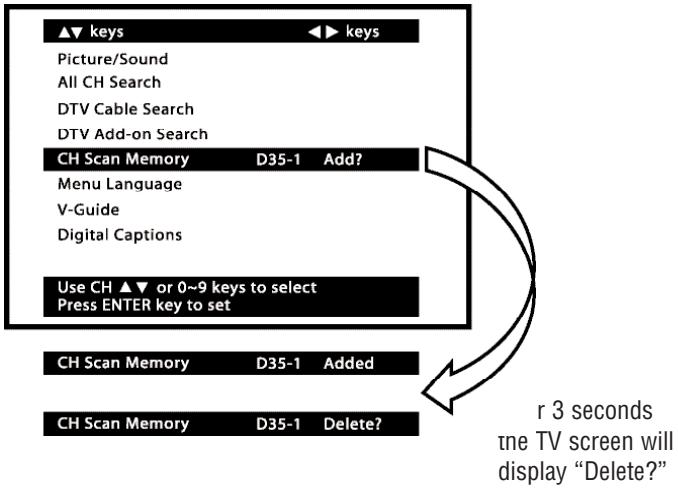

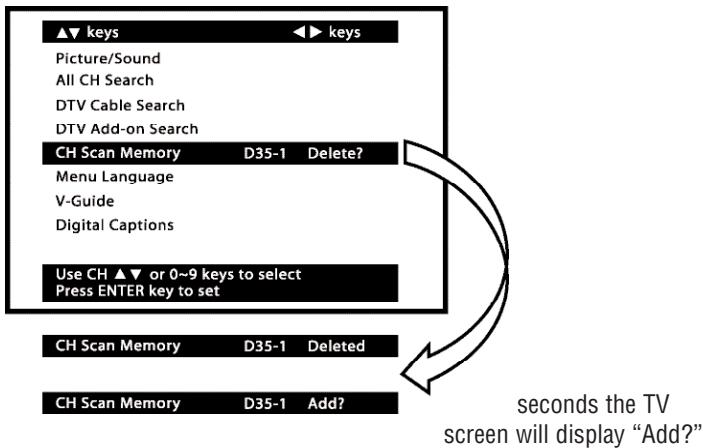

CH (Channel) Scan Memory 17

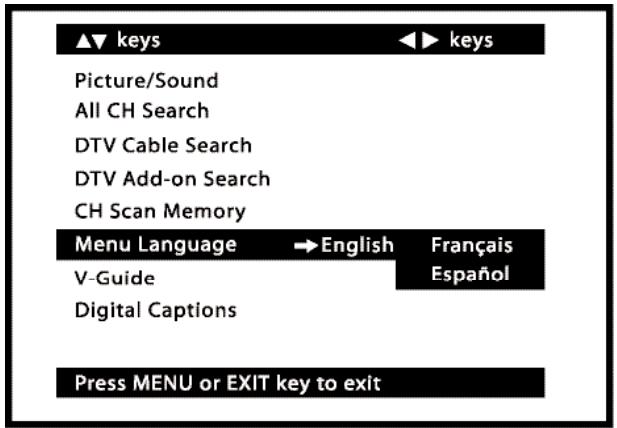

Menu Language 17

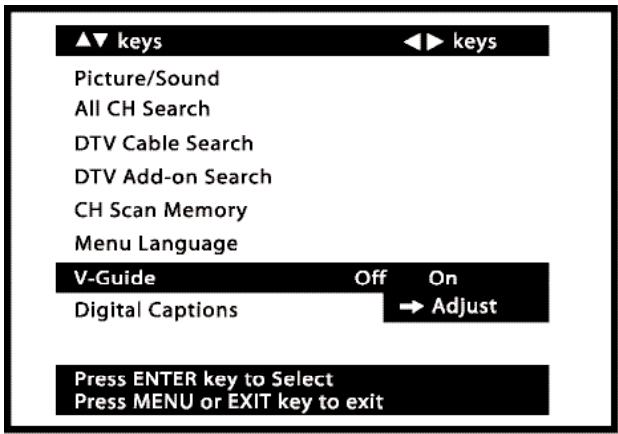

V-Guide (Parental Control): To Block Movies or TV Programs ..... 18

To Setup V-Guide Ratings 18

To Temporarily Unblock Movies or TV Programs ..... 18

To Unblock All Movies or All TV Programs ..... 18

TV Ratings (Age and Content-Based) Symbol Explanation .. 19

MPAA Movie Ratings (Age-Based) Symbol Explanation ... 19

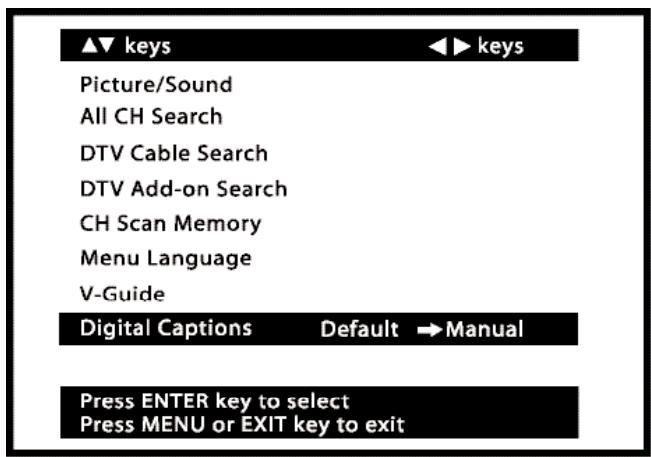

Digital Captions: Changing the Look of Digital Captions .... 20

To View Captions 20

Helpful Hints (Problems/Solutions) 21 \~ 22

Care and Cleaning 22

Mexico Guarantee 23

Warranty (U.S.A. and Canada) 24

FEATURES

◆ HT27546: 27" / HT32546: 32" Flat Screen
◆ Trilingual Menu Options (English, Spanish, or French) for Digital and Analog
◆ Built-in Digital and Analog Tuners
◆ Automatic Channel Search
◆ V-Chip for Movies and TV guidelines rating limits (parental control)
◆ Closed-Captioning: Analog EIA-608B Digital EIA-708B
◆ Audio Modes: DTV—Main and Sub NTSC—Stereo, Mono, and SAP
♦ Tone
◆ Front speakers (two): 6 x 12cm
◆ Factory preset adjustments for picture/sound
◆ Picture Shape: PIX1, PIX2, and PIX3
◆ Audio Format: Dolby® Digital for DTV and Analog for NTSC
◆ Receivable Formats: Digital Tuner for ATSC terrestrial broadcasts and nonscrambled (ClearQAM) cable channels.
NTSC analog tuner for VHF/UHF or CATV

◆ Channel Scan Memory
◆ Receives 181 Analog Channels (VHF 2\~13 and UHF 14\~69; Cable 14\~125); and 99 Digital Channels
◆ RF Antenna Input Jacks: Digital and Analog
◆ Component Video Input 480i (Y, Pb, and Pr) with shared Audio L/R Input jacks
◆ Front AV Input (Video1)
◆ Rear AV Input (Video2) with shared Audio L/R Input jacks
◆ S-Video Input
◆ Optical Digital Audio Out
◆ Fixed Analog Audio Out

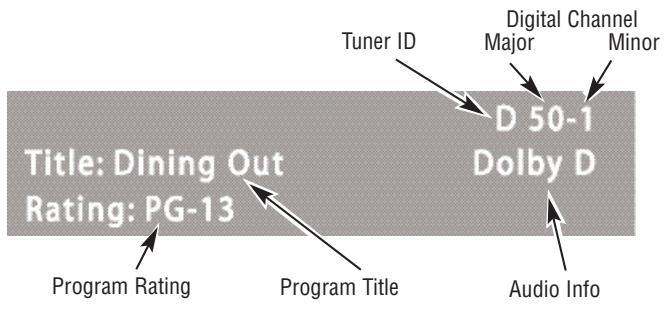

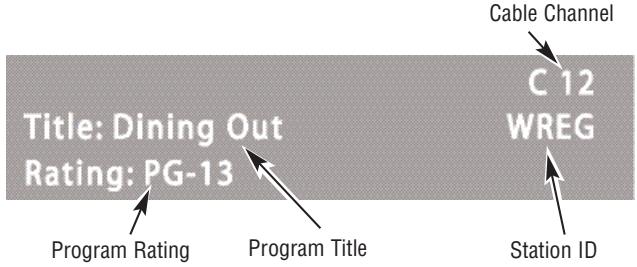

◆ XDS (Extended Data Services) displays station call letters, title of show, and ratings when broadcast
◆ Sleep Timer (3 hours)
◆ 32-Key Remote Control

SPECIFICATIONS

Picture Tube Size (Measured Diagonally):

HT27546: 27" / HT32546: 32" Flat Screen

Scanning Format: 480i (All RF Signals are Converted to 480i)

RF Antenna Input: Analog-UHF/VHF/CATV 75 ohm

Digital-75 ohm

Power Requirement: Source: AC 120V, 60Hz

Power Consumption: HT27546—85 watts

HT32546—95 watts

Sound: Two Speakers, size: 6 x 12cm

Amplifier: Built-in with 1.0W/ch

Jacks / Connectors:

Video 1 Input: FRONT: Composite Video and Audio L/R

Video 2 Input: REAR: Component (Y/Pb/Pr) Composite Video and Audio L/R S-Video

Digital Audio Output: Dolby® Digital (Optical)

Analog Audio Output: Audio L/R

This symbol on the nameplate means the product is Listed by Underwriters' Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

Size and Weight (approximately):

HT27546:

Horizontal Dim. (Width): 30.3 in. (770mm)

Vertical Dim. (Height): 23.0 in. (585mm)

Depth Dim. (Thickness): 19.5 in. (496mm)

Weight: 103.5 lbs. (47.0 Kg)

HT32546:

Horizontal Dim. (Width): 35.0 in. (888mm)

Vertical Dim. (Height): 27.0 in. (687mm)

Depth Dim. (Thickness): 22.4 in. (570mm)

Weight: 143.4 (lbs.), 65.1 (Kg)

Specifications are subject to change without notice.

CAUTION: FCC Regulations state that improper modifications or unauthorized changes to this unit may void the user's authority to operate the unit.

Trademarks Information:

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

VIZON® with a double "Z" is a registered trademark of Sanyo Manufacturing Corporation.

The signal makes the difference!

1 INITIAL SIGNAL CONNECTIONS Digital (DTV) RE Antenna Connection

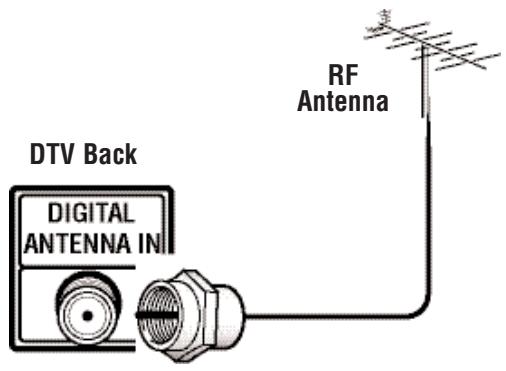

Digital (DTV) RF Antenna Connection

- Connect an RF antenna to the Digital Antenna In terminal.

The digital tuner in this DTV receives digital signals from an antenna. Digital signals from a Set-top Box (STB) are received through the Component In jacks.

This DTV can receive ANY resolution being broadcast. However, ALL resolutions are converted to 480i for display.

DTV Back DIGITAL ANTENNA IN RF Antenna

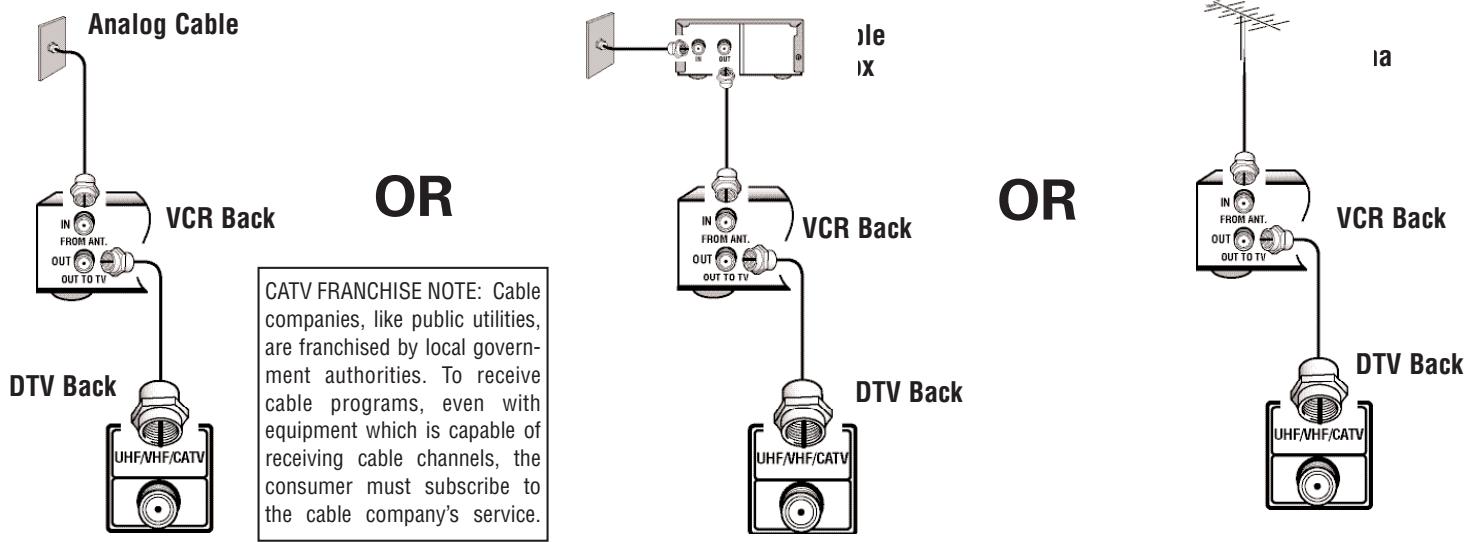

Analog RF Antenna Connection

- Connect a Cable signal (with or without a cable box) or RF antenna to the Analog RF input.

The analog tuner in this DTV receives Analog Antenna signals, Analog Cable signals, or the RF output from a VCR or cable box.

CATV FRANCHISE NOTE: Cable companies, like public utilities, are franchised by local government authorities. To receive cable programs, even with equipment which is capable of receiving cable channels, the consumer must subscribe to the cable company's service.

NOTES: If you do not have a VCR, connect signal directly to the 75 ohm terminal (UHF/VHF/CATV).

The only resolution available with any of these connections, regardless of the original content, is standard analog.

(Continued on next page.)

Quick Tips

■ DTV will select the correct Antenna mode for the type of Analog RF signal connected automatically.
Use “Ana (Analog) Antenna Signal” in the Setup menu to change the Antenna Mode.

If you move the DTV to a new location, press the RESET key twice after connecting the signal and turning on the DTV.

2 INSTALL TWO "AAA" BATTERIES • Install two "AAA" Batteries

- Install two "AAA" Batt (included) so that the "-" marks on the bat match the "+" and "- marks inside the Rem

To review the Remote functions, go to pages 12 \~ 13.

NOTE: Use two 'AAA' Alkaline batteries.

Diagram of a battery holder assembly with two batteries inserted into a housing (no text or labels)

Quick Tips

■ Remove the batteries if the remote control will not be used for a month or more. Weak batteries may leak and cause damage. (Normal battery life is roughly six months.)
If batteries have leaked in the Remote Control Unit, carefully wipe the case clean and load new batteries.

IMPORTANT NOTE: Spent or discharged batteries must be recycled or disposed properly in compliance with all applicable laws. For detailed information, contact your local County Solid Waste Authority.

3 ALL CHANNEL SEARCH

When the television is powered on for the first time, it automatically checks for the presence of an RF signal.

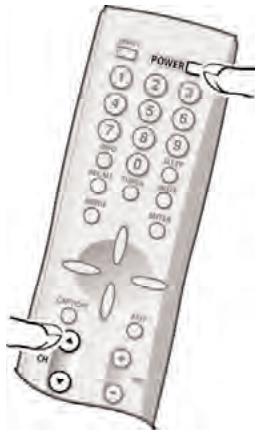

• Press the POWER key to turn on the DTV.
• Then press the CHANNEL UP (CH ▲) key to automatically search for available channels: Digital (ATSC) and Analog (NTSC).

The All Channel Search contains two processes that are executed simultaneously for digital and analog channels. The Search will take a few minutes to complete.

POWER 1 2 7 4 5 6 7 8 9 0 RUMA TURUA MINI SIFAR CAPTISH ASII ON

NOTES:

Channel information found during the All Channel Search is stored in the Channel Scan Memory database. After the All Channel Search is completed, the DTV will tune to the lowest Digital channel or lowest Analog channel if no digital channels are found.

If the DTV does not detect any digital or analog channels, a message advising the viewer to check the cables and antenna connections will appear. In this case, you must press the CHANNEL UP (CH ▲) key again to repeat the channel search process. If No input signal sources could be located.

Please check cable or antenna connections.

Then press Channel UP key.

after two searches the DTV still fails to detect any channels, the DTV will tune to analog channel 3. These two channel searches are necessary even if you plan to use the DTV only as a monitor.

If no analog or digital channels are found after the second search, All Channel Search will default to off-air analog channels 2 through 69 and digital channel D3-1. Select analog channels using the remote control keypad. See page 12, item number 2.

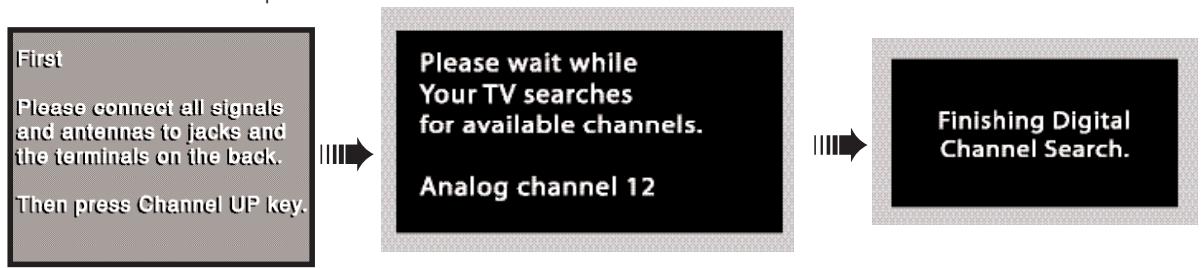

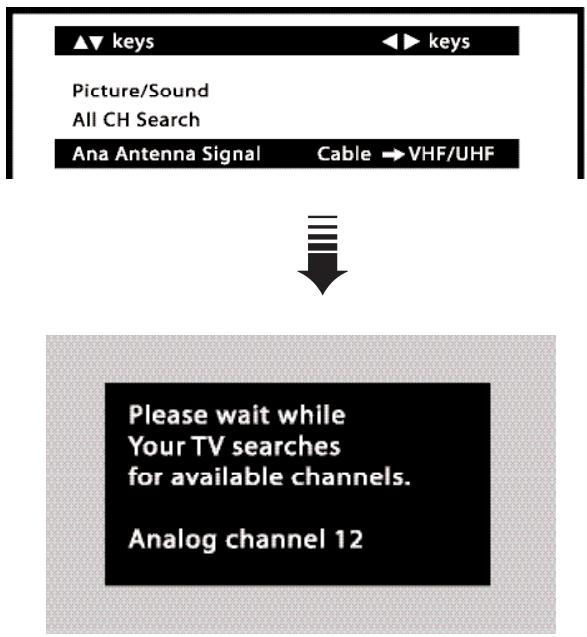

4 ANA (Analog) ANTENNA SIGNAL (Optional)

To change the initial ANALOG tuning system setup (from antenna to cable or cable to antenna, use the on-screen menu. See "Ana (Analog) Antenna Signal" on page 16.

FRONT

VIDEO L-MINO-R ▲ CH ▼ - VOL + POWER ①

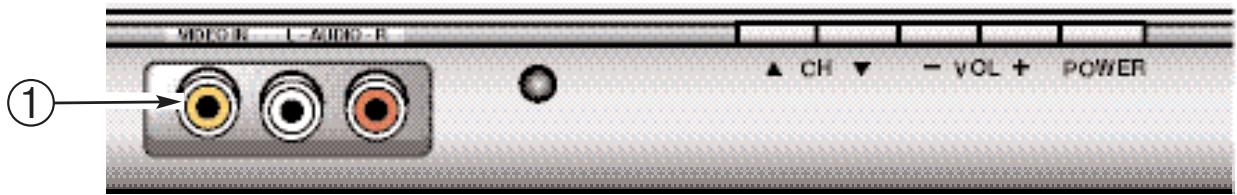

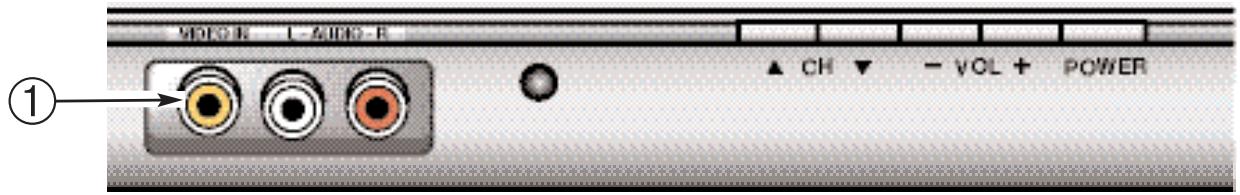

① Audio Video Input (VIDEO1), PAGE 11—Connect standard video equipment here.
NOTE: The Channel ▲ (up) ▼ (down), Volume + (up) – (down), and Power keys function exactly like the keys on your remote control (See #8, #11 and #17 on page 13.)

BACK

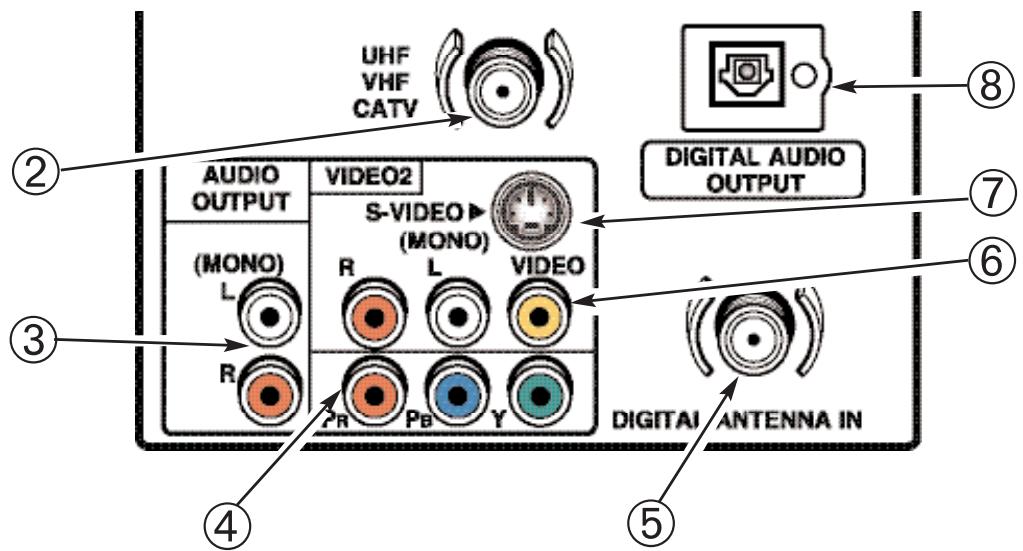

UHF VHF CATV AUDIO OUTPUT VIDEO2 S-VIDEO (MONO) (R) L R PR Pb Y VIDEO DIGITAL AUDIO OUTPUT DIGITAL ANTENNA IN ② ③ ④ ⑤ ⑥ ⑦ ⑧

② Analog Antenna Input (UHF/VHF/CATV), PAGE 5—Connect an RF antenna or Analog cable system to this jack.
③ Analog Audio Out (L/R) Jacks, PAGE 10—Connect external audio equipment here.
④ Component Video Input (Y, Pb, Pr), PAGE 9—Connect digital video equipment to the Y,Pb,Pr and Audio L/R jacks.

NOTE: Audio / Video Input (VIDEO2) and Component inputs share the same audio (R/L) input jacks.

⑤ Digital Antenna Input, PAGE 5—Connect an RF antenna to this jack.

⑥ Audio Video Input (VIDEO2), PAGE 10—Connect standard video equipment here.
NOTE: S-Video connection overrides the (VIDEO2) composite video connection.
⑦ S-Video Input (VIDEO2), PAGE 10—To enhance video detail use the S-Video jack instead of the Video jack, if available on your external equipment. (S-Video connection will override connection to the Video input jack.)
⑧ Digital Audio Output, PAGE 9—Use an Optical Audio cable to connect the Digital Audio Output to an advanced stereo home theater system equipped with Dolby® Digital 5.1.

CHOOSE YOUR CONNECTION

This DTV is designed to handle several different connections making it compatible with Digital and Analog devices.

In order to receive the best performance from your DTV, choose your connection using this chart; then go to the specified page for detailed instructions.

Digital Signal Connections	Compatible External Equipment	Cables Needed(Not Supplied)	Go to Page
COMPONENT(Y, Pb, Pr) IN(Requires separate audio connections.)	Digital Set-Top Box (STB) or DVD PlayerVideo Game	Component Video Cable [Green, Blue, and Red connectors]Audio Cable[White and Red connectors]	9
DIGITAL AUDIO OUT(Only available when received as part of a Digital RF signal.)	Multi-Channel Receiver	Optical Digital Cable	9

Analog Signal Connections	Compatible External Equipment	Cables Needed(Not Supplied)	Go to Page
COMPOSITE VIDEO IN(FRONT OR REAR)ORS-VIDEO INLEFT / RIGHTANALOG AUDIO IN	[AD6CD] DVD PlayerVideo GameVCR	Composite Video Cable[Yellow, White, Red connectors]S-Video Cable	10 or 11
ANALOG AUDIO OUT JACKS	Stereo Amplifier System	Audio Cable[White and Re connectors]	10

USING COMPONENT JACKS TO CONNECT A DVD PLAYER OR OTHER DIGITAL EQUIPMENT

The Component Video jacks will accept any video content.

Switch off DTV and external equipment before connecting cables. (Cables are not supplied.) Follow these steps to easily connect your STB or DVD Player to this DTV:

1 Connect DVD Player or similar digital equipment's Component Video Out to the DTV's Component Video Input jacks.
2 Connect DVD Player or similar digital equipment's Audio Out to the TV's Audio Input jacks.
3 Press POWER to turn on the TV, then turn on external equipment.
4 Press INPUT to select Component2 to view the DVD program.

IMPORTANT NOTE:

These jacks accept only 480i (standard intelaced) signals.

NOTE: s accept (standard signals. DTV BACK COMPONENT JACKS 1 2 AUDIO OUTPUT (MONO) L R L VIDEO Pr Pb Y DVD PLAYER (or similar digital device such as a Satellite Receiver.) COMPONENT YOUR OUT A WORLD OUTPUT A WORLD OUT

What you will need for connections:

Component Video Cable - 1 Audio Cable - 1

REMOTE CONTROL INPUT POWER 1 2 3 4 5 6 3

CONNECTING DIGITAL AUDIO OUT JACK TO A MULTI-CHANNEL RECEIVER

Dolby ^® Digital Audio provides 5.1 channels of surround sound (five full-range channels [5] and one low-frequency effect channel [.1]). A fiber optics cable is used to carry the 5.1 surround sound (for low-noise signal transfer).

1 Using a Fiber Optics cable, connect the DTV's Digital Audio Output to the Digital Audio Input of a Multi-Channel Receiver. (Fiber optics cable is not supplied.)
2 Press POWER to turn on the DTV, then turn on external equipment.

NOTES:

When making the connection, do not pinch or kink the fiber optics cable.

Red light visible at the Digital Audio Output does not necessarily indicate that Dolby® Digital 5.1 audio is available. Digital audio is made up of light pulses that the human eye cannot detect. Dolby® Digital 5.1 audio is available at the Digital Audio Output only when received as part of a Digital signal.

IMPORTANT NOTE FOR MONITOR USE:

If you did not connect an antenna, you must run All Channel Search twice before you can select the AV inputs.

Quick Tips

Press the INPUT key after connecting the cables, to select the Component2 input signal. There is NO need to tune to a blank channel.
- “No Signal” will appear randomly on the screen when no signal is detected at the VIDEO2 (Y, Pb, Pr) inputs.

■ Position your DTV at least 2 feet from stereo speakers. The magnets in the speakers may affect the picture quality.

USING THE BACK VIDEO AND AUDIO INPUT JACKS TO CONNECT A VCR (OR OTHER ANALOG DEVICE)

Switch off DTV and external equipment before connecting cables. (Cables are not supplied.)

1 Connect VCR's Audio Video Out to the DTV's VIDEO2 Video In jacks.

NOTE: For Mono VCR (Single Audio Jack), connect VCR Audio Out to DTV Audio (L) Input.

2 Optional Connect VCR's S-Video Out to the DTV's S-Video In Jack.

NOTE: S-Video jack connection overrides Video jack connection (VIDEO2).

3 Press POWER to turn on the DTV, then turn on external equipment.

4 Press INPUT to select Video2 to view the VCR program.

Video2

BACK VIEW OF VCR 1 S-VIDEO JACK 2 UHF VHF CATV AUDIO OUTPUT VIDEO2 S-VIDEO (MONO) R L VIDEO DIGITAL AUDIO OUTPUT DIGITAL ANTENNA IN DTV VIDEO2 AV INPUT JACKS

REMOTE CONTROL

INPUT POWER 1 2 3 4 5 6 4 3

What you will need for connections:

Audio Video Cable - 1

S-Video Cable - 1

CONNECTING ANALOG AUDIO OUT JACKS TO A STEREO AMPLIFIER

Switch off DTV and external equipment before connecting cables. (Cables are not supplied.)

1 Connect the DTV Audio Out (L/R) to the Stereo Amplifier In (L/R).
2 Press POWER to turn on the DTV, then turn on external equipment.

NOTE: Do not connect external speakers directly to the DTV.

AUDIO OUTPUT MONO) R VIDEO2 S-VIDEO (MONO) R L VIDEO P_A P_B Y BACK VIEW OF DTV

STEREO AMPLIFIER

REMOTE CONTROL INPUT POWER 1 2 3 4 5 6 2

IMPORTANT NOTE FOR MONITOR USE:

If you did not connect an antenna, you must run All Channel Search twice before you can select the AV inputs.

Quick Tips

• “No Signal” will appear randomly on the screen when no signal is detected at the VIDEO2 input jack.
• Press the INPUT key after connecting cables to access the AV inputs. There is NO need to tune to a blank channel.
  ■ Position your DTV at least 2 feet from stereo speakers. The magnets in the speakers may affect the picture quality.

USING THE FRONT VIDEO AND AUDIO INPUT JACKS TO CONNECT A VIDEO GAME OR OTHER EQUIPMENT

Switch off TV and external equipment before connecting cables. (Cables are not supplied.)

1 Connect game Audio Output (R/L) to the TV Audio Input (R/L). Then connect game Video Output to the TV Video Input.
2 Press POWER to turn on the TV, then turn on external equipment.
3 To access Audio/Video inputs, press the INPUT key to select Video1.
Video1

What you will need for connections:

Audio Video Cable - 1

VIDEO IN L-AUDIO-R ▲ CH ▼ - VOL + POWER 1 CAMCORDER VIDEO GAME

IMPORTANT NOTE FOR MONITOR USE:

If you did not connect an antenna, you must run All Channel Search twice before you can select the AV inputs.

REMOTE CONTROL INPUT POWER 1 2 3 4 5 6 3 2

Quick Tips

• “No Signal” will appear randomly on the screen when no signal is detected at the VIDEO1 input jack.
• Press the INPUT key after connecting cables to access the AV inputs. There is NO need to tune to a blank channel.

PRECAUTIONS

To ensure safe operation, please observe the following precautions:

Replace both batteries at the same time. Do not use a new battery with a used battery.

Risk of explosion, if battery is replaced by an incorrect type.

Do not expose the Remote Control Unit to moisture or heat.

REMOTE CONTROL KEYS

① Input Key—Press to change the input signal source as follows: Analog RF → Digital RF → Video1 → Video2 → Component2 → Analog RF.

②Number Keys—Two keys must be pressed to select a direct channel. Example: Press 0 then 6 to select channel 6.

For Analog Cable channels above 100, press and hold the 1 key until C1-- appears, then press the other two numbers.

③Info Key—Press to display the Digital and Analog Full Banner information (press again to remove the display).

Digital Full Banner display—Contains a two-part Channel Number (Major and Minor) and Tuner ID. If available the following is also included: Audio Info, Program Title, and V-Chip Program Rating.

Tuner ID Digital Channel Major Minor D 50-1 Dolby D Title: Dining Out Rating: PG-13 Program Rating Program Title Audio Info

Analog Full Banner display—Contains the Channel Number (analog antenna/cable), Tuner ID, Station ID (if available), Program Title (if available), and V-Chip Program Rating.

Title: Dining Out Rating: PG-13 Program Rating Program Title C 12 WREG Cable Channel Station ID

Points toward TV INPUT POWER 1 2 3 4 5 6 7 8 9 INFO 0 SLEEP RECALL TUNER MUTE MENU ENTER CAPTION EXIT CH VOL PIX SHAPE AUDIO RESET 11 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

④Recall Key—Select the first channel you want to watch; then select another channel using the NUMBER keys. Press RECALL to switch between the channels.

NOTE: The RECALL key cannot toggle between a Digital channel and an Analog channel. See TUNER (#6) key description.

⑤Menu key—Press this key to display the on-screen menu: Digital or Analog.
⑥ Tuner Key—Use this key to toggle from one tuning system to another, digital channels and analog channels.
NOTE: The TUNER key is inactive when an external input is selected (Video1, Video2, or Component2).
⑦ Caption Key—Press to select analog or digital captioning. The Analog Caption modes are: CC1 \~ CC4, Quikcap, and OFF. The Digital Caption modes are: Digital CC1 \~ CC6, Quikcap, and OFF.
⑧ Channel Scanning (CH ▲▼) Keys—Press ▲ (up) ▼ (down) keys to tune to the next higher or lower channel in the Channel Scan Memory database. The scanning loop includes analog channels, digital channels, and all A/V inputs.
⑨ Pix Shape Key—Use this key to change the video display format. Available options depend on signal received and the broadcast's aspect ratio. They may include: PIX1, PIX2, and PIX3. See simulated TV images below.

Two people smiling outdoors, one in a red jacket and the other in a beige jacket, with no visible text or symbols.

PIX1

Two people smiling and conversing outdoors, one wearing a red jacket over a white shirt (no visible text or symbols)

PIX2

Black colored borders appear at the top and bottom of the screen.

Two people smiling and conversing outdoors, one wearing a red plaid shirt with a logo (no visible text or symbols)

PIX3

Enlarges image (some of the top and bottom may be clipped).

⑩ Audio Key—Press to select the desired audio mode (if available): DIGITAL: Main, Sub1, Sub2, Sub3, etc.; ANALOG: Stereo, Mono, SAP.
⑪ Power Key—Press to turn DTV on or off.

⑫ Sleep Key—Press this key, then press the “0” key to set the Sleep Timer. The desired time can be set from 30 minutes up to 3 hours in 30 minutes increments. Sleep Timer will switch off the DTV automatically.
NOTE: The Sleep Timer cancels when the DTV is turned off or if a power failure occurs.
⑬ Mute Key—Press once to minimize the volume. Press again to restore.
NOTE: This key will not mute sound from the audio out jacks.
⑭ Enter Key—Press this key to select an option from the menu system, when required.
⑮ Cursor ▲ (up) ▼ (down) keys—Press these keys to move the cursor up and down within the menu.

Cursor < (left) > (right) keys—Press these keys to move the cursor left and right within the menu.

⑯ Exit Key—Press this key to exit from the menu system.
⑰ Volume (VOL - +) Keys—Press the - + keys to adjust volume. The screen displays a left or right red arrow that blinks as many times as you press the Vol - + keys.
⑱ Reset Key—Press twice to restore factory settings. The DTV will automatically start Channel Search and clear all customized settings.

NOTE: The Reset Function includes a channel search. Current Digital and Analog channel databases will be deleted and new ones created by the All Channel Search process. To receive Digital Cable channels, see page 15 for DTV Cable Search.

These features will reset to factory defaults:

• Picture/Sound Adjustments: Color, Tint, Contrast, Brightness, Sharpness, and Tone
• Channel Memory—Digital/Analog channel databases will be replaced
• Analog Audio to Stereo
• Captioning to OFF
  • V-Guide to OFF
• Menu Language to English
• Sleep Timer to OFF (if previously set)
• Any Video mode to TV mode

If desired, personal settings can be made again using the menu options.

IMPORTANT NOTE FOR MONITOR USE:

If you did not connect an antenna, you must run All Channel Search twice before you can select the AV inputs.

The on-screen menu system provides the viewer with easy access to adjustments and settings. Just use the MENU, CURSOR, ENTER, and EXIT keys on the remote control and follow the on-screen instructions. Generally, you will use the CURSOR ▲▼ keys to select a menu item and the CURSOR < > keys to make an adjustment. The ENTER key confirms a setting. Press the EXIT key to return to normal TV viewing.

MENU NAVIGATION MAP

IMPORTANT FACTS:

Some Menu options are specific to Digital and Analog signals and will vary accordingly.

Also, some options are not available in combination. Unavailable options will appear "grayed-out" in the menu. For example, Ana Antenna Signal is not available when tuned to a Digital Channel.

PICTURE/SOUND ADJUSTMENT

1 Press the MENU key to display the Main menu.
2 Use the CURSOR ▲▼ keys to highlight Picture/ Sound.
3 Use the CURSOR <> keys to select Auto (factory preset settings) or Manual. Press ENTER.

MANUAL ADJUSTMENTS

4 Use the CURSOR ▲▼ keys to select the option you want to adjust.
5 Then use the CURSOR <> keys to make an adjustment.
6 When you have finished making adjustments, press the EXIT key to return to normal TV viewing.

▲▼ keys ◀▶ keys Picture/Sound → Auto Manual All CH Search DTV Cable Search DTV Add-on Search CH Scan Memory Menu Language V-Guide Digital Captions Press ENTER key to adjust Press MENU or EXIT key to exit AV logs ← logs Picture/Sound Auto→Manual AV logs ← logs E-Stop True Contrast Brightness Sharpness Tone Press MENU key to lock Press EXIT key to exit

ALL CHANNEL SEARCH

Use All Channel Search to replace existing Digital and Analog Channel Scan databases, such as, if you move to another city.

NOTES: During Channel Search, current Digital and Analog channel databases are deleted and new ones created. To receive DTV Cable channels, if available, you must perform a DTV Cable Search.

To add new digital channels to the existing database, use DTV Add-on Search, see page 16.

1 Press the MENU key to display the Main menu.
2 Use the CURSOR ▲▼ keys to highlight All Channel Search.
3 Use the CURSOR < > key to select Yes. Press ENTER.

Air Keys 45+ keys Picture/Sound All Oil Search No -100% DTV Cable Search DTV Add-on Search Ana Anteona Signal CH Scan Memory Menu Language V-Guide Digital Captions Press ENTER key to start

Please wait while Your TV searches for available channels.

Analog channel 12

Finishing Digital Channel Search.

DTV CABLE SEARCH (OPTIONAL)

This DTV can receive unscrambled (ClearQAM) digital cable channels, when available. However, not all cable companies provide ClearQAM digital channels.

Searching for digital cable channels will take about 10 minutes, please be patient.

1 Connect a Digital Cable signal directly to the DTV Digital Antenna In Terminal.

2 Press the TUNER key to select the Digital Tuner.
3 Press the MENU key to display the Main menu.
4 Use the CURSOR ▲▼ keys to highlight DTV Cable Search.
5 Use the CURSOR < > key to select Yes. Press ENTER.

▲▼ keys ◀▶ keys Picture/Sound All CH Search DTV Cable Search No → Yes Please wait while Your TV searches for available channels. Digital channel 12

NOTE: After Channel Search is complete, the DTV will tune to the lowest Digital Cable channel (or lowest Analog channel if no Digital Cable channel is found).

IMPORTANT FACT: This DTV maintains only one database of digital channels. Therefore, when you search for ClearQAM digital cable channels, the database of antenna digital channels will be deleted. You will only be able to receive those ClearQAM channels your cable company provides.

Cable companies rearrange virtual channels as programming changes, which may cause the program you are watching to move to another

Program change from cable company

channel. This message will appear on the screen briefly to notify you of a change. You will have to relocate the program you were watching by scanning through the channels.

To restore the antenna digital channel database, reconnect the antenna and use the menu system to perform a normal All Channel Search.

DTV ADD-ON SEARCH

Use this feature to add new channels to the digital antenna channel database. Also, use this feature to add channels when broadcast towers are in multiple directions from your location.

1 Press the TUNER key to select the Digital Tuner.
2 Press the MENU key to display the Main Digital menu.
3 Use the CURSOR ▲▼ keys to highlight DTV Add-On Search.
4 Use the CURSOR < > key to select Yes. Press ENTER.

NOTES: Turn your Antenna and repeat these steps for each direction in which there are transmitting towers.

Go to www.antennaweb.org and type in your zip code to obtain specific tower and antenna information.

▲▼ keys ◀▶ keys Picture/Sound All CH Search DTV Cable Search DTV Add-on Search No → Yes Please wait while Your TV searches for available channels. Digital channel 12

NOTE: If the DTV is switched off by pressing the POWER key or unplugging the AC during Digital Add-On Search, all channel information detected before the power loss occurred will be saved.

ANA (ANALOG) ANTENNA SIGNAL

Use this feature to switch between analog off-air channels and analog cable channels.

1 Press the TUNER key to select Analog Tuner.
2 Press the MENU key to display the Main Analog menu.
3 Use the CURSOR ▲▼ keys to highlight Ana Antenna Signal.
4 Use the CURSOR < > keys to choose Cable or VHF/UHF.
5 Press the EXIT key to return to normal TV viewing.

▲▼ keys ◀▶ keys Picture/Sound All CH Search Ana Antenna Signal Cable →VHF/UHF Please wait while Your TV searches for available channels. Analog channel 12

CH (CHANNEL) SCAN MEMORY

Channel Scan Memory is a database of active channels that you can scan through using the CHANNEL SCAN CH ▲ (up) CH ▼ (down) keys. This list can be customized by deleting and/or adding channels.

1 Press the MENU key to display the Main menu.
2 Use the CURSOR ▲▼ keys to highlight CH Scan Memory. Use the CURSOR > to select the channel number area.

To delete channels in the database

3 Use the CHANNEL (CH ▲▼) keys or 0 \~ 9 keys to select desired channel. HINT: Press the TUNER key to switch between Digital and Analog Channel Scan memories.
4 Press the ENTER key to delete the channel. The display will change to "deleted."

NOTES:

"Delete?" will appear beside the channel number if the selected channel is already in the Channel Scan memory.

Use the number keys to tune to active channels not in the Channel Scan Memory list.

Quick Tips

• When a digital channel is deleted, all of that channel's sub-channels are deleted as well.
• Only previously deleted digital channels can be added back to the Channel Scan Memory.
• Channels deleted from Channel Scan Memory can be tuned using the number keys.
  If one digital sub-channel is added back to the Channel Scan Memory all of that channel's sub-channels will be added back.
  If the last remaining digital channel is deleted, the entire previous Channel Scan Memory list will be restored automatically.
  If the last remaining analog channel is deleted (cable or off-air channel), ALL analog channels (cable or off-air) will be restored automatically, regardless of the previous Analog Channel Scan Memory list.

To Add a channel not in the database

3 Use the numerical 0 \~ 9 keys to select the desired channel number. "Add?" will appear beside the channel number. HINT: Press the TUNER key to switch between Digital and Analog Channel Scan memories.
4 Press the ENTER key to add the channel. The display will change to "Added."

When you have finished adding and/or deleting channels, press the EXIT key to return to normal TV viewing.
    Q["r 3 seconds the TV screen will display “Delete?”"]

MENU LANGUAGE

1 Press the MENU key to display the Main menu.
2 Use the CURSOR ▲▼ keys to highlight Menu Language.
3 Use the CURSOR <> keys to select English, Español, or Français.
4 Press the EXIT key to return to normal TV viewing.

▲▼ keys ◀▶ keys Picture/Sound All CH Search DTV Cable Search DTV Add-on Search CH Scan Memory Menu Language →English Français V-Guide Español Digital Captions Press MENU or EXIT key to exit

V-GUIDE (PARENTAL CONTROL)

NOTE: THIS FEATURE IS DESIGNED TO COMPLY WITH THE UNITED STATES OF AMERICA'S FCC V-CHIP REGULATIONS. THEREFORE, IT MAY NOT FUNCTION WITH BROADCASTS THAT ORIGINATE IN OTHER COUNTRIES.

This Sanyo television is equipped with an electronic V-Chip to interpret MPAA (Motion Picture Association of America) and TV Parental Guidelines rating codes. When these codes are detected, the DTV will automatically display or block the program, depending upon choices you make when setting up the V-Guide system. Content ratings are represented by the initials: FV (fantasy violence), D (suggestive dialog), L (adult language), S (sexual situations), and V (violence). A rating icon will generally appear at the beginning of a program, see chart on page 19.

This television can be set to block programs with content you deem as inappropriate for your children to view.

TO BLOCK MOVIES OR TV PROGRAMS

1 Press the MENU key to display the Main menu.
2 Use the CURSOR ▲▼ keys to highlight V-Guide.
3 Use the CURSOR < > keys to select ON. Press ENTER.

TO SETUP V-GUIDE RATINGS

4 Use the CURSOR > to select Adjust. Press ENTER.
5 Press the CURSOR ▲▼ and < > keys to select Movie or TV ratings.
6 Press the ENTER key to Block selected option. A Check mark (√) will appear beside the selected (highlighted) rating option indicating it is blocked.
7 When you have finished making adjustments, press the EXIT key to return to normal TV viewing.

▲▼ keys ◀▶ keys Picture/Sound All CH Search DTV Cable Search DTV Add-on Search CH Scan Memory Menu Language V-Guide Off On Digital Captions → Adjust Press ENTER key to Select Press MENU or EXIT key to exit

V-GUIDE RATINGS—AT-A-GLANCE
MOVIE RATING TV RATING CONTENT RATING

AT 645 → Allow All Show All Movie TV TV P D L S V 0 □ TV-Y □ PS ✓ TV-ET □ PC13 ✓ TV-G □ B ✓ TV-HC ✓ ✓ ✓ ✓ ✓ HC17 ✓ TY-A ✓ ✓ ✓ ✓ ✓ X ✓ TV-MA ✓ ✓ ✓ ✓ ✓ From: NULL key to close From: ALL key to exit

BLOCKED RATINGS
(Check Mark [✓] symbol)

TO TEMPORARILY UNBLOCK MOVIES OR TV PROGRAMS

1 Press the MENU key to display the Main menu.
2 Use the CURSOR ▲▼ keys to highlight V-Guide. Press ENTER.
3 Use the CURSOR < > keys to select OFF. Press ENTER.

TO UNBLOCK ALL MOVIES OR TV PROGRAMS

1 Press the MENU key to display the Main menu.
2 Use the CURSOR ▲▼ keys to highlight V-Guide. Press ENTER.
3 Use the CURSOR > to select Adjust. Press ENTER.
4 Highlight the "Allow All" option using the CURSOR ▲▼ and < > keys, if needed. Press ENTER.

IMPORTANT FACT: The DTV will automatically block ratings above or unblock ratings below a selection. For example, if you block TV rating TV-PG, ratings TV-14 and TV-MA will be blocked automatically; or if you block Movie rating PG-13, ratings R, NC17, and X will be blocked automatically.

Blocking TVY7 does not block higher ratings.

TO DOWNLOAD V-GUIDE RATING LIMIT TABLE

This TV is designed to electronically detect V-Guide rating limits updates..

1 Press the MENU key to display the Main menu.
2 Use the CURSOR ▲▼ keys to highlight V-Guide. Press ENTER.
3 Use the CURSOR < > keys to select ON. Press ENTER. The V-Guide setting screen will appear for downloading selection.
4 Highlight the on screen "Download" option using the CURSOR ▲▼ and < > keys, if needed. Press ENTER.
5 After the initial download rating update, you must press the RESET key twice and follow steps 1 \~ 4 above to downloading rating limits.

TV RATINGS (AGE/CONTENT-BASED)

ALL CHILDREN—Program is designed to be appropriate for children ages 2-6.

DIRECTED TO OLDER CHILDREN—Program is designed for children 7 and above. Material may include mild fantasy violence (FV) or comedic violence.

GENERAL AUDIENCE—Program suitable for all ages. Contain little or no violence, no strong language or sexual dialogue or situations.

PARENTAL GUIDANCE SUGGESTED—Program contains material that may be unsuitable for younger children. Material contains one or more for the following: moderate violence (V), some sexual situations (S), infrequent coarse language (L), or some suggestive dialogue (D).

PARENTS STRONGLY CAUTIONED—Some material is unsuitable for children under 14 years of age. Parents are strongly urged to use caution against letting children under age 14 watch unattended. Material contains intense violence (V), intense sexual situations (S), strong coarse language (L), or intensely suggestive dialogue (D).

MATURE AUDIENCE ONLY—Program is designed to be viewed by adults and therefore may be unsuitable for children under 17 years of age.

MPAA MOVIE RATINGS (AGE-BASED)

G GENERAL AUDIENCES—All ages admitted.

PG PARENTAL GUIDANCE SUGGESTED—Some material may not be suitable for children.

PG-13 PARENTAL GUIDANCE CAUTIONED—Some material may be inappropriate for children under 13.

R RESTRICTED—Under 17 requires accompanying parent or adult guardian

NC17 NO ONE 17 AND UNDER ADMITTED

Quick Tips

The V-Guide menu display remains on screen for approximately 30 seconds. If it disappears, press the V-GUIDE key.
You can block portions of a TV rating by choosing one or more of the Content ratings (D, L, S, and V). By blocking just the L and S content ratings of TV-14, for example, TV-14 rated programs with a D and/or V content rating could still be viewed.
V-Guide limits on programming received via the Analog antenna input, Digital antenna input, Video2 Video input, and any 480i signals received through the component jacks are controlled by this DTV.
V-Guide limits on digital programming received through the Component jacks are controlled by the external devices connected to those jacks (such as a DVD Player or Satellite Receiver). Refer to your external device's owner's manual for instructions on setting V-Guide limits.
■ Networks and local stations may or may not include the content ratings portion of the TV Parental Guidelines.

DIGITAL CAPTIONS

Closed-Captioning is hidden textual information transmitted along with the picture and sound. Turning Captioning ON causes the DTV to open these captions and superimpose them on the screen. Because different types of closed-captions can be transmitted with the picture and sound, separate captioning modes are provided. The captioning modes recognized by this model are: Analog EIA-608B and Digital EIA-708B. Local broadcasters decide which caption signals to transmit.

CHANGING THE LOOK OF DIGITAL CAPTIONS

This Font Size, Font Style, Background Color, Foreground Color, Background Opacity, and Foreground Opacity of Digital Captions can be changed.

NOTES: If Background Opacity is set to transparent, captions may be difficult to see.

Only true EIA 708B Digital Closed-Captions are affected by all of these settings.

Analog captions generally will not respond to these adjustments, however, upconverted analog captions may respond to some options.

1 Press the TUNER key to select the Digital Tuner.
2 Press the MENU key to display the Main menu.
3 Use the CURSOR ▲▼ keys to highlight Digital Captions.
4 Use the CURSOR < > keys to highlight Default (factory settings) or Manual. Press ENTER.

MANUAL ADJUSTMENTS

5 Use the CURSOR ▲▼ or < > keys to select an option and setting.

6 When you have finished making adjustments, press the EXIT key to return to normal TV viewing.

TO VIEW CAPTIONS

1 Press the CAPTION key to select caption modes. Digital modes are: Digital CC1 through Digital CC6, QuikCap, and Off.

Analog modes are: CC1 through CC4, QuikCap, and Off.

CC1

Analog Caption

Digital CC1

Digital Caption

QUIKCAP OPERATION

QuikCap turns captioning on and off with the Mute function. Press the MUTE key on the remote control to block the TV sound; the captions display automatically, if available. Press the MUTE key again to restore the sound. Captions will disappear.

▲▼ keys ◀▶ keys Picture/Sound All CH Search DTV Cable Search DTV Add-on Search CH Scan Memory Menu Language V-Guide Digital Captions Default → Manual Press ENTER key to select Press MENU or EXIT key to exit

DIGITAL CAPTION

FONT SIZE

Large

FONT STYLE

Font4

BACKGROUND COLOR

Black

FOREGROUND COLOR

White

BACKGROUND OPACITY

Solid

FOREGROUND OPACITY

Solid

▲▼ Move

Adjust

MENU/EXIT: Exit

HELPFUL HINTS (Problems/Solutions)

Because of the Quality we build into our product, very few problems are actual DTV defects. Most problems only involve simple hookup or setup changes that

can be solved by the customer. Please check the chart below and try the solutions listed for your problem. If the problem still persists, before returning your DTV, please visit our website at www.sanyoctv.com or call us toll

Problem	Check these Conditions	Try these Solutions	Page No.
DTV turns off automatically.	●The sleep timer may have been set.	●Press POWER key.	13
No picture, sound (Digital Picture).	●Check antenna/external connections.●May be station trouble, NO signal broadcast.●MUTE function may be on.	●Adjust antenna.●Try a different channel.●Press RESET key to restart channel search.●Adjust Volume.	5, 13
No Captioning.	●Check if station is broadcasting a Closed-Caption signal. Select another channel.	●Press CAPTION key to select Captioning.	20
Cannot customize Caption.	●Digital Caption signal not broadcast.	●Press CAPTION key to select Analog captioning.	20
Cannot display picture on a full screen.	●Check Aspect Ratio of broadcast.	●Press PIX SHAPE key to change setting.	13
Pixelation of Digital image.	●Press INFO key and check the signal strength.	●Turn antenna, install signal booster.●Install outdoor Digital antenna.	5, 12
Poor Picture/ Sound (watching Analog).	●Check if program is in color.●Check antenna/external connections.●Color or Tint misadjusted.●May be station trouble.●MUTE function may be on.	●Try a different channel.●Adjust antenna.●Press RESET key to restart channel search.●Adjust Volume.	13, 14
“No Signal” message appears on the screen.	●Check Audio/Video connections.●Check external equipment connections.●Check external equipment setting.	●Press INPUT key.●Switch on external equipment.●Set external equipment output con- nections to match input connections.	9 ~11
No DTV Stereo or SAP sound.	●Check if station is broadcasting a true MTS stereo signal or a SAP signal.	●Press AUDIO key.	13
No Cable channels above number 13.	●Cable Channel Indicator C should appear next to channel number.	●Switch Analog Antenna signal to Cable.	16
No UHF, VHF Channels OK.	●Cable Channel indicator C should not appear next to the channel number.	●Switch Analog Antenna signal to UHF/UHF.	16

Continued on next page.

HELPFUL HINTS (Problems/Solutions) Continued

Because of the Quality we build into our product, very few problems are actual DTV defects. Most problems only involve simple hookup or setup changes that can be solved by the customer. Please check the chart

below and try the solutions listed for your problem. If the problem still persists, before returning your DTV, please visit our website at www.sanyoctv.com or call us toll free at 1.800.877.5032. We can Help!

Problem	Check these Conditions	Try these Solutions	Page No.
Cannot select or scan some channels.	● Channel may be removed from memory.● Check antenna connections.● No digital signal being broadcast.● Signals are weak.● V-Guide is set to block programming.	● Select CH. Scan Memory and manually add channels or start CH. (channel) search.● Turn Antenna or install signal booster.● Set V-Guide to “Allow All” or press the RESET key to clear all settings and restart channel search.	1718 ~ 1913
Remote Control will not work TV.	● Check batteries.● Check to see if TV is plugged in.	● Replace batteries, two “AAA.”● Aim remote control at front of TV.	6,12 ~ 13
Cabinet makes popping sound.	● This is a normal condition during warm-up and cool down of the plastic cabinet parts.

CARE AND CLEANING

CLEANING THE CABINET

The surface of the cabinet can be damaged if not properly maintained. Many common household aerosol sprays, cleaning agents, solvents, and polishes will cause permanent damage to the fine surface.

1. Unplug the power cord before cleaning the television.
2. Clean the cabinet with a soft dry cloth.

NOTE: Never spray liquids on the screen because they can run down and drip onto the chassis. This may cause component failure not covered under Warranty.

Prohibition sign with a crossed-out monitor displaying a graph and a pen, indicating no prohibition or suppression.

IMPORTADOR:

COMERCIALIZADORA MEXICO

AMERICANA, S.DE R.L. DE C.V.

AV. NEXTENGO N° 78

COL. SANTA CRUZ ACAYUCAN

DEL. AZCAPOTZALCO, MÉXICO, C.P. 02770

RFC: CMA9109119L0

DESCRIPTION: Television

BRAND: SANYO

MODELS: HT27546

HT32546

GUARANTEE

THE APPARATUS THAT YOU HAVE ACQUIRED HAS A ONE YEAR GUARANTEE FOR MANUFACTURING DEFECTS AND A ONE YEAR SERVICE WARRANTY FROM THE DATE OF PURCHASE GRANTED BY:

COMERCIALIZADORA MEXICO-AMERICANA, S. DE R.L. DE C.V.

UNDER THE FOLLOWING CONDITIONS:

1. TO MAKE THE GUARANTEE EFFECTIVE, SIMPLY SHOW THIS POLICY FILLED OUT BY THE STORE OR SUPPLIER UNIT OR THIS SALES INVOICE, WITH THE APPARATUS IN ANY OF THE SERVICE CENTERS INDICATED ON THIS GUARANTEE.
2. IF THE FAULT IS ATTRIBUTED TO A MANUFACTURING DEFECT, THE APPARATUS WILL BE REPLACED OR YOUR MONEY REFUNDED. DURING THE 30 DAYS SUBSEQUENT TO THE PURCHASE THE GUARANTEE WILL BE VALID AT THE STORE WERE THE APPARATUS WAS PURCHASED, PRESENTING THE ABOVE DOCUMENTS.
3. REPAIR TIME WILL NEVER BE MORE THAN 30 DAYS. IF THIS TIME HAS ELAPSED, AND THE PRODUCT ISN'T REPAIRED, COMERCIALIZADORA MEXICO AMERICANA, S. DE R.L. DE C.V. WILL PROCEED TO EFFECTUATE THE EXCHANGE FOR AN EQUIVALENT APPARATUS OR THE RETURN OF THE BUYING-SALE COST RESPECTIVELY.
4. THIS GUARANTEE WILL COVER ITS TOTALITY OF PIECES, COMPONENTS AND SERVICE REPAIR OF PRODUCT, AND THE RESPECTIVE COST OF TRANSPORTATION.

THIS GUARANTEE WILL BE NULL AND VOID IN THE FOLLOWING CIRCUMSTANCES:

* WHEN PRODUCT HAS BEEN USED IN A DIFFERENT CONDITION THAN ITS NORMAL USE.
* WHEN PRODUCT HASN'T BEEN OPERATING CORRECTLY ACCORDING TO THE INSTRUCTIONS IN THIS MANUAL.
* WHEN PRODUCT HAS BEEN CHANGED OR REPAIRED BY PERSONS NOT AUTHORIZED FROM THE MANUFACTURER, IMPORTER, OR MERCHANT RESPONSIBLE RESPECTIVE.

CENTRO DE SERVICIO Y LUGAR DONDE OBTENER PARTES, COMPONENTES, CONSUMIBLES Y ACCESORIOS:

SUCURSAL VALLEJO

STAMP, DATE AND SIGNATURE

OF

STORE

DESCRIPTION: TELEVISION

BRAND: SANYO

MODEL:

CLIENT'S NAME:

ADDRESS:

EXTERIOR NUMBER:

INTERIOR NUMBER:

SUB DIVISION:

STATE/DELEGATION:

TELEPHONE:

ONE-YEAR LIMITED WARRANTY

THIS LIMITED WARRANTY IS VALID ONLY ON SANYO TELEVISIONS PURCHASED AND USED IN THE UNITED STATES OF AMERICA, CANADA, AND PUERTO RICO, EXCLUDING THE UNITED STATES' OTHER TERRITORIES AND PROTECTORATES. THIS LIMITED WARRANTY APPLIES ONLY TO THE ORIGINAL PURCHASER, AND DOES NOT APPLY TO PRODUCTS USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES.

FOR ONE YEAR from the date of purchase, Sanyo Manufacturing Corporation will replace any defective TV.

To insure proper warranty exchange, keep the original sales receipt for evidence of purchase. Return the defective TV to the retailer along with the receipt and the included accessories, such as the remote control. The defective TV will be exchanged for the same model, or a replacement model of equal value, if necessary. Replacement model will be contingent on availability and at the sole discretion of Sanyo Manufacturing Corporation.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

OBLIGATIONS

For one year from the date of purchase, Sanyo Manufacturing Corporation warrants this product to be free from defects in material and workmanship under normal use and conditions. Should replacement be necessary under this warranty for any reason due to manufacturing defect or malfunction during the first year from date of original purchase, Sanyo Manufacturing Corporation will provide a new TV via exchange at the retailer.

For customer assistance, whether during or out of the warranty period, call toll free 1-800-877-5032.

Weekdays 7:30 AM – 7:00 PM Central Time

Saturday 7:30 AM – 4:00 PM Central Time

This warranty expresses specific contractual rights; retail purchasers may have additional statutory rights which vary from state to state.

(EFFECTIVE: August 1, 2002)

For your protection in the event of theft or loss of this product, please fill in the information requested below and KEEP IN A SAFE PLACE FOR YOUR OWN PERSONAL RECORDS.

Model No. ____

Serial No. ____

(Located on back of unit)

Date of Purchase ____

Purchase Price ____

Where Purchased ____ ____ ____

Sanyo Manufacturing Corp.

3333 Sanyo Road, Forrest City, AR 72335

Guía-V (Control Paternal):

Illustration of a person using a computer with a teddy bear on top, crossed out by a diagonal line (no text or symbols)

CARACTERISTICAS

Diagram of a battery holder with labeled components and arrows indicating movement or force direction

Consejos Rápidos

No input signal sources could be located. Please check cable or antenna connections. Then press Channel UP Key.

Two people smiling outdoors, one in a red jacket and the other in a beige shirt, with hills and sky in the background (no text or symbols visible)

PIX1

Two people conversing outdoors, one in a red jacket and the other in a beige jacket, against a blue sky background (no text or symbols visible)

PIX2

Two people smiling and conversing outdoors, one wearing a red vest with a logo (no visible text or symbols)

PIX3

BUSQUEDA CANALES DTV?

Prohibition sign with prohibition symbol and screen graphic, featuring a pen and battery icon

IMPORTADOR:

COMERCIALIZADORA MEXICO

AMERICANA, S.DE R.L. DE C.V.

AV. NEXTENGO N° 78

COL. SANTA CRUZ ACAYUCAN

DEL. AZCAPOTZALCO, MÉXICO, D.F. C.P. 02770

RFC: CMA9109119L0

DESCRIPCION: Televisor

MARCA: SANYO

MODELOS: HT27546

HT32546

GARANTIA

EL APARATO QUE USTED HA ADQUIRIDO CUENTA CON UNA GARANTIA DE UN AÑO DE SERVICIO A PARTIR DE LA FECHA DE ADQUISICION OTORGADA POR:

COMERCIALIZADORA MEXICO-AMERICANA, S. DE R.L. DE C.V.

BAJO LAS SIGUIENTES CONDICIONES:

Sanyo Manufacturing Corp.

3333 Sanyo Road, Forrest City, AR 72335

Silhouette of a person climbing a ladder against a circular background with a crossed-out arrow (no text or symbols)

Illustration of a person watching a TV with a teddy bear on top, crossed out by a diagonal line (no text or symbols)

ENTRETIEN ET NETTOYAGE

Prohibition sign showing a computer monitor with a screen displaying a graph and text 'PC-50' inside, crossed out by a diagonal line.

CARACTÉRISTIQUES

Technical diagram of a mechanical device with two cylindrical components and mounting base (no text or symbols)

Conseils

Please check cable or antenna connections.

Then press Channel UP key.

AVANT / ARRIÈRE DU TÉLÉVISEUR – EMPLACEMENT ET FONCTION DES PRISES

AVANT

MOTOR L-MINO-R ▲ CH ▼ - VOL + POWER ①

Two people smiling outdoors, one in a red jacket and the other in a white shirt with a red logo, against a blue sky background (no text or symbols visible)

PIX1

Two people smiling and conversing outdoors, one in a red jacket and the other in a beige jacket (no visible text or symbols)

PIX2

A couple smiling and conversing outdoors, wearing casual clothing with backpacks (no visible text or symbols)

PIX3

GARANTIE LIMITÉE D'UN AN

LA PRÉSENTE GARANTIE LIMITÉE N'EST ACCORDÉE QU'AUX TÉLÉVISEURS SANYO ACHETÉS ET UTILISÉS AU CANADA, AUX ÉTATS-UNIS ET À PORTO RICO, MAIS À L'EXCEPTION DES AUTRES TERRITOIRES ET PROTECTORATS DES ÉTATS-UNIS. CETTE GARANTIE LIMITÉE NE S'APPLIQUE QU'À L'ACHETEUR INITIAL; ELLE NE COUVRE PAS LES ARTICLES UTILISÉS À DES FINS INDUSTRIELLES OU COMMERCIALES.

Sanyo Manufacturing Corp.

3333 Sanyo Road, Forrest City, AR 72335
