USER MANUAL NV-GS78 PANASONIC

Line drawing of a mechanical device with no visible text or symbols

数码摄像机

Model No. NV-GS78GK

Black-and-white close-up of delicate white flowers with soft focus background (no text or symbols)

Mini

DV

PAL

使用前，请完整阅读本说明书。

SD

7.

HI-SPEED

CERTIFIED

USB

“

PictBridge

VQT0N63

安全注意事项

23 LCD 监视器 -7-、-47-

38三脚架插座

39 肩背带固定物

40镜头遮光罩

Diagram showing a plug being inserted into a motor socket, with no text or symbols present.

① 翻转带子。

② 朝箭头所示方向滑动 ①。

③ 固定带子。

3 将手穿过手挂带。

Line drawing of a hand holding a mechanical device with wires and connectors (no text or symbols)

- 为了更方便请使用自由式遥控器。

① 翻转带子。

② 调整长度。

③ 固定带子。

使用 LCD 监视器

Mechanical device diagram showing a rotating arm with a valve, no text or symbols present

- 取景器将关闭。

Line drawing of a hand inserting a camera into a dial (no text or symbols)

调整视野

1 滑动目镜校正旋钮调整焦距。

- 可以从菜单调整取景器的亮度。

电源

给电池充电

Diagram of a device with an open box and cable, showing internal components (no text or symbols)

充电指示灯

点亮： 正在充电

熄灭：充电完成

Line drawing of a DSLR camera with an attached box and adjustment knob (no text or symbols)

■ 取下电池

- 用手握住电池使其不会落下。

充电时间和可录制时间

- 当盖子完全打开时，将露出磁带仓。

Technical line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a digital camera with lens, buttons, and control panel (no text or symbols)

: 磁带录制模式

▲	▶/11	回放 / 暂停	-29-
▼	■	停止	-29-
◀	◀◀	倒带 ( 倒带搜索回放 )	-29-
▶	▶▶	快进 ( 快进搜索回放 )	-29-

4) 记忆卡录制模式

([AUTO/MANUAL/FOCUS] 开关设置为 [AUTO])

⑥ 慢动作 / 逐帧快进按钮 [◀, ▶] (◀: 向后, ▶: 向前 -29.

⑩ 拍照按钮 [PHOTO SHOT]*

⑪ 倒带 / 倒带搜索按钮 [◀◀]

⑫暂停按钮 [Ⅱ]

⑬停止按钮 [■]

Diagram of a camera with light rays projecting onto a rectangular object (no text or symbols)

■ 关于夹子 （在背面）

Line drawing of a DSLR camera with a circular dial showing control knob (no text or symbols)

1 按录制开始 / 停止按钮开始录制。

Illustration of a camera and a monkey photo (no text or symbols)

Black-and-white photo of two women posing with a teddy bear and stuffed animals (no visible text or symbols)

Two-panel image: left shows a circular arrow symbol with directional arrows, right shows a person holding a phone icon (no readable text or symbols)

空白搜索功能

Diagram of a DSLR camera with a circular dial showing control buttons (no text or labels)

■ 清晰地拍摄静态图片

Black-and-white photo of a person standing on a sandy beach, wearing a conical hat (no text or symbols visible)

Diagram of a camera module with an arrow indicating rotation or change (no text or symbols present)

Technical line drawing of a mechanical device with a scroll wheel and a screen, showing no text or symbols.

Black-and-white photo showing a group of people gathered around a bicycle in an outdoor setting (no visible text or symbols)

停止录制。(淡出)

Two grayscale images showing a bicycle and a computer monitor, with no visible text or symbols.

■ 取消渐变

再次选择 [→] 指示。

■ 选择淡入 / 淡出的颜色

可以选择在渐变图片中出现的颜色。

1 设置 [设置] >> [淡入/淡出] >> [白色] 或 [黑色]。

■ 中途停止连续拍照

松开 [PHOTO SHOT] 按钮。

Three black-and-white photos showing a person in motion, a tower structure, and a child standing on a beach (no text or symbols visible)

Two grayscale images labeled 2) and 4), showing a person in two different poses: one with a small icon, the other with a circular symbol (no text or symbols present)

Three black-and-white photos showing a person in motion, a street lamp, and a child standing on a beach (no text or symbols visible)

1) [ ] 运动模式

- 录制运动场景或快速移动时的场景

2) [ ] 像像模式

- 使人物突出于背景

3) [ ] 低照度模式

- 使黑暗场景录制得更加明亮

4) [ ] 聚光灯模式


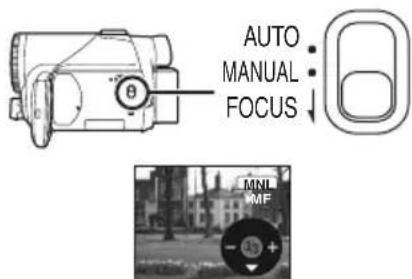

2 将 [AUTO/MANUAL/FOCUS] 开关设置为 [FOCUS]。

CLOSE (关闭 ), F16, ..., F2.0,

OPEN(打开)0dB,...,18dB

值越接近 [CLOSE] 影像越暗。

值越接近 [18dB] 影像越亮。

带有 dB 的数值是增益值。

回放模式

回放磁带

- 设置为磁带回放模式。

Line drawing of a DSLR camera with an inset circular dial showing control buttons (no text or symbols)

1 用操纵杆操作。

Two black-and-white photos: one showing a circular crosshair symbol, the other showing two people smiling (no text or symbols visible)

▶/Ⅱ: 回放 / 暂停

Black-and-white photo of two women posing with stuffed animals, no visible text or symbols

Black-and-white photo of two people posing with a teddy bear and stuffed animals (no visible text or symbols)

Black-and-white photo of two women posing with stuffed animals (no visible text or symbols)

Black-and-white photo of two women posing with stuffed animals indoors (no visible text or symbols)

Line drawing of a DSLR camera with a circular dial showing PC control (no text or symbols)

1 用操纵杆操作。

Two women posing for a photo with a circular logo in the background (no readable text or symbols)

◀: 回放前一幅图片。

▶: 回放后一幅图片。

Six black-and-white photos of people in various poses, each labeled with a camera icon and image ID (640), no text or symbols on the images themselves.

- 不能录制音频。

Black-and-white photo of two women posing with stuffed toys (no visible text or symbols)

①USB 电缆

16 bit (48 kHz/2 ch), 12 bit (32 kHz/4 ch)

画面传感器：

1/6 英寸 3CCD 画面传感器

JPEG (Design rule for Camera File system, 基于

Quick guide (English)

Power supply

Charging the battery

When this product is purchased, the battery is not charged. Charge the battery before using this product.

- If the DC input lead is connected to the AC adaptor, then the battery will not get charged. Remove the DC input lead from the AC adaptor.

1 Connect the AC mains lead to the AC adaptor and the AC mains socket.

2 Put the battery on the battery mount by aligning the mark, and then securely plug it in.

Diagram of a device with an attached package and cable, showing internal components (no text or symbols)

Charging lamp

Lights up: Charging

Goes off: Charging completed

Flashing: The battery is over discharged (discharged excessively). In a while, the lamp will light up and normal charging will start. When the battery temperature is excessively high or low, the [CHARGE] lamp flashes and the charging time will be longer than normal.

Fitting the battery

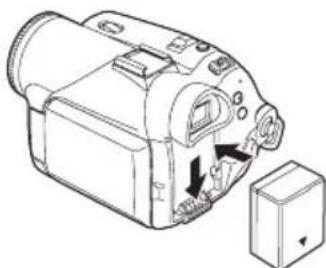

Push the battery against the battery holder and slide it until it clicks.

Line drawing of a DSLR camera with a close-up of its internal components (no text or symbols)

Removing the battery

While pushing the [PUSH BATT] button, slide the battery (or the DC input lead) to remove it.

- Hold the battery with your hand so it does not fall.

- Inserting/removing a cassette

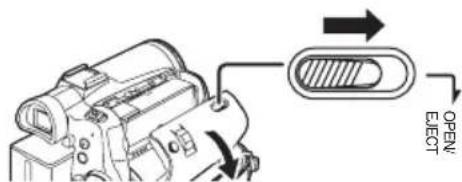

1 Slide the [OPEN/EJECT] lever and open the cassette cover.

- When the cover is fully opened, the cassette holder will come out.

2 After the cassette holder is opened, insert/remove the cassette.

Technical line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols present)

- When inserting a cassette, orient it as shown in the figure, and then securely insert it as far as it goes.

- When removing, pull it straight out.

3 Push the [PUSH] mark ① in order to close the cassette holder.

4 Only after the cassette holder is completely housed, close the cassette cover.

- Inserting/removing a card

Before inserting/removing a card, be sure to turn the power [OFF].

- If the card is inserted or removed with the power turned on, this camera may malfunction or the data recorded on the card may be lost.

1 Open the LCD monitor and then open the card slot cover.

Diagram of a vehicle's internal components with a rotational arrow indicating motion (no text or labels)

2 Insert/remove the card into/from the card slot.

Diagram of a vehicle interior showing engine compartment and door handle (no text or symbols)

• When inserting a card, face the label side ① towards you and push it straight in with one stroke as far as it goes.
• When removing the card, open the card slot cover and press the centre of the card and then pull it straight out.

3 Securely close the card slot cover.

■ Turning the camera on

When the camera is turned on with the lens cap fitted, the automatic white balance adjustment may not function properly. Please turn the camera on after removing the lens cap.

How to turn on the power

1 While pressing the button ①, set the [OFF/ON] switch to [ON].

●The power lamp lights up.

How to turn off the power

1 While pressing the button ①, set the [OFF/ON] switch to [OFF].

●The power lamp goes off.

■ Selecting a mode

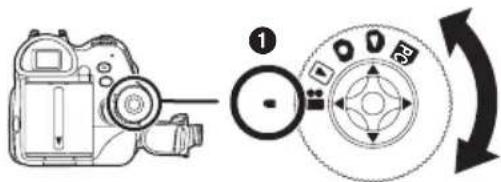

Rotate the mode dial to select the desired mode.

1 Rotate the mode dial.

- Set your desired mode to ①.

: Tape recording mode

Use this when you record the image on a tape. (Also, you can simultaneously record still pictures on a card while recording images on a tape.)

: Tape playback mode

Use this to play back a tape.

: Card recording mode

Use this to record still pictures on a card.

: Picture playback mode

Use this to play back the still pictures recorded on a card.

PC: P C mode

You can view or edit the images recorded on a card on your personal computer.

(Refer to the operating instructions for PC connection.)

■ How to use the joystick

Basic joystick operations

Operations on the menu screen and selection of files to be played back on the multi-image display

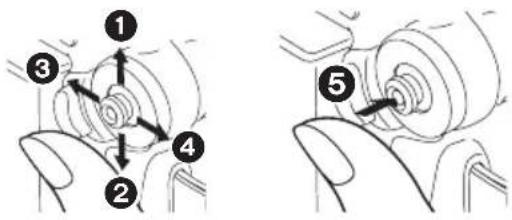

Move the joystick up, down, left, or right to select an item or file, and then push in the centre to set it.

1	Select by moving up.
2	Select by moving down.
3	Select by moving left.
4	Select by moving right.
5	Determine by pushing the centre.

Joystick and screen display

Push the centre of the joystick, and icons will be displayed on the screen. Each push switches the display as follows depending on the mode.

(In the Tape playback mode or the Picture playback mode, the icons will be automatically displayed on the screen.)

1) Tape recording mode

([AUTO/MANUAL/FOCUS] switch is set to [AUTO])

▲		Tele-macro
▼		Soft skin mode
◀		Fade
▶		Backlight compensation
▲	Night view/0 Lux night view
▼		Recording check

2) Tape recording mode

([AUTO/MANUAL/FOCUS] switch is set to [MANUAL])

▼	White balanceShutter speedIris or gain value
▲	+	Select/Adjust
◀	—	Select/Adjust

3) Tape playback mode

▲	▶/■	Playback/pause
▼	■	Stop
◀	◀Rewind (review playback)
▶	▶Fast forward (cue playback)

4) Card recording mode

([AUTO/MANUAL/FOCUS] switch is set to [AUTO])

▲		Tele-macro
▼		Soft skin mode
▶		Backlight compensation

5) Card recording mode

([AUTO/MANUAL/FOCUS] switch is set to [MANUAL])

▼	White balanceShutter speedIris or gain value
▶	+	Select/Adjust
◀	—	Select/Adjust

6) Picture playback mode

▲	▼	Playback/stop
▼	苗	Erase
◀	◀	Playback previous picture
▶	◀	Playback next picture

Switching the language

You can switch the language on the screen display or the menu screen.

1 Set [LANGUAGE] >> [English].

• The menu corresponding to the mode selected by the mode dial is displayed.
• Do not switch the mode dial when the menu is displayed.

2 Move the joystick up or down in order to select the top menu.

3 Move the joystick right or press it to set the selection.

Two circular diagrams with arrows indicating rotational or directional movement, no text or symbols present.

4 Move the joystick up or down in order to select the sub-menu.

5 Move the joystick right or press it to set the selection.

Two circular diagrams showing directional arrows, no text or symbols present

6 Move the joystick up or down in order to select the item to be set.

7 Press the joystick to determine the setting.

To get back to the previous screen

Move the joystick left.

To exit the menu screen

Press the [MENU] button.

■ Recording on a tape

- Set to Tape Recording Mode.

Diagram of a digital camera with a circular dial showing four rotary buttons (no text or labels)

1 Press the recording start/stop button to start recording.

Illustration of a camera and a monkey photo (no text or symbols)

2 Press the recording start/stop button again to pause recording.

Black-and-white photo of two women posing with teddy bear toys (no visible text or symbols)

■ Recording still pictures on a card while recording image onto a tape

You can record still pictures while recording image onto a tape.

- Set to Tape Recording Mode.

1 Press the [PHOTO SHOT] button fully while recording image onto a tape.

■ Recording still pictures onto a card (Photoshot)

- Set to Card Recording Mode.

Diagram of a DSLR camera with an inset circular dial showing control buttons (no text or symbols)

1 Press the [PHOTO SHOT] button.

■ Zoom in/out function

You can zoom in up to 10× optically.

- Set to Tape/Card Recording Mode.

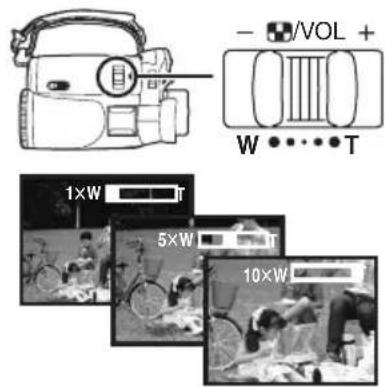

1 Wide-angle recording (zoom out): Push the [W/T] lever towards [W]. Close-up recording (zoom in): Push the [W/T] lever towards [T].

Line drawing of a DSLR camera with control panel and navigation icons (no text or symbols)

1 Operate with joystick.

Two black-and-white photos: one showing a circular arrow symbol, the other showing two people with directional arrows (no text or symbols)

▶/■: Playback/Pause
◀◀: Rewind/Review playback (Reverts to playback with the ▶/■■ icon.)
▶▶: Fast forward/Cue playback (Reverts to playback with the ▶/■■ icon.)
■: S t o p

To adjust volume

Adjust the speaker or headphone volume for playback.

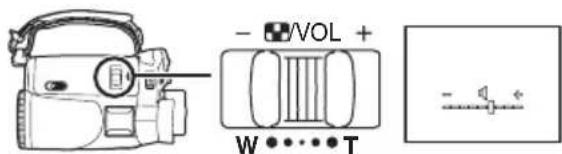

1 Move the [-☐/VOL+] lever to adjust the volume.

Towards [+]: increases the volume

Towards [-]: decreases the volume

(Nearer the bar to [+] , larger the volume.)

■ Playback on TV

Images recorded by this camera can be played back on a TV.

- Insert a recorded tape into this camera.

1 Connect the movie camera and a TV.


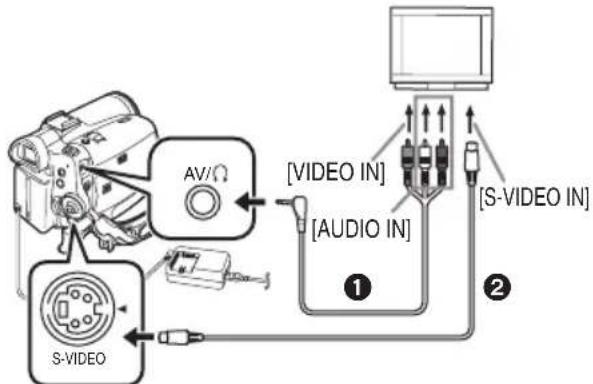

- Connect the movie camera and a TV by using the AV cable ①.

- If the TV has an S-Video terminal, then also connect an S-Video cable ② (optional). It allows you to enjoy more beautiful images.

2 Turn on this camera and set the mode dial to the Tape Playback Mode.

3 Select the input channel on the TV.

4 Move the joystick up to select the [▶/■] icon to start playback.

●The image and audio are output on the TV.

5 Move the joystick down to select the [■] icon to stop playback.

■ Playing back card

- Set to Picture Playback Mode.

Diagram showing a DSLR camera and its corresponding circular control dial (PC), no text or symbols present.

1 Operate with joystick.

Two women smiling, one holding a circular icon with a blue square and the Chinese character '面' (face) in the center.

◀: Plays back the previous picture.

▶: Plays back the next picture.

▶/■: Slide show (Plays back the still pictures on the card in order) start/stop

VQT0N63

F0105Nw0 ( 8000 Ⓐ )

Matsushita Electric Industrial Co., Ltd.

Web site: http://www.panasonic.co.jp/global/

松下电器产业株式会社

日本国大阪
