Product Type	Microwave Oven
Brand	Fakir
Model	MW70200
Power Supply	230-240 V ~50 Hz
Power Consumption	1200 W
Rated Microwave Output	700 W
Operating Frequency	2450 MHz
Outside Dimensions (HxWxD)	262 x 452 x 341 mm
Oven Cavity Dimensions (HxWxD)	198 x 315 x 297 mm
Oven Capacity	20 Liters
Net Weight	10.5 kg
Cooking Uniformity	Turntable System
Power Levels	6 levels (17% to 100%)
Control Type	Manual knobs (Power & Timer)
Timer Range	0-30 minutes
Door Safety Lock	Yes
Glass Tray	Included
Roller Ring	Included
Wave Guide Cover	Mica plate (do not remove)
Installation Type	Freestanding only, not built-in
Minimum Clearance	20 cm above, 10 cm back, 5 cm sides
Cleaning	Wipe with damp cloth, mild detergent; avoid abrasives
Safety Features	Grounding plug, door safety lock, auto shut-off when door opened
Certification	CE marked

Frequently Asked Questions - MW70200 FAKIR

What is the power output of the Fakir MW70200 microwave?

The rated microwave power output is 700 W.

Can I use metal containers in this microwave?

No, metal utensils or dishes with metallic trim should not be used as they can cause sparks and damage the oven.

How do I set the cooking time for less than 2 minutes?

Turn the timer knob past 2 minutes and then back to the desired time.

What should I do if the microwave is not working?

Check that it is plugged in securely, the circuit breaker is not tripped, the door is closed properly, and the timer is set. If none work, contact a qualified technician.

How do I clean the inside of the microwave?

Turn off and unplug. Wipe with a damp cloth; use mild detergent if needed. Avoid abrasive cleaners. For odors, microwave water with lemon for 5 minutes.

Can children use this microwave oven?

Only children aged 8 years and above under supervision, and only if they have been given adequate instructions on safe use.

What does the 'Wave Guide' cover do?

The mica plate covers the wave guide and should not be removed. It protects the internal components from food splatters.

What are the dimensions of the oven cavity?

The oven cavity dimensions are 198 mm (H) x 315 mm (W) x 297 mm (D).

Can I install this microwave over a range cooktop?

No, the manual warns not to install over a range cooktop or other heat-producing appliance to avoid damage.

How do I dispose of this appliance when it is no longer usable?

Do not dispose with household waste. Cut the power cord and take it to a designated collection center for electrical waste.

USER MANUAL MW70200 FAKIR

Exterior view of a Fakir Fassop microwave oven (no signage)

Simple line drawing of an open box with a paper airplane emerging from the lid (no text or symbols)

UYARI!

Teknik Özellikler

Güç Tüketimi : 230-240 V \~50 Hz, 1200 W (Mikrodalga)

İç Ölçüler : 198mm (Y) × 315mm (G) × 297mm (D)

Fırın Kapasitesi : Kompakt 20 Litre

Information about the operating instructions....20

Liability....20

Safety is important 20

Notices in the operating instructions 20

CE Declaration of Conformity....21

Usage Area....21

Unauthorized Use ....21

Important Safety Instructions....22

Unpacking and first use....26

Part Names....27

Specifications....27

Installation....28

Radio Interference 28

Microwave Cooking Principles....29

Grounding Instructions 29

Before You Call For Service....30

Thank you for purchasing Fakir MW70200 Microwave Oven which has been designed and manufactured to give you many years of trouble-free service.

Information about the operating instructions

These operating instructions are intended to enable the safe and proper handling and operation of the appliance. Read these operating instructions carefully before using the appliance for the first time.

Keep the operating instructions in a safe place. Include these operating instructions when passing the appliance on to another user.

Liability Fakir Elektrikli Ev Aletleri Dış Tic. A.Ş. will accept no

liability for damages resulting from failure to comply with the operating instructions and cannot assume any liability in case the appliance is used for other purposes than its intended use or handled, repaired or serviced improperly.

Safety is important For yours and others safety please read the instructions

before using the appliance. Please keep this instruction in a safe place for the further use. If you pass the appliance on, pass on the instructions too. Remove all packaging, but keep it until you are satisfied that the appliance is working.

Notices in the operating instructions

WARNING!

Indicates notices which, if ignored, can result in risk of in jury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

NOTICE!

Emphasizes tips and other useful information in the operating instructions.

CE Declaration of Conformity

This appliance fulfills the requirements of the Appliance and Product Safety Law (GPSG) and the EU Directives. 2004/108/EC “Electromagnetic Compatibility” and 2006/95/EC “Low-Voltage Directive”. The appliance bears the CE mark on the rating plate.

Usage Area This product designed for just household use. It is not suitable for Business and industry type. Otherwise it will be accepted as “out of warranty conditions” by Fakir Authorized Services.

Unauthorized Use The examples of unauthorized use listed here can result in malfunctions, damage to the appliance or personal injury: This appliance is not designed to be used by persons (including children) with limited physical, sensory or mental capacities or by persons lacking in experience and/or knowledge, unless they are supervised by someone who is responsible for their safety or have received instructions on how to use the appliance. Children should be supervised to ensure that they do not play with the appliance. Home appliances are not toys for children! Therefore, use and store the appliance away from the reach of children. Children do not recognize the danger involved with handling an appliance. Keep packaging films away from children - danger of suffocation!

Important Safety Instructions

When using electrical appliance basic safety precautions should be followed, including the following:

UYARI!

To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

• Read all instructions before using the appliance.
• Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
• Do not operate the oven when empty.
• Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard

WARNING!

Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

• To reduce the risk of fire in the oven cavity:
- When heating food in plastic or paper container, check the oven frequently to the possibility of ignition.
- Remove wire twist-ties from paper or plastic bags before placing bag in oven.
- If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
- Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

WARNING!

Liquid or other food must not be heated in sealed containers since they are liable to explode.

• Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle the container.
• Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
• Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.
• The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.
• Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
• Utensils should be checked to ensure that they are suitable for use in microwave oven.

WARNING!

It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.

- This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• The microwave oven is only used in freestanding.

WARNING!

Do not install oven over a range cooktop or other heat-producing appliance. if installed could be damaged and the warranty would be avoid.

• The accessible surface may be hot during operation.
• The microwave oven shall not be placed in a cabinet.
• The door or the outer surface may get hot when the appliance is operating.
• The temperature of accessible surfaces may be high when the appliance is operating.
  • The appliance shall be placed against a wall.
• Appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
  • Children being supervised not to play with appliance.

WARNING!

If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

• The instructions shall state that appliances are not intended to be operated by means of an external timer or separate remote-control system.

• The microwave oven is for household use only and not for commercial use.

• Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.

• Please secure the turn table before you move the appliance to avoid damages.

CAUTION!

It is dangerous to repair or maintain the appliance by no other than a specialist because under these circumstances the cover have to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service centre.

• The microwave oven is intended for defrosting, cooking and steaming of food only.
• Use gloves if you remove any heated food.

CAUTION!

Steam will escape, when opening lids or wrapping foil.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
• If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle.

Unpacking and first use

Unpack the device and check the content of the packaging for completeness. Should you note any damage incurred during transit, please contact your dealer immediately.

Simple line drawing of an open box with an upward arrow inside, no text or symbols present.

WARNING!

Never use a defective appliance.

NOTICE!

Keep the packaging for storage and future transports (e.g. for moves, service).

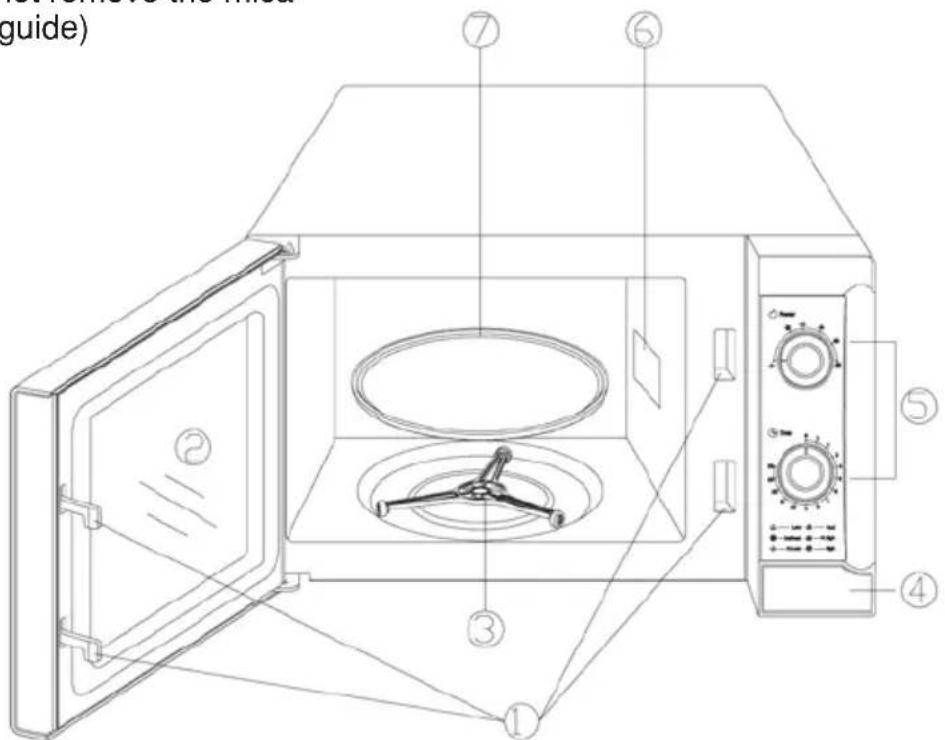

Part Names

1. Door Safety Lock System
2. Oven Window
3. Roller Ring
4. Door Release Button
5. Control Panel
6. Wave Guide(Please do not remove the mica plate covering the wave guide)
7. Glass Tray

Specifications

Power Consumption : 230-240V\~50Hz, 1200W(Microwave)

Rated microwave power output : 700W

Operation Frequency : 2450MHz

Outside Dimensions : 262mm(H)×452mm(W)×341mm(D)

Oven Cavity Dimensions : 198mm(H)×315mm(W)×297mm(D)

Oven Capacity : Compact 20Litres

Cooking Uniformity : Turntable System

Net Weight : Approx.10.5 kg

Installation

- Make sure that all the packing materials are removed from the inside of the door.

WARNING!

Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.

• This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
• Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
• For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.
• Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
• Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
• The socket must be readily accessible so that it can be easily unplugged in an emergency.
• Do not use the oven outdoors.

Radio Interference

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment.

When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or television.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

Microwave Cooking Principles

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwave cooking to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

Grounding Instructions This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING!

Improper use of the grounding plug can result in a risk of electric shock.

NOTE!

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

Before You Call For Service

If the oven fails to operate:

1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
3. Check to ensure that the control panel is programmed correctly and the timer is set.
4. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN.

DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

Utensils Guide

• The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and heat the food.
• Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.
• Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.
• Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.
• Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils.

COOKWARE MICROWAVE

Heat-Resistant Glass Yes

Heat-Resistant Ceramics Yes

Microwave-Safe Plastic Dish Yes

Kitchen Paper Yes

Metal Tray No

Metal Rack No

Aluminum Foil & Foil Containers No

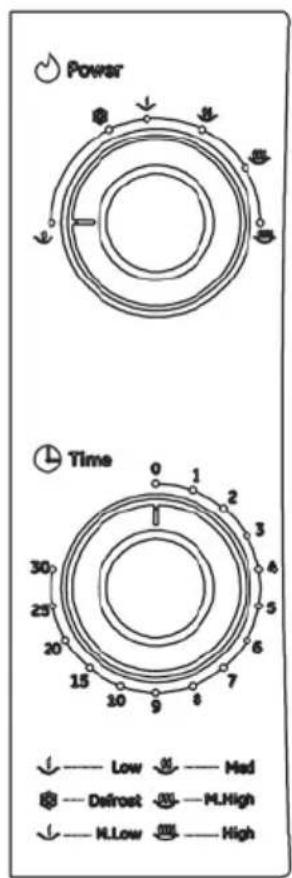

Control Panel

The control panel consists of two function operators. One is a timer knob, and another a power knob.

You use this operator knob to choose a cooking power level. It is the first step to start a cooking session.

TIMER KNOB

Offer visual timing settings at easy turn of your thumb to select a desired cooking time up to 30 minutes per cooking session.

MICROWAVE COOKING

For pure microwave cooking, there are six power levels from which to choose one as best fit to do the job at hand.

Power level increases with the knob turning clockwise. The power levels can be classified as the following:

Power Output Description

1 100% HIGH

2 85% M.HIGH

3 66% MED

4 48% M.LOW

5 40% DEFROST

6 17% LOW

Operation

To start a cooking session,

1. Place food in oven and close the door.
2. Turn Power Selector to select a power level.
3. Use Timer knob to set a cooking time

NOTE!

As soon as the timer is turned, oven starts cooking. When selecting time for less than 2 minutes, turn timer past 2 minutes and then return to the correct time.

CAUTION!

ALWAYS RETURN TIMER BACK TO ZERO POSITION if food is removed from oven before the set cooking time is complete or when oven is not in use. To stop oven during cooking process, push the door release button or open the door by the handle.

Cleaning And Care

• Turn off the oven and remove the power plug from the wall socket before cleaning.
• Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
• The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
• Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.

• Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.

• If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.

• It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
• The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.
• Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
• When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
• The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous.
• Please do not dispose this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.

Waste Disposal

If the service life of the device has ended, in particular if functional disturbances occur, make the worn-out device unusable by cutting through the power cable. Dispose of the device according to the environmental regulations applicable in your country.

Electrical waste must not be disposed of together with household waste. Bring the worn-out device to a collection center. The packaging of the device consists of recycling-capable materials. Place these, sorted out according to material, in the collectors provided, so that recycling can be carried out on them. For advice on recycling, refer to your local authority or your dealer.

This appliance fulfills the requirements of the 2002/96/EC WEEE regulations.

Dispatch

Carry the appliance in the original package or a similar, well-padded package to prevent damage to the appliance.

This product is produced by Guangdong Galanz microwave oven and electrical appliances manufacturing co, ltd 25 Ronggui Rd, Shunde, Foshan, Guangdong, China Tel: [phone] on behalf of Fakir Elektrikli Ev Aletleri Dış Ticaret A.Ş.

NOTES
