USER MANUAL SILK EPIL 7 PRO 7681 WD BRAUN

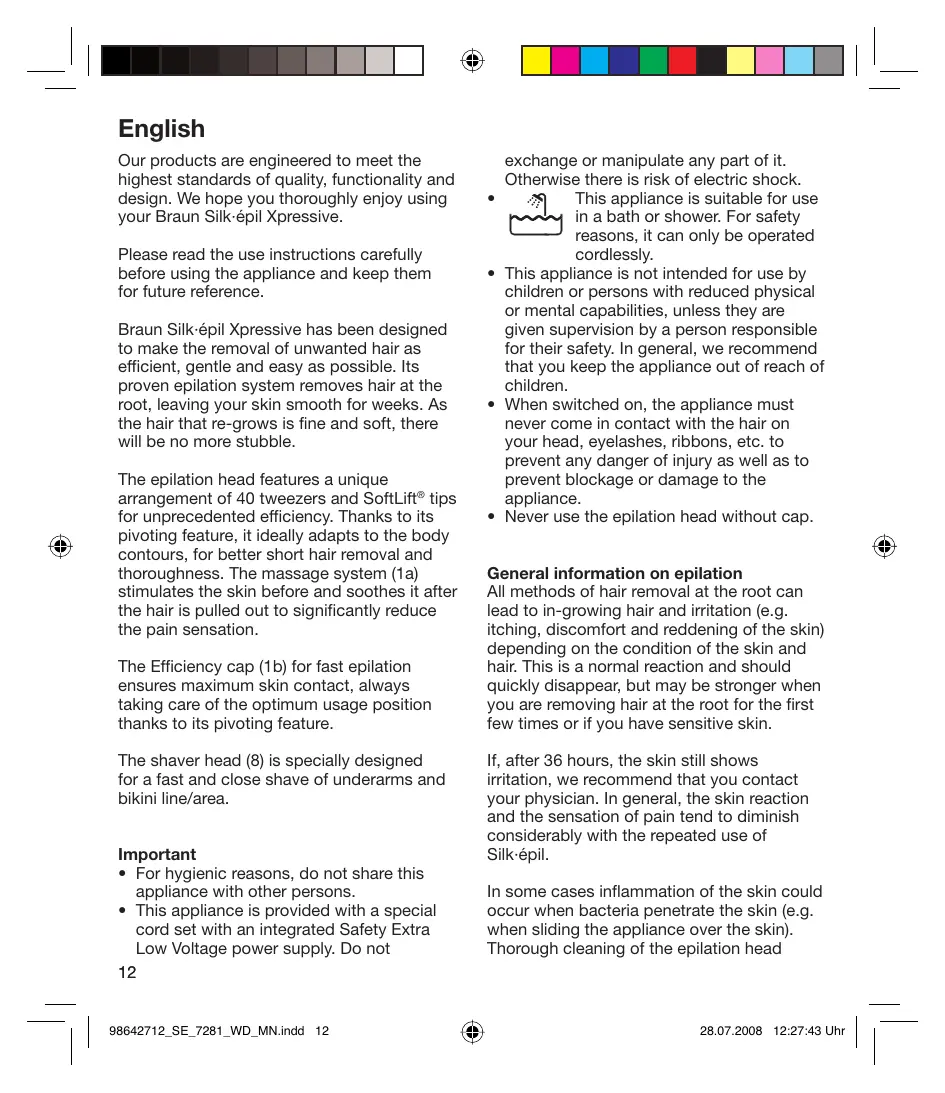

English Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy using your Braun Silk·épil Xpressive. Please read the use instructions carefully before using the appliance and keep them for future reference. Braun Silk·épil Xpressive has been designed to make the removal of unwanted hair as efficient, gentle and easy as possible. Its proven epilation system removes hair at the root, leaving your skin smooth for weeks. As the hair that re-grows is fine and soft, there will be no more stubble. The epilation head features a unique arrangement of 40 tweezers and SoftLift® tips for unprecedented efficiency. Thanks to its pivoting feature, it ideally adapts to the body contours, for better short hair removal and thoroughness. The massage system (1a) stimulates the skin before and soothes it after the hair is pulled out to significantly reduce the pain sensation. The Efficiency cap (1b) for fast epilation ensures maximum skin contact, always taking care of the optimum usage position thanks to its pivoting feature. The shaver head (8) is specially designed for a fast and close shave of underarms and bikini line/area. Important

• For hygienic reasons, do not share this appliance with other persons.
• This appliance is provided with a special cord set with an integrated Safety Extra Low Voltage power supply. Do not

98642712_SE_7281_WD_MN.indd 12

exchange or manipulate any part of it. Otherwise there is risk of electric shock. This appliance is suitable for use in a bath or shower. For safety reasons, it can only be operated cordlessly. This appliance is not intended for use by children or persons with reduced physical or mental capabilities, unless they are given supervision by a person responsible for their safety. In general, we recommend that you keep the appliance out of reach of children. When switched on, the appliance must never come in contact with the hair on your head, eyelashes, ribbons, etc. to prevent any danger of injury as well as to prevent blockage or damage to the appliance. Never use the epilation head without cap. General information on epilation All methods of hair removal at the root can lead to in-growing hair and irritation (e.g. itching, discomfort and reddening of the skin) depending on the condition of the skin and hair. This is a normal reaction and should quickly disappear, but may be stronger when you are removing hair at the root for the first few times or if you have sensitive skin. If, after 36 hours, the skin still shows irritation, we recommend that you contact your physician. In general, the skin reaction and the sensation of pain tend to diminish considerably with the repeated use of Silk·épil. In some cases inflammation of the skin could occur when bacteria penetrate the skin (e.g. when sliding the appliance over the skin). Thorough cleaning of the epilation head

28.07.2008 12:27:43 Uhr

before each use will minimise the risk of infection. If you have any doubts about using this appliance, please consult your physician. In the following cases, this appliance should only be used after prior consultation with a physician: – eczema, wounds, inflamed skin reactions such as folliculitis (purulent hair follicles) and varicose veins, – around moles, – reduced immunity of the skin, e.g. diabetes mellitus, during pregnancy, Raynaud’s disease, haemophilia, candida or immune deficiency. Some useful tips If you have not used an epilator before, or if you have not epilated for a longer period of time, it may take a short time for your skin to adapt to epilation. The discomfort experienced in the beginning will decrease considerably with repeated use as the skin adapts to the process. Epilation is easier and more comfortable when the hair is at the optimum length of 2-5 mm. If hairs are longer, we recommend that you either shave first and epilate the shorter, re-growing hairs after 1 or 2 weeks. When epilating for the first time, it is advisable to epilate in the evening, so that any possible reddening can disappear overnight. To relax the skin we recommend applying a moisture cream after epilation. Fine hair which re-grows might not grow up to the skin surface. The regular use of massage sponges (e.g. after showering) or exfoliation peelings helps to prevent in- 98642712_SE_7281_WD_MN.indd 13 growing hair as the gentle scrubbing action removes the upper skin layer and fine hair can get through to the skin surface. Description

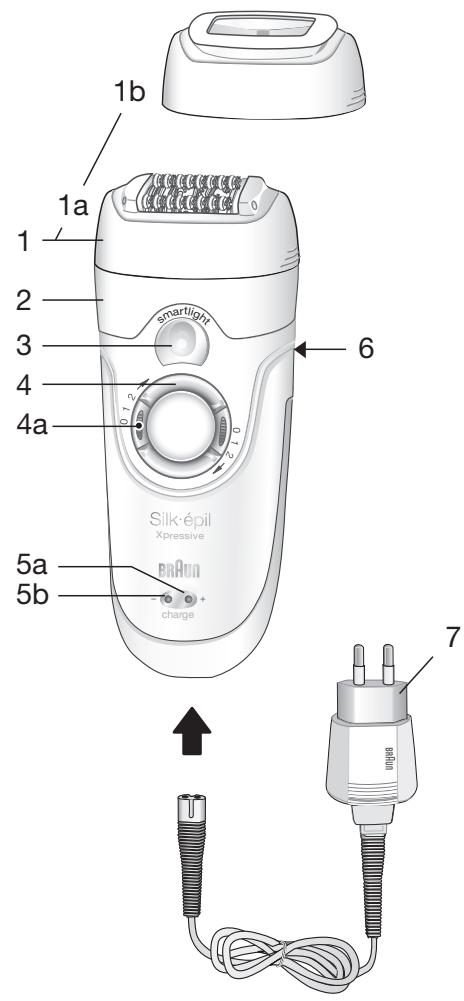

Massage system Efficiency cap Epilation head «smartlight» Switch with lock keys (4a) Charging light Low charge light Release button Special cord set Shaver head attachment with OptiTrim comb Charging

• Before use, charge the appliance. For best performance, we recommend that you always use a fully charged appliance. Using the special cord set, connect the appliance to an electrical outlet with the motor switched off. Charging time is approximately 1 hour.
• The green charging light (5a) flashes to show that the epilator is being charged. When the battery is fully charged, the charging light shines permanently. Once fully charged, use the appliance without cord.
• When the red low-charge light (5b) flashes, reconnect the appliance to an electrical outlet via the special cord set to recharge.
• A full charge provides up to 40 minutes of cordless operation time. Maximum battery capacity will only be reached after several charging/discharging cycles.
• The best environmental temperature for charging is between 5 °C and 35 °C.
• As a safety feature to avoid overheating, it may happen that the charging lights

28.07.2008 12:27:44 Uhr

flash (red/green). After cooling down, the appliance will continue charging with the green charging light flashing. Getting prepared for … … dry usage Your skin must be dry and free from grease or cream. … wet usage The appliance can be used on wet skin, even under running water. Make sure that the skin is very moist in order to achieve optimum gliding conditions for the appliance. Additionally, you may apply some shower gel to the moist skin for results that will leave your skin beautifully soft and smooth after wet epilation.

• Before use, always make sure that epilation head is clean.
• Always make sure that the epilation head (2) is provided with a cap.

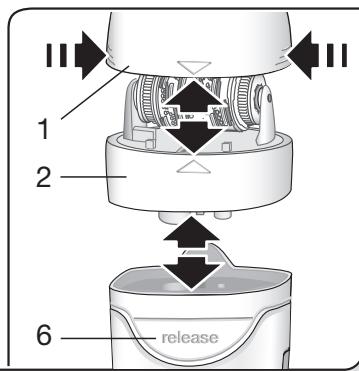

• To change caps, press their lateral ribs and pull off.
• To change heads, press the release button (6). A How to epilate 1 Turning on
• Press one of the lock keys and turn the switch clockwise to setting 2 (optimum setting). For reduced speed, choose setting 1 (soft setting).
• The «smartlight» comes on instantly and shines as long as the appliance is switched on. It reproduces an almost daylight condition, thus revealing even the finest hair and giving you a better control for improved epilation efficiency.

98642712_SE_7281_WD_MN.indd 14 2 How to guide the appliance

• Always stretch your skin when epilating.
• Always make sure that the epilation area between the massaging rollers is in contact with your skin.
• The pivoting caps automatically adapt to the contour of your skin.

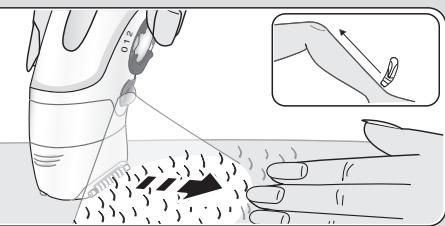

• Guide the appliance in a slow, continuous movement without pressure against the hair growth, in the direction of the switch. As hair can grow in different directions, it may also be helpful to guide the appliance in different directions to achieve optimum results. The pulsating movement of the massaging rollers stimulate and relax the skin for a gentler epilation.

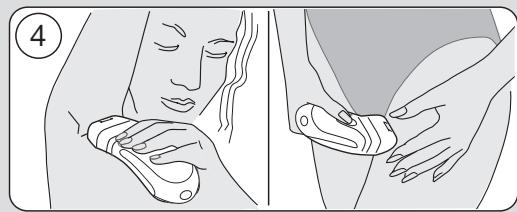

• If you are used to the sensation of epilation and prefer a faster way of removing hair, attach the Efficiency cap (1b) replacing the massage system (1a). 3 Leg epilation Epilate your legs from the lower leg in an upward direction. When epilating behind the knee, keep the leg stretched out straight. 4 Underarm and bikini line epilation Please be aware that especially at the beginning, these areas are particularly sensitive to pain. With repeated usage the pain sensation will diminish. For more comfort, ensure that the hair is at the optimum length of 2-5 mm. Before epilating, thoroughly clean the respective area to remove residues (like deodorant). Then carefully dab dry with a towel. When epilating the underarm, keep your arm raised up so that the skin is stretched and guide the appliance in different directions. As skin may be more sensitive directly after epilation, avoid

28.07.2008 12:27:44 Uhr

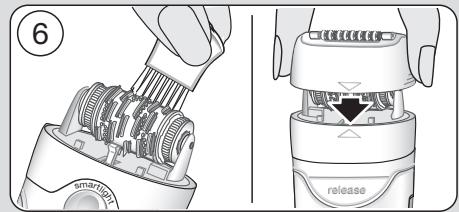

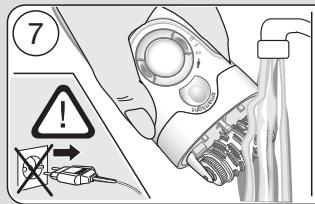

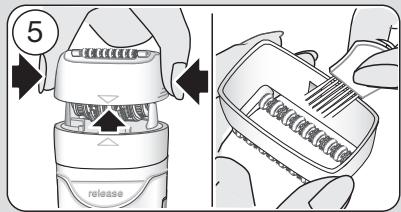

using irritating substances such as deodorants with alcohol. Overheating protection As a safety feature to avoid the unlikely event of the appliance overheating, it may happen that the appliance automatically turns off and the charging lights flash (red/green). In this case, turn the switch back to position «0» and let the appliance cool down. Cleaning the epilation head Regular cleaning ensures better performance. Brush cleaning: 5 Remove the cap and brush it out. 6 Thoroughly clean the tweezers from the rear side of the epilator head with the brush dipped into alcohol. While doing so, turn the tweezer element manually. This cleaning method ensures best hygienic conditions for the epilation head. Cleaning under running water: 7 Remove the cap. Hold the appliance with the epilation head under running water. Then press the release button (6) to remove the epilation head (2). Thoroughly shake both, the epilation head and the appliance to make sure that remaining water can drip out. Leave both parts to dry. Before reattaching, make sure that they are completely dry. B Using the shaver head attachment

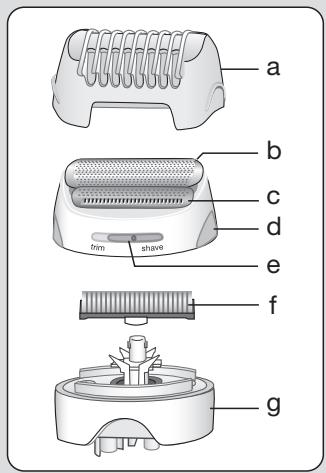

OptiTrim comb Shaver foil Trimmer Release buttons Trim/shave selector Cutter block Shaver head base Shaving

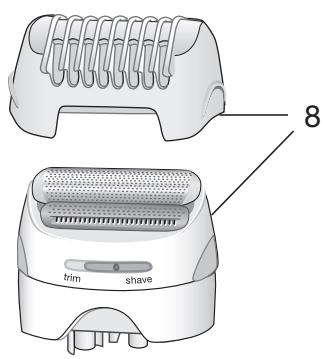

• Put on the shaver head attachment (8) by clicking it in.
• Pressing one of the lock keys, turn the switch clockwise to setting 2.
• Make sure the trim/shave selector is in the «shave» position.

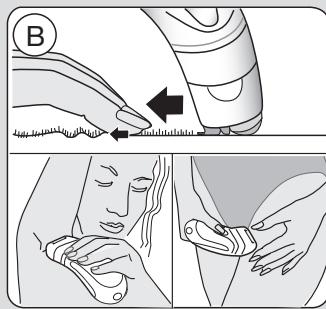

• For best results, always make sure that both, the shaver foil (b) and the trimmer (c) are in contact with the skin (A). Keeping your skin stretched (B), slowly move the appliance against the direction of hair growth. The trimmer first raises all long hairs and cuts them off. Then the flexible foil follows to smooth away any stubble.
• When shaving or trimming in sensitive areas, make sure that you always keep your skin stretched to avoid injuries. Contour trimming For trimming precise line and contours, lock the long hair trimmer by sliding the trim/ shave selector (e) to the position «trim» (C1). Pre-cutting hair for epilation If you choose to pre-cut your hair to the ideal length for epilation, place the OptiTrim comb (a) onto the shaver head. Slide the trim/shave selector to the «trim» position. Hold the appliance with the OptiTrim comb lying flat on the skin. Guide it with the comb tips against the hair growth as shown in illustration C2. N.B. As hair does not always grow in the same direction, also guide the appliance slightly diagonally or in different directions in order to achieve best results. Cleaning the shaver head After each use, unplug the appliance.

98642712_SE_7281_WD_MN.indd 15

28.07.2008 12:27:44 Uhr

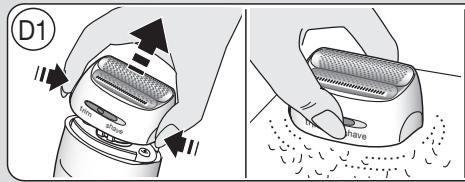

• Press the release buttons (d) to remove the shaver head (D1). Tap the bottom of the shaver head gently on a flat surface (not on the foil).

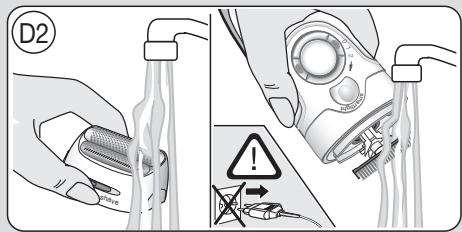

• Brush out the cutter block and the inside of the shaver head. However, do not clean the shaver foil with the brush as this may damage the foil. Cleaning with water Press the release buttons (d) to remove the shaver head. Rinse the shaver head and the cutter block separately under running water (D2). Leave the cutter block and the foil frame to dry separately before reattaching them. Keeping your shaver head attachment in top shape
• The shaving parts need to be lubricated regularly every 3 months (E). If you clean the shaver head under running water, please lubricate it after every cleaning.
• Apply some light machine oil or vaseline to the shaver foil and the metal parts of the long hair trimmer. Then remove the shaver head and also apply a tiny amount of vaseline as shown in picture section (E).

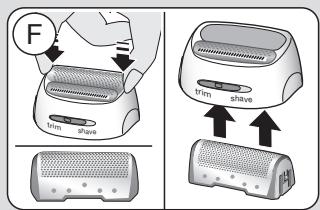

• The shaver foil and the cutter block are precision parts that wear out with time. To maintain optimum shaving performance, replace your foil and cutter block when you notice a reduced shaving performance.

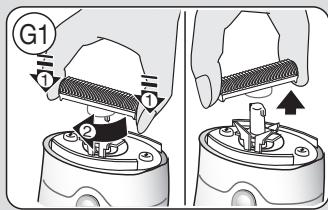

• Do not shave with a damaged foil or cord. To put on a new cutter block, press it onto the cutter block holder and turn 90° (G2). Replacements parts (shaver foil, cutter block) can be obtained from your retailer or Braun Customer Service Centres. For electric specifications, please see printing on the special cord set. The special cord set automatically adapts to any worldwide AC voltage. Environmental notice This product contains rechargeable batteries. In the interest of protecting the environment, please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country. Subject to change without notice. This product conforms to the European Directives EMC 2004/108/EC and Low Voltage 2006/95/EC. How to replace the shaving parts Shaver foil: Press the release buttons to remove the shaver head. To remove the shaver foil, press the foil frame (F). To mount a new one, insert it from inside the shaver head. Cutter block: To remove the cutter block, press and turn it 90° (G1), then take it off.

98642712_SE_7281_WD_MN.indd 16

28.07.2008 12:27:45 Uhr

Guarantee We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor. This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used. To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre. For UK only: This guarantee in no way affects your rights under statutory law.

98642712_SE_7281_WD_MN.indd 17

28.07.2008 12:27:45 Uhr

For Australia only: Warranty We grant a 24 Month Replacement Warranty on this appliance commencing on the date of purchase. This warranty applies in all States and Territories of Australia and in New Zealand and is in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. This express warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations. This warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be exchanged by your retailer, on presentation of proof of purchase. This warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct operating instructions included with this product have been followed. The warranty on any appliance replaced under this warranty ends on the expiry of the warranty period that applied to the original appliance. This warranty does not cover: A. Damage arising from improper use or operation on incorrect voltages. B. Breakages to shaver foils, glass jars, etc. C. Normal wear due to moving parts. D. Repairs undertaken by unauthorised service personnel or use of non genuine parts. E. Appliances that are outside the warranty period or are not faulty. This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance. If the appliance is supplied from a cord extension set or electrical portable outlet device these should be positioned so they are not subject to splashing or ingress of moisture. To the extent permitted by the laws of the Commonwealth of Australia and New Zealand and applicable laws of a State or Territory of Australia, and subject to the second paragraph of this warranty above, this warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manufacturer, whether at law, in tort (including negligence), in equity or under statute. Please retain proof of purchase of this appliance. If you have any questions in relation to this warranty, please call our Consumer Service line (see below for numbers). Repairs and service If you are sending your appliance for repair, please pack the appliance adequately and send it to your nearest Service Agent. For service or replacement parts refer to the authorised Service Agents listed overleaf. Local Service Agents may change from time to time – in that event please contact the Consumer Service free call number below for updated local service agent details.

98642712_SE_7281_WD_MN.indd 18

28.07.2008 12:27:45 Uhr

Australian Consumer Service (free call): New Zealand Consumer Service (free call): N2820 NEW SOUTH WALES & A.C.T. Faulder Appliance Services Shop 4, 9 Evans Road, Rooty Hill, N.S.W. 2766 Tel. (02) 9625 3064 Fax. (02) 9625 3037 SOUTH AUSTRALIA & N.T. Australian & N.Z. Service Agents VICTORIA & TASMANIA State Wide Services Pty. Ltd. trading as J A Appliances 17-19 Hossack Avenue Coburg North, Vic 3058 Tel. (03) 8371 9100 Fax. (03) 9355 8644 Email: jaappliances@ statewideservices.com.au QUEENSLAND Walters Import trading as Brisbane Appliance Service Centre 449 Beaudesert Road Moorooka QLD 4105 Adelaide Service Centre Shop B2, Parkholme Shopping Centre, 319 Oaklands Rd., Parkholme, S. Aust. 5043 Tel. (08) 8357 5800 Fax. (08) 8357 5833 NEW ZEALAND Key Service Ltd. 69 Druces Rd., Manakau City, Auckland, N.Z. Tel. (09) 262 5838 Fax. (09) 262 5839 Tel. (07) 3277 0360 Fax. (07) 3274 2909 Email: basc@waltersimport.com.au WESTERN AUSTRALIA Mark 1 Appliances Unit 1, 46 Abernethy Rd., Belmont, WA 6104 Tel. (08) 9475 0911 Fax. (08) 9475 0922
