Product Type	Warm Mist Humidifier
Brand	Easy Home
Model	EE-5201W
Dimensions (approx.)	23 x 19 x 32 cm (9 x 7.5 x 12.6 in)
Weight	1.2 kg (2.6 lbs)
Power Supply	AC 120V / 60Hz (US), or AC 220-240V / 50Hz (EU)
Power Consumption	170 W
Water Tank Capacity	1.5 L (0.4 gal)
Mist Output	Up to 200 mL/h
Coverage Area	Up to 20 m² (215 sq ft)
Noise Level	< 35 dB
Warm Mist Function	Yes, heats water before release
Auto Shut-off	Yes, when water tank is empty
Adjustable Mist	Yes, continuous or intermittent
Aromatherapy Tray	Yes, compatible with essential oils
Operation	One-button control with indicator light
Cleaning	Weekly cleaning recommended; use vinegar or descaling solution
Filter Type	No filter required; easy to clean
Safety Features	Overheat protection, auto shut-off, cool-touch housing

Frequently Asked Questions - Warm Mist Humidifier EE-5201W Easy Home

How often should I clean the humidifier?

It is recommended to clean the humidifier weekly to prevent mold and mineral buildup. Use a mixture of vinegar and water or a descaling solution.

Can I use essential oils in the Easy Home EE-5201W?

Yes, the humidifier has an aromatherapy tray where you can add a few drops of essential oils. Do not add oils directly to the water tank.

How do I turn off the warm mist function?

The EE-5201W is designed to produce only warm mist. There is no cool mist option. The water is heated before release.

What is the maximum room size for this humidifier?

The humidifier is suitable for rooms up to 20 m² (215 sq ft). For larger rooms, you may need a higher capacity model.

Does the humidifier have an auto shut-off?

Yes, the EE-5201W automatically shuts off when the water tank is empty to prevent overheating and damage.

How do I adjust the mist output?

Press the power button repeatedly to cycle through settings: continuous mist and intermittent mist. The indicator light shows the current mode.

What type of water should I use?

Use distilled or demineralized water to reduce white dust buildup from minerals. Tap water can be used but may require more frequent cleaning.

Why is the mist not coming out?

Check if the water tank is properly seated and filled. Also ensure the unit is on a flat surface. If the temperature is too high, the heating element may be on a cycle.

How loud is the humidifier?

The EE-5201W operates quietly at less than 35 dB, similar to a soft whisper, making it suitable for bedrooms and offices.

Can I use this humidifier for a baby nursery?

Yes, the warm mist can help soothe congestion and add moisture. Place it out of reach of children and use distilled water for safety.

USER MANUAL Warm Mist Humidifier EE-5201W Easy Home

English......Page 3

Cleaning and maintenance....11

Other useful informaon ....13

Technical specicaons 13

Storing 13

Main parts

1. Mist chamber
2. Humidier base
3. Water level sensor
4. Tip over switch (boom)
5. Heang element
6. Control knob
7. Indicator light
8. Reset buon (boom)
9. Medicine cup
10. Water tank
11. Water tank cap

Contents of packaging

(Note: Humidier is pre-assembled and ready to use)

• Humidier base
• Water tank
• Mist chamber
• Medicine cup
• Instrucon manual

General informaon

When using an electrical appliance, basic safety precautions should also be observed, including the following. PLEASE READ AND SAVE ALL INSTRUCTIONS BEFORE USING THE WARM MIST HUMIDIFIER.

• DO NOT carry water tank by handle when it is lled with water. It is advisable to carry lled water tank with two hands.
  • DO NOT operate outdoors. This humidier is intended for indoor use only.
• DO NOT TOUCH THE STEAM VAPOR. Steam can cause burns.
• DO NOT remove the water tank during operaon or within 15 minutes aer the humidier is turned o and unplugged. Serious injury may result.
• DO NOT operate without water. Always have water in the water tank when operang the humidier.
• Use only clean, cool tap water to ll the tank. DO NOT use hot water.
• DO NOT pour water in any openings other than the water tank.
• Be sure that the water tank cap is rmly ghtened. DO NOT aim mist directly at children, walls, furniture, or electrical appliances.
• Use only a 110-120VAC outlet. ALWAYS plug and unplug humidifier with dry hands.
• Never operate the humidier with a damaged power supply cord or plug.
• Always place the humidier on a smooth, at, lint free, non-metallic, waterproof, level surface, and away from direct sunlight. Keep the power supply cord away from heated surfaces and areas where it could be walked on or tripped over. Unplug the humidier when not in use and whenever you clean or move the humidier.
• DO NOT add medicaon of any type into the mist channel, base or water tank. Do not cover any openings on the humidier or insert objects into any openings. ONLY add liquid vapor medicine to the medicine cup included with the humidier.
• The humidier should not be le unaended in a closed room as the air could become saturated and leave condensaon on walls or furniture. Leave room door partly open.
• The humidier requires daily and weekly cleaning to operate appropriately. Refer to cleaning instrucons.
• NEVER use detergents, gasoline, glass cleaner, furniture polish, paint thinner or other household solvents to clean any part of the humidier.
• Do not It or p the unit or aempt to empty or ll it while it is in operaon.

SAVE ALL INSTRUCTIONS

Safety instrucons

WARNING: Read and understand all instrucons. Failure to follow all instrucons listed below may result in electric shock, re or serious personal injury. The warnings, cauons, and instrucon discussed in this instrucon manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and cauon are a factor which cannot be built into this product, but must be supplied by the operator.

CAUTION: A short power supply cord is provided to reduce the risk of personal injury resulting from becoming entangled in or tripping over a longer cord.

• To avoid a circuit overload when using this humidier, do not operate another high-waage product on the same electrical circuit.
• Avoid the use of an extension cord because the extension cord may overheat and cause a risk of re. However if you have to use an extension cord, the extension cord should be rated for 13 amps, 125V, 1625 was.
• The power supply cord must be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over accidentally.

Electric power

If the electric circuit is overloaded with other appliances, your humidier may not operate properly. The humidier should be operated on a separate electrical circuit from other operang appliances.

Polarized plug

This humidier has a polarized plug (one blade is wider than the other). As a safety feature to reduce the risk of electrical shock, this plug is intended to t in a polarized outlet only one way. If the plug does not t fully in the outlet, reverse the plug. If it sll does not t, contact a qualified electrician. Do not aempt to defeat this safety feature.

Safety warning

Although your Warm Mist Humidier is easy to operate, for your safety, the warnings below must be followed:

1. Do not place the Warm Mist Humidier near a heat source.

2. Never leave the Warm Mist Humidier unattended while connected to the electrical outlet.

3. To avoid any accidental burns, never put a hand over front net guard or cover when the Warm Mist Humidier is in operaon.

4. Use the Warm Mist Humidier on a stable surface away from water.
5. Do not unplug the Warm Mist Humidier by pulling on the power supply cord.
6. The Warm Mist Humidier must be unplugged:

A. Before any cleaning or maintenance.
B. Aer use.
C. If it appears to be faulty.

THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. SAVE THESE INSTRUCTIONS

User instrucons

Before First Use

CHECK HUMIDIFIER PLACEMENT - Place the Humidier on a non-metallic, lint free, waterproof, level surface for best performance. This is to help disperse the mist in the air and prevent it from being knocked or pped over.

CAUTION:

DO NOT operate the humidier without water in the water tank.

DO NOT plug in the power supply cord with wet hands; electric shock could happen.

• Be sure the humidier is switched to OFF (O) and the humidier is unplugged from the electrical outlet.
• Select a locaon for your humidier on a at surface approximately 4 inches away from a wall.
• DO NOT place the humidier on a nished oor or near furniture which can be damaged by moisture or water. Place on a water resistant surface.
• DO NOT place Humidier on top of a towel, or a carpeted surface. The air vent on the boom may become blocked, and overheat the humidier.

How to operate

CAUTION: ALWAYS USE CAUTION WHEN HANDLING WARM MIST HUMIDIFIER. DO NOT DROP THE WARM MIST HUMIDIFIER.

• Li the water tank o the humidier base.
• Turn over the water tank and unscrew the water tank cap at the boom of the tank by turning it counterclockwise. (See Fig. 1)

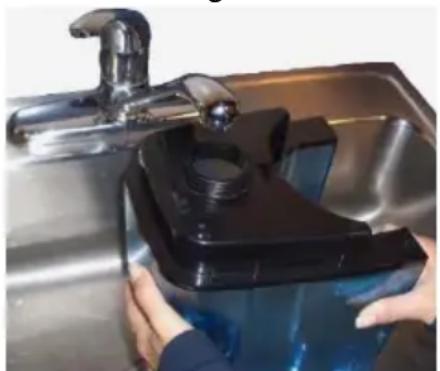

• Fill water tank with cold water; do not ll all the way to the rim. (See Fig. 2) DO NOT CARRY FULL WATER TANK BY HANDLE. ALWAYS HOLD FULL WATER TANK WITH TWO HANDS ON EITHER SIDE OF THE WATER TANK.
  • DO NOT use hot water. Use cool tap water.
  • DO NOT add any medicaon to the water.
  • DO NOT pour water into Mist Channel.

Fig. 1

Fig. 2

- Replace the water tank cap, aligning the threads on the tank with the threads on the cap, and turn it clockwise. (See Fig. 3)

- Turn the tank over, holding one hand by the top handle and another hand under the water tank. Place the full water tank on the base, making sure it is securely. Place the medicine cup on top of the mist channel.

- Plug the power supply cord into a wall socket and turn on the unit. The On/O dial is located on the base.

• The power light will turn blue.

- Use the On/O dial to adjust the intensity of the mist output by selecng either (1) for lower mist output or (2) for higher mist output.

- When the humidier runs out of water the blue power light will turn o and the mist output will stop. This safety feature sues a water level sensor to turn o the heang element once the water level sinks below the required level in the water basin. A small orange light will appear to indicate that the humidier has automacally turned o. Turn the humidier o and unplug before removing and relling the water tank.

Fig. 3

IMPORTANT: Overheat red light

When the humidier runs out of water, the BLUE light will turn o and mist will stop. If the unit has overheated, a small RED light will turn on (light will appear near the “2” on Control Knob). The RED light indicates that the unit has overheated. Turn the humidier o, unplug the unit, allow the basin and water to cool, then empty water in basin. Turn the humidier basin over and press the Reset Buon, with a pen or pencil p, on the boom of the Water Basin. This will reset the humidier.

How to use the medicine cup

- The medicine cup allows the addition of medicaons recommended for use with warm mist humidiers only.

- Remove the medicine cup from the top of the mist chamber for easier lling.

- BE CAREFUL not to overll the medicine cup. Overlling may cause medicine to spill into mist

chamber. Medicine in the mist chamber may aect the operaon of the humidier.

• Place medicine cup on the top of the mist chamber.
• DO NOT add any medicaon or other additives such as essenal oils directly to the water.

A note about humidity

• It is best to keep the humidity level at about 30-50 percent of relave humidity.
• The comfort level of humidity will vary from room to room and with changing weather conditions.
• In cold weather, windows and even some walls may fog or develop frost from excessive indoor humidity. If this occurs, reduce the mist intensity seng to avoid damage from condensed water dripping on windowsills.
• Too much humidity in the room may allow moisture to accumulate on surfaces where bacteria and fungi can grow. Moisture that gathers may also damage furniture and walls, especially wallpaper.
• To eliminate excessive humidity, especially in small rooms, leave the room door open and adjust the mist intensity control seng.

NOTE: Light Indicator

Blue Light – unit is running properly

Orange Light – unit is out of water

Red Light – unit is overheang

Troubleshoong

CAUTION: DO NOT aempt to repair the motor or nebulizer yourself. If the humidier connues to not operate please call our service center.

Problem	Soluon
If humidier does not have any power:	·Ensure unit is properly plugged into a power outlet.·Check that the Control Knob is turned to the ON posion.·If Power On indicator light does not come on, contact [e-mail].
Condensaon forms around humidier and windows:	·Adjust Control Knob to decrease mist output to low.·Leave room door cracked open during humidier operaon.
If humidier has stopped, BLUE light is o and small RED light is on:	·Adjust Control Knob to turn humidier o and unplug. Empty water basin, turn over and using a ny object, press the center of the Red Reset Buon on boom of humidier.
If there is a strange odor:	·Clean the Water Tank with the water and vinegar soluon and rinse with clean water.·Leave the empty Water Tank open for some me (without the Water Tank Cap aached) in a cool place.
The power indicator light is blue, but there is no mist being emied:	·Check that there is water in the Water Tank.·Make sure that nothing is blocking the mist output.·Check that the Fan Vent on the boom of the humidier is not blocked.·Empty and rinse the Water Basin with cool tap water.·Check for possible mineral deposits on the Water Level Sensor and Heang Element.

Cleaning and maintenance

Care and cleaning

Portable humidiers require regular cleaning in order to reduce the risk of bacterial growth, and to remove any scale residue to maintain good operational performance. Follow the procedures below for healthy maintenance of your Warm Mist Humidier.

How to clean the water tank

1. Turn switch to o (O) and unplug from the wall outlet.
2. Be sure the unit has cooled for at least 15 minutes. Li the water tank from base and place in sink or tub.
3. Fill water tank with 1/2 cup water and 1 tablespoon of vinegar.
4. Let stand twenty minutes, shaking vigorously with two hands every few minutes.
5. Carefully empty the tank aer 20 minutes, and rinse with warm water until you can no longer detect a vinegar smell.

How to clean the heang element in the base

1. To remove the mist chamber, slide the mist chamber latch to the le and carefully li the mist chamber o the water basin.
2. Fill the heang element with undiluted white vinegar.
3. Let stand for 20 minutes. Dampen so, clean cloth or sponge with undiluted white vinegar and wipe out heang element to remove scale. DO NOT use soap, detergents or abrasive cleaners.
4. Rinse heang element using clean warm water, being careful not to submerge the base in the water. Dry thoroughly. DO NOT IMMERSE WATER BASIN IN WATER.
5. Soak the removable mist chamber in a solution of equal parts white vinegar and water for 20 minutes. Rinse thoroughly and then wipe dry with a so clean cloth.
6. To each the mist chamber, slide the mist chamber latch to the le and place the mist chamber onto the water basin. Release the latch to secure the mist chamber to the water basin.

How to clean humidier exteriors

1. DO NOT IMMERSE THE BASE IN WATER OR ANY OTHER LIQUID. An electric shock may result or the humidier may be damaged.
2. Wipe all exterior surfaces of the base with a so, dry cloth.

Daily maintenance

1. Turn switch to o (O) and unplug from the wall outlet.
2. Be sure the unit has cooled for at least 15 minutes. Li the water tank from base and place in sink or tub.
3. Carry the humidier base to the sink and drain any remaining water. Wipe clean and dry with a clean cloth.
4. Drain water from the water tank. Wipe clean, and dry with a clean cloth. Let the water tank air dry when not in use.

Weekly maintenance (Removing scale)

NOTE: We recommend cleaning the humidier WEEKLY or more oen if you have hard water or noce a build-up of impurities or detect unpleasant odors.

Repeat steps 1-4 above.

End of season maintenance and storing

1. Follow above weekly cleaning procedure at the end of the humidicaon season, or when the humidier will not be used for several days, being sure to dry all parts. Allow the water tank to thoroughly air dry before storage. DO NOT store with water inside any part of the humidier.
2. Leave tank cap parally loosened during storage to prevent tank cap and gasket from scking together. This will prolong the life of the gasket.
3. Save original box for easy storage. Store humidier in a cool dry location. Do not place any heavy items on top of humidier during storage as this may result in possible damage of humidier.

IMPORTANT: Failure to keep this humidier clean from mineral deposits normally contained in any water supply will act the eciency of the operaon. Customer failure to follow these instrucons may void the warranty.

CAUTION:

Always be sure that the humidier is unplugged and switched OFF before cleaning or aempng to store the humidier. NEVER PLUG OR UNPLUG HUMIDIFIER WITH WET HANDS.

DO NOT leave water in the water tank or water basin when the humidier is not in use. If water remains in the water tank for more than a day or two, bacterial growth is possible.

Other useful informaon

Technical specicaons

Model Number EE-5201W

Rang Voltage 120V – 60Hz

Rated Waage 280W

Storing

• Store the Warm Mist Humidier in a dry locaon.
• Do not place any heavy items on top of item during storage as this may result in possible damage.

Service center

If you have any quesons in regards to the operaon of this appliance please contact our service center at:

Tel: [phone]

Business Hours: Mon-Fri 10:00am – 5:00pm EST

Email: [e-mail]

Environmental protecon

If the appliance should no longer work at all, please make sure that it is disposed of in an environmentally friendly way.

Contenido

Lista de componentes ....15

Contenido ....15

Información general....4

Fig. 1

Fig. 2

LAS DOS MANOS, UNA MANO DE CADA LADO DEL TANQUE.

Fig. 3

*We recommend you keep the receipt with this warranty card

Locaon of purchase

Descripon of malfuncon:

Return your completed warranty card to:

Wachsmuth & Krogmann, Inc.

1015 Hawthorn Drive

Itasca, IL

60143

USA

[e-mail]

AFTER SALES SUPPORT

51262

888 367 7373

[e-mail]

MODEL:

EF-5201W

12/2016

Customer Service Phone

Hours:

Monday – Friday

10:00am - 5:00pm EST

2

YEAR WARRANTY AÑOS DE GARANTÍA

ALDI INC. FULL WARRANTY CONDITIONS

Dear Customer:

The ALDI warranty is a fully warranty oering you the following benets:

Warranty period: 2 years from date of purchase.

6 months for movable parts and consumables under normal and proper conditions of use (e.g. rechargeable baeries).

Costs: Free repair/exchange or refund.

No transport costs.

ADVICE:

Please contact our service hotline by phone, e-mail or fax before sending in the device. This allows us to provide support in the event of possible operator errors.

In order to make a claim under the warranty, please send us:

The faulty item with all the component parts, the original receipt and the warranty card properly completed.

The warranty does not cover damage caused by:

Accident or unanticipated events (e.g. lightning, water, re).

Improper use or transport.

Failure to follow the safety and maintenance instrucons.

Other improper treatment or modicaon of the product.

Aer the expiraon of the warranty period, you may wish to have your product repaired at your own expense.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state but this warranty is not intended to exceed statutory minimum requirements beyond what is included above.

This warranty does not limit the statutory obligaon of the seller arising from any implied warranes. The period of warranty can only be extended in accordance with applicable law.

Neither the service company nor ALDI will assume any liability for data or sengs stored on any returned product.

TARJETA DE GARANTÍA

10:00a.m. - 5:00p.m.
