Product Type	Baby Cot / Toddler Bed
Brand	Silver Cross
Model	Soho
Recommended Mattress Size	1400 x 700 mm (55 x 27.6 inches)
Maximum Mattress Thickness	10 cm (4 inches)
Age Range	Birth up to approximately 4 years
Safety Standards	BS EN 716-1:2008 + A1:2013 (cot), BS 8509:2008+A1:2011 (toddler bed)
Material	Wood (natural finish, color darkens with age)
Assembly	Required, recommended for two people
Mattress Base Positions	3 positions; lowest is safest
Convertible	Yes, converts to toddler bed
Dropside	Yes, must be in highest position when child unattended
Cleaning Instructions	Wipe with damp cloth and dry immediately; do not use abrasives, bleach, alcohol, or ammonia
Maintenance	Regularly check and tighten all fittings
Spare Parts	Available from Silver Cross
Warning	Keep away from heat sources, open fire, and other furniture
Warning	Do not use if any part is broken, damaged, torn, or missing
Warning	Ensure gap between mattress and sides/ends does not exceed 30 mm
Manual Pages	16
Manual Language	English
Brand Country	UK (Silver Cross UK Ltd)
Minimum Internal Depth (lowest position)	At least 500 mm from mattress surface to top of side
Minimum Internal Depth (highest position)	At least 200 mm from mattress surface to top of side
Usage	Discontinue use once child can climb out of cot

Frequently Asked Questions - Soho Silver Cross

What size mattress is needed for the Silver Cross Soho?

The recommended mattress size is 1400 x 700 mm (55 x 27.6 inches). The mattress must not exceed 10 cm (4 inches) in thickness.

How do I assemble the cot?

Assembly requires two people. Follow the step-by-step instructions in the manual (16 pages). Ensure all fittings are tightened properly and checked regularly.

Can the cot be converted into a toddler bed?

Yes, the Silver Cross Soho converts to a toddler bed suitable for children up to approximately 4 years.

What safety standards does the cot comply with?

It complies with BS EN 716-1:2008 + A1:2013 for cots and BS 8509:2008+A1:2011 for toddler beds.

How do I clean the cot?

Clean by wiping with a damp cloth and drying immediately. Do not use abrasives, bleach, alcohol, or ammonia-based products.

Why is the lowest mattress position the safest?

The lowest position reduces the risk of falls as the baby grows and can sit up. It also maintains a safe internal depth of at least 500 mm from mattress surface to the top of the side.

Can I move the cot with my child inside?

No, never move the cot with a child in it. Always place the cot on a level, stable surface away from electrical sockets.

Where can I get spare parts?

Approved replacement parts can be obtained from Silver Cross. Do not use the product if any part is damaged.

What is the maximum gap allowed between the mattress and the cot sides?

The gap between the mattress and the sides/ends must not exceed 30 mm.

How do I ensure the dropside is safe?

Always make sure the dropside is in the highest position when leaving the child unattended in the cot. Regularly check that the mechanism is secure.

USER MANUAL Soho Silver Cross

THE BEST START IN LIFE

IMPORTANT: THE ASSEMBLY OF THIS PRODUCT REQUIRES TWO PEOPLE

IMPORTANT: KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

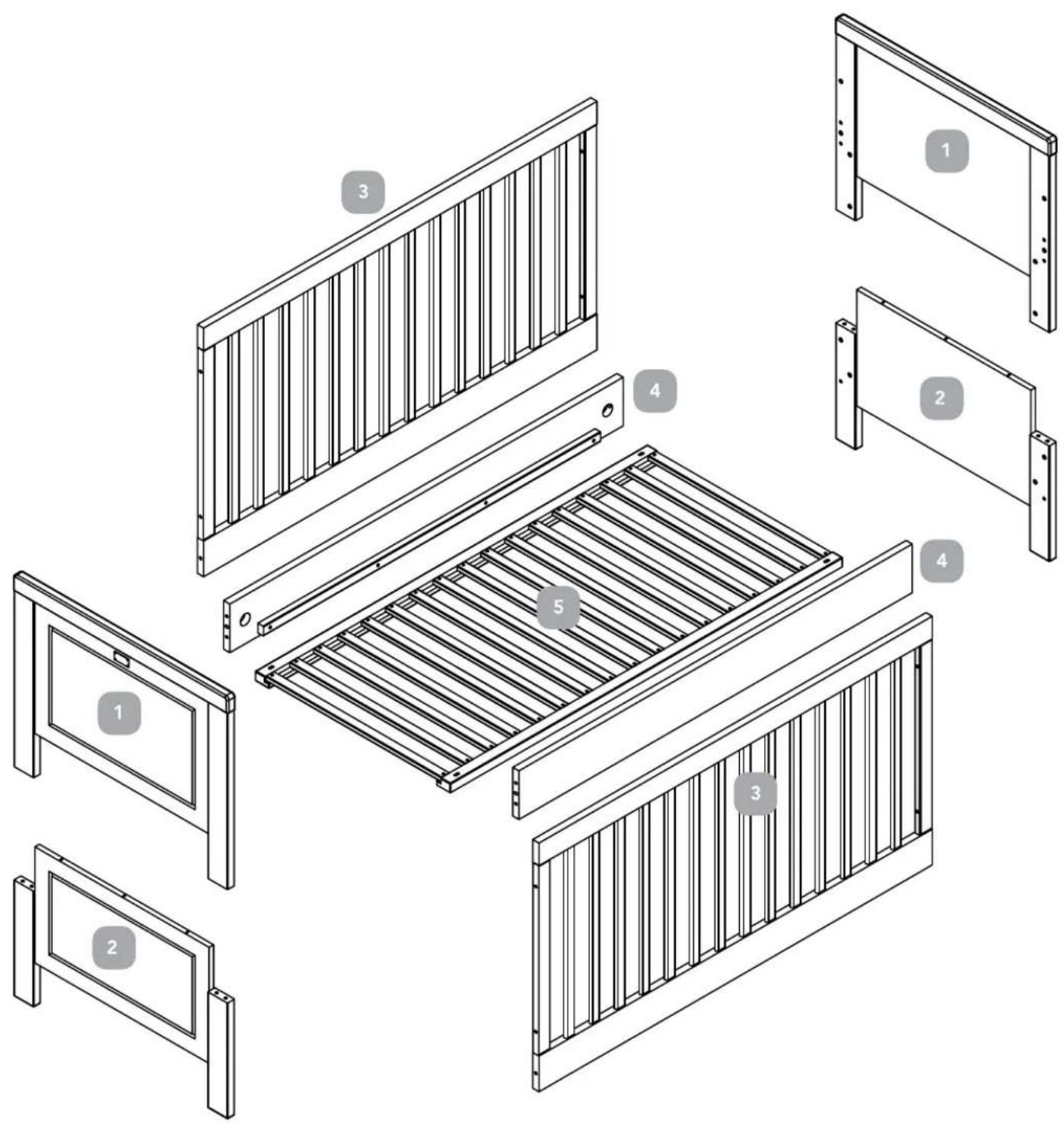

Parts list:

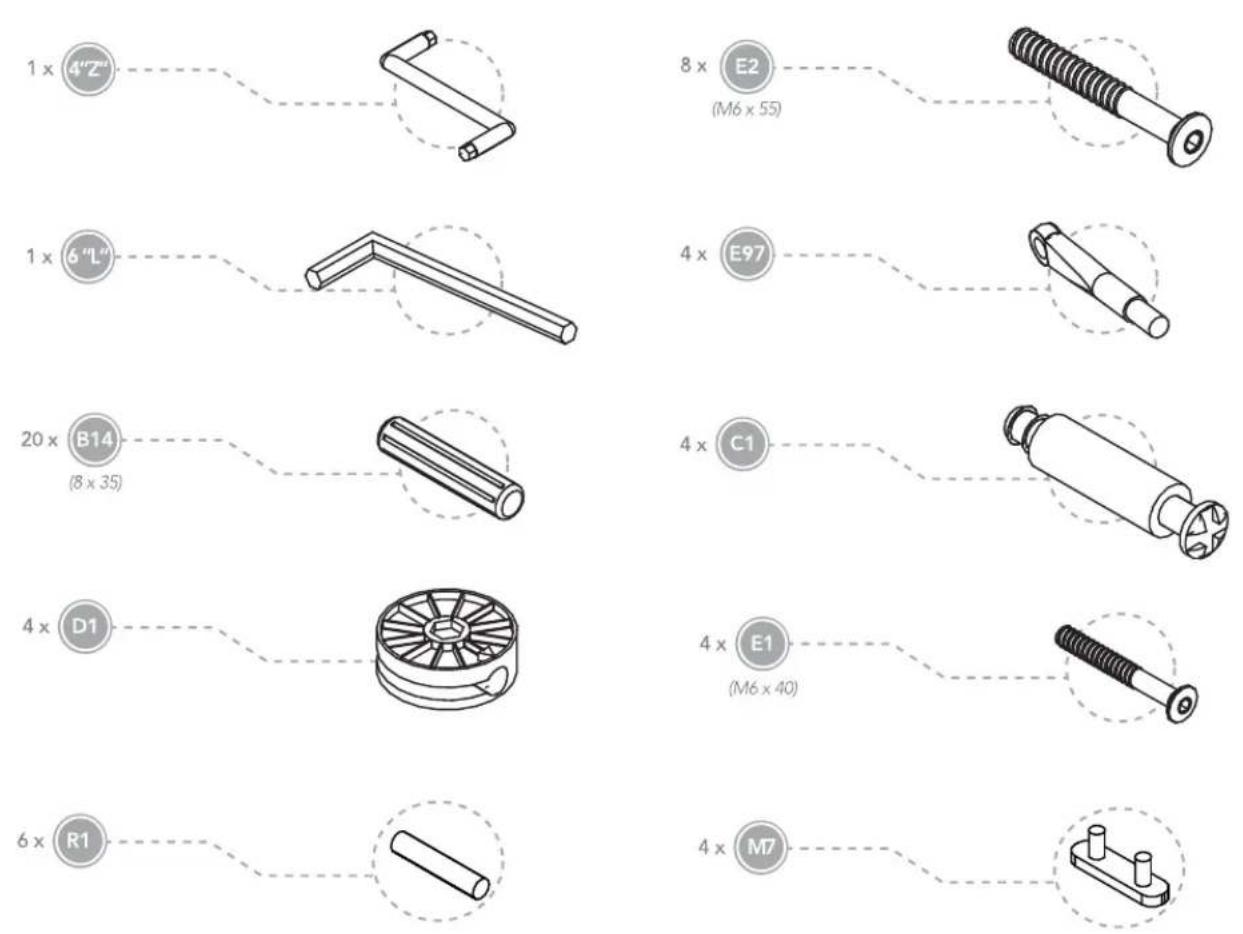

Fittings list:

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Step 6:

Step 7:

The cot base can be fitted in three positions.

The lowest position is the safest.

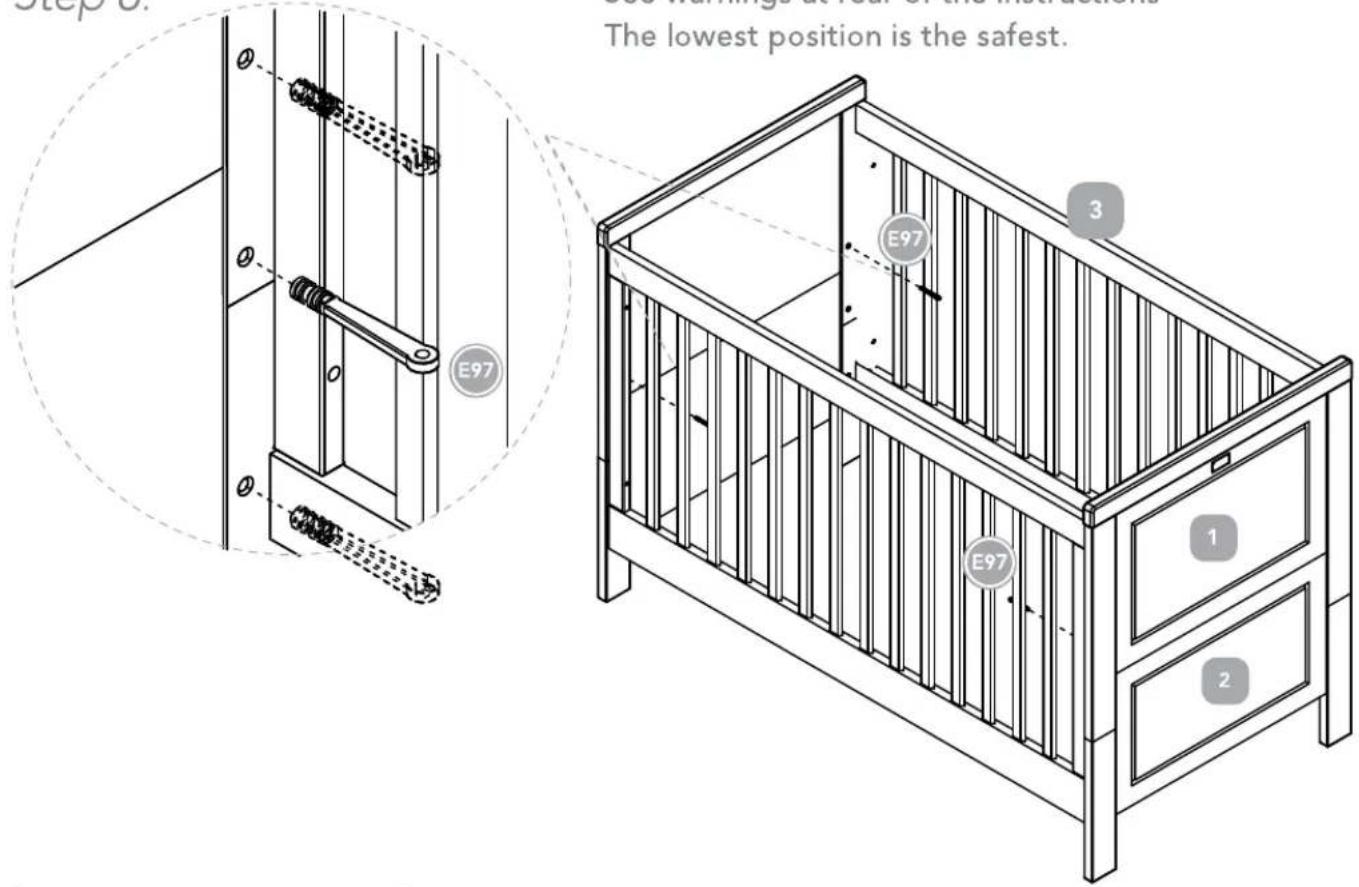

Step 8:

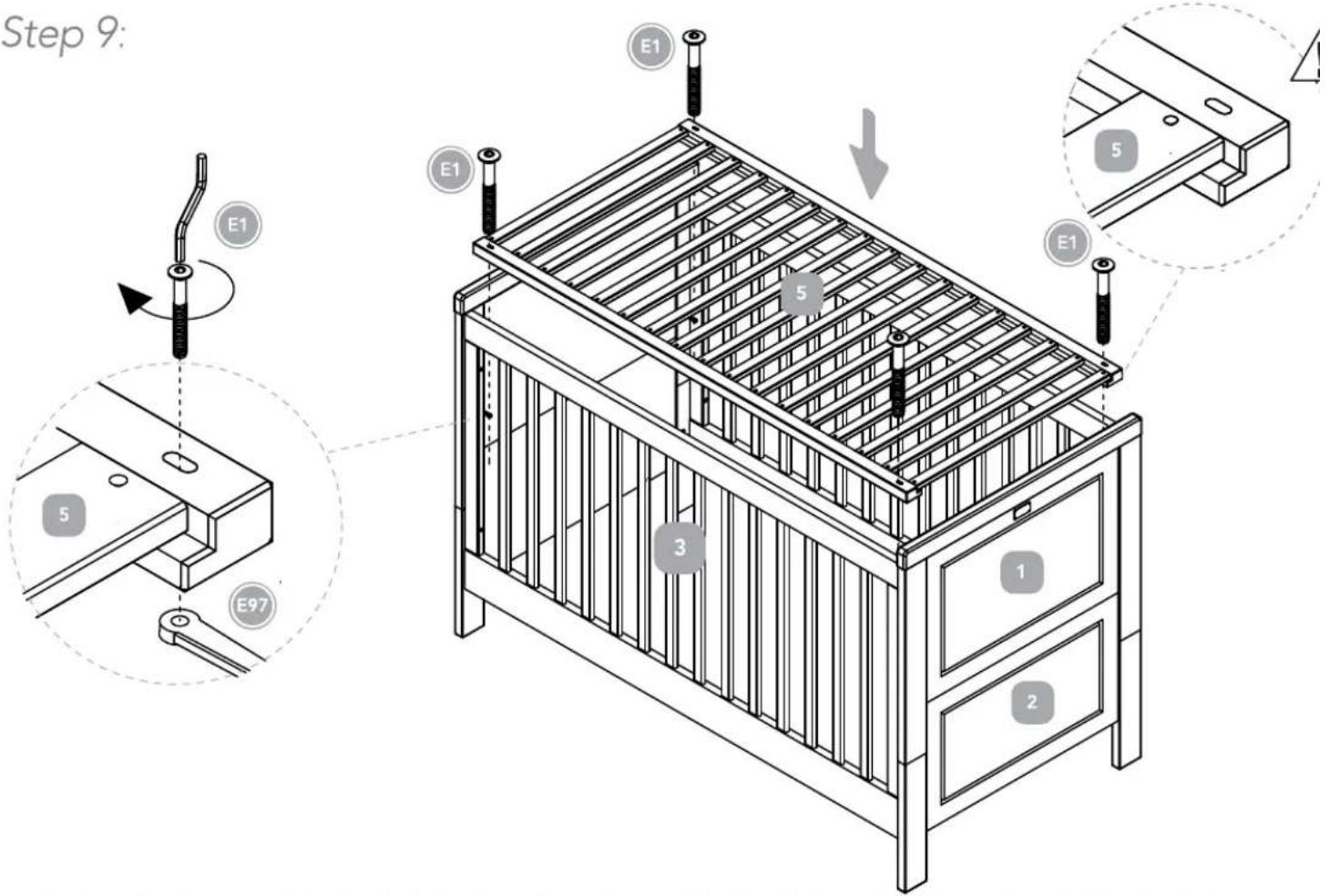

See warnings at rear of the instructions The lowest position is the safest.

Step 10:

Step 11:

Step 12:

Step 13:

Step 14:

Step 15:

Step 16:

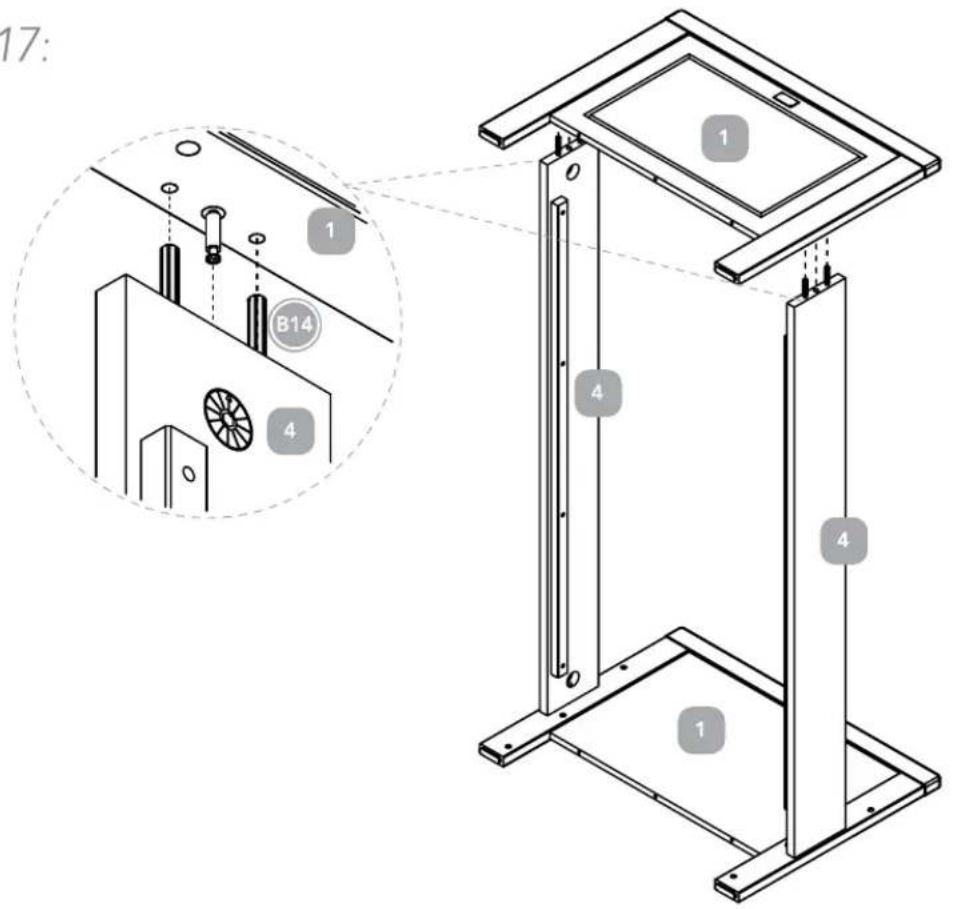

Step 17:

Step 18:

Warnings & Instructions For Safe Use & Maintenance

WARNING: Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires etc, in the vicinity of the cot/bed.

WARNING: Do not use the product if any part is broken, damaged, torn or missing. Approved replacement parts can be obtained from Silver Cross.

WARNING: Do not leave anything in the cot/bed, or place it close to another product which provides a foothold or presents a danger of suffocation or strangulation. For example strings, blind/curtain cords etc.

WARNING: Children are likely to play, bounce, jump and climb on beds, therefore the child's bed should not be placed too close to other furniture or windows, and should be placed either tight to any wall or have a gap of 300mm between the wall and the side of the bed.

WARNING: Do not place this child's bed near heat sources, windows and other furniture.

The lowest position of the mattress base is the safest, and should be used as soon as the baby is old enough to sit up. To prevent injury from falls, when the child is able to climb out of the cot, the cot shall no longer be used for that child.

Thickness of the mattress chosen must not reduce the internal depth (from mattress surface to top of the side) to less than 500mm with the base in its lower position or 200mm with the base in its higher position.

Maximum 10cm thick mattress to be used with this cot bed.

If you leave the child unattended in the cot, always make sure that the dropside is in the highest position.

All assembly fittings should be tightened properly, checked regularly and re-tightened as necessary.

Screws and bolts should not be loose because a child can squeeze parts of the body, or clothing e.g string, necklaces, ribbons for babies dummies etc. could get caught. There would be a danger of strangulation.

The cot/bed must be used on a level and stable surface, away from electric sockets. Once assembled do not dismantle. Never move the cot/ bed with a child in it.

Excessive chewing may damage the wood and cause splintering. If any part is damaged stop using until the correct replacement part has been obtained from Silver Cross.

Your cot/bed can be cleaned by wiping with a damp cloth and drying immediately with a soft clean cloth.

Do not use abrasives, bleach, alcohol or ammonia based household polishes.

Take care when handling or moving furniture, careless handling can damage wooden furniture.

Wood is a natural material, the colour will darken with age.

The size of the mattress to be used with the child's bed is 1400x700mm.

Cot conforms to BS EN 716-1:2008 + A1: 2013 and toddler bed to BS 8509:2008+A1:2011.

Cots which convert to toddler beds are intended from birth up to approximately 4 years.

The mattress length and width shall be such that the gap between the mattress and the sides and ends does not exceed 30mm.

THE BEST START IN LIFE

Silver Cross (UK) Ltd, Micklethorn, Broughton, Skipton, North Yorkshire, BD23 3JA
